Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
1 / 5
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump

Super Low Temperature Floor Heating Split Type Geothermal Heat Pump

Customization: Available
Certification: CCC, CE
Heat Source Type: Air Source Heat Pump
Send Inquiry

Product Description

Basic Information
Model NO.
HCA
Color
White / Optional
Delivery Time
30 Days
Tailor Made
Available
OEM/ODM
Available
Capacity
8 / 13.5 / 16kw
Refrigerant
R22 / R407c / R410A
Compressor Type
EVI Scroll
Compressor Brand
Copeland
Transport Package
Film / Wooden Package
Origin
China
Production Capacity
5000 Sets
Super Low Temperature Floor Heating Split Type Geothermal Heat Pump
Product Features
STRUCTURE
Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
HERMETIC COMPRESSOR
The units use high efficiency, hermetically sealed compressors, oil return lubrication and rubber vibration damper. Integrated thermal overload cut-out, phase sequence relay and crankcase heater for enhanced reliability.
AXIAL FAN
External rotor type axial fans, equipped with three-phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
EVAPORATOR & CONDENSER
Evaporator: High efficiency plate type heat exchanger, factory insulated with flexible close cell material.
Condenser: Seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins.
ELECTRIC PANEL
Consists of compressor contactor, fan motor contactor, protection breakers, phase sequence relay, and microprocessor with function display. Automatic operation reduces maintenance costs.
Technical Specifications
Model 08 14 16
Power supplyV/Ph/Hz220/1/50220/1/50220/1/50
7ºC AmbientHeating capacitykW813.516
Input powerkW2.64.45.2
Input currentA12.421.124.8
Minus 12ºC AmbientHeating capacitykW5.18.39.7
Input powerkW2.373.94.55
Input currentA1120.824.7
35ºC AmbientCooling capacitykW711.513.5
Input powerkW2.554.25.1
Compressor/Enhanced Vapor Injection (EVI) scroll
RefrigerantType/R22 / R407C
Charge volumekg3.54.22*3.5
Suit Ambient Temp RangeºCMinus 25ºC to 45ºC
Outdoor UnitDimensionmm1025*375*8451025*375*13851160*565*1455
Net weightkg80102185
Indoor UnitDimensionmm430*250*680430*250*680727*290*610
Net weightkg304050
Factory & Production
Factory View

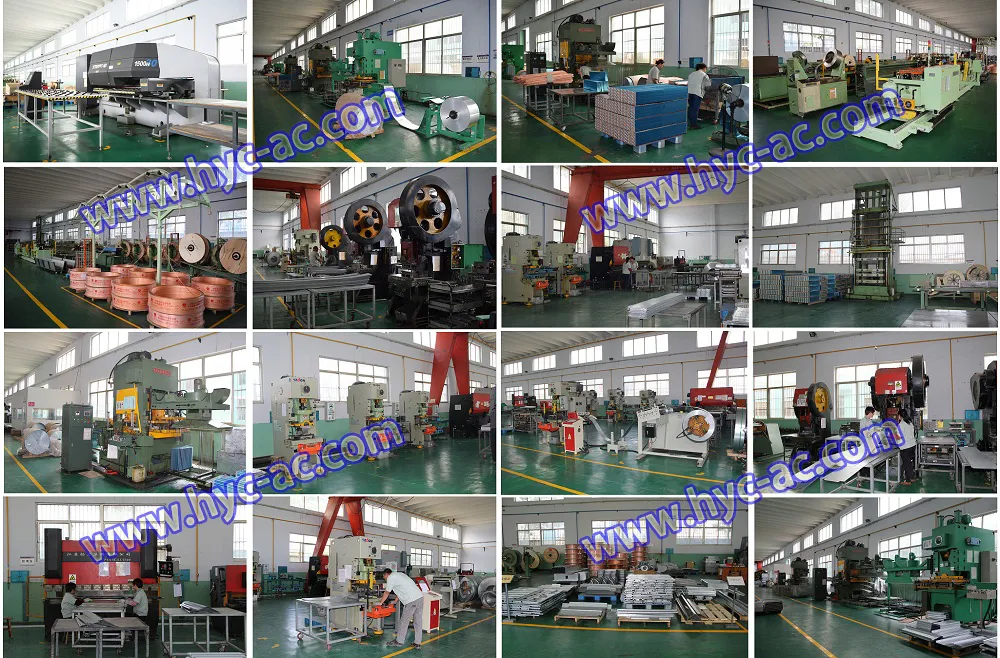

Production Machinery

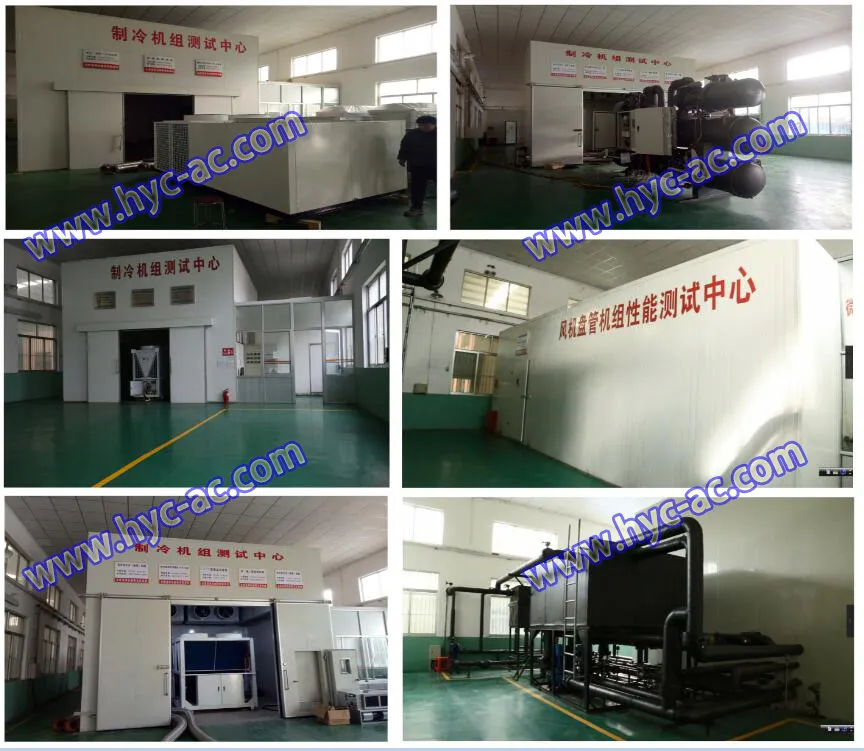

Test Lab

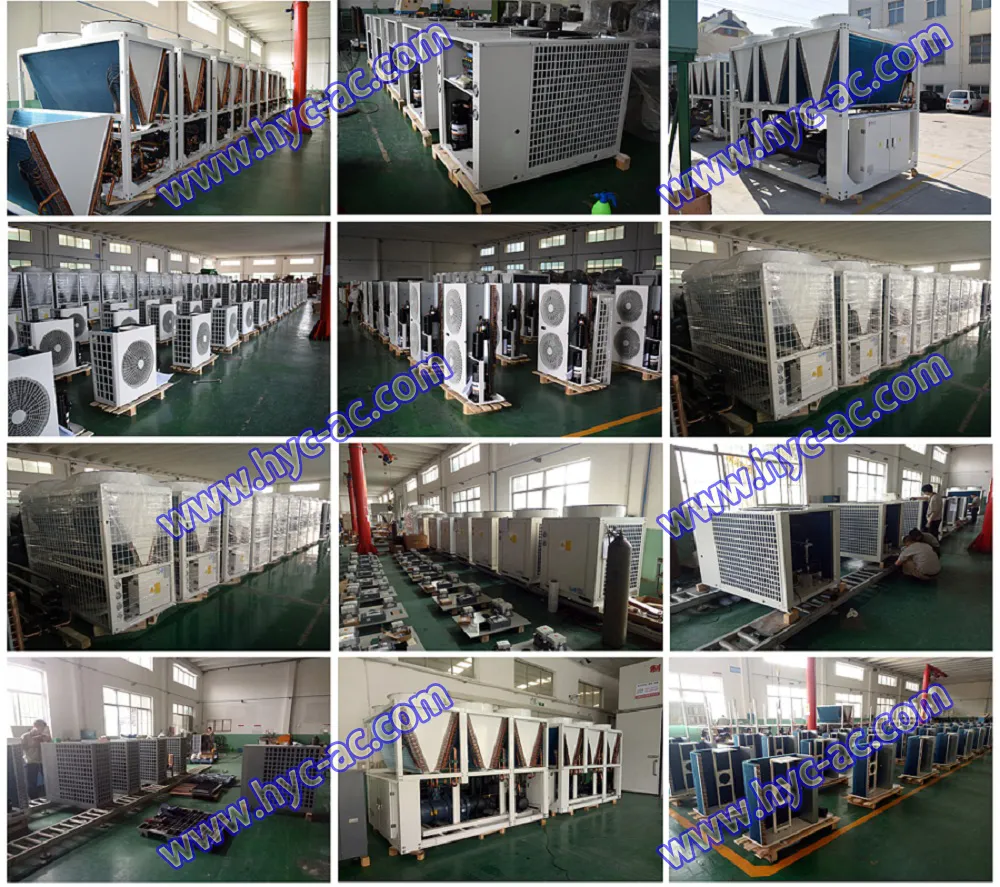

Production Line
Frequently Asked Questions
What is the operating temperature range for this heat pump?
The unit is designed for super low temperatures, operating efficiently in ambient temperatures ranging from -25ºC to 45ºC.
What type of compressor is used in these units?
We use high-efficiency Copeland EVI (Enhanced Vapor Injection) Scroll compressors, which are hermetically sealed for reliability.
Are the units customizable for specific requirements?
Yes, we offer both OEM and ODM services. Tailor-made options include different colors and specific materials like stainless steel coverings.
What refrigerants are compatible with this system?
The system supports multiple refrigerant types including R22, R407C, and R410A to meet different regional environmental standards.
How is the durability of the unit ensured against weather?
The panels and base frame are constructed from galvanized steel and finished with polyester powder painting for total atmospheric resistance.
What is the typical production lead time?
Our standard delivery time is approximately 30 days, with a production capacity of 5000 sets per month.
