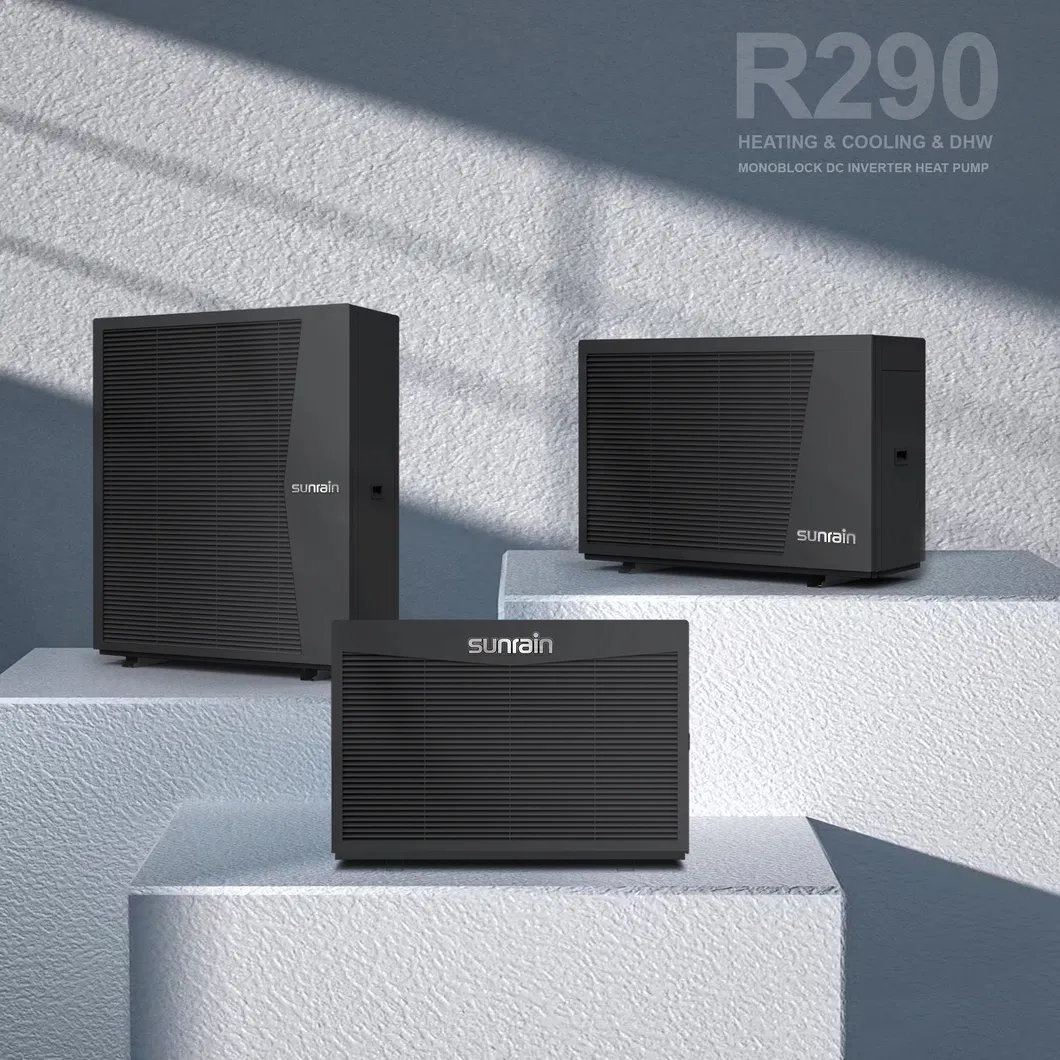

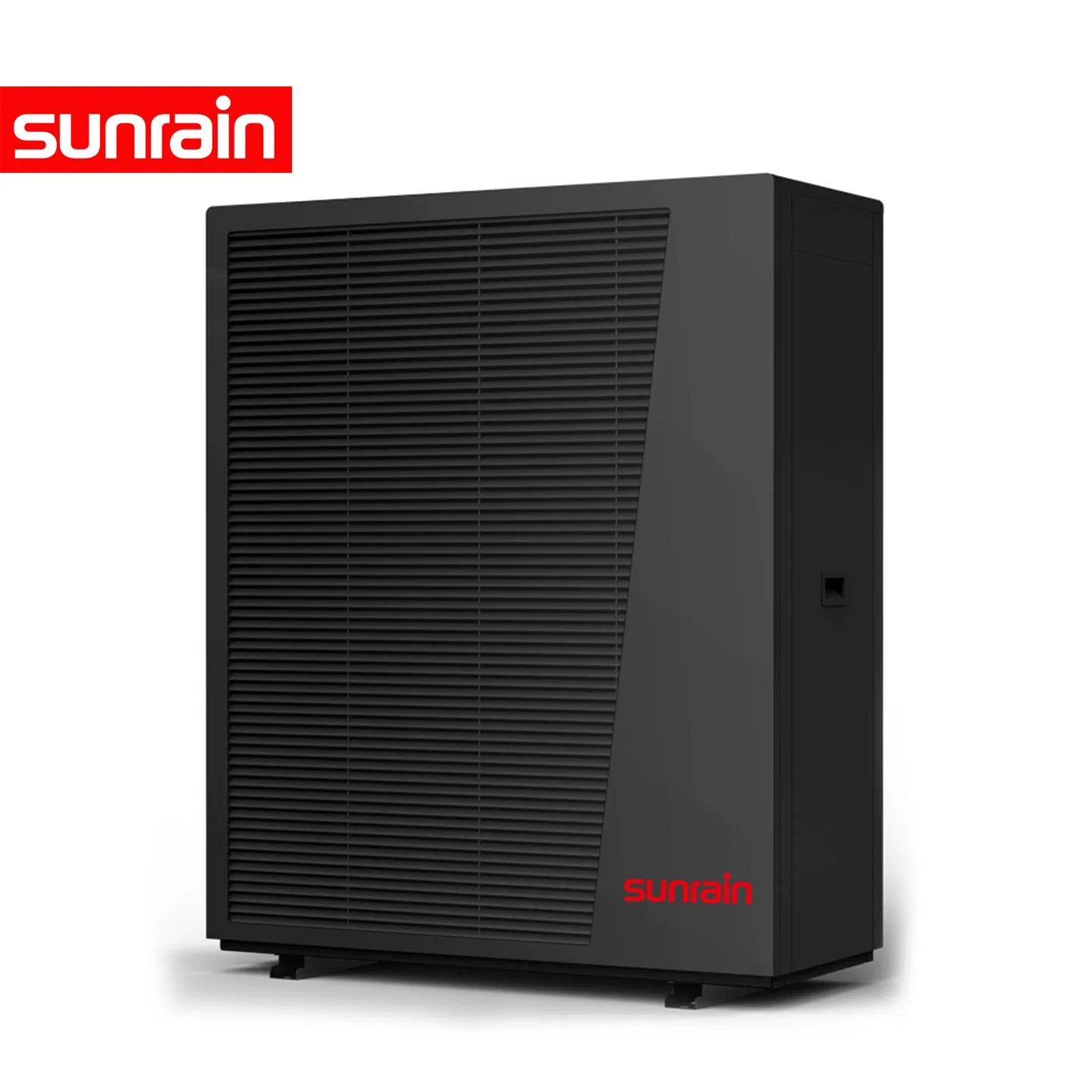

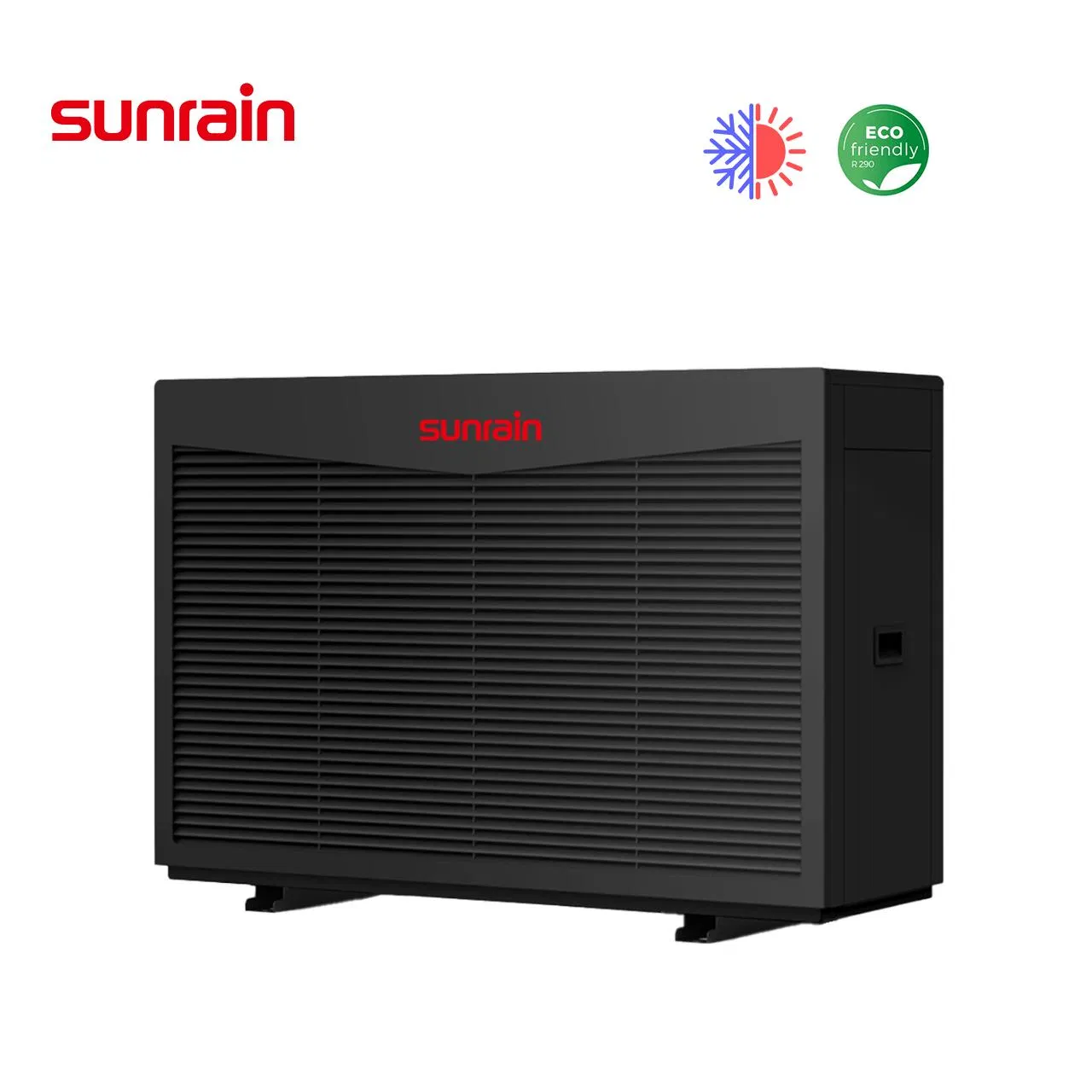

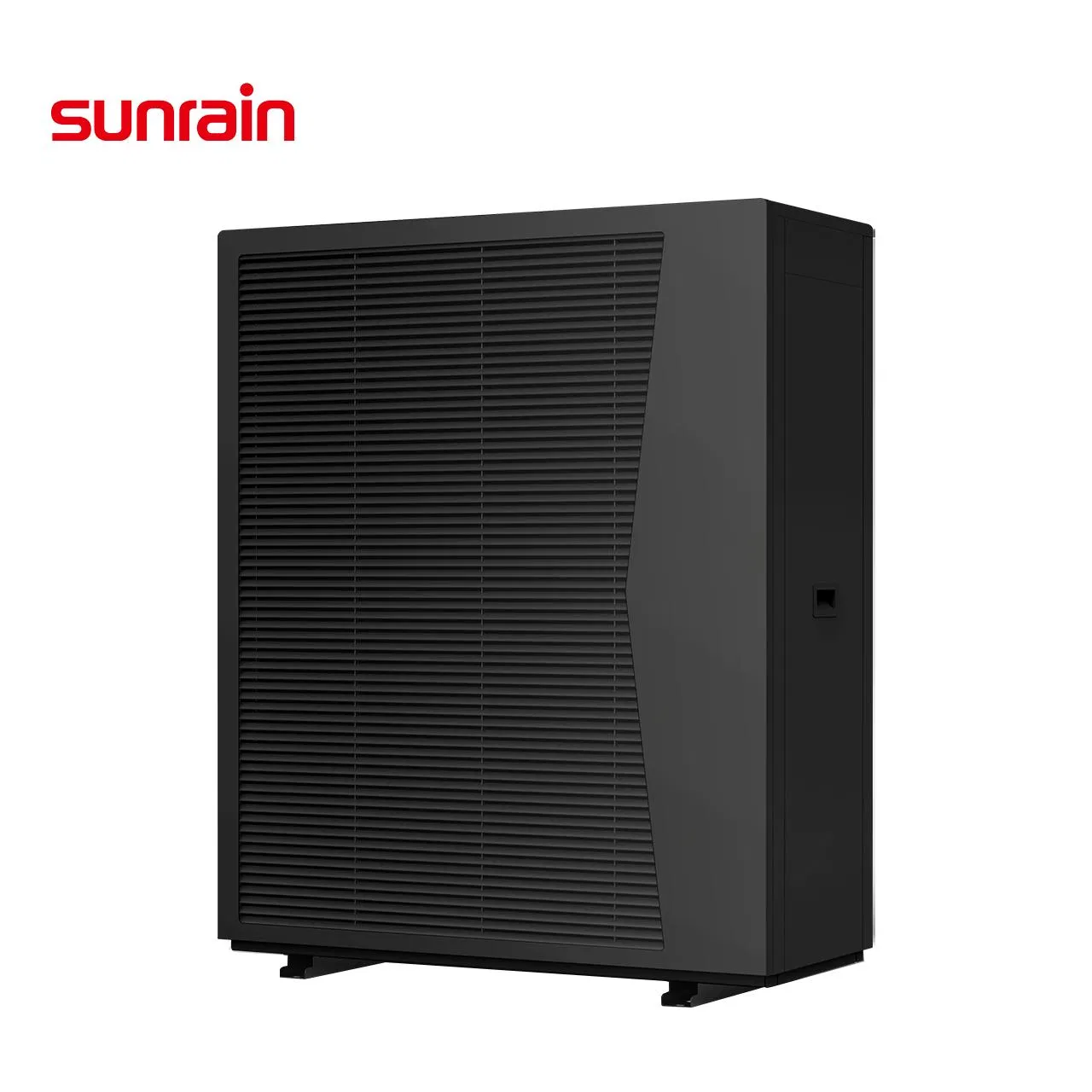

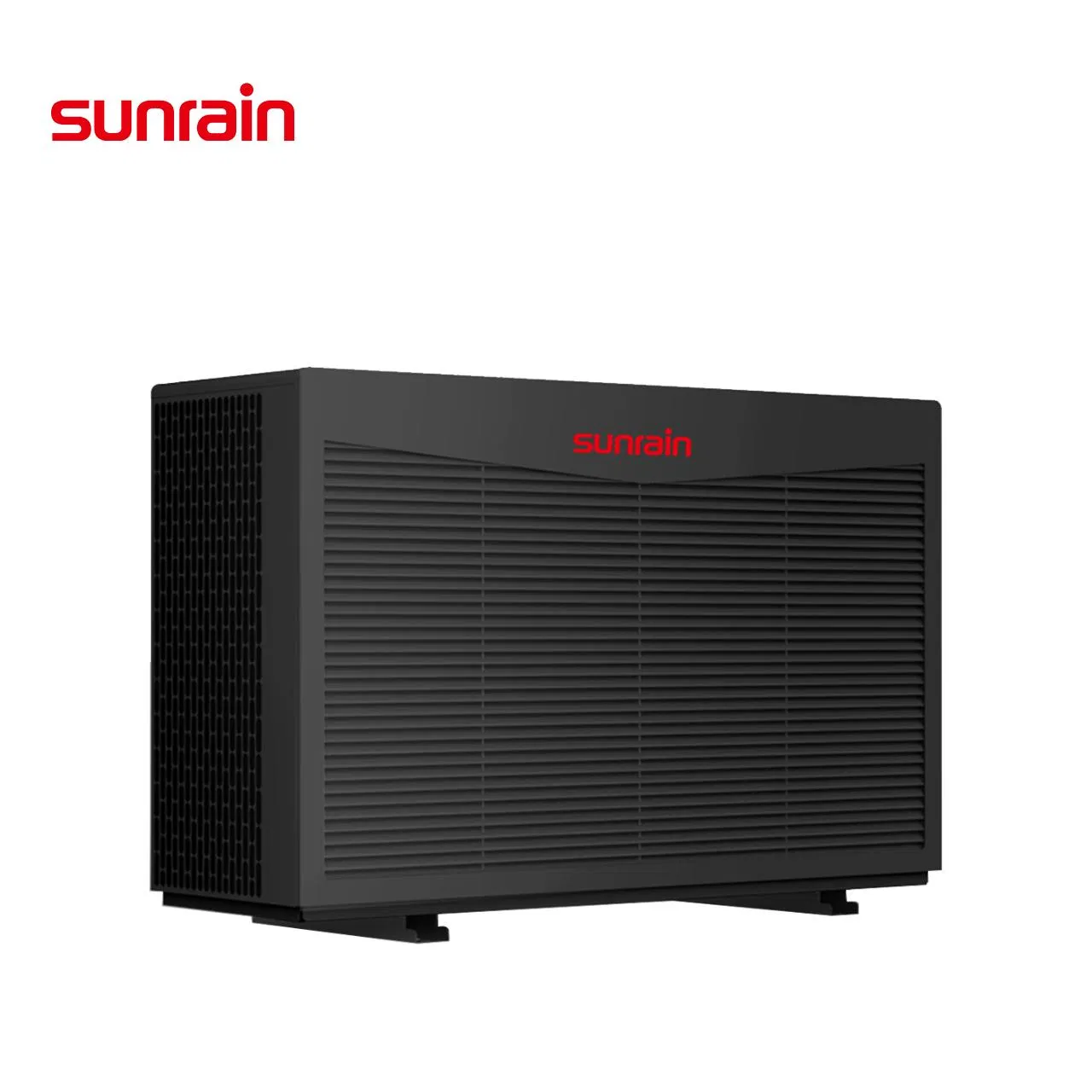

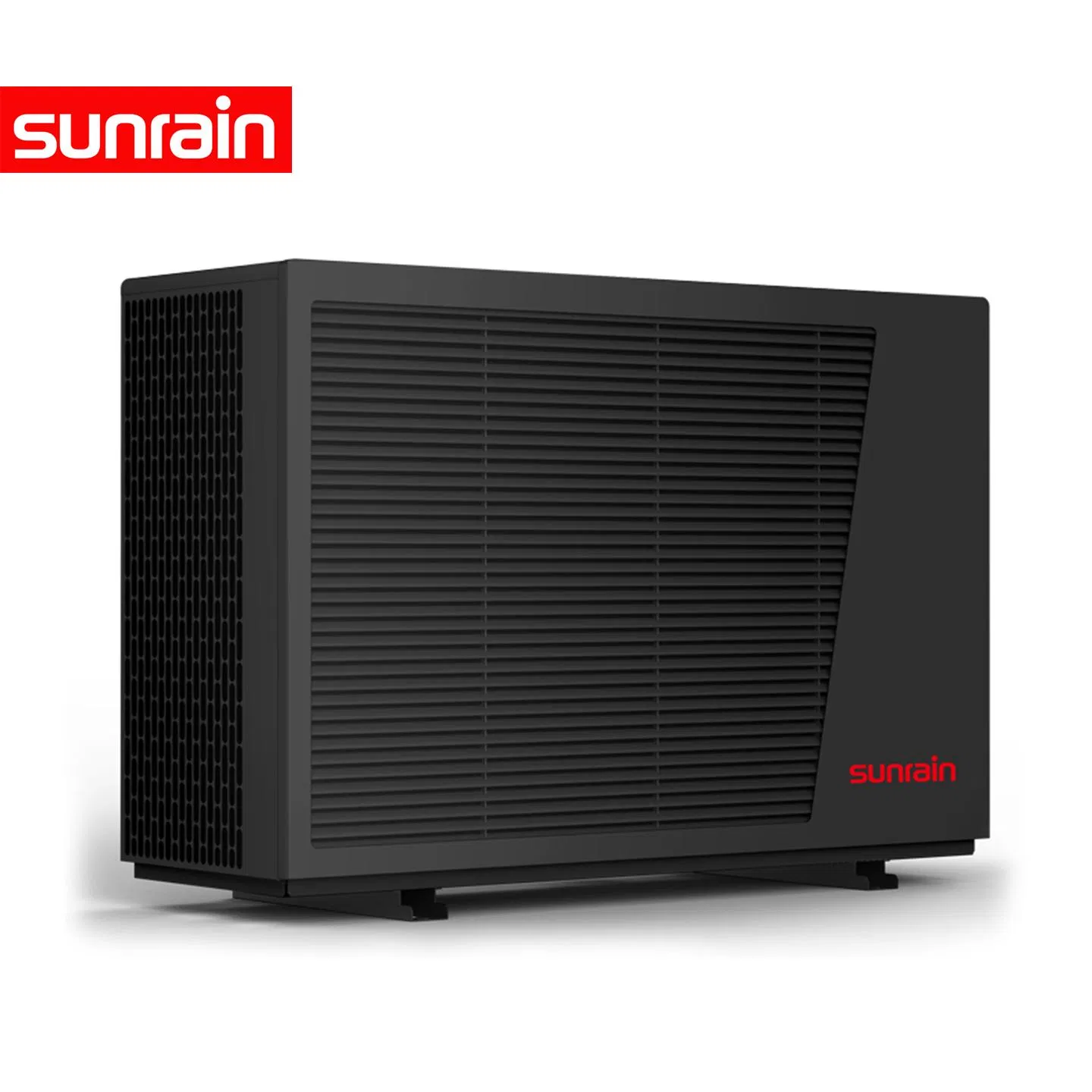

| Product Name | DC Inverter R290 Monoblock Heat Pump |
| Model Range | 6kw, 8kw, 12kw, 18kw |
| Energy Rating | Class A+++ |
| Heat Source | Air Source |
| Functions | DHW, Heating, and Cooling |
| Max Water Temp | 75°C |
| Working Ambient | -25°C to 45°C |

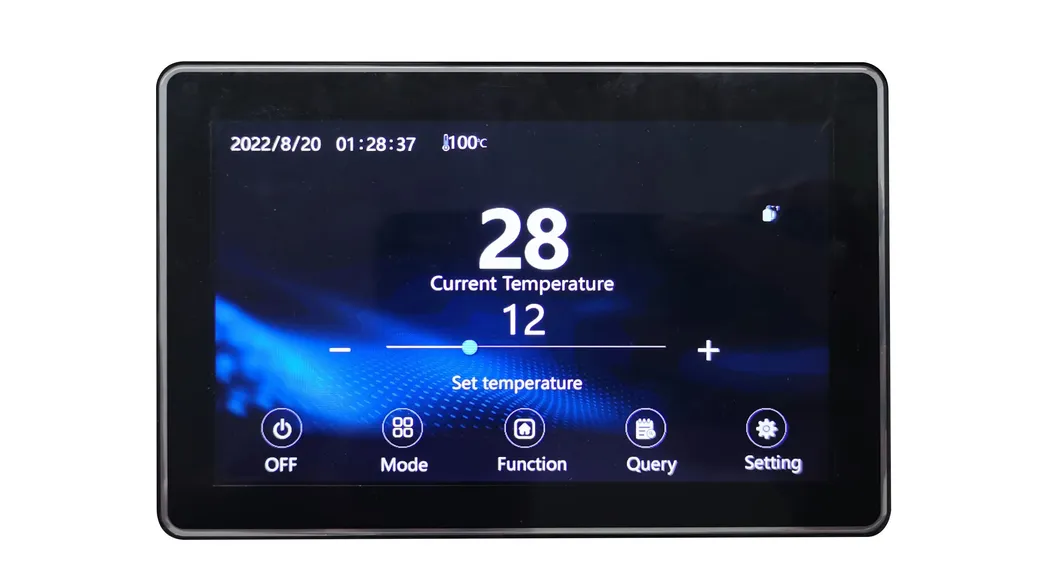

| Controller | TFT Touch Screen + WiFi + APP |
Utilizing low GWP (GWP=3) R290 refrigerant, this system is designed for maximum environmental sustainability without compromising performance.

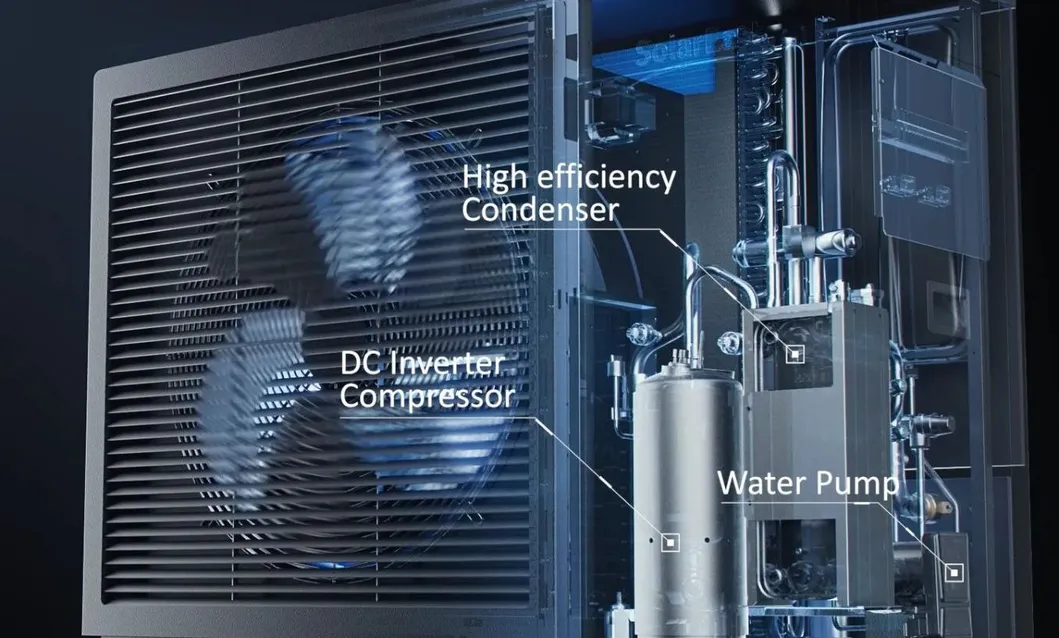

Incorporates advanced noise reduction technology for compressor and fan adjustment, reducing noise levels by up to 50% during night operation.
High Seasonal Coefficient of Performance (SCOP) delivers 30% to 50% energy savings compared to traditional boiler systems.

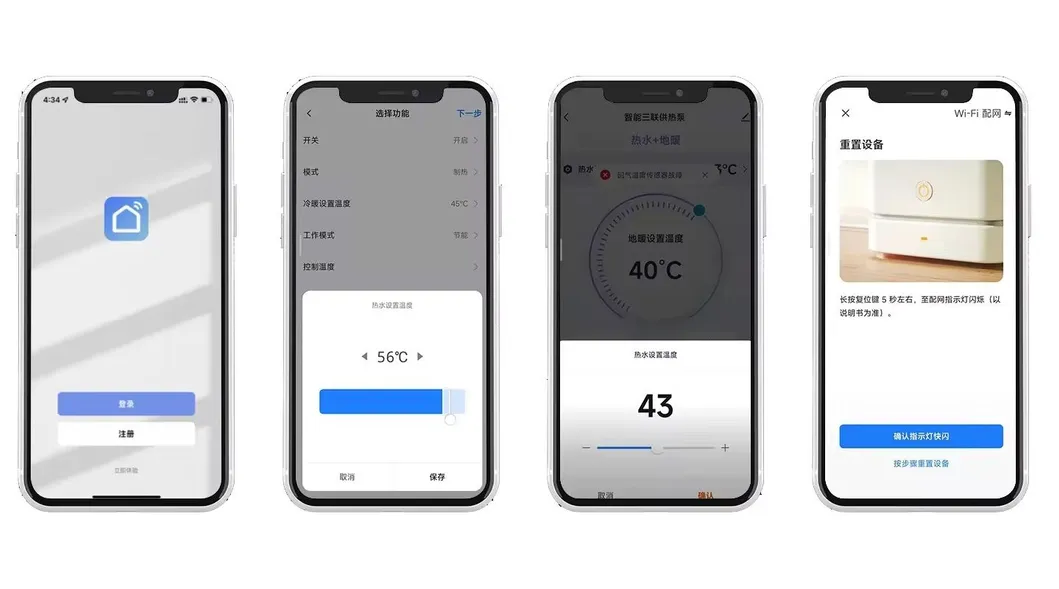

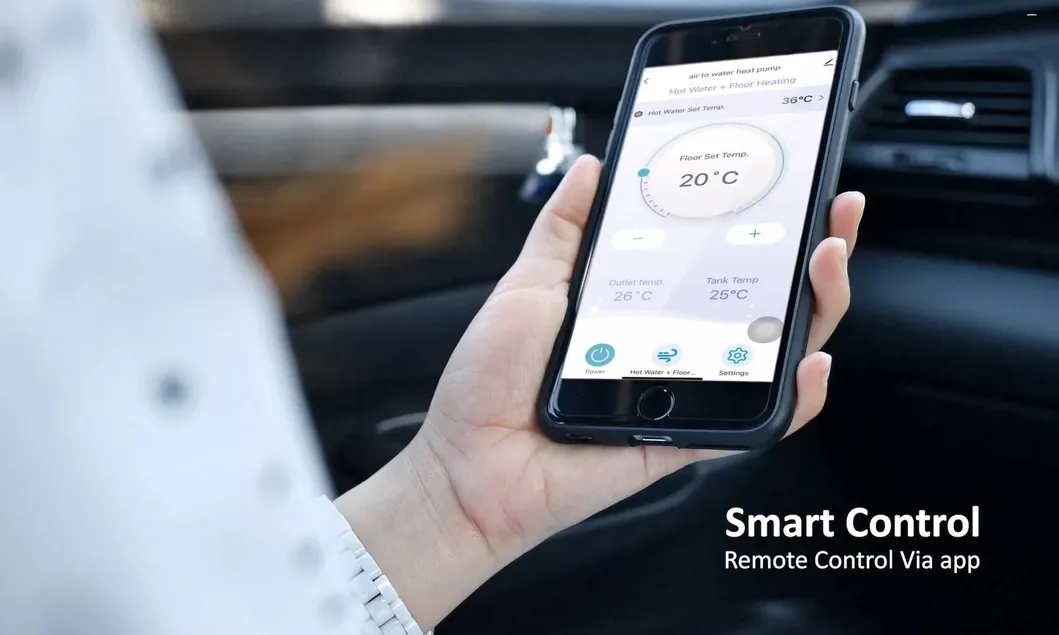

Equipped with 5G/2.4G compatible WiFi modules for remote monitoring and scheduling via smartphone. Includes an efficient IoT platform for real-time parameter tracking.
| Model | 006TC1 | 008TC1 | 012TC1 | 018TC3 |
|---|---|---|---|---|
| Power Supply | 220-240V/1/50 | 220-240V/1/50 | 220-240V/1/50 | 380-415V/3/50 |
| Heating Capacity (kW) | 2.92~9.10 | 4.10~12.1 | 4.30~15.2 | 7.24~22.1 |
| COP (W/W) | 4.31~5.66 | 4.24~5.57 | 4.07~5.57 | 3.82~5.59 |
| Refrigerant | R290 | R290 | R290 | R290 |
| ERP Level (35ºC) | A+++ | A+++ | A+++ | A+++ |
| Sound Pressure (1m) | 46 dB(A) | 43 dB(A) | 53 dB(A) | 56 dB(A) |

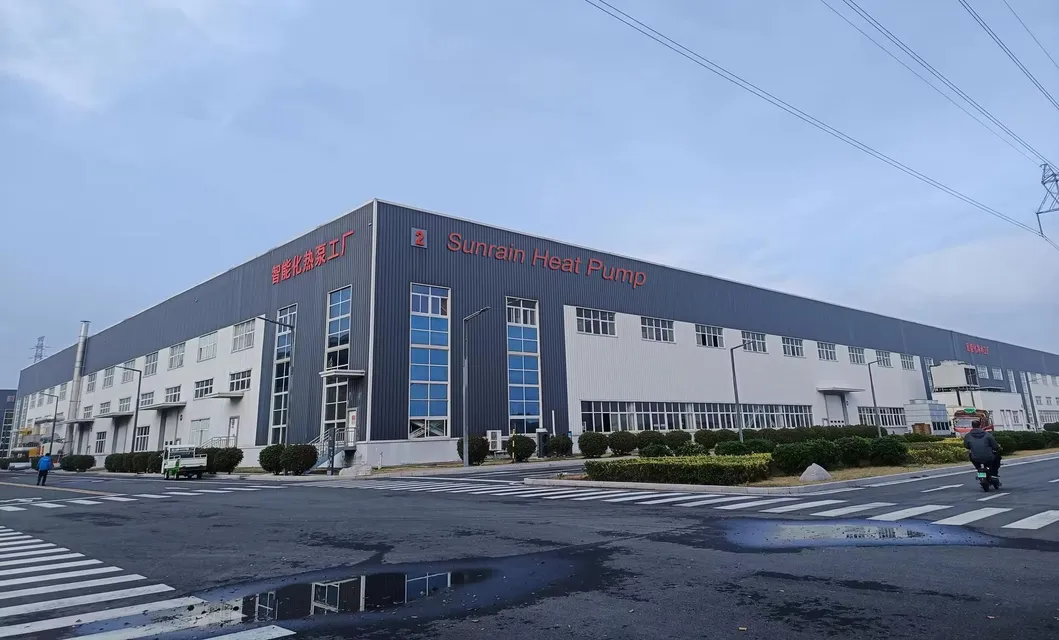

As a leading industry specialist, the production facility focuses on R&D, development, and distribution of high-efficiency air-to-water heat pumps. With rigorous quality standards like MCS, Keymark, CE, and ErP, these solutions are engineered for global compliance and extreme climate reliability.
A: Yes, we provide a complete supply chain including research, development, production, and professional technical service.
A: The range includes DC inverter heat pumps, air source water heaters, swimming pool heaters, and specialized EVI units for cold climates.
A: Yes, we provide full OEM/ODM customized manufacturing to meet specific regional standards and branding requirements.
A: Sample services are available, supported by engineering teams to assist with installation and initial testing.
A: R290 has an extremely low GWP of 3, making it highly eco-friendly while allowing the system to achieve outlet water temperatures up to 75°C.
A: The units feature a TFT touch screen and integrated WiFi, allowing users to monitor performance and schedule operations via a dedicated mobile app.
