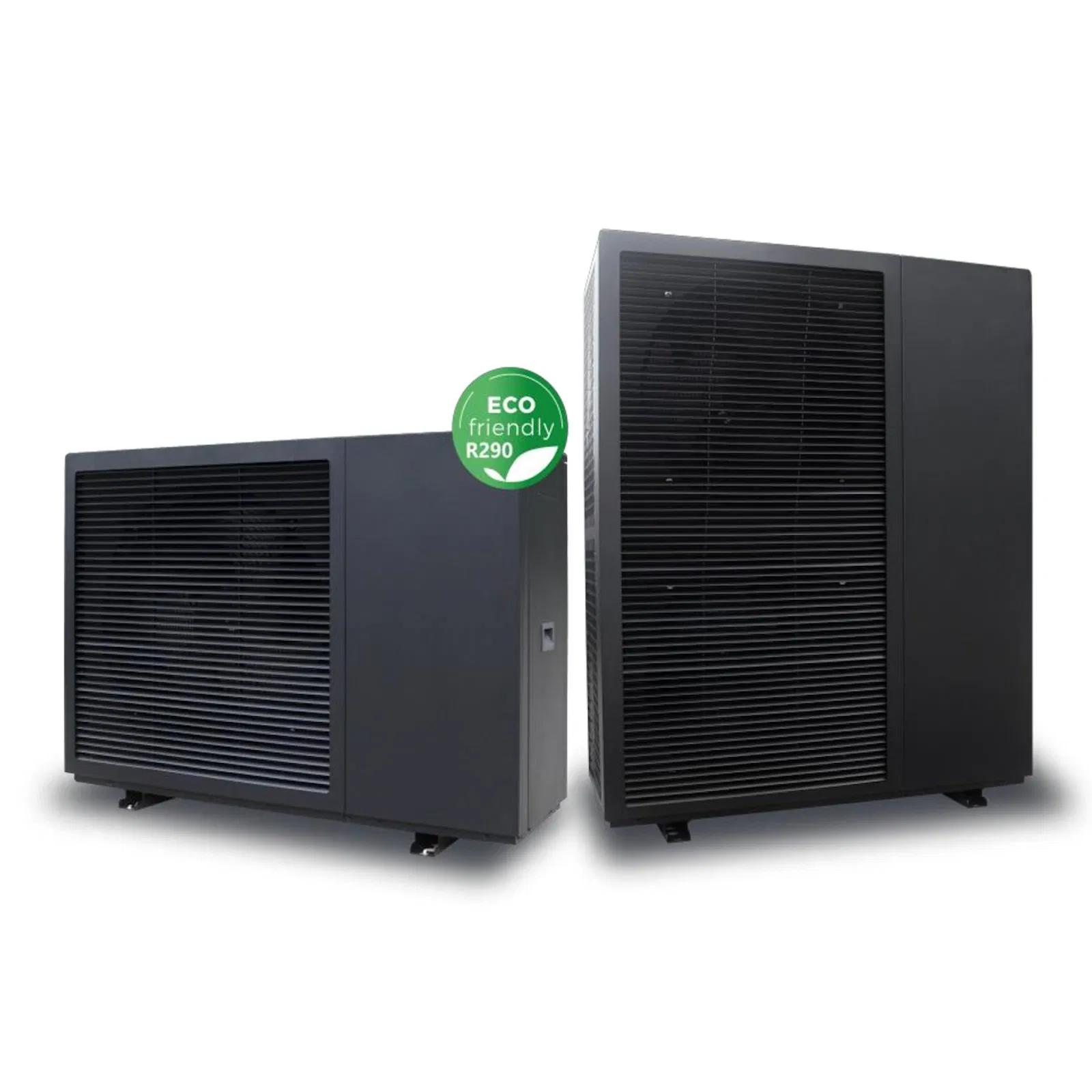

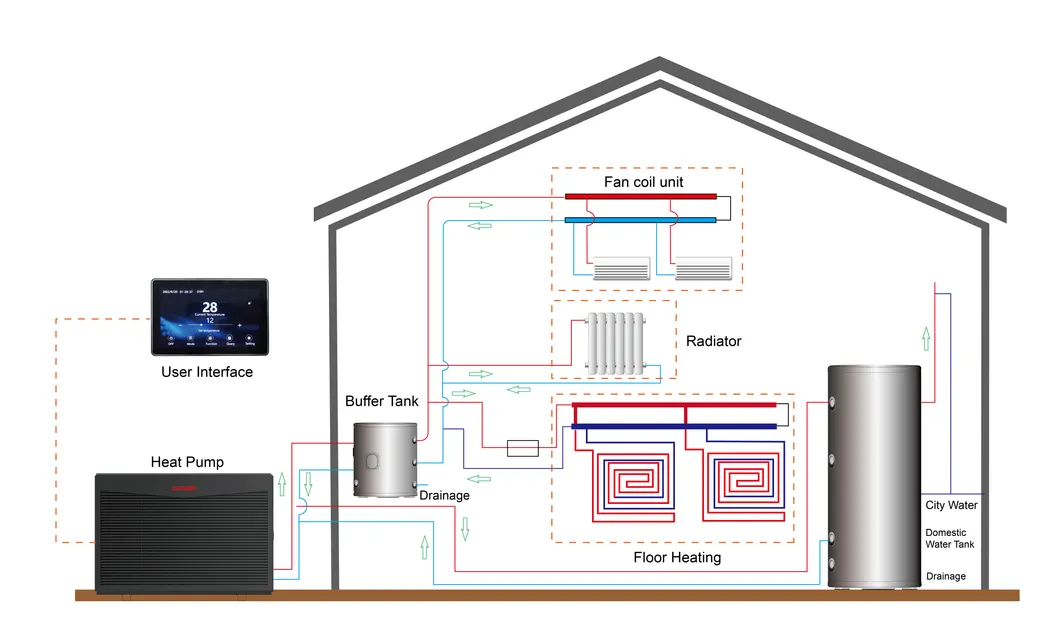

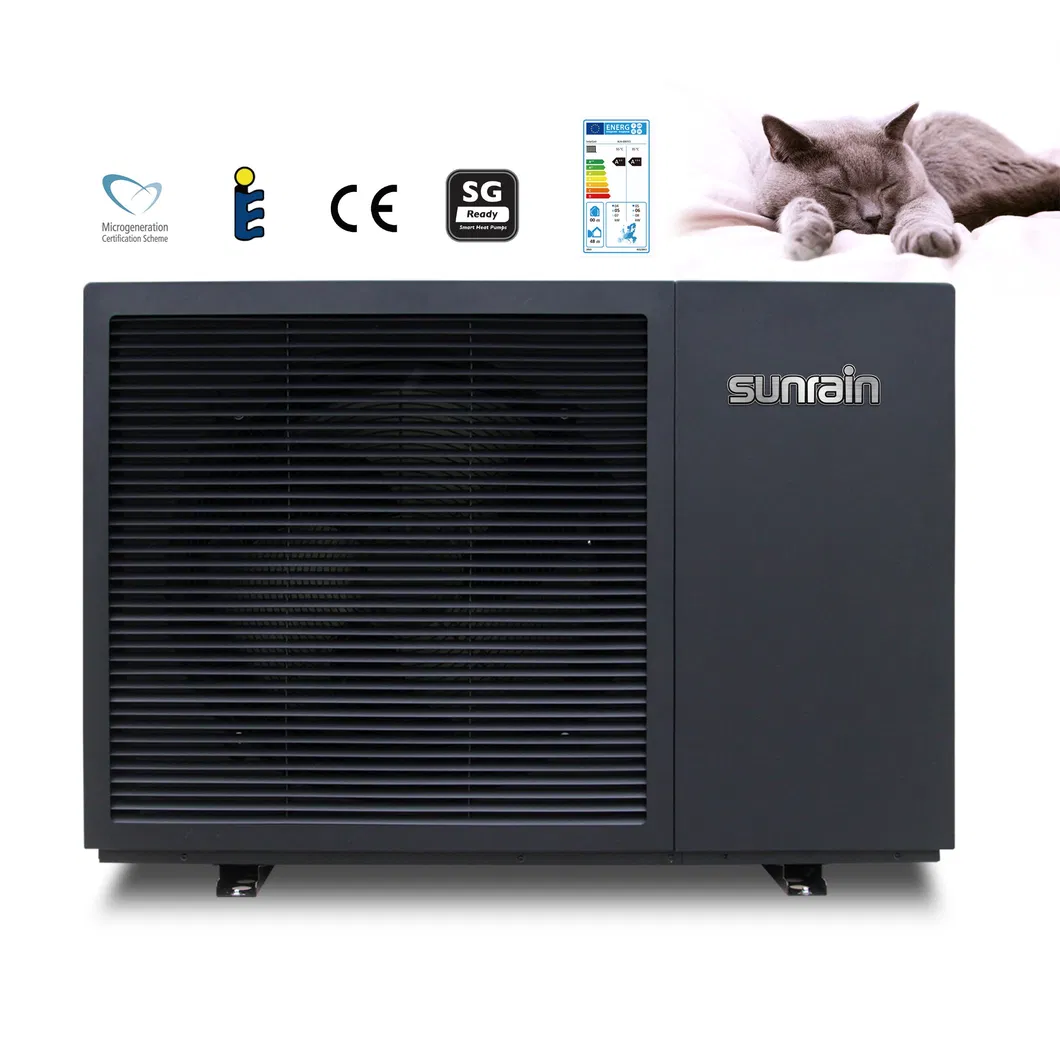

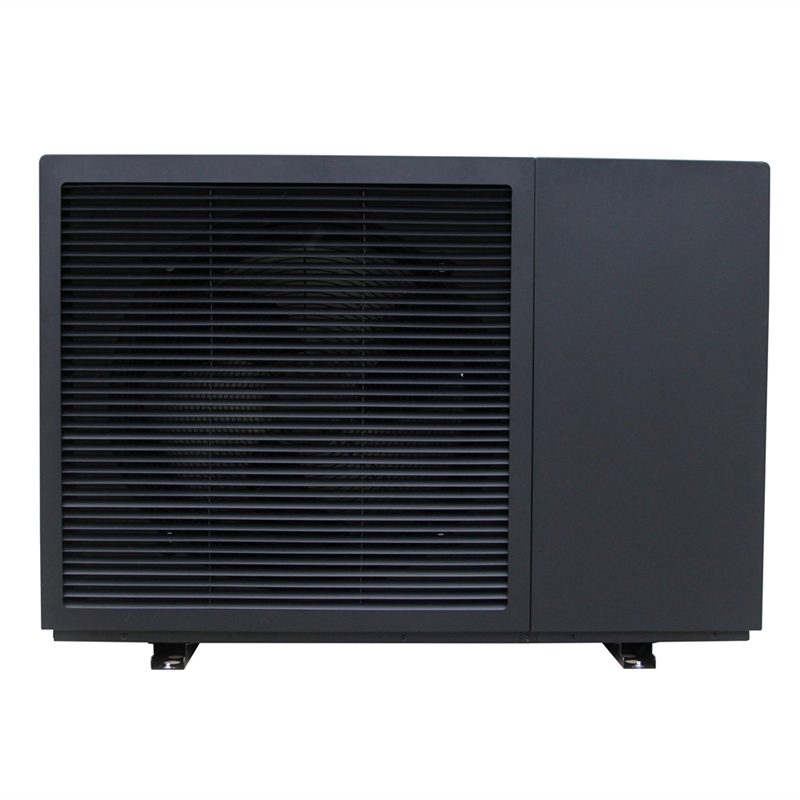

The R290 Monoblock air to water heat pump system is designed for house heating, cooling, and daily hot water supply. Utilizing full DC inverter technology and a smart controller, it delivers cost-effective climate control even in extreme -30°C ambient temperatures. The system supports remote software updates and features intelligent defrosting for maintenance-free operation.

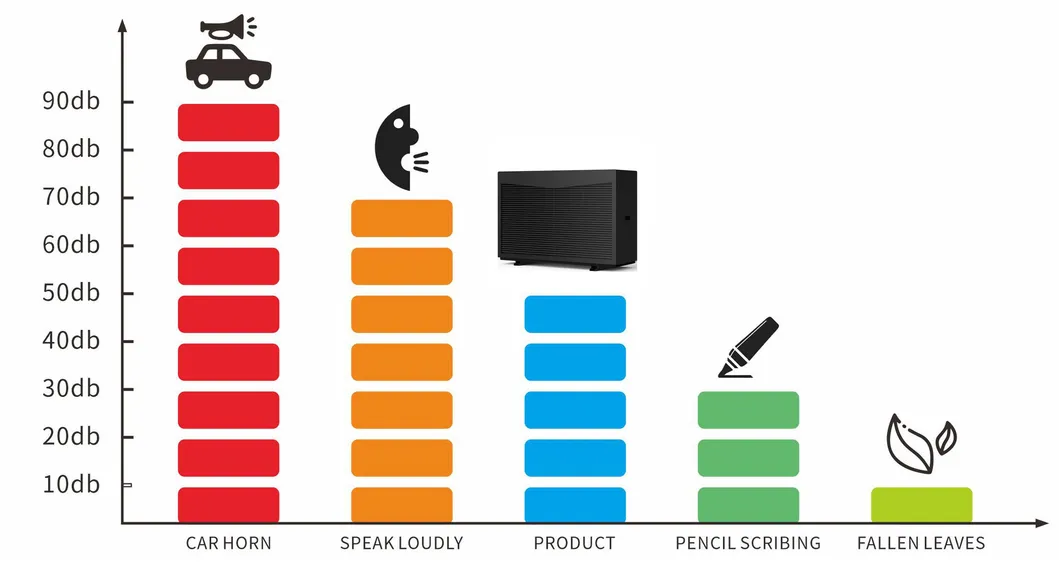

Powered by R290 refrigerant, the system provides a sustainable solution with low environmental impact. It operates quietly at approximately 48 dB, ensuring a comfortable living environment.
DC Inverter Compressor: Increases transmission efficiency and lowers noise.
DC Fan Motor: Enables super-quiet operation and minimizes power use.
Electronic Expansion Valve: Rapidly alters refrigerant flow for system stability.
Built-in Water Pump: High-efficiency pump for optimal water circulation.
Plate Heat Exchanger: Delivers high heat exchange efficiency.
| Model | BLN-006TC1 | BLN-012TC1 | BLN-018TC1 | BLN-012TC3 | BLN-018TC3 |
|---|---|---|---|---|---|
| Rated Voltage | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 380-415V/50Hz | 380-415V/50Hz |
| Heating Cap (kW) | 2.92-9.10 | 4.30-15.20 | 7.24-21.90 | 4.30-15.20 | 7.24-21.90 |
| SCOP (35ºC) | 4.98 | 4.90 | 4.91 | 4.90 | 4.93 |
| Refrigerant Charge | R290/0.55kg | R290/0.90kg | R290/1.4kg | R290/0.90kg | R290/1.4kg |
| Noise Level dB(A) | 48 | 50 | 55 | 50 | 55 |
| Net Dimensions (mm) | 1187×418×805 | 1287×448×904 | 1187×488×1456 | 1287×448×904 | 1187×488×1456 |
