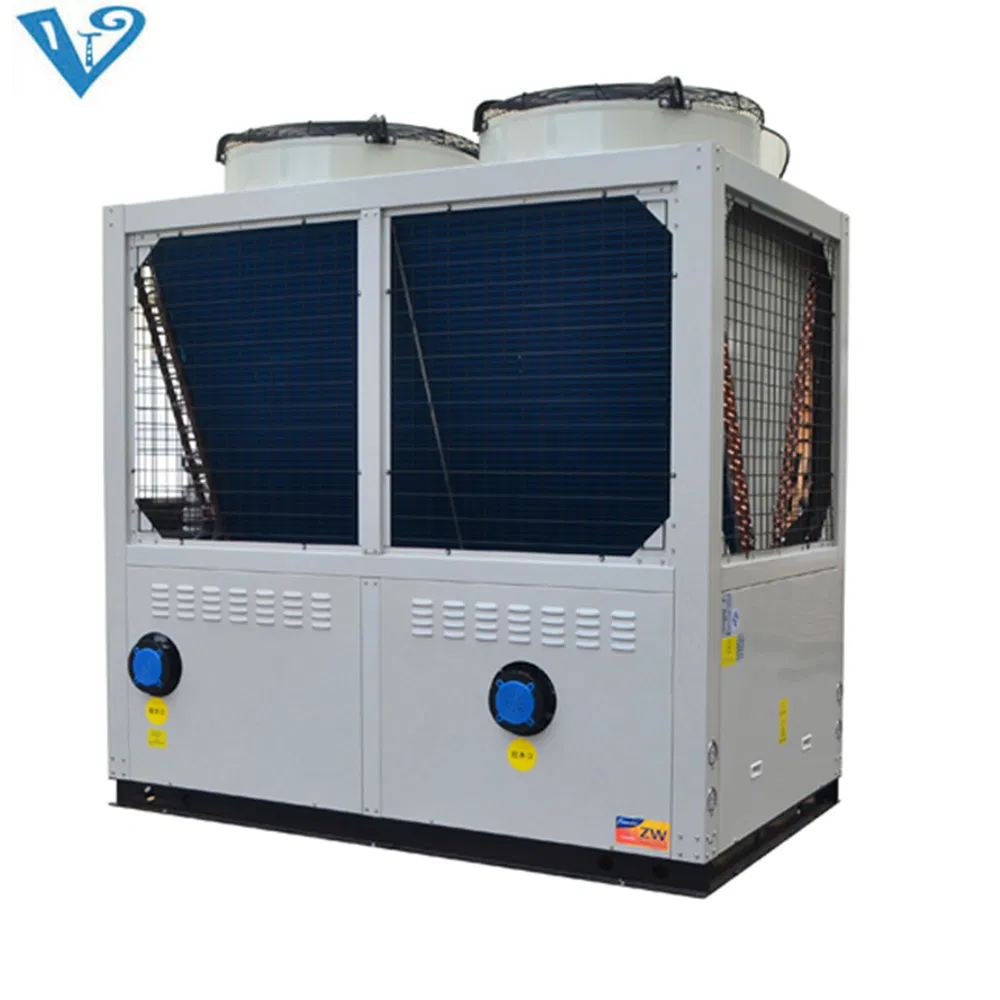

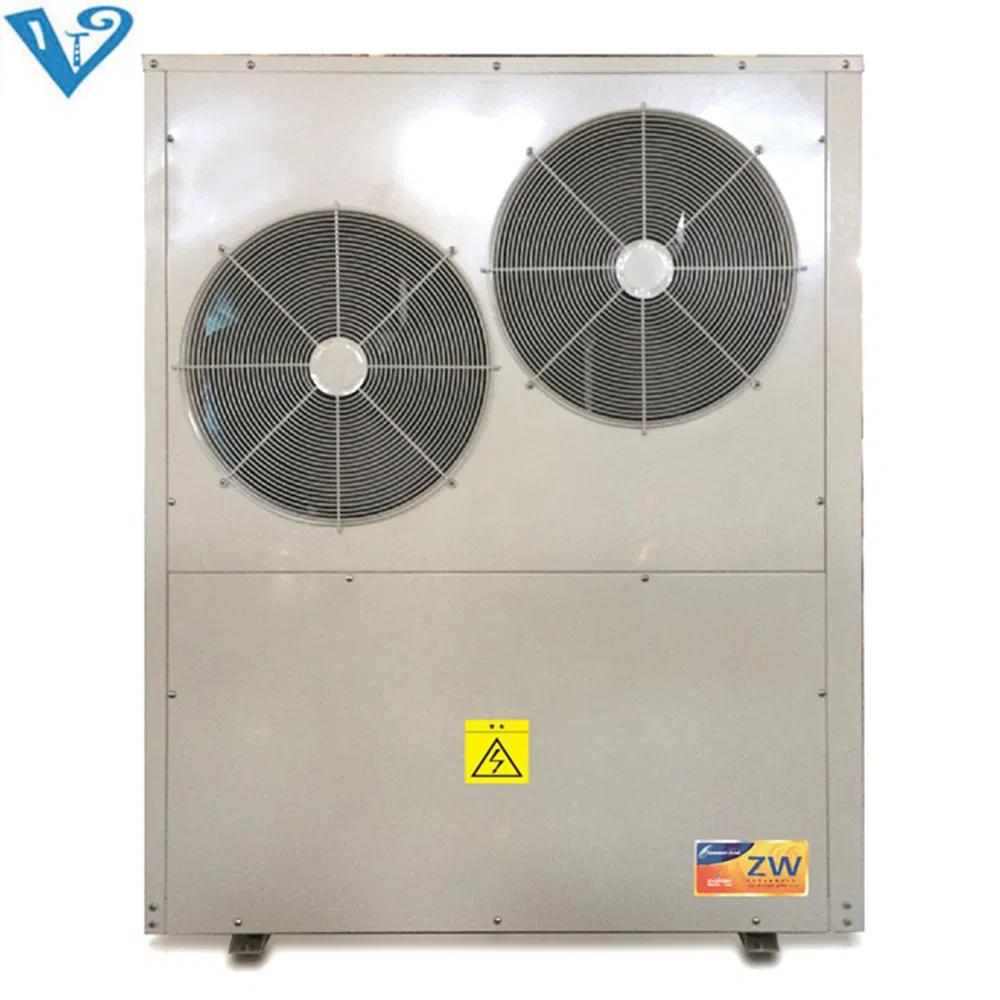

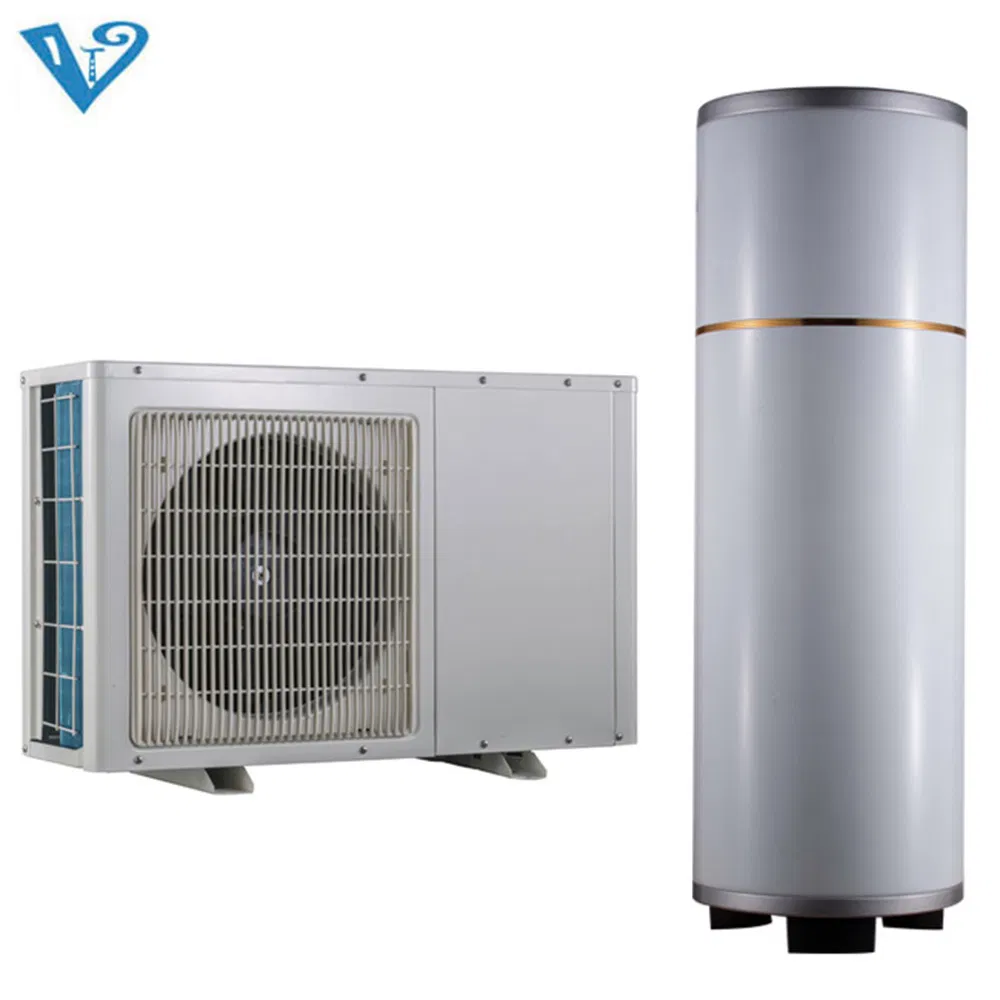

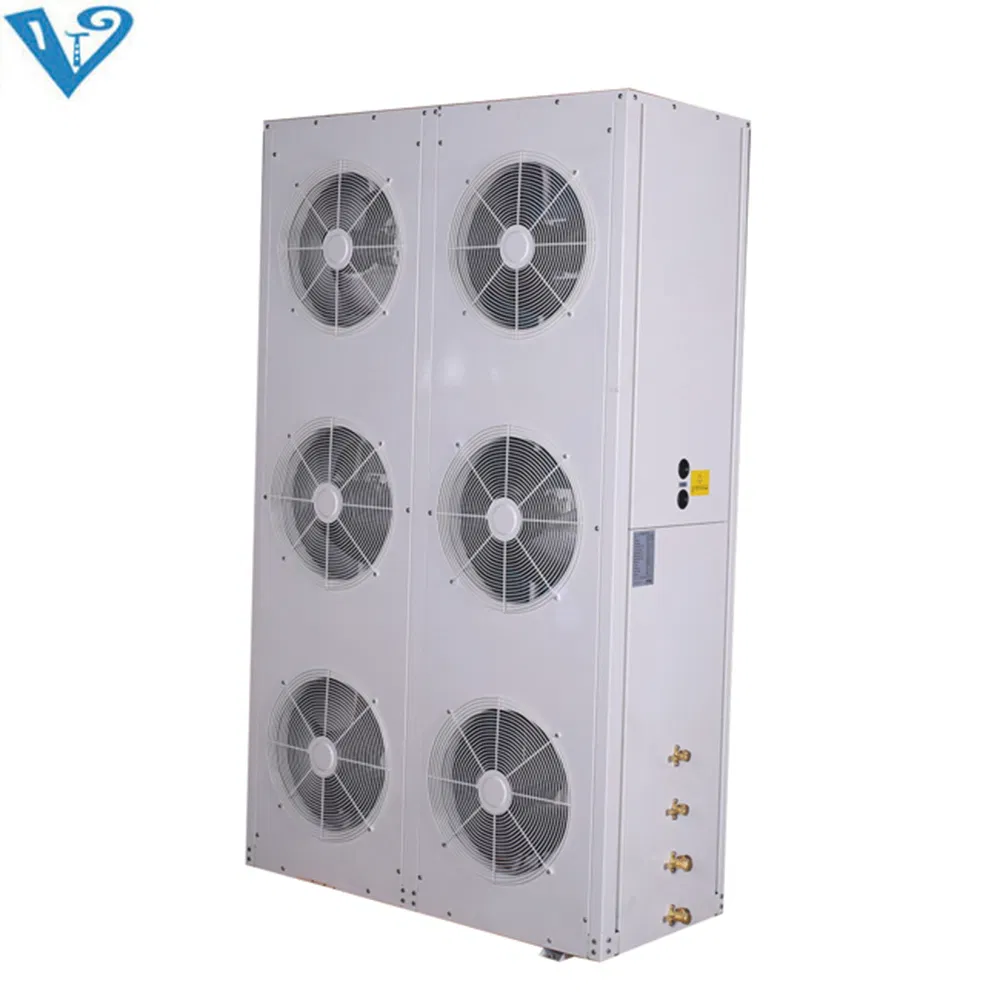

Split Type Heat Pump with Evi Scroll Compressor, Filed with R417A

1 / 5

Split Type Heat Pump with Evi Scroll Compressor, Filed with R417A

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

MD160

Work Environment

Common Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001

Input Power

19kw

Heating Capacity

72kw

Cooling Capacity

56kw

Hot Water Supply

1600 (L/H)

Power Supply

380V/50Hz/3pH

Pipe Size

DN50

Product Description

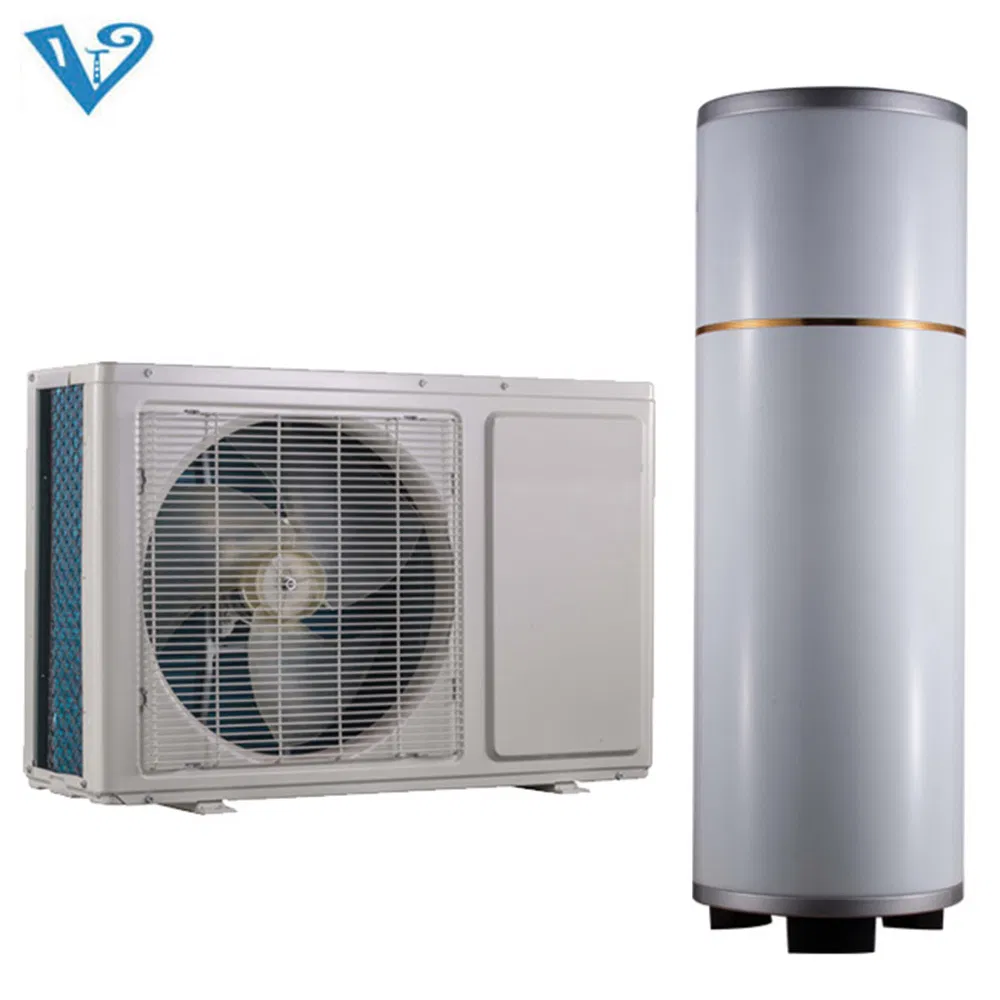

Split type heat pump with EVI scroll compressor, filed with R417A

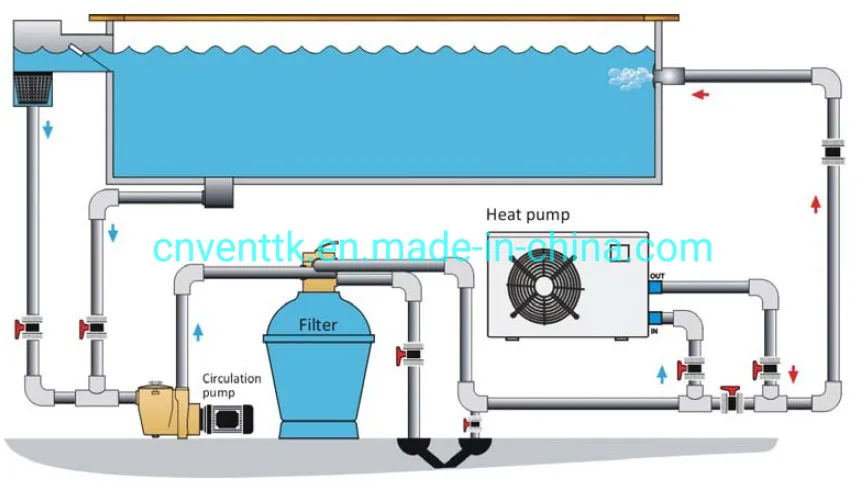

Swimming Pool Heat Pump Features:

Complying with ISO standard. High Quality Ensured with the European standard.

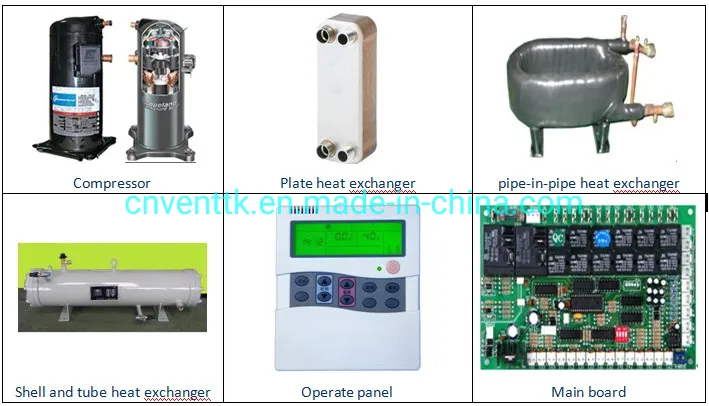

Using reliable compressor (Copeland Scroll/Panasonic) with R417A/407C/R404A refrigerant.

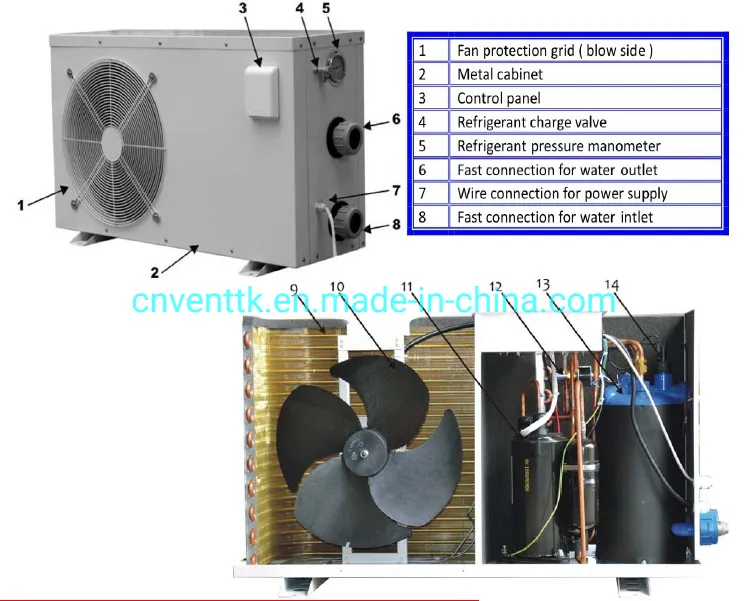

Equipped with high efficiency tube in shell heat exchanger, finned heat exchanger or plate heat exchanger with full insulation.
Evaporator using surface modification of wave hydrophilic aluminous foil.
Intelligent controller with LCD display control panel for water pump and defrosting systems.
Automatic defrosting function included (with reverse valve inside).
Corrosion resistant Titanium heat exchanger.
Energy saving up to 80% compared with conventional water heaters.

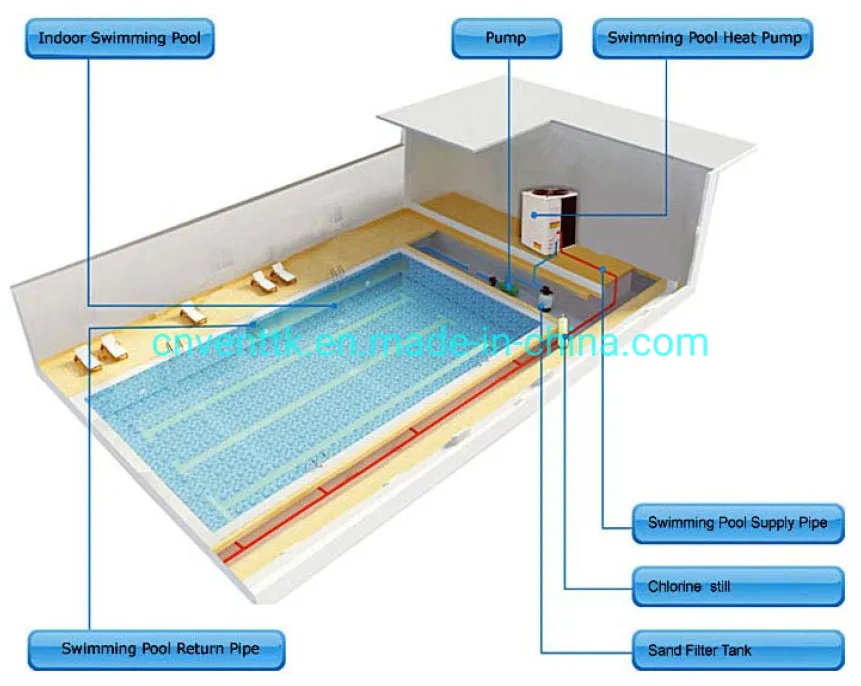

Swimming pool heat pump specifications
Model	MDY20D	MDY30D	MDY50D	MDY60D	MDY100D	MDY200D
Input power (KW)	1.84	2.98	4.6	5.4	9.2	19
Heating capacity (KW)	7	14	20	24	38	78
Rated voltage (V)	220	220/380	380	380	380	380
Water flow (L/H)	2000	3600	5500	7000	11000	22000
Dimensions (mm)	1050350650	1120490790	11204901260	11204901260	14507601060	19909802080
Noise (Db)	<=40	<=50	<=55	<=60	<=70	<=75
Refrigerant	R417A/R407C/R404A/R410A/R22/R134A

Frequently Asked Questions

What are the primary applications for this heat pump?

This heat pump is ideal for villa families, saunas, swimming pools, hotels, hospitals, student apartments, and beauty salons requiring constant hot water or temperature control.

What types of compressors are used in these units?

We utilize high-reliability compressors such as Copeland Scroll or Panasonic, ensuring long-term performance and efficiency.

Can the swimming pool heat pump resist corrosion?

Yes, it is equipped with a corrosion-resistant Titanium heat exchanger, specifically designed to withstand the chemicals used in swimming pool and spa environments.

How much energy can I save with this system?

Our heat pumps offer up to 80% energy saving compared to conventional heating methods like gas/oil boilers and electricity resistance water heaters.

Does the unit work during cold winter months?

Yes, the system includes an automatic reversing defrosting function and high-efficiency EVI technology, enabling the units to work reliably even in harsh winter conditions.

Is the operation of the heat pump loud?

The units are designed with low-noise fan motors. Depending on the model, the noise levels range from as low as 40dB to a maximum of 75dB for industrial-scale models.
