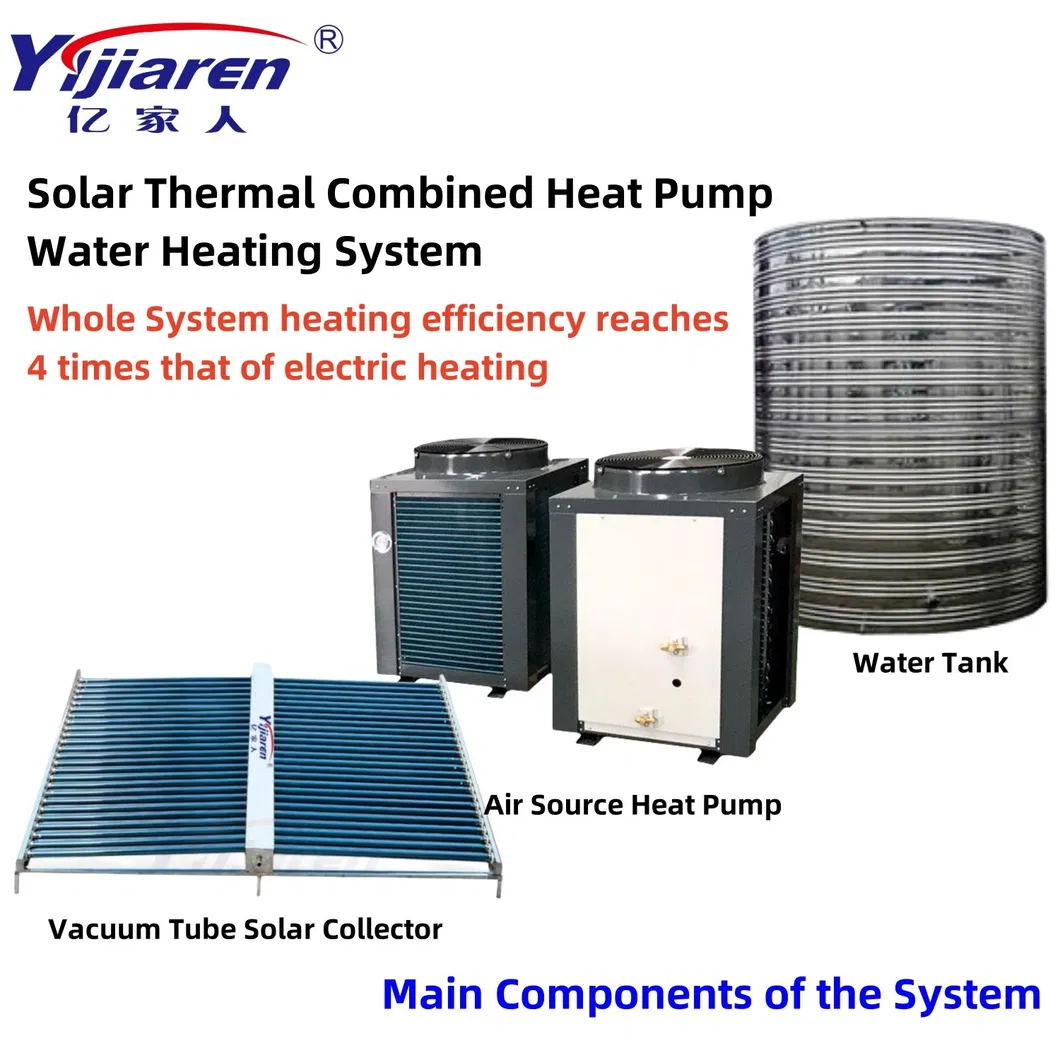

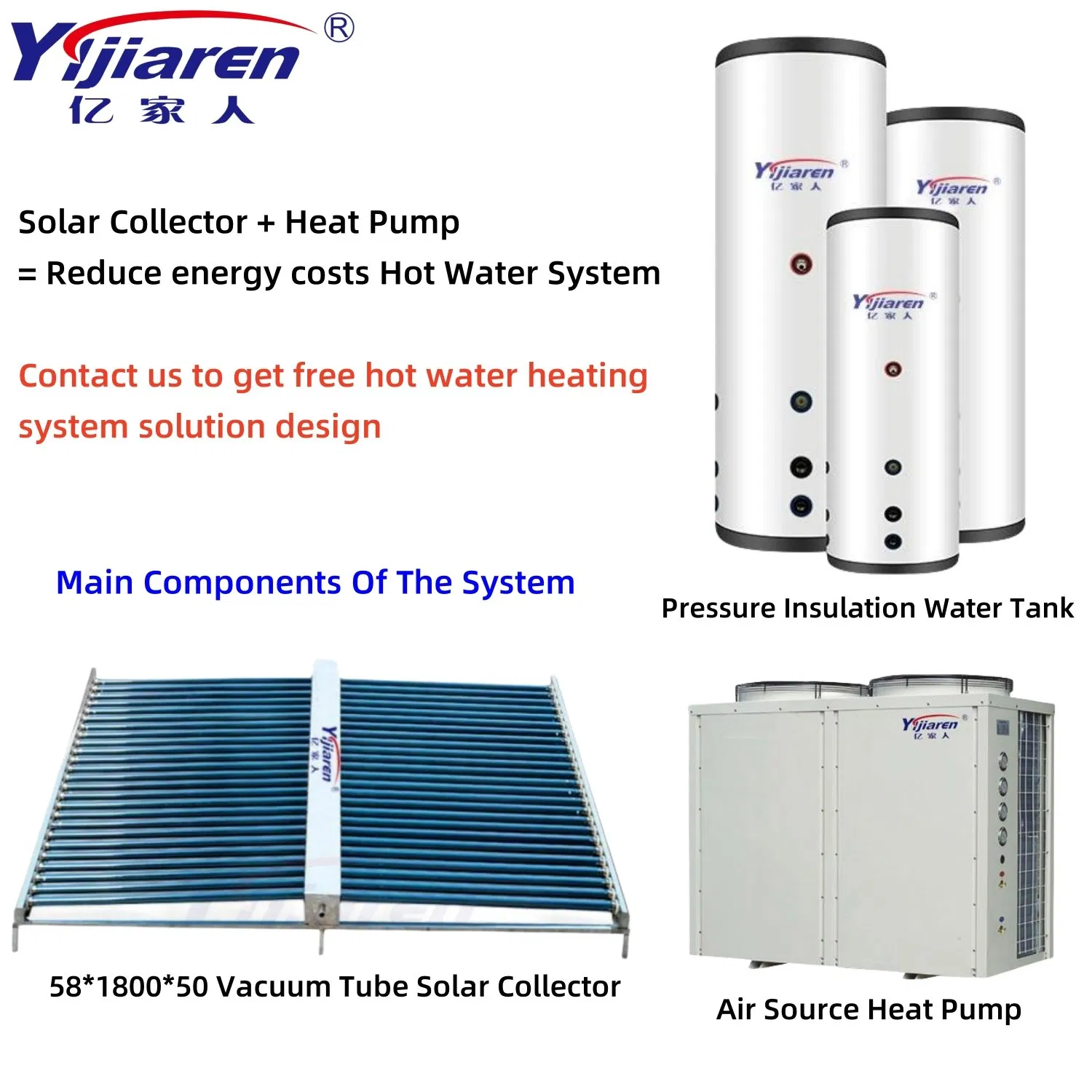

| Main Components | Solar Collector, Air Source Heat Pump, Water Tank |
|---|---|
| Application | Hotel, Resort, School, Hospital, Enterprise, Factory, Sauna and Swimming Pool |
| Key Features | 365-day Hot Water, High Energy Saving, Intelligent Operation, Temps up to 90ºC |

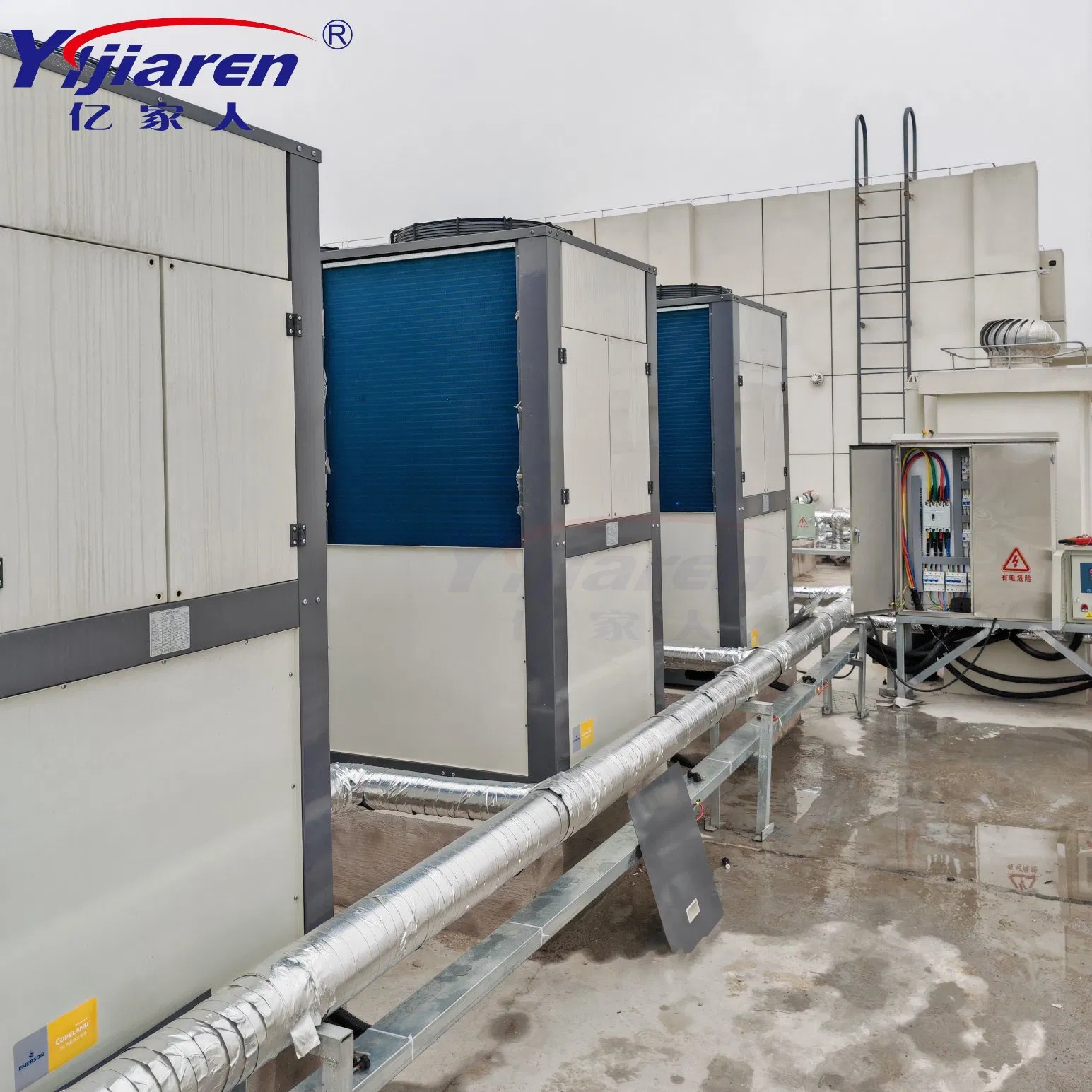

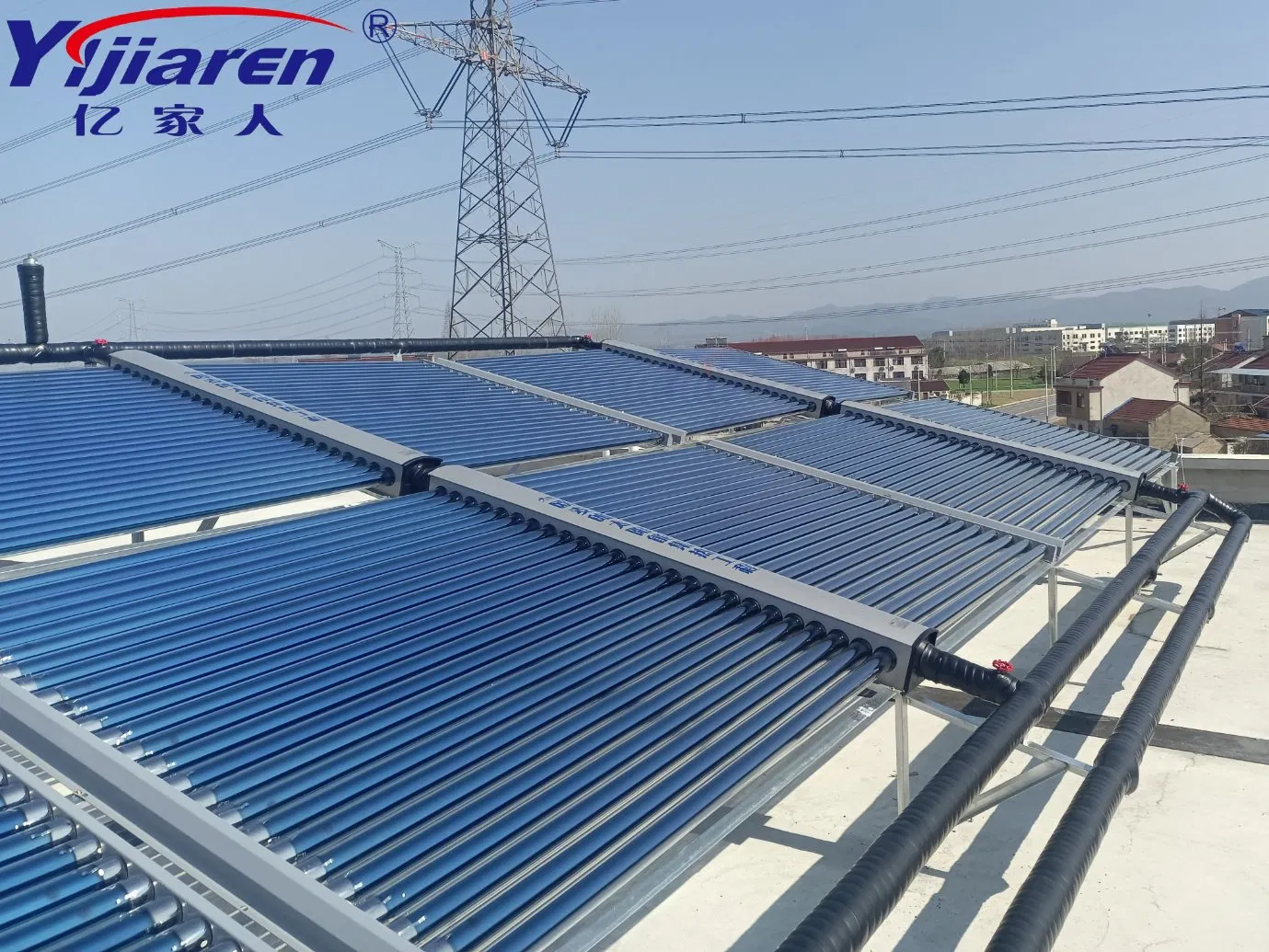

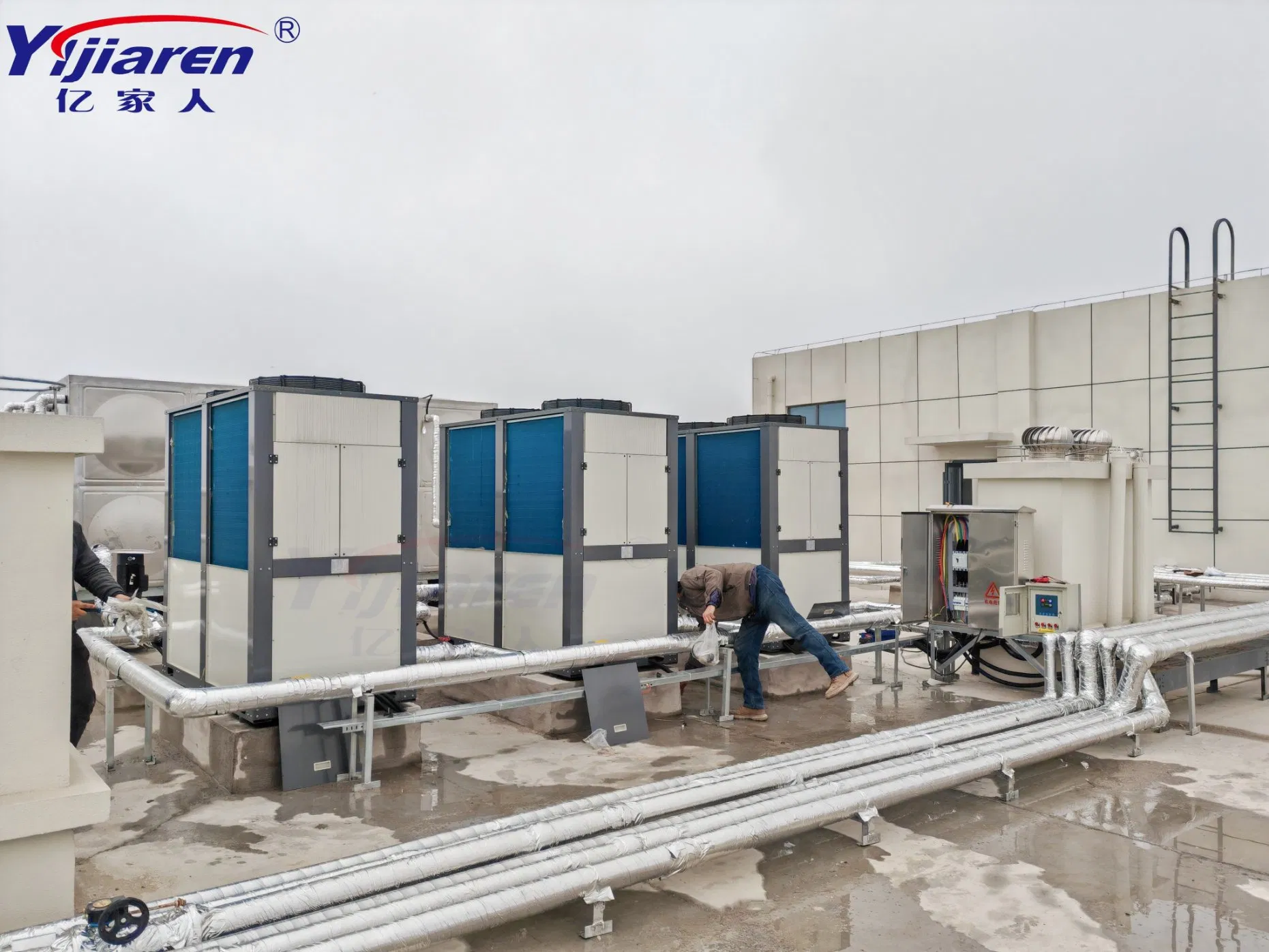

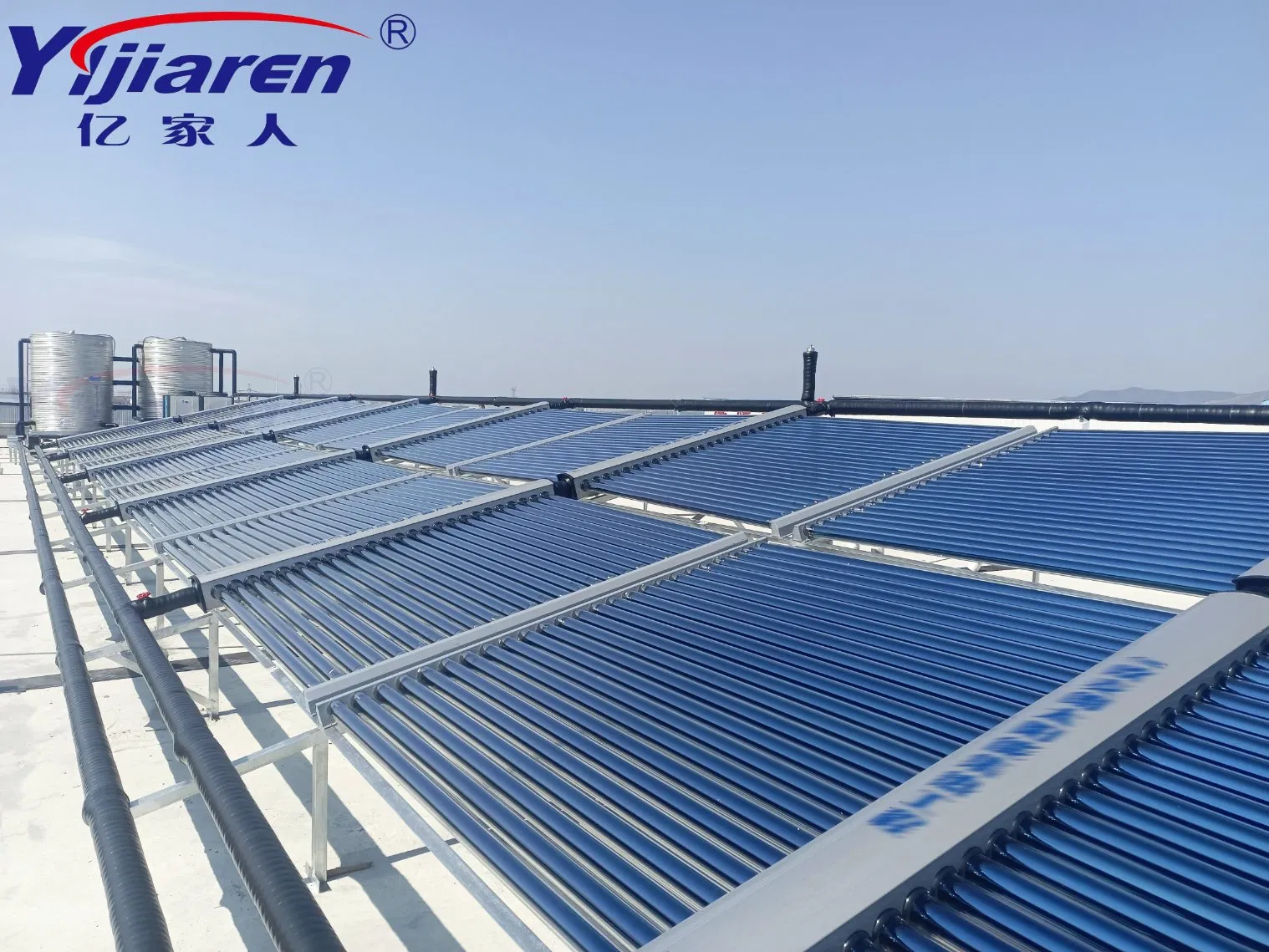

The combined heating system utilizing solar energy and air-source energy offers significant advantages in energy efficiency. The air-source heat pump absorbs heat from the air, remaining unaffected by environmental conditions throughout the year. Integrated with solar collectors, it compensates for solar fluctuations, saving up to 70% of electricity compared to traditional electric heaters.
| Specifications | Ø47-1500 (25/50 tubes) | Ø58-1800 (25/50 tubes) |
|---|---|---|
| Collector Area (m²) | 2.8 / 5.6 | 3.9 / 7.8 |
| Elevation Angle | 45° / 30° / Ridge-Type | |
| Liner Material | SUS304-2B Stainless Steel | |
| Foam Layer | 40mm Thickness | |
| Model Parameter | 05HP | 10HP-A | 15HP-B | 25HP |
|---|---|---|---|---|
| Heating Capacity (kw) | 22 | 36 | 60 | 95 |
| Water Production (L/h) | 472 | 773 | 1289 | 2042 |
| COP | 4.8 | 3.94 | 4.39 | 4.39 |
| Ambient Temperature | -10°C to 43°C | |||

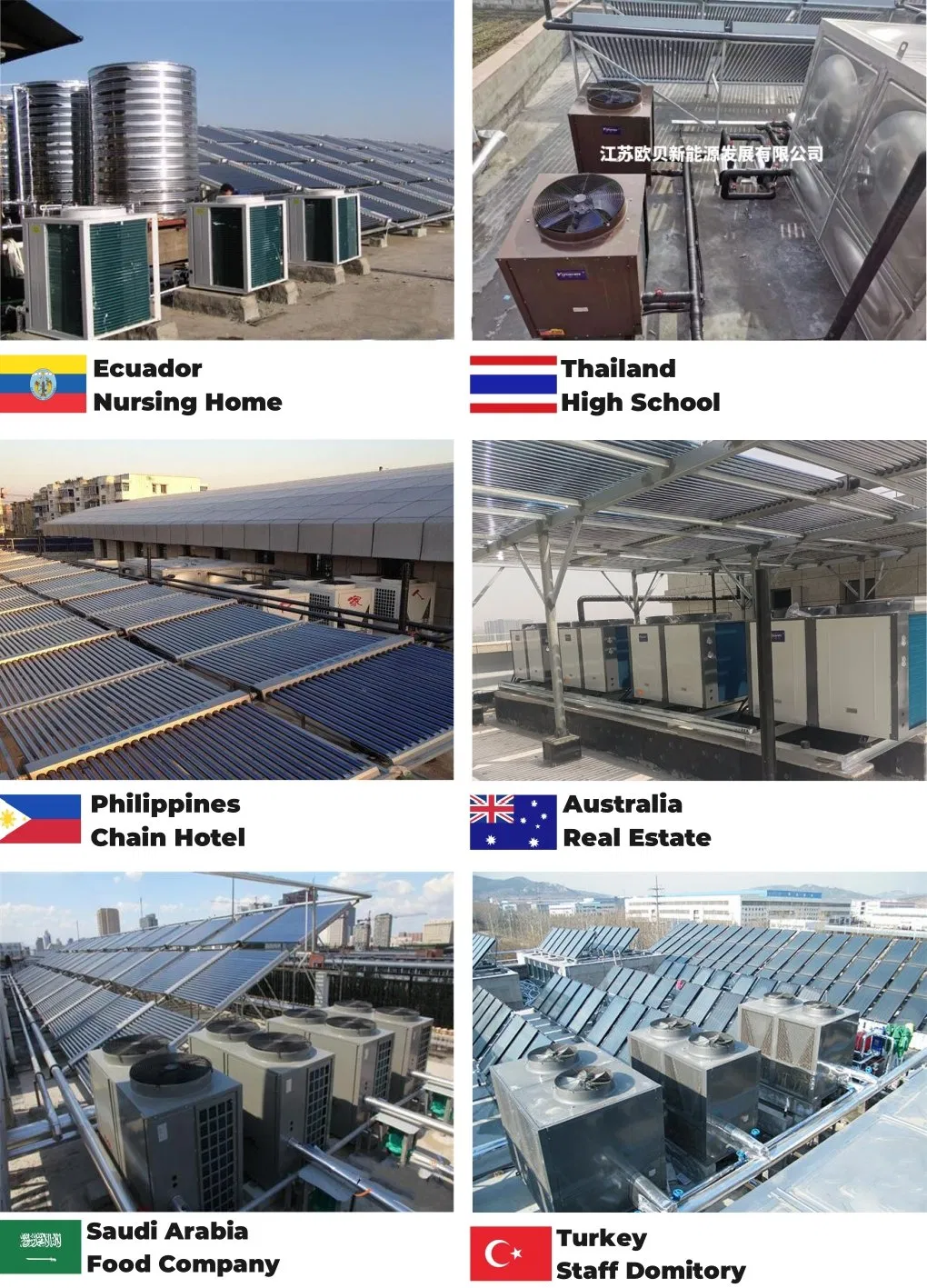

Our experienced team specializes in comprehensive hot water engineering projects. We manage everything from initial needs assessment and solution design to product configuration and remote technical guidance. Our systems are exported to over 75 countries and regions worldwide.
