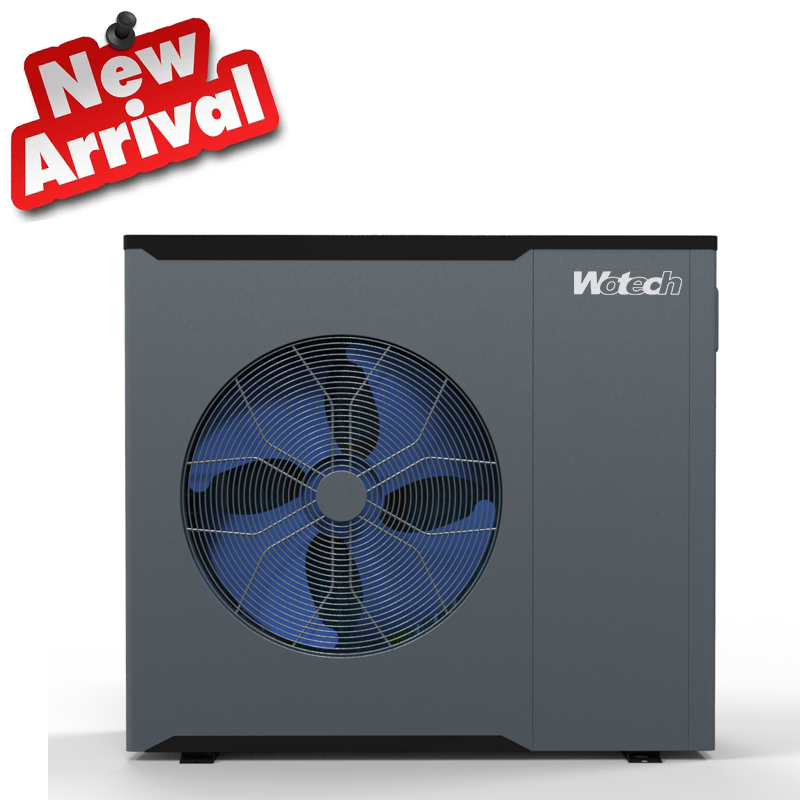

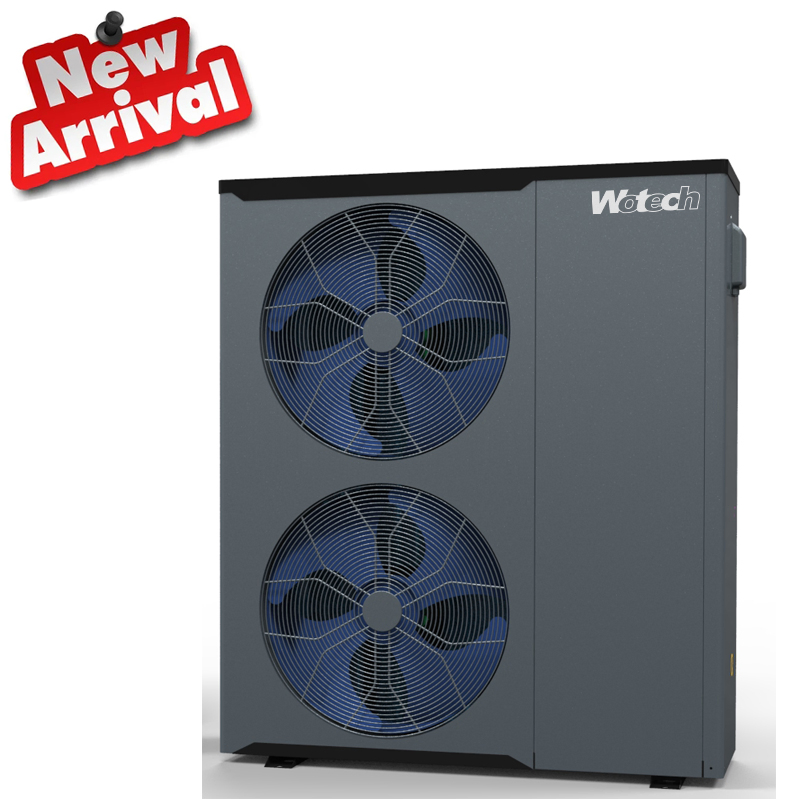

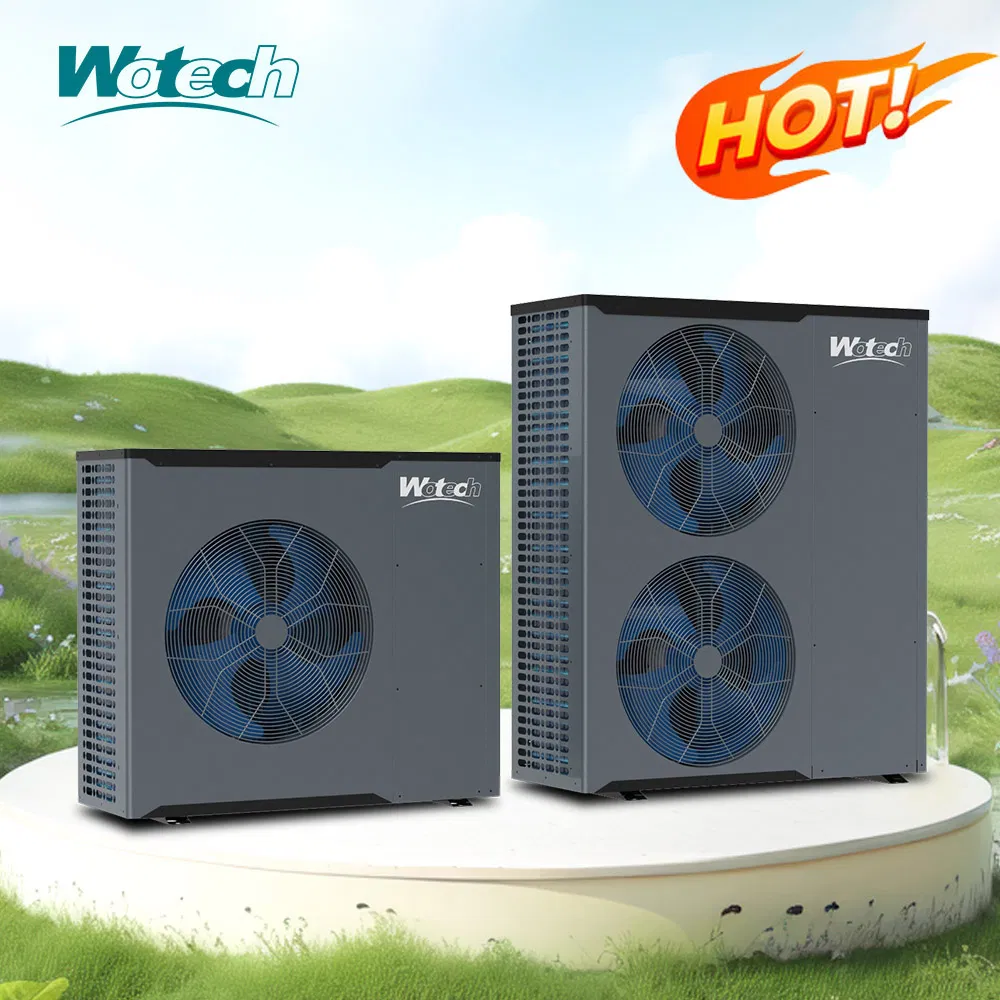

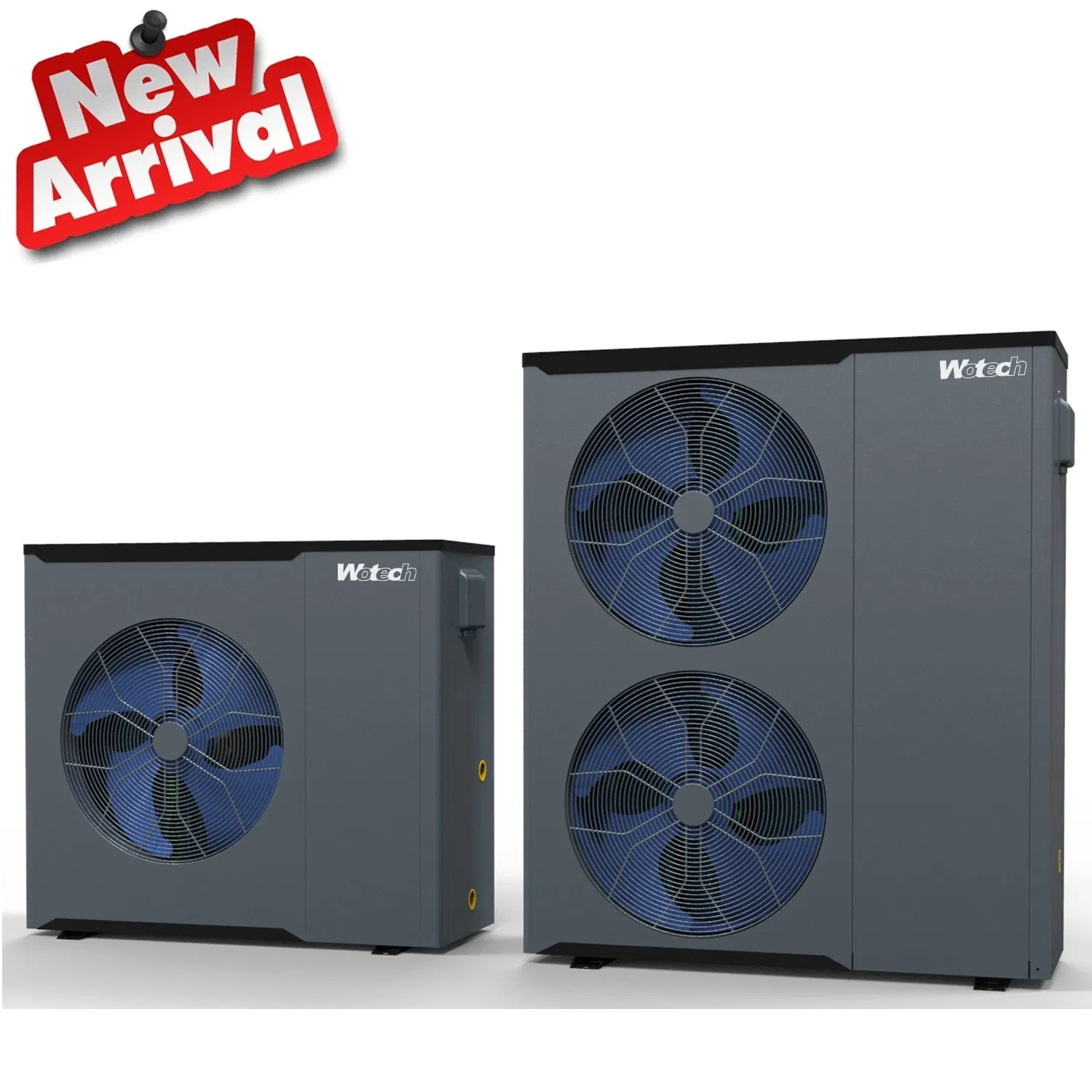

R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
1 / 5
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water
R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water

R32 Inverter Monoblock System Heater Air to Water Heat Pump for Central House Heating Cooling and Domestic Hot Water

Customization: Available
Certification: RoHS, CB, ISO9001, CE
Working Medium: R32
Send Inquiry

Product Description

Technical Specifications
Model NO.
WBC-HP-B/P
Heat Source Type
Air Source Heat Pump
Ambient Temp
-30°C ~ 45°C
Heating Capacity
8kW - 16kW
Unit Type
Inverter
Refrigerant
R32 Environment Friendly
Energy Rating
A+++ Level
Water Temp
Up to 65°C
Core Features
1
High Temperature Water: Suitable for underfloor, radiator heating, and fan coils (up to 65ºC).
2
Extreme Climate Stability: Works stably at ambient temperatures from -25°C to 45°C.
3
Energy Efficiency: A+++ Energy Rating Level with full inverter system performance.
4
Eco-Friendly System: Utilizes R32 system for reduced environmental impact.
5
Smart Control: Integrated Wifi App control for remote management.
6

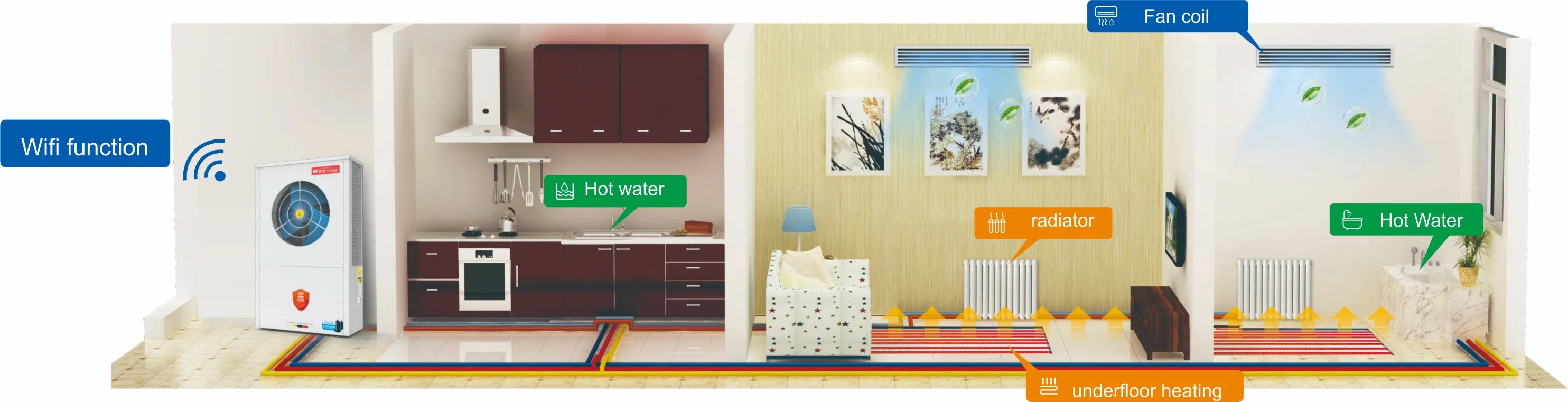

All-in-One: Central House Heating, Cooling, and Domestic Hot Water.
R32 Inverter Monoblock Heat Pump
Installation Diagram

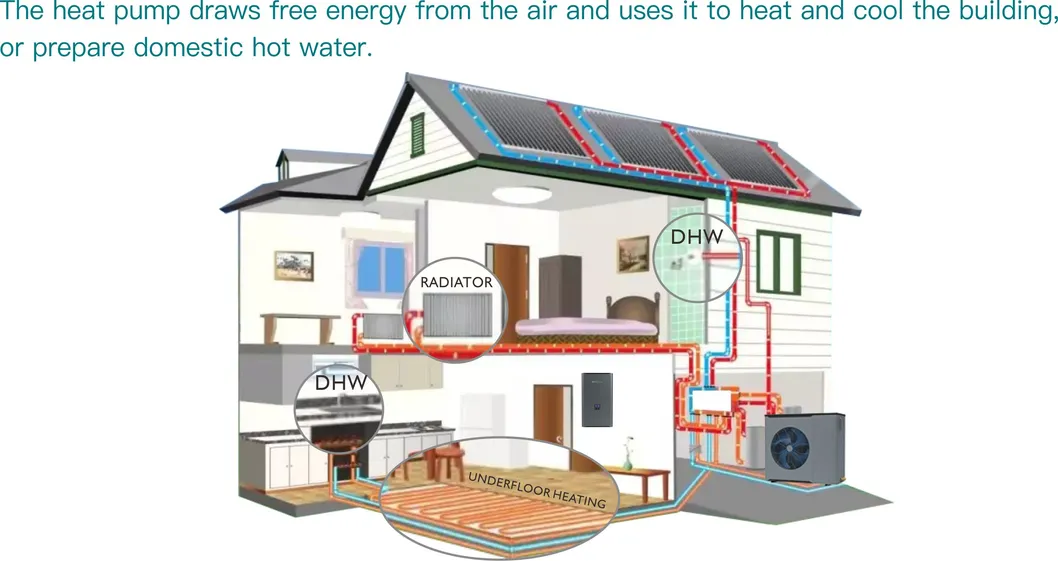

Installation Diagram 1

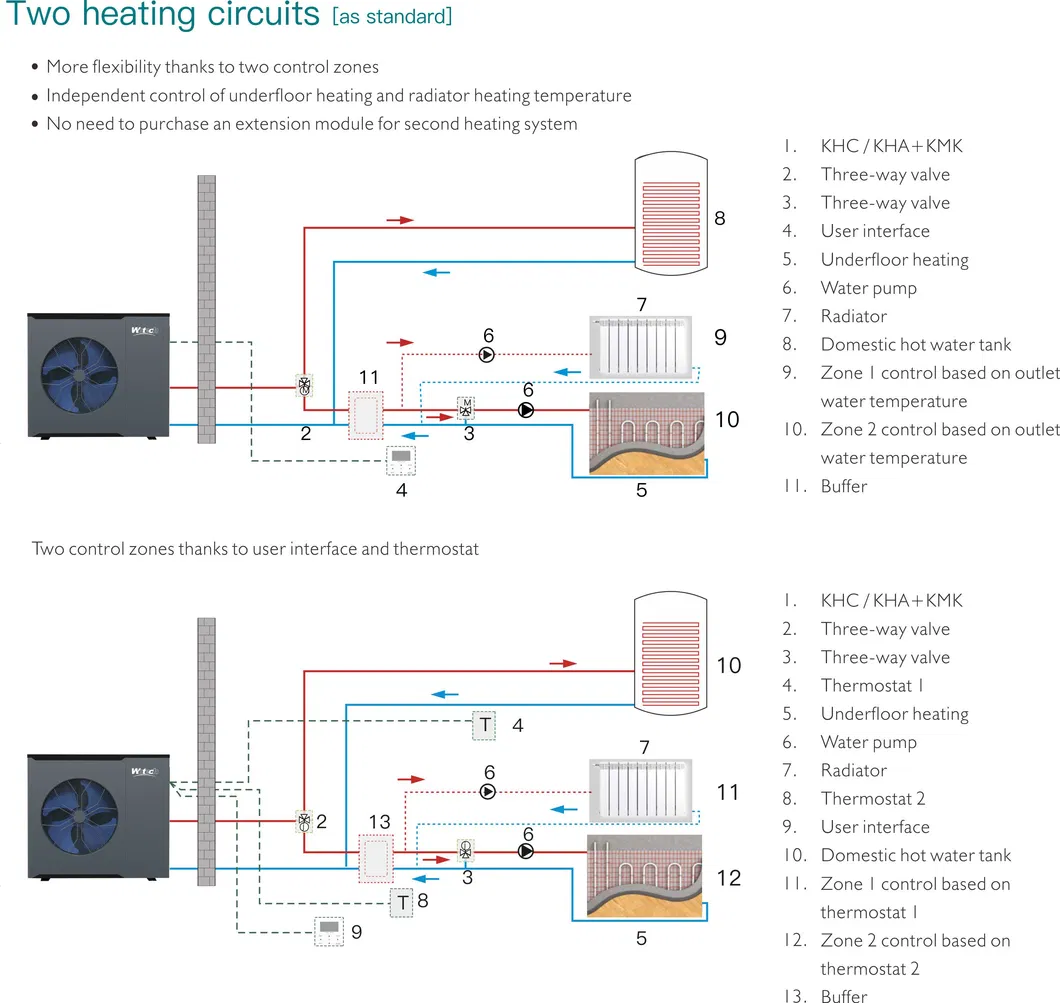

Installation Diagram 2
Technical Parameters
Market Model Unit WW08V WW10V WW12V WW14VM
Heating (1) Output Capacity kW 3.40~8.65 3.70~10.30 4.95~12.46 5.92~14.94
COP - 5.23~5.72 5.02~5.90 5.03~5.50 4.67~5.12
Power Supply V/Ph/Hz 220-240V/1/50Hz
ErP Level (35ºC) - A+++ A+++ A+++ A+++
Sound Pressure @1m dB(A) 50 50 52 53
Key Functions & Applications

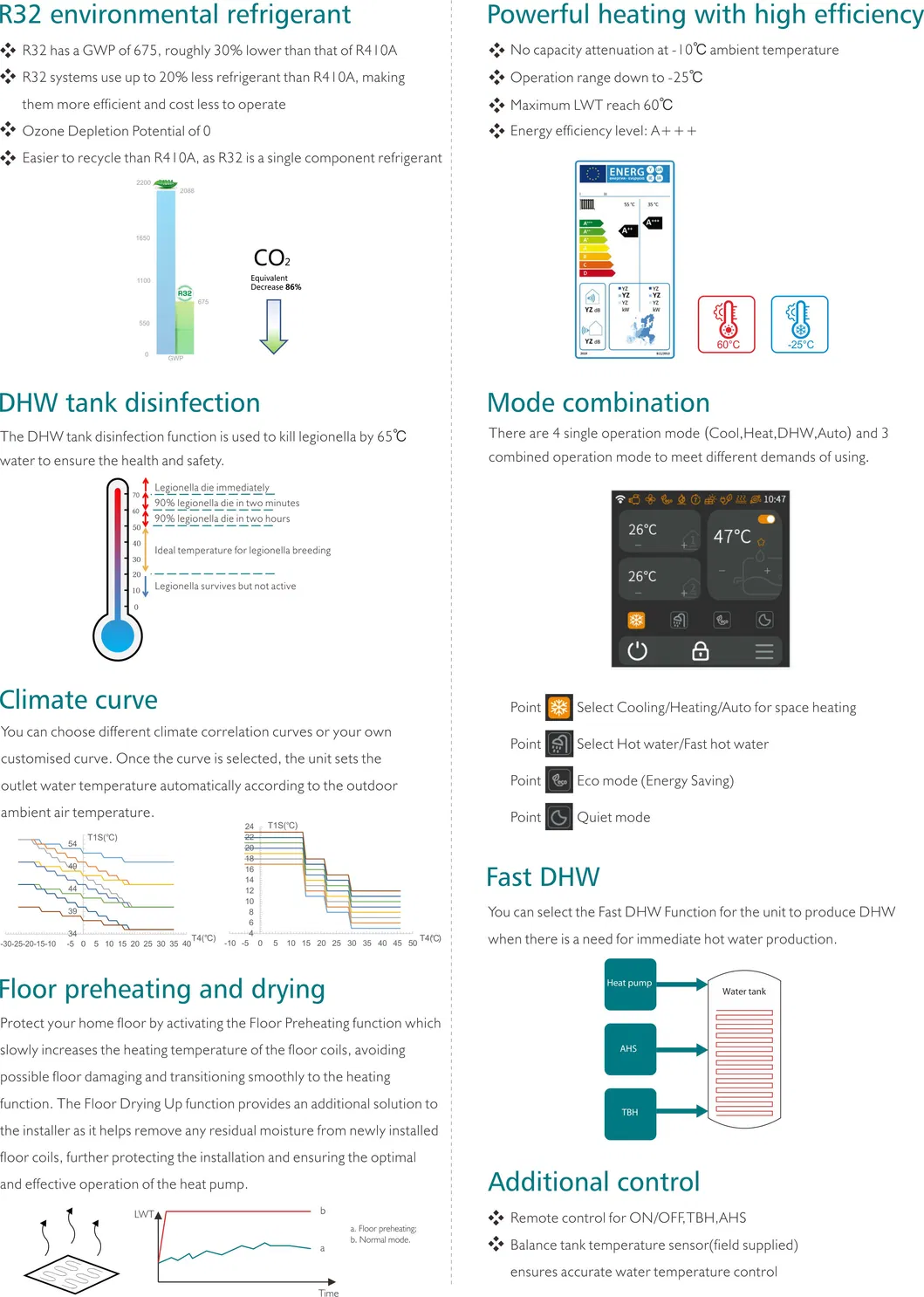

Key Functions
Project Cases

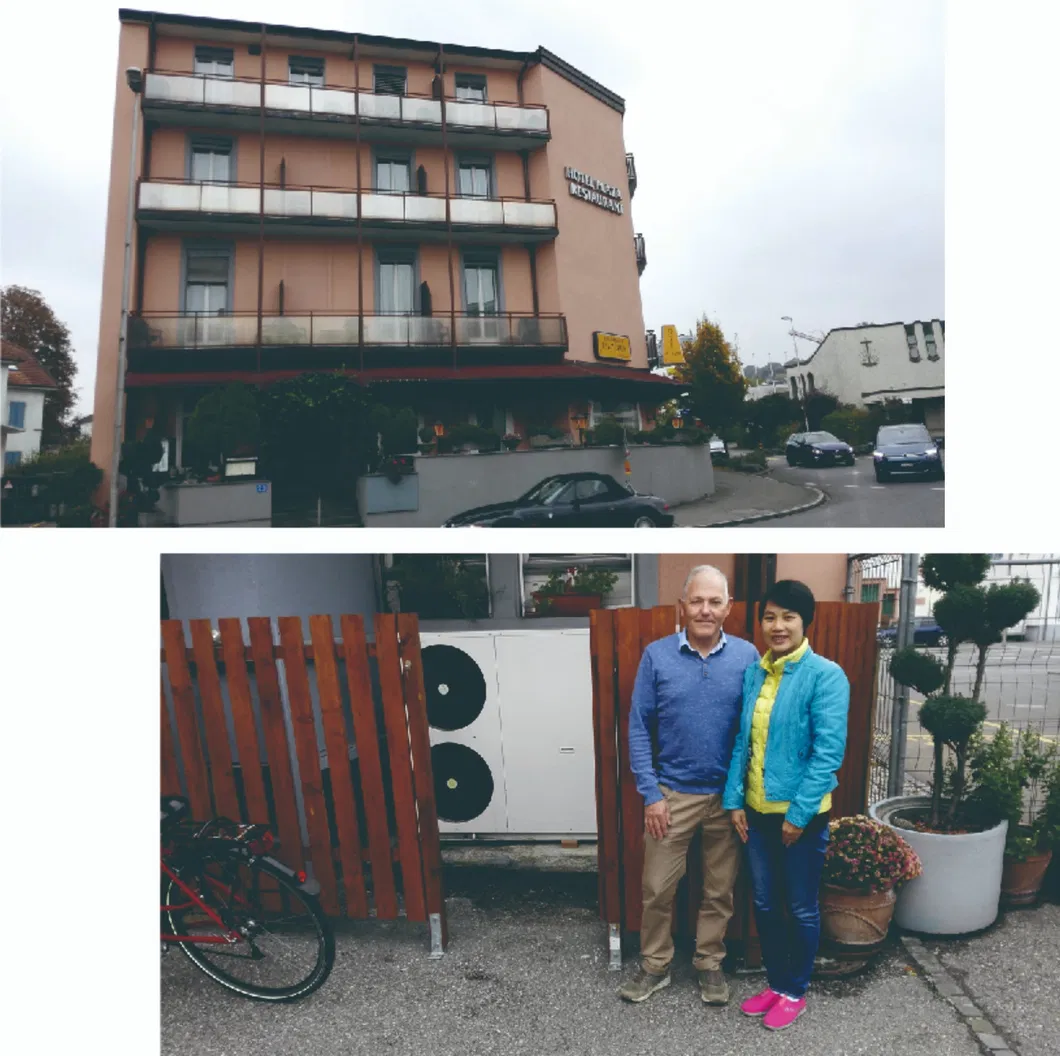

Project Case 1
Project Case 2
Manufacturing & Laboratories

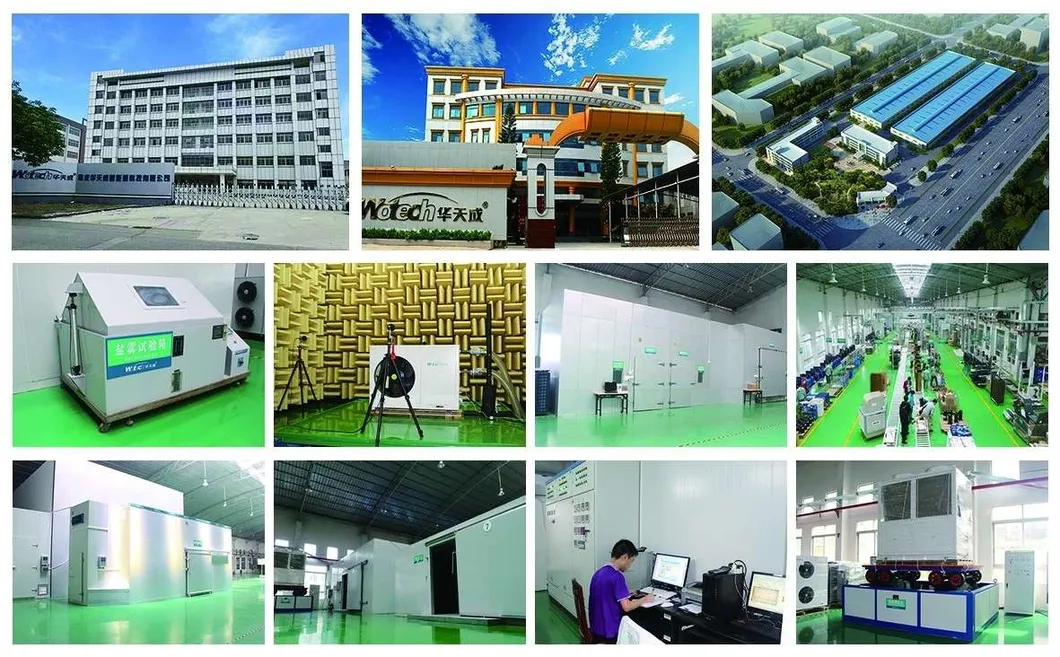

Manufacturing Facility
Frequently Asked Questions
What is the maximum water temperature this heat pump can reach?
The system can provide hot water up to 65ºC, making it ideal for underfloor heating, radiators, and fan coil units.
Does it work in extremely cold weather?
Yes, this inverter monoblock system is designed to operate stably in ambient temperatures as low as -25°C.
Is the R32 refrigerant better for the environment?
Absolutely. R32 has a much lower Global Warming Potential (GWP) compared to older refrigerants, making it a more eco-friendly choice.
Can I control the heat pump remotely?
Yes, the unit comes with an LCD touch screen controller and supports Wifi App control for convenient remote management via your smartphone.
What are the primary applications for this system?
It is widely used in villas, hotels, hospitals, and clubs for central house heating, cooling, and domestic hot water supply.
What is the energy efficiency rating?
The system is highly efficient, achieving an A+++ Energy Rating Level (at 35ºC water temperature) to help reduce electricity costs.
