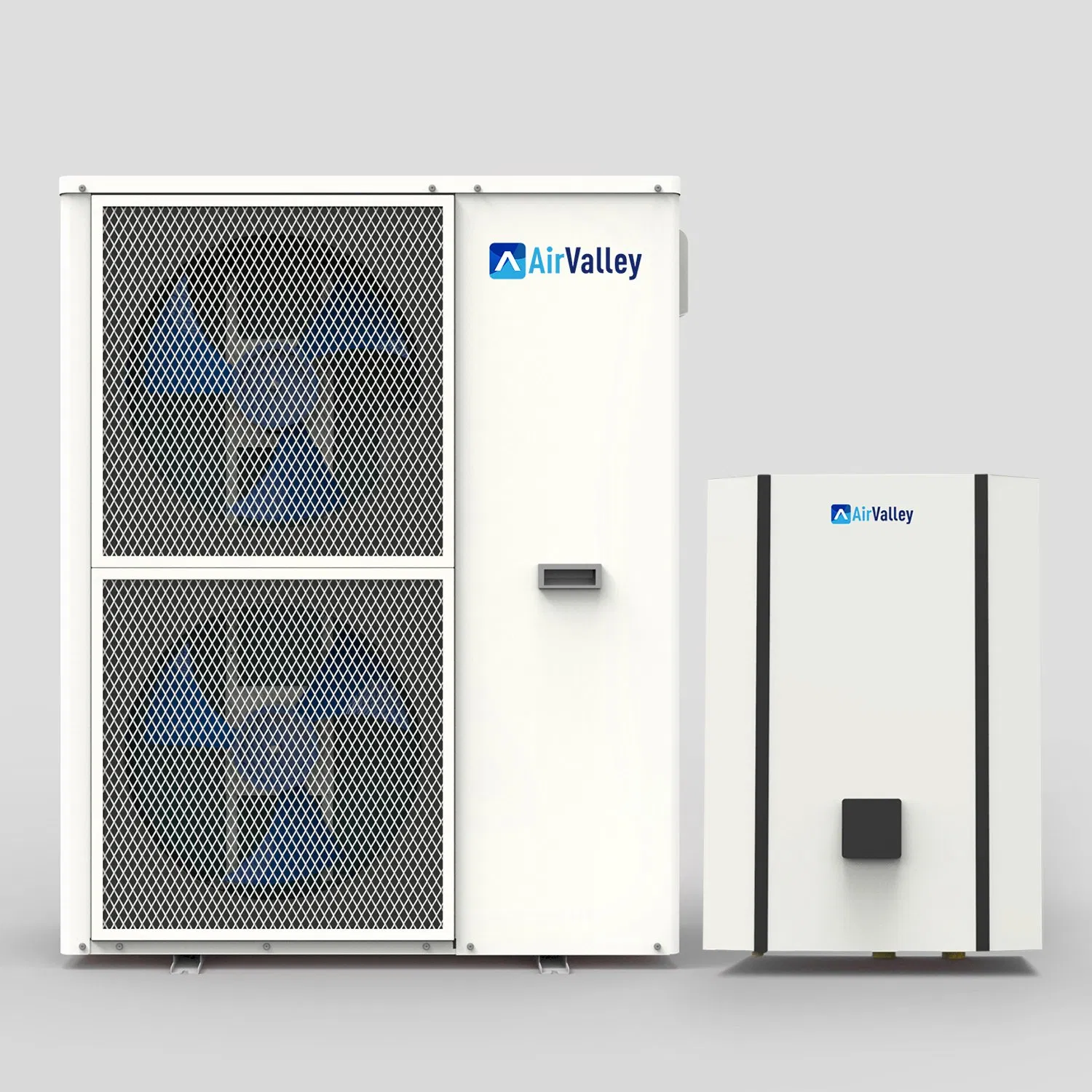

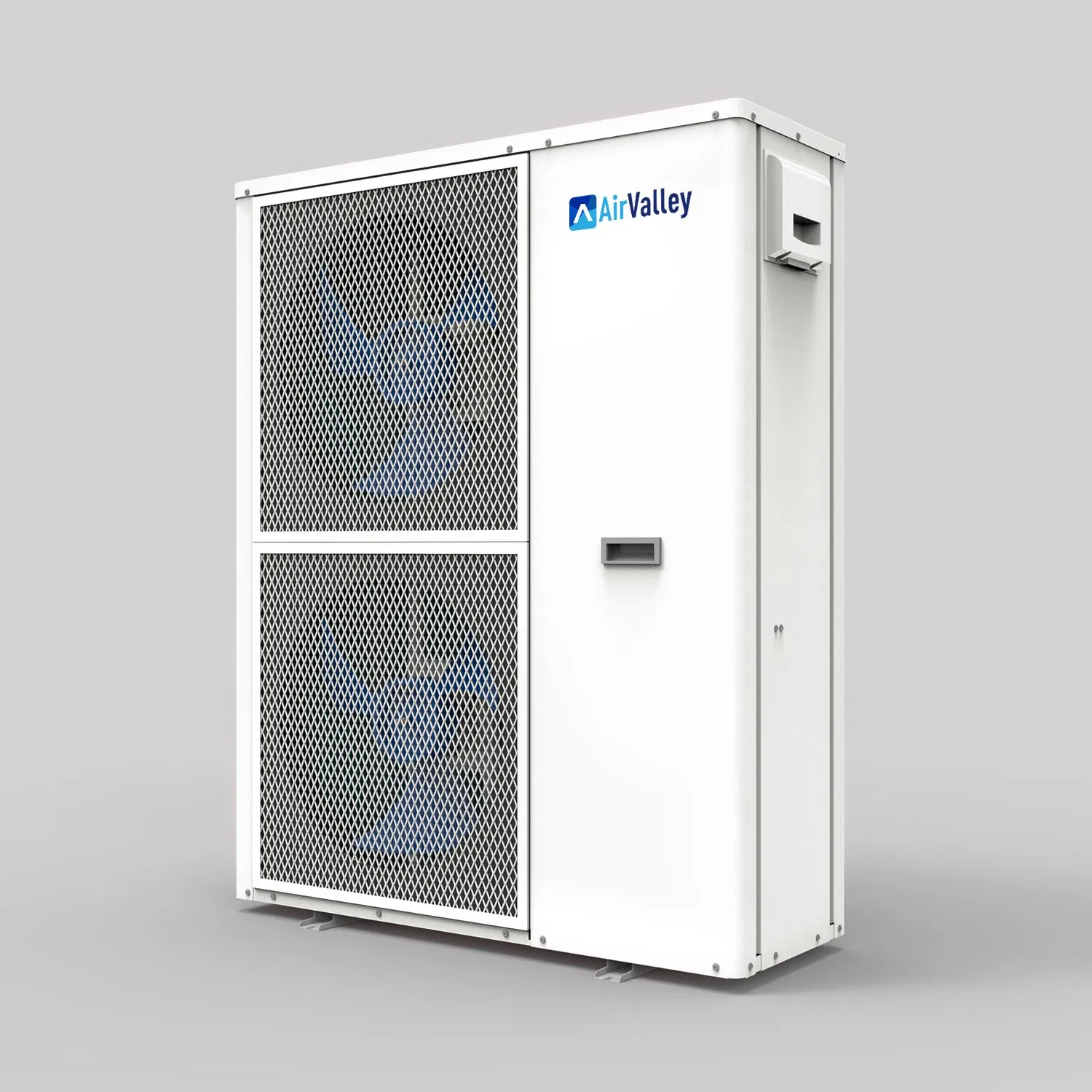

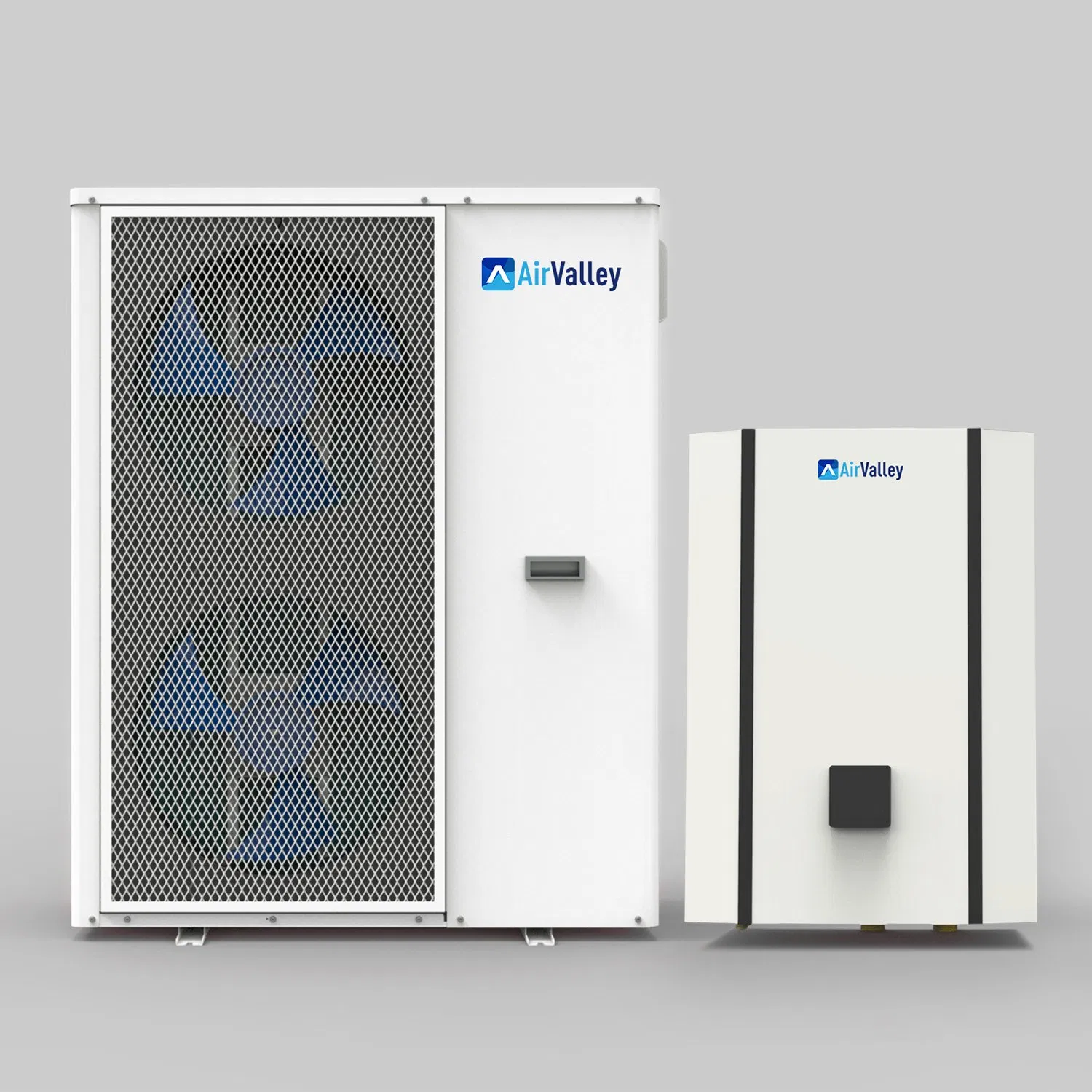

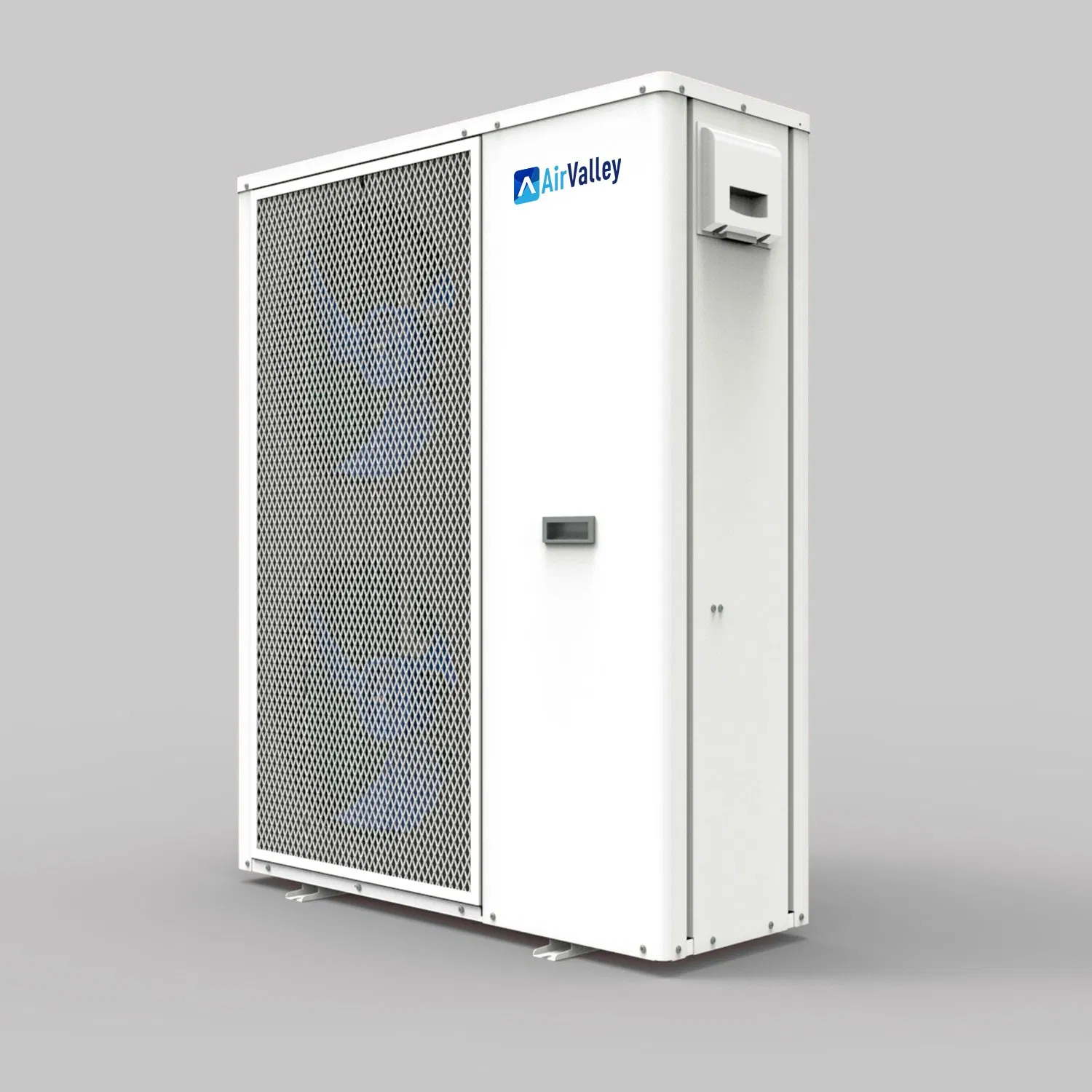

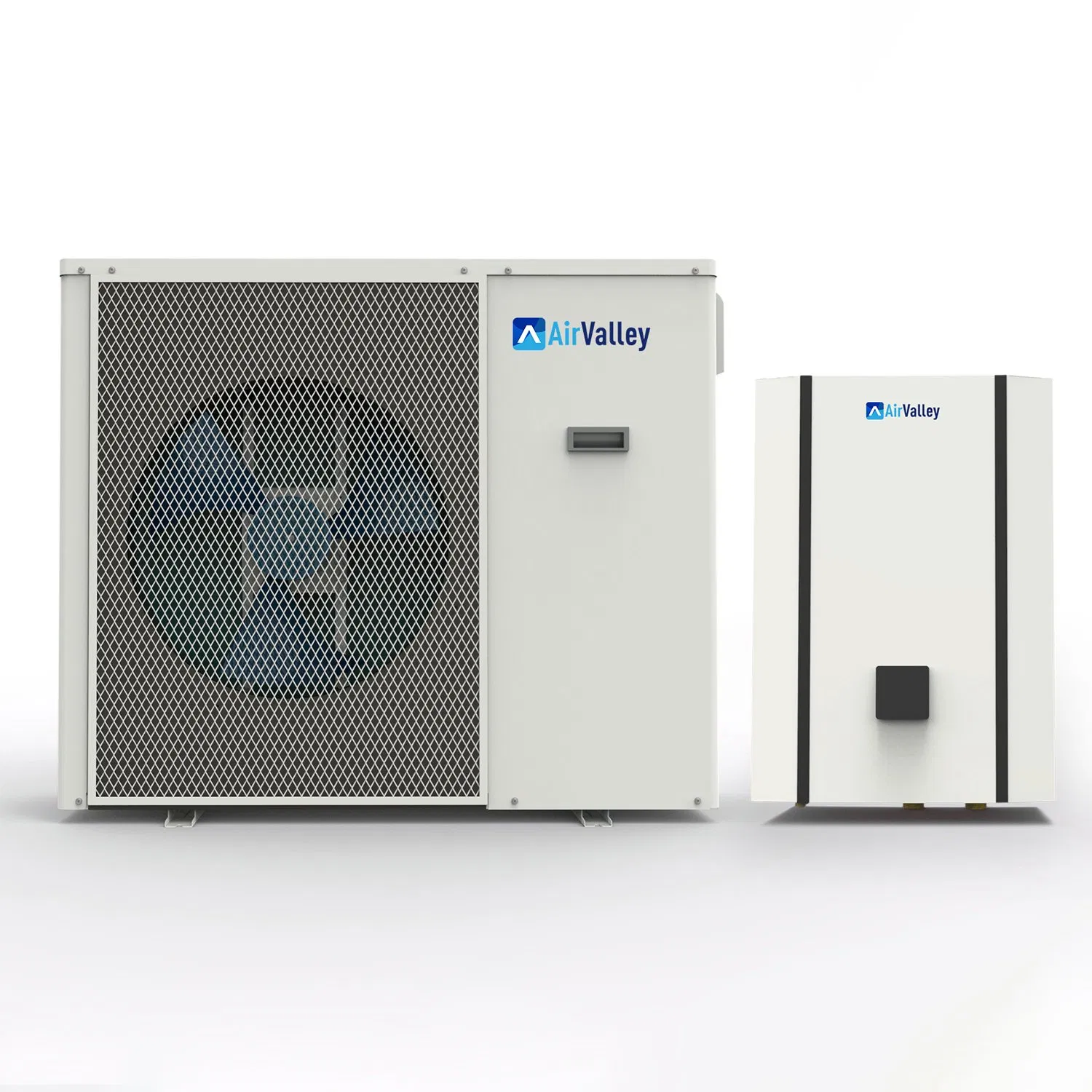

Residential Split DC Inverter EVI Air to water heat pump for heating + cooling + hot water.

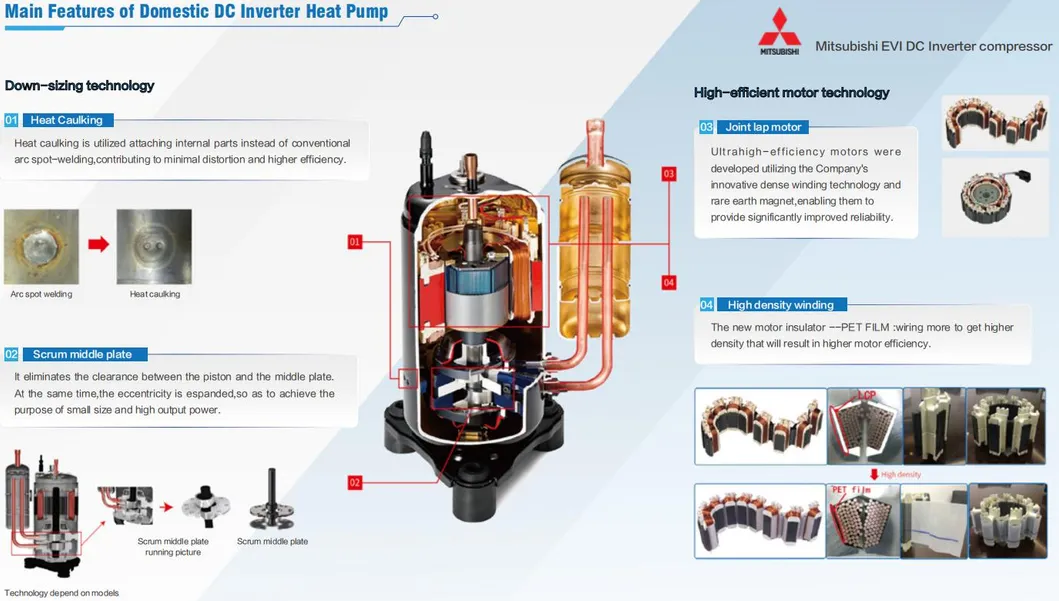

Equipped with Mitsubishi/GMCC DC Inverter compressor & R32 refrigerant.
Lowest working ambient temperature: -35°C.
DC Inverter compressor + DC Brushless fan motor + DC Inverter circulation pump
Heating efficiency level A+++ at 35°C
Heating efficiency level A++ at 55°C

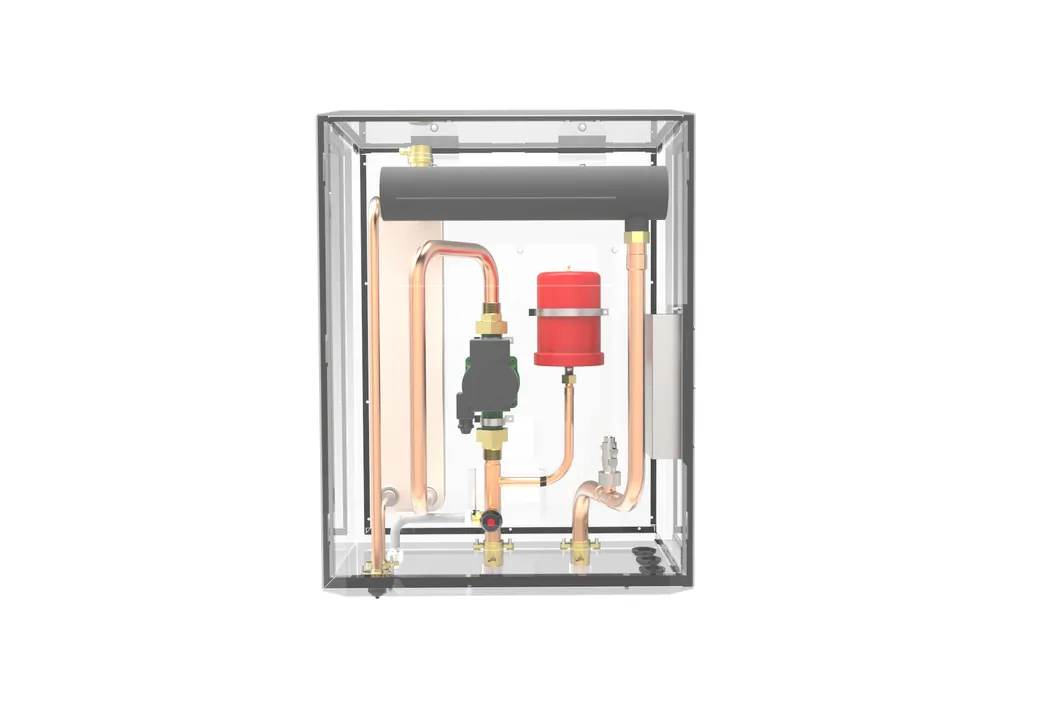

The water system is fully equipped with a DC Inverter water pump, water flow switch, electric heater, expansion tank, and Y-shaped filter. This design effectively reduces installation time, space, and costs.

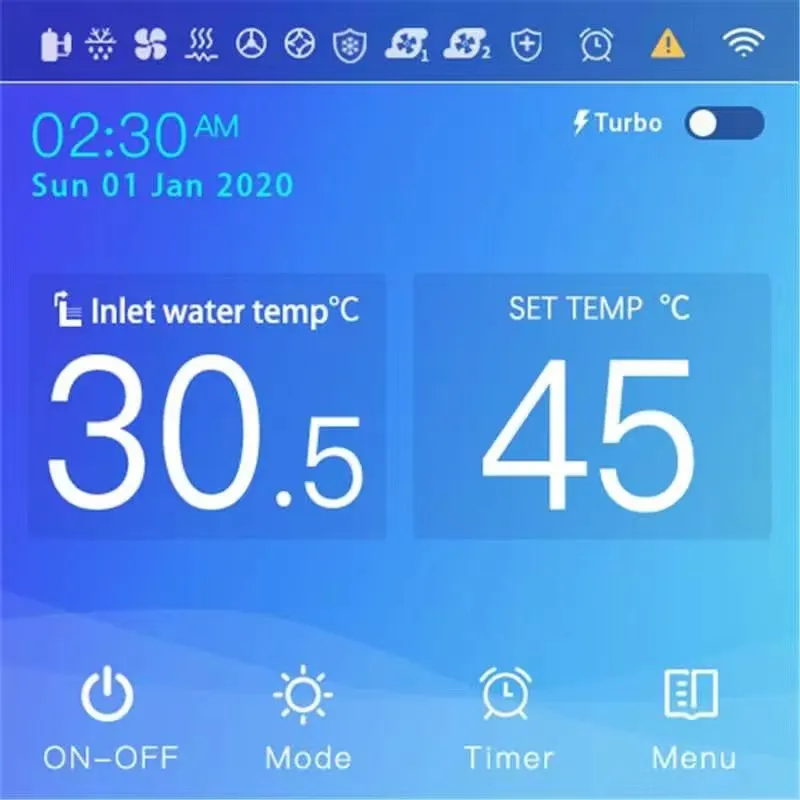

Control your heat pump via smartphone anywhere, anytime with optional WiFi functionality.

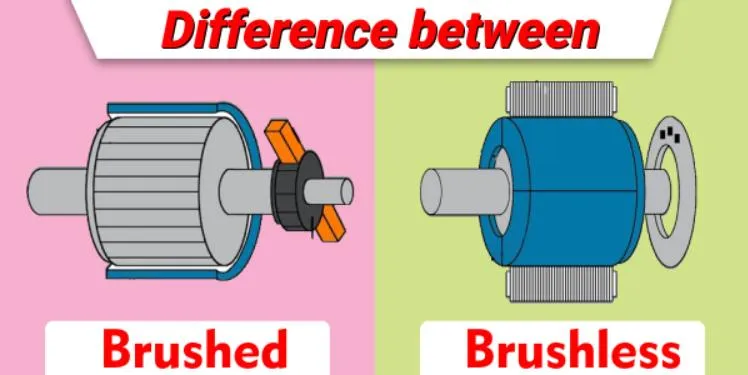

DC Brushless Motor: Reduces power consumption by more than 30% compared to AC motors.

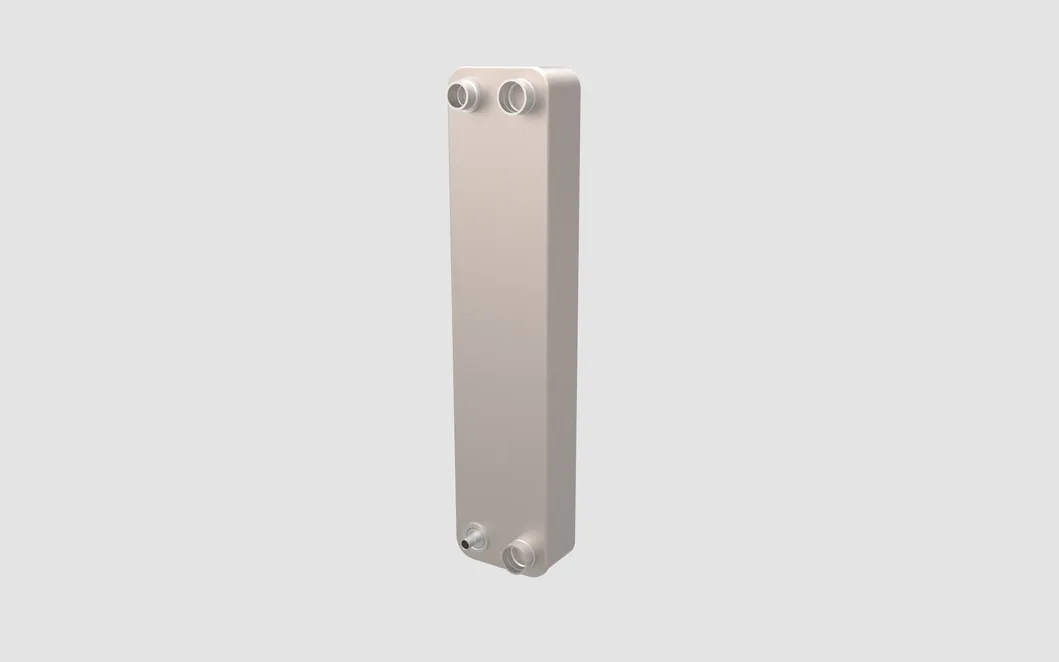

Plate Heat Exchanger: High-efficiency multi-layer channels for superior heat exchange.

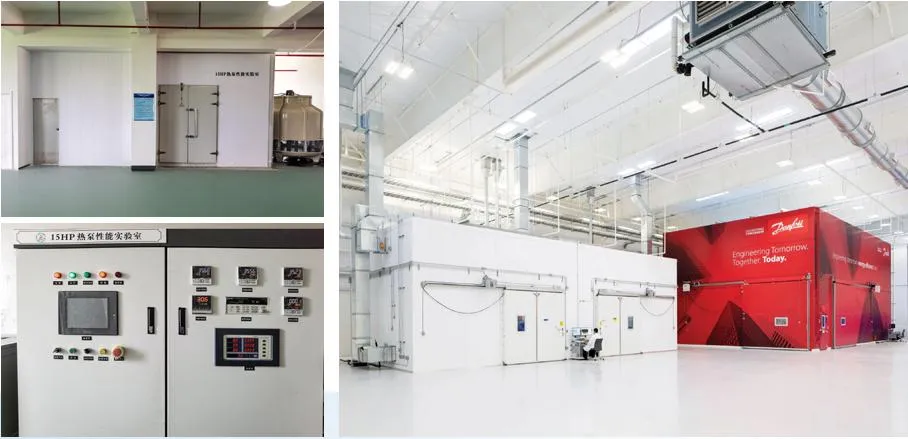

Our R&D engineers have over 10 years of experience in the heat pump industry. We utilize a professional 15HP laboratory and collaborate with global component leaders to ensure ultra-high performance and stability.
Testing range from -40ºC to 55ºC. Maximum capacity testing up to 300kW.
| DIS32 Series Full DC Inverter Air to Water Heat Pump (Split Type R32) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | DFC10I/BPF | DFC15I/BPF | DFC16I/BPF | DFC20I/BPF | DFC16II/BPF | DFC20II/BPF | ||
| Rated Heating (A7 W45) | Capacity | kW | 10.00 | 15.00 | 16.00 | 20.00 | 16.00 | 20.00 |
| Input Power | kW | 2.81 | 4.36 | 4.55 | 5.70 | 4.55 | 5.68 | |
| COP | W/W | 3.56 | 3.55 | 3.52 | 3.51 | 3.52 | 3.52 | |
| Power Supply | 220V/1/50Hz | 380V/3/50Hz | ||||||
| Operation Temp. Range | -35ºC ~ 43ºC | |||||||
| Refrigerant Type | R32 | |||||||
| Outdoor Unit | Dimensions | mm | 1100/460/731 | 1200/460/1025 | 1100/460/1403 | |||
| Net Weight | kg | 75 | 80 | 100 | 125 | 100 | 125 | |
