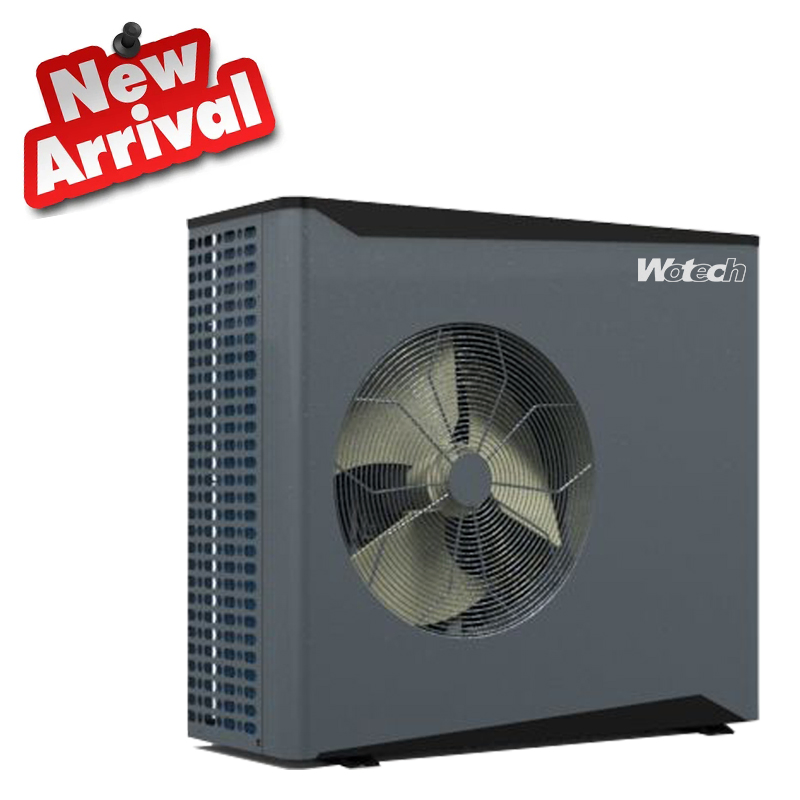

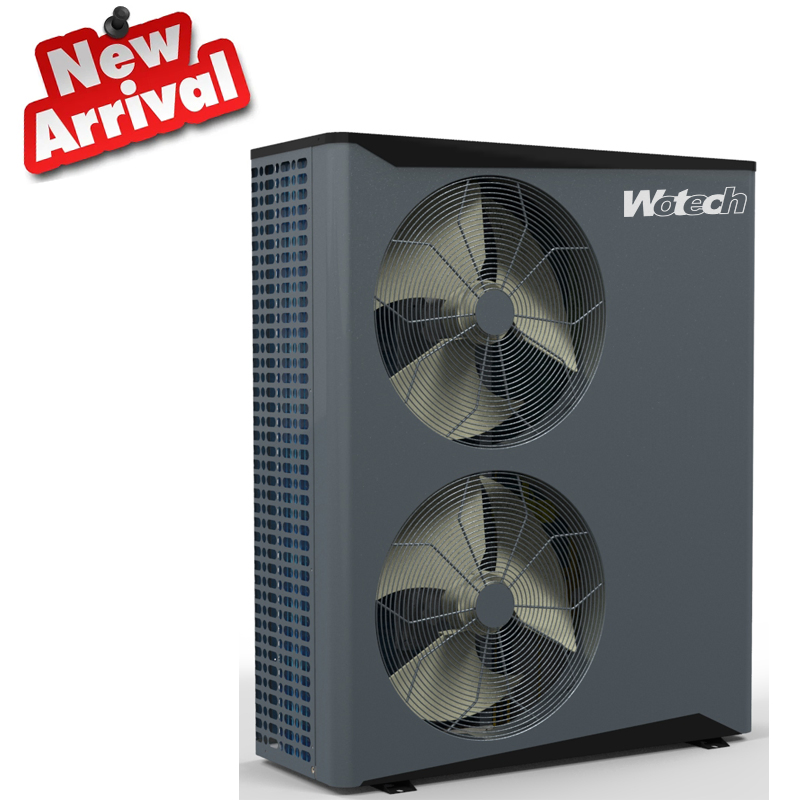

High Efficiency Solution for Heating, Cooling, and Hot Water

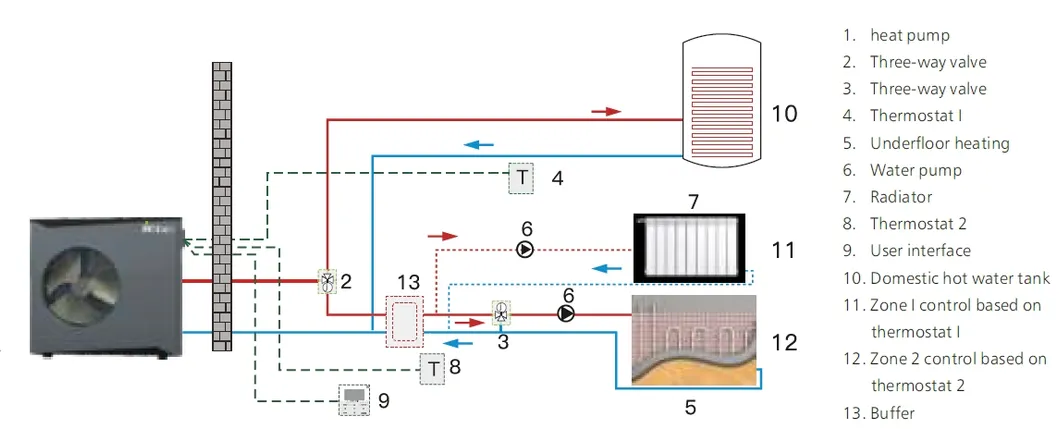

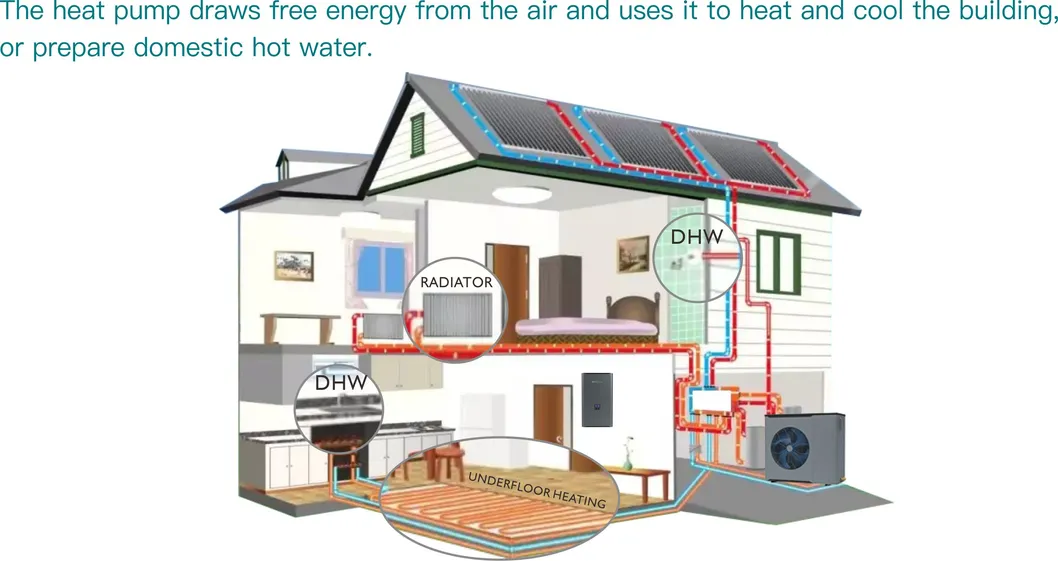

Independent temperature control for underfloor heating and radiator systems. The user interface displays both zone temperatures for maximum flexibility.
| Market Model | WW07VM | WW09VM | WW12VM | WW15VM | WW20VT | WW22VT | |
|---|---|---|---|---|---|---|---|
| Heating (A7 W35) | Capacity (kW) | 2.84~7.20 | 3.61~9.17 | 4.75~12.06 | 5.83~14.80 | 8.03~20.38 | 8.71~22.12 |
| COP | 4.56~5.52 | 4.43~5.36 | 4.51~5.46 | 4.40~5.32 | 4.41~5.34 | 4.35~5.26 | |
| Power Supply | 220-240V/1/50Hz | 220-240V/1/50Hz | 220-240V/1/50Hz | 220-240V/1/50Hz | 380-415V/3/50Hz | 380-415V/3/50Hz | |

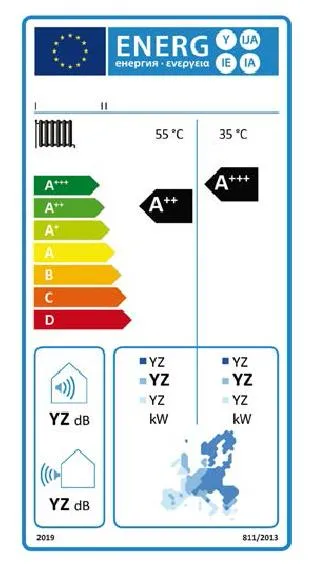

| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | |
| Max Outlet Water | 75°C | 75°C | 75°C | 75°C | 75°C | 75°C | |

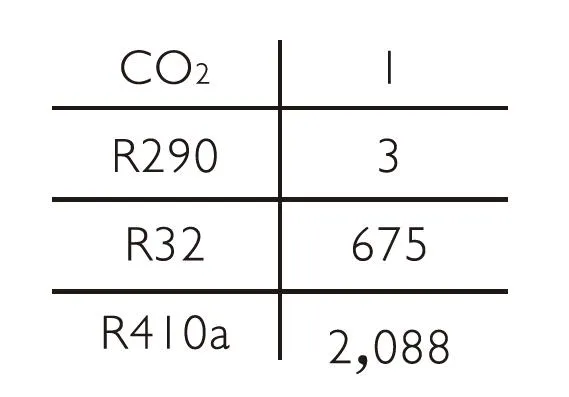

R290 offers zero ODP and negligible GWP. It is the permanent green solution with high efficiency and low energy consumption.

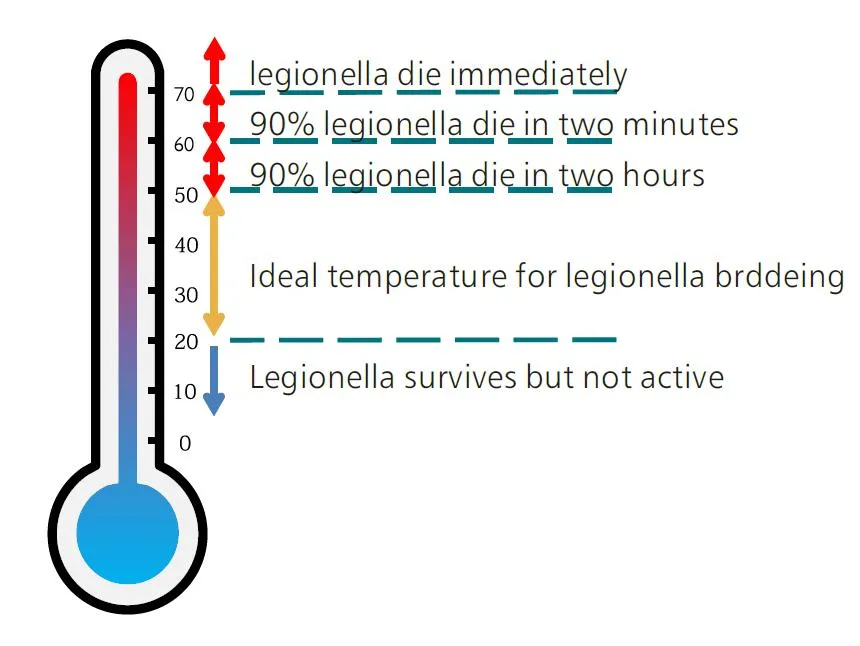

Ensures health and safety by heating water to 65°C to eliminate Legionella bacteria automatically.

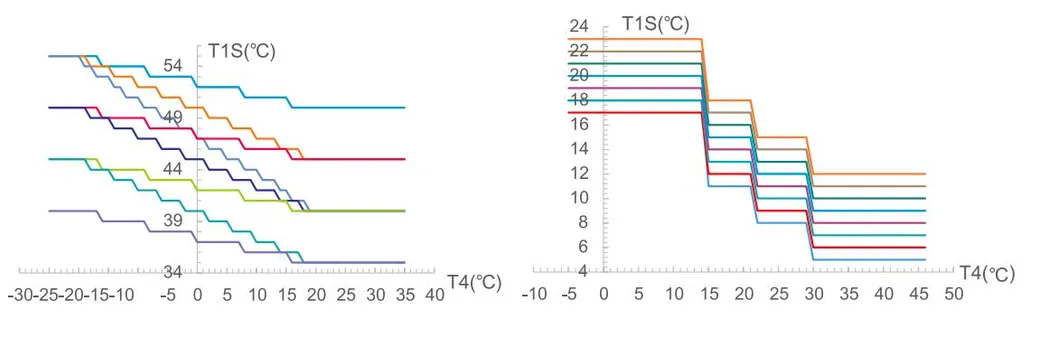

Automatically adjusts outlet water temperature based on outdoor ambient temperature for optimal comfort and energy saving.

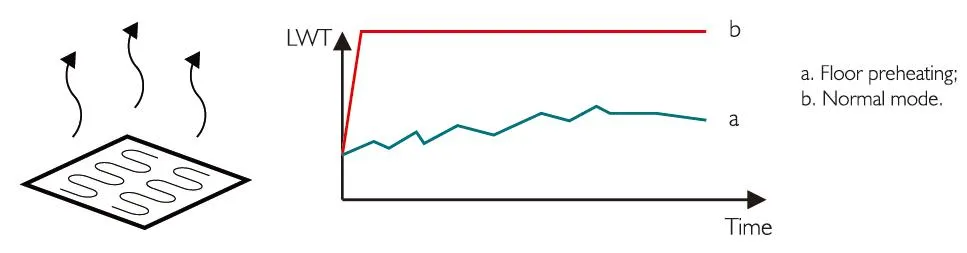

Protects new flooring installations by gradually increasing temperature to remove residual moisture and prevent cracking.
