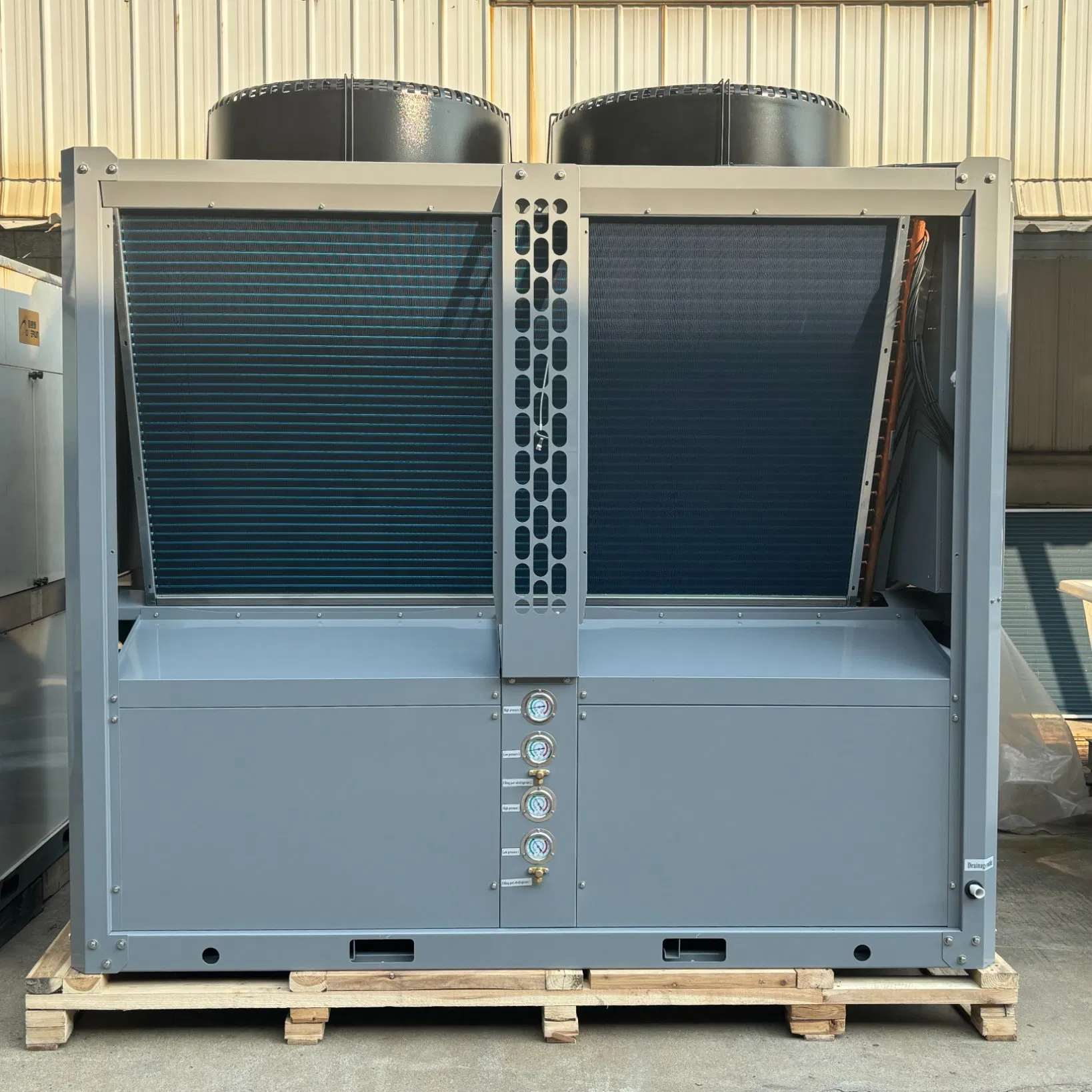

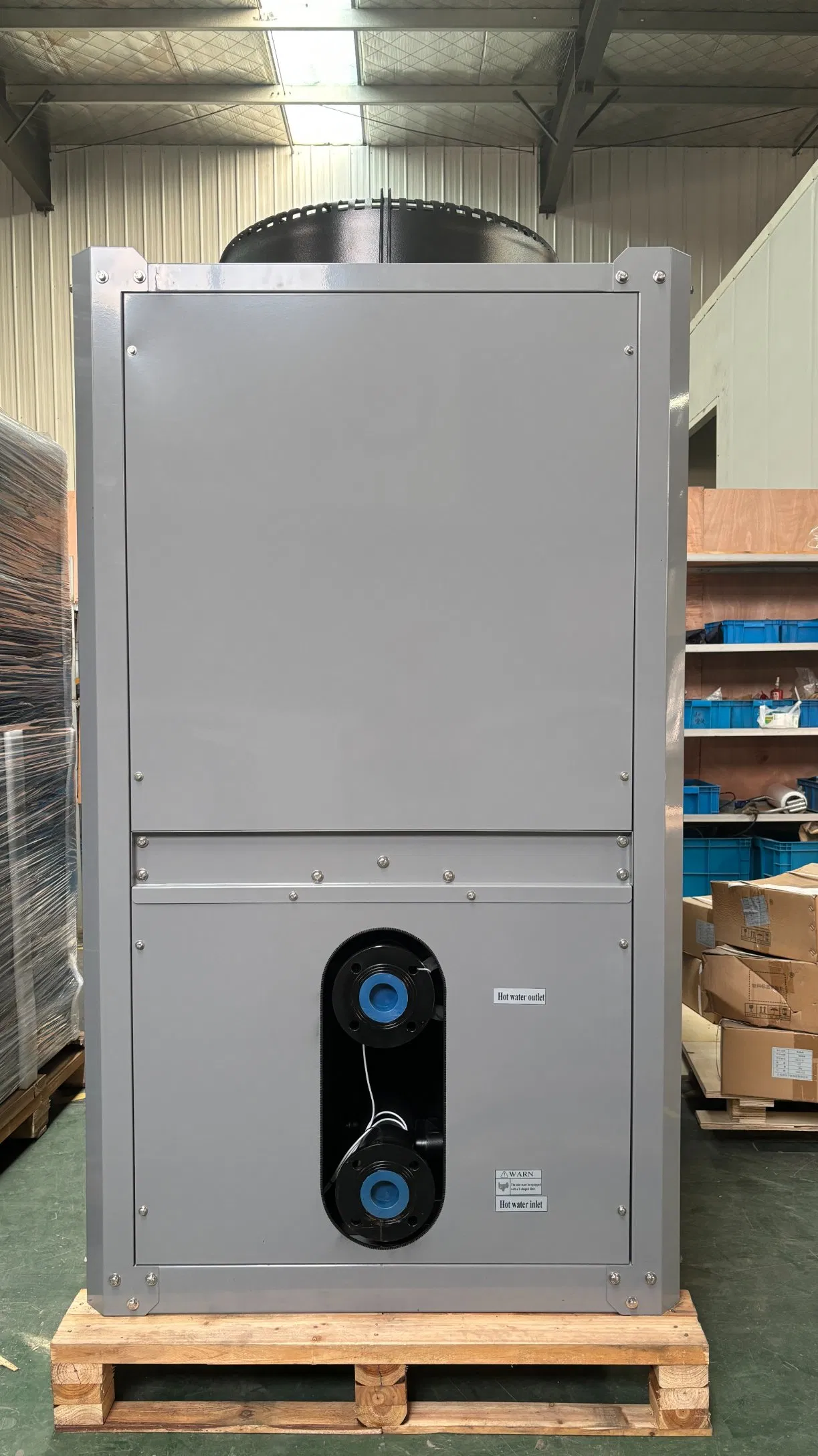

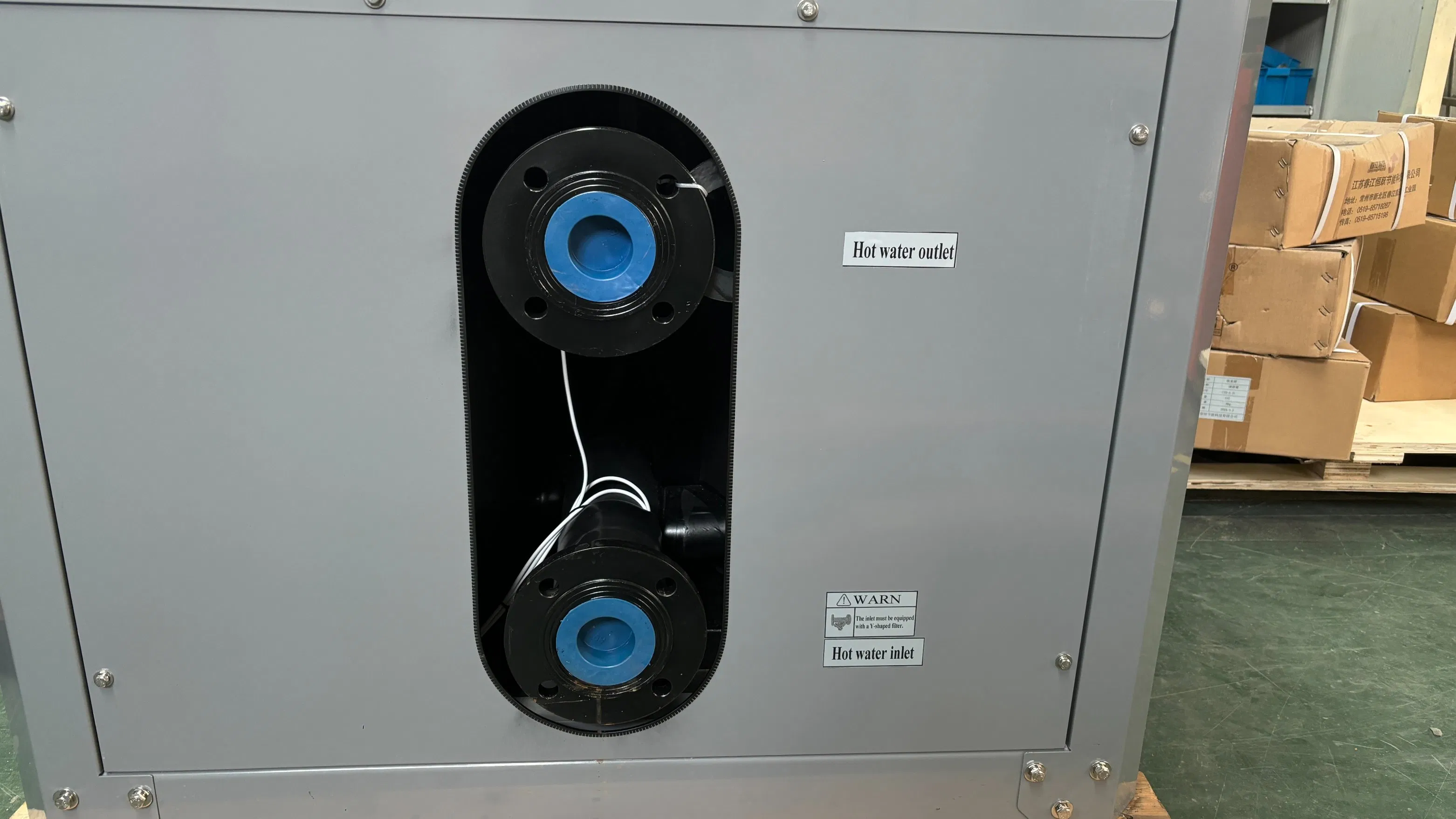

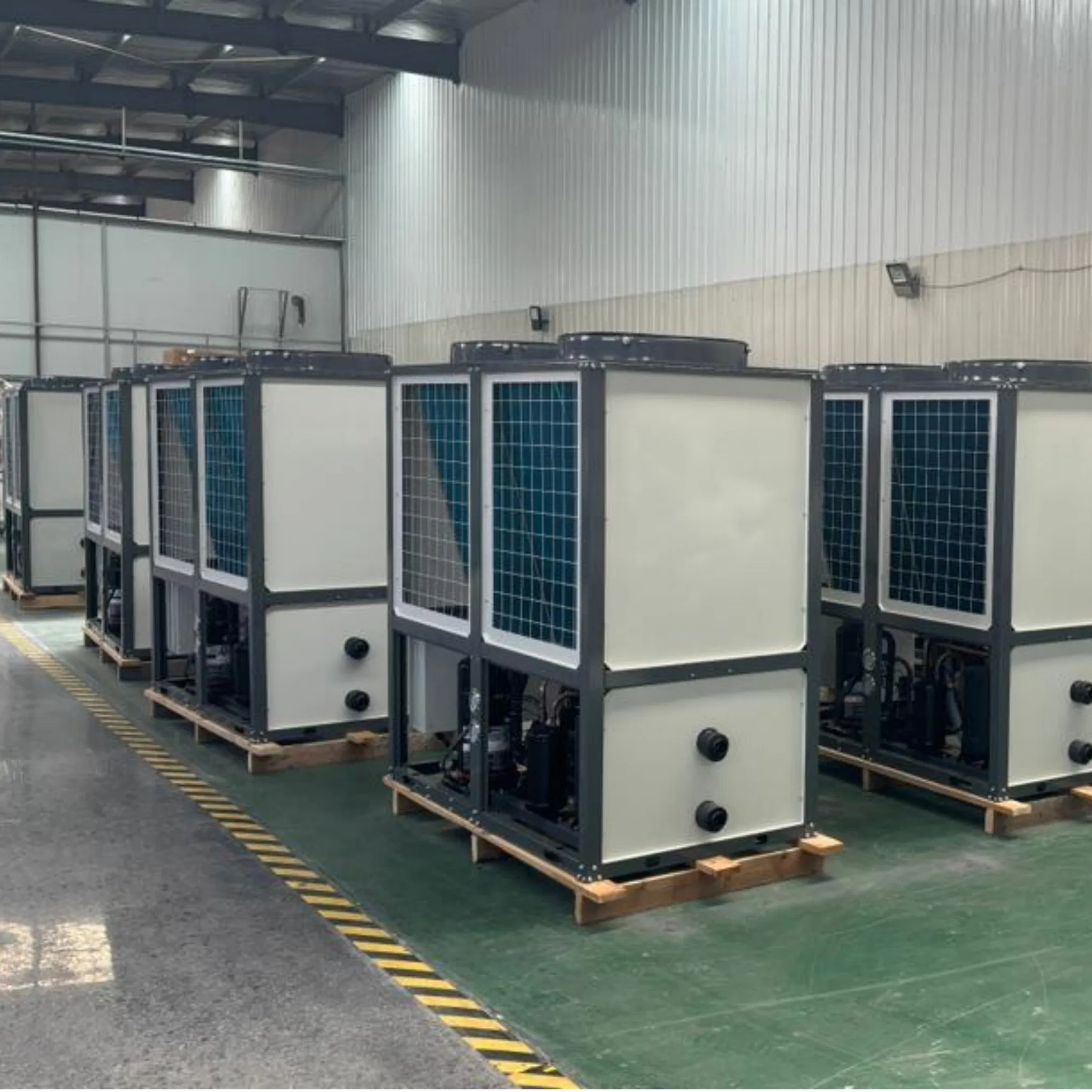

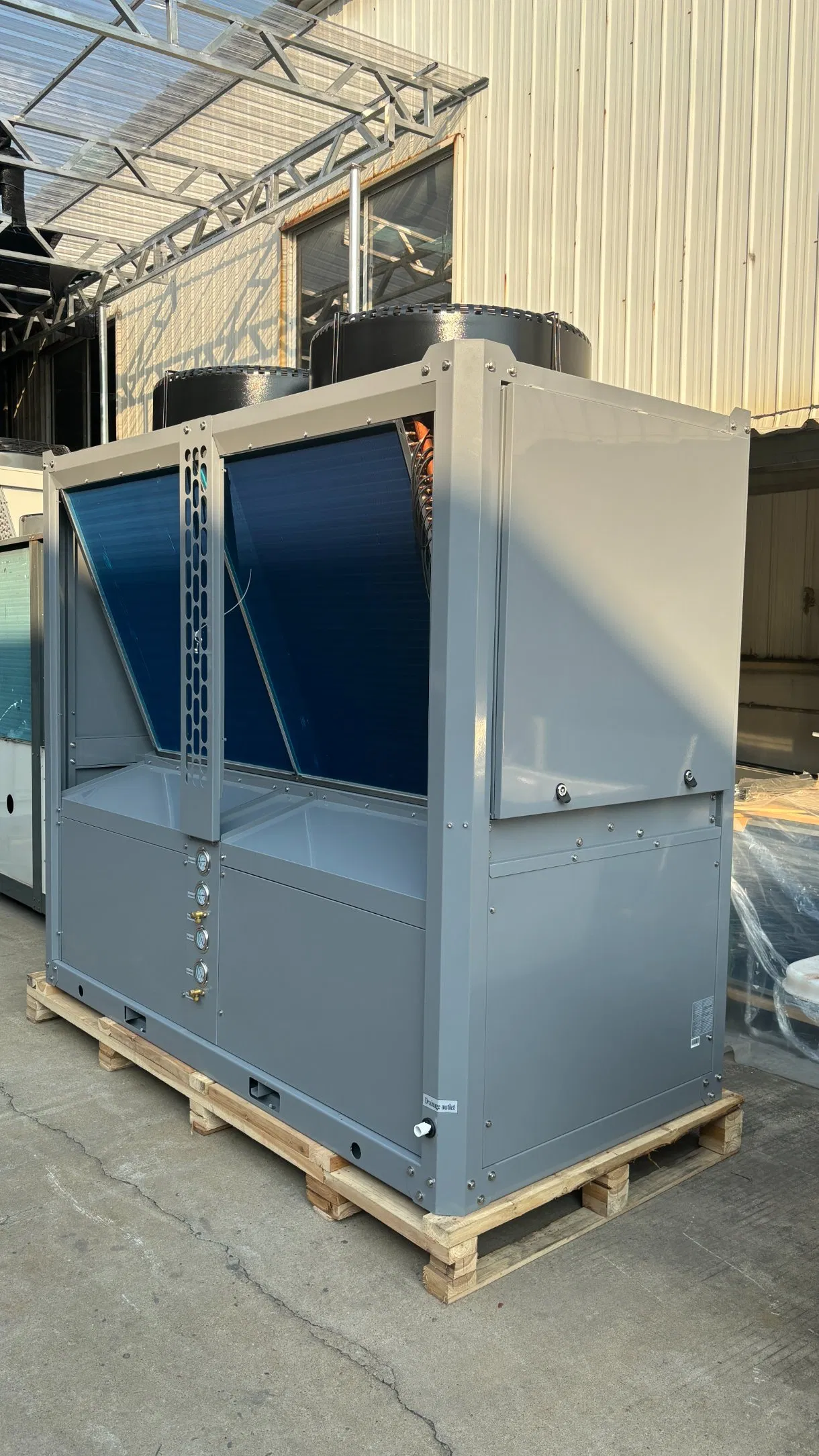

R134A Commercial Air Water Heat Pump DC Inverter Evi Certified Heating Cooling for Hotels Metal Housing

1 / 5

R134A Commercial Air Water Heat Pump DC Inverter Evi Certified Heating Cooling for Hotels Metal Housing

Customization:	Available
Certification:	CCC, ISO9001
Working Medium:	134A

Send Inquiry

Product Description

Basic Information

Heat Source Type

Air Source Heat Pump

Item Name

High Temp Air Source Heat Pump

Power Supply

3n/380V/50Hz

Max Temp

99 Degree Celsius

Refrigerant

R134A+R410A

HS Code

8418612090

Product Specifications

Industrial 99 Degree Celsius Large Water Use Air Source Heat Pump

Model		YJR-G/Z-10P	YJR-G/Z-15P	YJR-G/Z-20P
Rated Heating Capacity	kw	21.2	30.9	41.3
Rated Input Power	kw	8.4	11.8	16.1
COP	-	2.52	2.62	2.57
Rated Current	A	15.8	22.2	30.3
Max Water Outlet Temp	ºC	99	99	99
Noise Level	dB(A)	≤60	≤60	≤62

Core Advantages

Energy Efficient: Low-carbon and green heating, saving approximately 60% more energy than traditional electric methods.
Dual Function: Provides heating while offering free cold water or air conditioning for workshop cooling.
Intelligent Control: Advanced automation and temperature zone control reduce labor costs.
High Temperature Performance: Delivering 70-95 degree hot water for electroplating, oxidation, and circuit board industries.
Environmentally Friendly: Uses R410A, R290, R32, or R134A refrigerants with zero ODP.

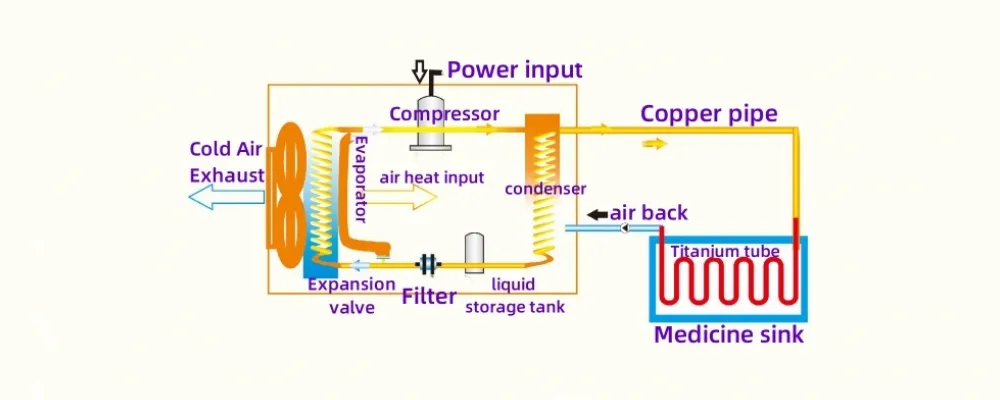

Working Principle

The Air Source Electroplating High-Temperature Heat Pump utilizes electrical energy to drive a compressor, using refrigerants to absorb heat from the air. Through a repeated physical phase change (gas-liquid-gas), it continuously releases high-efficiency thermal energy to produce hot water for industrial plating baths.

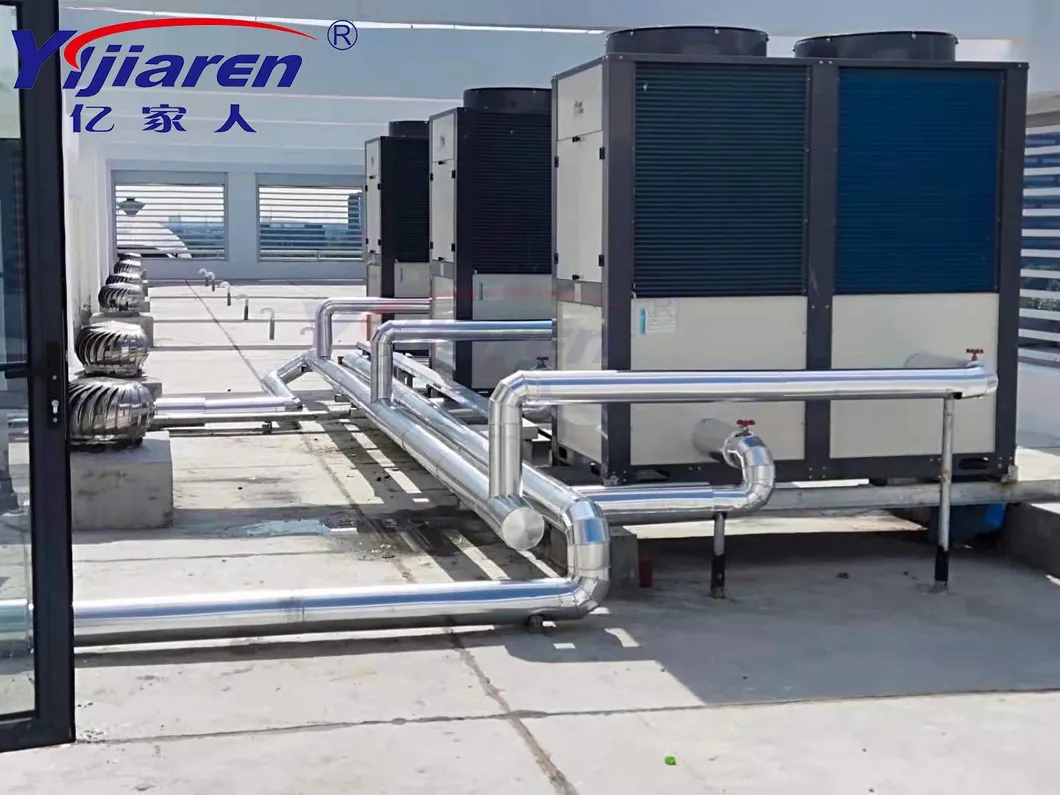

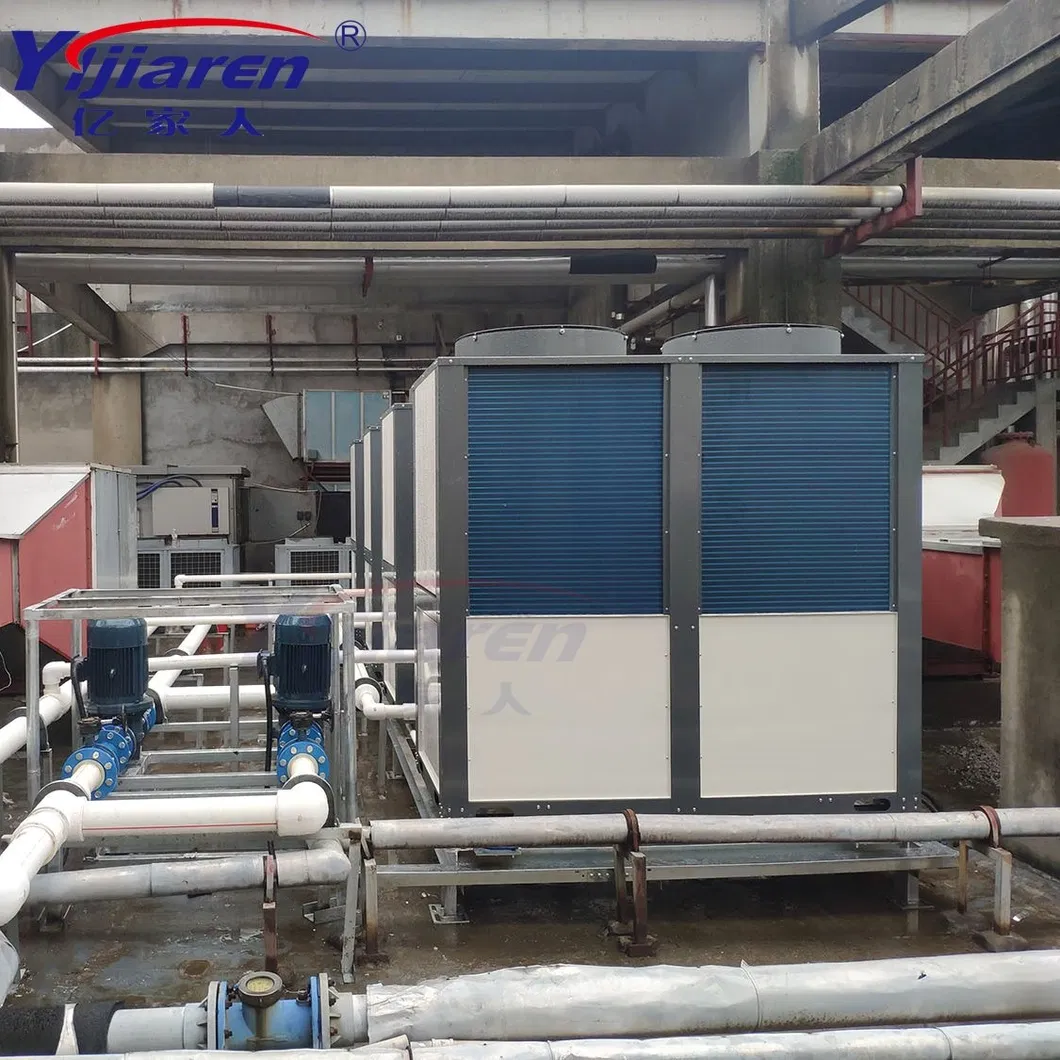

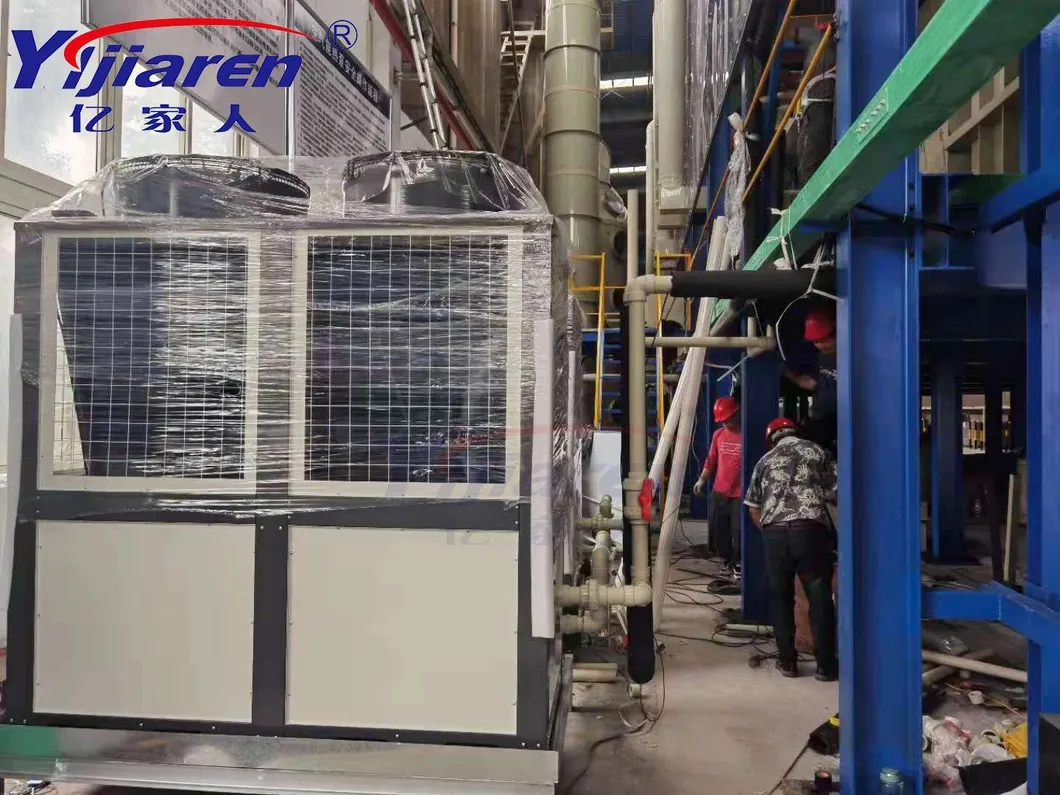

Engineering Projects

Applications & About Us

Factory Overview

Quality Certificates

Why Choose Our Solutions?

Expertise: Over 15 years of experience in solar water heaters and air source heat pumps.
Proven Success: Over 8,000 engineering projects completed with high success rates.
Customization: Tailored services for technical consulting and system design.
Support: 24-month warranty and dedicated after-sales service.
Capabilities: Full OEM and ODM services available for global partners.

Frequently Asked Questions

What industries are these heat pumps suitable for?

They are ideal for processes requiring high temperatures, such as electroplating, oxidation, coloring, hole sealing, and acid/alkali etching tanks.

Can we customize the system with our own branding?

Yes, we provide professional OEM and ODM services to support your specific branding and design requirements.

What is the standard production lead time?

For in-stock goods, it takes 3-7 working days. For custom or out-of-stock orders, it typically ranges from 15-25 working days depending on quantity.

What certifications do your products hold?

Our manufacturing processes and products are certified under ISO9001 and ISO14001 standards.

What kind of after-sales support do you offer?

We provide a comprehensive 24-month warranty service according to our standard warranty policy to ensure long-term stability.

How energy-efficient are these units compared to electric heating?

Our high-temperature heat pumps are approximately 60% more efficient than traditional electric heating methods by utilizing air source energy.
