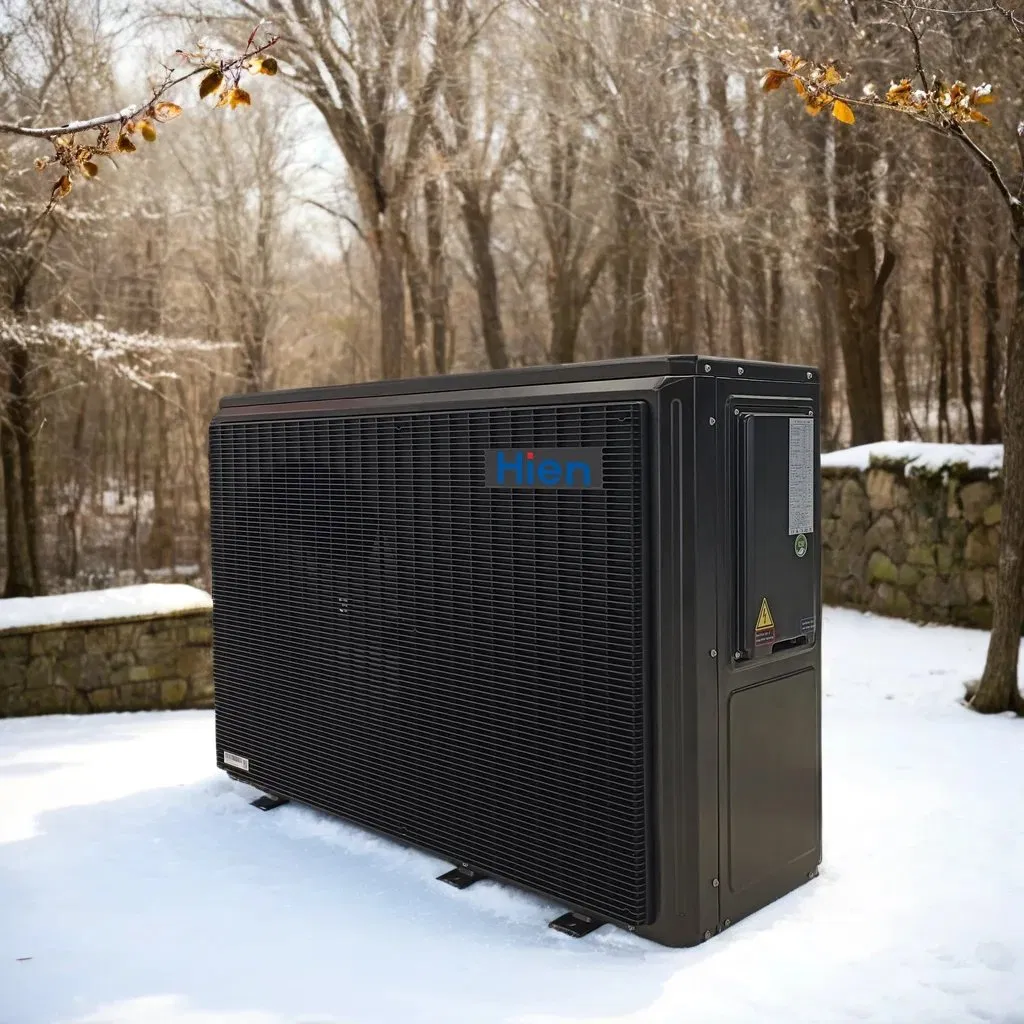

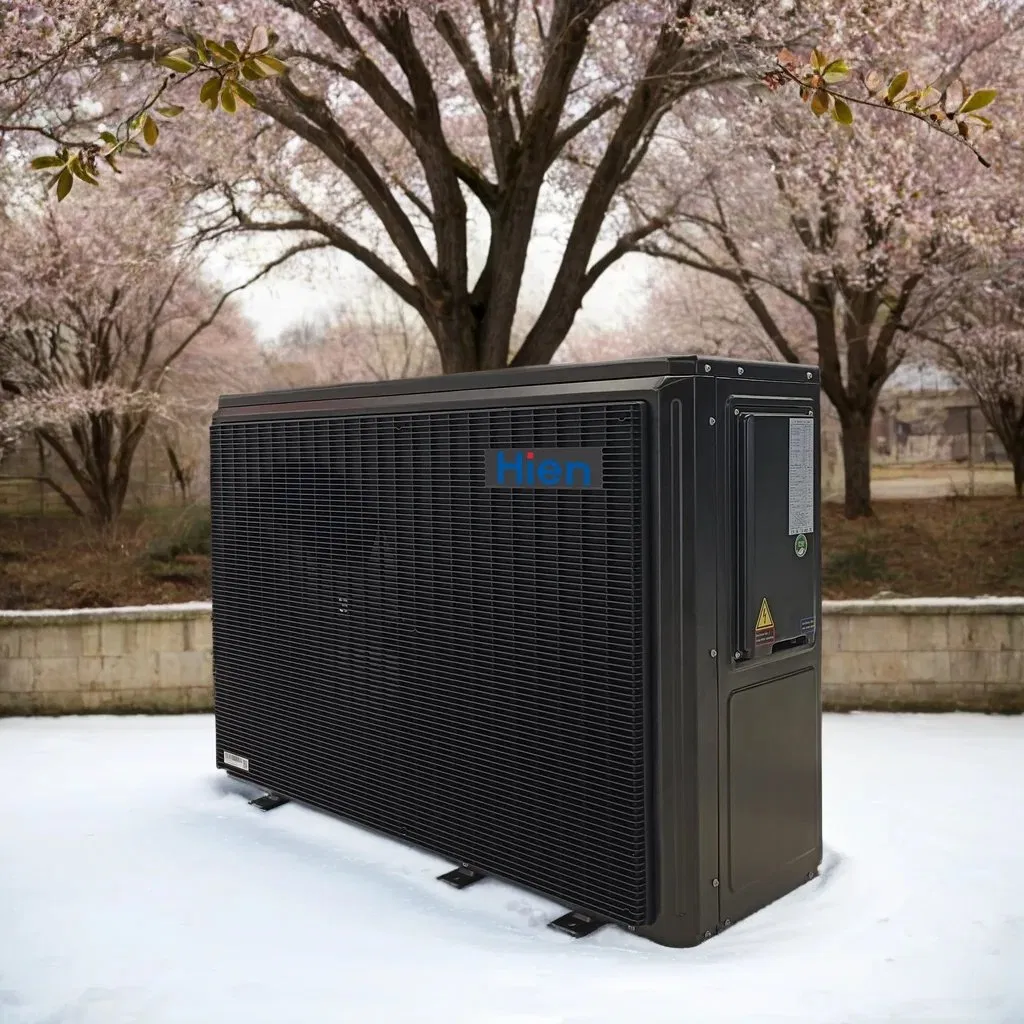

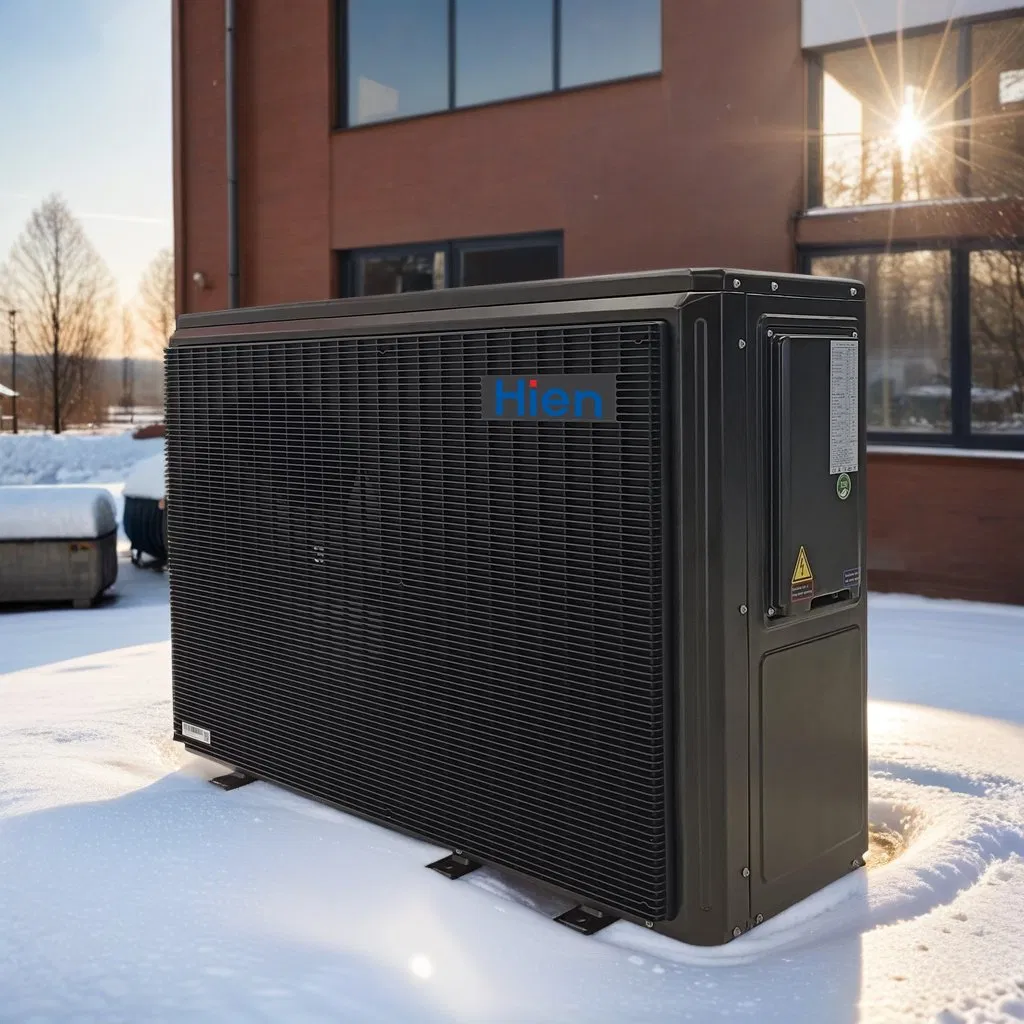

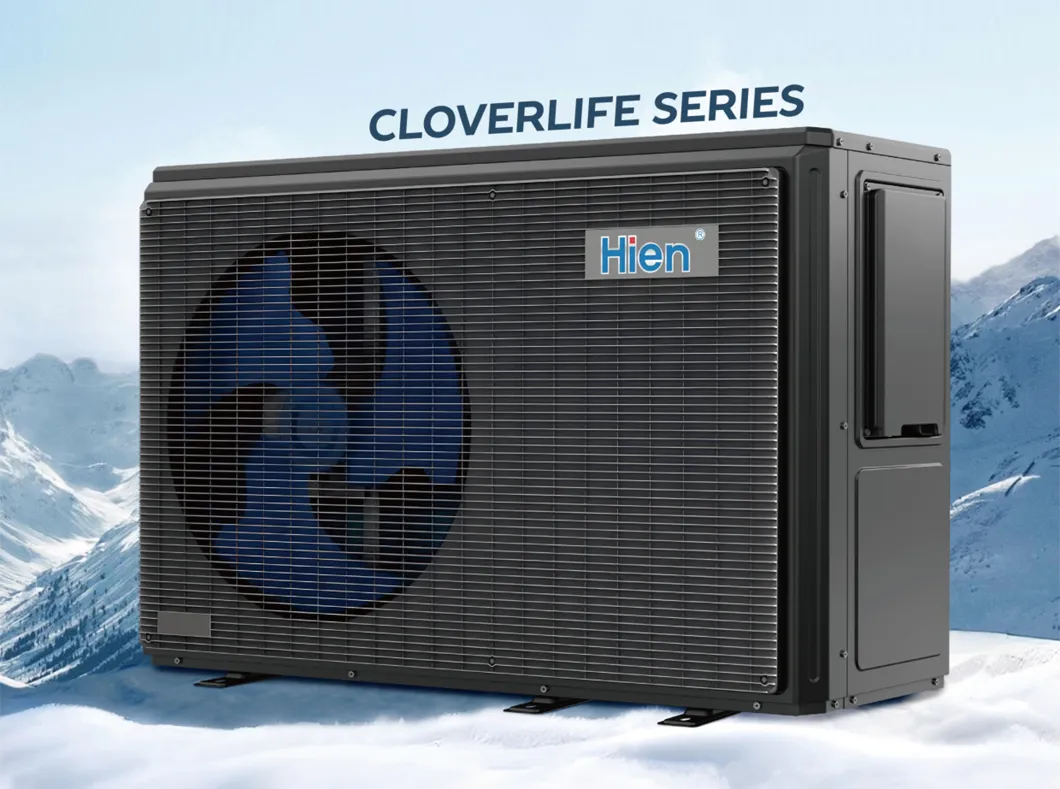

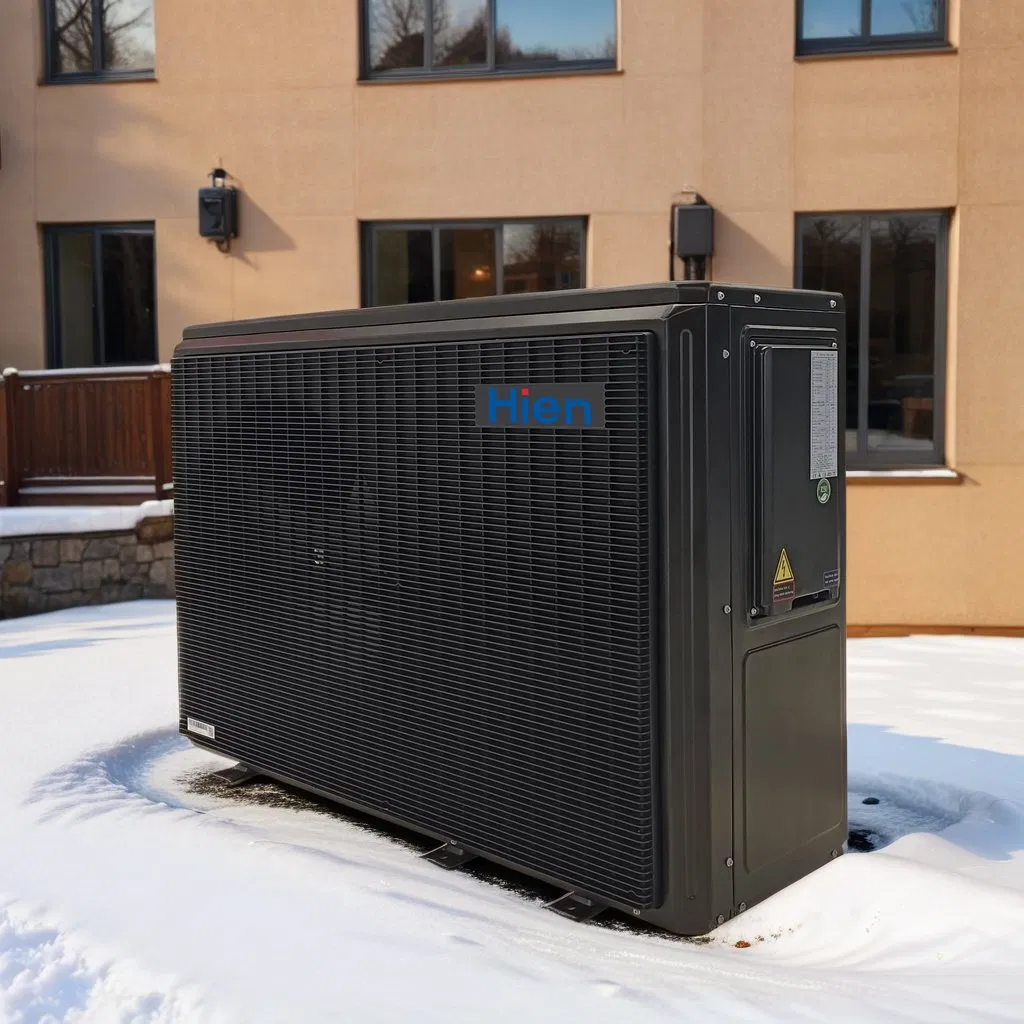

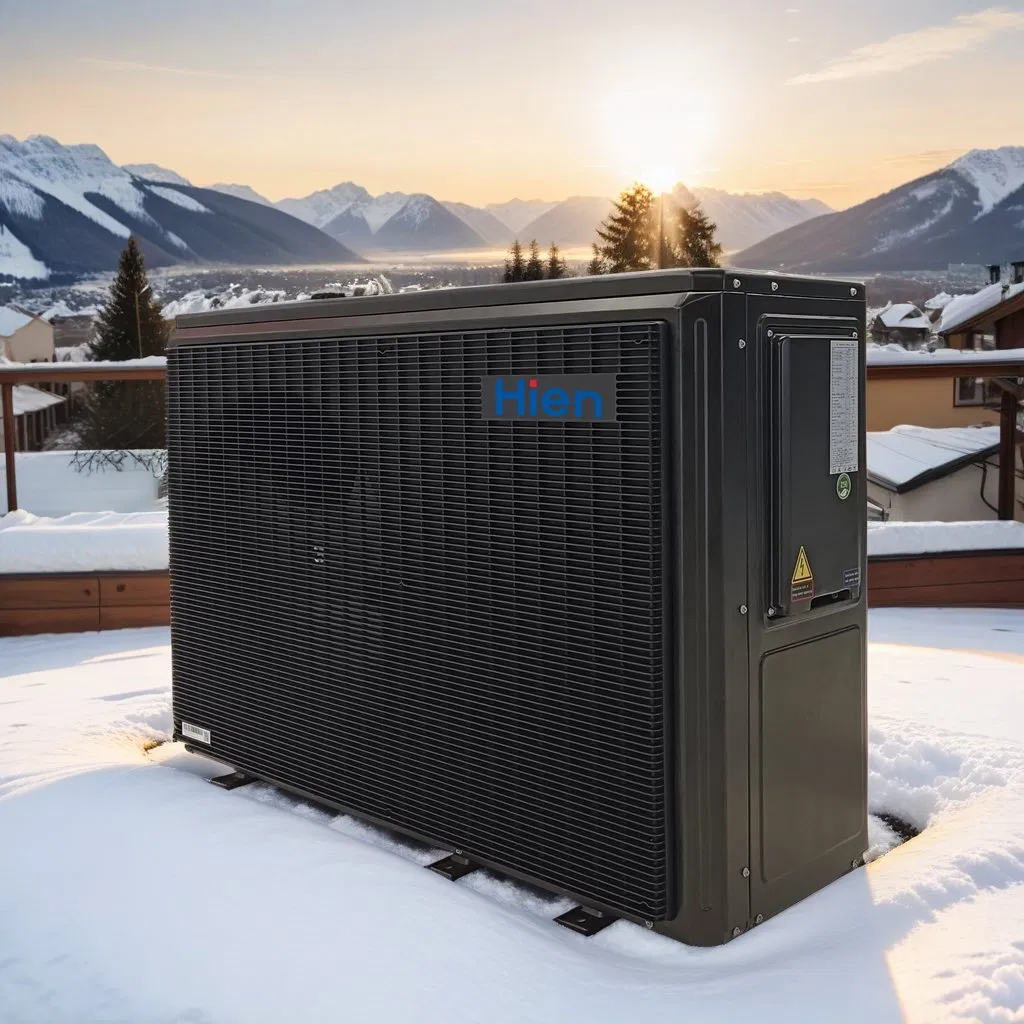

R32 Cloverlife Monoblock Heat Pump

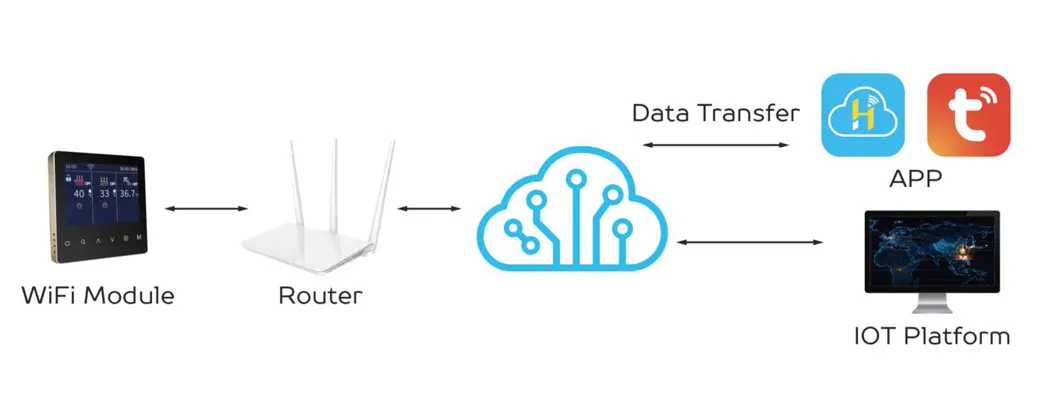

SMART CONTROL FAMILY: The intelligent controller with RS485 enables linkage control between the heat pump unit and terminals. Wi-Fi APP allows remote monitoring via smartphone anywhere.
WIFI DTU & IoT Platform: Designed with a DTU module for remote data transferring. Multiple units can be monitored and managed through a centralized IoT platform for performance analysis and fault recording.
| Model | Heating Capacity (kW) | Input (kW) | COP | Power Supply | Refrigerant | Dimensions (mm) |
|---|---|---|---|---|---|---|
| WDLRK-8 I BM/A3 | 8.00 | 1.80 | 4.44 | 220-240V~, 50HZ | R32 | 1200*470*765 |
| WDLRK-10ⅠBM/A3 | 10.00 | 2.22 | 4.50 | 220-240V~, 50HZ | R32 | 1200*470*765 |
| WDLRK-12ⅠBM/A3 | 11.60 | 2.64 | 4.40 | 220-240V~, 50HZ | R32 | 1200*470*765 |
| WDLRK-14ⅠBM/A3 | 14.00 | 3.04 | 4.60 | 220-240V~, 50HZ | R32 | 1370*500*935 |
| WDLRK-16ⅠBM/A3 | 16.00 | 3.41 | 4.70 | 220-240V~, 50HZ | R32 | 1370*500*935 |
| WDLRK-16ⅡBM/A3 | 16.00 | 3.44 | 4.65 | 380-415V, 3N~, 50Hz | R32 | 1370*500*935 |
Rated Test Conditions:
Heating: Ambient Temp. (DB/WB): 7℃/6℃, Water Temp. (Inlet/Outlet): 30℃/35℃.
Cooling: Ambient Temp. (DB/WB): 35℃/24℃, Water Temp. (Inlet/Outlet): 23℃/18℃.

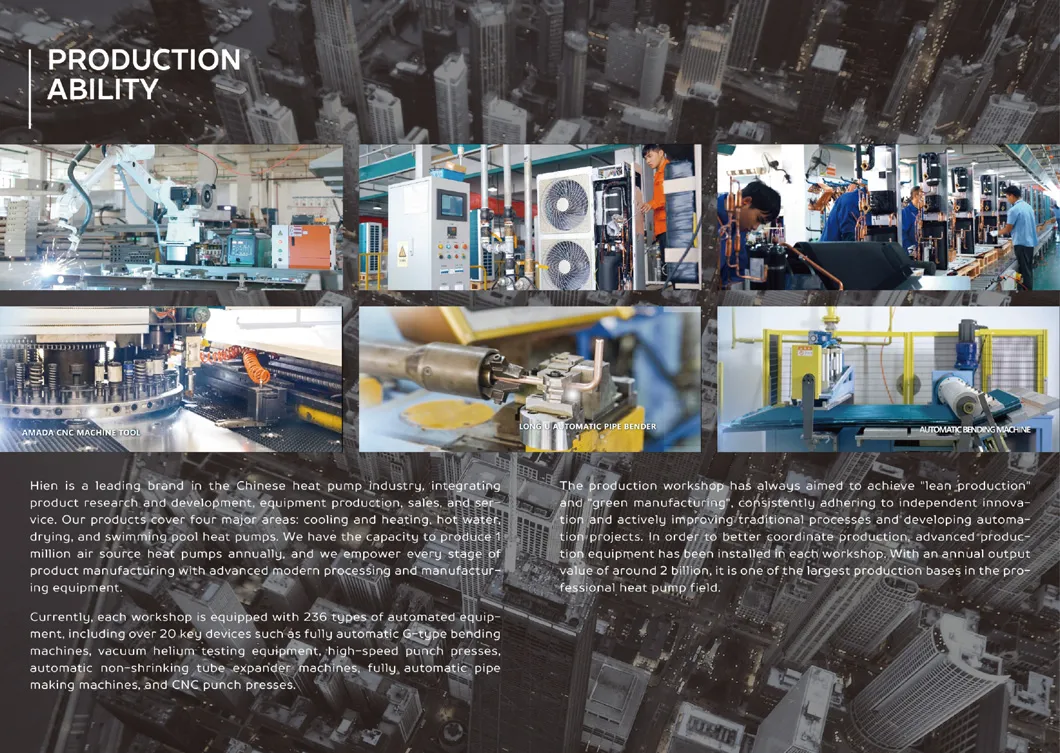

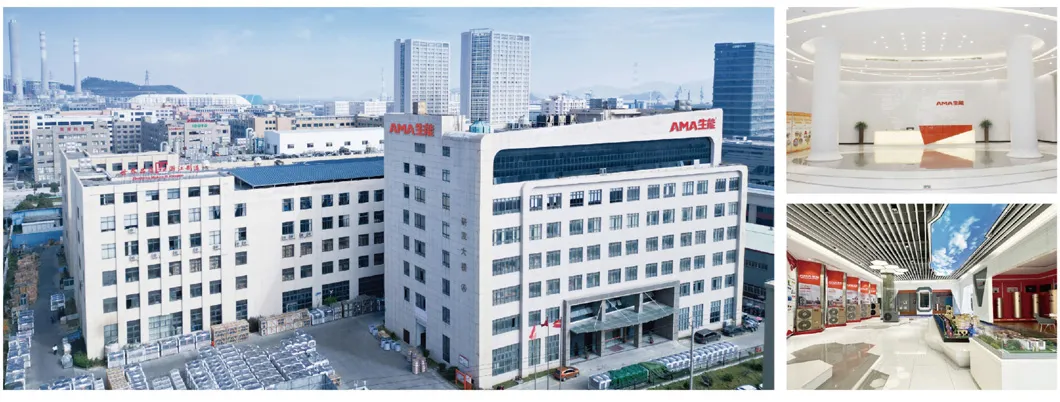

Our production base is one of the largest for heat pumps in China, featuring a state-level comprehensive laboratory. With over 30 years of electronic and air-source industry experience, we maintain over 130 invention patents and a team of 100+ technical experts.
Quality Standards: Every unit undergoes 43 performance, safety, and reliability tests, including rain resistance and life-cycle stress validation. We operate under ISO9000 standards to ensure low failure rates and high customer satisfaction.
Showcasing cutting-edge technology at the world's top HVAC exhibitions:
