Air Source Heat Pump (ASHP) is an energy-efficient heating and cooling system that transfers heat between the indoor environment and the outdoor air. Unlike conventional systems that burn fossil fuels, ASHPs move existing thermal energy using a refrigeration cycle. They are highly efficient, providing up to 3-4 units of heat for every unit of electricity consumed.
| Constant Temperature Swimming Pool Heat Pump Specifications | |||
|---|---|---|---|
| Spec. | KRY-10II | KRY-15II | KRY-30II |
| Rated heating capacity (A24/26°C) | 10kw | 15kw | 30kw |
| Rated power (kW) | 1.96 | 2.94 | 5.9 |
| COP | 5.1 | 5.1 | 5.1 |
| Rated heating capacity (A20/26°C) | 7.5kw | 11kw | 21kw |
| COP (A20) | 5 | 4.78 | 4.66 |
| Cooling Capacity (kW) | 3.8 | 5.7 | 11.3 |
| Noise dB(A) | <50 | <50 | <65 |
| Unit size (mm) | 910×350×835 | 1030×410×865 | 1225×475×1545 |
| Unit Weight (kg) | 65 | 95 | 260 |

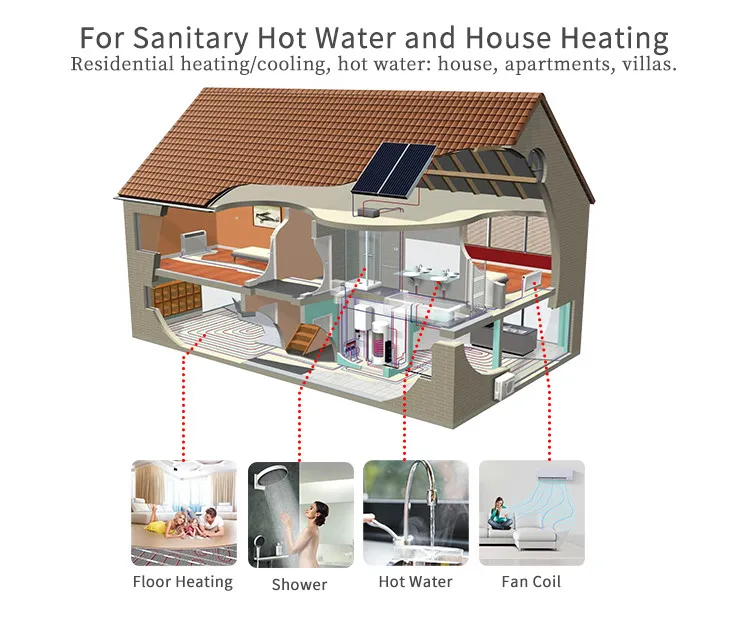

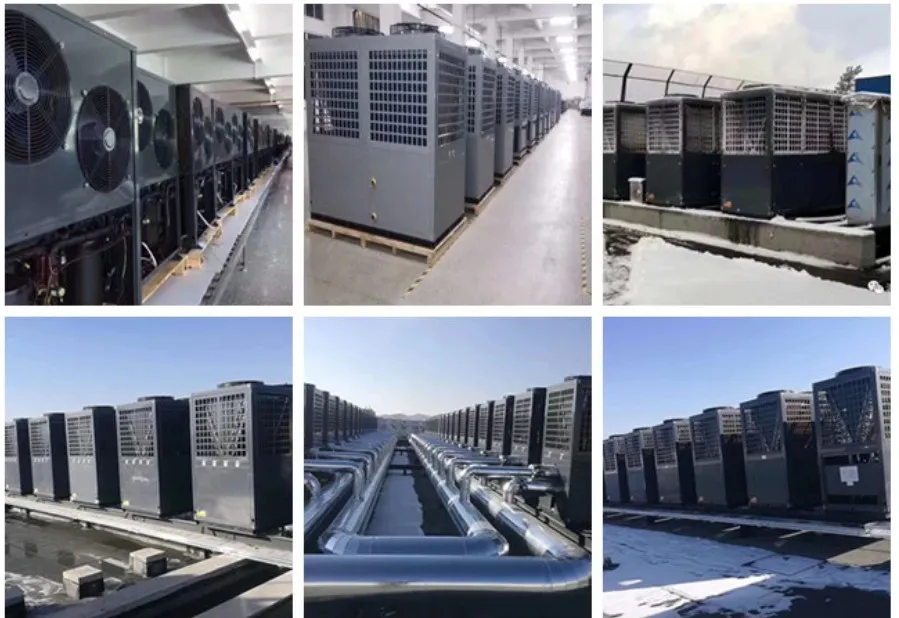

Heat Pump Applications: Air source heat pumps serve diverse sectors including Residential, Commercial, and Industrial. Ideal for University Campuses, Hospital Complexes, Industrial Processes, Swimming Pools, and Hotel hot water supply.

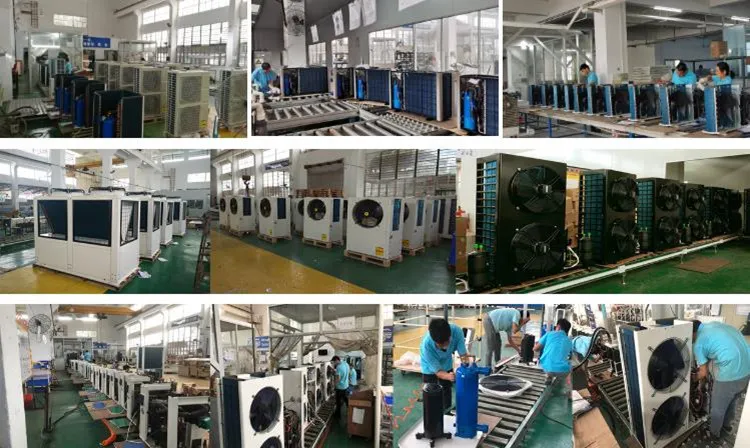

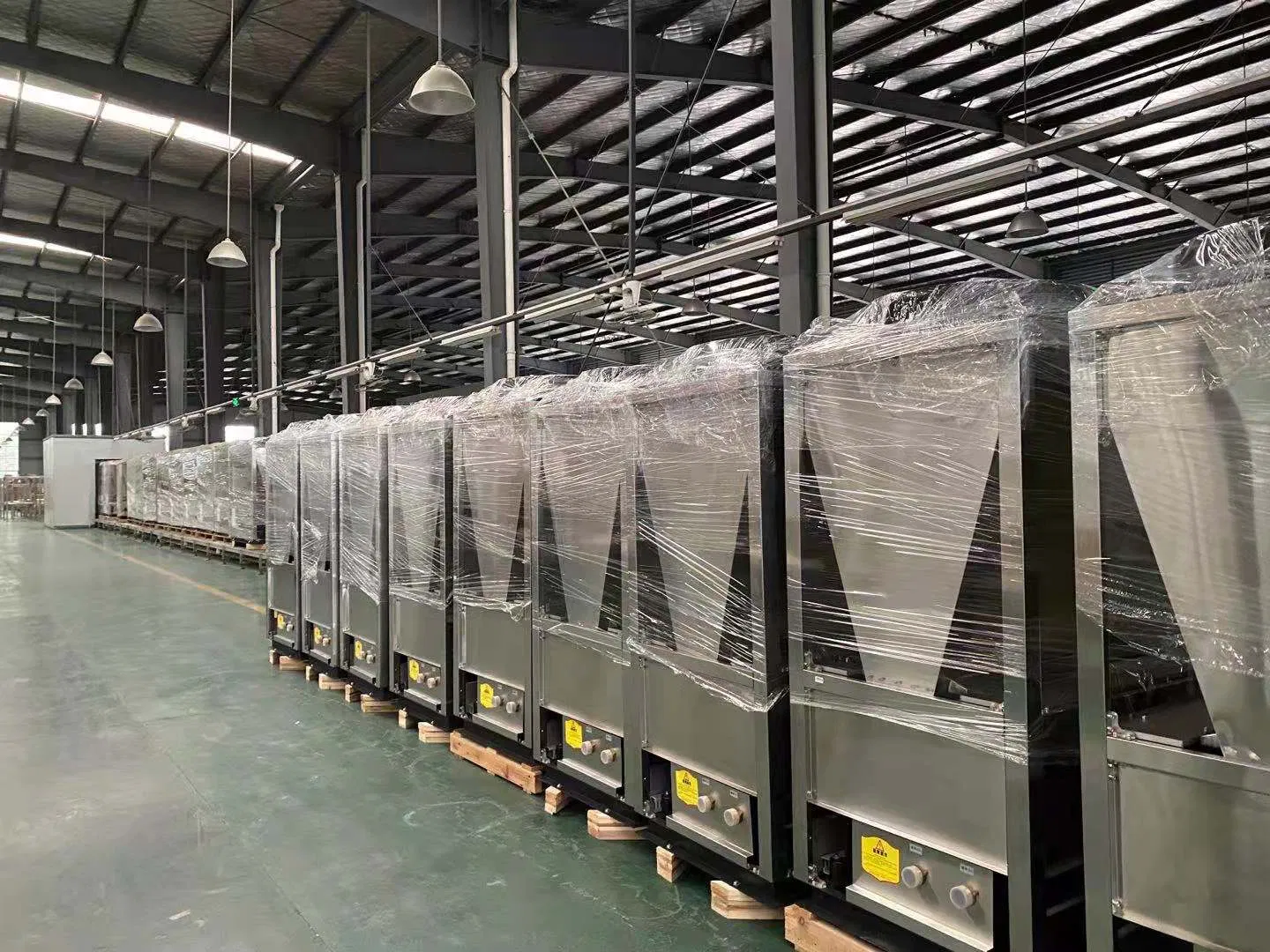

Factory Overview:
These ASHPs are significantly more efficient than traditional systems, often providing 3 to 4 units of heat for every 1 unit of electricity consumed, thanks to advanced refrigeration cycles.
Yes, the KRY series is designed for dual functionality, providing both high-efficiency heating and cooling for various applications like swimming pools and commercial spaces.
The system operates reliably in ambient temperatures ranging from -15°C to 46°C, making it suitable for a wide variety of climates.
High titanium tube heat exchangers offer superior corrosion resistance, which is especially critical for swimming pool applications where water contains chlorine or other chemicals.
Yes, Wi-Fi connectivity is available as an optional feature, allowing users to monitor and control their heating and cooling settings remotely.
The units utilize R744/CO2 refrigerant, which is an environmentally friendly choice with low global warming potential compared to traditional refrigerants.
