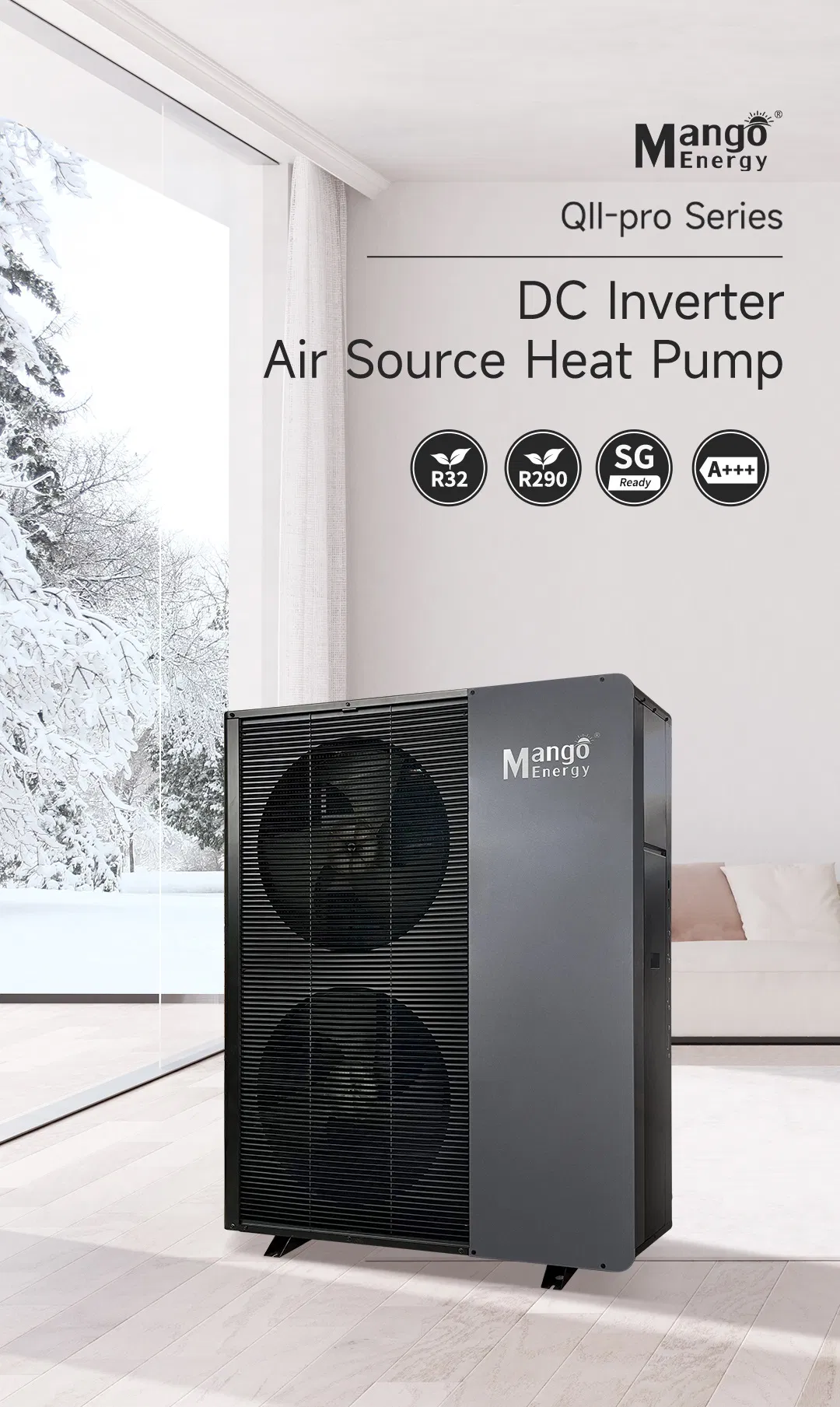

Monoblock ERP a+++ Heating Cooling and Hot Water Heat Pump with WiFi

1 / 5

Monoblock ERP a+++ Heating Cooling and Hot Water Heat Pump with WiFi

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

MGSDC-030IIC

Heat Source

Air Source Heat Pump

EEV

Dunan

Fan Motor

Nidec DC Brushless Motor

Refrigerant

R32

COP

Package

Polywood Case

Specification

1050*400*1350

Origin

China

HS Code

8418612090

Product Description

Monoblock Erp A+++ heating cooling and hot water Heat Pump with WiFi

Model				MGSDC-030IIC	MGSDC-050IIC	MGSDC-060IIC	MGSDC-080IIC	MGSDC-100IIC
HP				3HP	5HP	6HP	8HP	10HP
+7°C Ambient	45°C Outlet	Heating Capacity	kW	9.65	16.45	19.90	24.90	30.90
+7°C Ambient	45°C Outlet	Power Input	kW	2.65	4.53	5.50	6.98	8.67
COP				3.64	3.63	3.62	3.57	3.56
+35°C Ambient	7°C Outlet	Cooling Capacity	kW	7.62	13.18	16.21	20.51	23.80
+35°C Ambient	7°C Outlet	Power Input	kW	2.61	4.51	5.59	7.15	8.32
Compressor			-	Panasonic DC Inverter Compressor with EVI System
Fan Motor			-	Nidec DC Brushless Motor

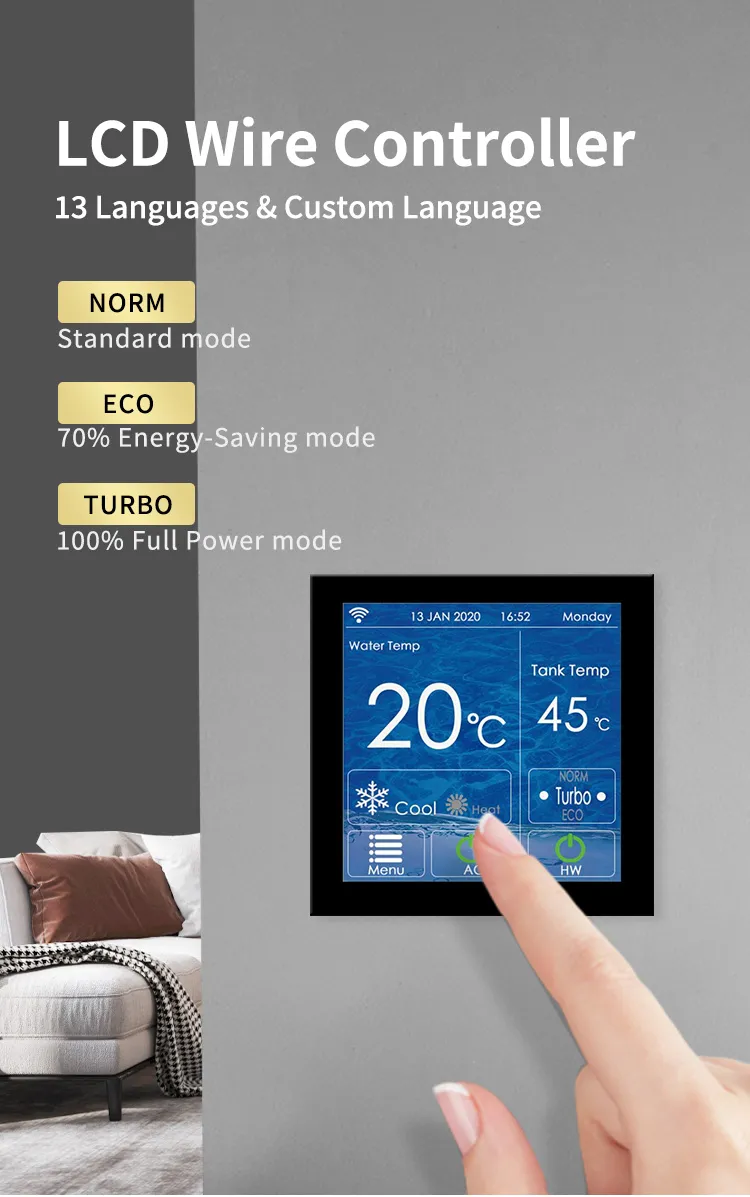

Controller			-	Touchscreen LCD Controller with WIFI and 13 Languages
Cabinet			-	1.5MM Galvanized Steel With Powder Coating

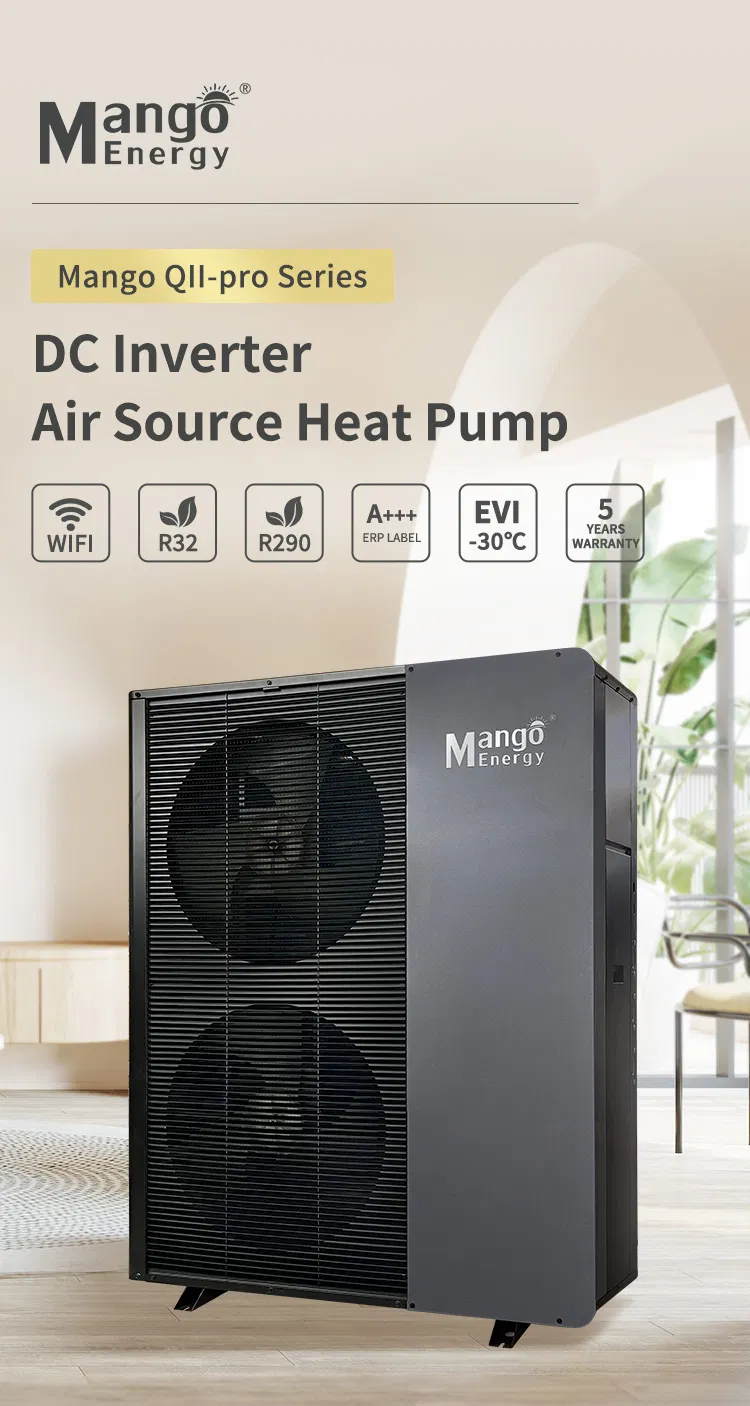

Visual Presentation

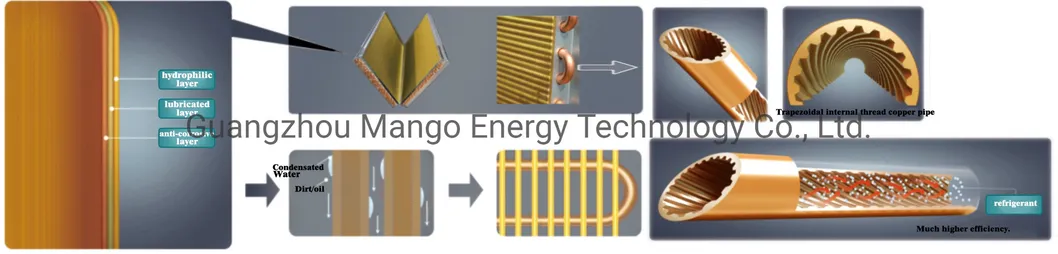

Key Components: Hydrophilic plus-size-area fins, ripple copper pipe, and high-efficiency heat exchangers.

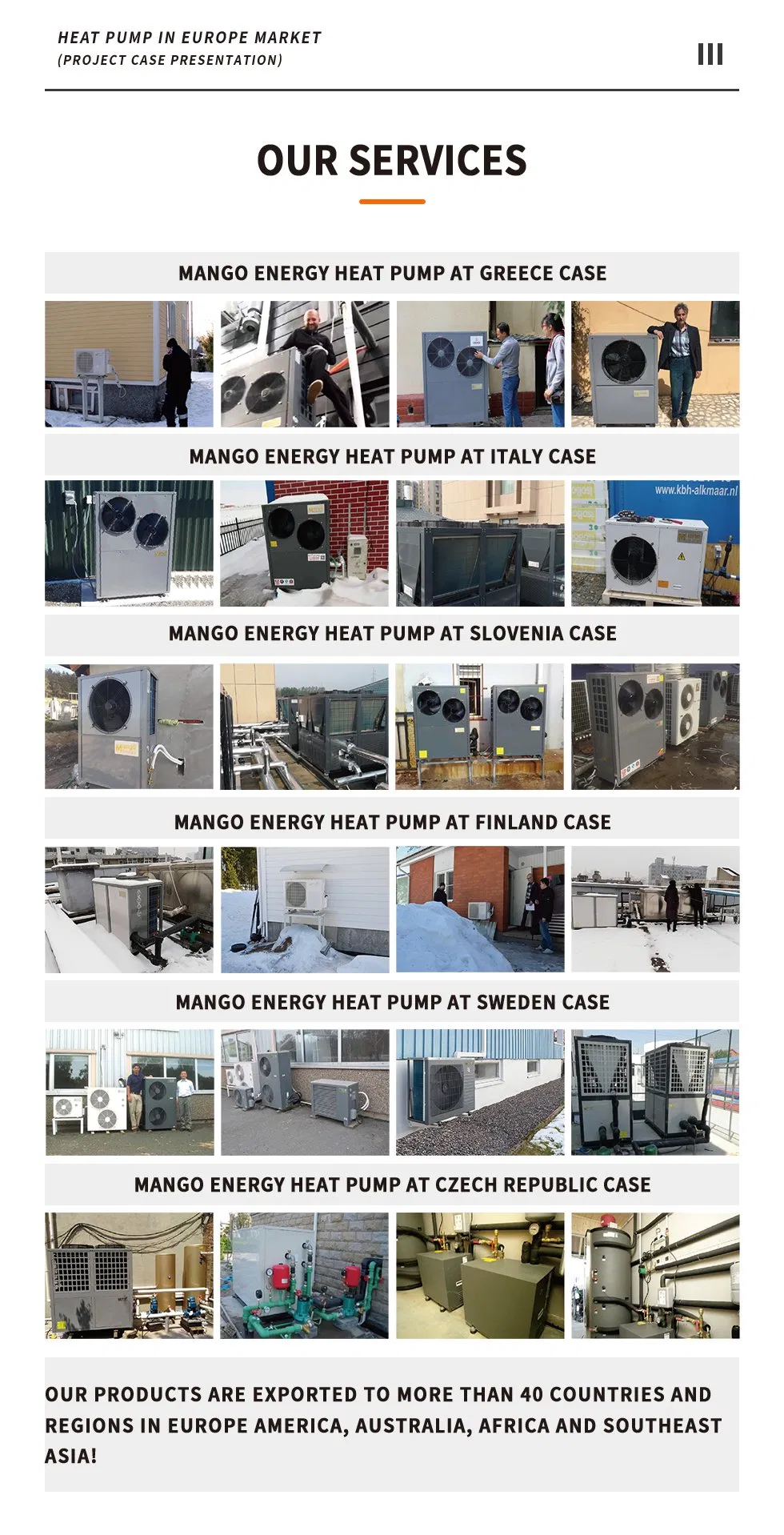

Customer Reviews

Frequently Asked Questions

What functions does this monoblock heat pump provide?

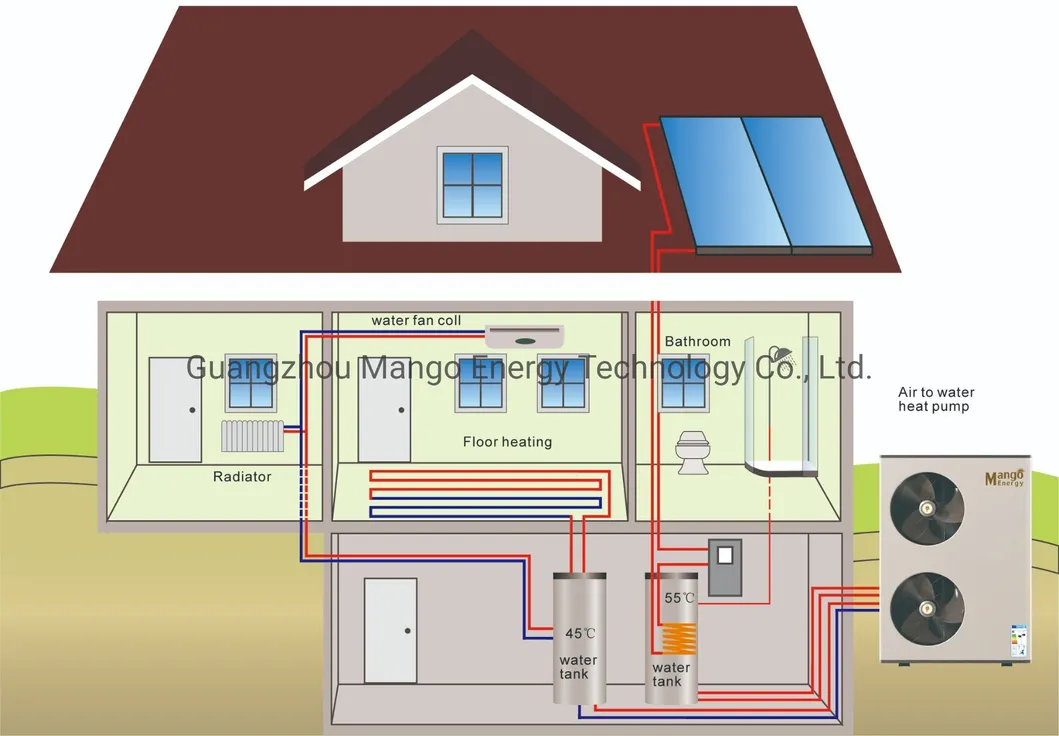

This system is designed for multi-functional use, providing efficient heating, cooling, and domestic hot water for residential and commercial applications.

What is the energy efficiency rating of the unit?

The unit achieves an ErP A+++ rating, ensuring extremely low power consumption and high seasonal efficiency.

Which compressor and motor are used in this system?

The system is equipped with a high-performance Panasonic DC Inverter Compressor with an EVI system and a Nidec DC Brushless Motor for quiet and reliable operation.

Can I control the heat pump remotely?

Yes, it features a Touchscreen LCD Controller with built-in WIFI support, allowing you to manage settings via a smartphone app.

What is the lowest ambient temperature it can operate in?

Thanks to the EVI (Enhanced Vapor Injection) technology, the unit can maintain stable heating performance even in extreme cold climates down to -35°C.

What type of refrigerant is used?

The unit uses R32 refrigerant, which is more environmentally friendly and has a lower Global Warming Potential (GWP) compared to traditional refrigerants.
