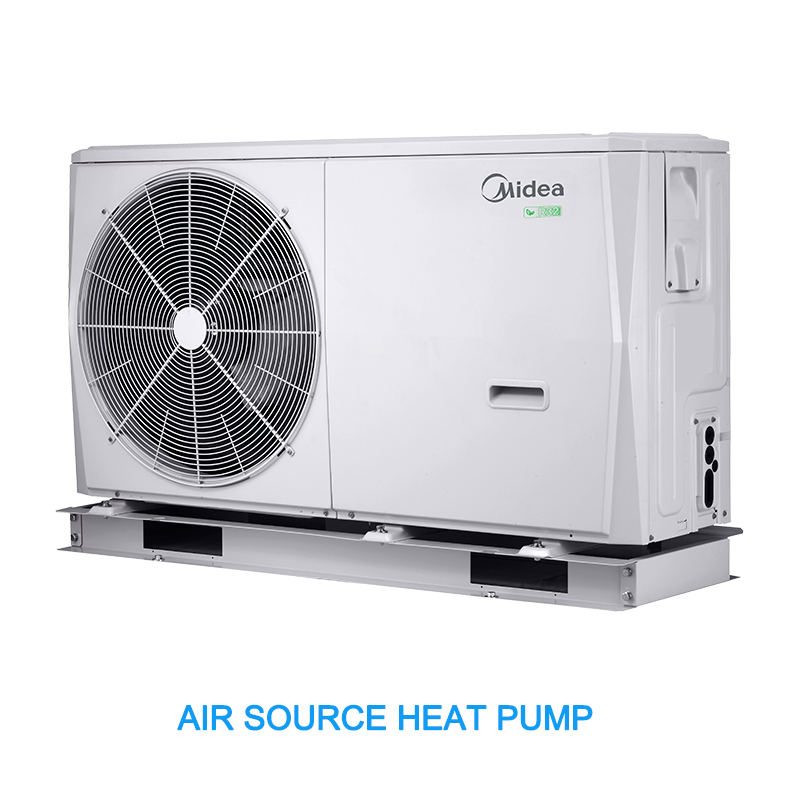

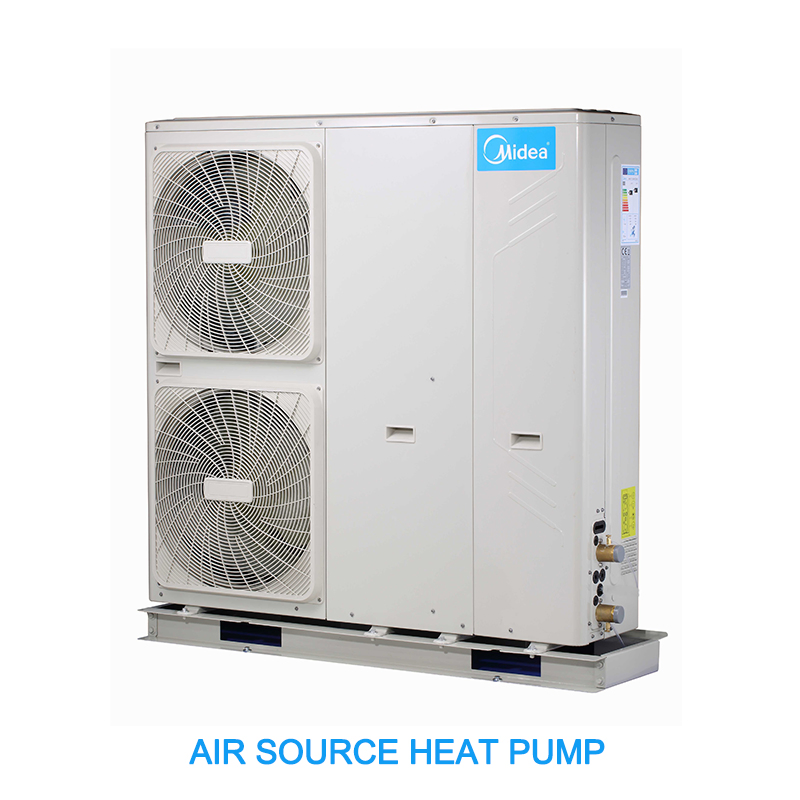

Midea CAC Introduction

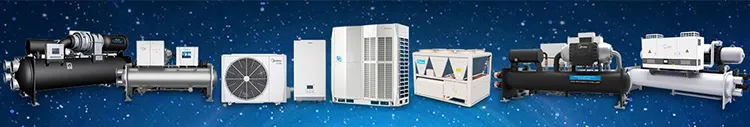

Midea Product Portfolio
| Application | Heating + Cooling + Domestic hot water |
| Structure type | Integrated (Heat pump and hydronic box are in the same casing) |
| Refrigerant piping | Inside outdoor unit |
| Water piping | Between outdoor unit and indoor heating appliances |
| Installation | Only need to install water piping |

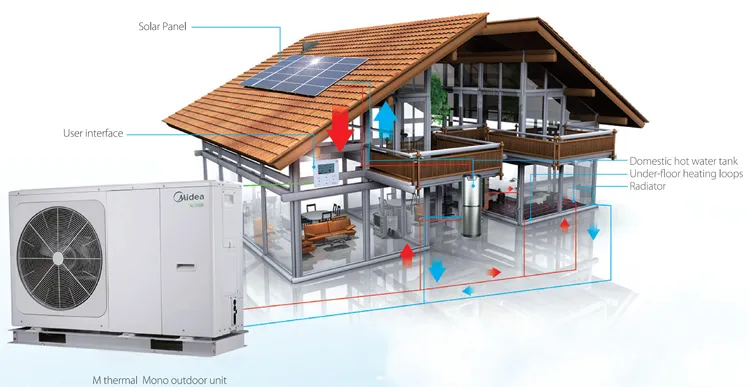

| Combinational parts | Under-floor heating coils, Fan coil units, Radiators, DHW tank, Auxiliary heat sources |
| Power supply | 220-240/1/50 V/Ph/Hz |
| Heating capacity | 4.58-16.30KW |
| Cooling capacity | 4.55-15.10KW |
| Refrigerant type | R410A |
| Throttle type | Electronic expansion valve |
| Brand | Midea |

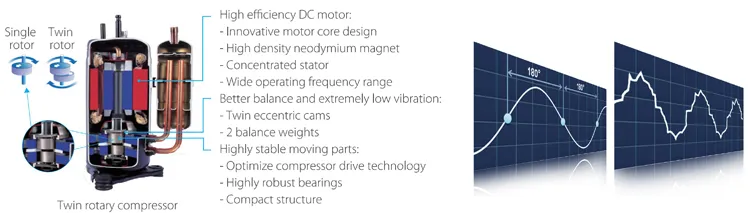

1. Twin Rotary Compressor
Twin rotary DC inverter compressor uses 30% less power than traditional scroll compressors whilst also giving a wider operating frequency range, enabling precise control and reducing running noise levels.

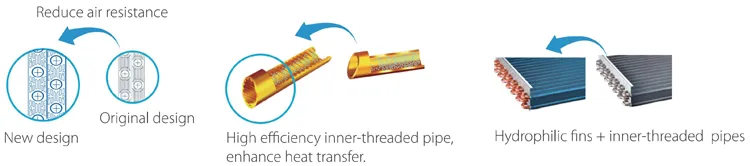

2. Finned Tube Heat Exchanger
High performance fin-coil type heat exchanger with window fins to enlarge heat-exchanging area and decrease air resistance. Hydrophilic film fins and inner-threaded copper pipes optimize efficiency. Blue fins enhance durability against corrosion.

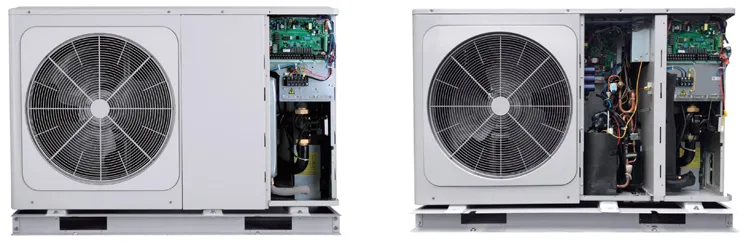

3. Easy Installation and Maintenance
All hydronic components are located within the outdoor unit. Compact structure, easy for transportation. Two-door design for easy access to internal components.
