Basic Information
Heating Type
Circulating Heat
Application
Villa Family, Hotels, Factory Hospital, Student Apartments
Certification
CE, ISO9001, CCC, CB, RoHS

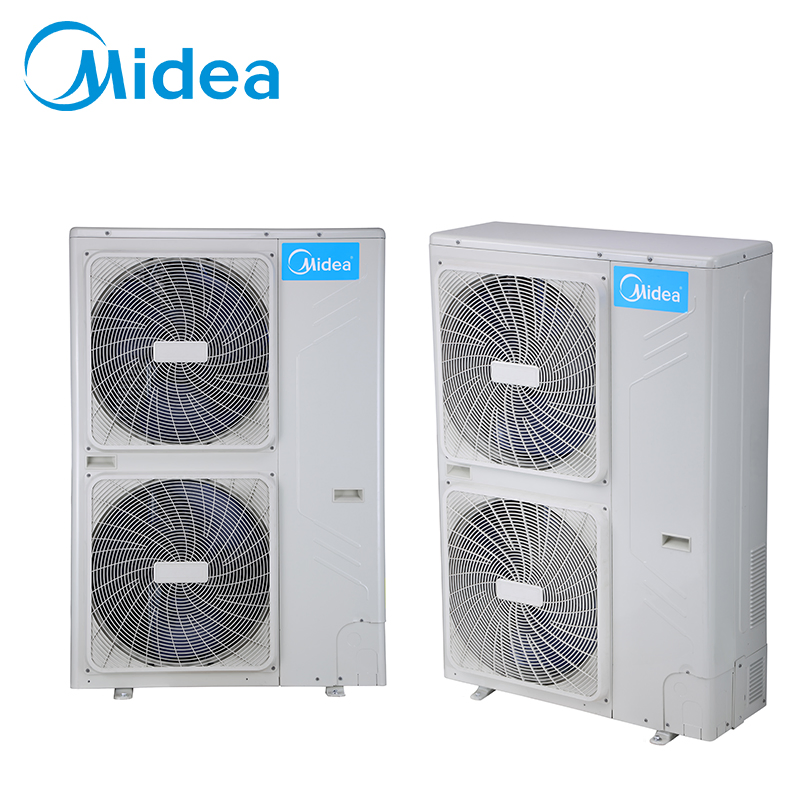

Product Name

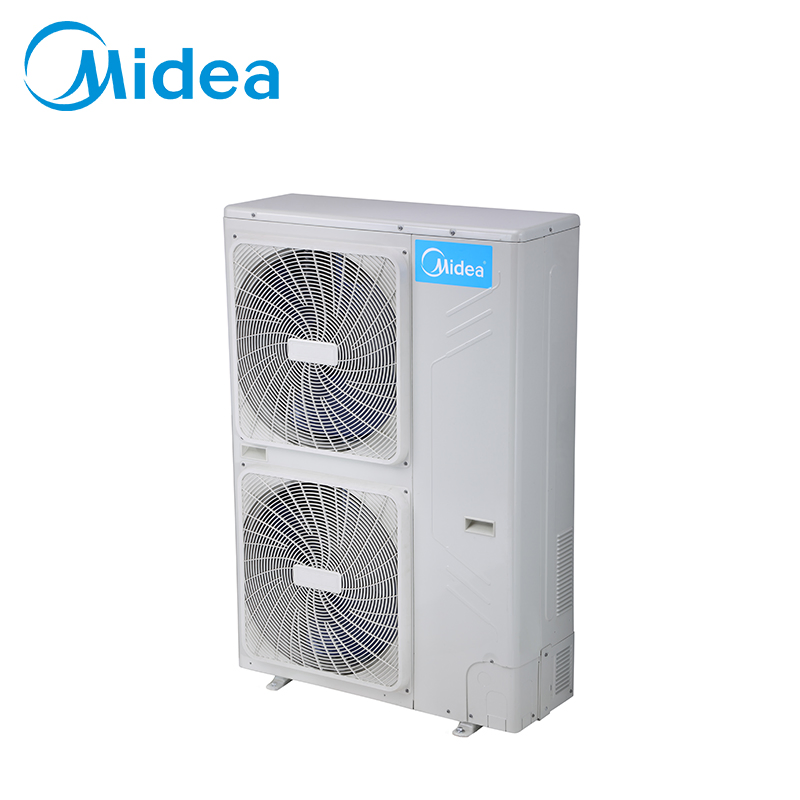

M-Thermal Mono Inverter Heat Pump
Power Supply
220-240/1/50 V/pH/Hz
Cooling Capacity
4.55-15.10kw
Heating Capacity
4.58-16.30kw
Compressor Type
Twin-Rotary Inverter
Production Capacity
50000 piece/Year
Product Description

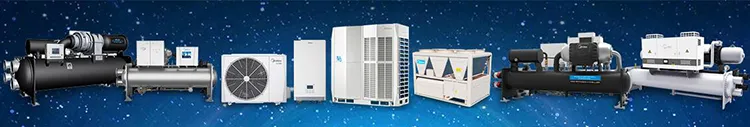

Product Portfolio

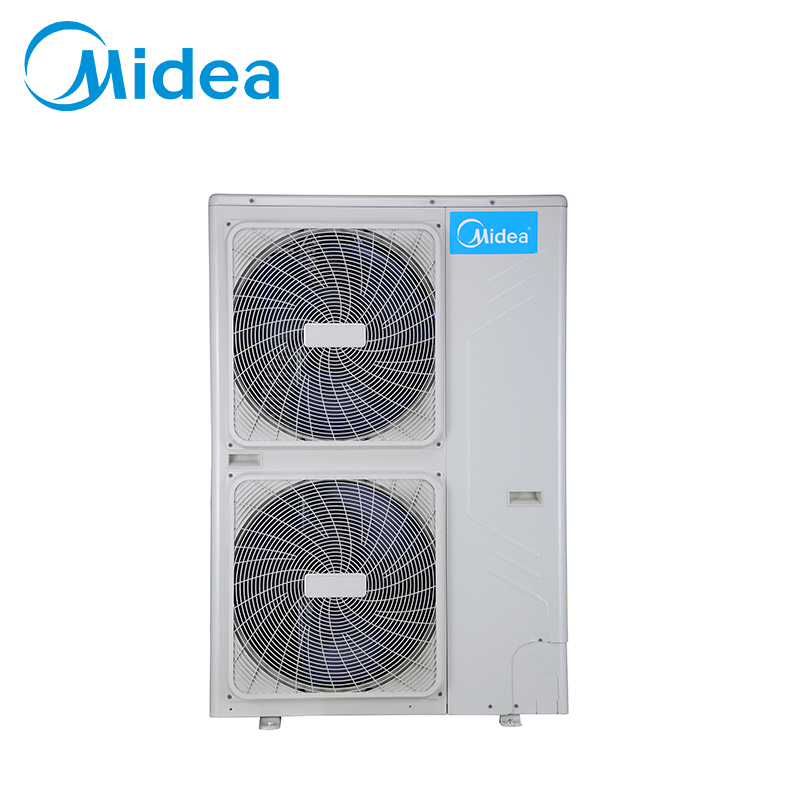

Products Show
| Application | Heating + Cooling + Domestic hot water |
| Structure type | Integrated (Heat pump and hydronic box are in the same casing) |
| Refrigerant piping | Inside outdoor unit |
| Water piping | Between outdoor unit and indoor heating appliances |
| Installation | Only need to install water piping |

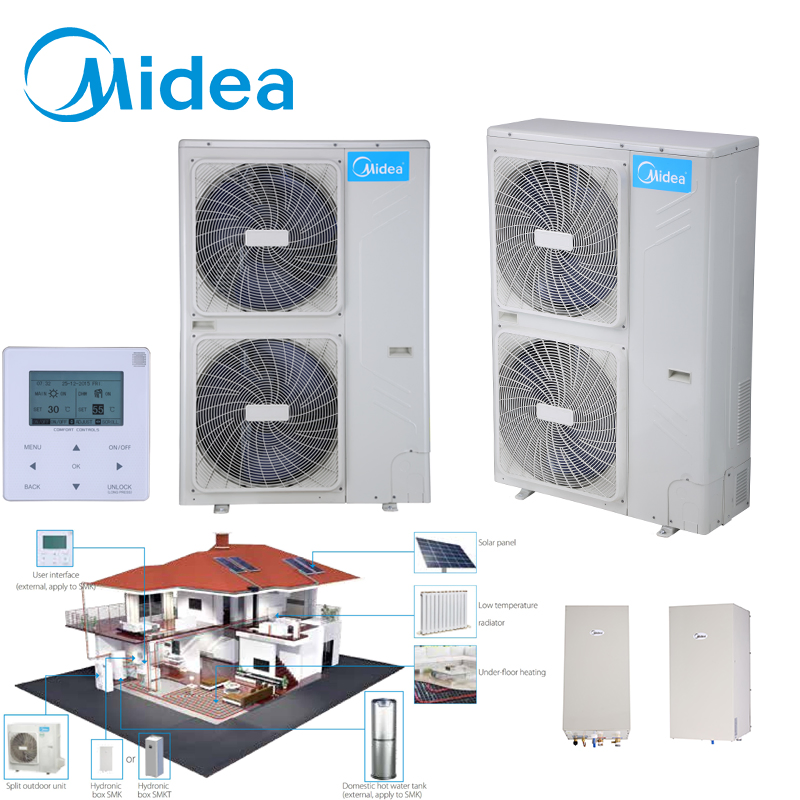

| Combinational parts | Under-floor heating coils, Fan coil units, Low temperature radiators, Domestic hot water tank, Auxiliary heat sources |
Product Details

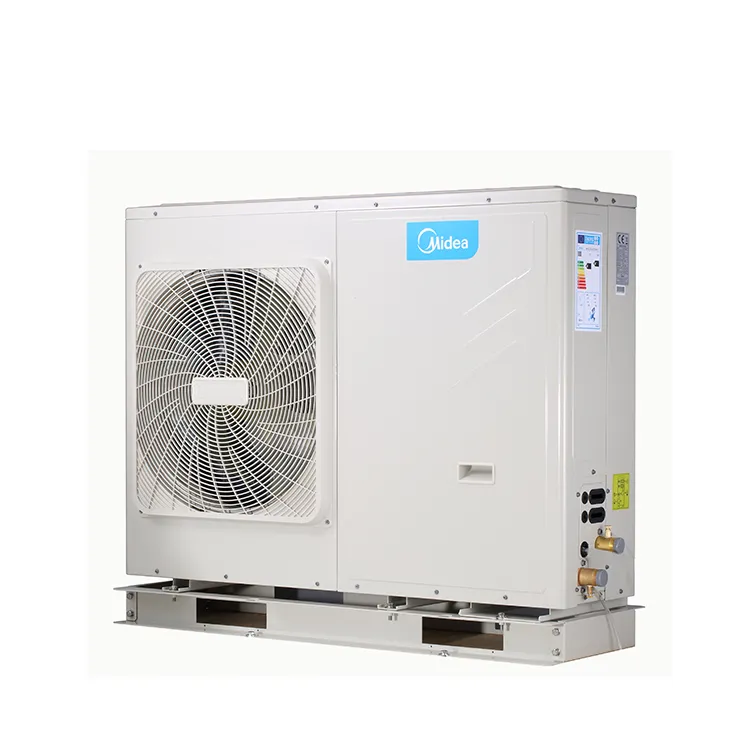

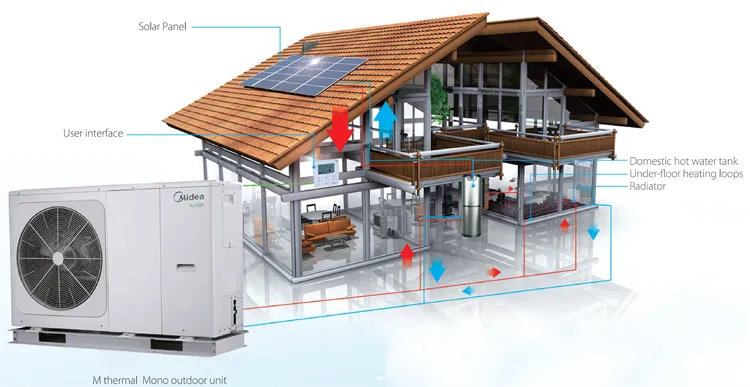

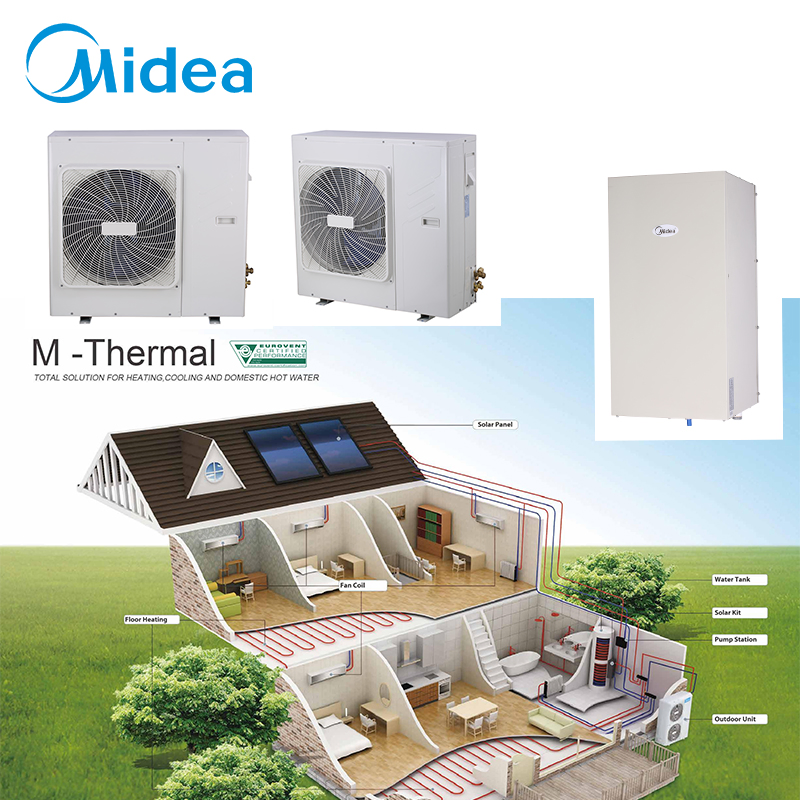

M-Thermal Mono type has the integrated design with built-in hydraulic kit and only water pipe is needed to be installed at site. It not only supplies hot water for fan coil, floor heating system, sanitary water tank, but is also compatible with the solar collector, gas furnace, boiler and other heat sources.
| Power supply | 220-240/1/50 V/Ph/Hz |
| Heating capacity | 4.58-16.30KW |
| Cooling capacity | 4.55-15.10KW |
| Refrigerant type | R410A |
| Throttle type | Electronic expansion valve |
Product Advantages

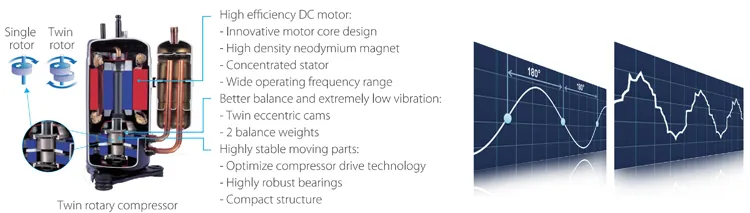

1. Twin rotary compressor: Twin rotary DC inverter compressor uses 30% less power than traditional scroll compressors whilst also giving a wider operating frequency range, enabling precise control and reducing running noise levels.

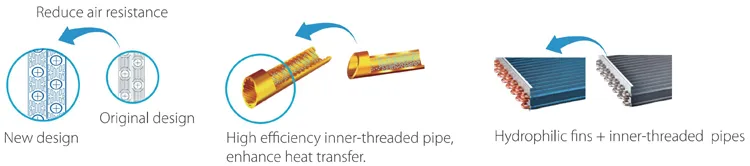

2. Finned tube heat exchanger: High performance fin-coil type heat exchanger with new designed window fins to enlarge the heat-exchanging area and decrease air resistance. Hydrophilic film fins and inner-threaded copper pipes optimize efficiency.

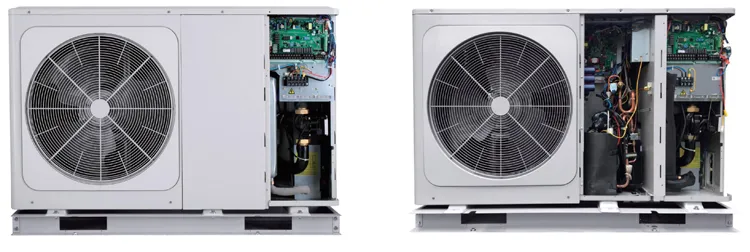

3. Easy installation and maintenance: All hydronic components are located within the outdoor unit. No additional refrigerant piping required. Two-door design allows for easy access to internal components.
Projects Show
Advantages
Frequently Asked Questions (FAQ)
1. What are the primary functions of the M-Thermal Mono Type heat pump?
The M-Thermal Mono Type provides a complete home climate solution, including space heating, space cooling, and domestic hot water production. It is highly versatile and can connect to floor heating, fan coil units, and radiators.
2. Why is DC Inverter technology better for heat pumps?
DC Inverter technology allows the compressor to adjust its speed according to the actual demand. This leads to 30% less power consumption compared to traditional systems, quieter operation, and more stable indoor temperatures.
3. Is the installation process complicated for the Mono type?
No, the Mono type features an integrated design where all hydronic components are located within the outdoor unit. This means only water pipes need to be installed on-site, with no additional refrigerant piping required.
4. Can this heat pump work with other heat sources like solar panels?
Yes, the system is designed for high compatibility. It can be integrated with solar collectors, gas furnaces, boilers, and other auxiliary heat sources to maximize efficiency and reliability.
5. What kind of environment is this heat pump suitable for?
It is ideal for a wide range of applications including villas, hotels, factories, hospitals, and student apartments. It operates effectively in cooling mode even in temperatures up to 46°C.
6. What certifications does the product hold for quality assurance?
The product is fully certified with CE, ISO9001, CCC, CB, and RoHS, ensuring it meets international standards for safety, health, and environmental protection.
