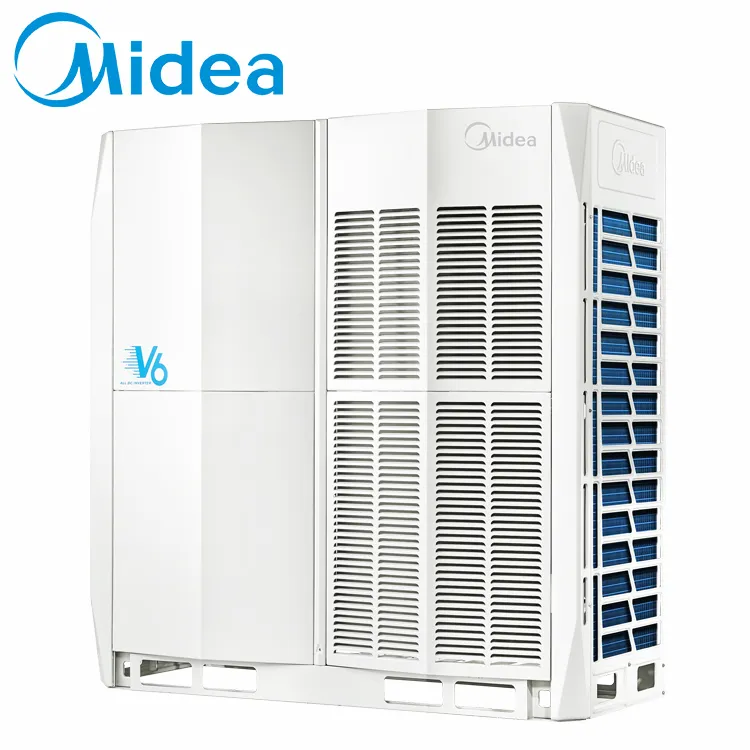

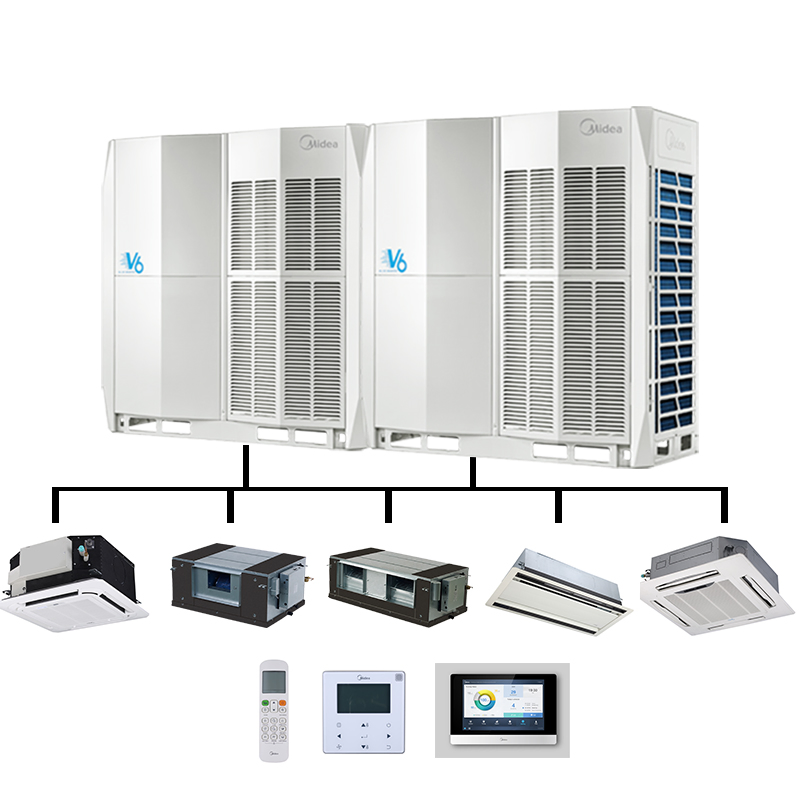

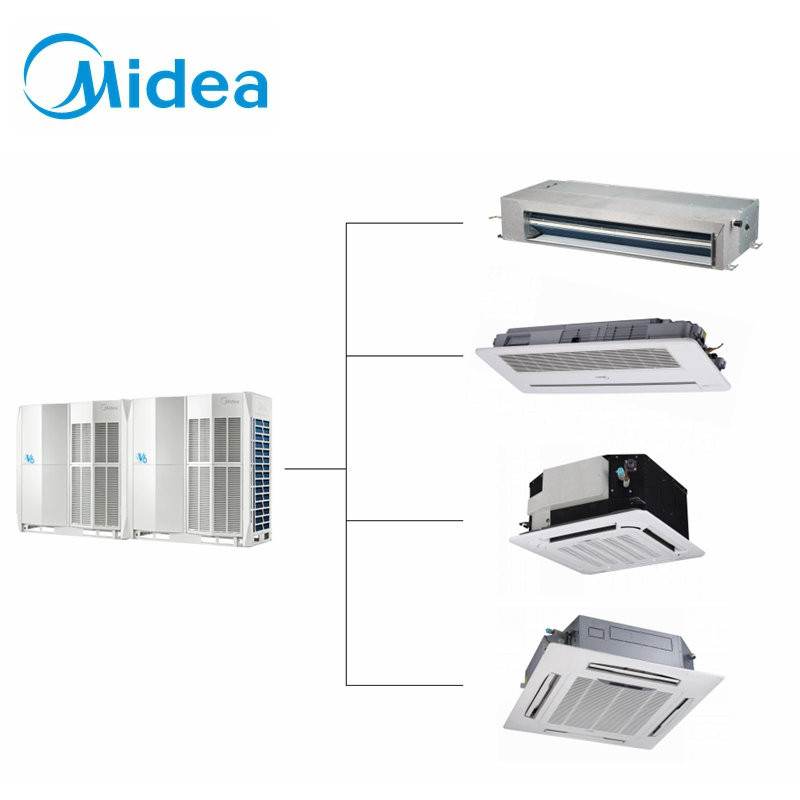

Product Technical Details
As the leading VRF product, V6 boasts substantial benefits such as the combination capacity can be up to 96HP which is leading in HVAC industry; EVI compressor significantly increases heating and cooling capacity under extreme conditions, EMS realizes that evaporating temperature (in cooling) and condensing temperature (in heating) are automatically adjusted according to both indoor and outdoor temperature to maximize the comfort and energy efficiency.
| Capacity |
8HP-96HP |
| Power supply |
380-415/3/50(60)V/Ph/Hz |
| Cooling Capacity |
25.2KW-270KW (86-921kBtu/h) |
| EER |
4.75-2.85kW/kW |
| Heating Capacity |
25.2KW-270KW (86-921kBtu/h) |
| COP |
5.5-3.5kW/Kw |
| Compressors Type |
DC inverter |
| Ambient Temp (Cooling) |
-5 to 54ºC |
| Ambient Temp (Heating) |
-25 to 24ºC |
Key Advantages

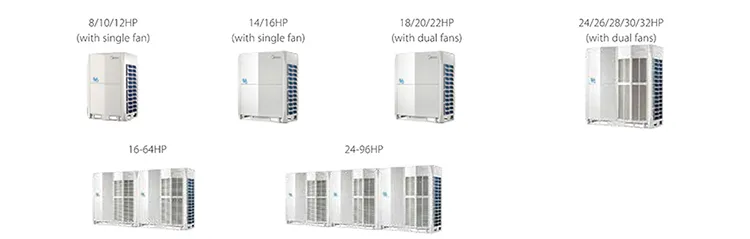

1. Wide Capacity Range
Starting at 8HP, capacity increase in 2HP increments up to 96HP, which is a leading single-system VRF capacity.

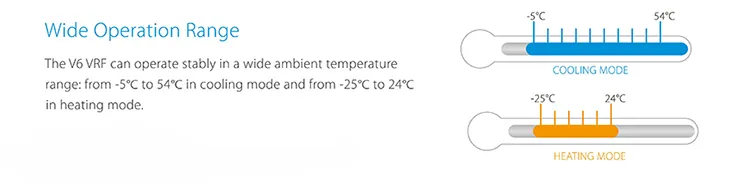

2. Wide Operation Range
The V6 VRF can operate stably in a wide ambient temperature range: from -5ºC to 54ºC in cooling mode and from -25ºC to 24ºC in heating mode.

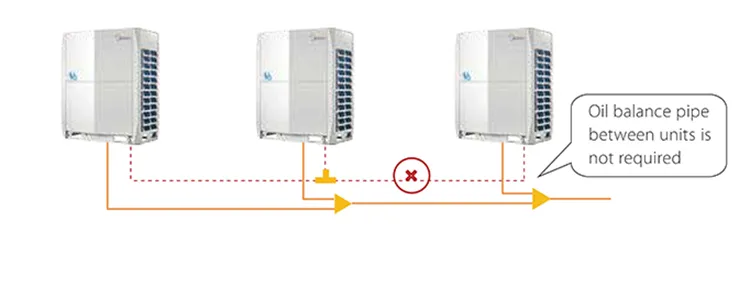

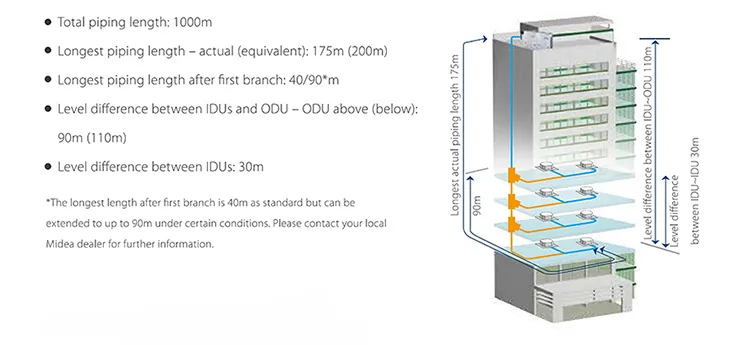

3. Long Piping Capability & No Oil Balance Pipe
With the new oil management system, there is no need for an oil balance pipe, simplifying installation.
Frequently Asked Questions
What is the maximum capacity of the V6 VRF system?
The system offers a wide capacity range starting from 8HP and can be combined up to 96HP in 2HP increments.
What are the operating temperature limits for this unit?
The unit operates stably between -5ºC to 54ºC in cooling mode and -25ºC to 24ºC in heating mode.
Does this system require an oil balance pipe?
No, thanks to the advanced new oil management system, an oil balance pipe is not required for this model.
What type of compressor and refrigerant does the V6 use?
It utilizes a high-efficiency DC Inverter EVI compressor and uses R410A refrigerant.
What certifications does the product hold?
The V6 VRF system is certified by RoHS, ISO, CE, and CCC standards.
What is the expected lifetime of the equipment?
The system is designed for high durability with a service lifetime exceeding 20 years.
