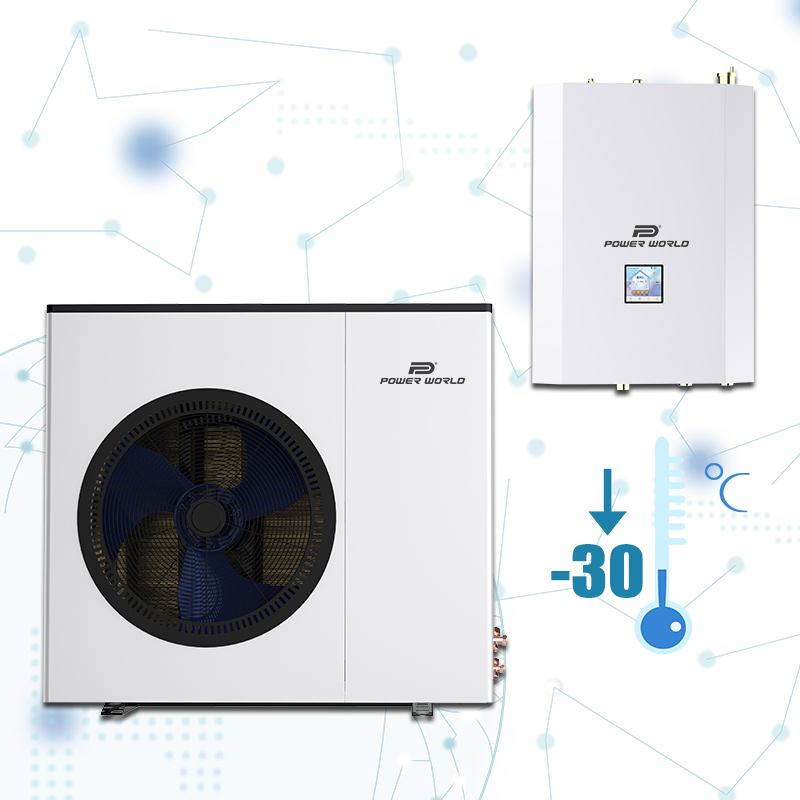

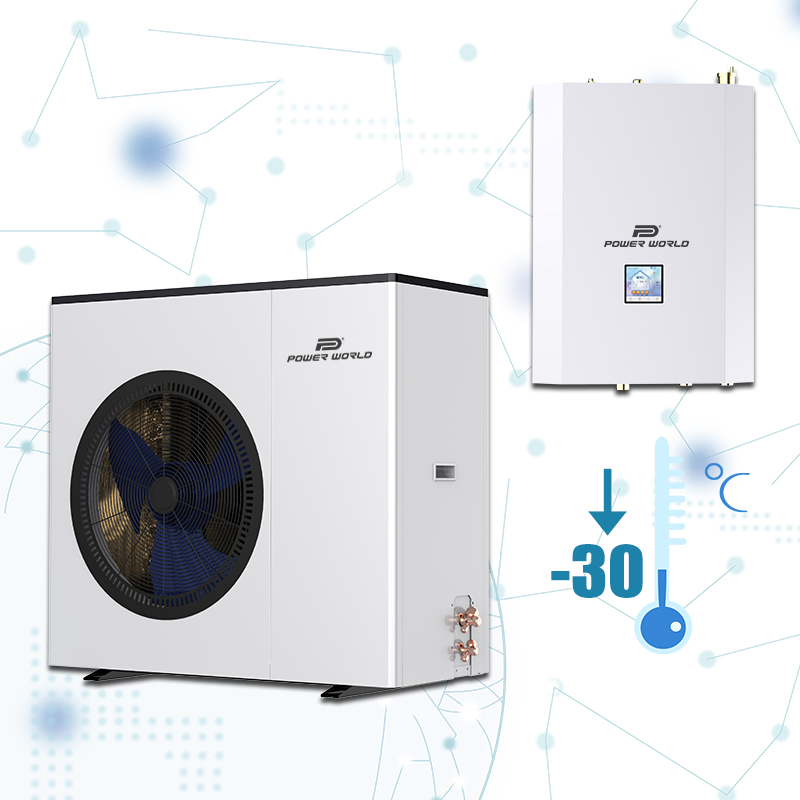

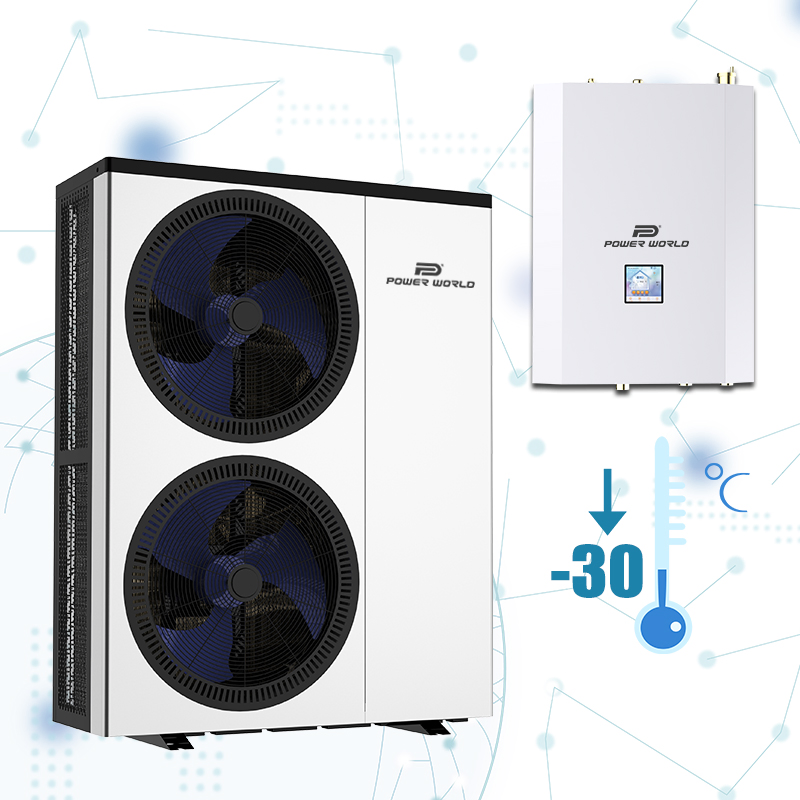

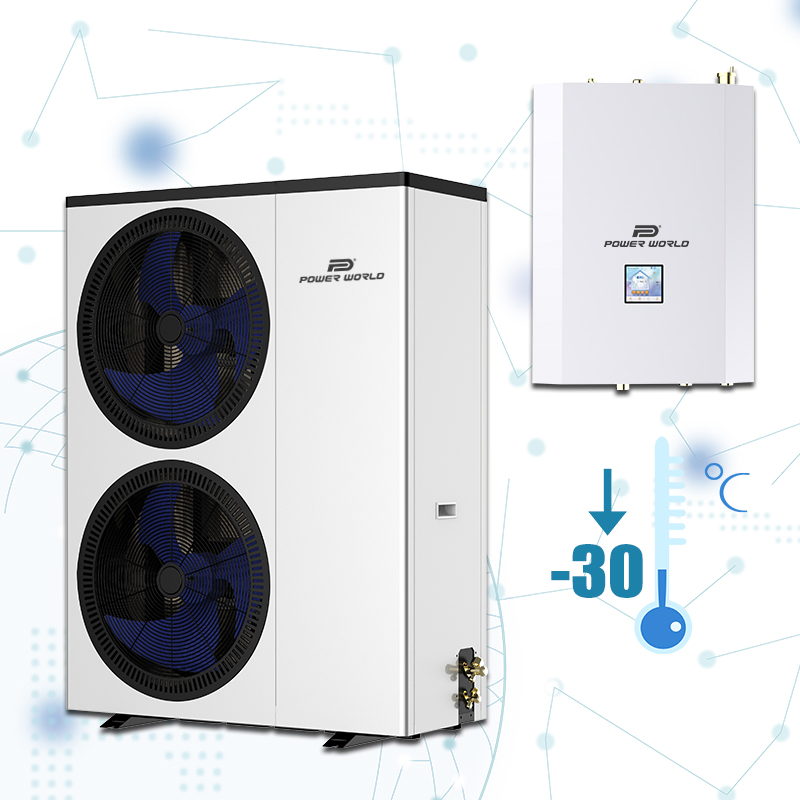

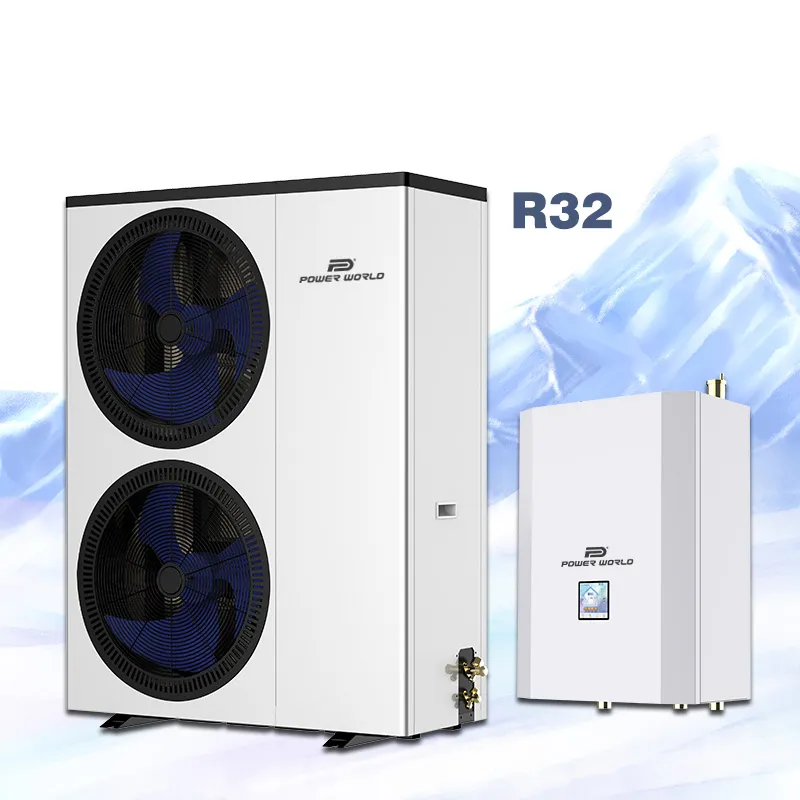

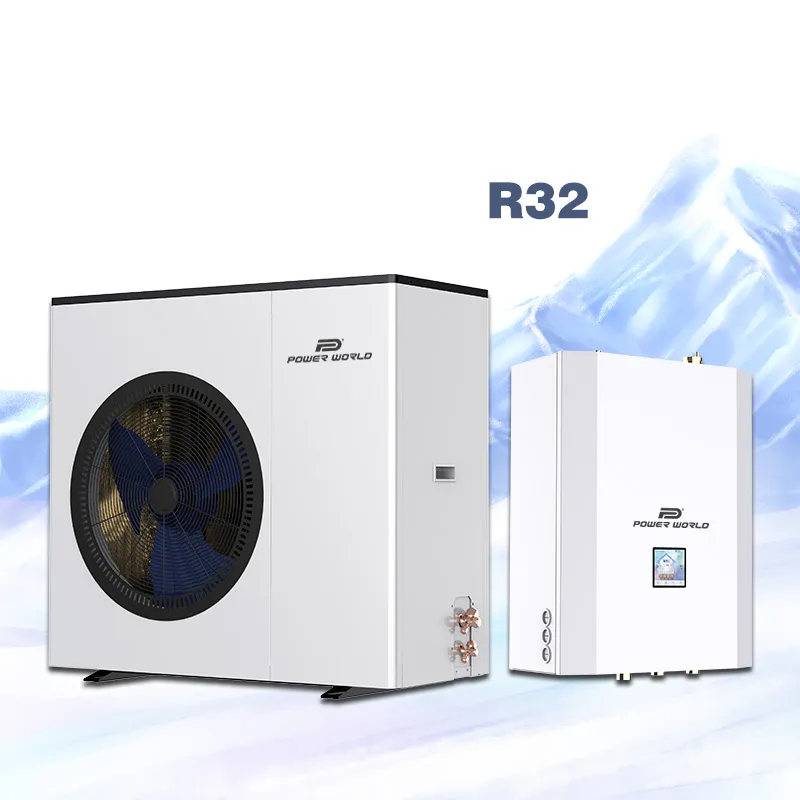

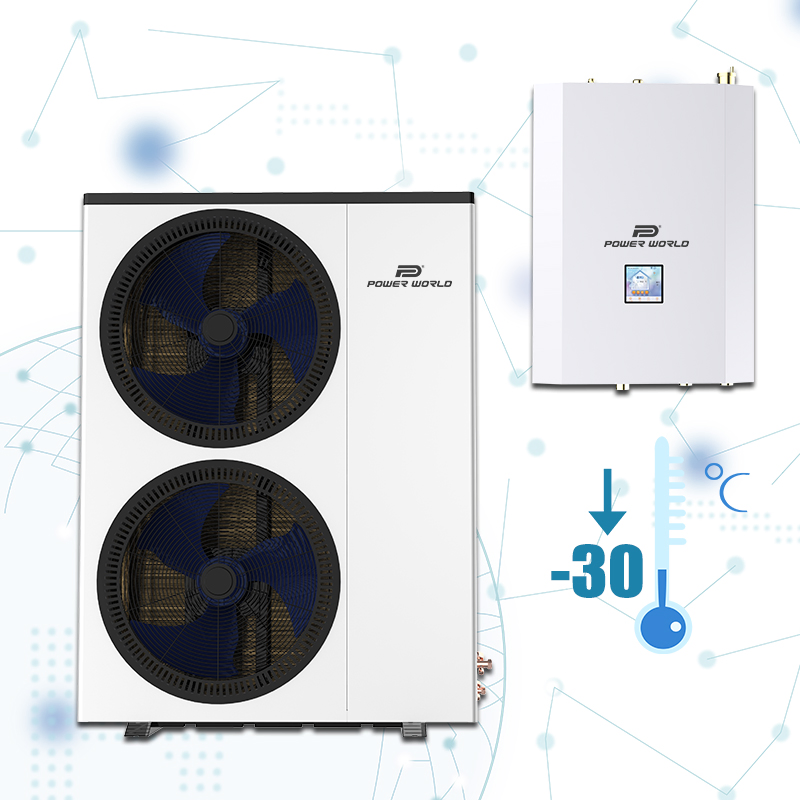

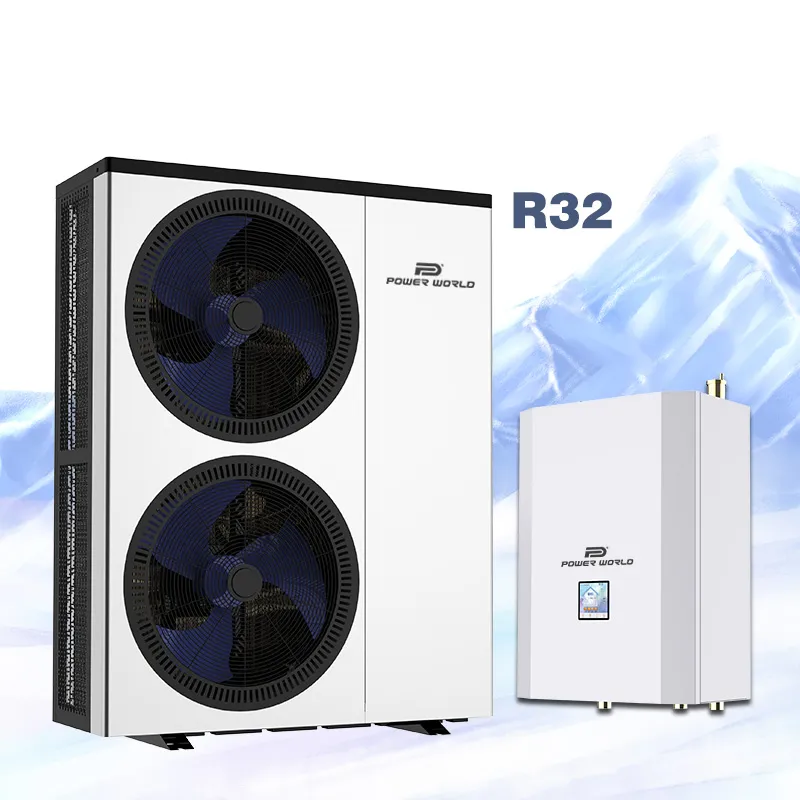

This split design system features an indoor and outdoor unit, engineered for easy installation. With a screw-less appearance and modern compact structure, it provides an ideal heating, cooling, and hot water solution for residential houses.

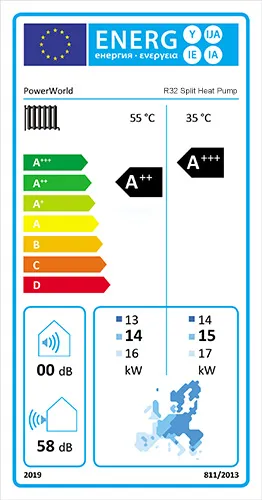

Compliant with EN14511 standards, achieving Eurovent Class A and SCOP Class A+++ (35C) / A++ (55C) under EN14825 standards.

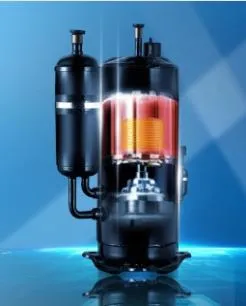

Adopting advanced Enhanced Vapors Injection technology, the split EVI heat pump delivers higher capacity at low evaporation temperatures, producing water up to 60°C even in cold winter.

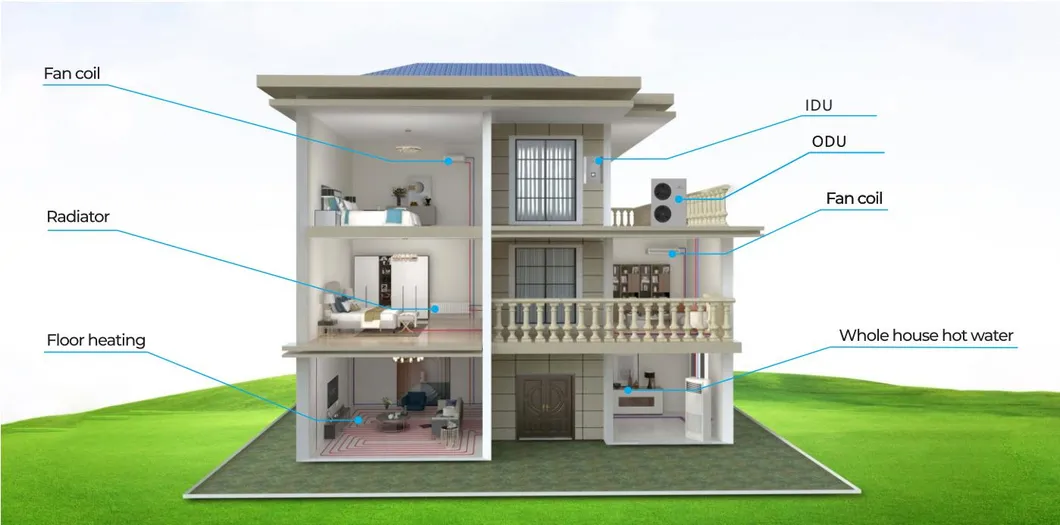

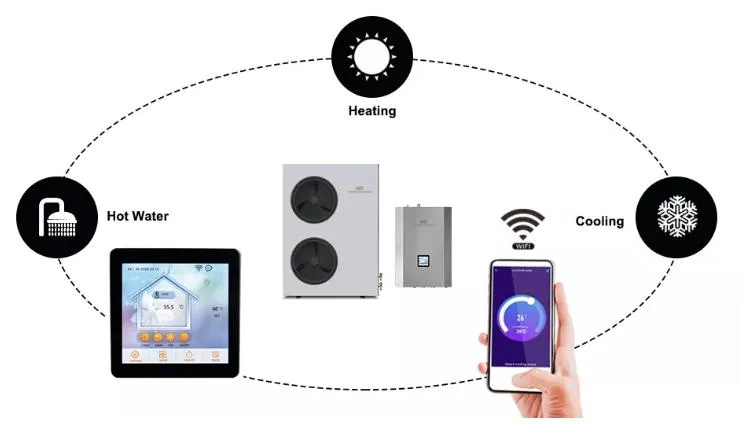

Linkage control between the heat pump and terminal units. Features cascade function for multiple units and a WIFI APP for smartphone operation anytime, anywhere.
| Product Model | PW040-DKZLRS-C | PW060-DKZLRS-C |
|---|---|---|
| Heating Capacity (kW) | 6.5 ~ 12.6 | 10.5 ~ 22 |
| Heating COP Range | 4.21 ~ 4.62 | 4.23 ~ 4.63 |
| Cooling Capacity (kW) | 4.2 ~ 8.2 | 7.2 ~ 14.2 |
| EER Range | 2.46 ~ 3.23 | 2.56 ~ 3.32 |
| Power Supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz |
| Working Area (°C) | -30 ~ 43 | |
| Noise Level (dB(A)) | ≤53 | ≤58 |
| ErP Level (35°C) | A+++ | A+++ |
| Compressor Brand | Panasonic | |

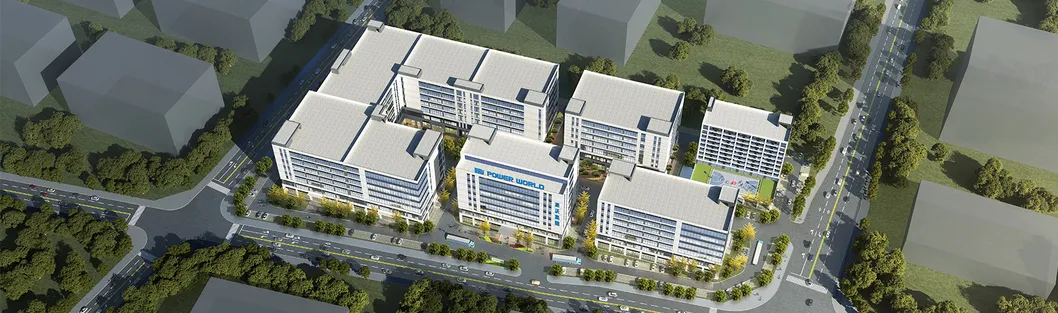

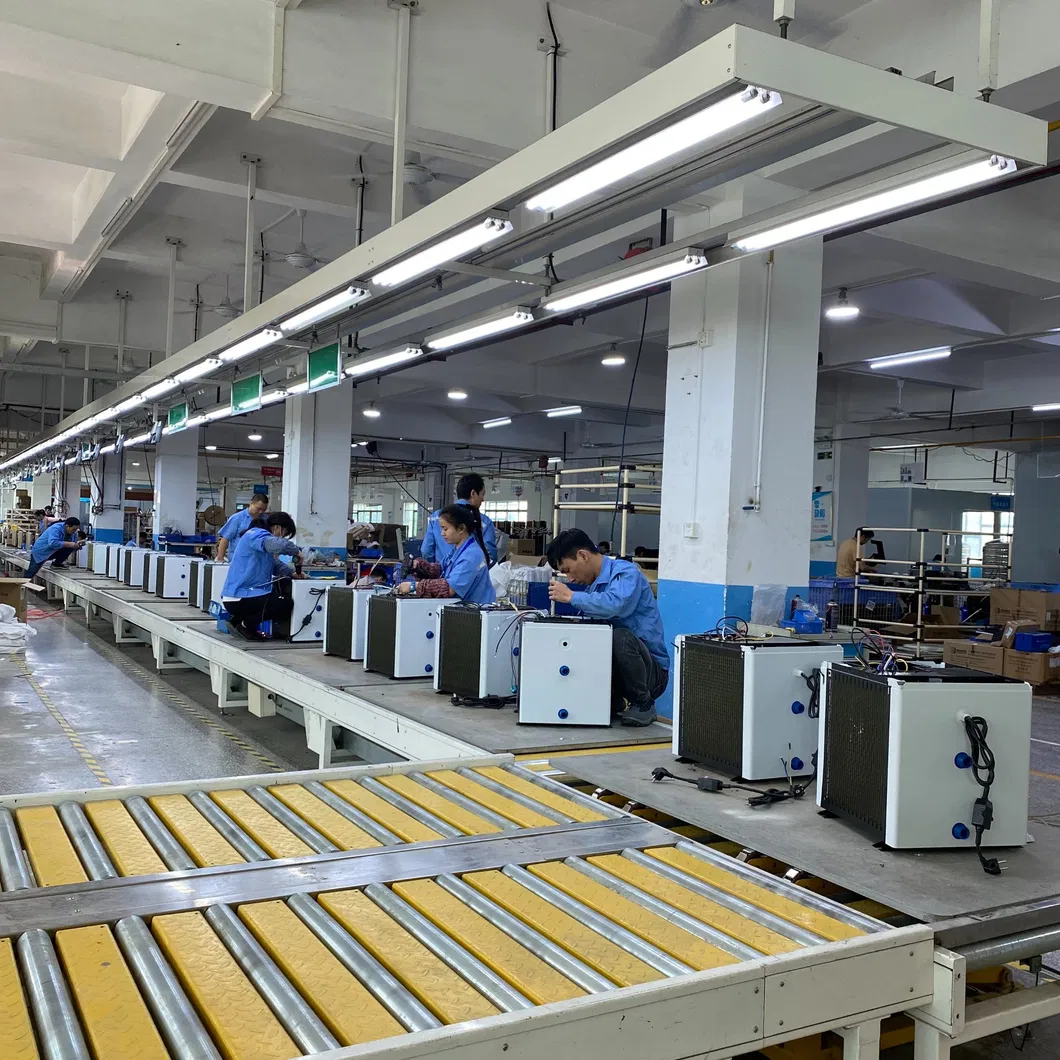

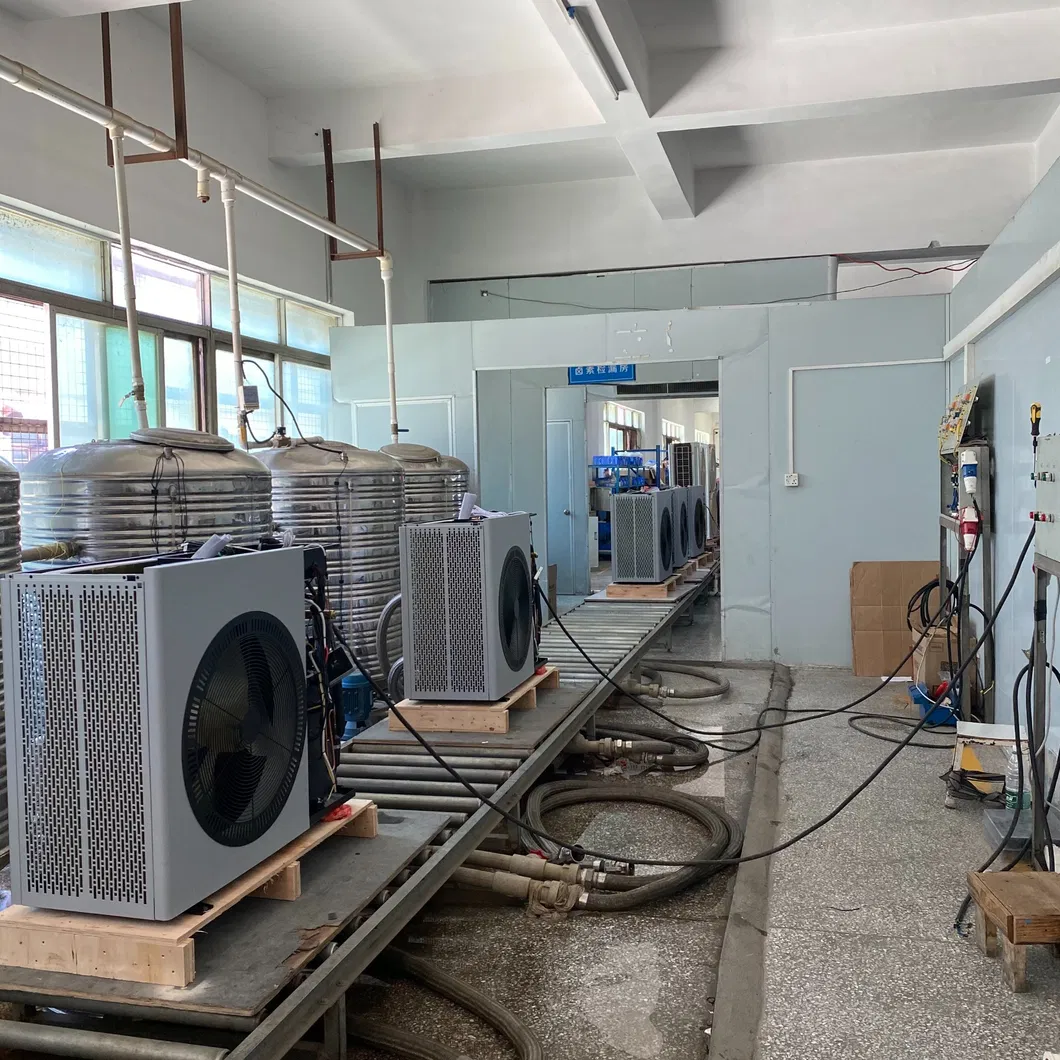

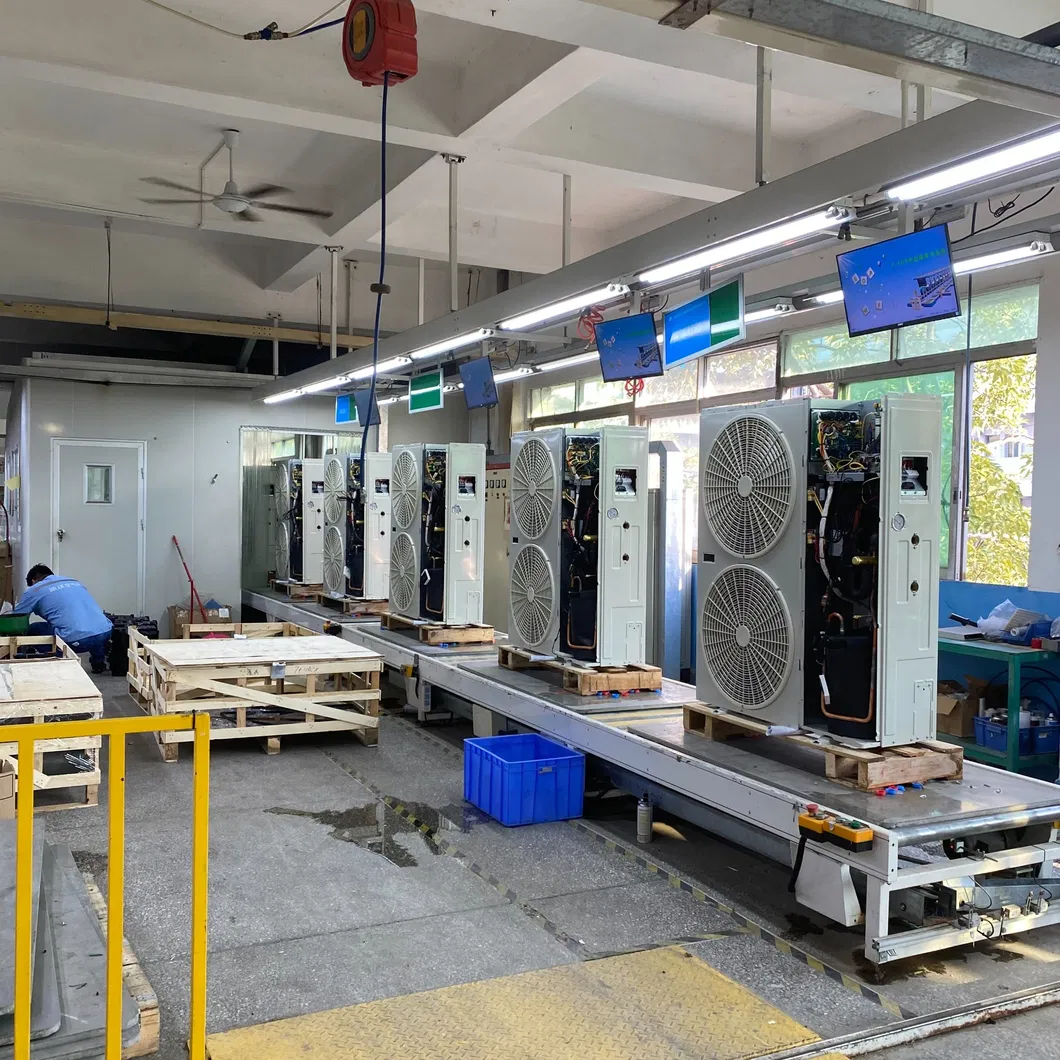

Established in 2004, our company is a high-tech enterprise dedicated to the research, development, and production of air source heat pump products. With a complete industry chain, we provide solutions for swimming pools, residential heating/cooling, and domestic hot water.
Our products are exported to over 60 countries, including Germany, France, and Spain. We hold over 80 product patents and are ISO 9001/14001, CE, and ERP certified. Our team consists of senior engineers and over 500 experienced production staff focused on delivering quality and efficiency.
