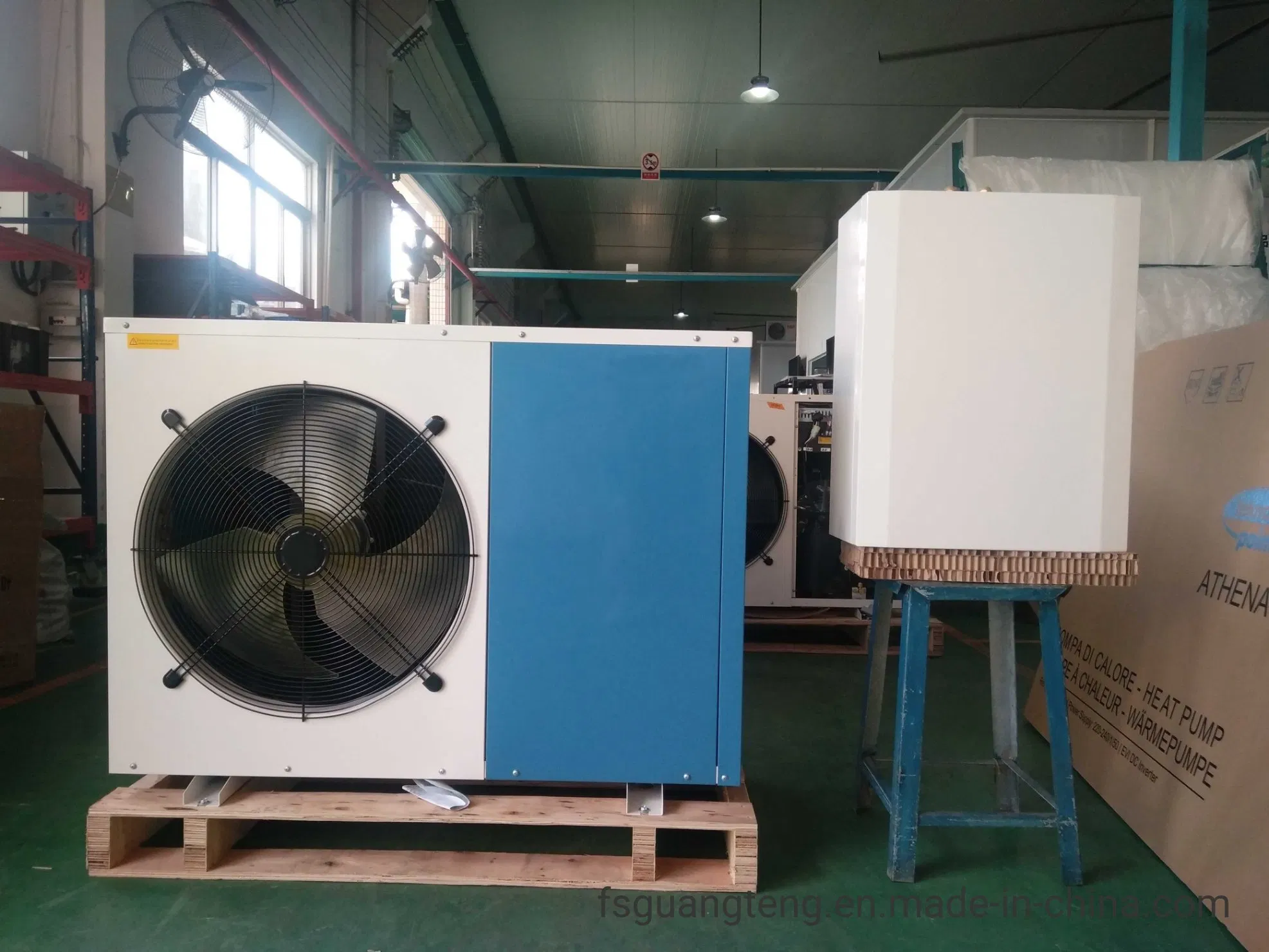

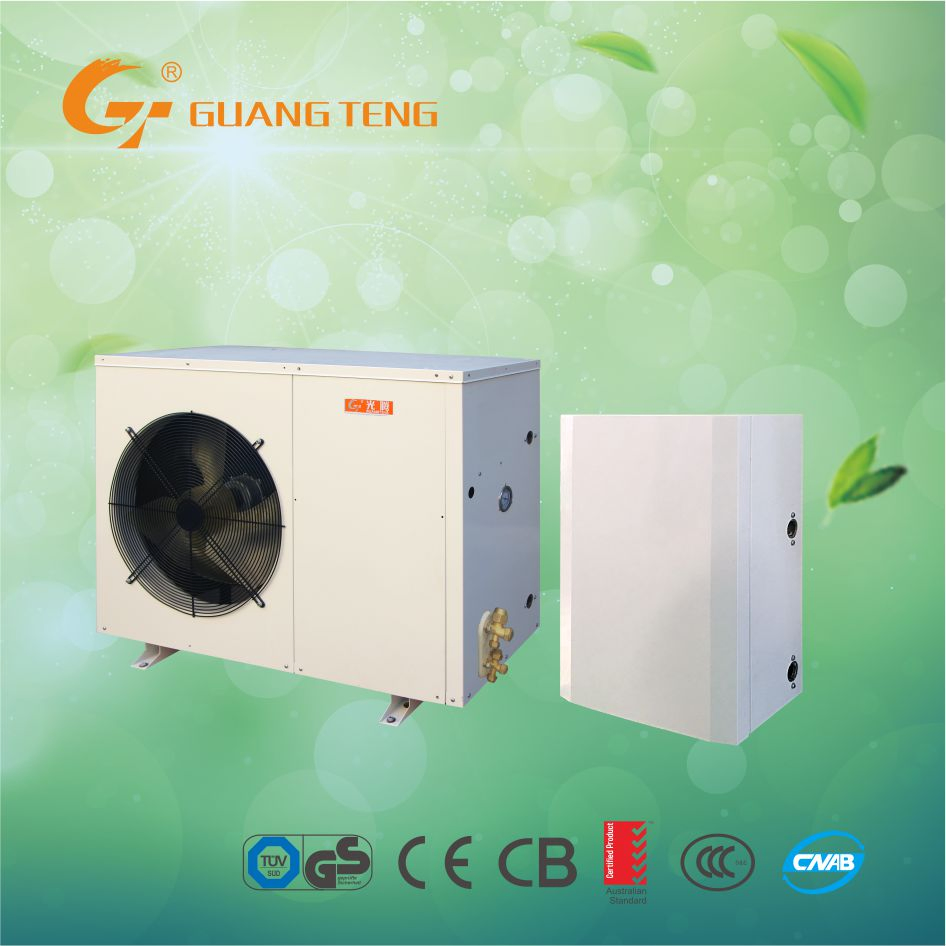

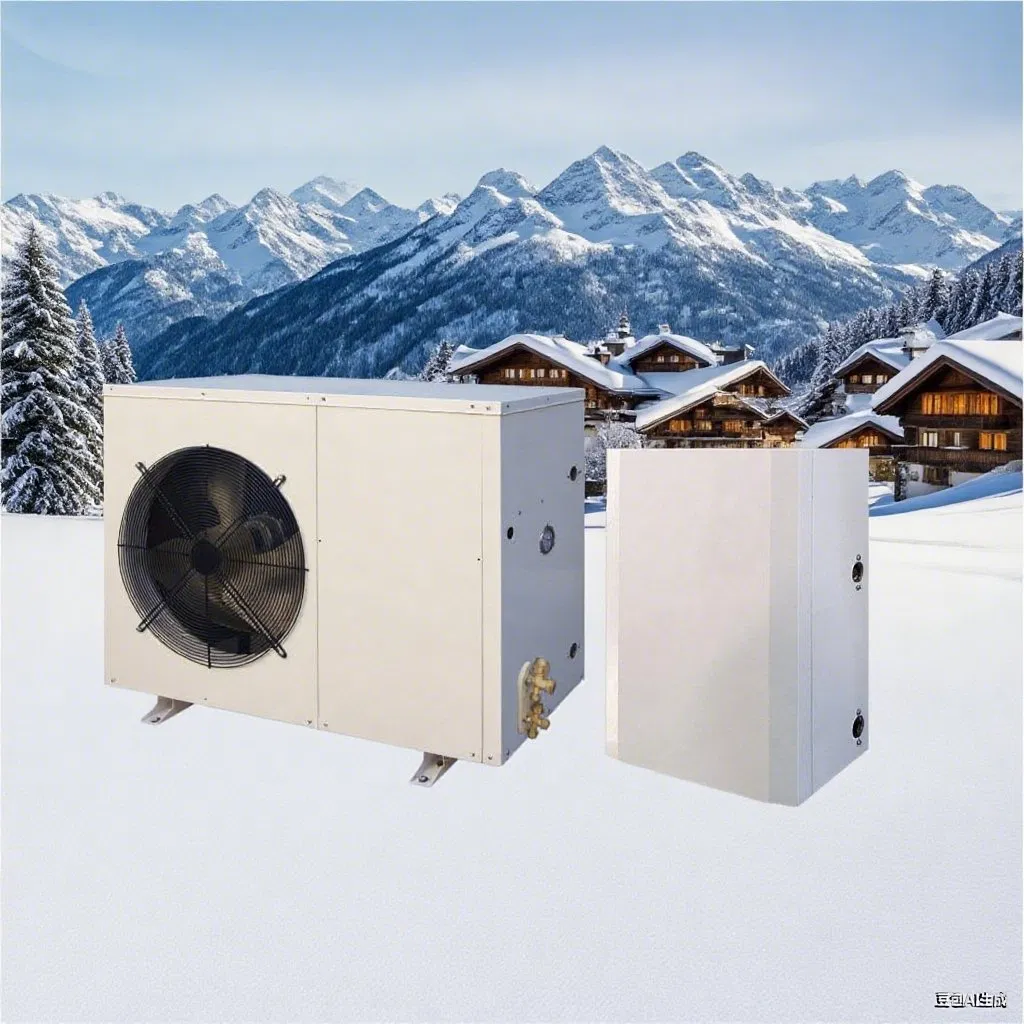

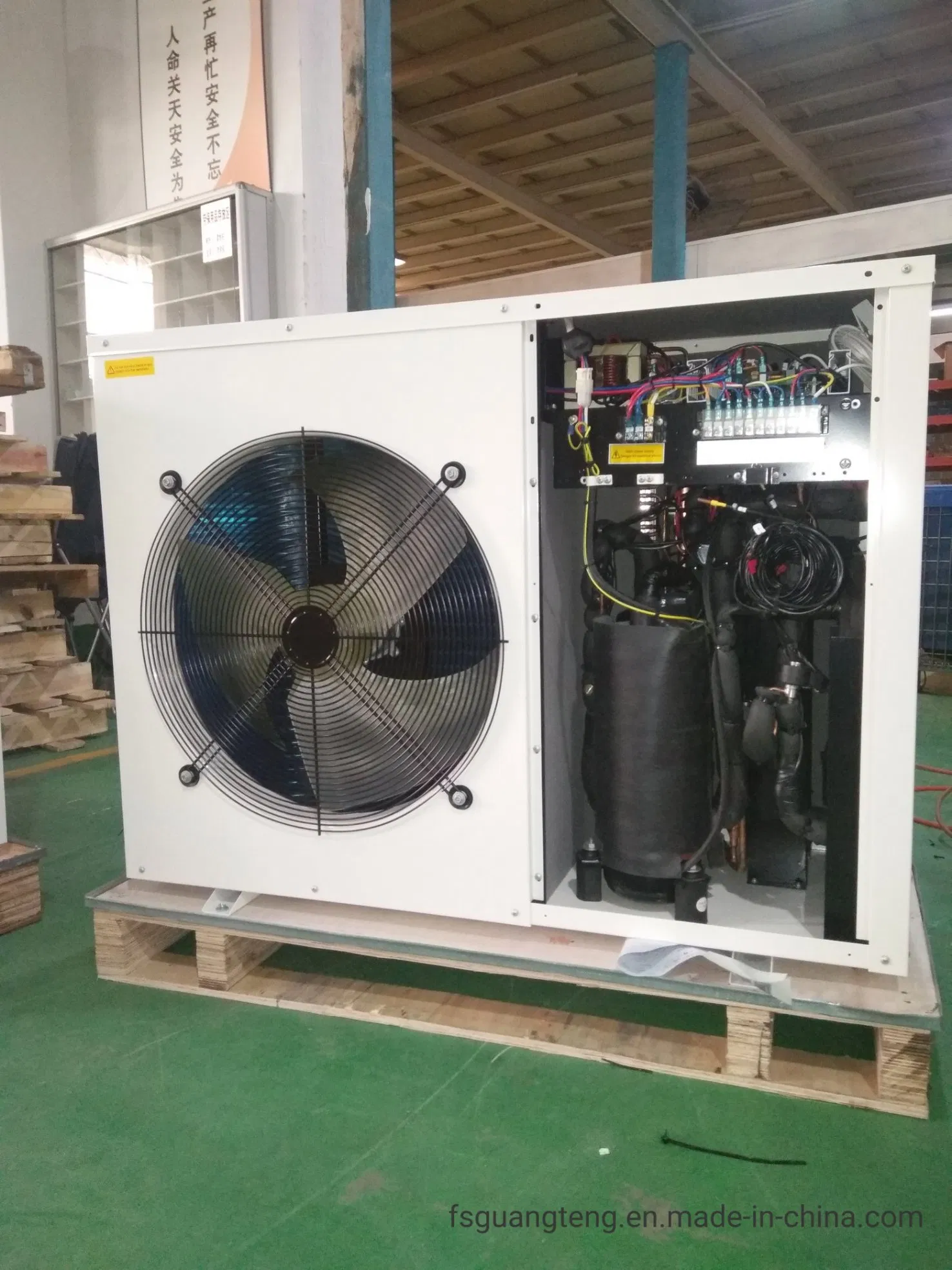

Hot Selling Inverter Heat Pump Air to Water Split Type R410A

i

Overview

Model NO.

GT-SKR020KBDC-S10

Work Environment

Low-temperature Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001, CCC, CB

Power Supply

220-240V/1pH/50Hz

Max Water Temp.

60℃

Operating Temp.

-25~43℃

Housing Material

Galvanized Steel

★

Product Description

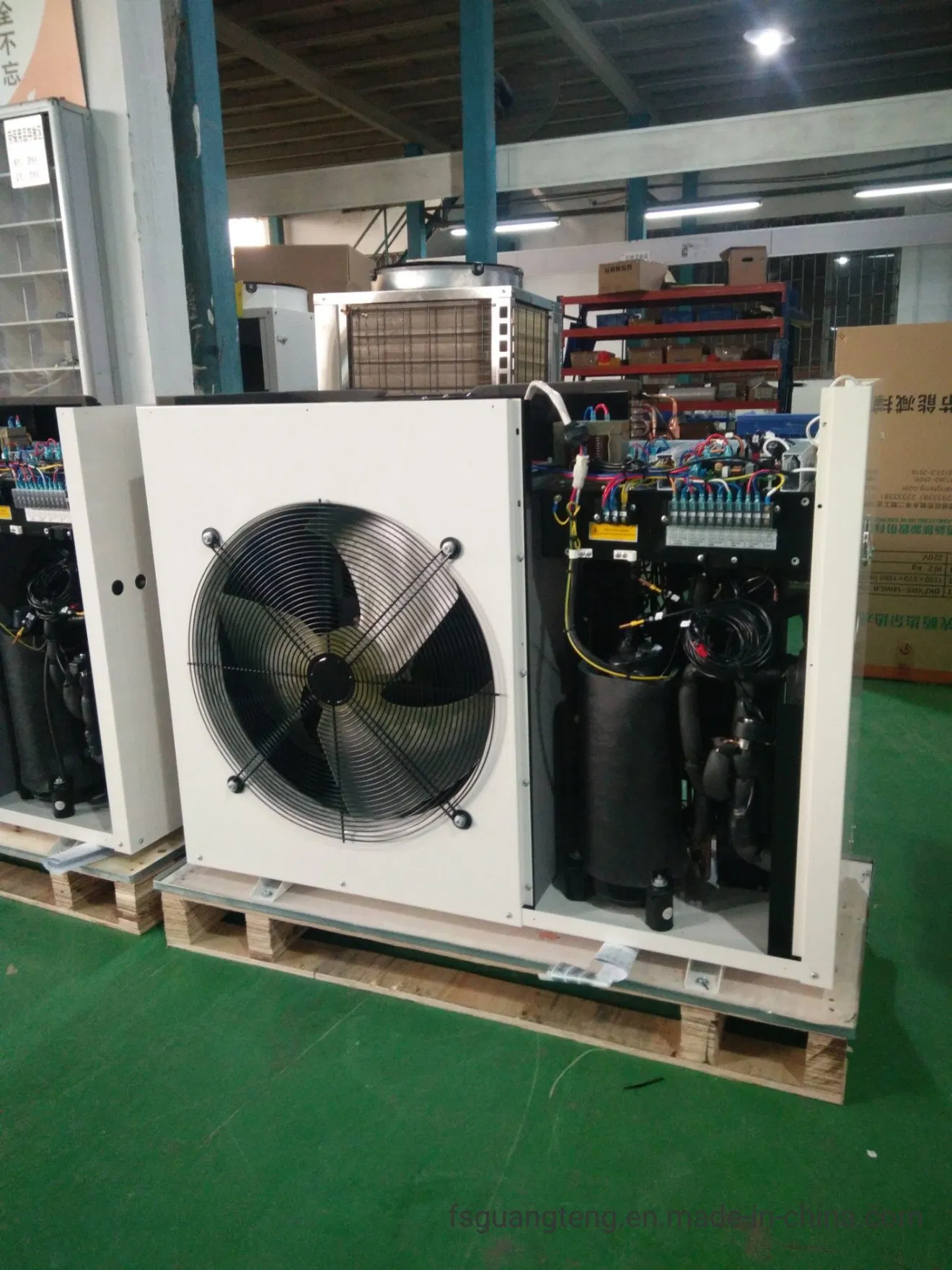

EVI DC Inverter compressor & R410A Refrigerant

Evaporator: Blue colour hydrophilic aluminum fins

Brazed plate heat exchanger

"Saginomiya" electronic expansion valve and 4-way valve

Outer Casing: galvanized steel with polyester powder painting

Warranty: 36 months after delivery

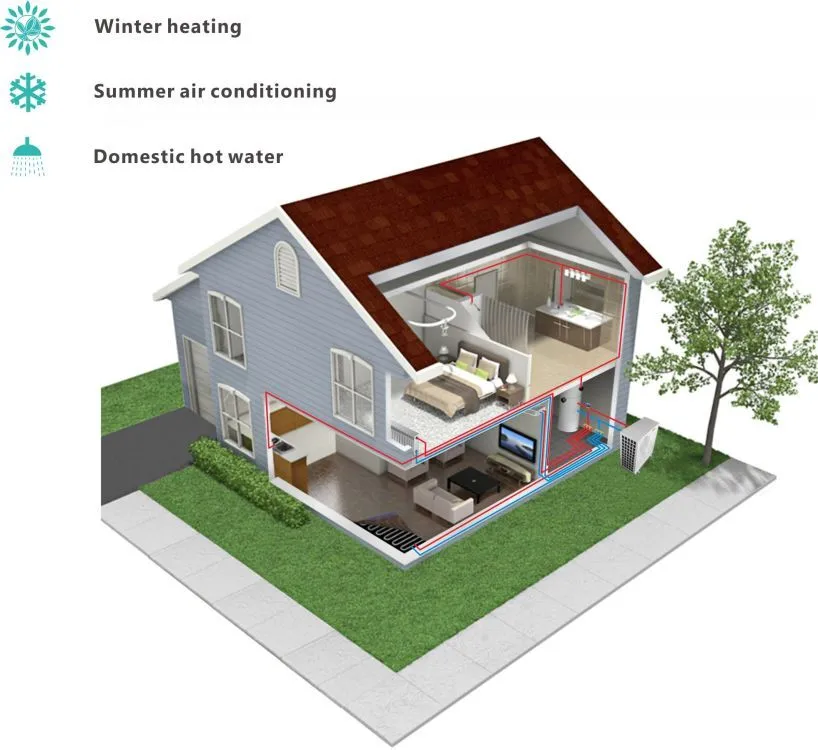

SMART-M series DC Inverter heat pump absorbs natural heat energy from the ambient air and increases it for room heating and domestic hot water supply. Utilizing EVI technology, it operates efficiently in outdoor temperatures as low as -25ºC, reaching outlet water temperatures of 60ºC.

⚙

Product Specification

Model Number	015KBDC	020KBDC	030KBDC	040KBDC	050KBDC
Energy Label (EN14825)	A++	A++	A++	A++	A++
Heating Capacity (A7/W35) kW	6.00	10.20	13.00	15.20	18.30
COP (A7/W35)	4.14	4.16	4.10	4.10	4.11
Compressor Type	EVI DC Inverter
Refrigerant	R410A
Sound Level dB(A)	52	54	56	58	58
Net Weight (Outdoor Unit) kg	75	81	102	109	130

* Test conditions based on standard A7/W35, A2/W35, and A-7/W35 outdoor/water temperature parameters.

✔

Our Advantages

▦

Visual Overview

?

FAQ

Q1: How about your delivery time?

Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q2: What is your term of delivery?

We offer various terms including EXW, FOB, and LC to meet your specific logistics requirements.

Q3: What are your terms of packing?

Generally, we pack the heat pump in brown cartons or plywood. If you have a legally registered patent, we can pack the goods in your branded boxes upon authorization.

Q4: What is your sample policy?

We accept sample orders; however, customers are required to cover both the sample cost and the courier expenses.

Q5: Do you test all your goods before delivery?

Yes, we conduct a 100% test on all products before they are packed for delivery to ensure the highest quality.

Q6: How long is the guarantee time?

We provide a 3-year warranty on the whole unit. For non-humanly damaged parts, we typically include 1.5% spare parts free of charge for maintenance.
