🔍 Product Details & Images

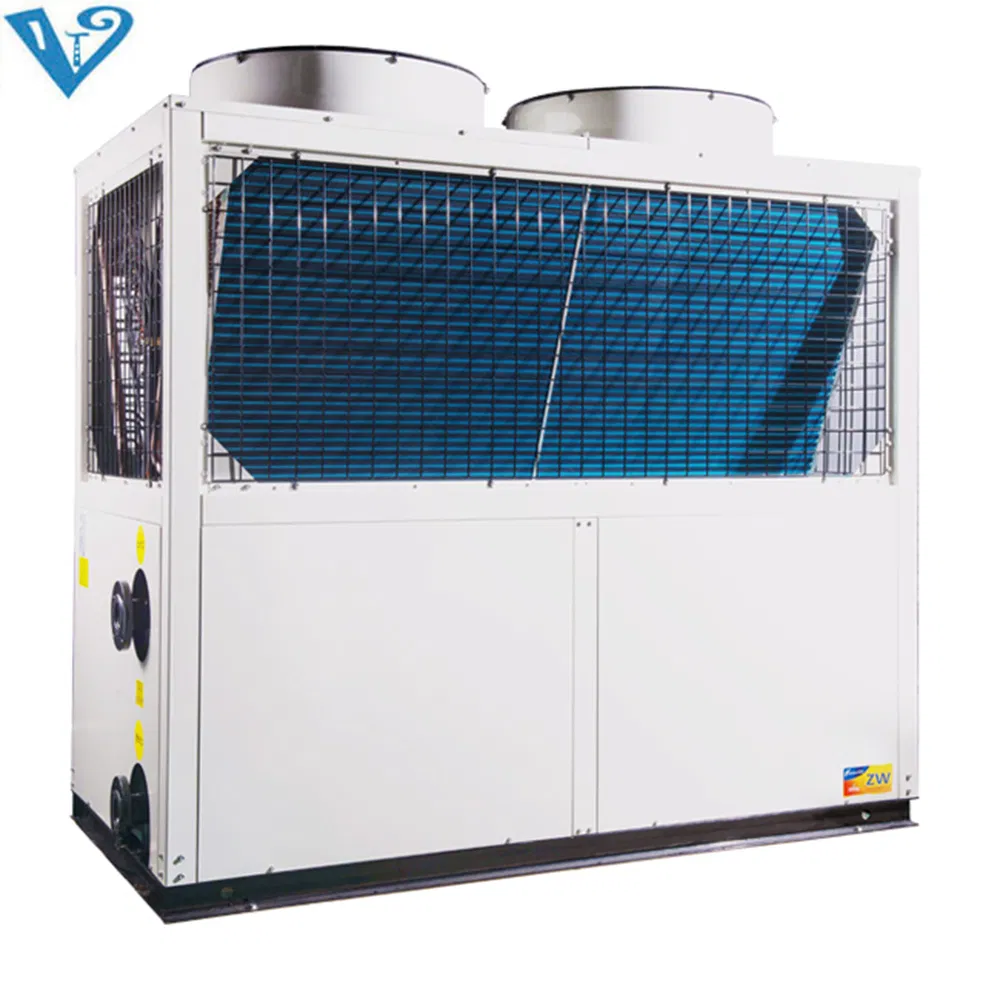

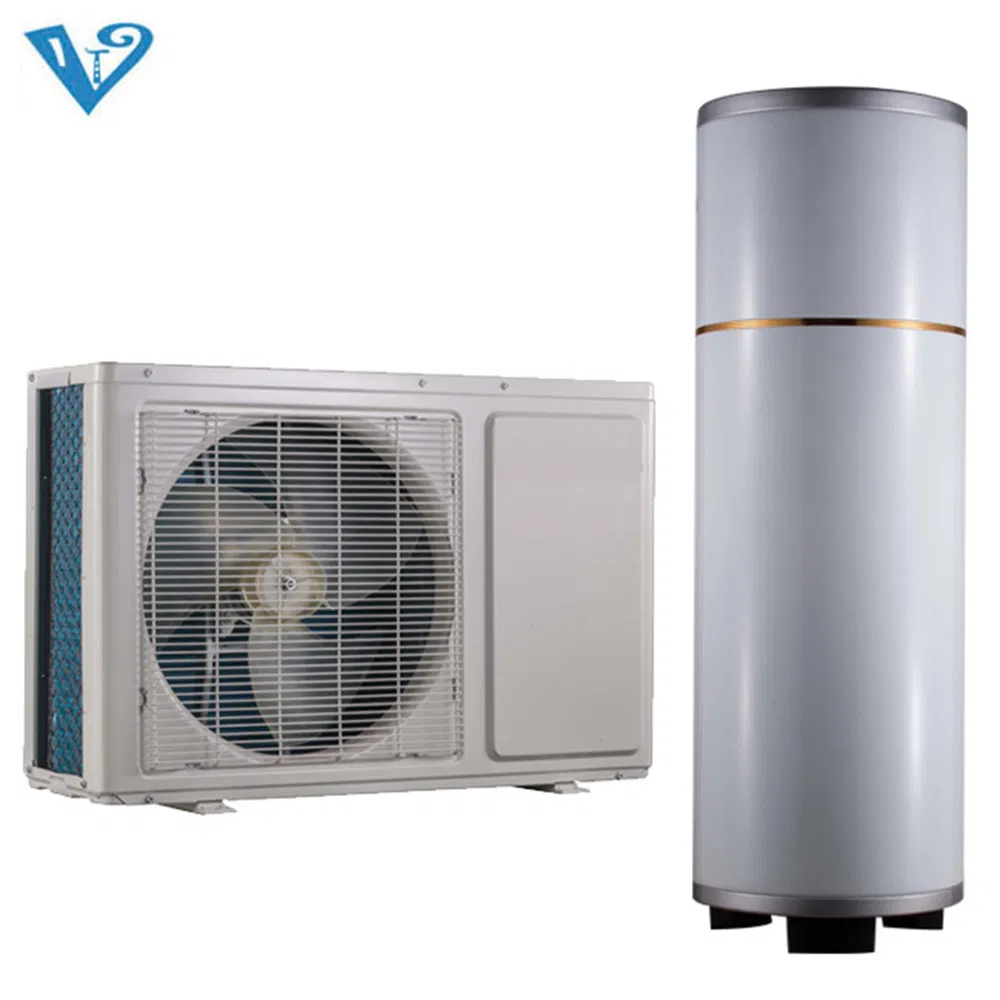

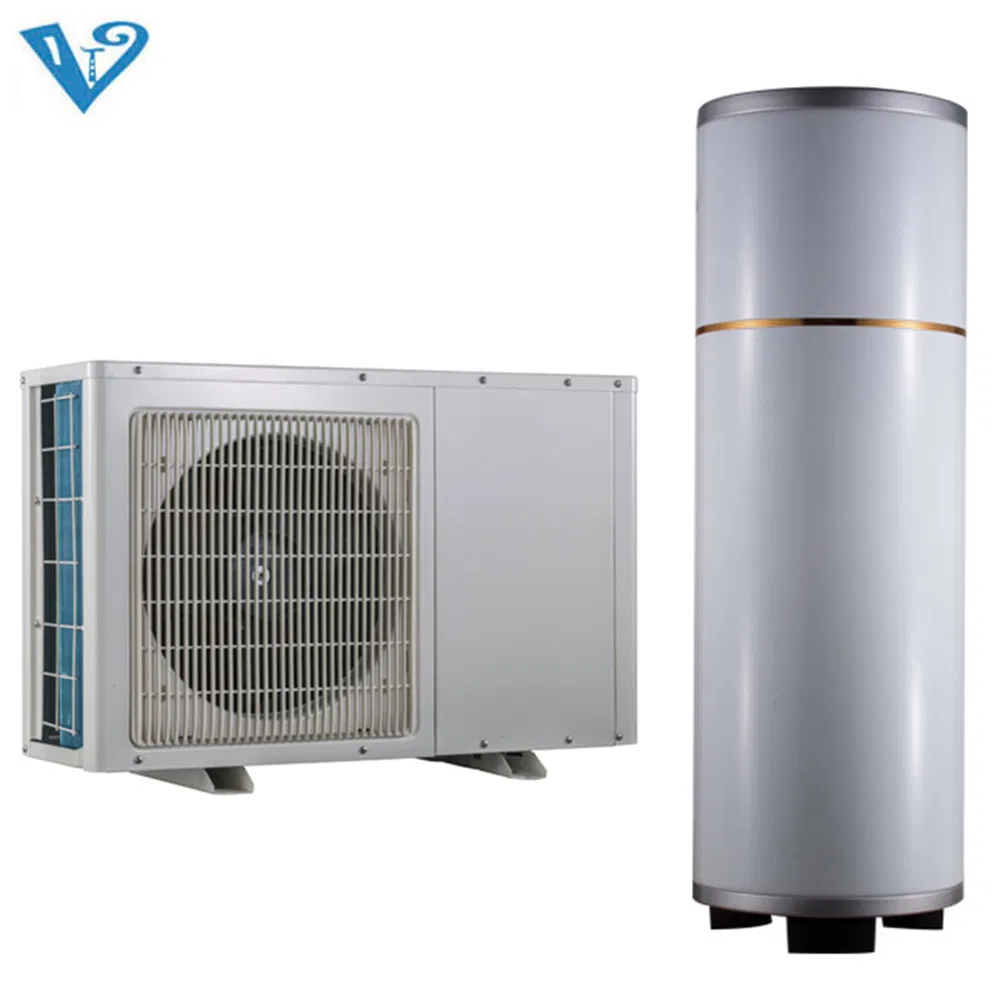

Commercial Water Heater Heat Pump Series
| Heating mode |
/ |
Circulating |
| Ambient temp. range |
ºC |
-15~+43ºC |
| Rated heating capacity |
KW |
10 |
18 |
23 |
36 |
45 |
70 |
90 |
| COP |
W/W |
4.17 |
4.3 |
4 |
4.2 |
4.2 |
4.1 |
4.1 |
| Rated power input |
KW |
2.4 |
4.2 |
5.75 |
8.57 |
10.7 |
17 |
21.9 |
| Max. running current |
A |
17 |
14 |
16 |
24.8 |
30 |
45 |
58 |
| Power supply |
/ |
220V 1N~50Hz |
380V 3N~50Hz |
| IP code |
/ |
IPX4 |
| Safety function |
/ |
High/low pressure, Overload, Temperature, Power phase sequence protection |

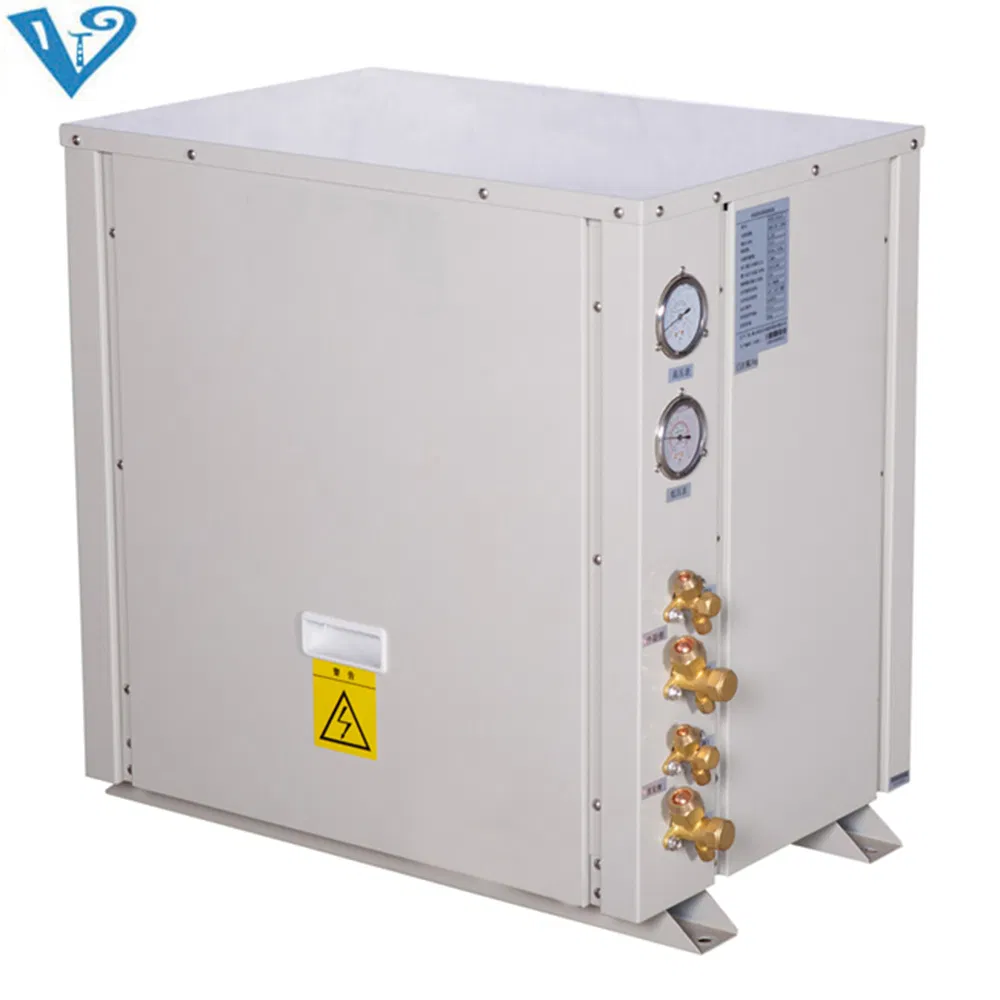

Geothermal Water to Water Heat Pump Series
| Ambient temp. range |
ºC |
-5~+25 |
-5~+25 |
-5~+25 |
-5~+25 |
| Floor heating capacity/COP |
KW/- |
17/4.8 |
32/4.8 |
15/4.8 |
40/4.8 |
| Rated heating capacity/COP |
KW/- |
16/4.1 |
31/4.1 |
13.7/4.1 |
36.5/4.1 |
| Rated cooling capacity/COP |
KW/- |
15/5 |
28.5/5 |
13.0/5 |
34/5 |
| Compressor Type |
/ |
Scroll |
Scroll |
Scroll |
Scroll |
| Dimension (W×D×H) |
mm |
745×650×960 |
1400×750×960 |
745×650×960 |
1400×750×960 |
❓ Frequently Asked Questions
🔹 What is the primary function of this heat pump?

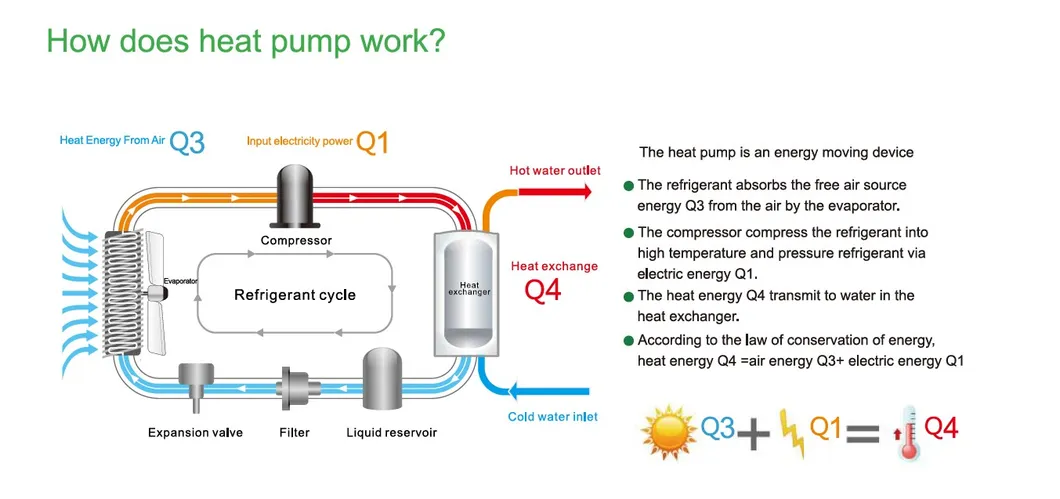

This unit is designed for high-efficiency water heating, utilizing air, water, or ground sources to provide consistent hot water for commercial and residential use.
🔹 What is the operating ambient temperature range?
The system is engineered to operate reliably in a wide range of temperatures, specifically from -15°C to +43°C, making it suitable for various climates.
🔹 What type of compressor does the unit use?

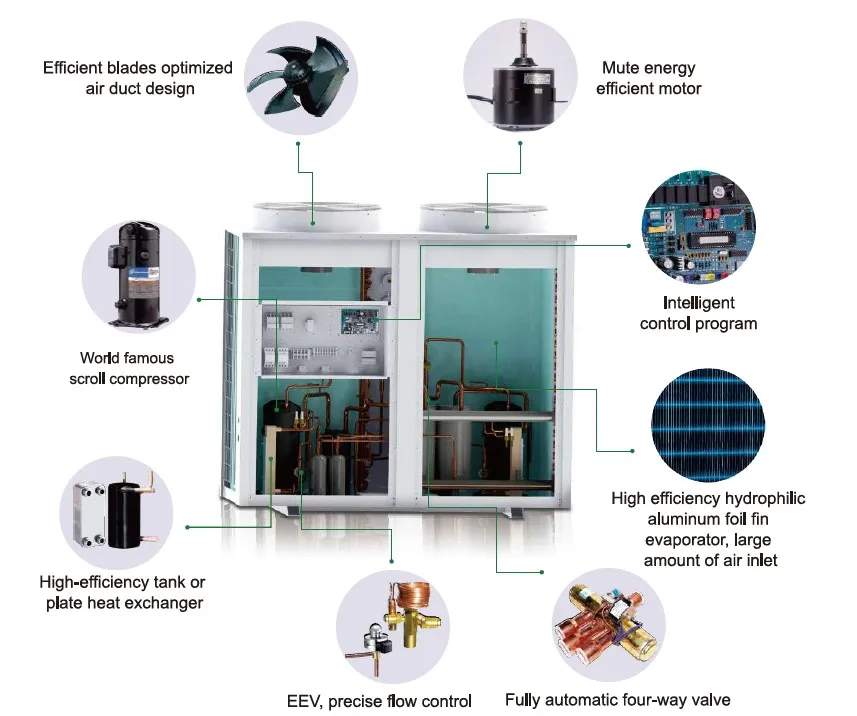

It features a high-performance Scroll Type compressor, known for its durability, lower noise levels, and superior energy efficiency compared to traditional compressors.
🔹 What safety protections are included in the system?
The unit includes comprehensive safety features such as high and low pressure protection, overload protection, temperature protection, and power phase sequence protection to ensure long-term stability.
🔹 What is the maximum outlet water temperature?
The heat pump can produce a maximum outlet water temperature of up to 60°C, meeting most commercial and domestic hot water requirements.
🔹 Is the unit protected against outdoor weather conditions?
Yes, the unit has an IPX4 protection grade, which ensures it is protected against water splashes from any direction, making it suitable for outdoor installation.
