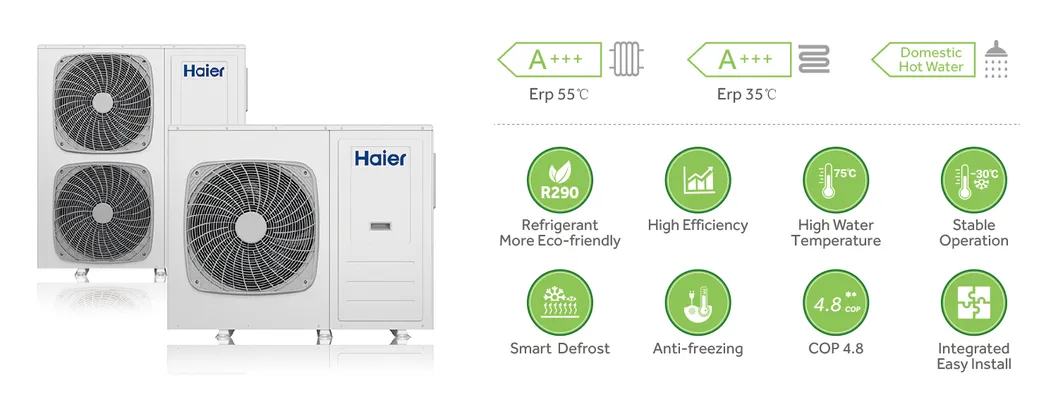

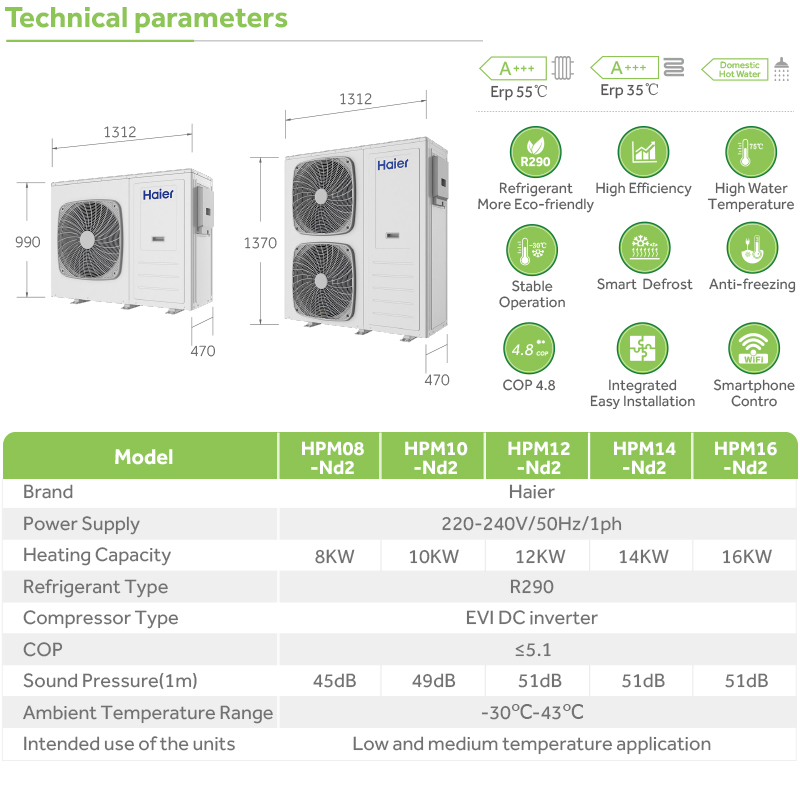

| Technical Specifications - R290 Air To Water Heat Pump | |||||||
|---|---|---|---|---|---|---|---|
| Model | HPM 08-Nd2 | HPM 10-Nd2 | HPM 12-Nd2 | HPM 14-Nd2 | HPM 16-Nd2 | ||
| Power supply (V/Ph/Hz) | 220-240/1/50 | ||||||
| Heating (AT7/6, WT30/35) | Capacity | kW | 8 | 10 | 12 | 14 | 16 |
| Power Input | kW | 1.62 | 2.08 | 2.45 | 2.74 | 3.25 | |

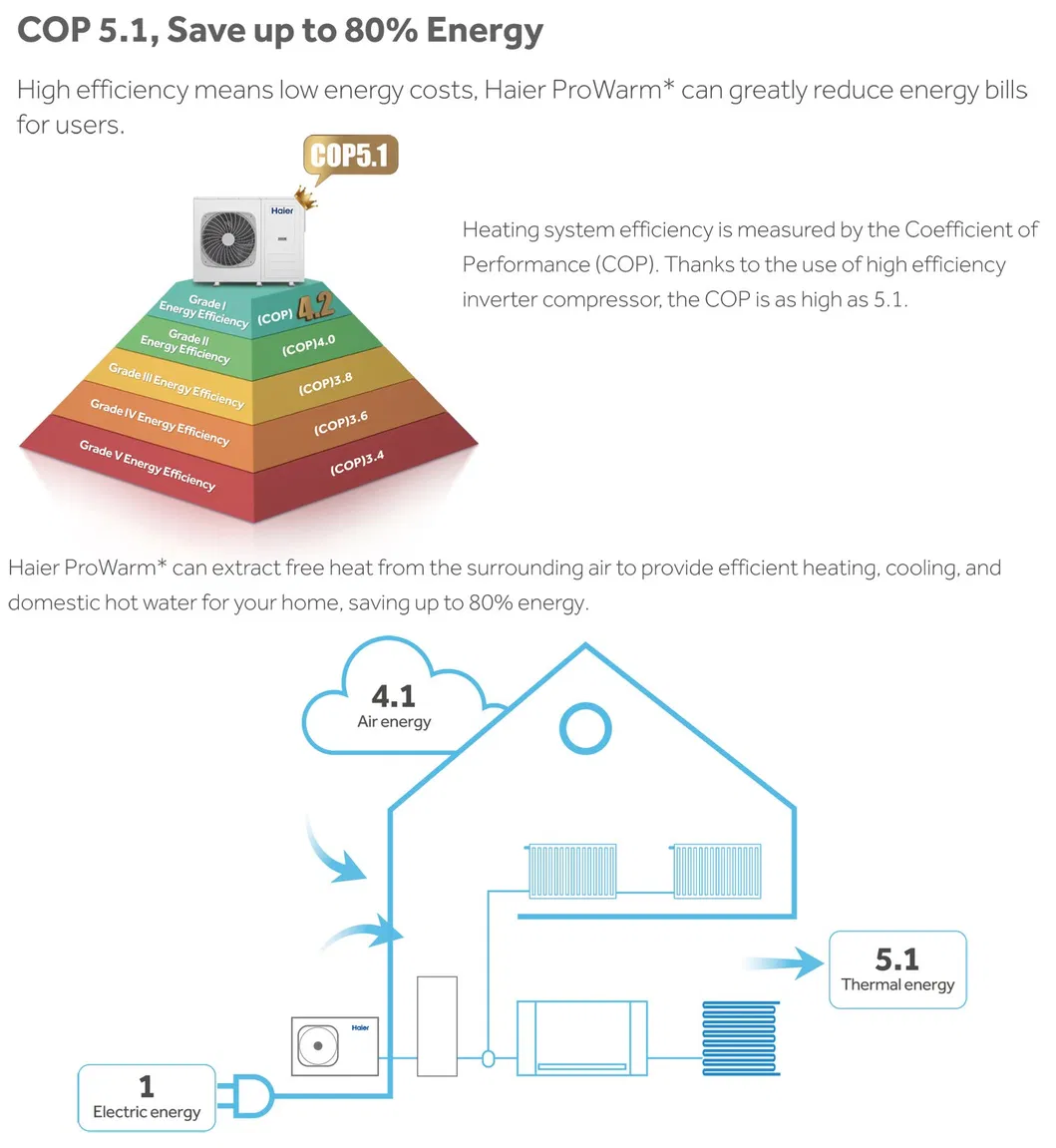

| COP | W/W | 4.95 | 4.8 | 4.9 | 5.11 | 4.92 | |
| SCOP (Average Climate) | 35°C | - | 4.9 | 4.9 | 4.9 | 5.2 | 4.9 |
| 55°C | - | 3.85 | 3.85 | 3.85 | 3.9 | 3.9 | |

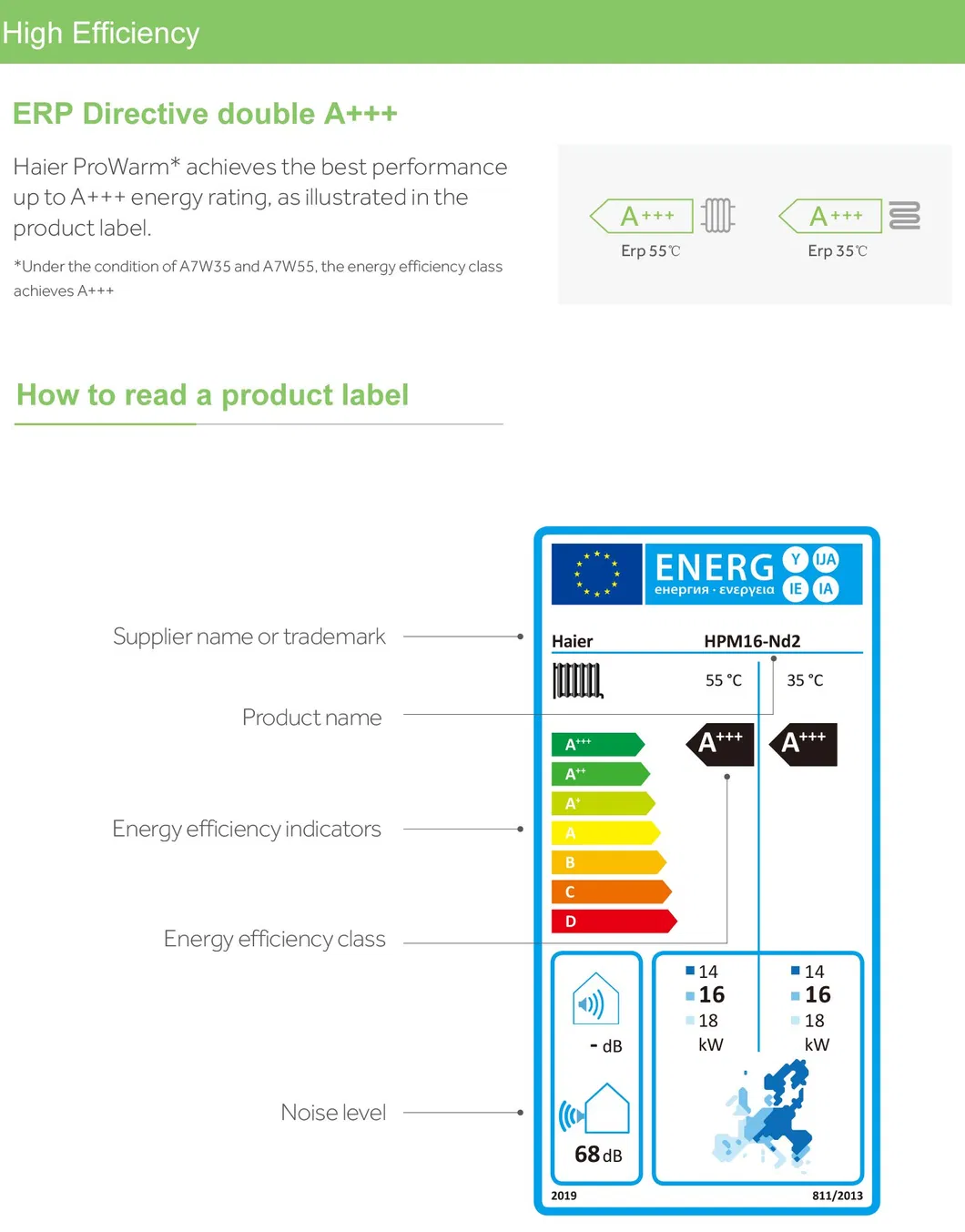

| Energy Class (35°C / 55°C) | A+++ / A+++ | ||||||
| Sound Pressure (1m) | 45 dB | 49 dB | 51 dB | 51 dB | 51 dB | ||

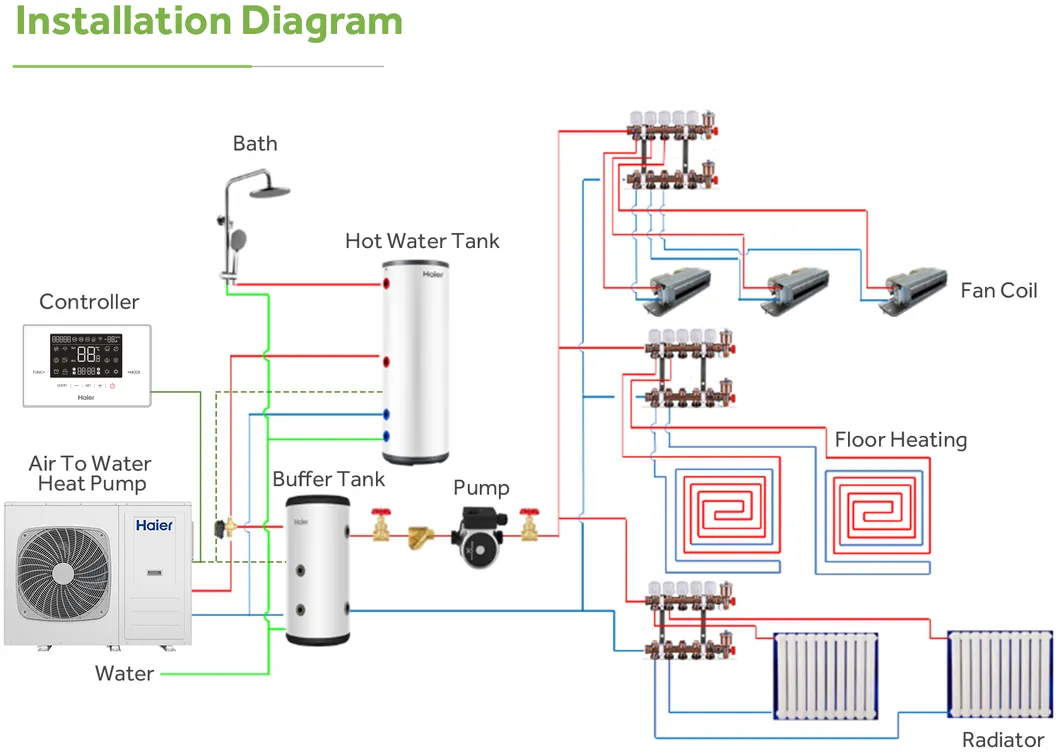

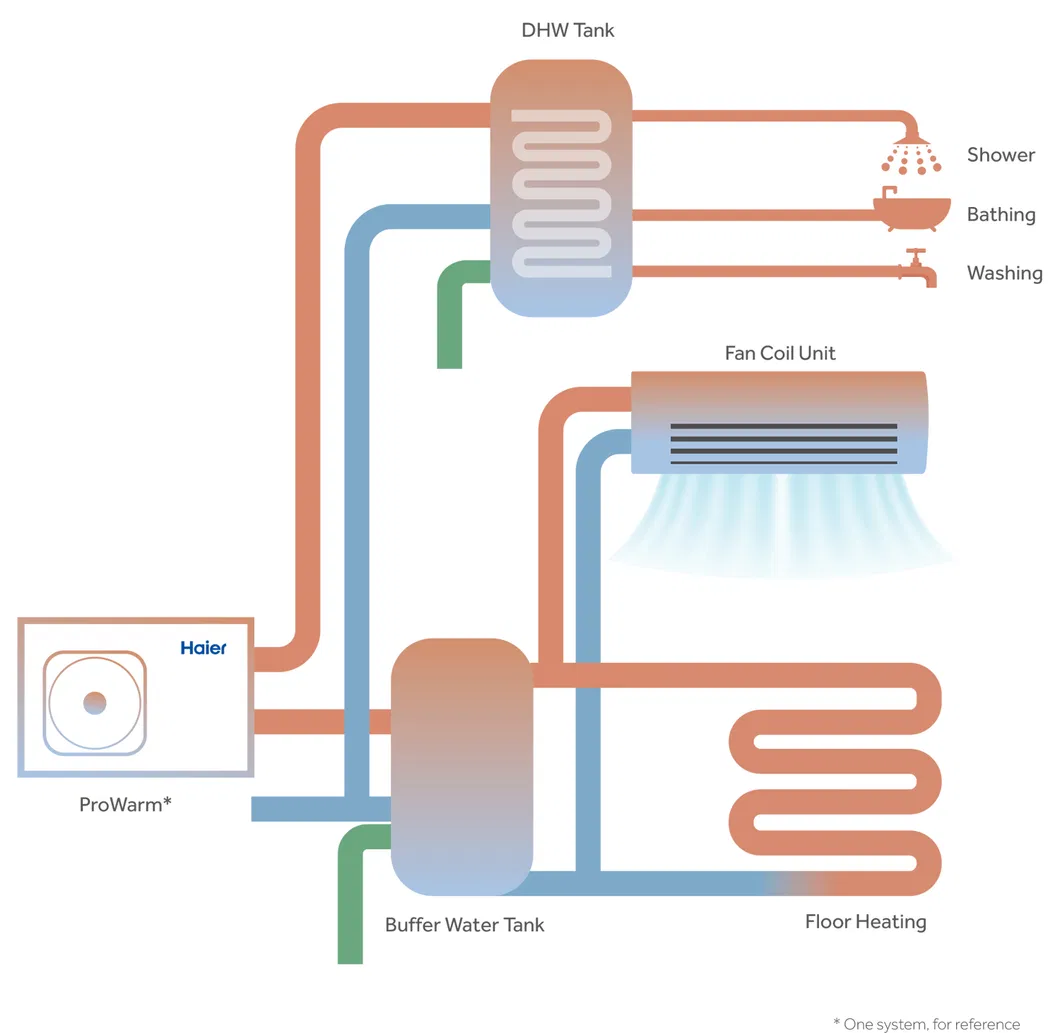

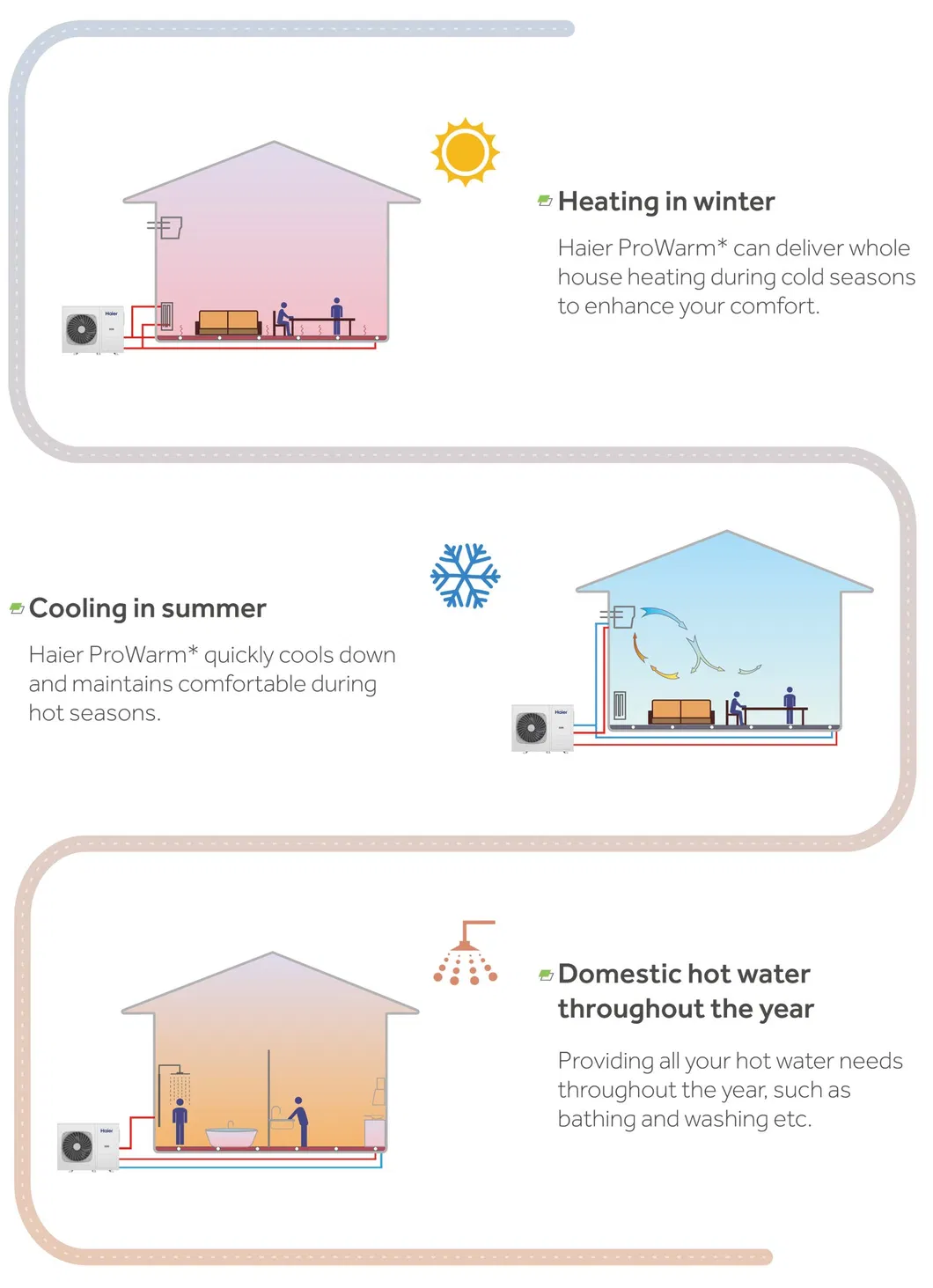

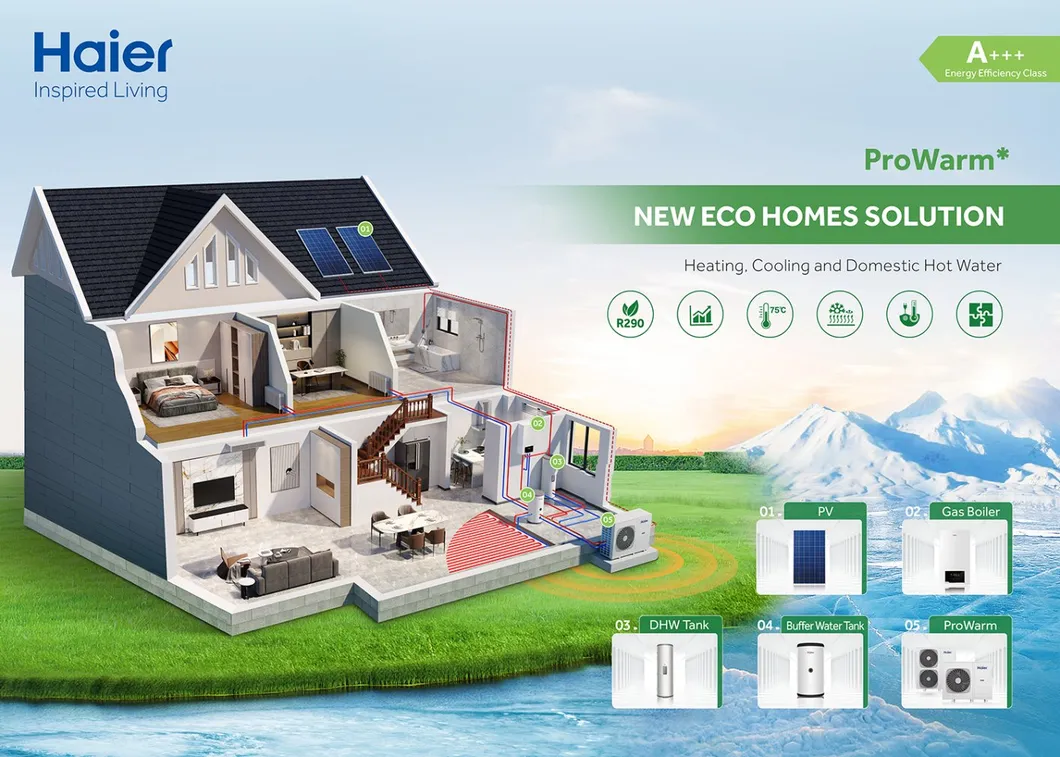

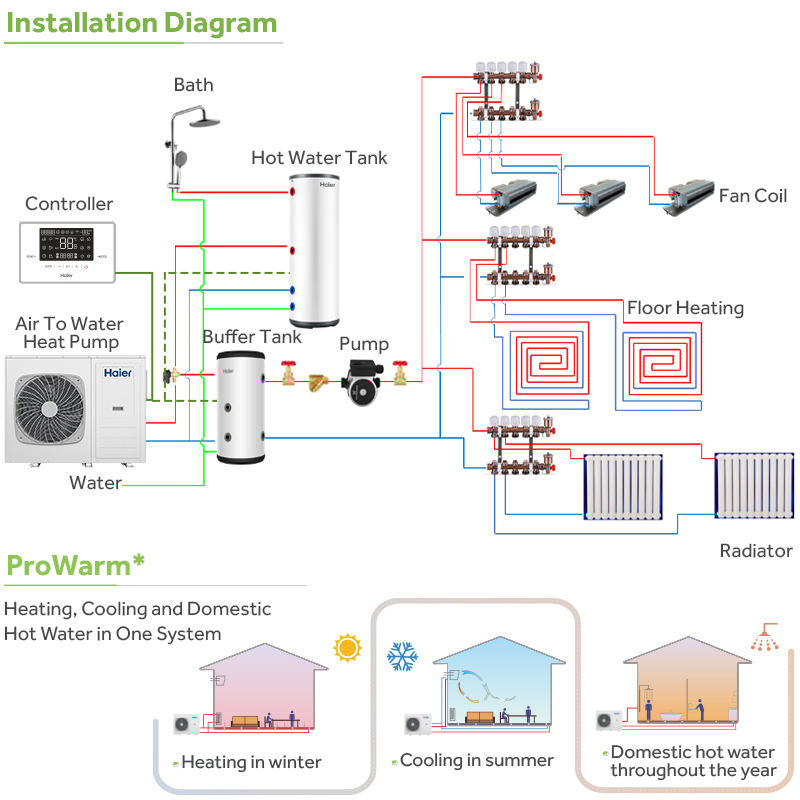

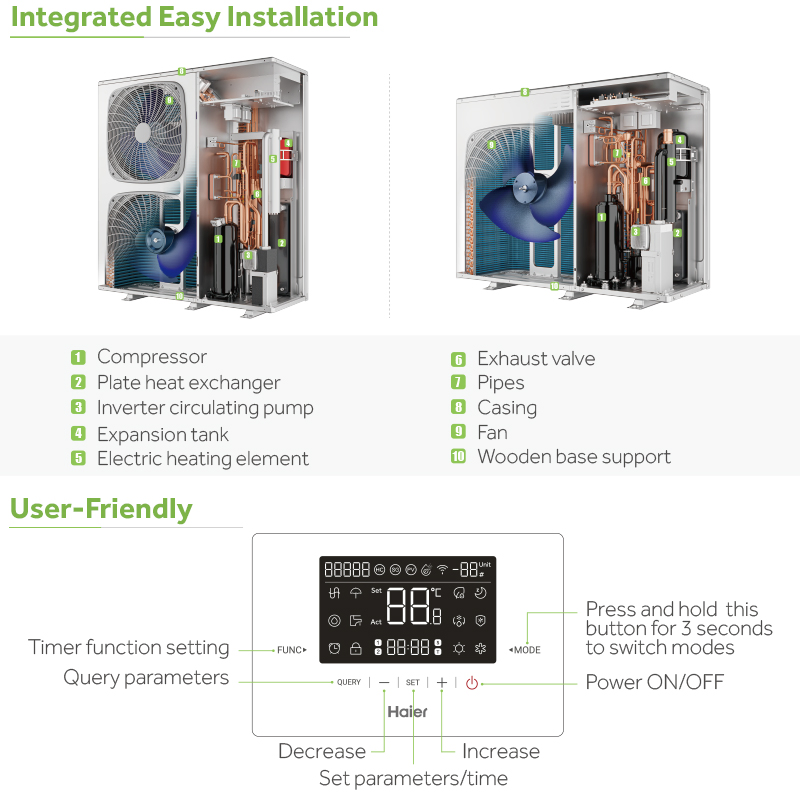

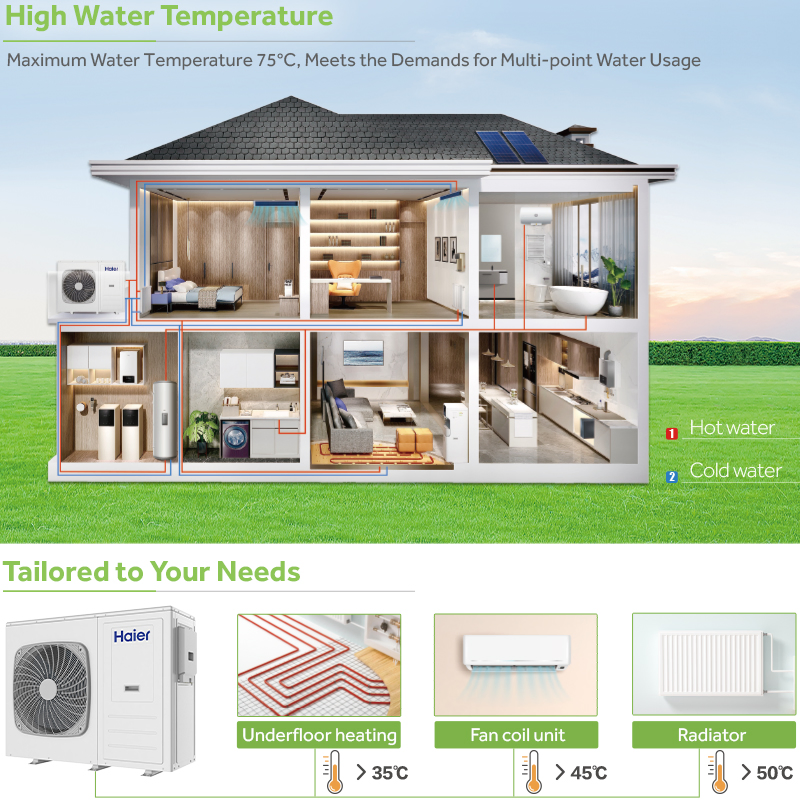

This integrated system provides everything your home needs: heating, cooling, and domestic hot water. It is the ideal alternative for traditional gas or fuel oil heating, allowing you to enjoy delightfully warm and perfectly hot water throughout the year.
The technologically advanced system takes a step ahead in efficiency and sustainability with four core energy-saving technologies.
