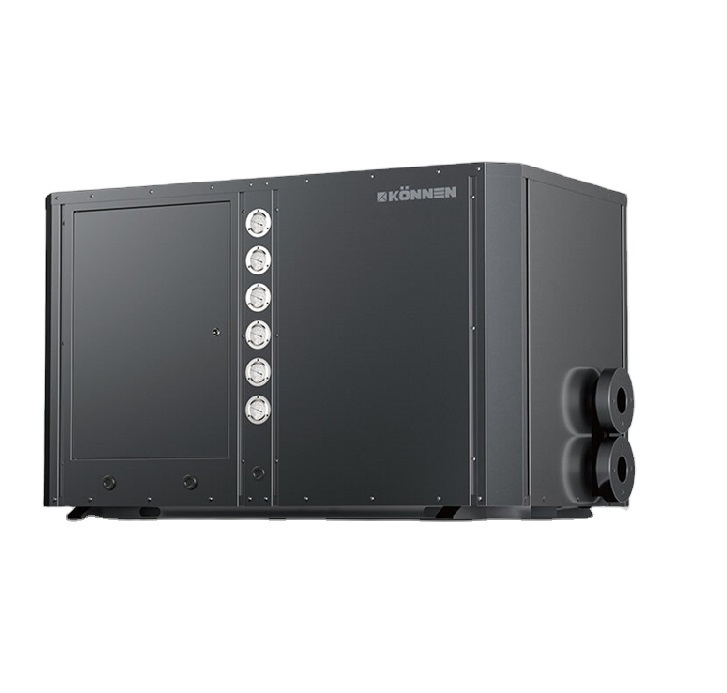

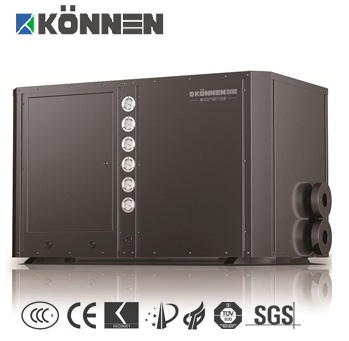

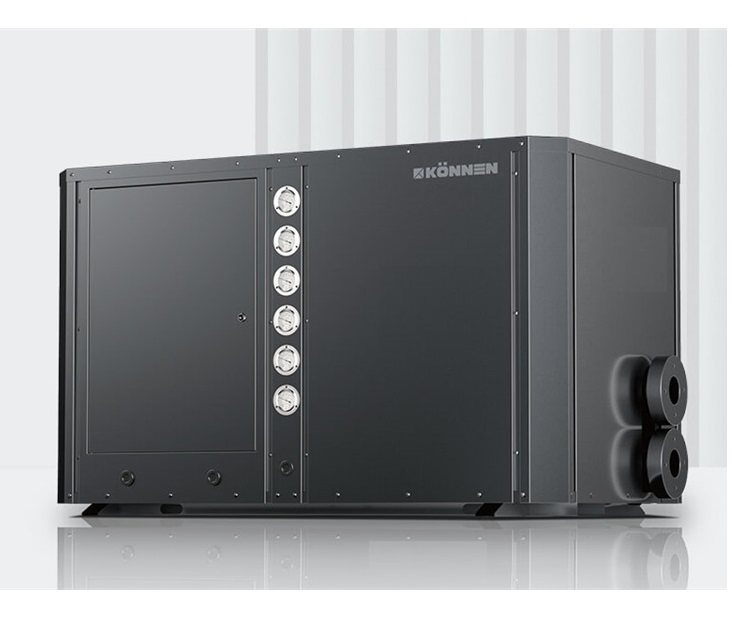

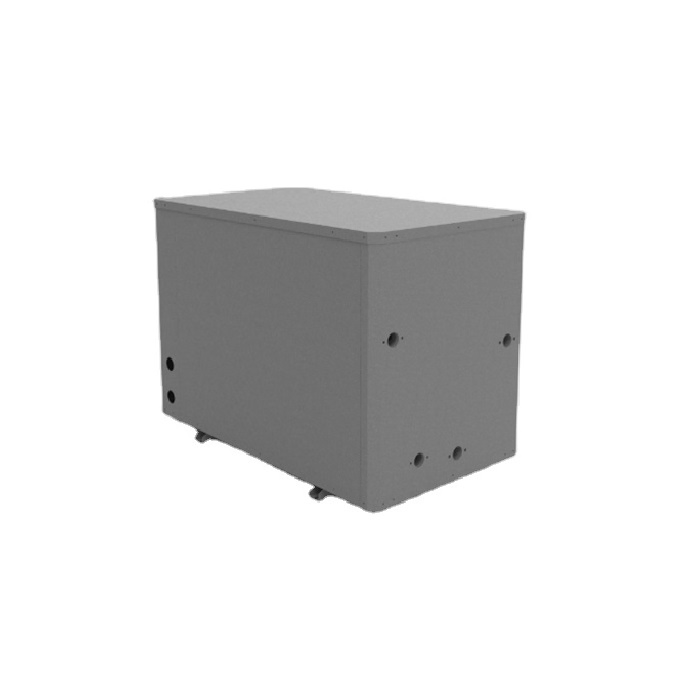

High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump
High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump
High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump
High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump
1 / 4
High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump
High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump
High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump
High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump

High Efficiency 220V-380V High Temperature Geothermal Water Source Ground Source Heat Pump

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
geothermal heat pump
Heat Source
Ground-source
Heating Type
Circulating Heat
Application
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments
Certification
CE, ISO9001, CCC
Rated Capacity
8kw
Refrigerant
R410A
HS Code
8418612090
Capacity
50 Units/Day

Product Features

WATER SOURCE HEAT PUMP, WATER TO WATER HEAT PUMP, BRINE TO WATER HEAT PUMP, WITH COPELAND COMPRESSOR AND R410A REFRIGERANT:

✓ Panasonic or Copeland compressor & R410a refrigerant
✓ Preservative oil for copper tubes and cabinet parts
✓ High-quality shell & tube heat exchanger
✓ Electronic expansion valve (Saginomiya or Sanhua)
✓ Advanced LCD controller
✓ Warranty: 24 months after delivery

Technical Parameters Table

W02H series (water source heat pump water heater)
Model CSFXRS-8I CSFXRS-12I CSFXRS-20I CSFXRS-12II CSFXRS-20II CSFXRS-28II CSFXRS-40II CSFXRS-55II CSFXRS-80II CSFXRS-95II CSFXRS-120II CSFXRS-145II CSFXRS-190II
Heating capacity (KW) 8122012202840558095120145190
Rated power (KW) 1.642.414.022.413.915.587.9811.0716.2619.1124.4429.4739.09
COP 4.894.984.984.975.125.025.014.974.924.974.914.924.86
Water Yield (L/H) 172258430258430602860118217202043258031184085
Refrigerant R410A
Water Temp 50ºC (Default) / 28-60ºC (Adjustable)
Protections High/Low pressure, Anti-freeze, High temp, Overload, Phase protection, etc.

Note: Standard heating condition: use side initial water 15ºC, end 55ºC; heat source side input 15ºC.

Product Display

Geothermal Water Source Heat Pump High Efficiency Heat Pump
Heat Pump and Water Tank System

Quality & Projects

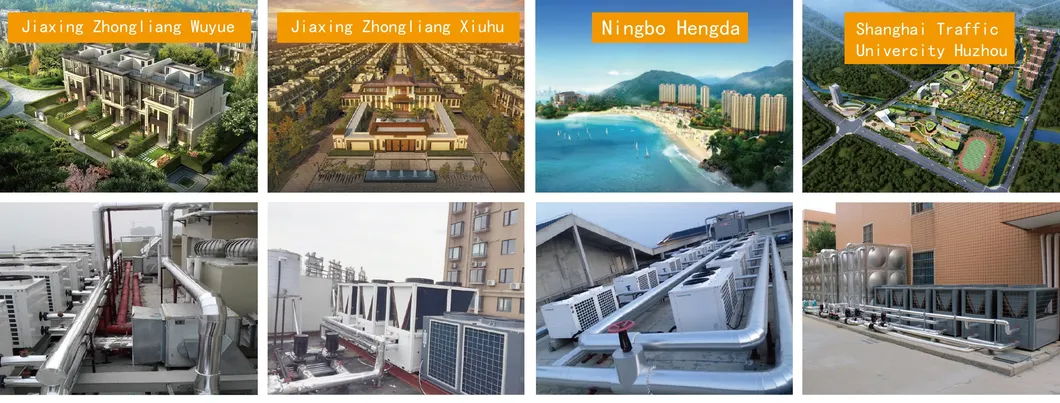

Why Choose Us New Projects

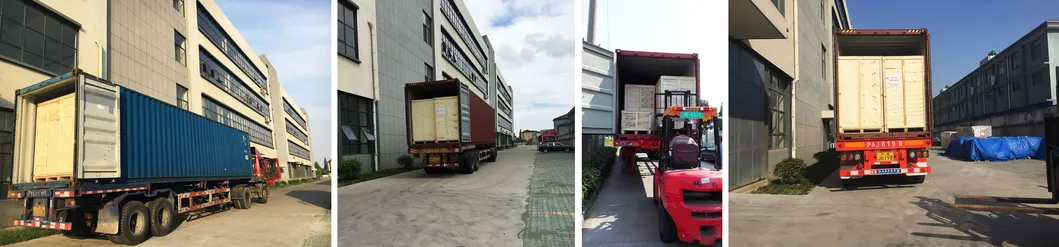

Exporting Units Cooperated Brands

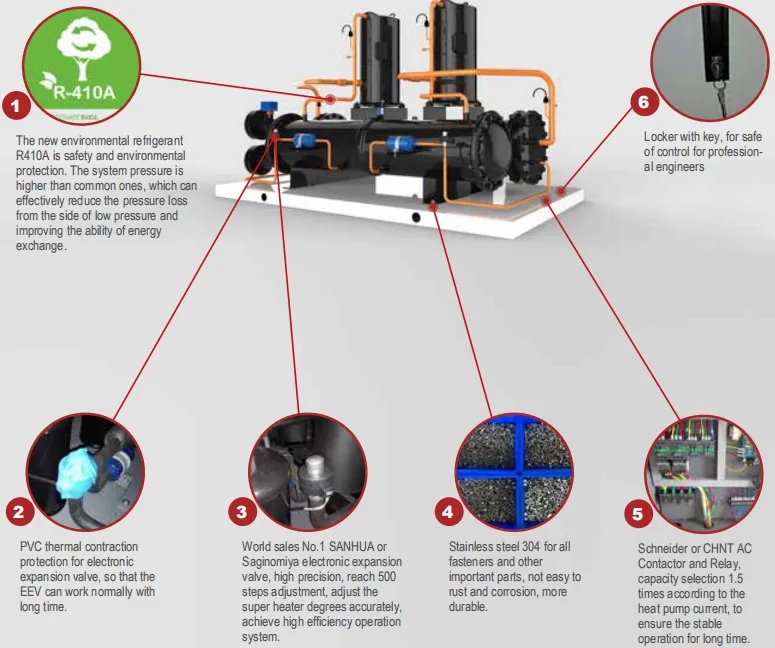

Product Features Diagram

Frequently Asked Questions

What is the primary heat source for this system?
This is a ground-source (geothermal) heat pump that utilizes stable underground temperatures to provide efficient heating.
What brands of compressors are used in these heat pumps?
We use world-famous brands including Panasonic and Copeland compressors to ensure long-term reliability and high performance.
What is the adjustable range for the water temperature?
The default setting is 50ºC, but the system allows for an adjustable range between 28ºC and 60ºC to suit different applications.
What kind of safety protections are included?
The units are equipped with comprehensive protections, including high/low pressure protection, anti-freeze protection, high temperature protection, overload protection, and phase protection.
What is the warranty period for this product?
The standard warranty period is 24 months after delivery, covering all major components under normal usage conditions.
Can this heat pump be used for swimming pools?
Yes, it is highly suitable for various applications including villas, hotels, sauna systems, and swimming pool heating.
