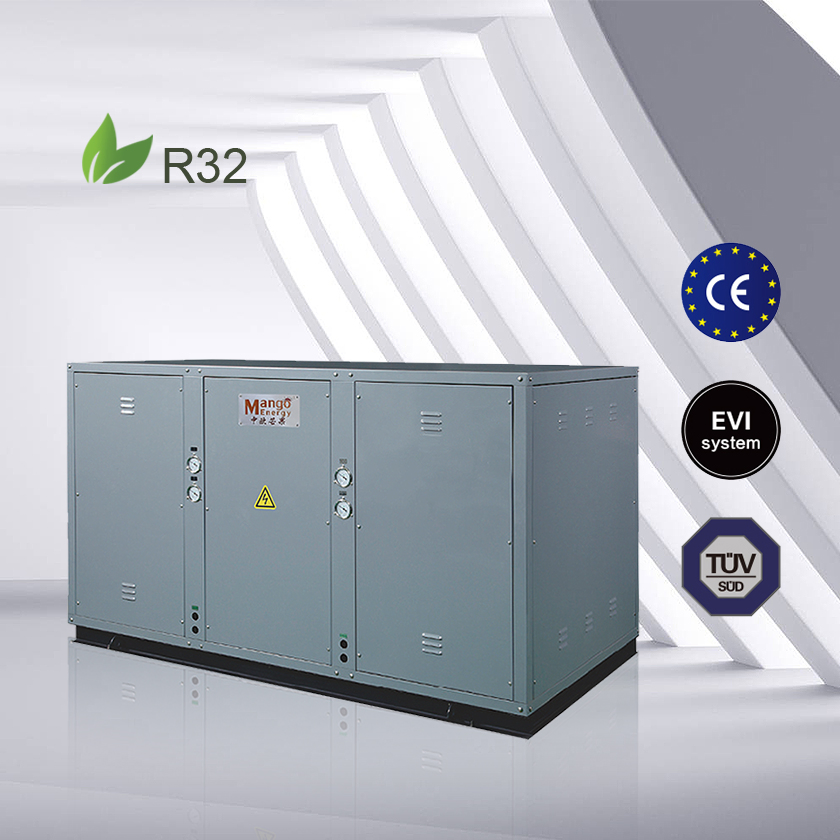

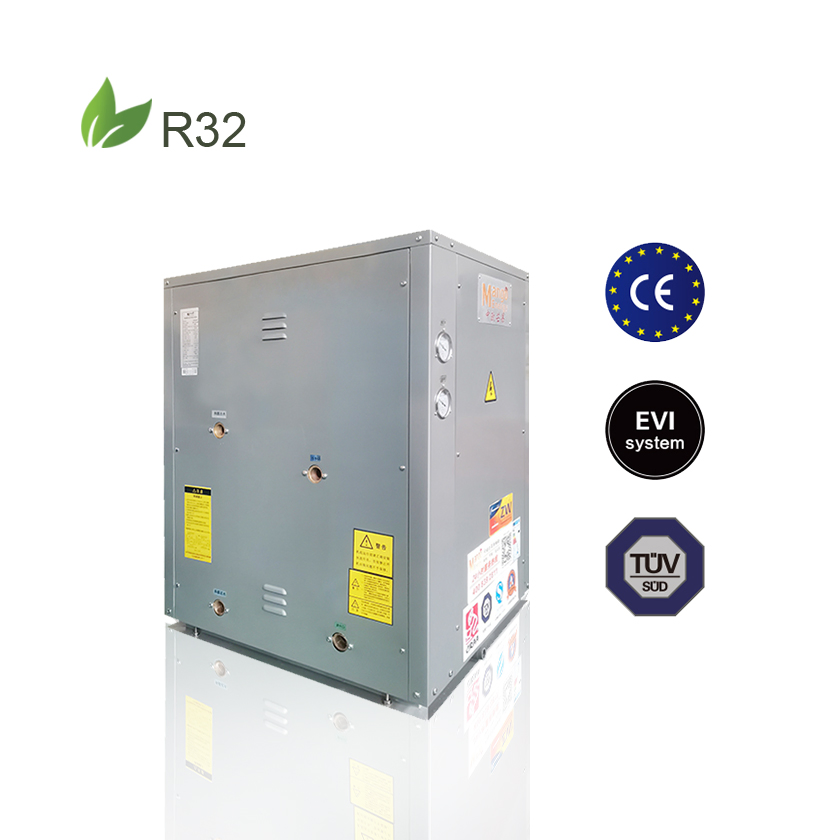

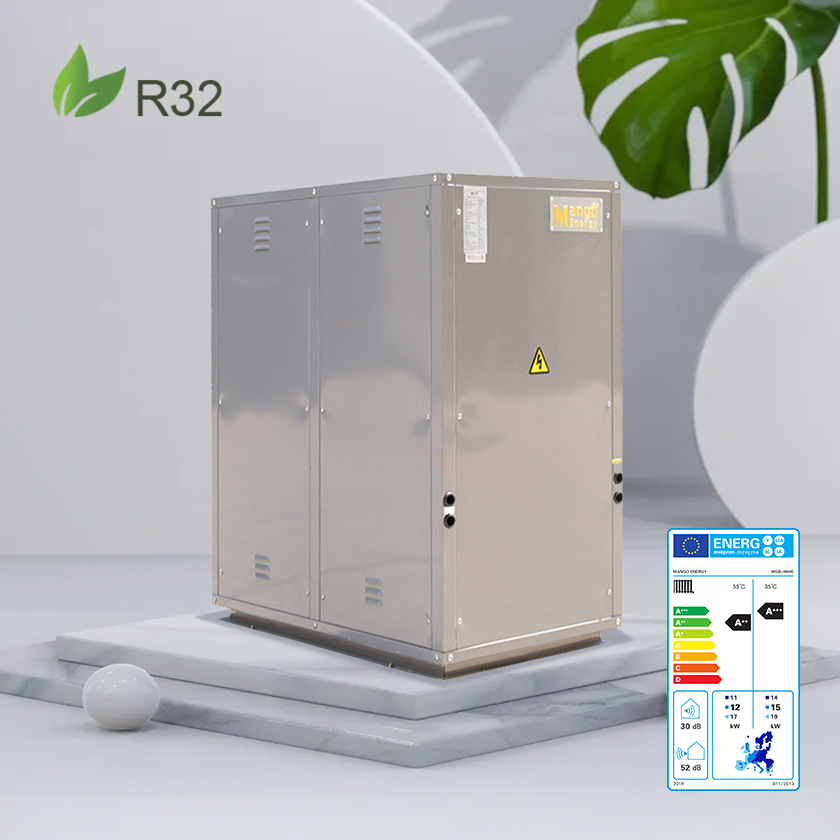

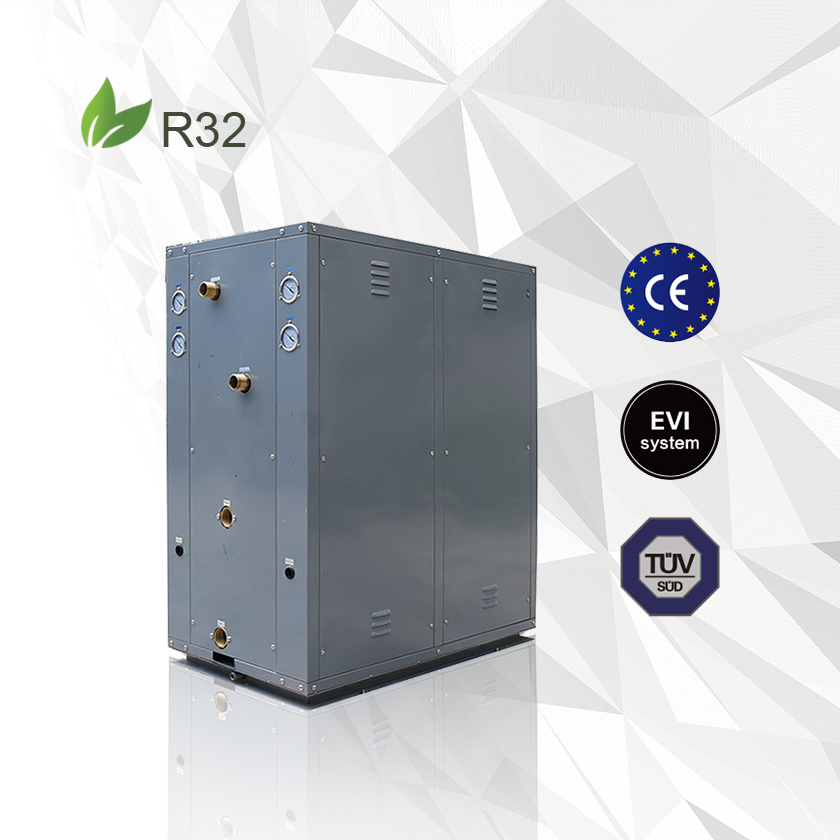

High Efficiency Geothermal Ground Source Water Source Heat Pump for House Floor Cooling and Heating

1 / 5

High Efficiency Geothermal Ground Source Water Source Heat Pump for House Floor Cooling and Heating

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	55degree ~ 60 Degree

Send Inquiry

Product Description

🔷 Basic Info.

Model NO.

MG-05SFXLN

Work Environment

Low-temperature Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001, CCC, CB, RoHS, SASO

Transport Package

Plywood

Specification

2000*1120*1160

Origin

China

HS Code

8415812000

Production Capacity

100000PCS/Year

📘 Product Description

Water Source Heat Pump 20kw with wifi R410A

✔ R410A Refrigerant pipe connection for best system stability even in tough weather.

✔ E-heater, diverter valve, water pump, and expansion tank can be included.

✔ A+++ Energy Rating Level, with CE, TUV test report.

✔ Low noise sound power level as low as 58dB(A).

✔ Microcomputer central processor (LCD wire controller).

✔ High efficient tank heat exchanger.

✔ Function: Heating + Cooling.

Model				MG-03SFXLRS	MG-03SFXLRS/380	MG-05SFXLRS	MG-06SFXLRS
Ambient / Outlet		Power Supply		220-240V50/60Hz/1PH	220V/60HZ / 2/3PH, 380~415V/50HZ/3PH
Water Flow (m3/H)			m3/H	2.4	2.6	4.3	5.2
+15°C	45°C	Heating Capacity	kW	11	12	20	24
		Power Input	kW	2.39	2.59	4.3	4.8
COP				4.60	4.63	4.65	5.00
+35°C	+7°C	Cooling Capacity	kW	8.8	9.6	16	19.2
		Power Input	kW	2.08	2.25	3.74	4.17
EER				4.23	4.26	4.28	4.60
Rated/Max water temp				55~60°C for heating, 7~12 °C for cooling
Water pressure drop			kPa	≤40	≤40	≤50	≤65
Refrigerant				R410A
Compressor (Scroll)				ZW34KAE*1	ZW34KAE*1	ZW61KAE*1	ZW72KAE*1
Condenser				High efficient tank heat exchanger / Shell and tube
Evaporator				Stainless steel Plate heat exchanger
Noise			dB(A)	≤52	≤52	≤52	≤52
Unit Dimension			mm	8106401000	8106401000	8106401000	8106401000

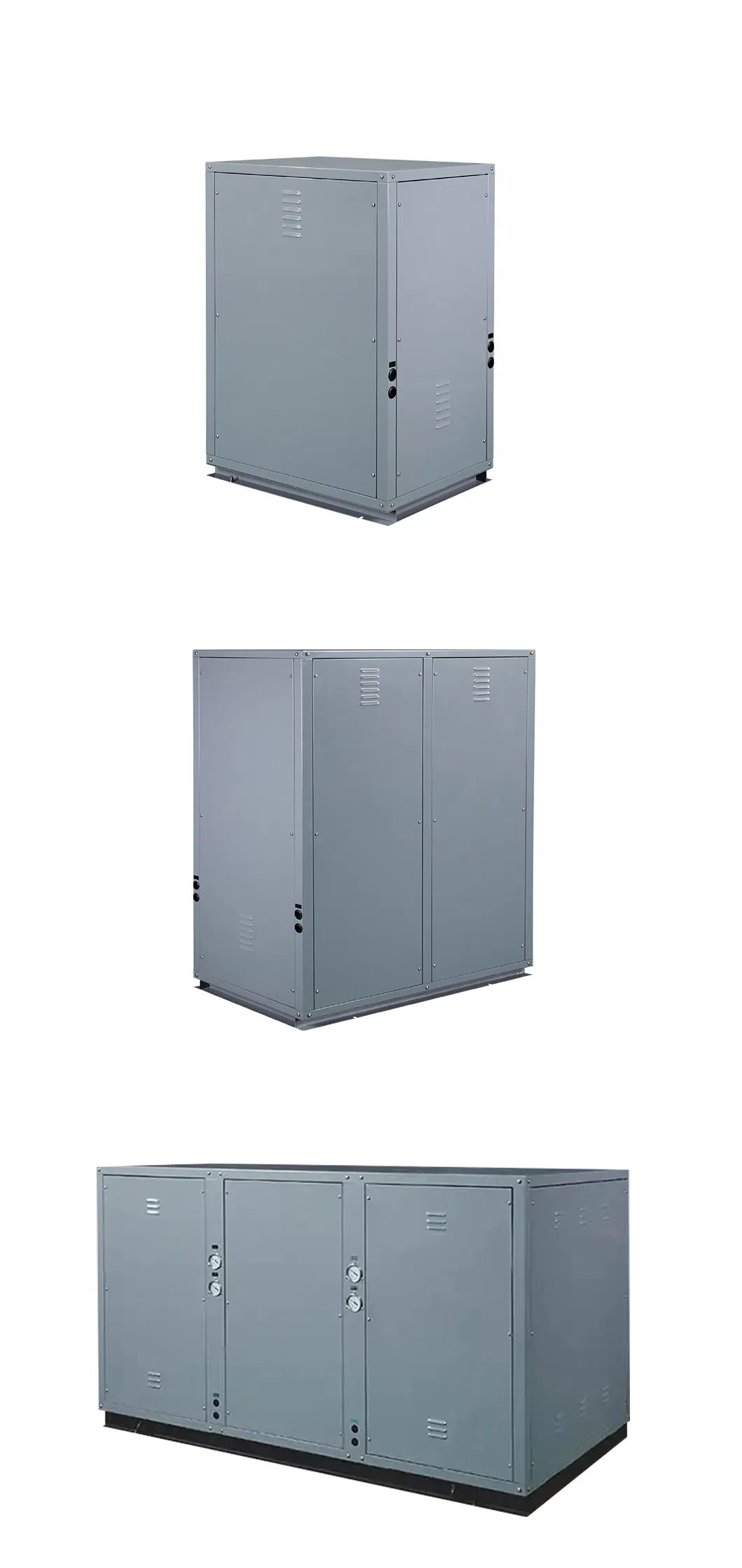

🖼️ Product Showcase

🛠️ Professional Services

Fast Response: Your inquiry related to our products or price will be replied within 48 hours.

Expert Team: Well-trained and experienced team providing professional service.

Quality Control: Strict check of goods before shipment and confirmation of details.

Customer Respect: We value your feedback after receiving the goods.

Data Privacy: Protection of your sales area, design ideas, and private information.

Visit Support: Professional training and factory visits are welcome.

❓ Frequently Asked Questions

What types of heat pumps are available?

We offer professional manufacturing of ON/OFF heat pumps, DC inverter heat pumps, air source heat pumps, water to water heat pumps, swimming pool heat pumps, and high temperature heat pumps.

What certifications do your products hold?

Our products hold SGS, CE, CB, IEC60335-2-40, and EN14511 certificates from TUV Lab. We are also ISO9001, ISO18001, ISO14001, and CCC certified with ErP Class A+ and A ratings.

Which regions do you export to?

Currently, our heat pump products are exported to Western Europe, Northern Europe, South Africa, Middle-East, South American, and Australian markets.

What support is provided for business partners?

We offer sales training, product technical training, project design case training, and maintenance training. We also provide free spare parts (1%-2%) based on order quantity and exclusive regional sales rights.

Where can these heat pumps be applied?

Air source heat pumps can save around 70% energy and are widely used for home heating, hotels, restaurants, hospitals, schools, bath centers, and residential central water heating plants.

How can I receive product training?

Training can be conducted via factory visits, inviting our engineering team to your site, or through comprehensive online video training sessions.

Send your inquiry right away for more details!
