🔹 Basic Information
Model NO.
HPM-Nd2
Heat Source
Air Source Heat Pump
Refrigerant
R290 (Eco-friendly)
Function
Heating, Cooling, Hot Water
Compressor
Evi DC Inverter
Ambient Temp
-30°C to 43°C
High COP
2.9 - 3.2
Energy Class
A+++
📝 Product Description

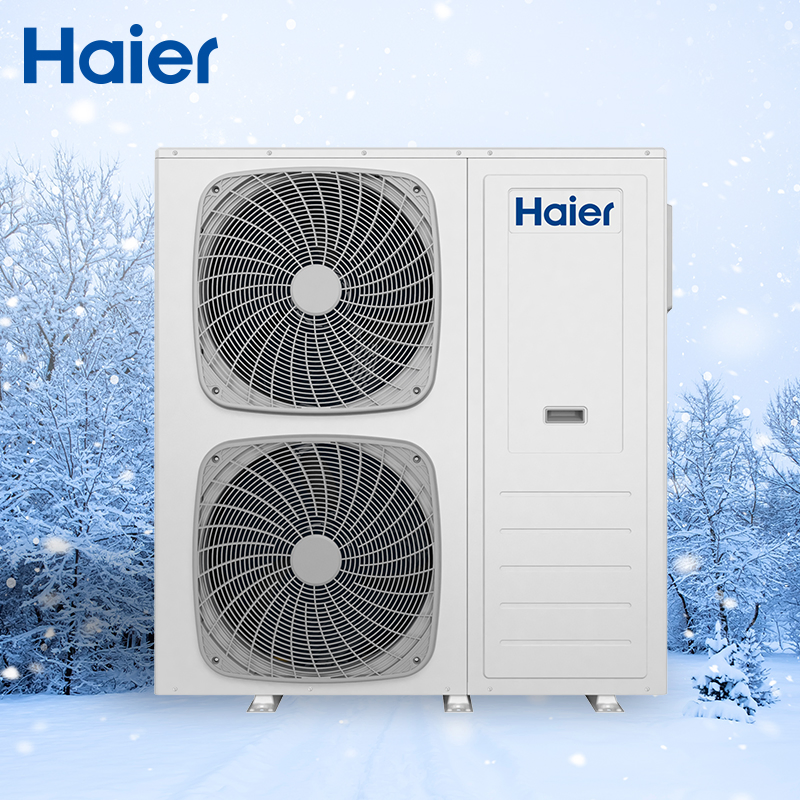

Our advanced EVI Full DC Inverter R290 Air Source Monoblock Heat Pump is designed for modern energy efficiency requirements. Utilizing the R290 natural refrigerant, this system provides high-temperature water output even in extreme climates.

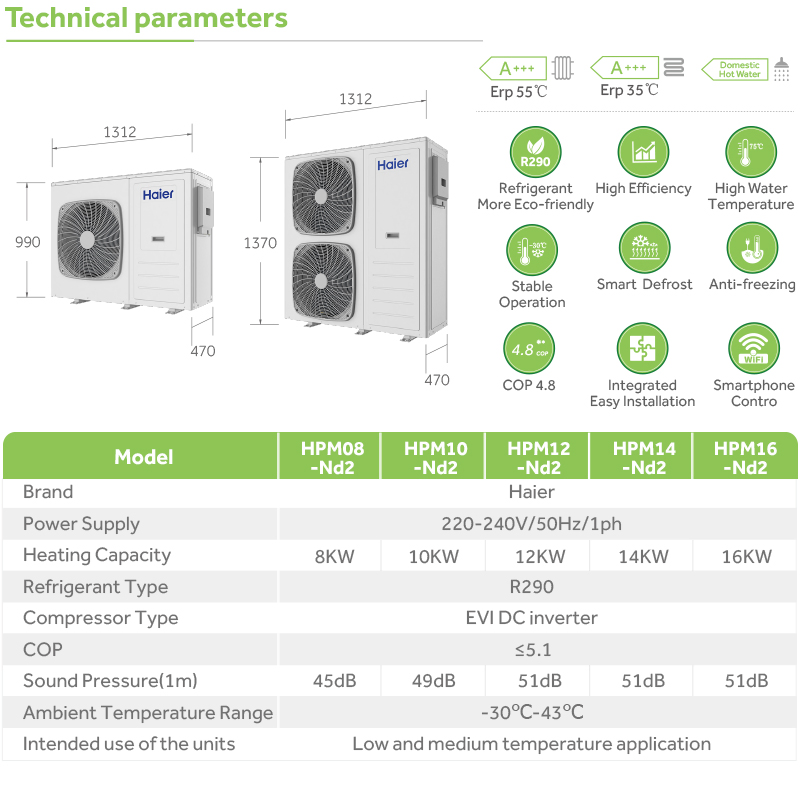

| Model |
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
| Heating Capacity (kW) |
8 |
10 |
12 |
14 |
16 |
| Heating COP |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
| Cooling Capacity (kW) |
8 |
10 |
11.4 |
14 |
16 |
| Power Supply |
220-240V / 1Ph / 50Hz |
| Sound Pressure (1m) |
45dB |
49dB |
51dB |
51dB |
51dB |

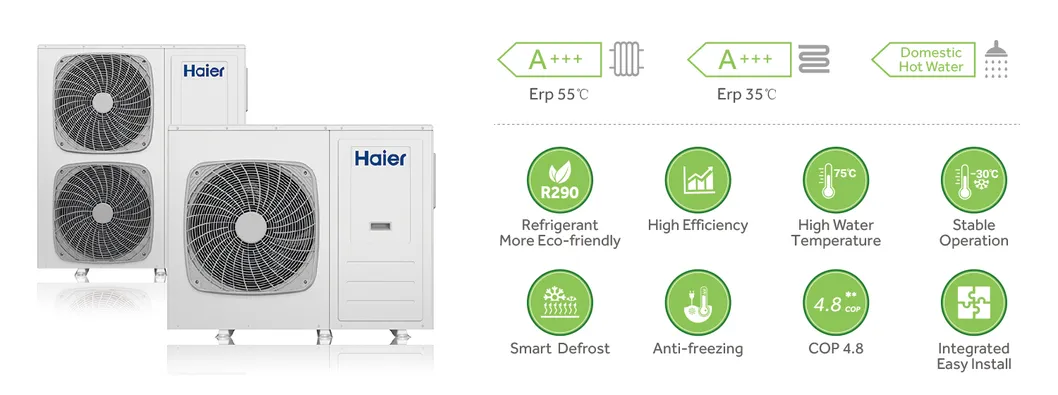

🚀 Key Features & Technologies

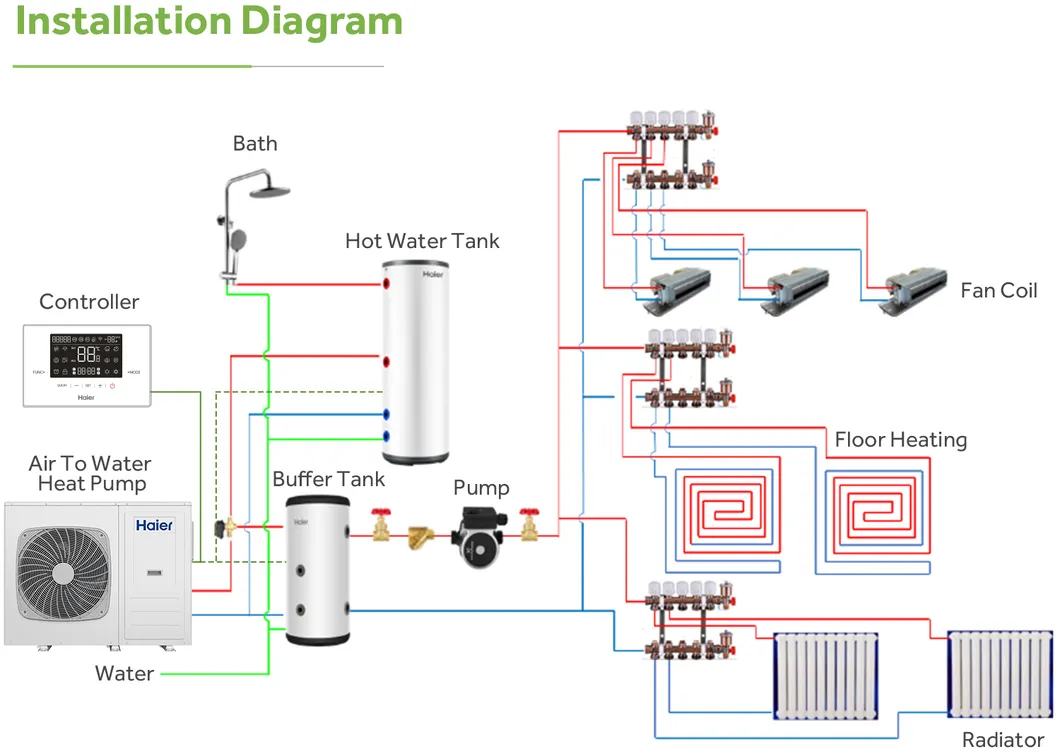

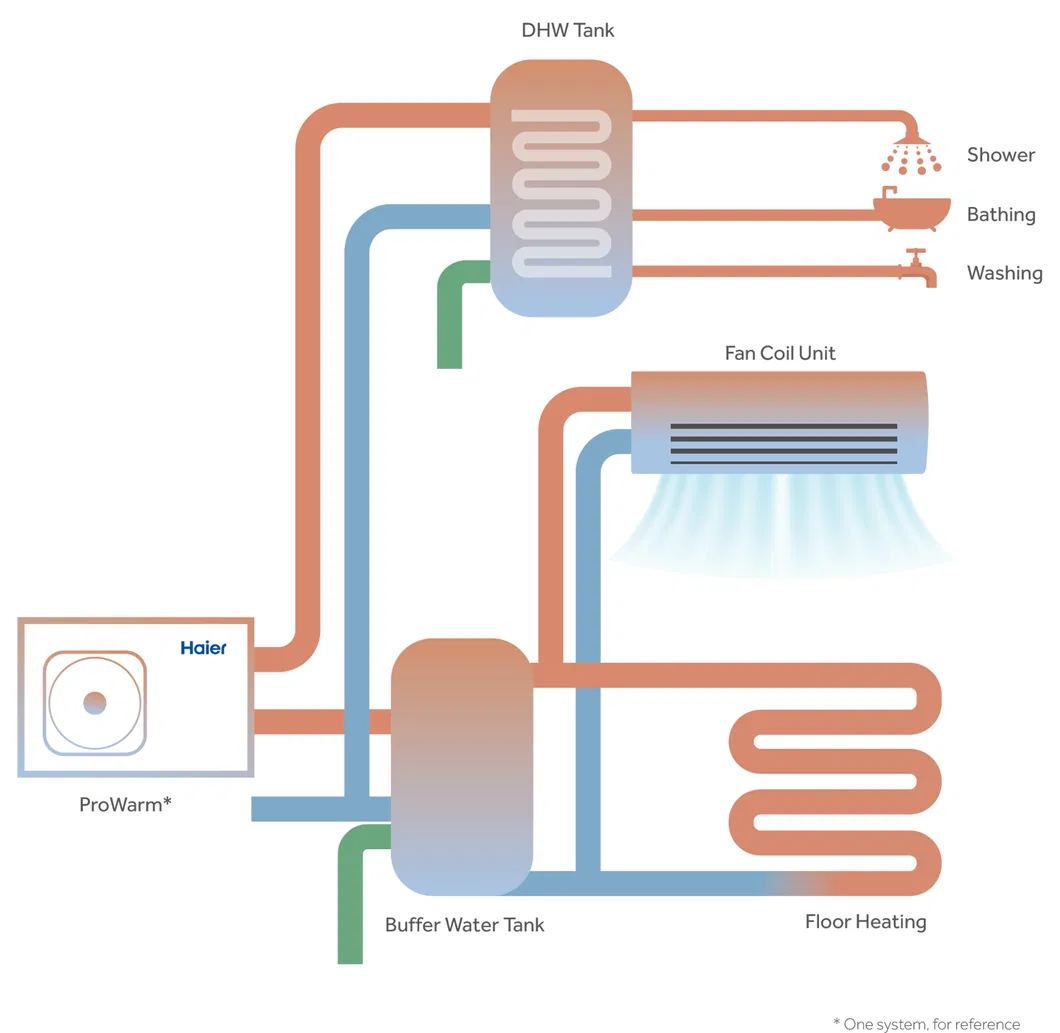

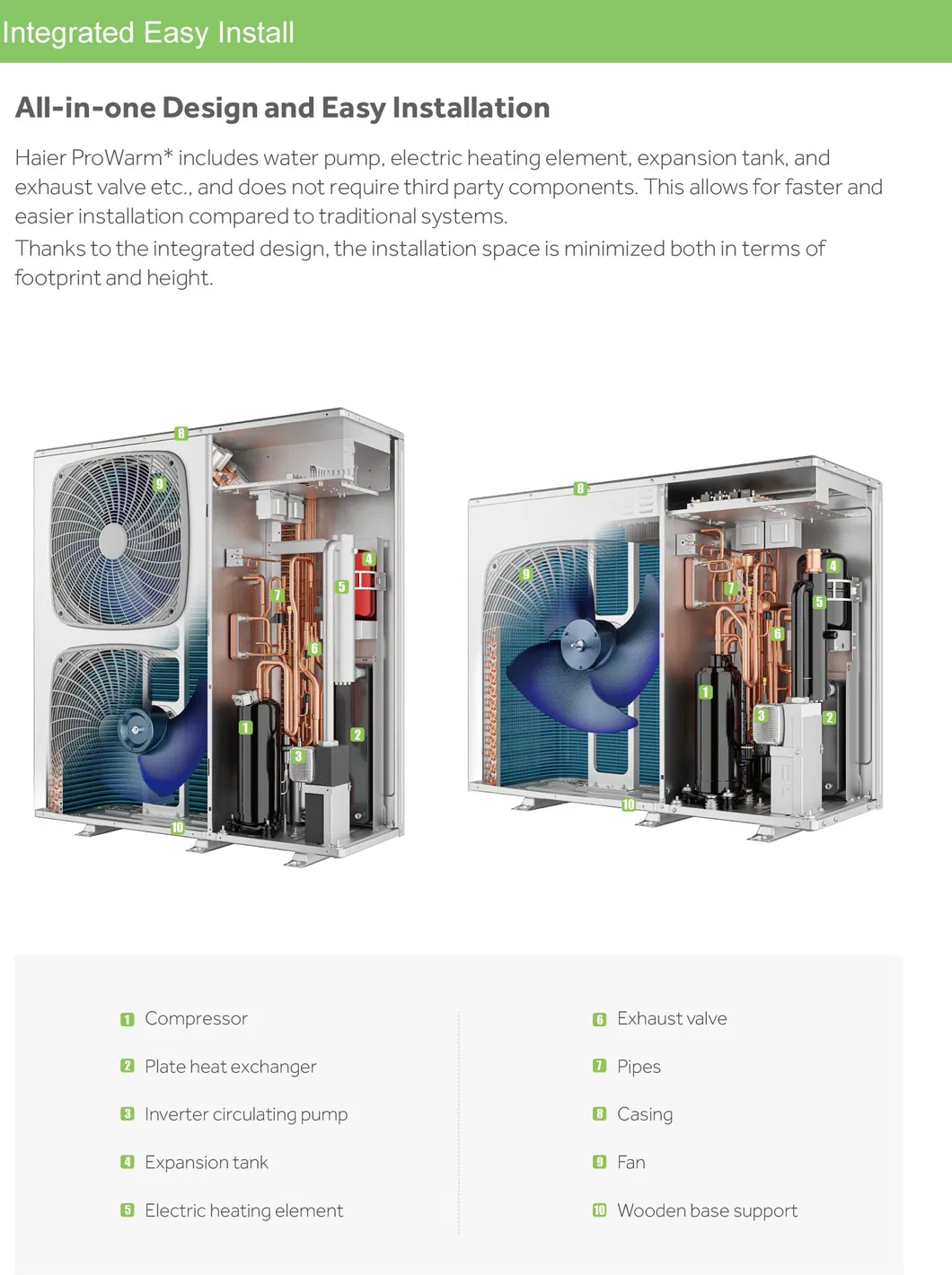

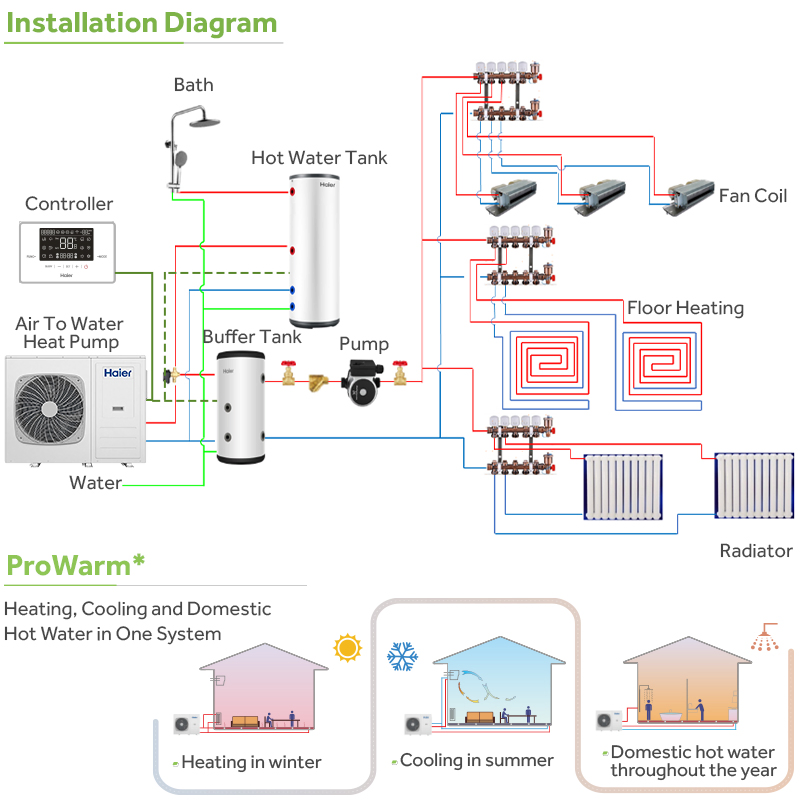

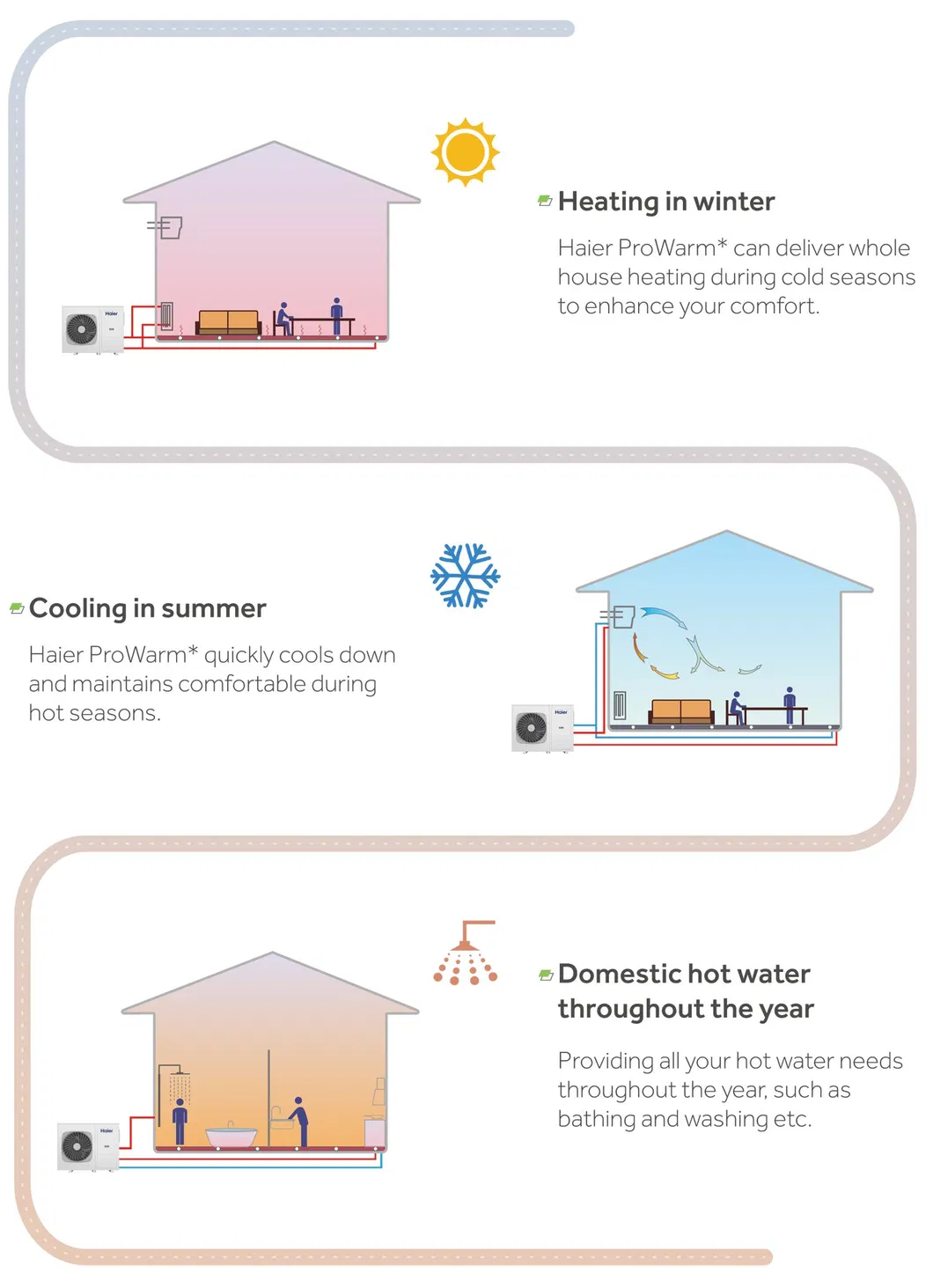

- All-in-One Solution: Integrated system for heating, cooling, and domestic hot water.
- Extreme Cold Operation: Stable performance even at -30°C ambient temperatures.

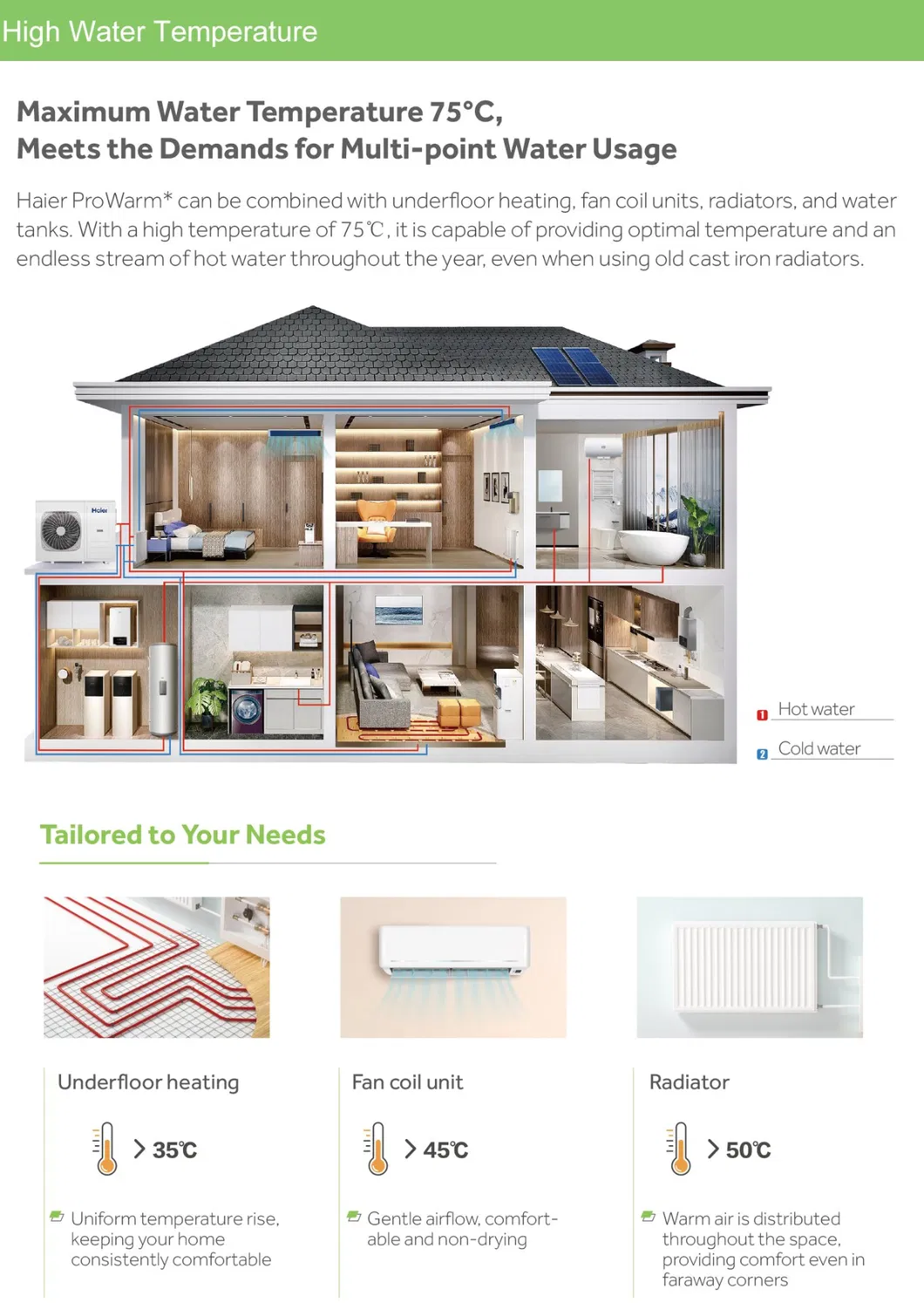

- High Temperature Output: Provides leaving water temperatures up to 75°C.
- R290 Refrigerant: Low GWP (Global Warming Potential) for eco-friendly home energy.
- Smart Control: Advanced DC Inverter technology for precise temperature management.
📊 Performance & Efficiency
❓ Frequently Asked Questions
Q1: What are the main benefits of the R290 refrigerant?
A: R290 is a natural refrigerant with a very low Global Warming Potential (GWP). It allows the heat pump to reach higher outlet water temperatures (up to 75°C) more efficiently than traditional refrigerants.
Q2: Can this heat pump operate in extremely cold climates?
A: Yes, the EVI (Enhanced Vapor Injection) technology allows the system to operate reliably and provide stable heating even when ambient temperatures drop as low as -30°C.
Q3: Is the system quiet enough for residential areas?
A: Absolutely. With sound pressure levels as low as 45-51dB(a) at 1 meter, the unit operates quietly, making it suitable for any domestic installation.

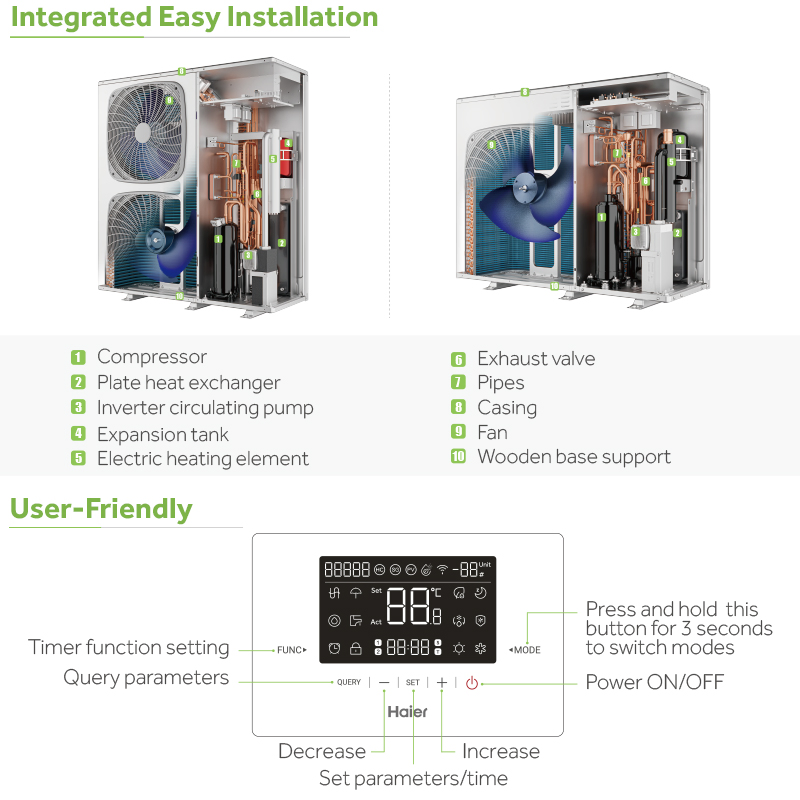

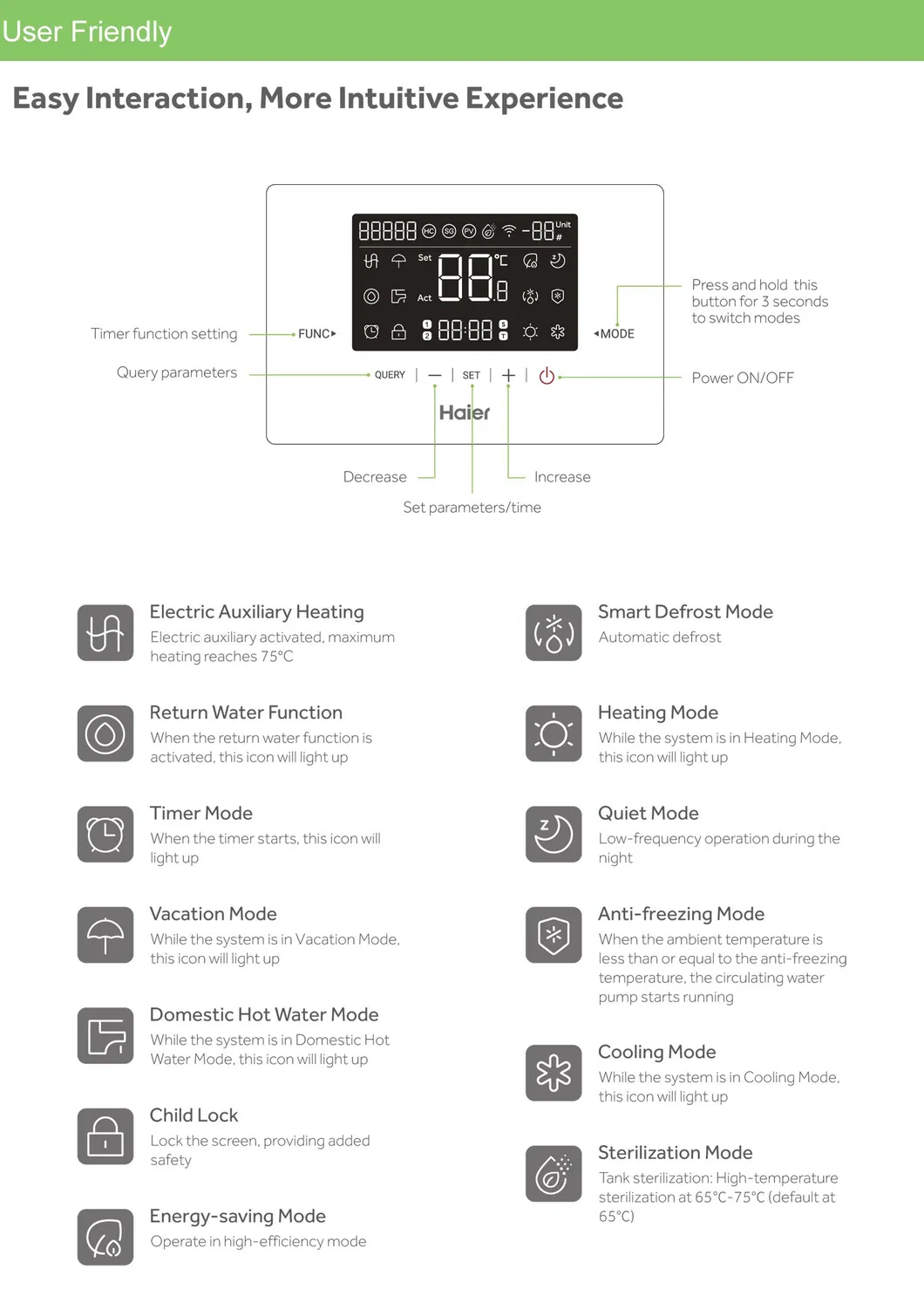

Q4: Does the system support WiFi or remote control?
A: Yes, it features integrated smart controls that allow for remote monitoring and adjustments, ensuring you can manage your home comfort from anywhere.

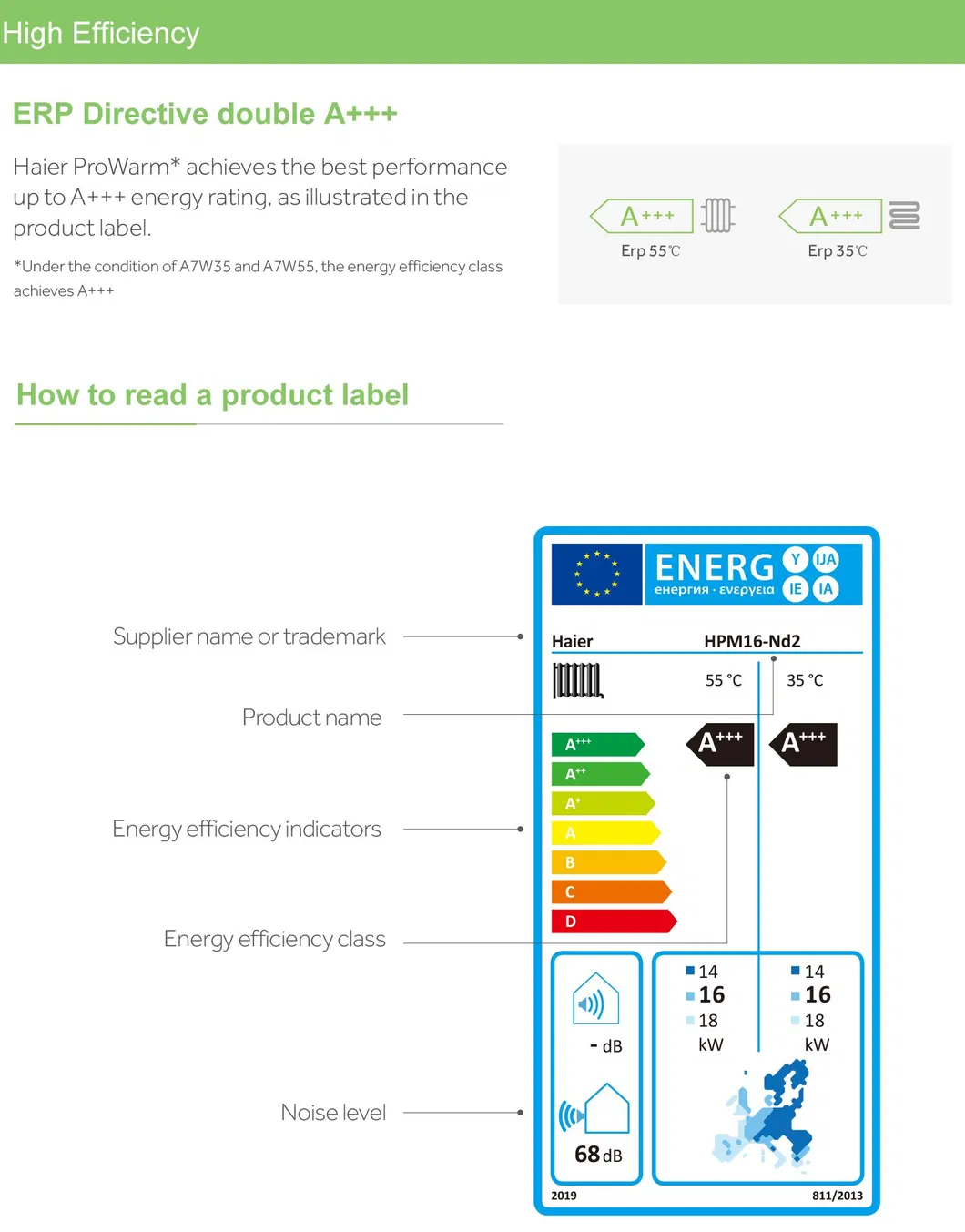

Q5: What is the energy efficiency rating of this unit?
A: This series holds an A+++ energy class rating, ensuring maximum energy savings and a reduced carbon footprint for your household.
Q6: What is the maximum water temperature for Domestic Hot Water (DHW)?
A: The system can provide domestic hot water at temperatures ranging from 30°C to 60°C, suitable for all household needs.
