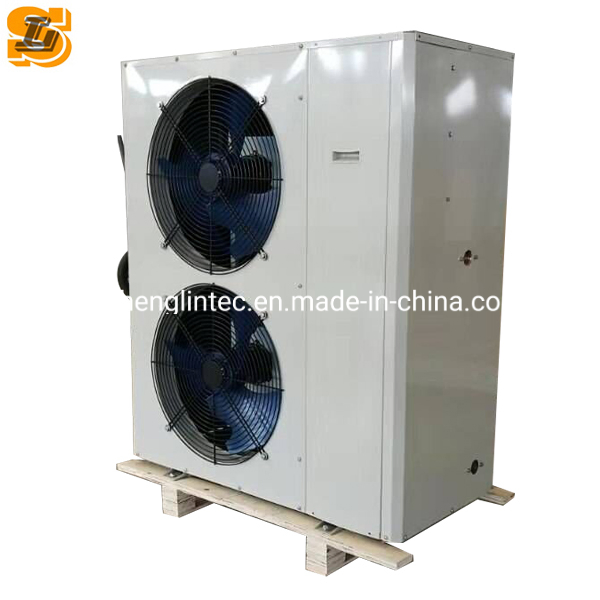

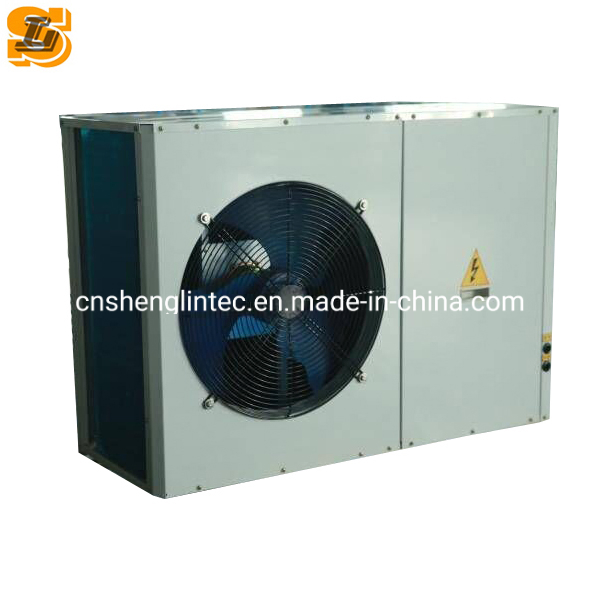

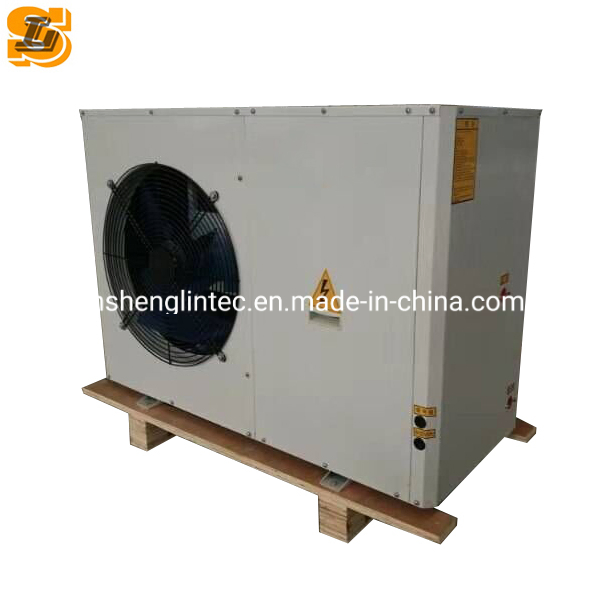

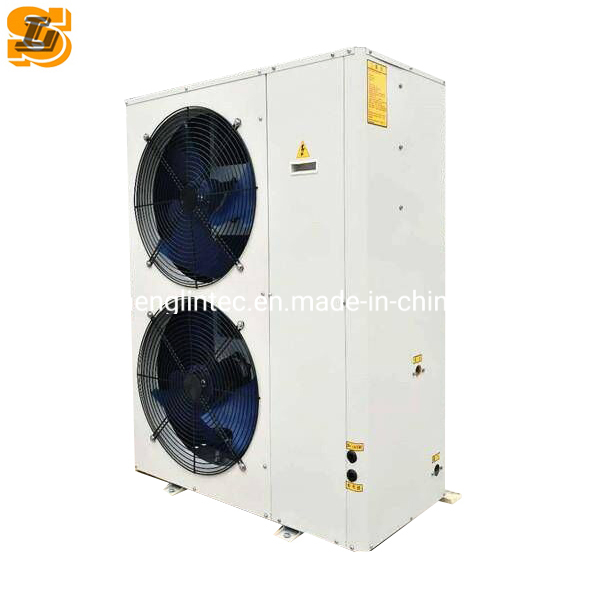

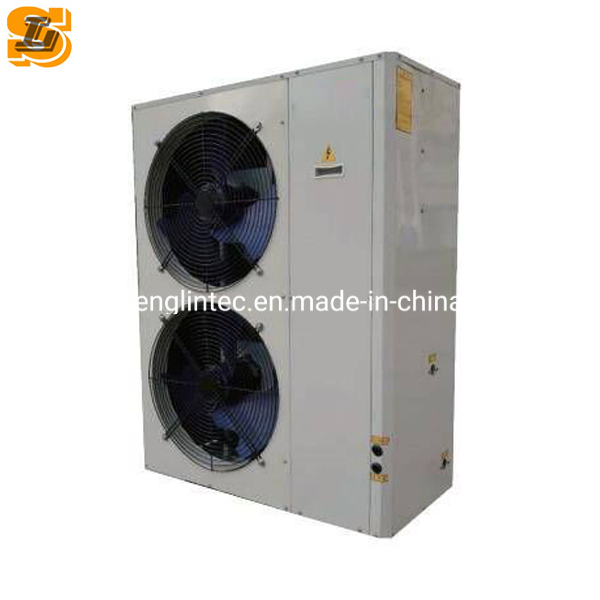

Residential Commercial Industrial Ground Source Geothermal Heat Pump

Basic Specifications

Model NO.

SLW-250

Work Environment

Low-temperature Heat Pump

Heat Source

Ground-source

Heating Type

Multi-power Heat

Application

Villa Family, Sauna, Pool, Hotels, Factory, Hospital

Certification

CE, ISO9001, CCC, RoHS, SASO

Installation

Freestanding

Storage

Instant / Tankless

Housing Material

Stainless Steel

Heating Capacity

7-300kw

Outlet Water Temp

55/60°c

Ambient Temp

-35°C

Technical Parameters

Model	SLA20D	SLA30D	SLA50D	SLA60D	SLA100D	SLA200D	SLA300D
Input power (KW)	1.84	2.98	4.6	5.4	9.2	19	22
Heating capacity (KW)	7	12	18.4	21.6	36.8	72	88
Cooling capacity (KW)	5	8.8	13	16	27	56	65
Hot Water supply (L/H)	160	280	400	500	800	1600	2000
Power supply	220V/50Hz/1ph	220V-380V	380V/50Hz/3ph
Rated current (A)	8	13/6	9	12	18	35	40
Outlet water temp(ºC)	55/60
Water flow L/H	2000	3600	5500	7000	11000	22000	25000
Pipe Size	DN25	DN25	DN25	DN32	DN32	DN50	DN50
Weight (KG)	78	120	162	170	320	640	660
Noise (Db)	≤40	≤50	≤55	≤60	≤70	≤75	≤75
Compressor	Panasonic	Panasonic/Copeland	Copeland
System Components: Condenser: Double-pipe heat exchanger \| Evaporator: Finned heat exchanger \| Throttle: Electronic expansion valve.

Product Gallery

Frequently Asked Questions

What is the heating capacity range for these units?

The heating capacity ranges from 7kw for residential models up to 300kw for large industrial applications.

What are the primary applications for this heat pump?

It is suitable for villa families, saunas, swimming pools, hotels, factory hospitals, student apartments, and beauty salons.

Can this heat pump operate in extremely cold climates?

Yes, the low-temperature heat pump is designed to operate in ambient temperatures as low as -35 degrees.

What types of compressors are used in these units?

Depending on the model, we use high-quality Panasonic or Copeland compressors for maximum efficiency and reliability.

What is the maximum outlet water temperature?

The rated outlet water temperature is 55°C, with a maximum capability of reaching 60°C.

Which refrigerants are compatible with these systems?

Our units support a variety of refrigerants including R417A, R407C, R404A, R410A, and R134A.
