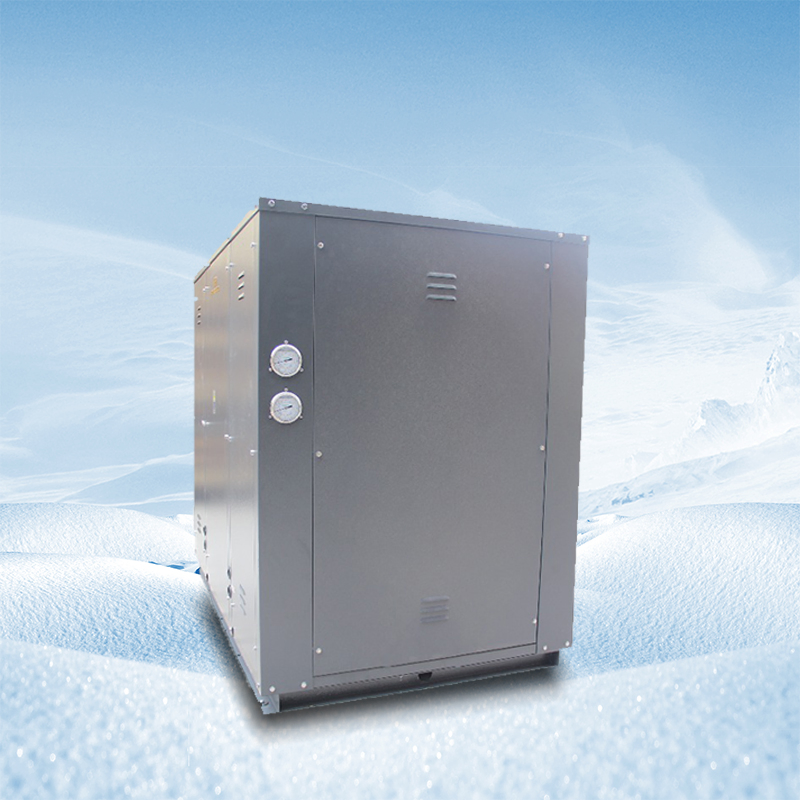

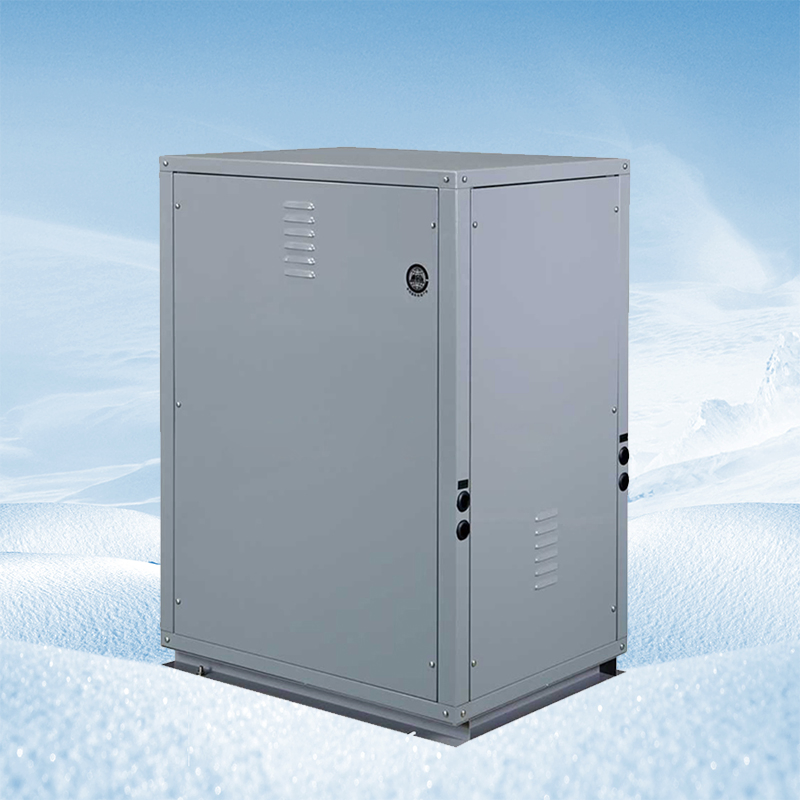

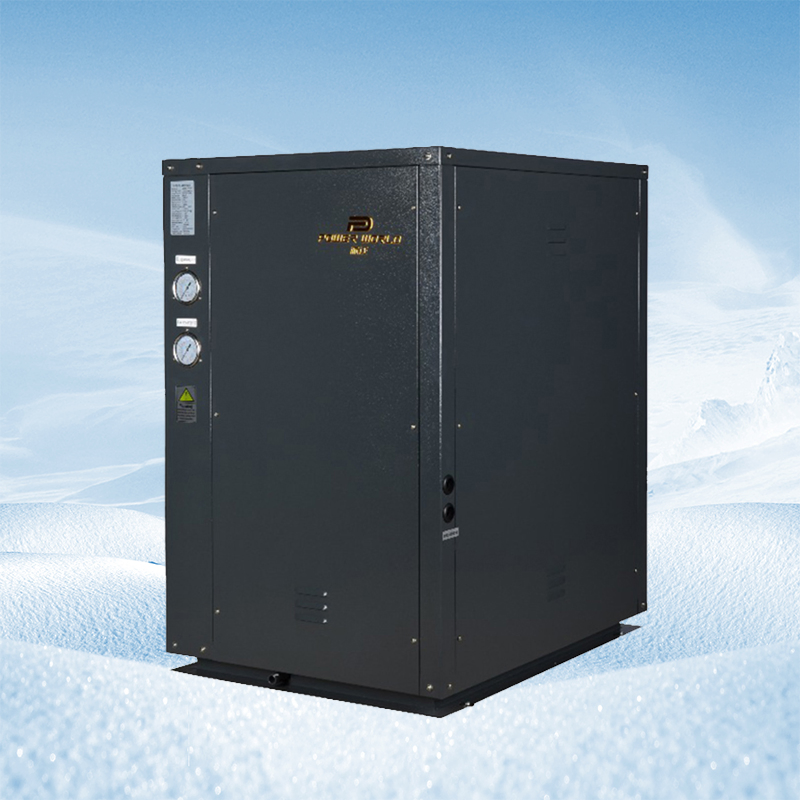

House Heating Cooling Dhw Water to Water Geothermal Ground Source Heat Pump

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Model NO.
PF020-DFXRS-S
Work Environment
Common Heat Pump
Heat Source
Ground-source
Heating Type
Multi-power Heat
Application
Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Certification
CE, ISO9001, CB, RoHS
Housing Material
Galvanized Steel
Type
Geothermal Heat Pump
Refrigerant
R407c
Power Supply
220V/50Hz, 380V/50Hz

Product Description

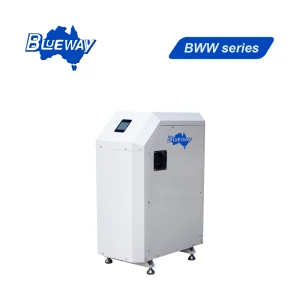

Geothermal Ground Source Heat Pump

This product extracts the heat source from the tempered groundwater or ground, and then transfers heat to the hot water using side. It provides exceptional performance even at very cold temperatures, making it an ideal solution for house heating, cooling, and domestic hot water (DHW).

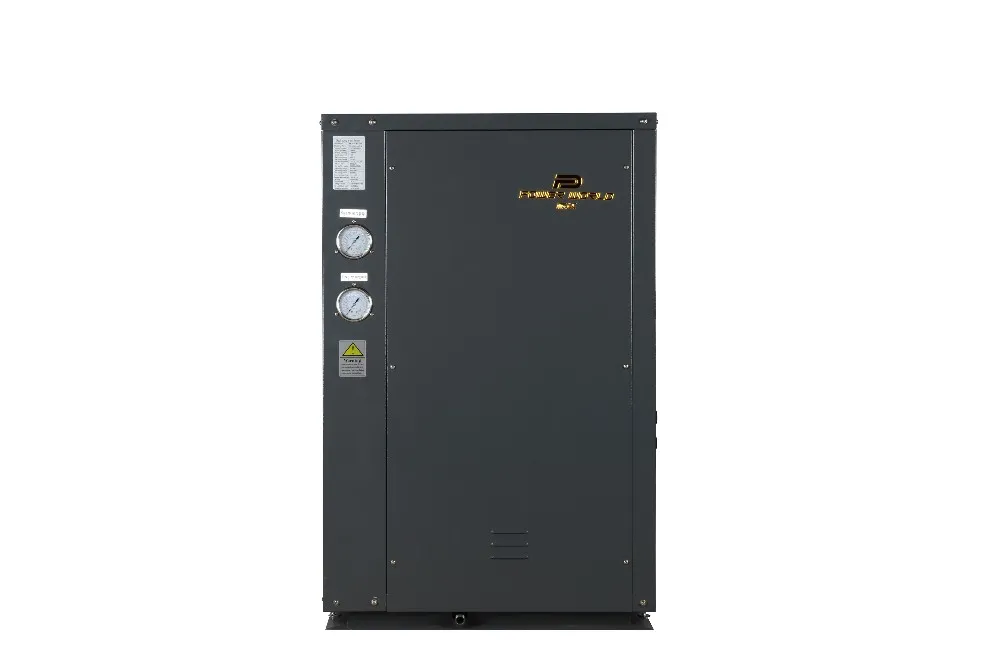

Ground Source Heat Pump 1
Ground Source Heat Pump 2

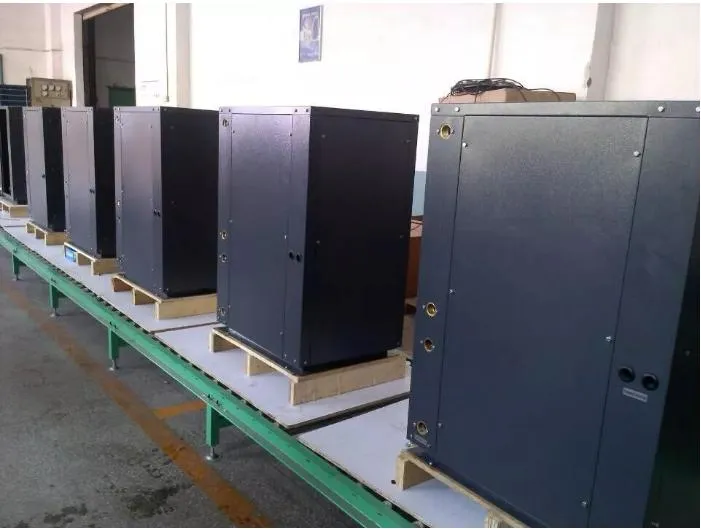

Ground Source Heat Pump 3

Core Features

Power Supply: Supports 220~380V/50Hz versatile electrical configurations.

🌀

Premium Compressor: Equipped with Copeland scroll compressor using R407C refrigerant.

📈

High Efficiency: Features COP 4.86 and ERP energy efficiency level A+.

🛠️

Heat Exchanger: Utilizes high-quality pleat or shell-in-tube heat exchangers.

🌍

Versatile Application: No working area limitations; suitable for soil, ground water, lakes, etc.

📱

Smart Control: Connects to room thermostats for automated temperature management.

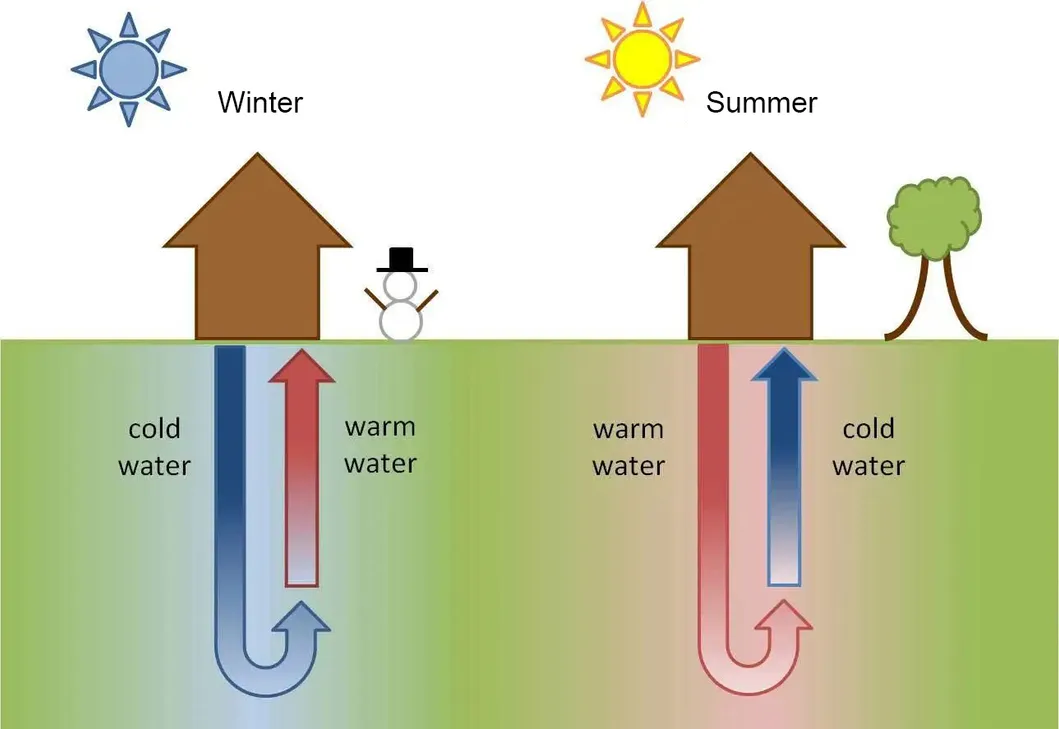

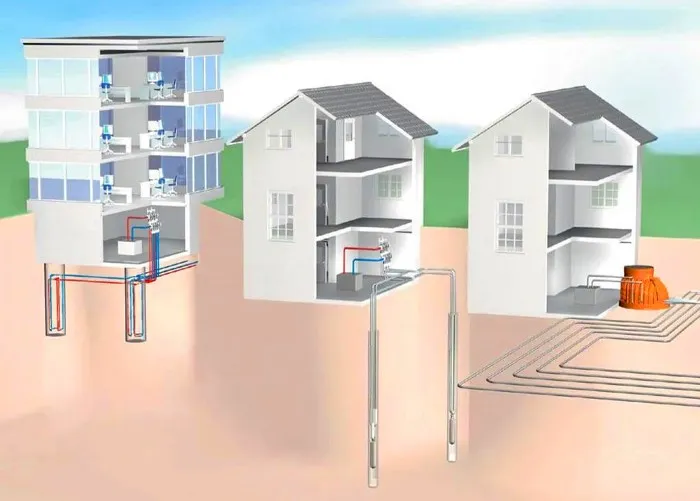

System Diagram

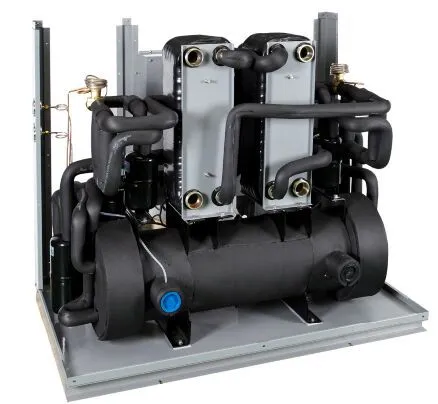

Internal Components

Product Parameters

Parameter PF020-DFXRS-S PF030-DFXRS-S PF030-DFXRS PF050-DFXRS PF060-DFXRS PF100-DFXRS
Heating capacity (kW)8.210.111.320.424.241.1
Input power (kW)1.92.082.334.225.028.48
COP4.324.864.854.834.824.85
Max Outlet Water Temp (ºC)606060606060
RefrigerantR410AR407C
CompressorPanasonicCopeland
Noise (dB(A))≤48≤55≤55≤58≤58≤62
Net Weight (kg)809090125135280

Technical Strength & Background

Established in 2004, this high-tech enterprise focuses on the research, development, production, and sales of air source heat pump products. With strong technology and a complete industry chain, the solutions cover swimming pool heating, residential cooling, and industrial high-temperature hot water applications.

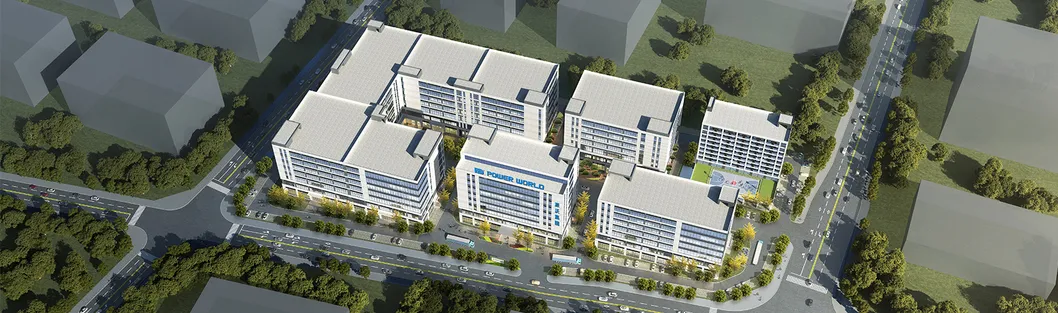

Production Facility

The enterprise has achieved a robust talent structure with senior engineers and experienced production personnel. Having obtained more than 80 product patents, all products are ISO 9001, ISO 14001, CE, and ERP certified. The commitment to quality ensures reliable energy solutions for over 60 countries across Europe, Asia, and Africa.

Certification 1
Certification 2
Certification 3

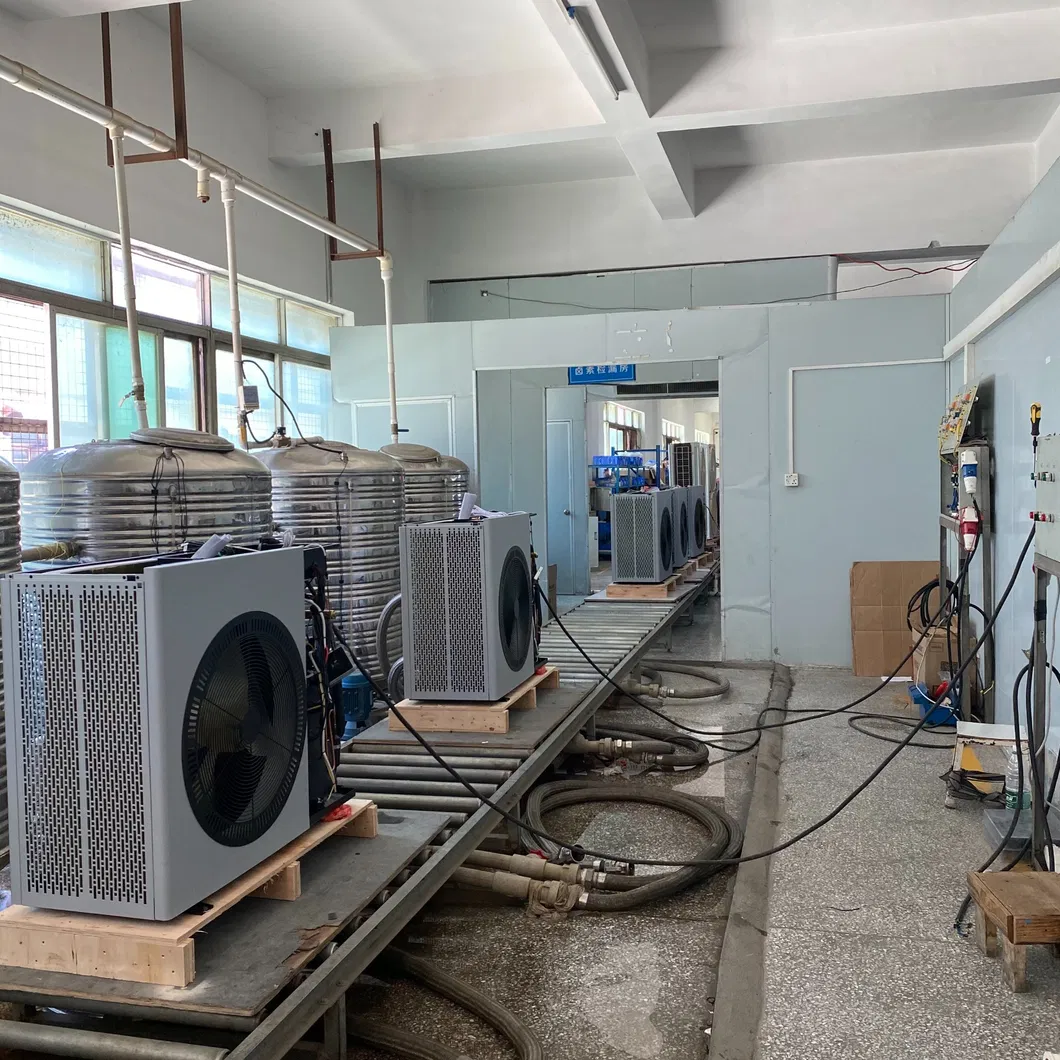

Testing Lab

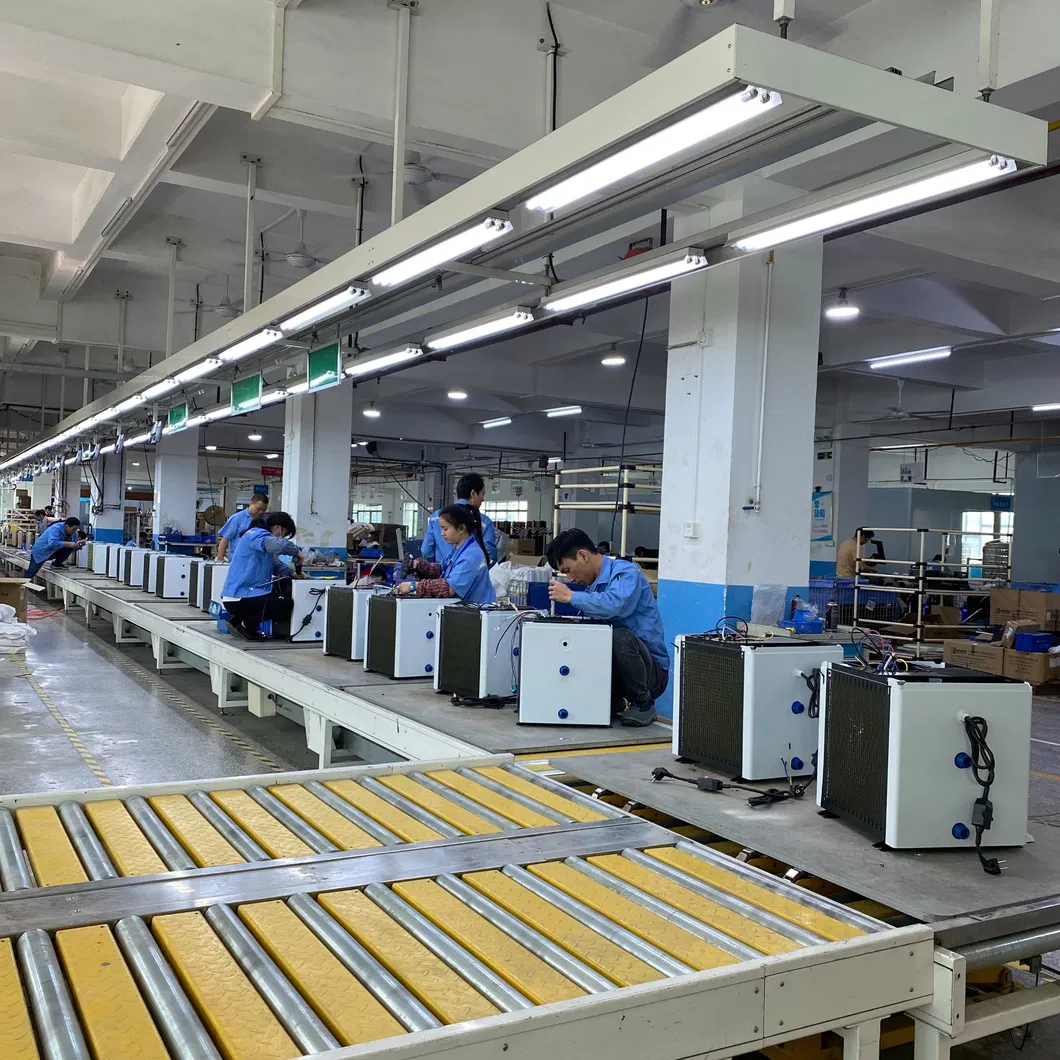

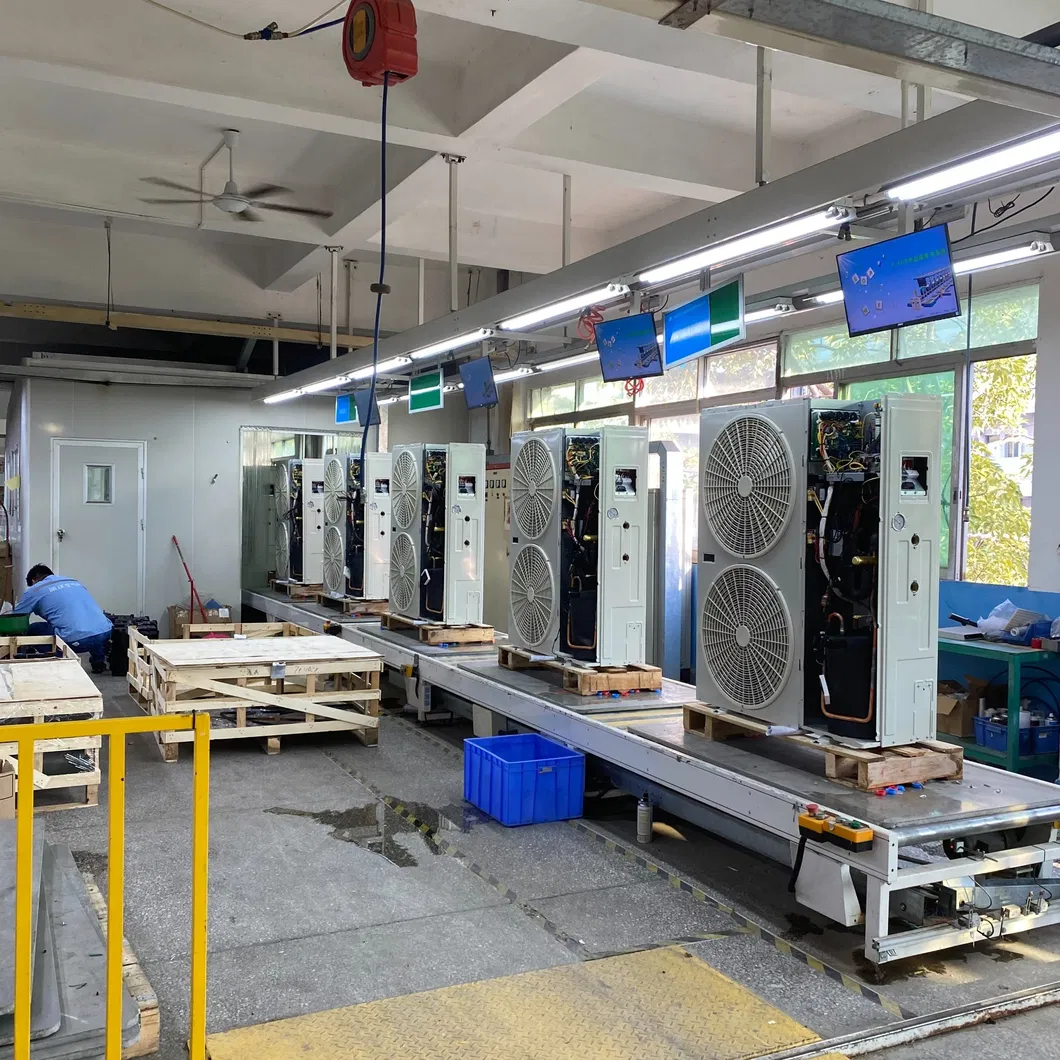

Factory Line

Frequently Asked Questions

Are you a heat pump manufacturer?
Yes, we are a professional R&D and manufacturer with modern large-scale factory facilities. We provide OEM services for global clients.
How long is the delivery time?
Generally, it is 1-5 working days if the goods are in stock. For non-stock orders, it typically takes 15-25 working days depending on the quantity.
What other types of heat pumps do you provide?
We offer a wide range of products including EVI Air Source Heat Pumps (8KW-132KW), Swimming Pool Heat Pumps (2KW-150KW), and Domestic Hot Water units.
Can you provide OEM services?
We accept all OEM orders. Simply contact us with your design requirements, and we will offer a reasonable price and samples as soon as possible.
What are your payment terms?
Our standard terms are 30% deposit in advance via T/T or LC at sight, with the remaining 70% balance due before shipment.
Do you accept small orders?
Yes, we accept small orders to help our clients explore the market and build long-term cooperation.
