Product Description

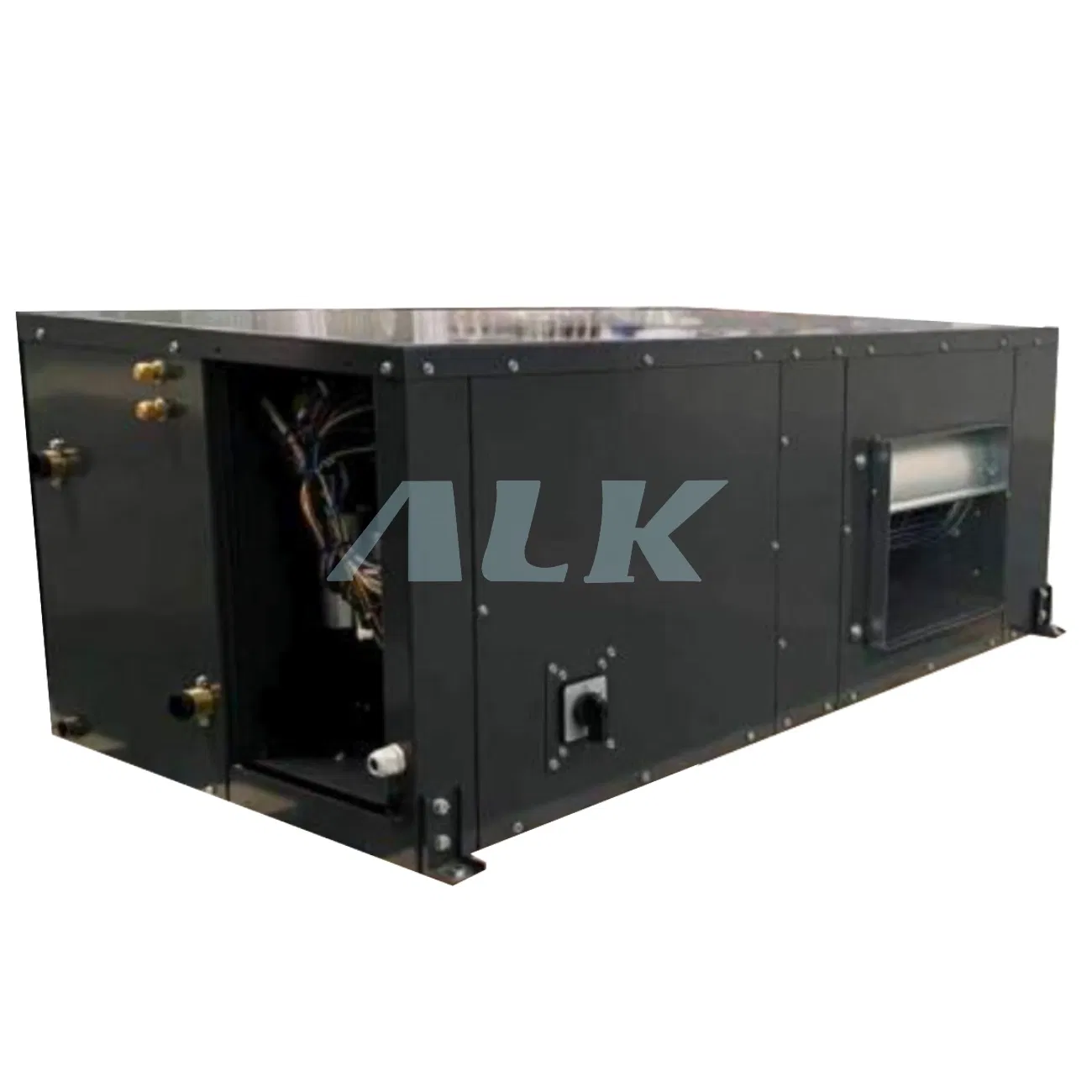

Water Source Package Ducted Air Conditioner
Cooling Capacity 2.5 ~60 KW / 0.8 ~ 17Ton / 1 ~ 25HP
Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
Single phase rotary type and 3-phase scroll compressor, with thermal overload cut-out and crankcase heater mounted on rubber vibration isolators.
Forward centrifugal fans, equipped with single phase direct drive motors, low noise 6 poles, protection level IP54, three speeds.
High efficiency tube in tube heat exchanger and coils consisting of seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
Complete with charge valve, filter, sight glass, gas-liquid separator, thermostatic expansion valve, and pressure switches. Hydronic circuit includes air vent valve and water drain.
Comprehensive protection for compressor and control circuit; Includes phase sequence relay and Programmable microprocessor controller (MODBUS included).
Frequently Asked Questions
What is the cooling capacity range for this system?
The cooling capacity ranges from 2.5 KW to 60 KW (0.8 Ton to 17 Ton), making it suitable for various mechanical engineering applications.
What materials are used for the unit's construction?
The panels and base frame are constructed from galvanized steel and protected with polyester powder painting for ultrahigh corrosion durability.
What type of compressors are integrated into the units?
The system utilizes high-quality hermetic compressors, including single-phase rotary types and 3-phase scroll compressors from brands like Copeland or Panasonic.
Is the unit compatible with different power supplies?
Yes, the power supply is optional for both 50Hz and 60Hz, with an operating voltage of 230 VAC.
What is the expected lifetime of this air handling unit?
With proper maintenance, the unit is designed for a long service lifetime of 10 to 15 years.
Does the system support remote monitoring or BMS?
Yes, the electric panel includes a programmable microprocessor controller with MODBUS protocols for BMS (Building Management System) connection.
