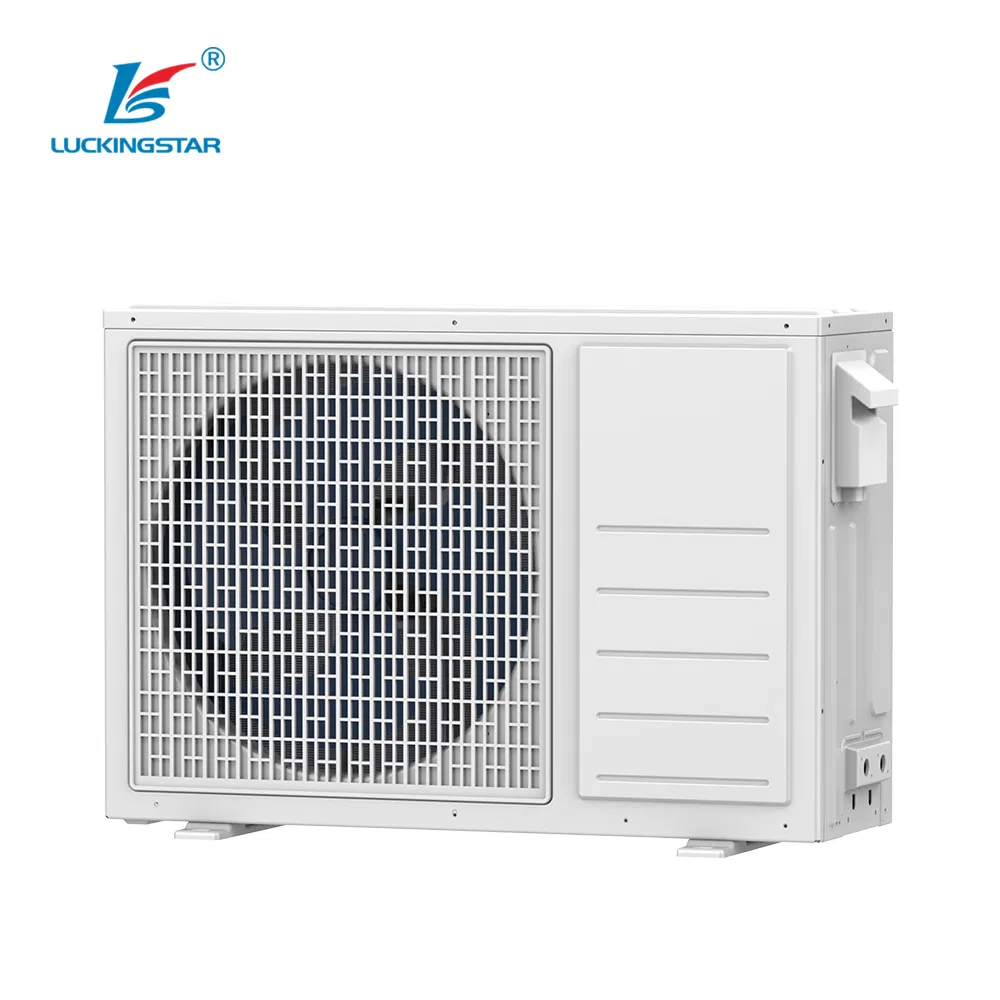

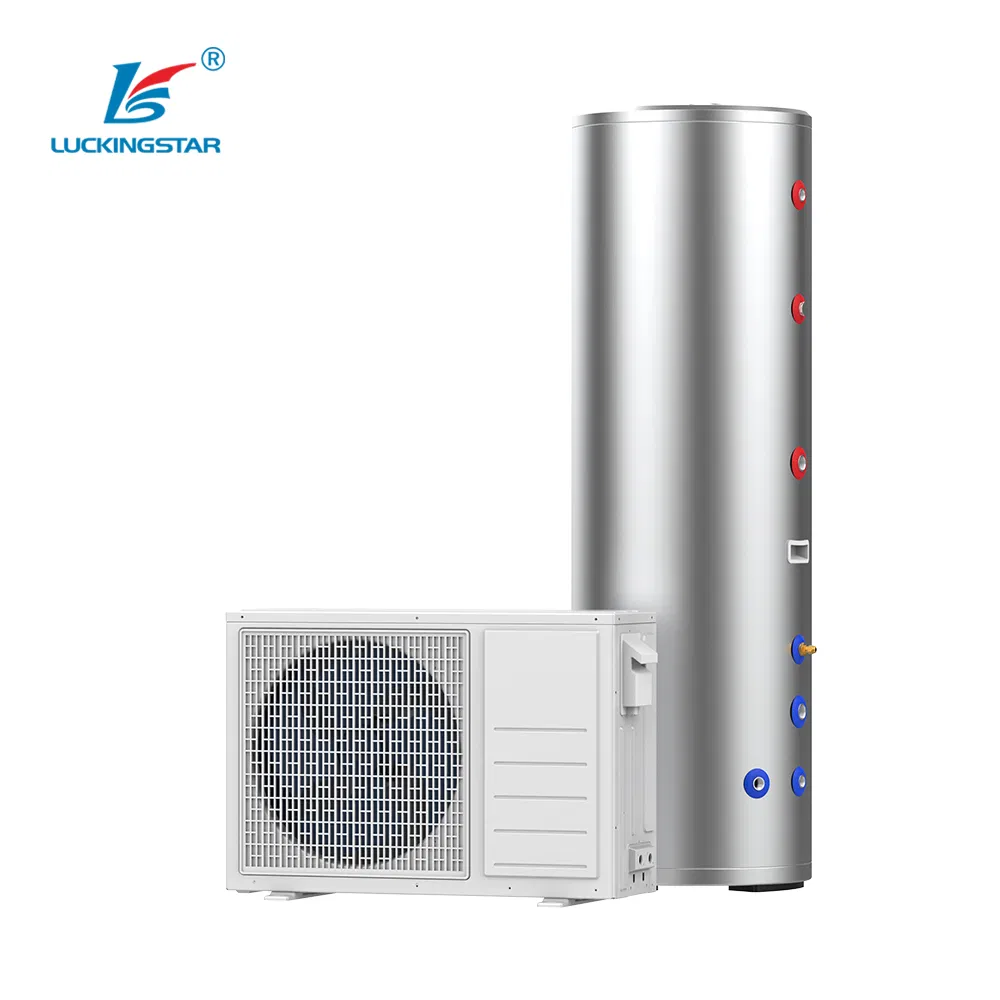

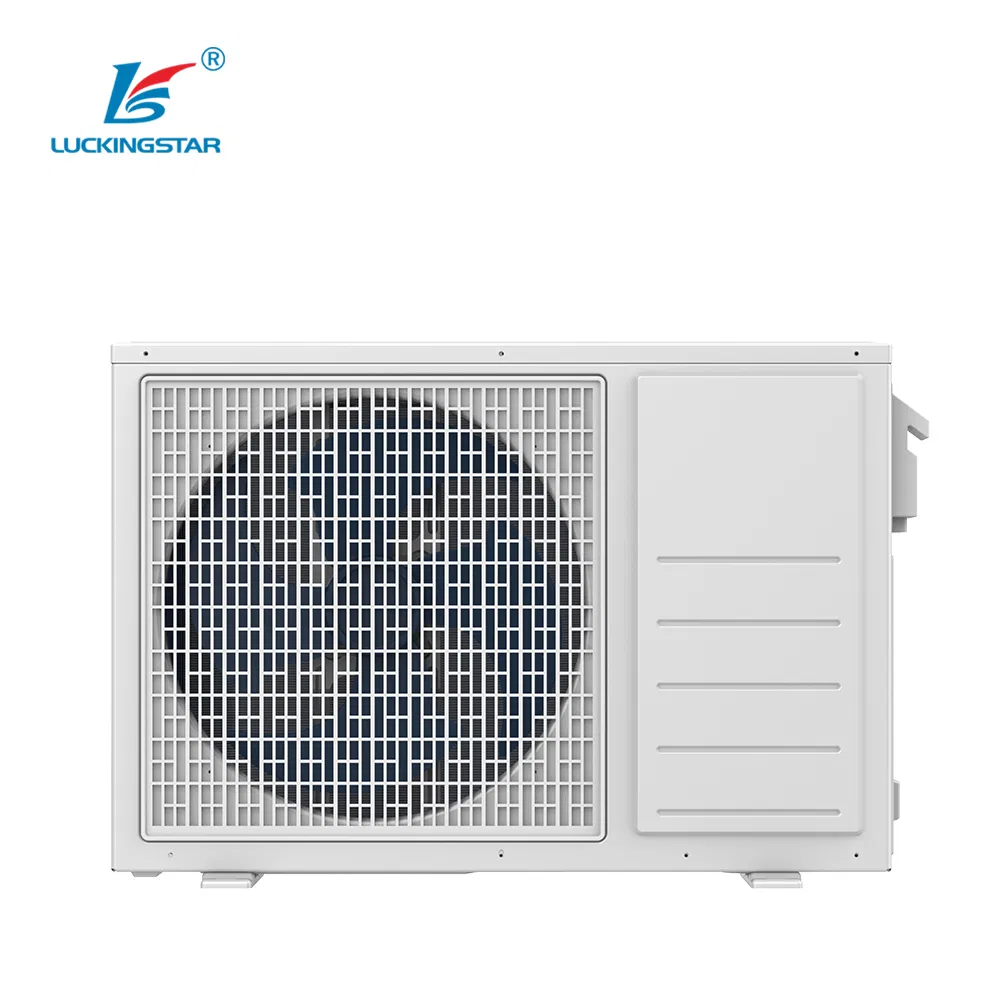

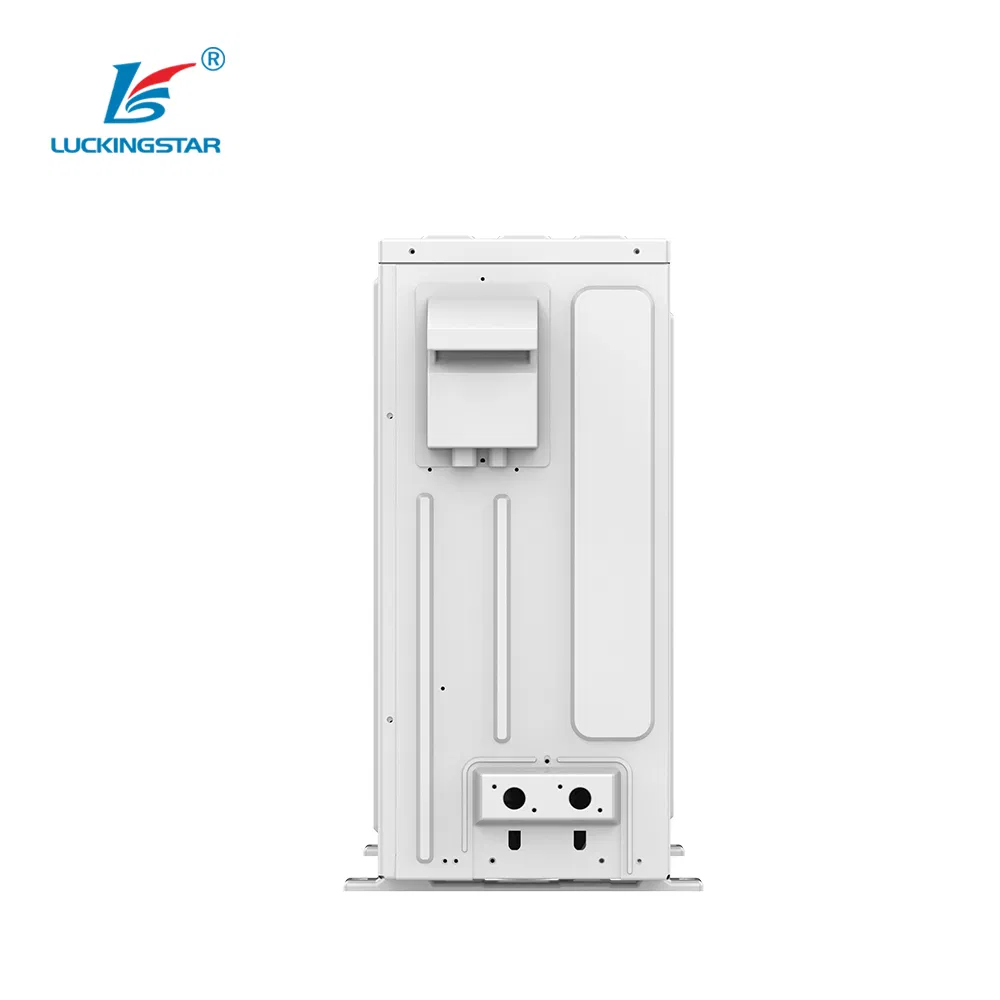

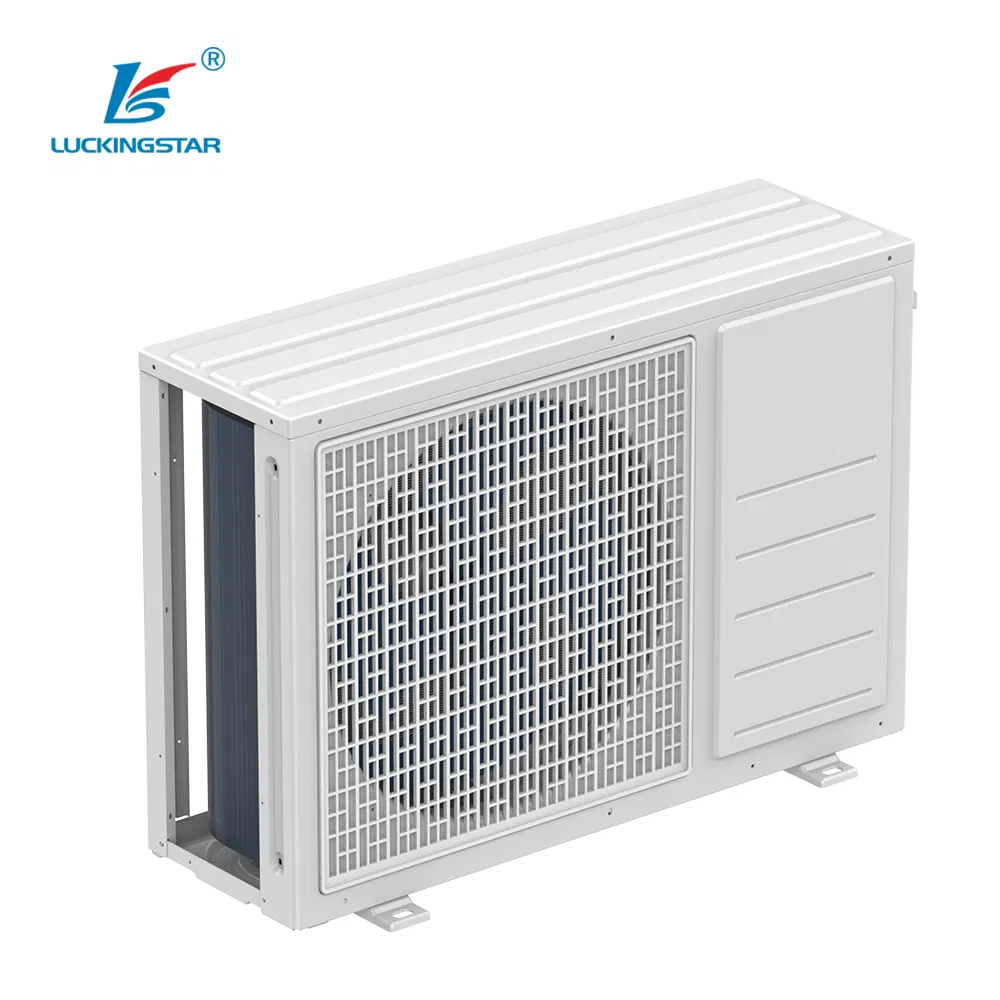

Gas Circulation Type Water Heater System Domestic Split Hot Water Heat Pump

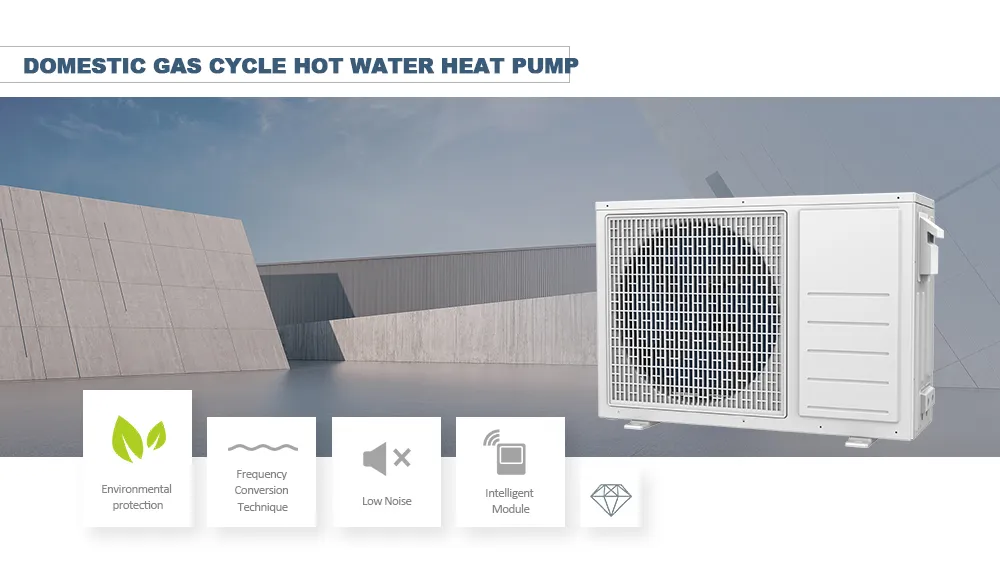

Split domestic hot water heat pump (gas circulation)

The domestic hot water heat pump system adopts a refrigerant circle around the water tank to heat water. Featuring an outdoor and indoor split design, there is no water system outside, preventing freezing and damage. Its compact design allows for convenient delivery, storage, and installation anywhere. Widely used in villas, offices, restaurants, and hotels for 24-hour hot water supply.

• Fast water heating up to 60°C.
• High efficiency up to COP 4.5, saving 75% energy compared to electric heaters.
• Simple installation on rooftops, balconies, yards, or basements.
• Heating capacity: 3.6kw-11.4kw; Tank volume: 150L-500L.
• Operating range: -10ºC to 45ºC.
• Multiple compressor brands available with low vibration and high reliability.
• Intelligent EE valve for excellent efficiency across ambient temperatures.
• Double helix structure and double channel heat exchange for faster heating.

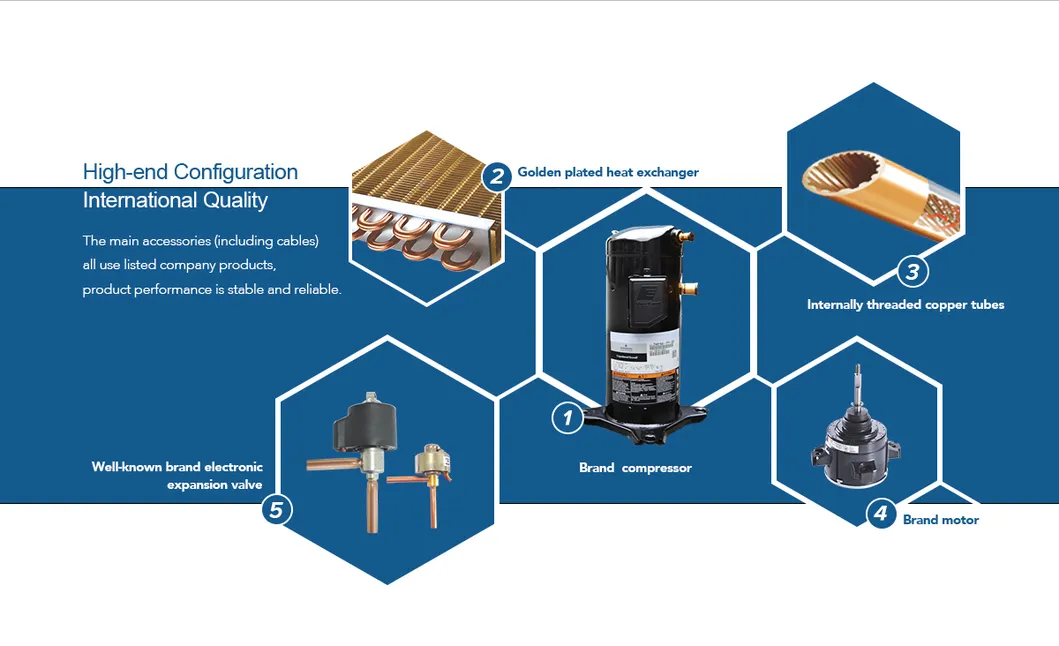

• Compressor: Strong heating, energy-saving, and durable with a service life up to 15 years. Low vibration and noise.
• Finned Heat Exchanger: Multi-layer hydrophilic corrugated molybdenum foil fins with internal thread copper tubes.
• Built-in Water Pump: Directly connected for easy installation.
• Fan Blades: Glass fiber material, flame retardant, and corrosion-resistant.
• Motor: Two-stage variable speed design with overpressure protection.

• No Risk Of Explosion: No burning minerals involved in the heating process.
• No Risk Of Electric Shock: Water and electricity are completely isolated.
• No Risk Of Fire: Equipped with multiple high-pressure protections.
• No Harmful Emissions: Environmentally friendly with no toxic gas production.

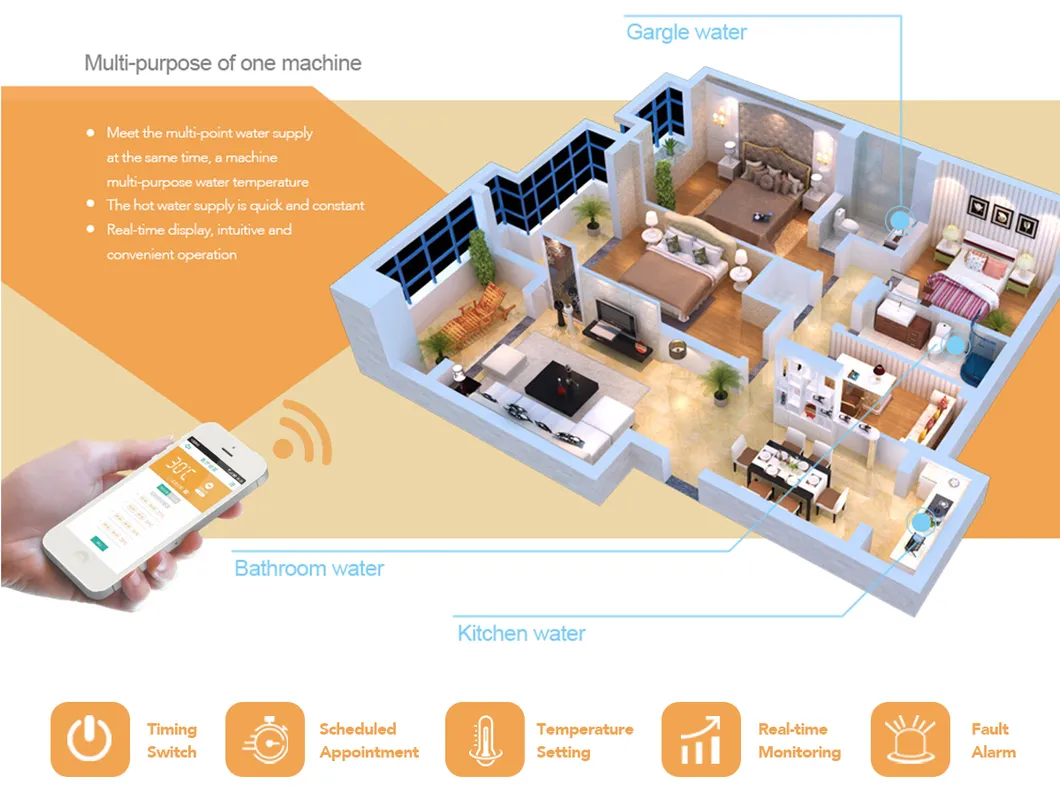

The heat pump can be interconnected with mobile phones and computers for remote control. Features include real-time monitoring, remote power on/off, parameter settings, and fault alarms, reducing management costs.

# Testing condition: Ambient 20°C/15°C, Water 15°C/55°C.

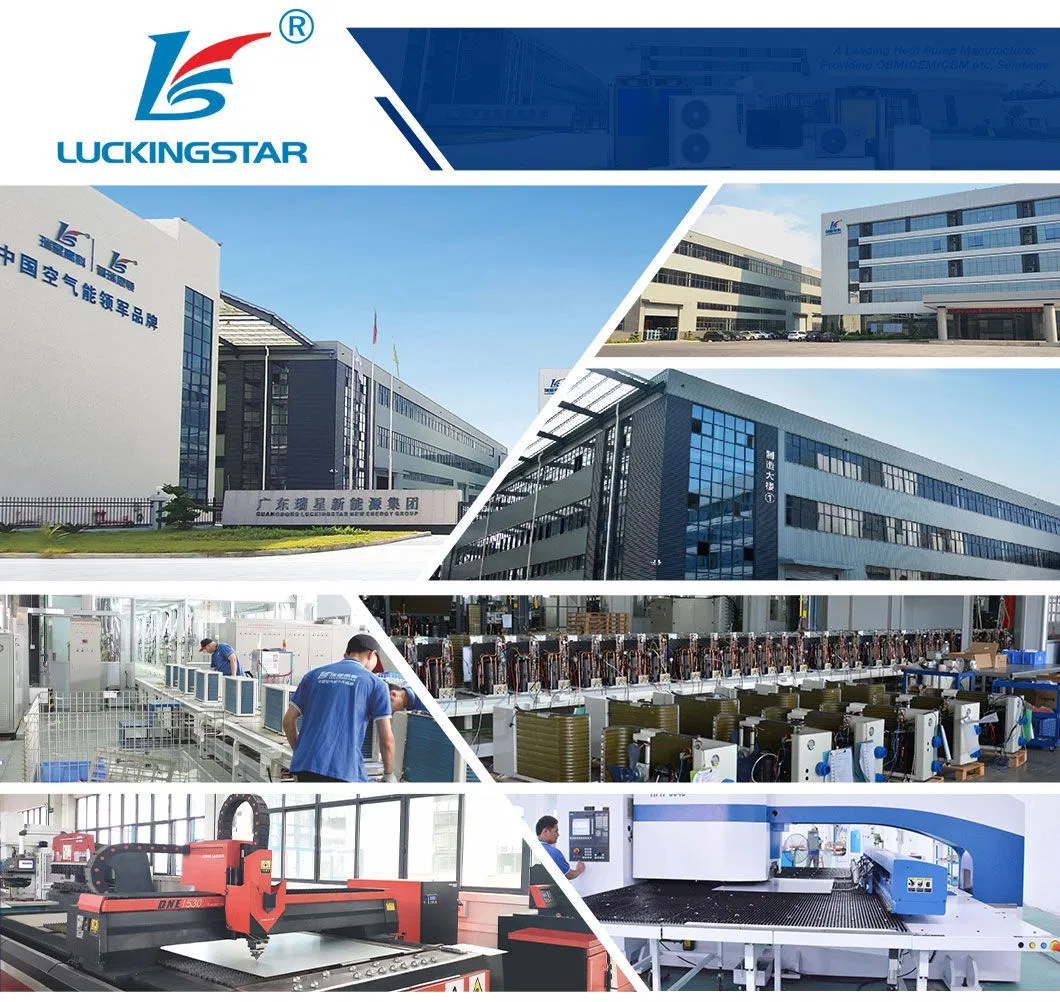

Equipped with 7 automatic production lines across 75,000 square meters, the facility achieves an annual capacity of 500,000 units. Quality is maintained through 5 professional performance test laboratories capable of testing in extreme conditions down to -41.5°C.
