Full DC Inverter Evi 3 in 1 Heat Pump

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Specifications

Model NO. QBKFXFC-006SRI

Work Environment Low-temperature Heat Pump

Heat Source Air-source

Heating Type Circulating Heat

Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital

Certification CE, ISO9001, CCC

Low Temperature Heating -35°C Heating Normally

Eco-Friendly R32 Refrigerant

High Technology Full DC EVI Inverter

Detailed Photos

Product Description & Features

Eco-Coolant: Utilizes environment-friendly R32 refrigerant for better performance and lower GWP.

EVI Technology: Advanced low temperature heating technology ensures reliable operation even under -35°C.

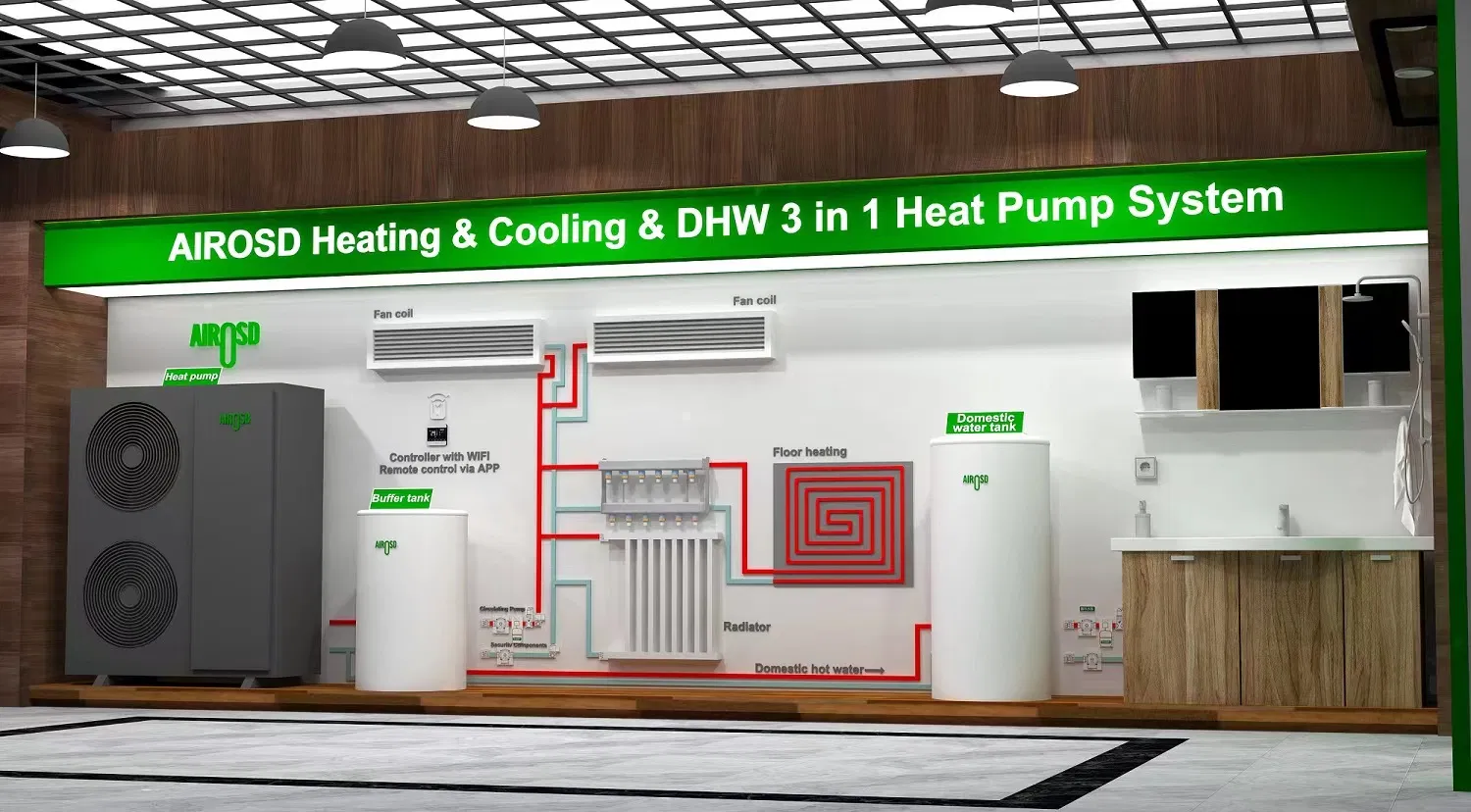

3-in-1 Functions: Full DC Inverter supporting Cooling, Heating, and Domestic Hot Water (DHW).

Intelligent Defrosting: Features a smart system for quick and efficient defrosting during winter.

Technical Parameter Comparison

Feature / Model	006SRI	009SRI	012SRI	014SRI	016SRI	018SRI	024SRII	030SRII	034SRII	045URII
Heating Capacity (kW)	3.0~8.0	3.5~10.0	4.5~14.0	5.5~16.0	6.5~18.0	7.5~20.0	9.0~26.0	12.5~35.0	14.0~40.0	20.0~50.0
DHW COP	4.3	4.32	4.32	4.26	4.35	4.28	4.26	4.25	4.23	4.23
ERP (35ºC)	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++
ERP (55ºC)	A++	A++	A++	A++	A++	A++	A++	A++	A++	A++
Power Supply	220V-240V/50Hz						380V-415V/50Hz
Ambient Temp Range	-35ºC ~ 45ºC
Compressor Brand	Panasonic									Hitachi/Panasonic

Frequently Asked Questions

1. What is the minimum operating temperature for this heat pump?

This unit is equipped with EVI low-temperature heating technology, allowing it to heat normally even in extreme conditions as low as -35°C.

2. Does it provide both heating and cooling?

Yes, it is a 3-in-1 system that provides space heating, space cooling, and domestic hot water (DHW).

3. What kind of refrigerant does the system use?

The system uses R32 refrigerant, which is more environmentally friendly and has a lower global warming potential compared to traditional coolants.

4. What is the energy efficiency rating of these units?

The units are highly efficient, achieving an ERP rating of A+++ at 35ºC and A++ at 55ºC outlet water temperatures.

5. Which compressor brand is used in the product?

Most models are equipped with high-quality Panasonic DC inverter twin rotary compressors for maximum reliability and efficiency.

6. Is it suitable for large commercial applications like hotels?

Absolutely. While suitable for villas and families, the higher capacity models (up to 50kW) are ideal for hotels, factories, hospitals, and student apartments.
