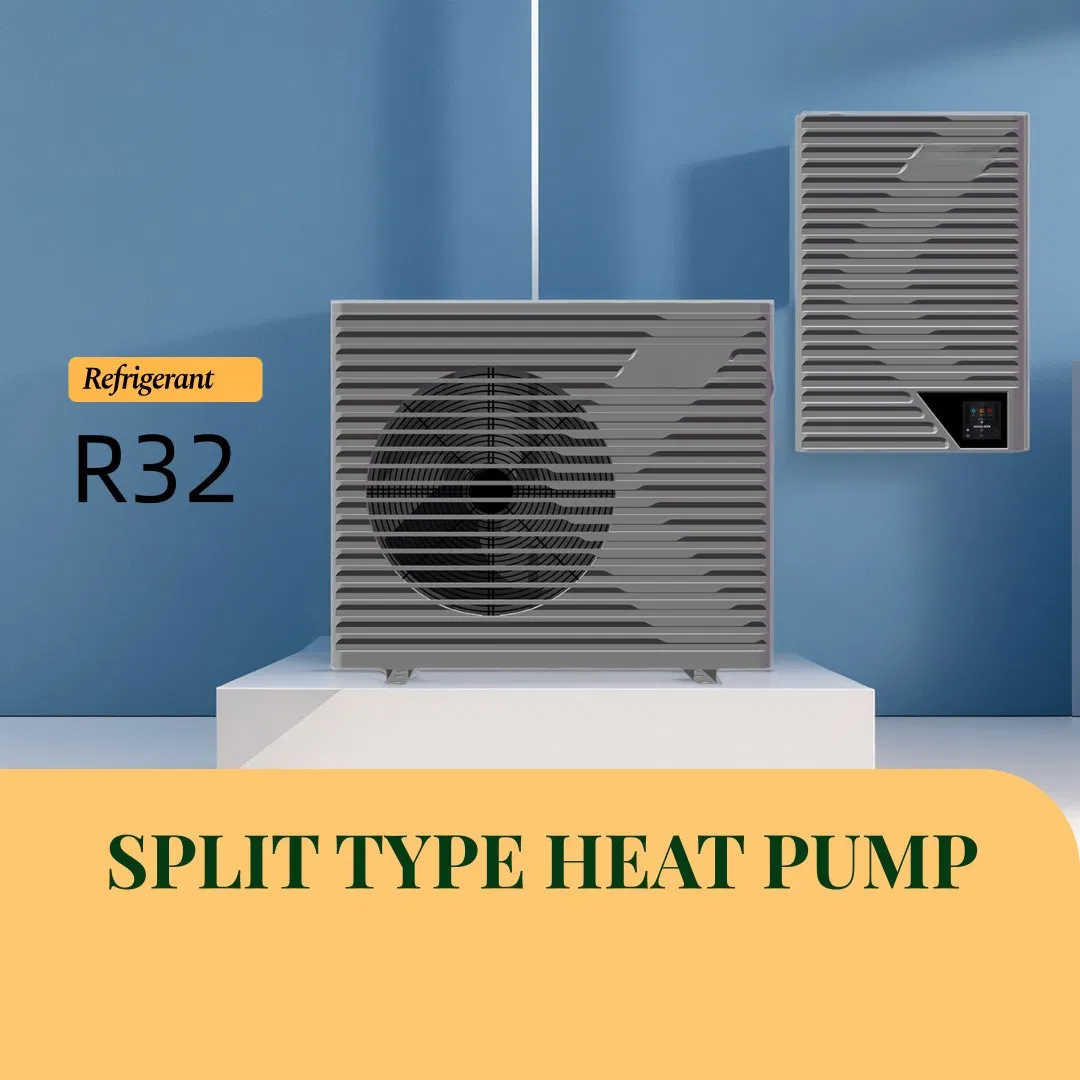

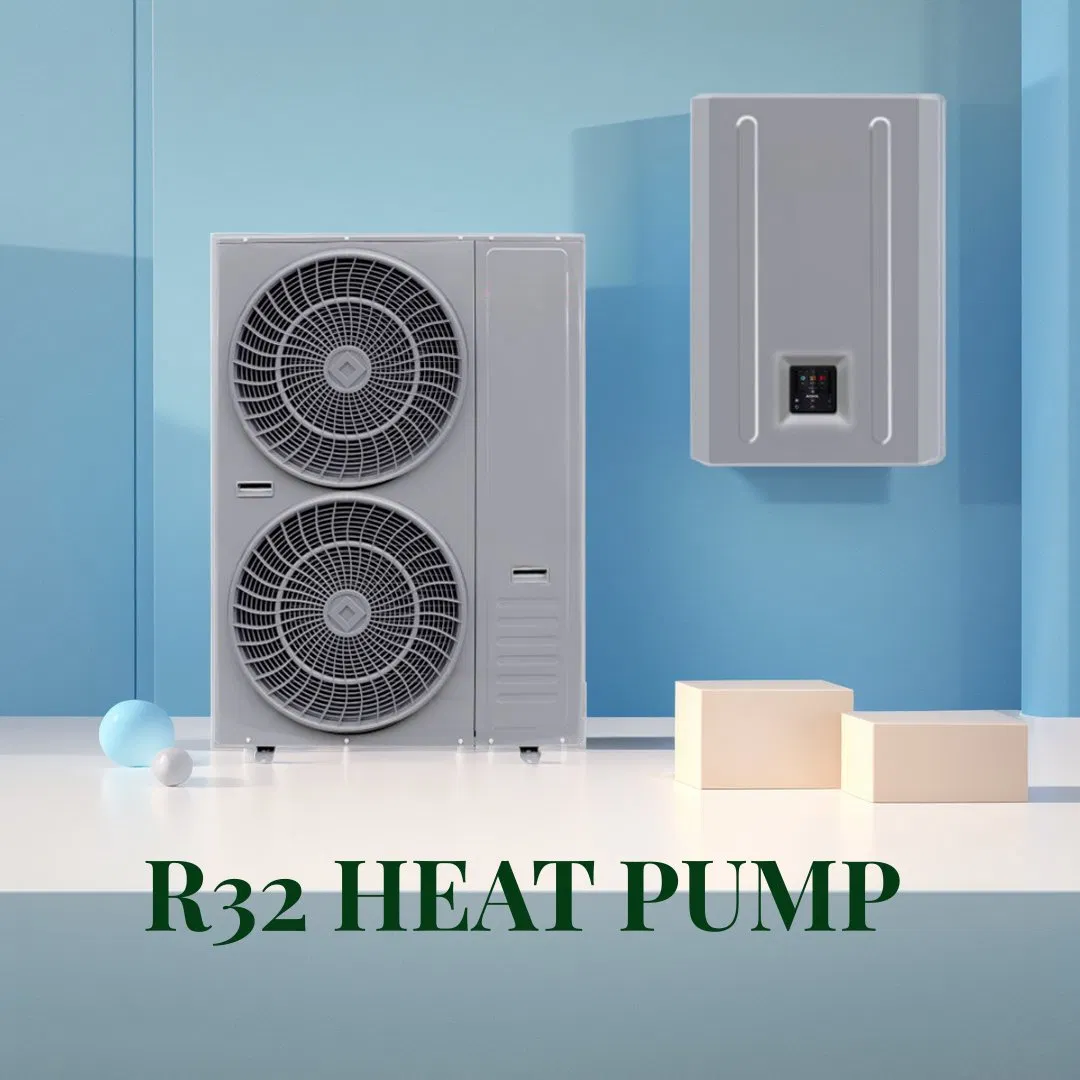

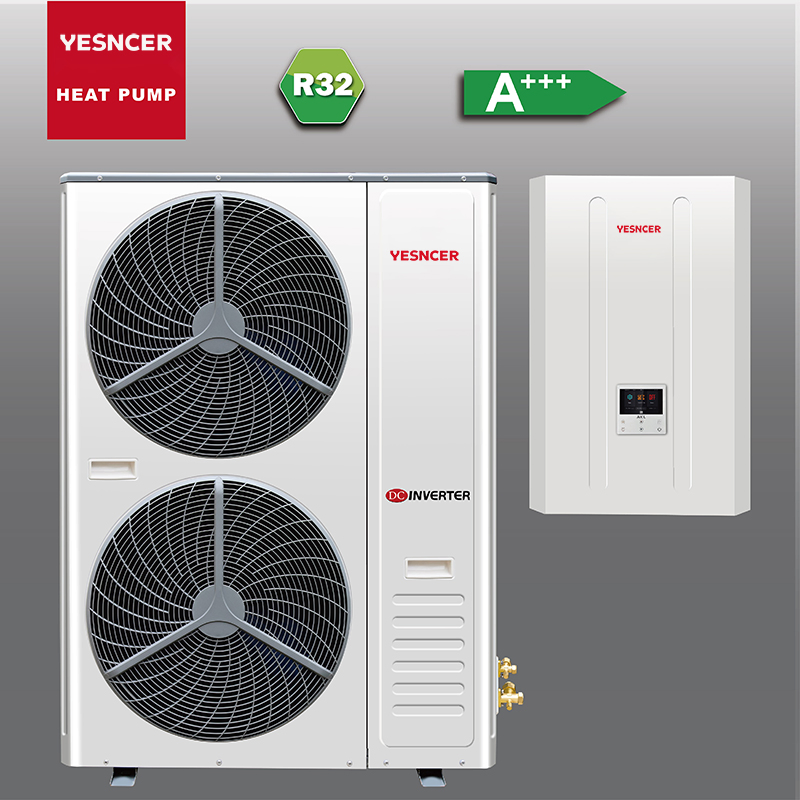

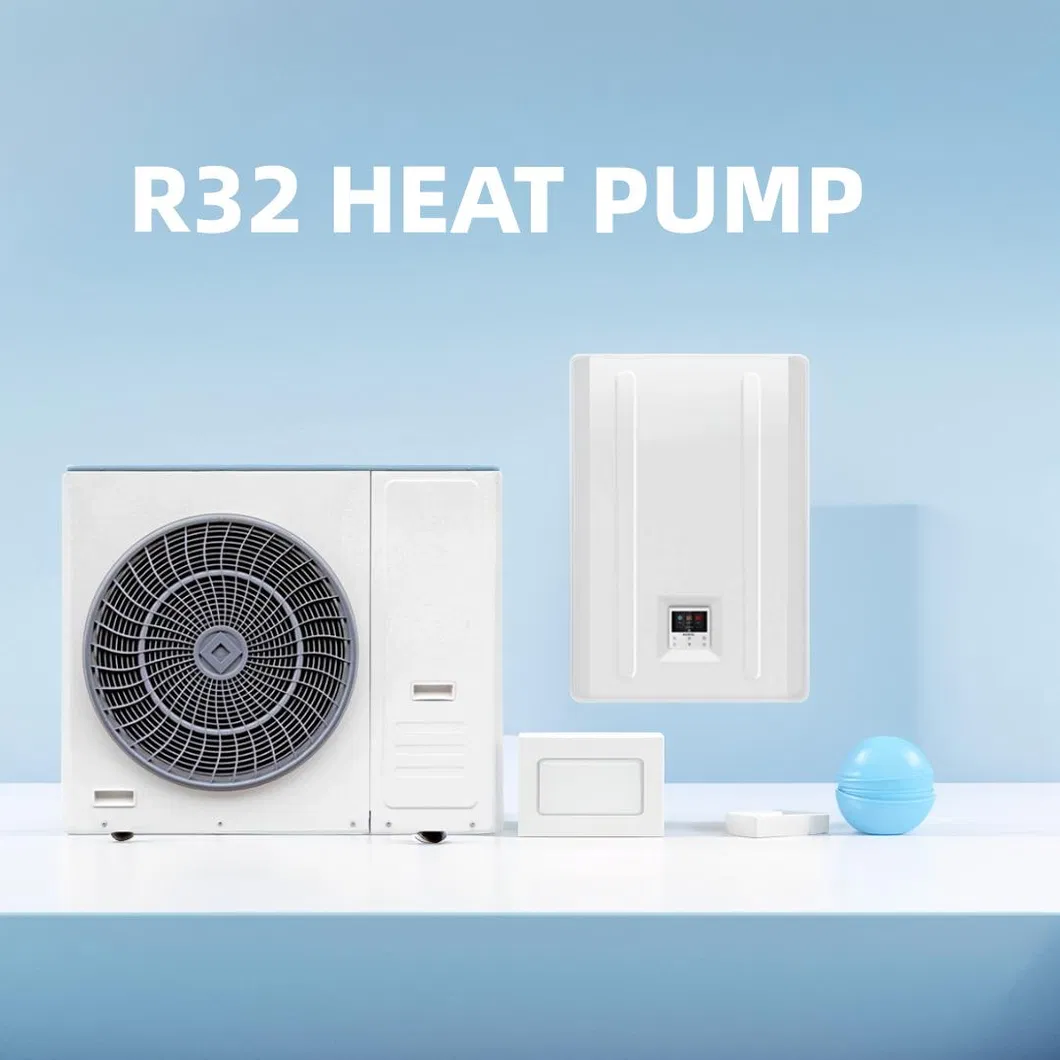

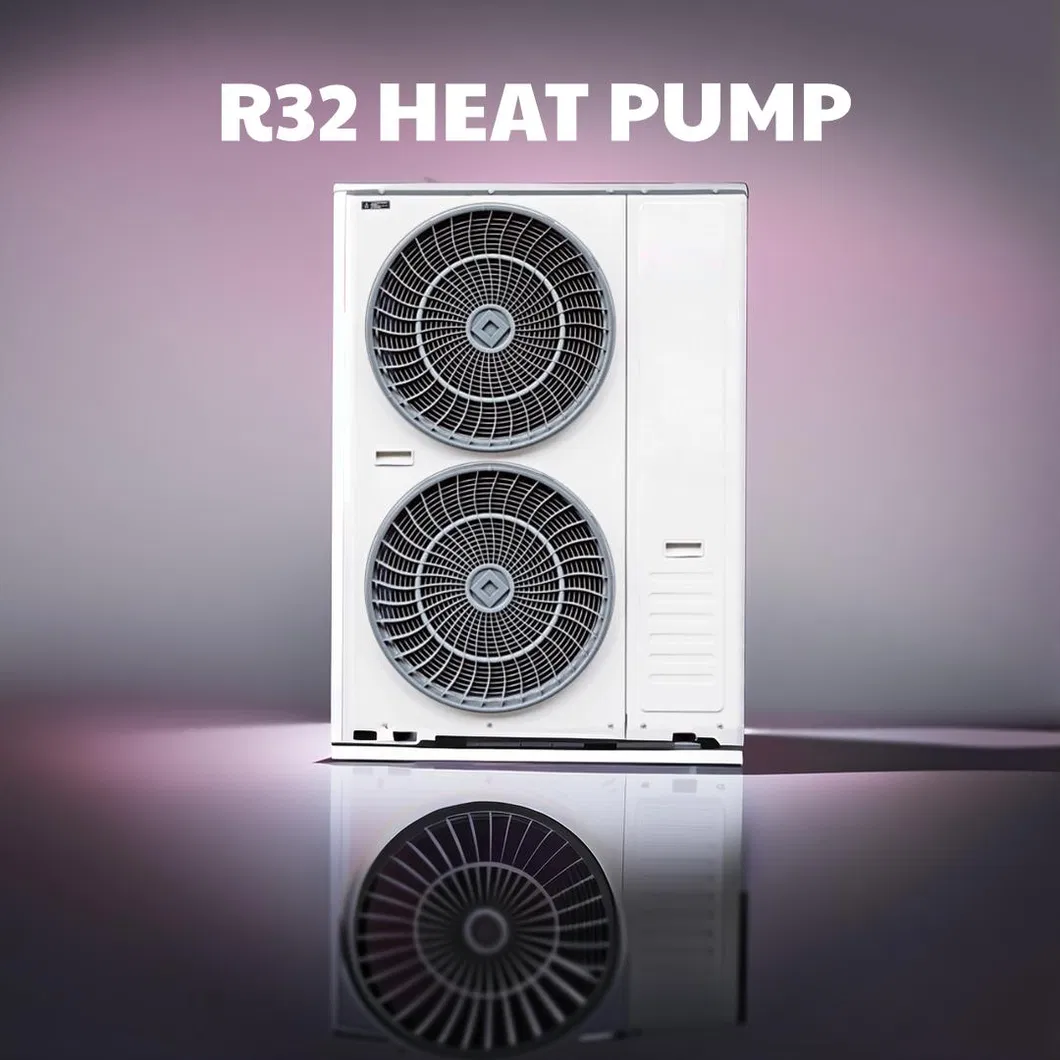

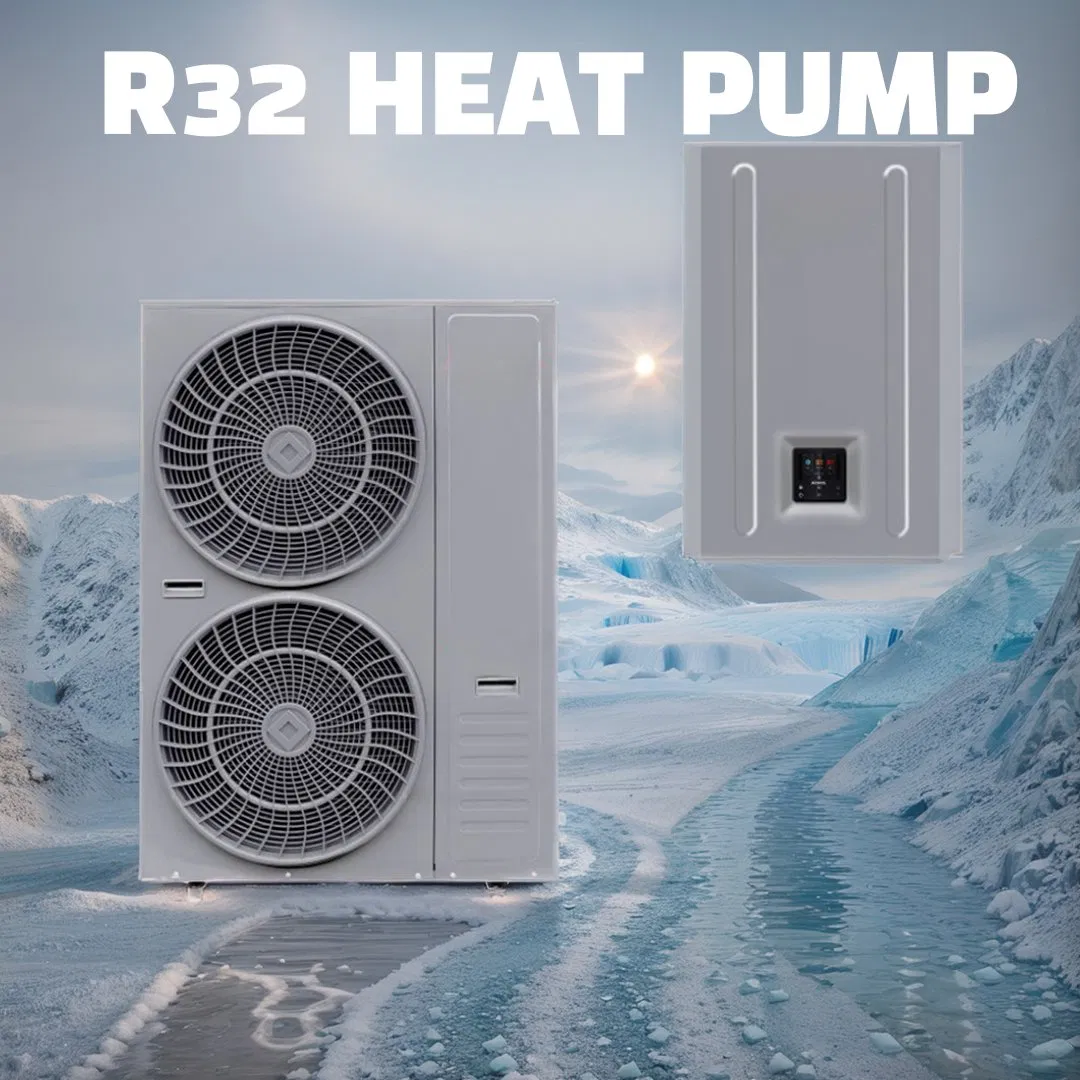

Evi DC Inverter Wall Mounted Split Type R32 Air Source Heat Pump for Fan Coil Heating and Cooling

1 / 5

Evi DC Inverter Wall Mounted Split Type R32 Air Source Heat Pump for Fan Coil Heating and Cooling

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

YX-25CHWW/FR, YX-35CHW/FR, YX-55CHWW/FR, YX-65CHW/FR

Work Environment

-30℃ to 45℃

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Sauna, Swimming Pool, Hotels, Factory Hospital, Apartments

Certification

CE, ISO9001, CCC, RoHS

Noise dB(a)

32-35

Trademark

YESNCER

Packaging & Delivery

Transport Package

Wood

Package Size

100.00cm * 39.00cm * 138.00cm

Gross Weight

102.000kg

Product Description

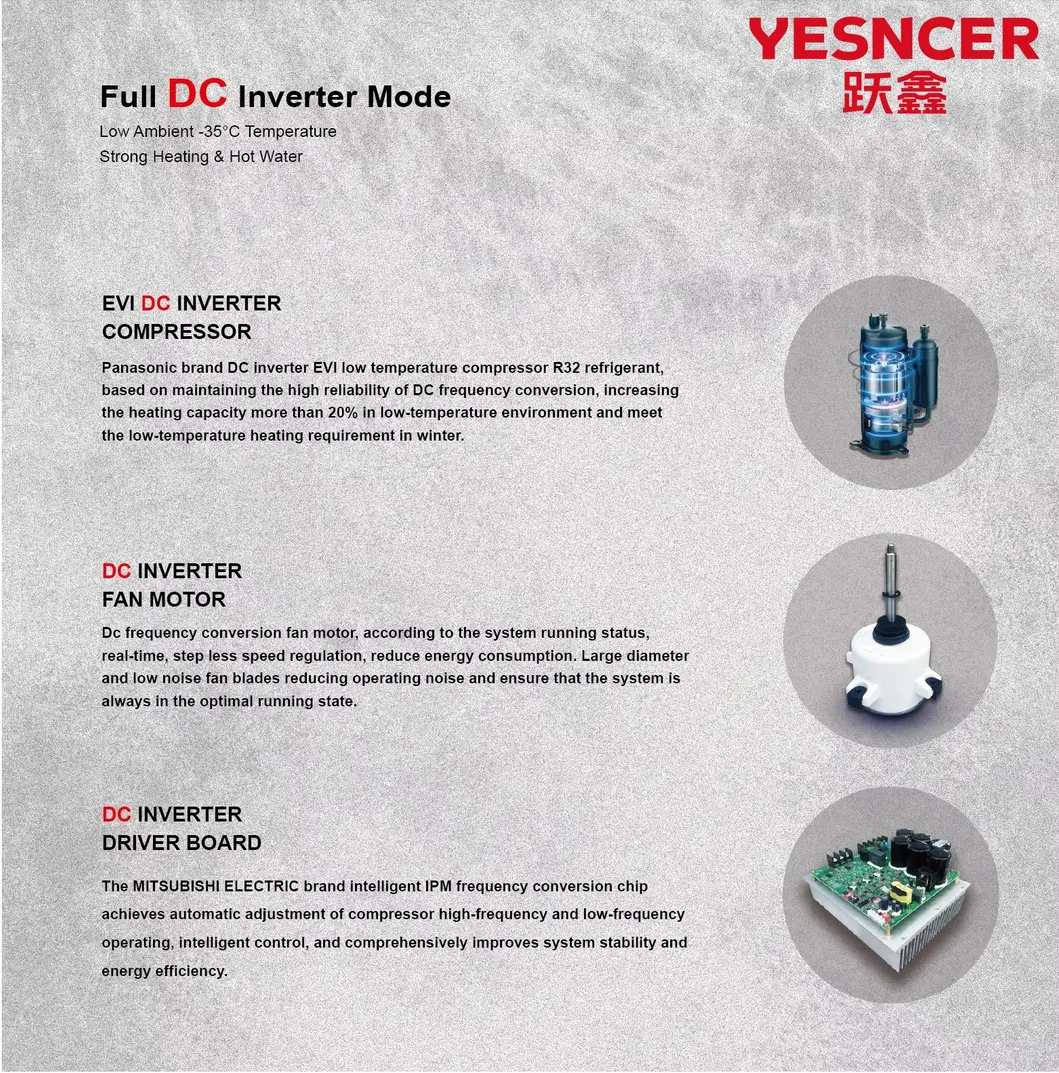

Key Features

Falling film evaporator to improve heat exchange effect
Cyclone oil separator designed for efficient separation
Powerful compressor for reliable system operation
Stainless steel economizer for severe conditions
Patented finned heat exchanger for low-temp heating
Zero pipeline resistance for unimpeded performance
Precisely braked electronic expansion valve
Low noise axial flow fan for energy saving
Integrated Building Control System compatibility

Product Parameters

Model	YX-25CHW/FR	YX-35CHW/FR	YX-55CHW/FR	YX-65CHWW/FR	YX-85CHWW/FR	YX-105CHW/FR
Power supply (V/Hz)	220-240/50	220-240/50	220-240/50	380-415/50	380-415/50	380-415/50
Heating Capacity Range (kw)	3.31-8.35	3.54-10.50	5.35-15.8	5.86-18.20	9.43-25.3	11.20-30.10
Heating Input Power (kw)	0.69-1.96	0.75-2.51	1.12-3.73	1.24-4.34	1.99-5.97	2.39-7.49
Heating (A7ºC/6ºC) (W50ºC~55ºC)
Heating Capacity (kw)	3.08-7.34	3.25-8.95	4.82-13.65	5.56-15.80	8.54-22.30	10.50-26.40
COP Range (w/w)	3.82-2.57	3.74-2.53	3.78-2.58	3.73-2.54	3.83-2.56	3.69-2.48
Cooling (A35ºC/24ºC) (W12ºC~7ºC)
Cooling Capacity (kw)	2.85-7.42	3.28-8.20	5.85-12.30	6.15-13.10	9.40-18.50	11.50-22.40
EER Range (w/w)	3.06-2.67	2.98-2.53	3.10-2.72	3.02-2.67	3.05-2.71	2.96-2.52

Certifications

Profile

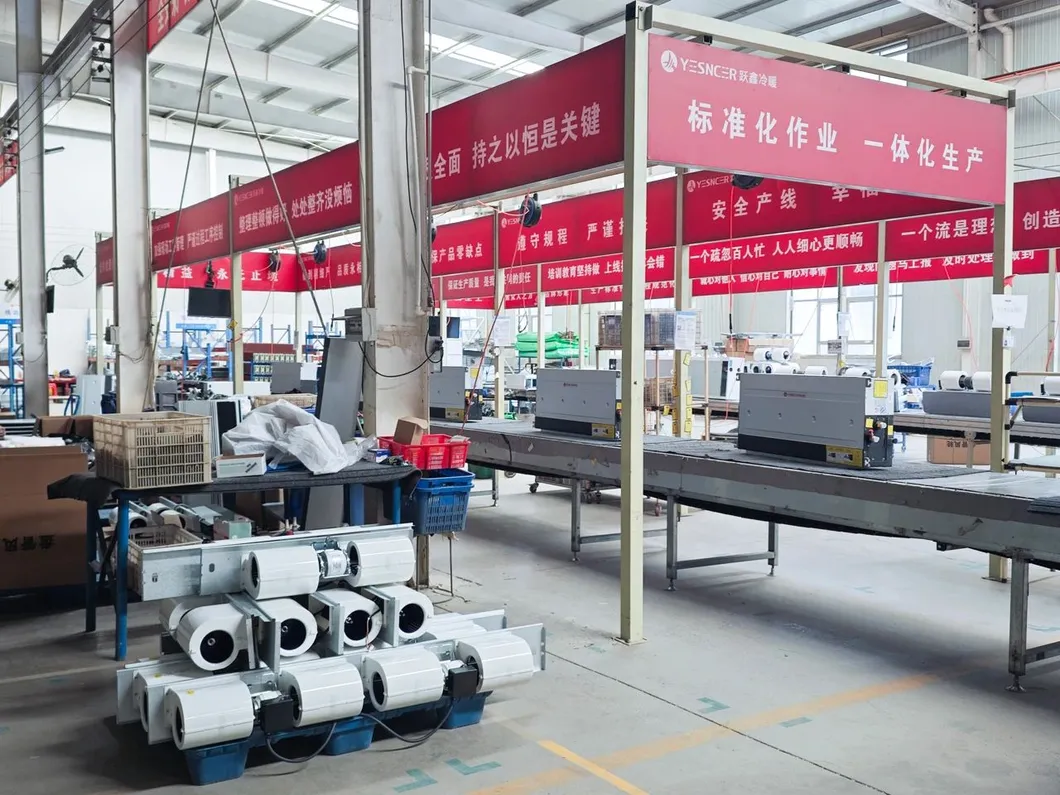

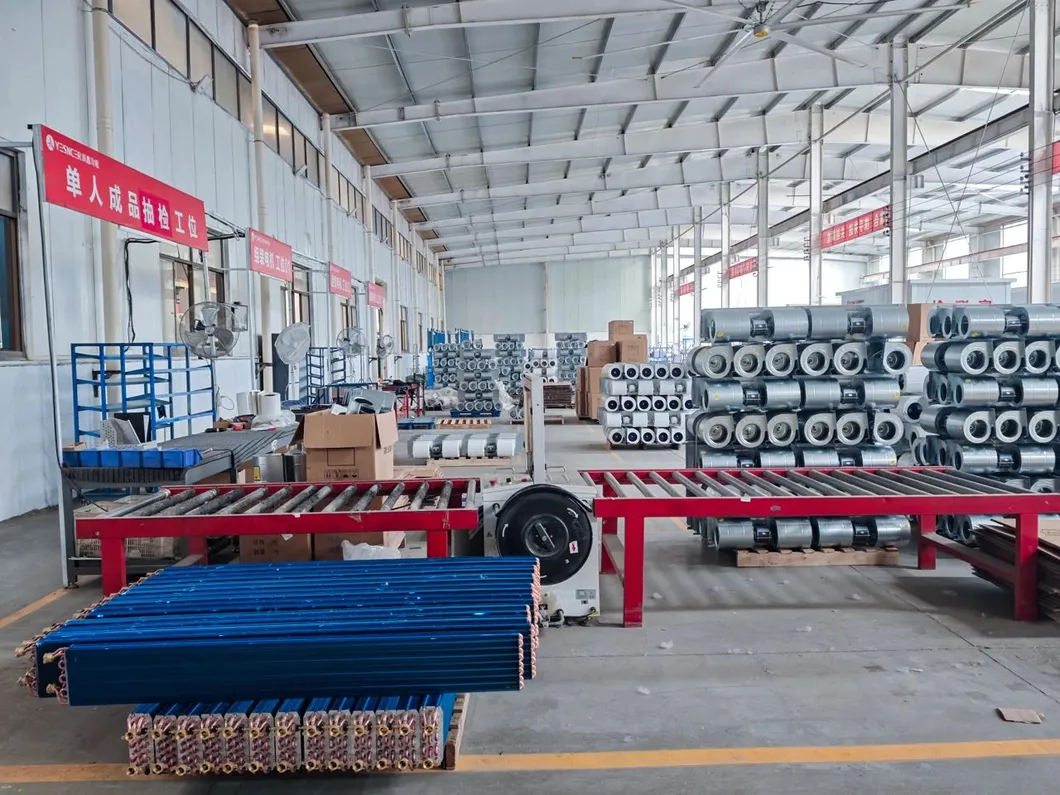

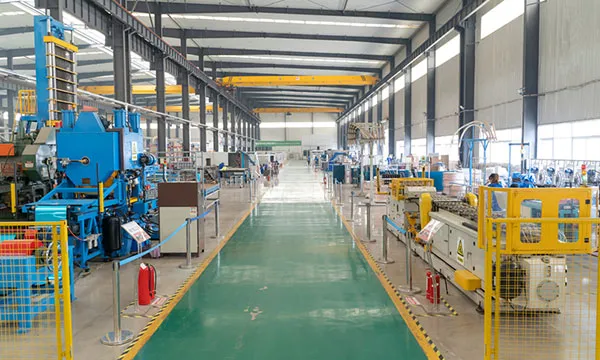

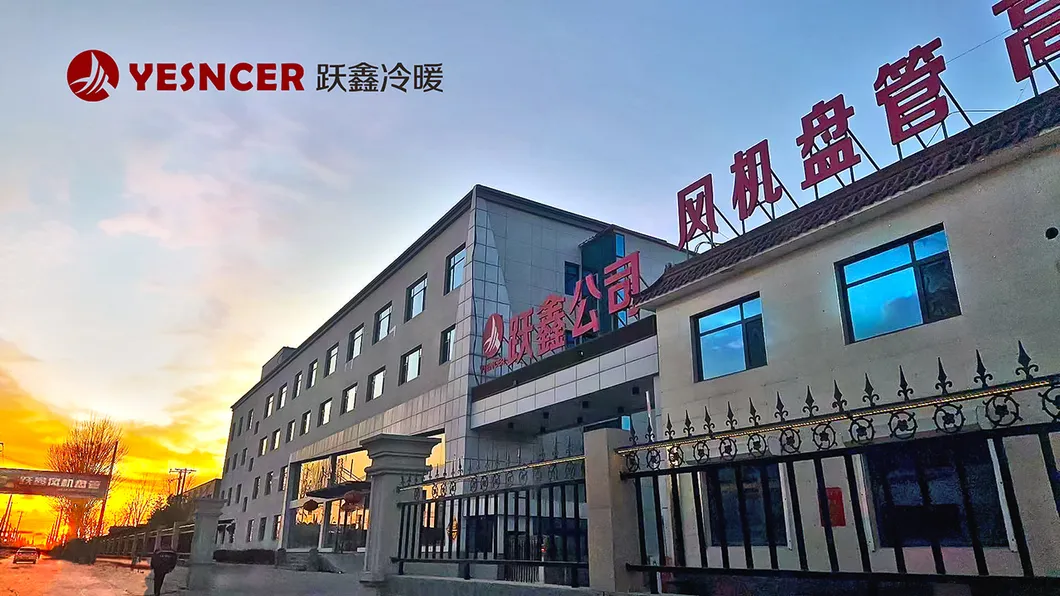

We are specialized in the research, development, sale, and service of fan coil units, air handling units, air source heat pumps, air-cooled chillers, rooftop packaged units, fresh air ventilation, and air curtains. We also welcome OEM/ODM orders and have obtained CE, ROHS, ISO9001, ISO14001, and ISO45001 certificates. Our products are exported to clients in regions such as Europe, North America, the Middle East, and Southeast Asia.

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss requirements and ensure full customer satisfaction. Adhering to the business principle of mutual benefits, we have built a reliable reputation among our customers due to our professional services, quality products, and competitive prices.

Frequently Asked Questions

What is the operating temperature range for this heat pump?

This air source heat pump is designed to operate efficiently in environments ranging from -30℃ to 45℃, making it suitable for extreme cold climates.

What applications is this product suitable for?

It is ideal for a wide range of applications including villa families, sauna and swimming pool heating, hotels, factory hospitals, student apartments, and beauty salons.

What certifications do your heat pumps hold?

Our products are fully certified with CE, ISO9001, CCC, and RoHS, ensuring they meet international quality and safety standards.

How does the falling film evaporator benefit the system?

The falling film evaporator is specifically designed to improve the heat exchange effect, which enhances the overall efficiency and performance of the heating system.

Is the unit noisy during operation?

No, the unit features a low-noise axial flow fan and is designed to operate within a quiet range of 32-35 dB(a), keeping it away from the hustle and bustle.

Do you offer customized solutions?

Yes, we welcome OEM and ODM orders to meet specific customer requirements and ensure full satisfaction with our heating and cooling solutions.
