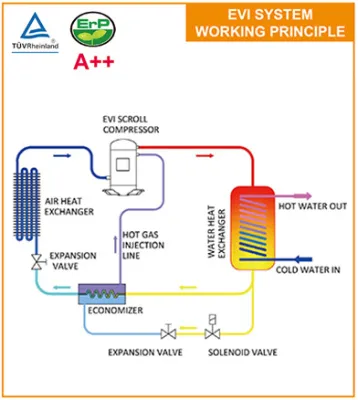

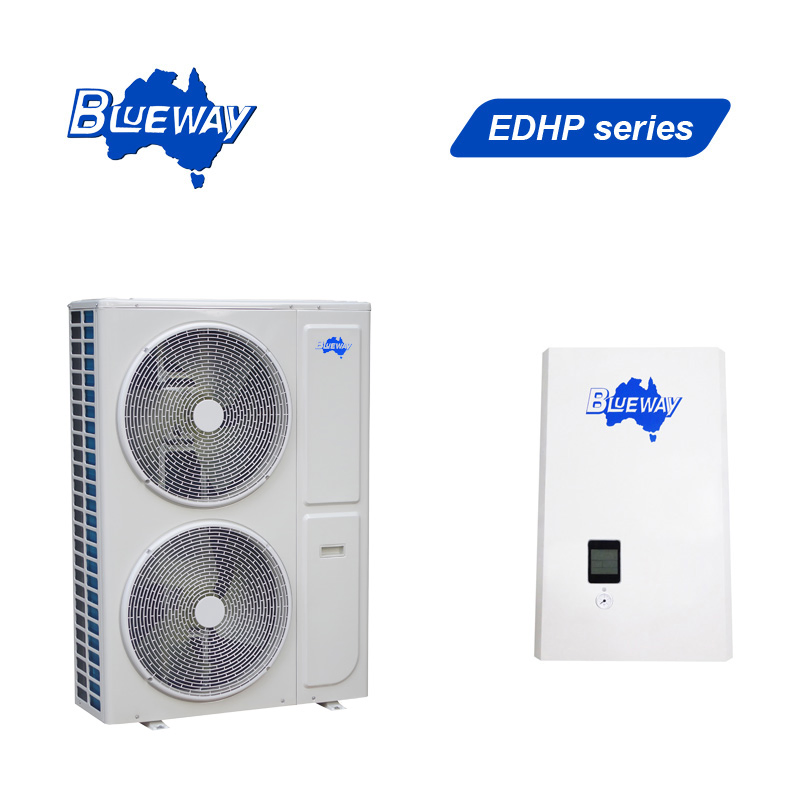

R32 or R410a DC Inverter Heat Pump (ErP A++, ErP A+++) features EVI compressor technology and full inverter capabilities for extremely cold climates and high outlet water temperatures. Designed for heating, cooling, and domestic hot water (DHW) for residences, apartments, and light industrial sites. It integrates seamlessly with solar systems, boilers, or electric heaters. The advanced intelligent defrost function allows efficient operation down to -35ºC.

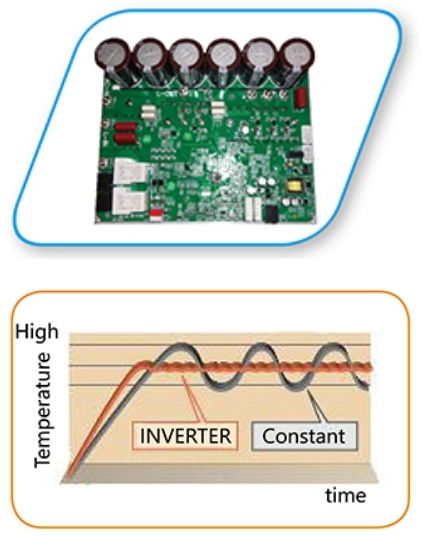

Advanced mature control system with DC inverter technology for accurate temperature management and multi-protection.

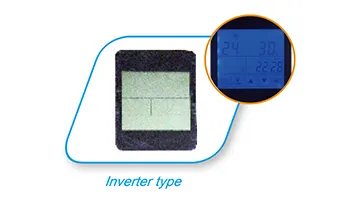

Micro-processor based digital controller with LCD touch display providing maximum system protection.

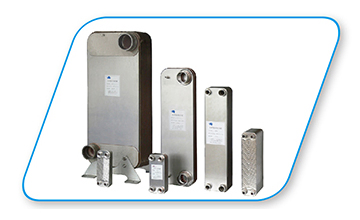

High corrosion resistance and high thermal efficiency plate heat exchanger for stable performance.

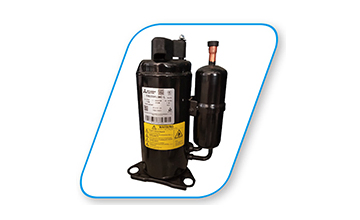

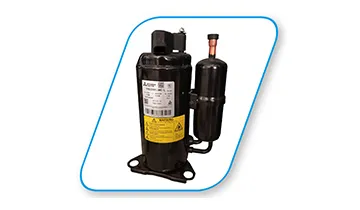

Utilizing high-efficiency rotary or scroll compressors for quiet operation and long service life.

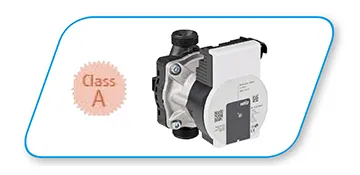

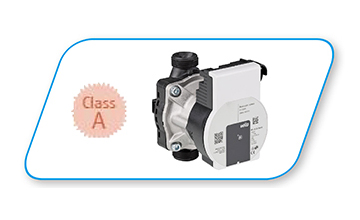

Energy-saving pump with pressure adjustment. Wilo or Shinhoo brands are optional.

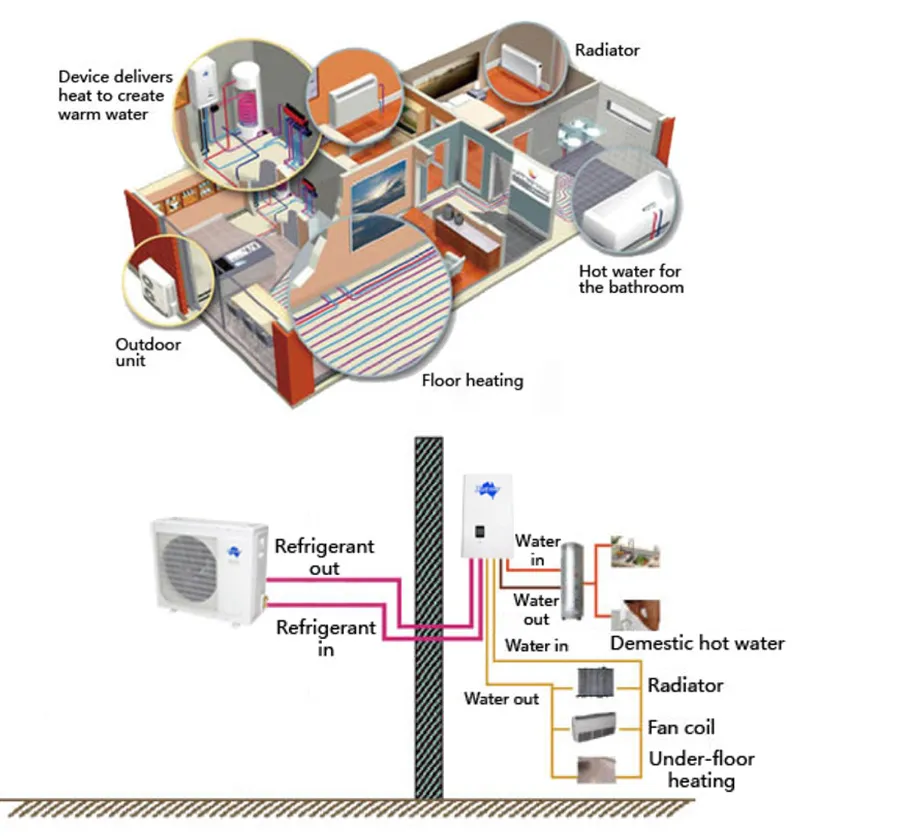

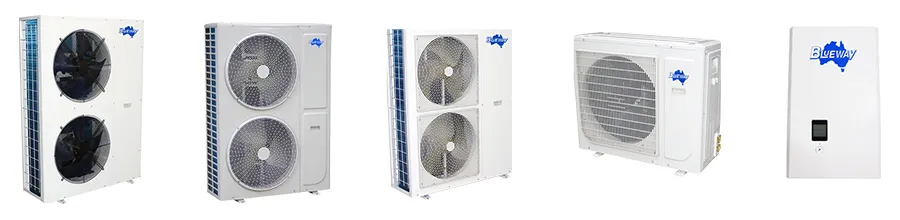

Split Type System:

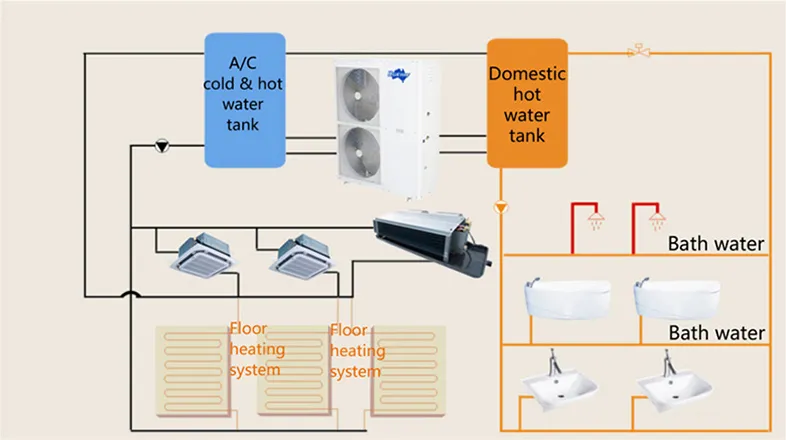

Monoblock Type System:
| DC Inverter Heat Pump (Split Type) | |||||
|---|---|---|---|---|---|
| Model | EDHP-09S | EDHP-14S | EDHP-16S | EDHP-24S | EDHP-30S |
| HP | 3 | 5 | 6 | 8 | 10 |
| Heating Cap (+7°C/35°C) | 9 kW | 14 kW | 16 kW | 24 kW | 30 kW |
| COP | 4.5 | 4.6 | 4.56 | 4.45 | 4.1 |
| Refrigerant | R32 / R410a | ||||
| Energy Class | A++ | A++ | A++ | A++ | A+ |
