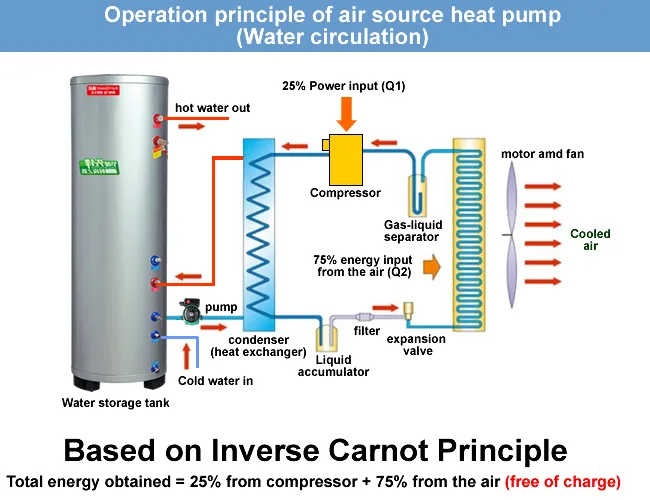

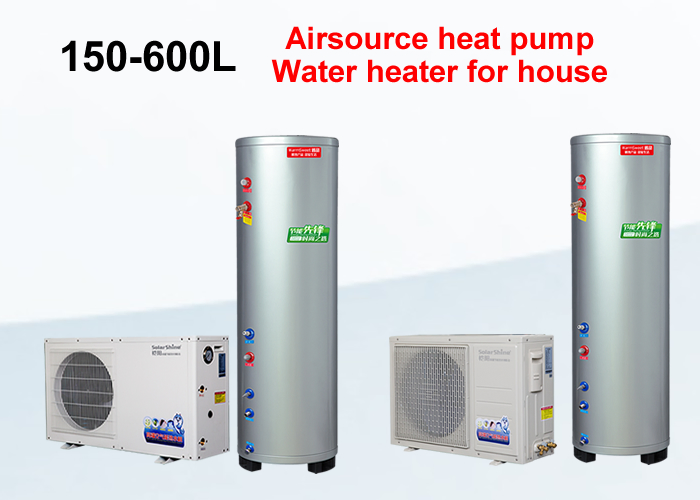

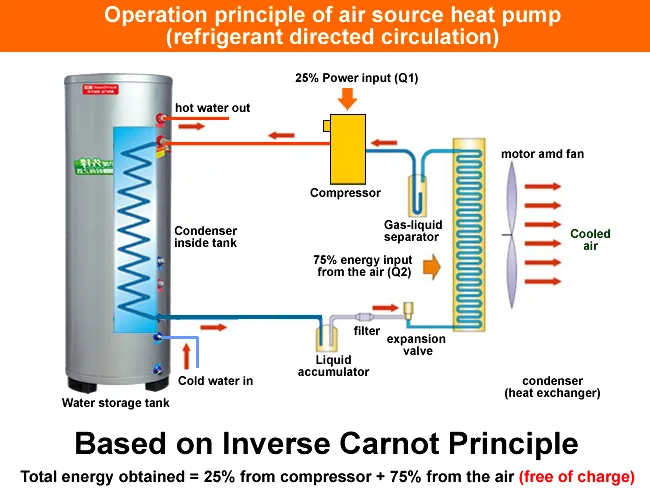

Air Source Heat Pump Water Heater for residential applications is a green energy product based on the Inverse Carnot Principle. It is powered by a compressor with approximately 25% energy consumption and obtains the remaining 75% of heat energy from the air through the process of refrigerant evaporation. Its working efficiency can reach a maximum of more than 400%, saving 70% energy consumption compared to traditional electric heaters. This product is highly suitable for warm climate regions such as Southeast Asia, South China, and the Middle East.
Save average 70% heating cost than electric heaters.
Easy installation and acquaintance.
Low noise rotary compressor and fan for extremely quiet operation.
Full automatic and intelligent controller, no manual operation needed.
| Specification details and technical parameters | ||||||||

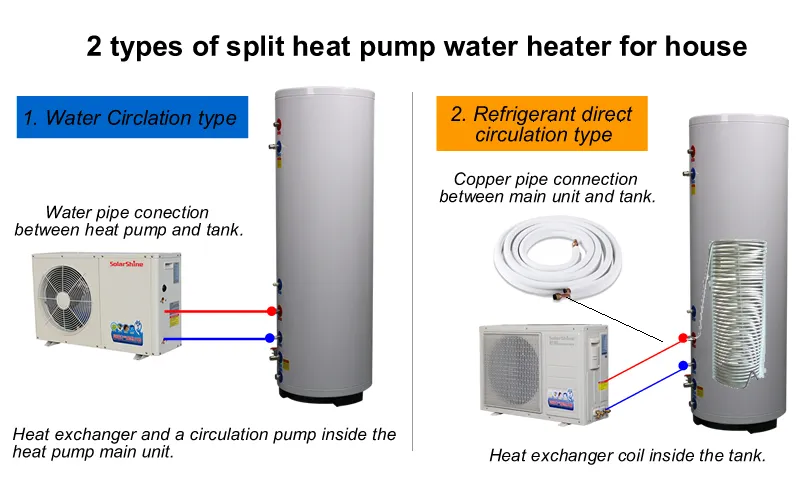

| Product type | Water circulation type air source heat pump water heater (Pressurized) | |||||||
| MODEL | S-150L-1HP | S-200L-1HP | S-250L-1.5HP | S-300L-1.5HP | S-400L-2HP | S-500L-2HP | ||
| Tank Volume | 150 Liters | 200 Liters | 250 Liters | 300 Liters | 400 Liters | 500 Liters | ||
| Tank Size(MM) | Φ470*1545 | Φ520*1545 | Φ560*1625 | Φ560*1915 | Φ700*1625 | Φ700*1915 | ||
| Inner Cylinder | SUS304/1.0mm | SUS304/1.2mm | SUS304/1.5mm | SUS304/1.5mm | SUS304/1.5mm | SUS304/1.5mm | ||
| Insulation | 50mm high density polyurethane | |||||||
| Power (HP) | 1Hp | 1Hp | 1.5Hp | 1.5Hp | 2Hp | 2Hp | ||
| Heating Capacity | 3.5KW | 3.5KW | 4.73KW | 4.73KW | 4.73KW | 6.5KW | ||
| Refrigerant | R410A/R407C (Environmental refrigerant) | |||||||
A: It uses the Inverse Carnot Principle to absorb 75% of its heat from the ambient air, requiring only 25% electricity to drive the compressor, resulting in over 400% efficiency.
A: The inner cylinder is made of high-quality SUS304 stainless steel with thicknesses ranging from 1.0mm to 1.5mm for durability and corrosion resistance.
A: No, the water circulation design is engineered for easy installation and is user-friendly for residential applications.
A: Yes, it features a high-efficiency, low-noise rotary compressor and fan, ensuring the main unit works under extremely quiet conditions.
A: It is ideal for warm climate regions such as Southeast Asia, the Middle East, and Southern China where air temperatures are consistently favorable.
A: No, the system is equipped with a full automatic and intelligent controller, eliminating the need for daily manual adjustments.
