Basic Specifications
Heating Type
Circulating Heat
Application
Villa, Hotels, Factory, Hospital, Apartments

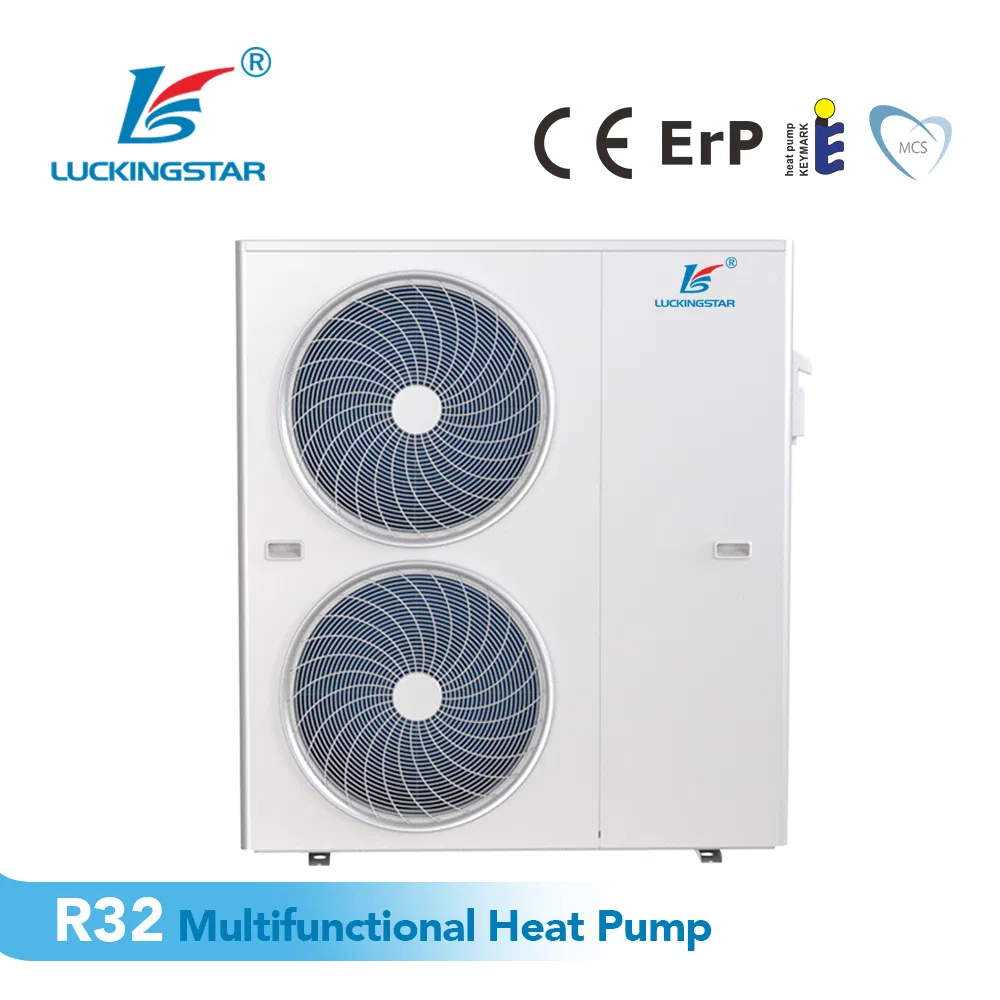

Certification
CE, Keymark, ERP, MCS
Heating Capacity
15kw, 18kw, 22kw, 25kw
Function
Heating + Cooling + Domestic Hot Water
Power Supply
220-240V/1Ph or 380-415V/3Ph
Operating Language
Multi-language Support (EN, PL, DE, TR, etc.)
Packaging & Logistics
Package Size
140.00cm * 54.00cm * 155.00cm
Production Capacity
5000 Sets Per Month

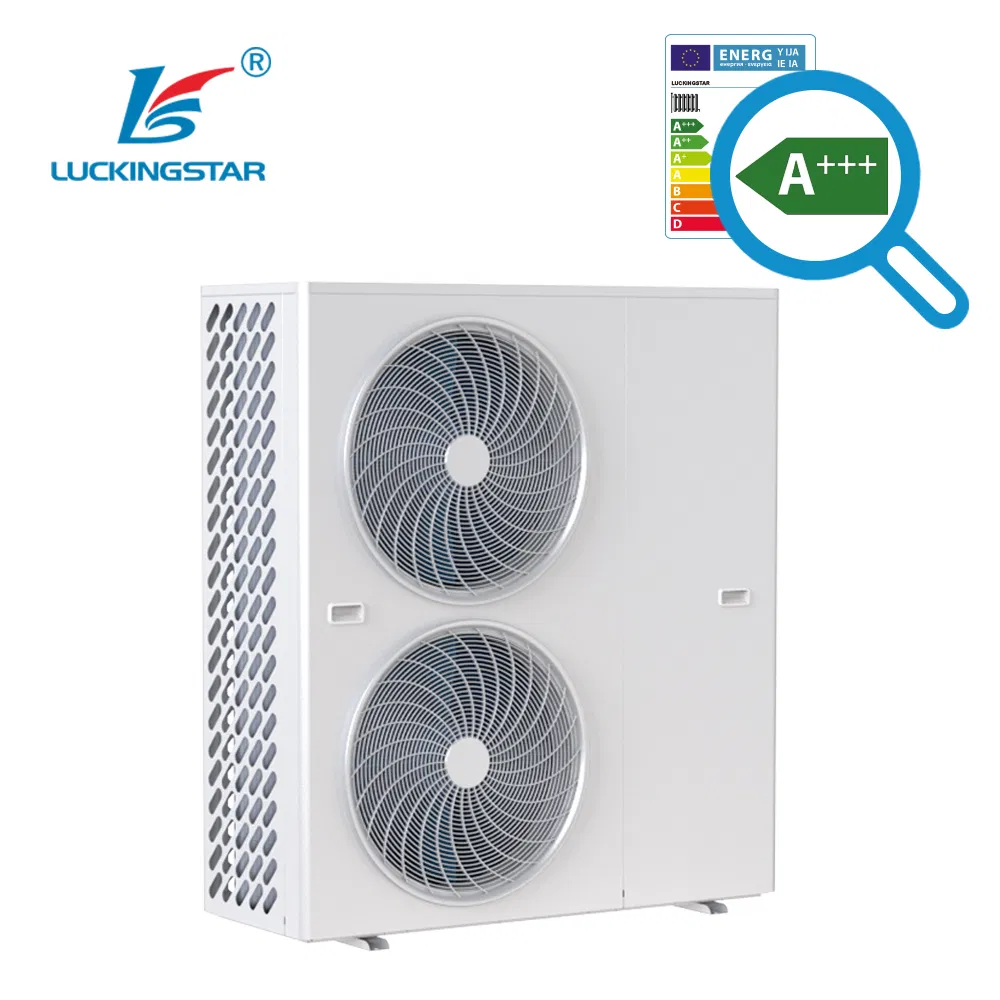

Product Overview
Key Advantages
01
EFFICIENT AND ENERGY-SAVING: Saves about 75% energy compared to traditional electric or gas heating.
02
ENVIRONMENTALLY FRIENDLY: Operates without emitting toxic gases such as CO and CO2.
03
SAFE AND RELIABLE: Eliminates risks of electric leakage, explosion, or poisoning.
Core Technology & Components
1. R32 Low GWP Refrigerant
R32 has a much lower global warming potential than R-410A, helping speed up popularity in the eco-friendly heat pump industry.
2. Multiple Operating Modes
- Heating Only / Cooling Only
- Domestic Hot Water (DHW) Only
- Heating + DHW (Priority)
- Cooling + DHW (Priority)
- AUTO Mode

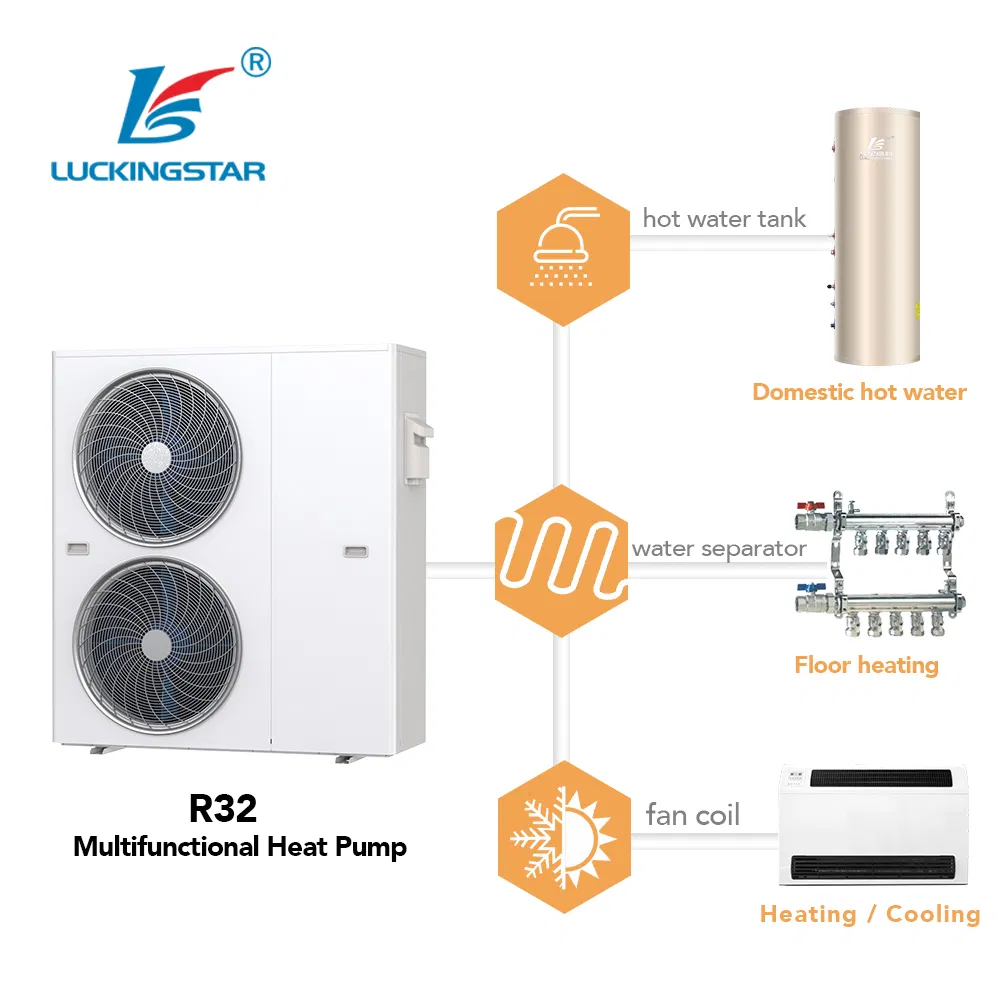

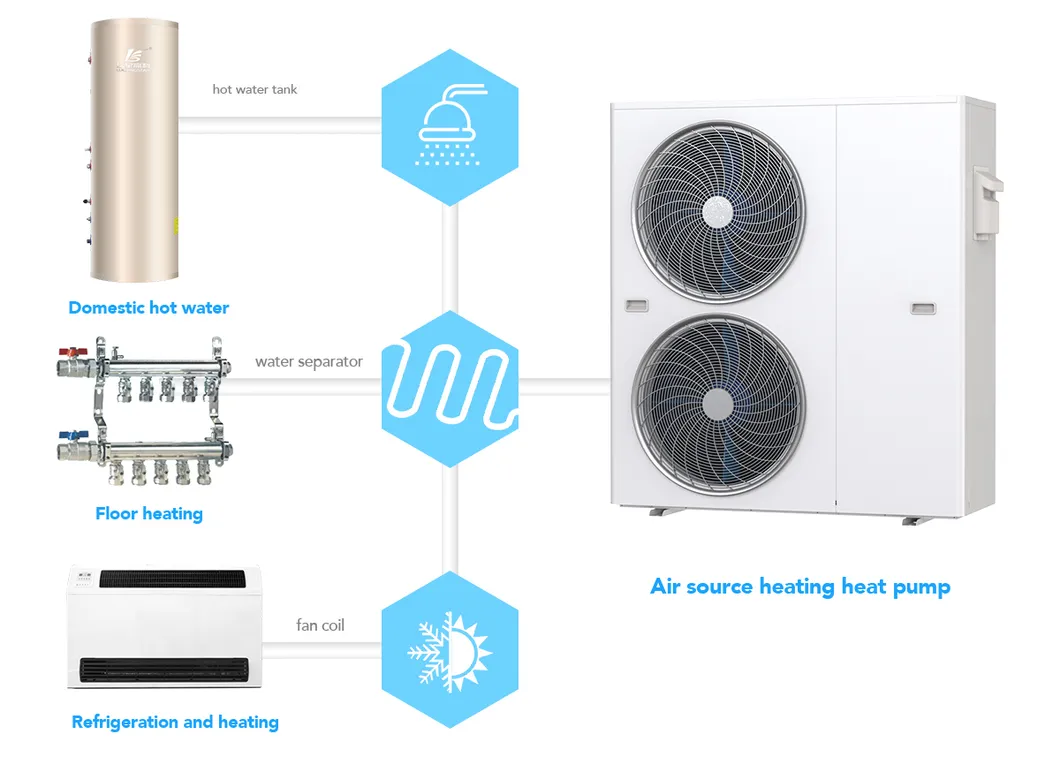

3. Integrated All-in-One System

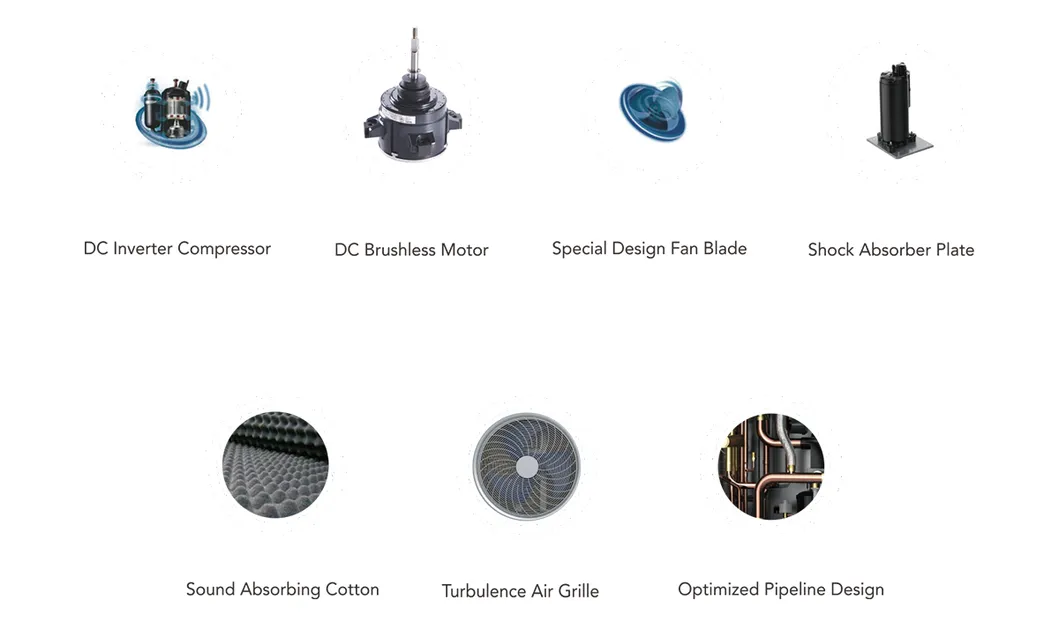

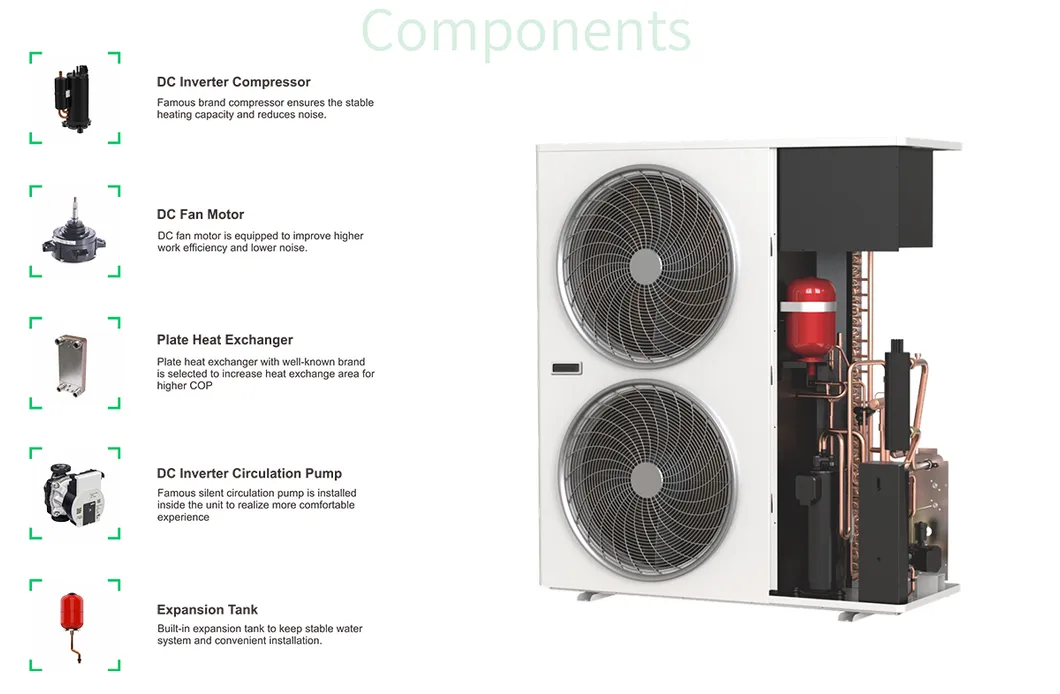

4. High-Performance Core Components
# High-Efficiency Fin Heat Exchanger: Hydrophilic coated gold foil for superior drainage and salt spray resistance.
# Plate Heat Exchanger: Fluorine and water countercurrent exchange for optimized thermal transfer.
# Brushless DC Inverter Motor: Stepless frequency conversion, low noise, and low power consumption.
# SHIMGE DC Inverter Water Pump: Small size, high flow, and long service life with no leakage risk.

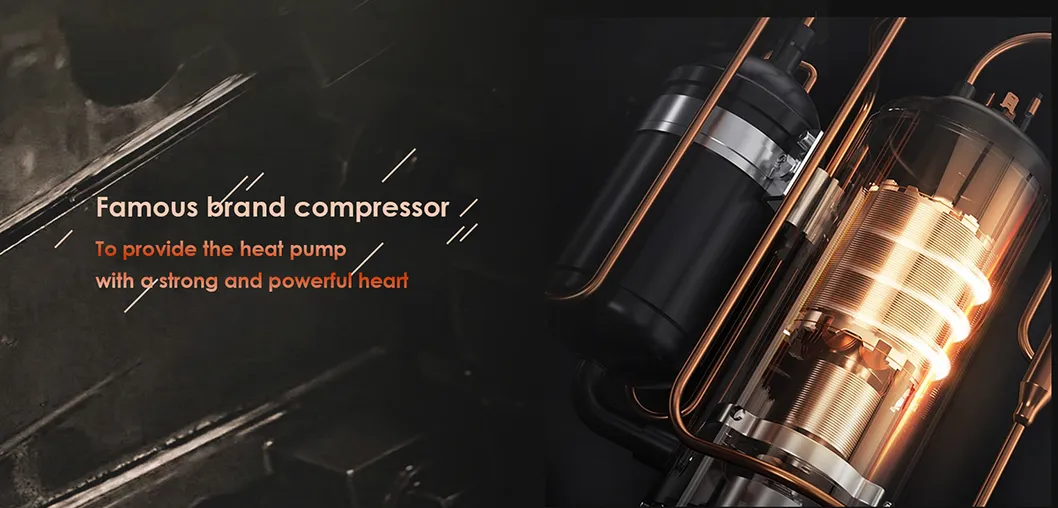

# Highly DC Inverter Compressor: Increases capacity by 10-30% in ultra-low temperatures.
Advanced Performance

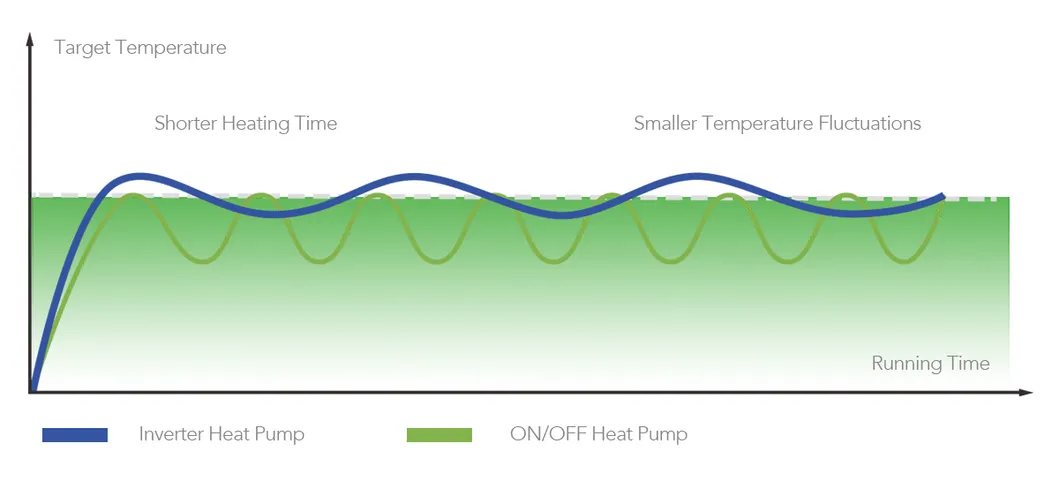

Inverter & EVI Technology
The EVI compressor allows gas re-injection for higher output temperatures even at -30°C. Stable water temperature control ensures minimal fluctuations.

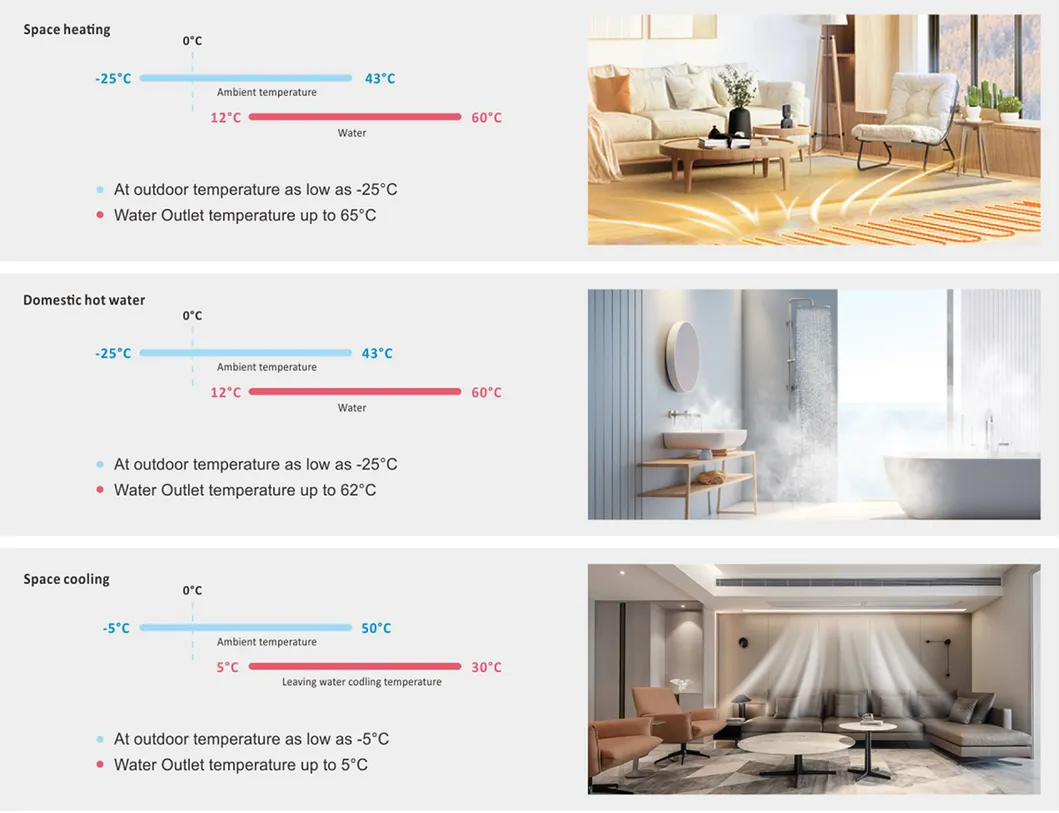

Wide Operation Range
Heating: -25~43°C | Cooling: -5~50°C | DHW: -25~43°C. Leaving water temperature up to 60°C.

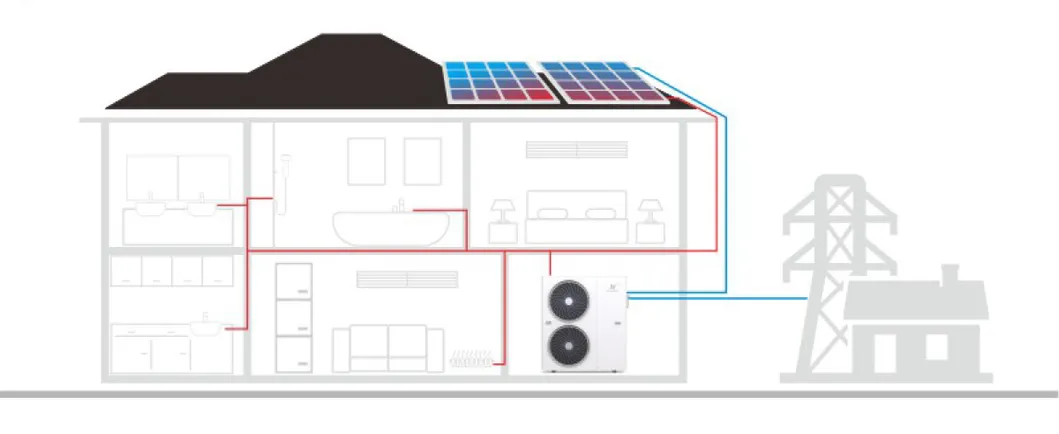

Smart Grid & PV Ready
Linkage control with photovoltaic and smart grid signals to optimize energy costs during peak/off-peak pricing.

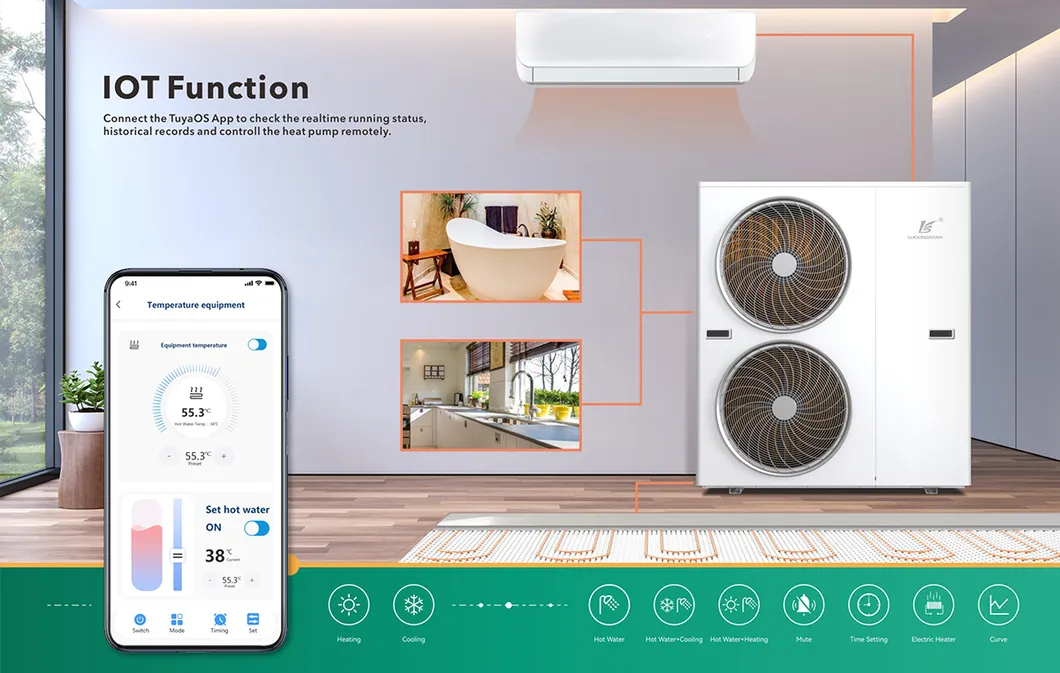

IOT & Smart Home Control
Manage your heat pump via App: adjust temperature, switch modes, set timers, and monitor power consumption anywhere.

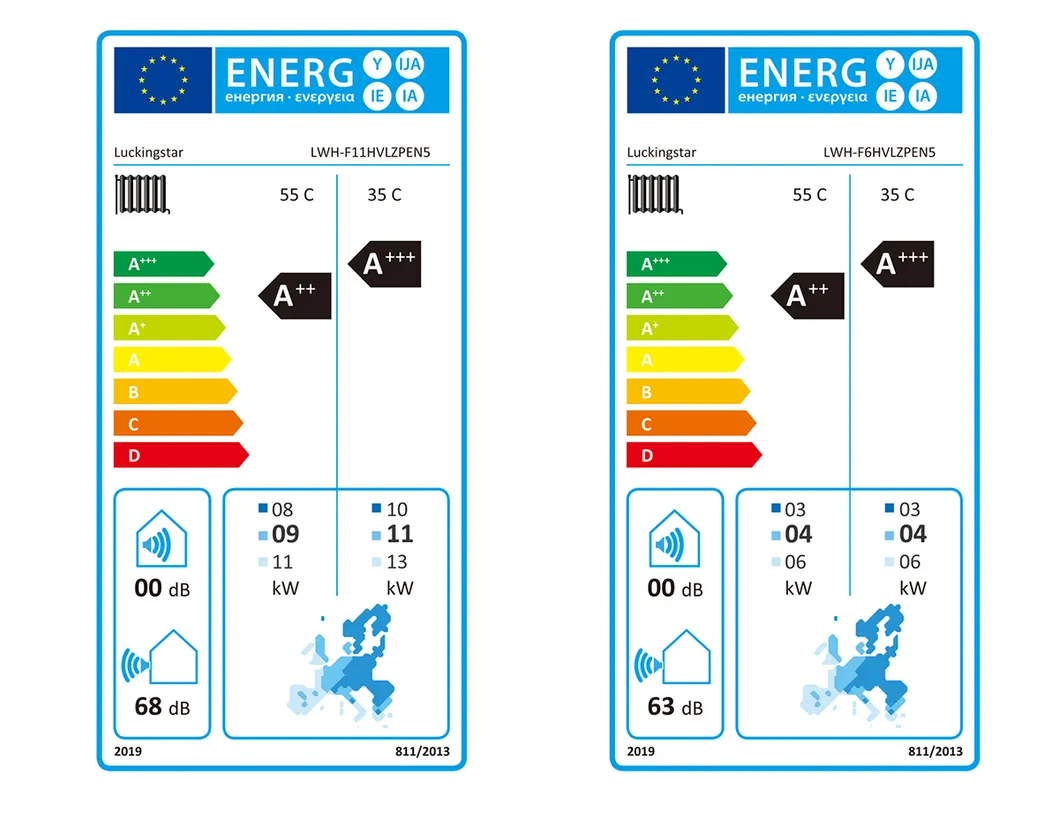

Certifications & Quality

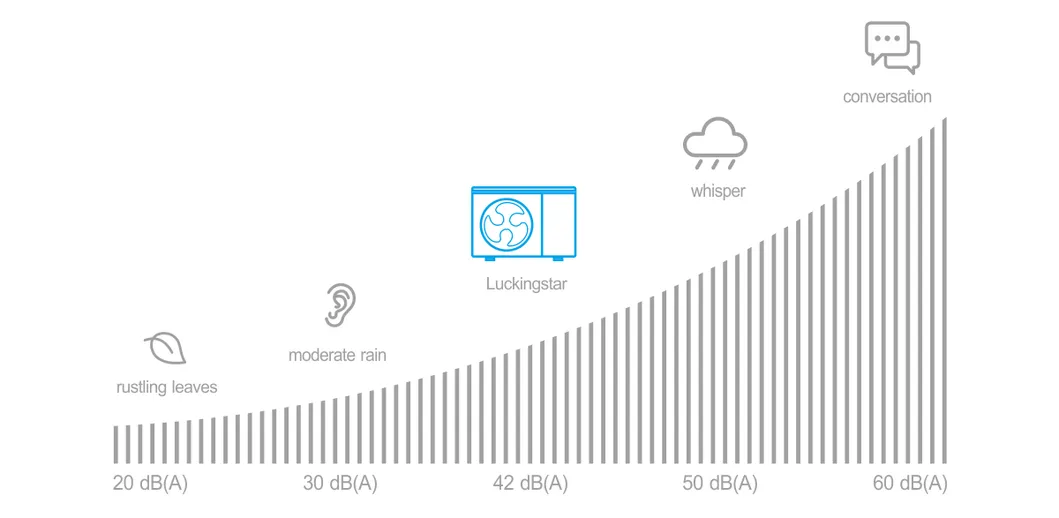

Intelligent Defrost & Quiet Operation
Built-in automatic defrosting reverse valve ensures stability at -35°C. Multiple noise reduction layers provide a peaceful sleeping environment.
Manufacturing Excellence
Frequently Asked Questions
Q: What is the lowest operating temperature for this heat pump?
A: The unit features EVI technology and an intelligent defrost system, allowing it to operate stably in ambient temperatures as low as -30°C to -35°C.
Q: Can this system handle floor heating and hot water simultaneously?
A: Yes, it supports multiple modes including Heating + DHW and Cooling + DHW, providing space climate control and domestic hot water throughout the year.
Q: Is the unit compatible with Solar PV systems?
A: Yes, the system is PV-ready and Smart Grid (SG-ready), allowing it to adjust operation based on electrical signals to maximize energy savings.
Q: What kind of warranty is provided for the components?
A: We provide 24 months for complete units and 36 months for main components like compressors and heat exchangers. Extended warranties are also available.
Q: Can I control the temperature for different floors independently?
A: Yes, the Dual Zone Water Temp function allows you to set up temperatures independently for two different zones, such as underfloor heating downstairs and radiators upstairs.
Q: Does the App support remote monitoring?
A: Absolutely. The smart IOT function allows for remote OTA updates, mode switching, temperature adjustment, and monitoring of power consumption via your smartphone.
