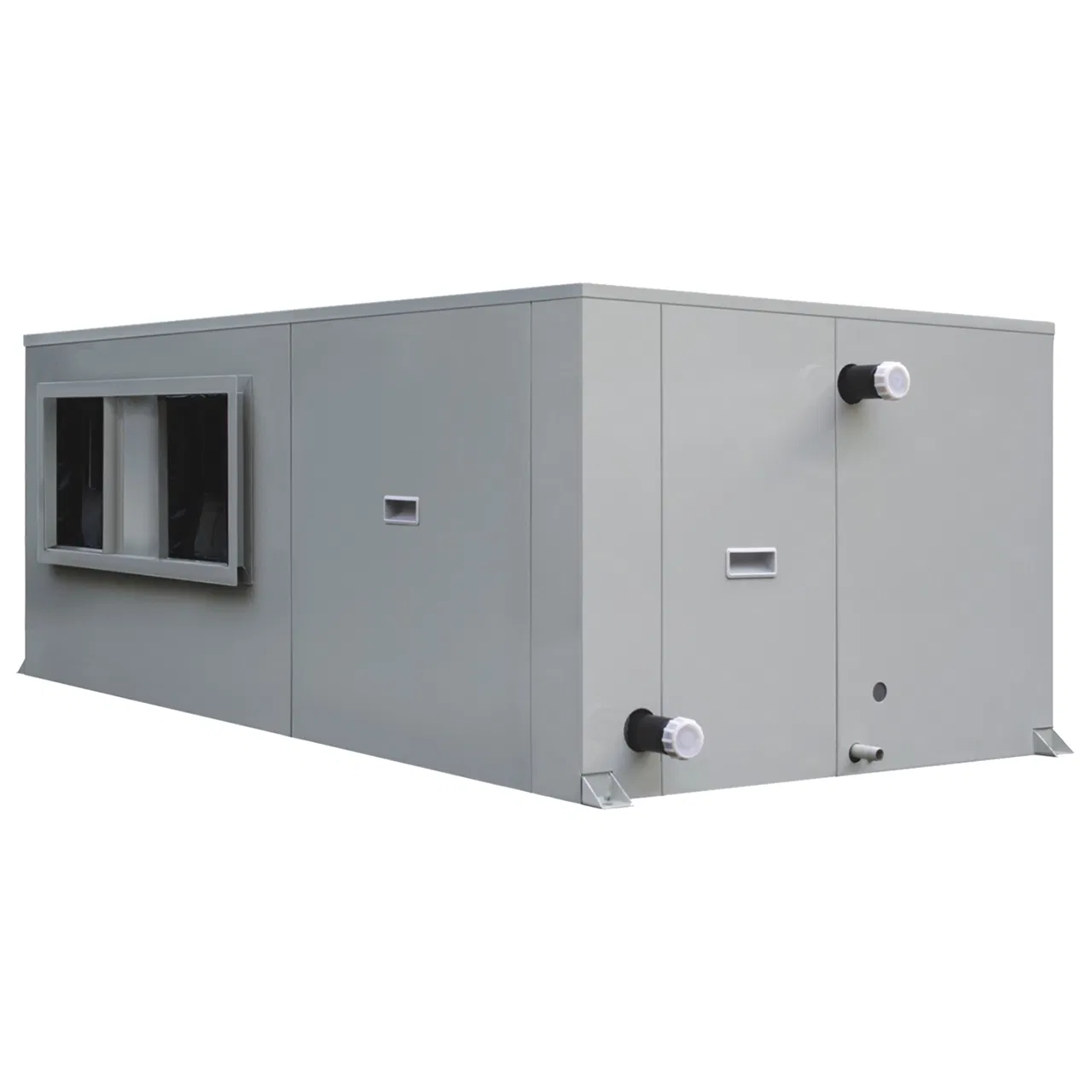

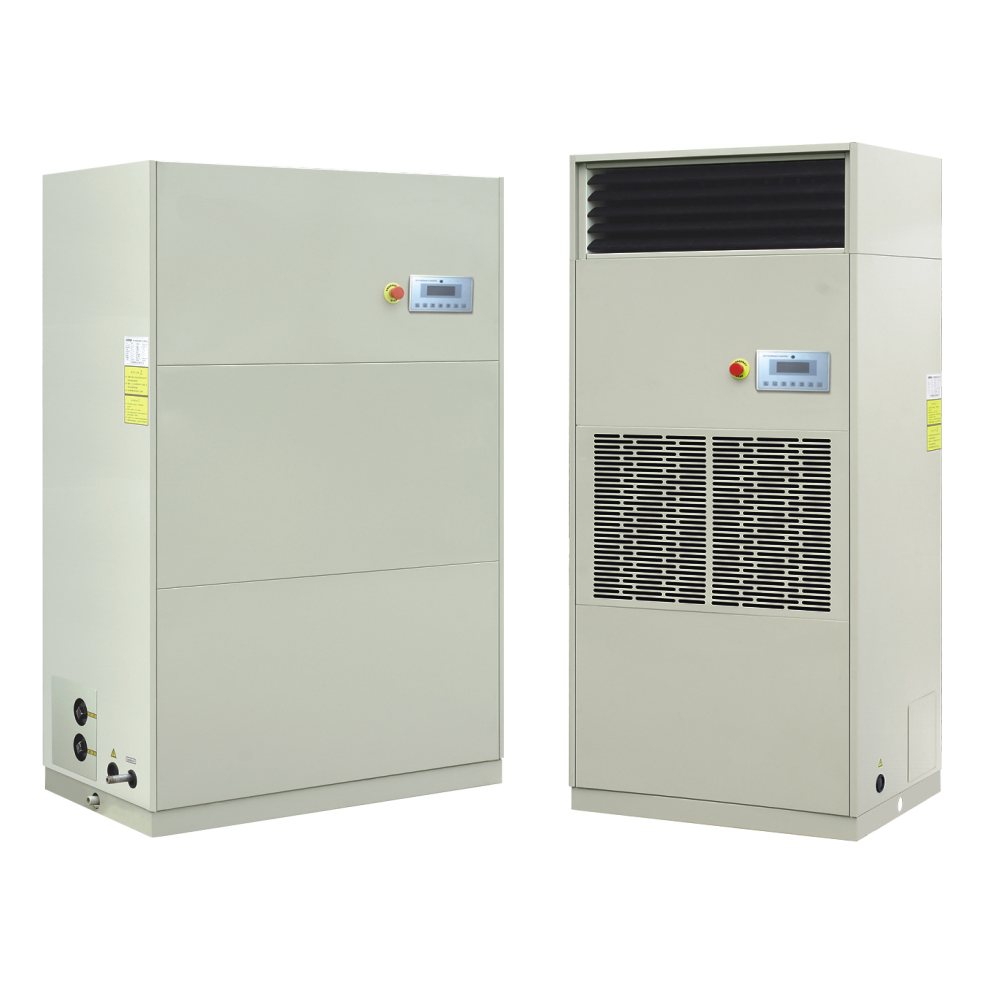

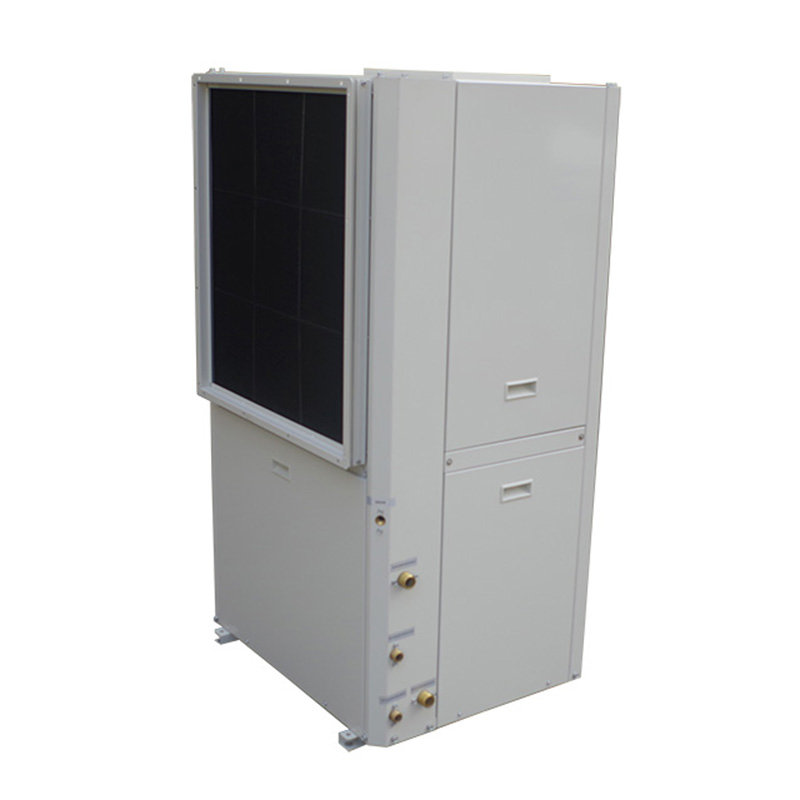

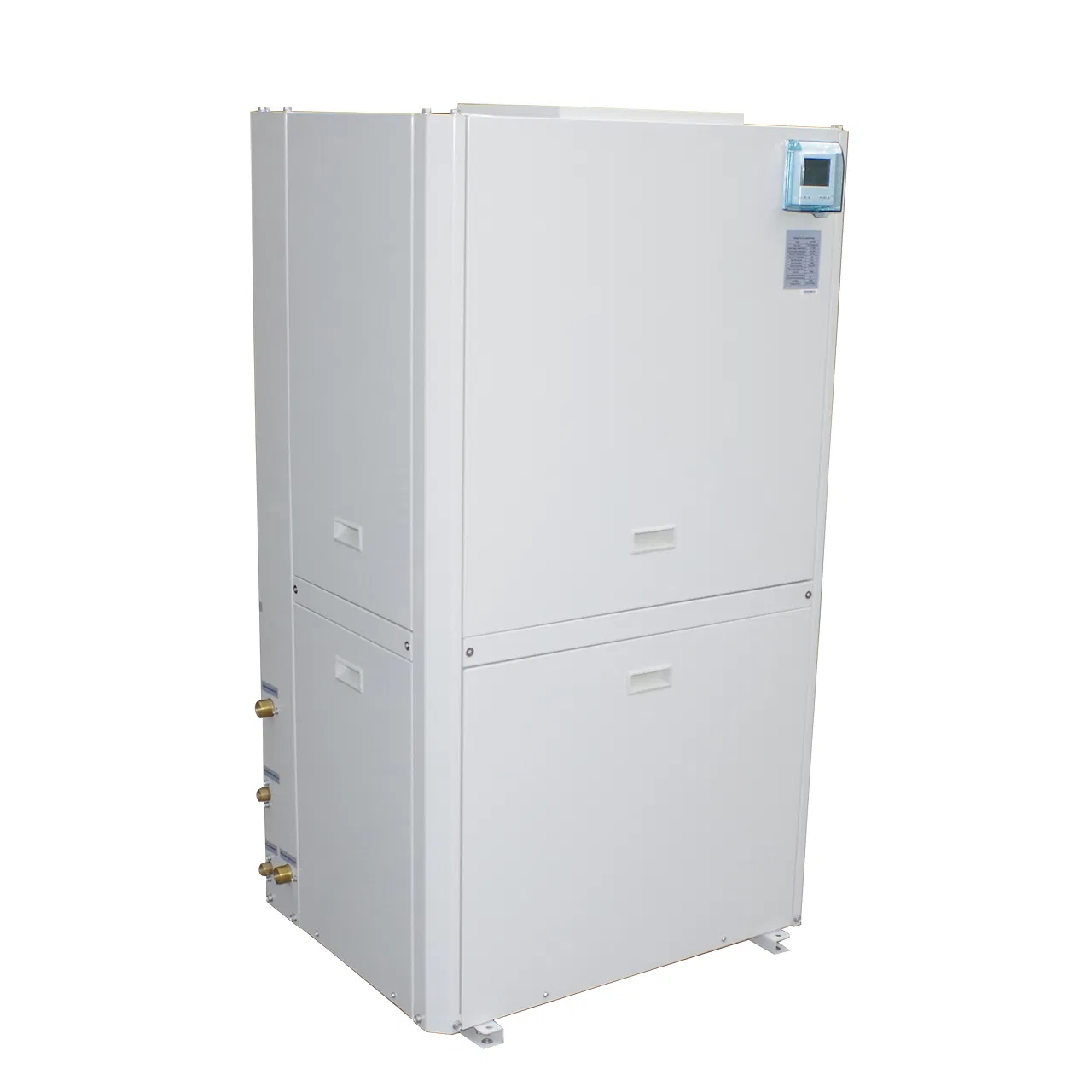

4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
1 / 5
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit
4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit

4-5-6tr Ton 72000btuh/21kw Duct Type Packaged Ground Water Source Geothermal Heat Pump for Replacing Carrier Unit

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📑 Basic Specifications
Model NO. GHP-006V
Option Inverter Compressor
Installation Floor Standing, Ceiling Mounted
Heat Exchanger Anti-Corrosion Optional
Heat Pump Geothermal, High COP
Blower Motor Optional Inverter, EC
🔍 Product Overview
Geothermal ground source heat pump, water to air packaged air conditioner.
Cooling & heating capabilities for indoor installation. Capacity ranges from 7kw to 36kw. Custom capacity, OEM, and ODM services are available.
💎 Key Features
  • Variable speed blower with EC motor technology
  • Advanced Microprocessor control system
  • Fully insulated cabinet with closed cell foam & Compressor blanket
  • Optional Anti-corrosion Cupronickel tube-in-tube heat exchanger
  • Thermal expansion valve (TXV) for optimized variable performance
  • Versatile installation: Vertical up-flow, down-flow, or horizontal
  • Full Inverter options (compressor, water pump, and blower motor)
  • Integrated Anti-freezing protection & Flow switch
  • Optional Touch screen HMI and Electric heater support
📸 Detailed Photos

Our water source heat pumps and air conditioners are manufactured strictly following CE standards to ensure quality and safety.

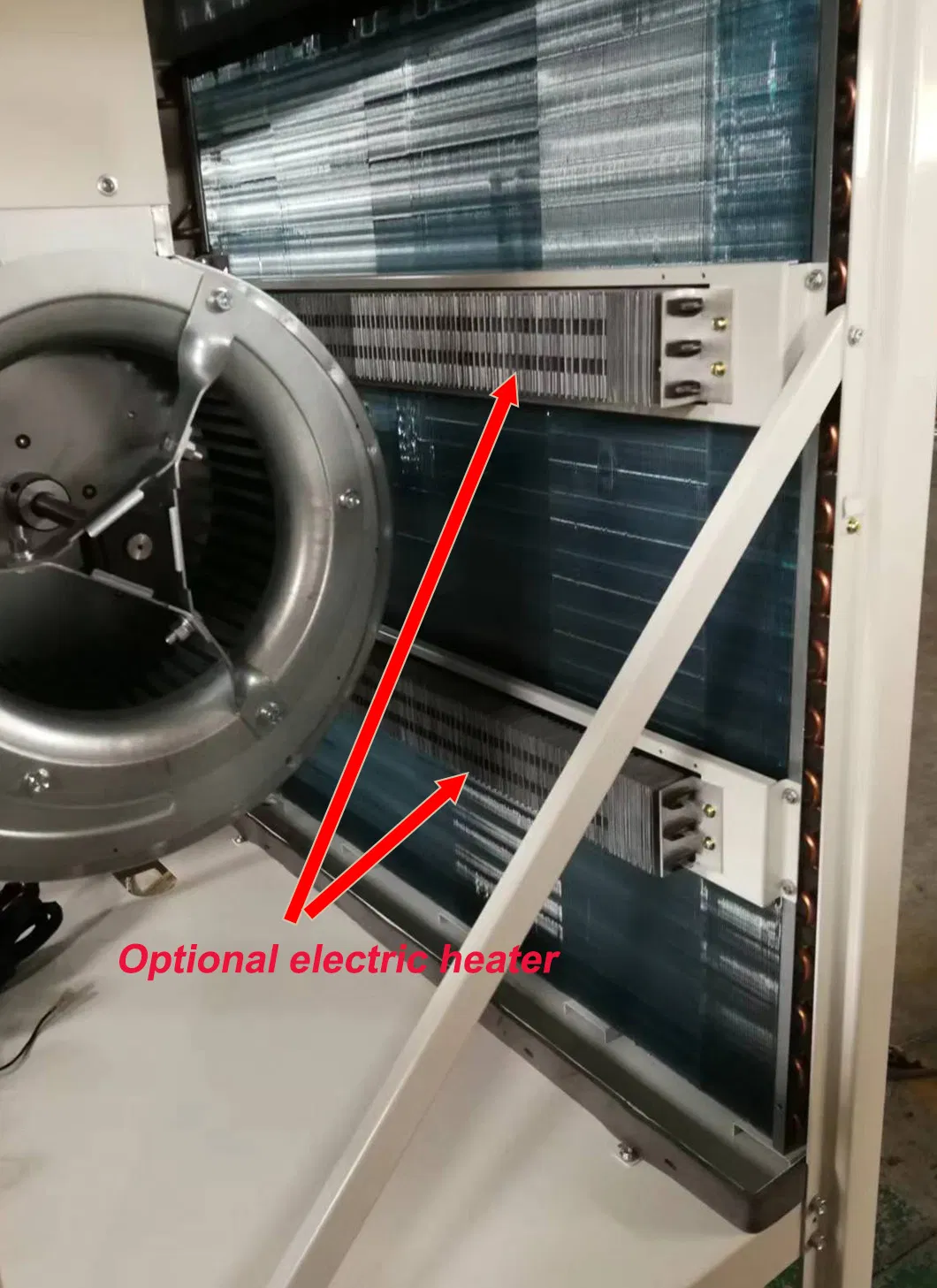

Geothermal Heat Pump View 1

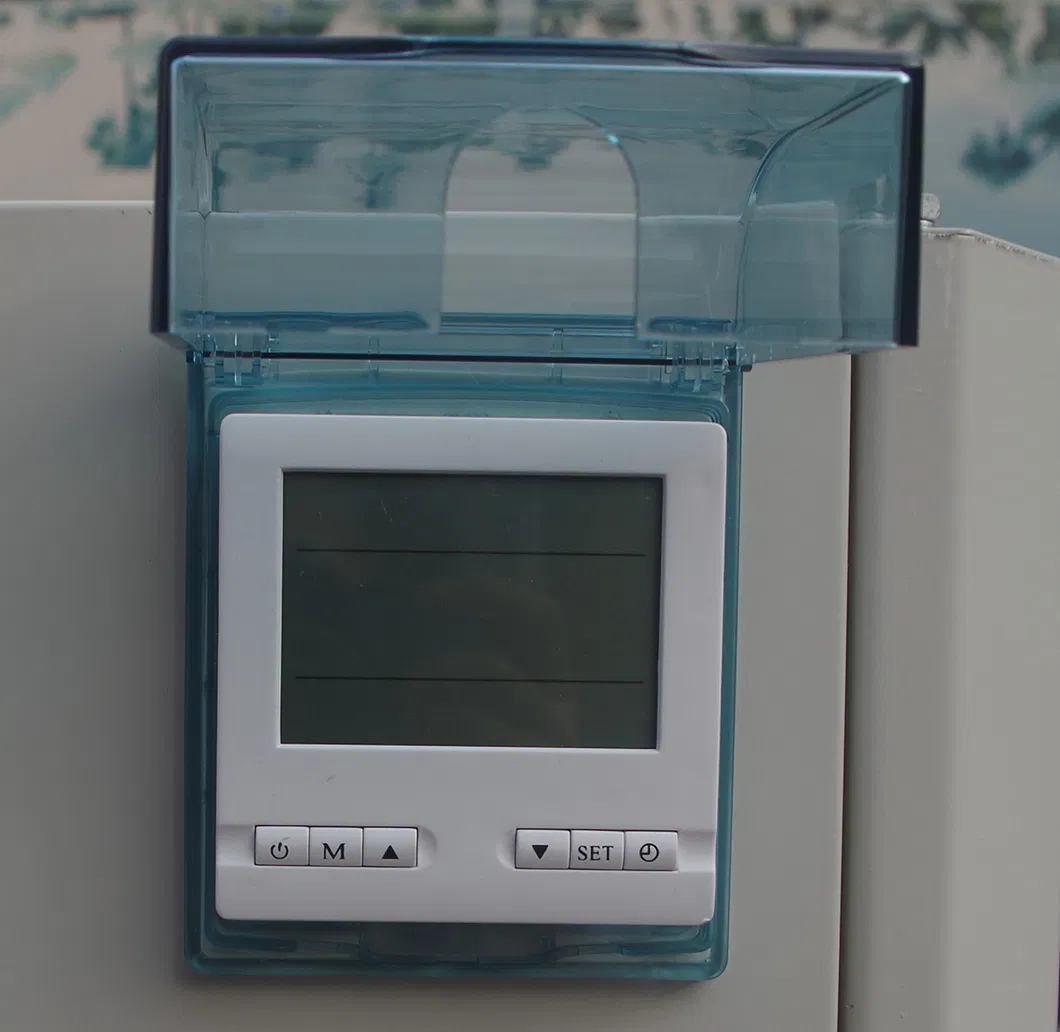

Geothermal Heat Pump View 2
📊 Technical Parameters

Cooling and heating capacity measured under standard conditions: Indoor DB 20ºC, Water Temperature 16ºC.

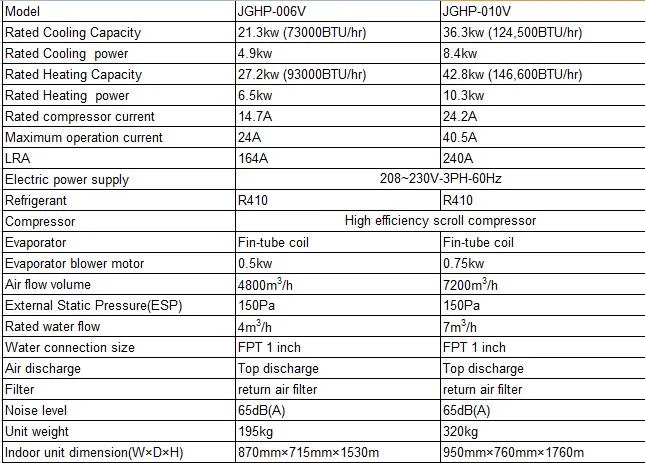

Product Parameter Table
🛠️ Installation & Support
Expert RHVAC engineers provide comprehensive technical support for installation, commissioning, and maintenance.

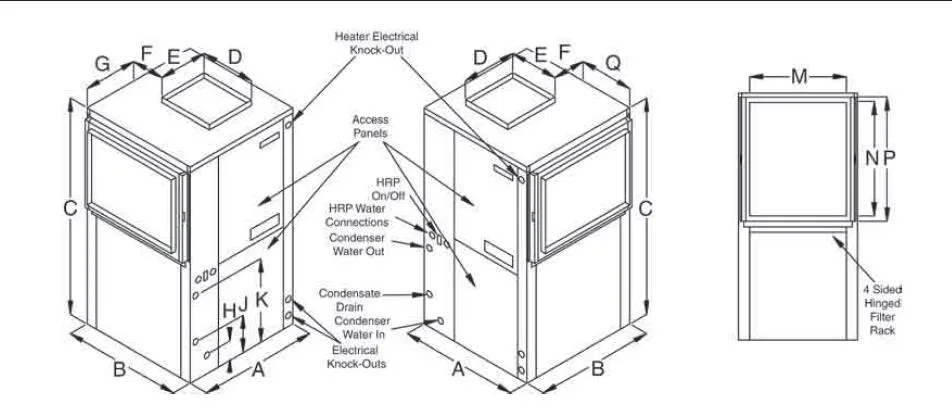

Installation Diagram 1

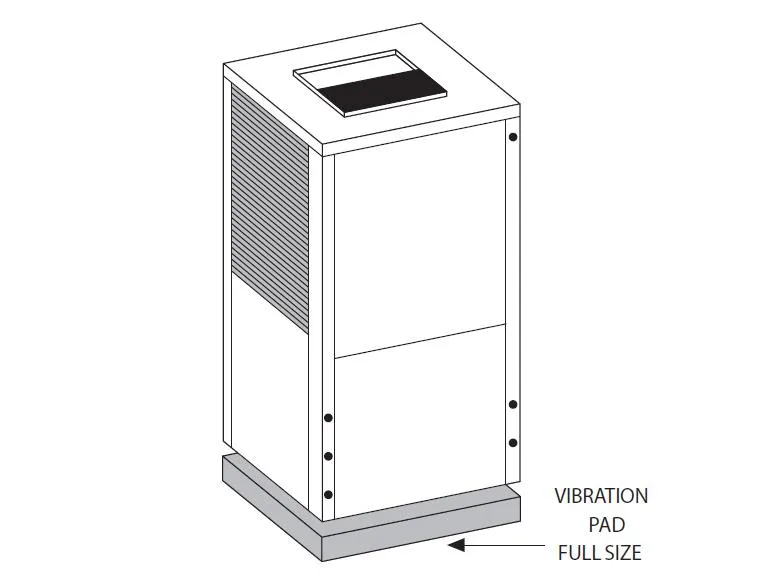

Installation Diagram 2
Installation Diagram 3
🌟 Manufacturing Excellence

As a dedicated RHVAC manufacturer with over 20 years of expertise, we specialize in delivering custom solutions tailored to specific project requirements.

Factory and Manufacturing
❓ Frequently Asked Questions
Q1: What is the cooling capacity range for these units? The units are available with standard cooling capacities from 7kw to 36kw, and we also offer custom capacity options to meet specific needs.
Q2: Can these heat pumps be used for both cooling and heating? Yes, these geothermal ground source heat pumps are designed for both cooling and heating applications, making them a versatile year-round solution.
Q3: Are there energy-efficient motor options available? Absolutely. Our units come with variable speed blowers and EC motors. We also offer full inverter options for the compressor, water pump, and blower motor for maximum efficiency.
Q4: What installation orientations are supported? The units are highly flexible and can be configured for vertical up-flow, vertical down-flow, or horizontal installation.
Q5: Is the heat exchanger protected against corrosion? Yes, we offer an optional cupronickel tube-in-tube heat exchanger (water coil) specifically designed for anti-corrosion and longevity in demanding environments.
Q6: Do you provide technical support for international projects? Yes, we have professional RHVAC engineers who provide technical support for installation, machine commissioning, and ongoing maintenance globally.
