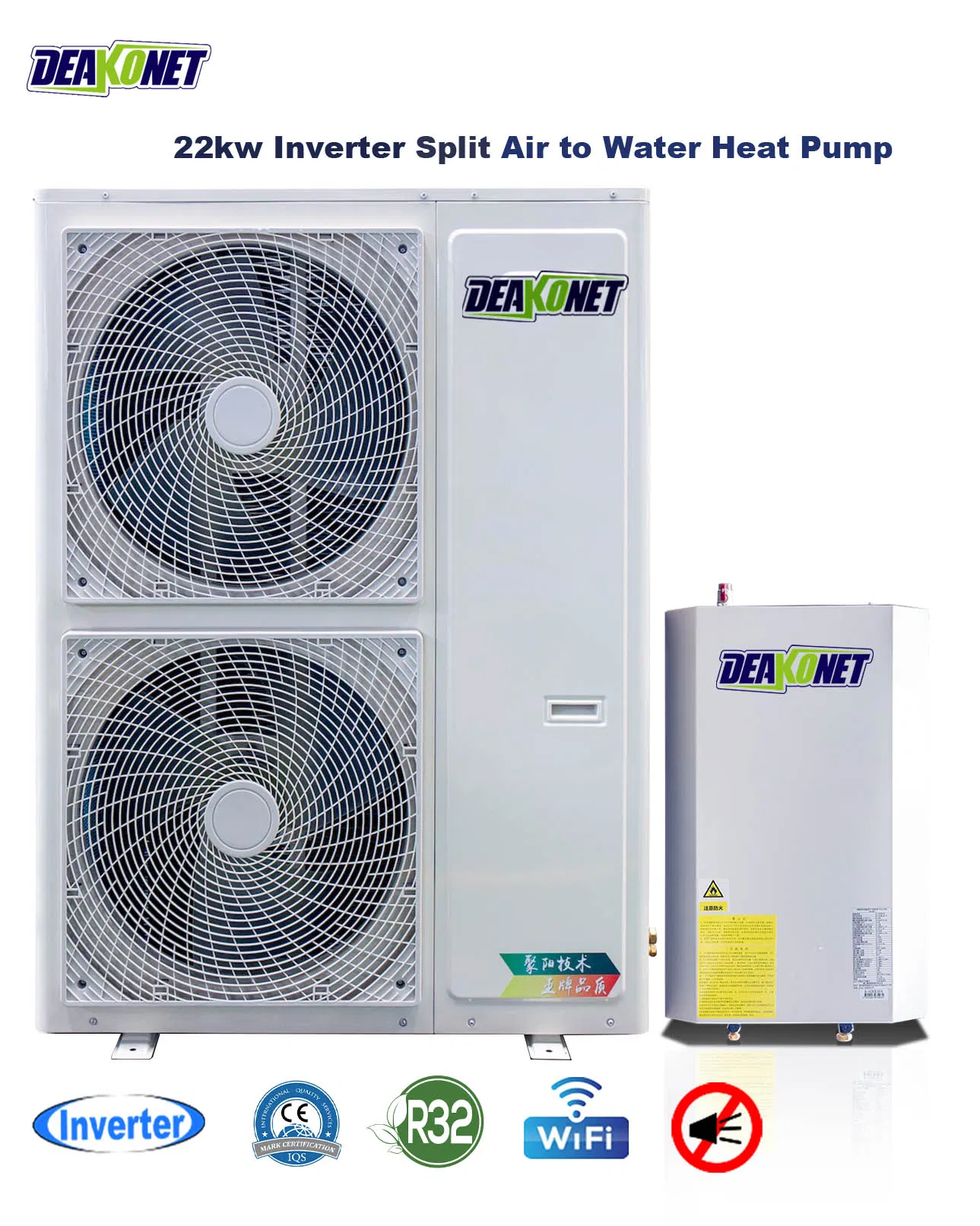

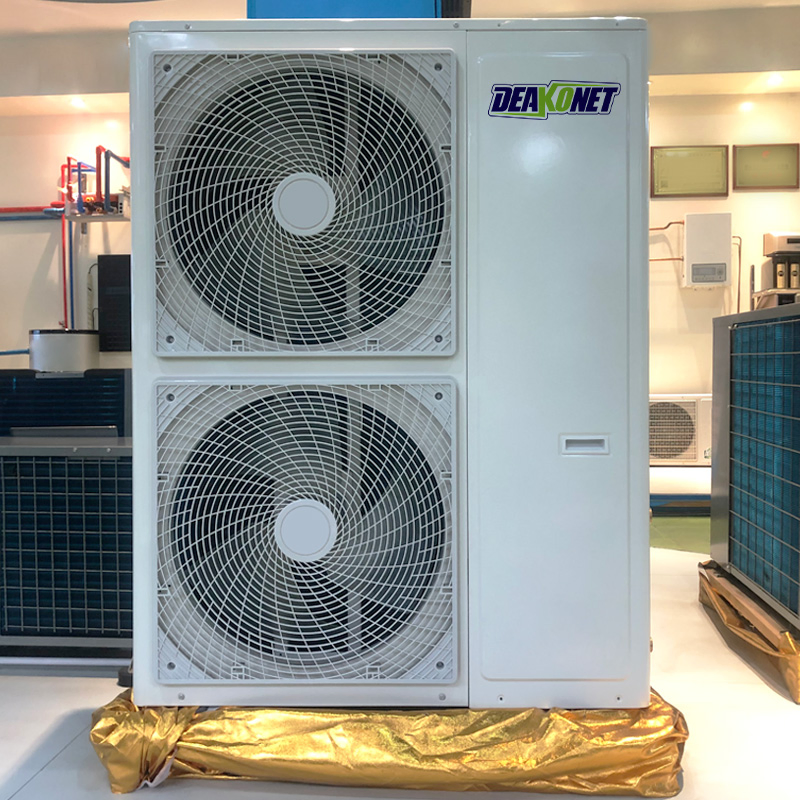

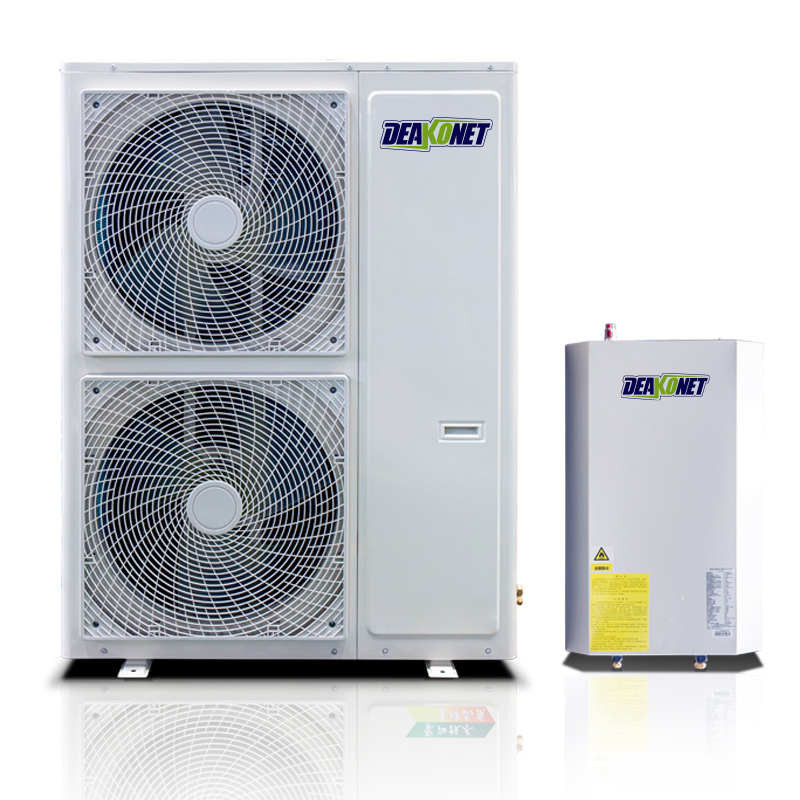

Deakonet 22kw DC Inverter Air to Water Heat Pump Split Type

Basic Information

Model NO.

A2 PRO--22KW

Heat Source Type

Air Source Heat Pump

Cop

4.3 (A7/W35c)

Function

House Heating Cooling and Hot Water

Control

Smartphone APP WiFi Control

Structure

Monoblock / Optional Split Type

Compressor

Hybrid Inverter & EVI Type

Refrigerant

R410A / R32

Package Size

120.00cm * 55.00cm * 160.00cm

Gross Weight

187.000kg

Product Description

The A1 Pro air source heat pumps absorb heat from the outside air. This heat can be efficiently used for radiators, underfloor heating systems, or warm air convectors and domestic hot water. Unlike ground source systems, this unit extracts heat from the ambient air similar to how a refrigerator extracts heat from its interior.

Equipped with Inverter and EVI technology, it operates reliably in temperatures as low as -25°C. With an optional solar panel integration, the working range can extend down to -35ºC. These heat pumps significantly reduce environmental impact by utilizing naturally renewed energy from the air.

Technical Parameters

Model Specification		A2 PRO-7	A2 PRO-12	A2 PRO-14	A2 PRO-22	A2 PRO-36
Heating Capacity (A7/W35ºC)	kW	7.5	12.0	14.4	22.1	37.1
COP	/	4.31	4.29	4.32	4.28	4.28
Cooling Capacity (A35/W12ºC)	kW	6.7	10.7	12.8	19.7	33.0
EER	/	3.79	3.78	3.80	3.77	3.77
Compressor Type	Twin rotor hybrid inverter EVI compressor

Key Features & Benefits

✔Simple installation - Water connections only

✔30 - 50% reduction in CO2 emissions

✔Advanced Inverter Technology for low running costs

✔Low noise operation - unobtrusive and quiet

✔No gas supply or ventilation required

✔Weather compensation built-in as standard

✔Suitable for apartments & houses

✔Antifreeze function - no need for glycol

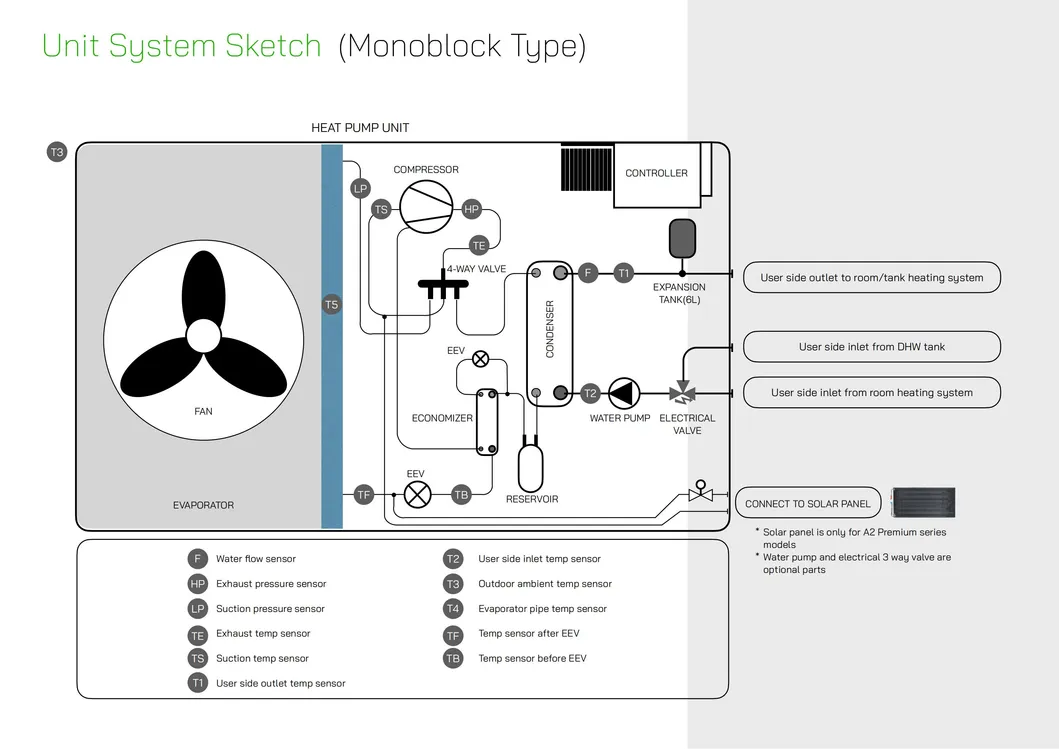

Working Principles & Details

Certifications & Quality

Packaging & Logistics

Frequently Asked Questions

How does an air source heat pump save energy?

It captures heat from the outside air and transfers it into your home. Since it moves heat rather than generating it from fuel, it can provide up to 4 times more energy than it consumes in electricity.

Can it work in extremely cold weather?

Yes, thanks to EVI (Enhanced Vapor Injection) technology, the unit operates efficiently down to -25°C. With optional solar support, it can reach -35ºC.

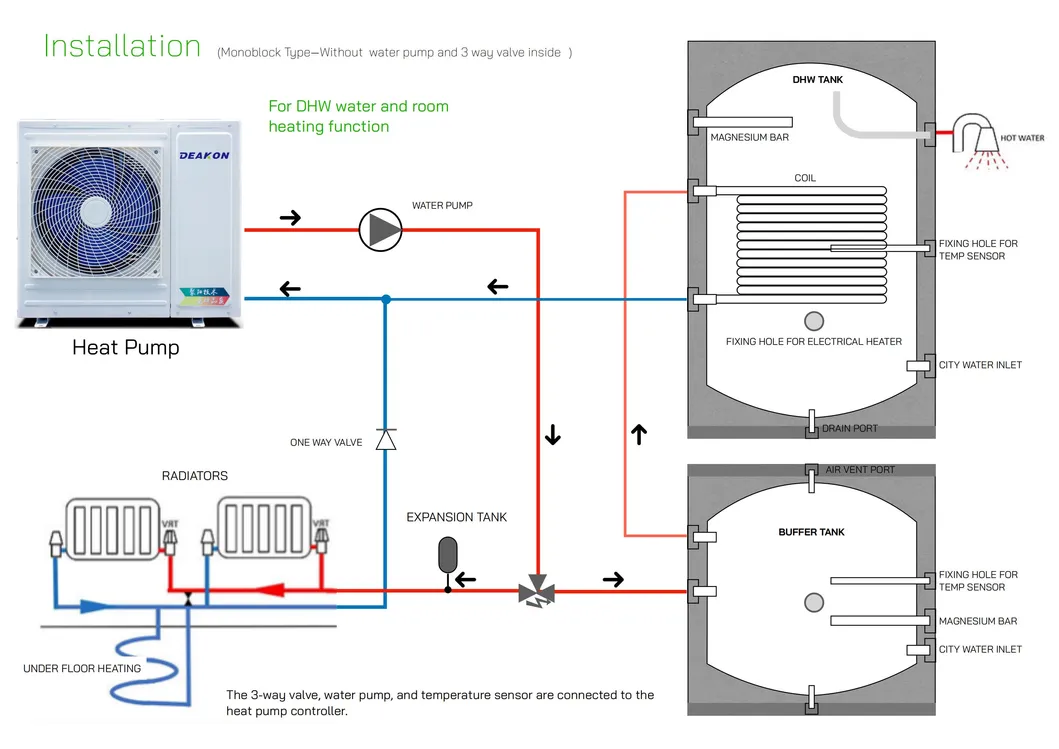

Is the system compatible with my current heating?

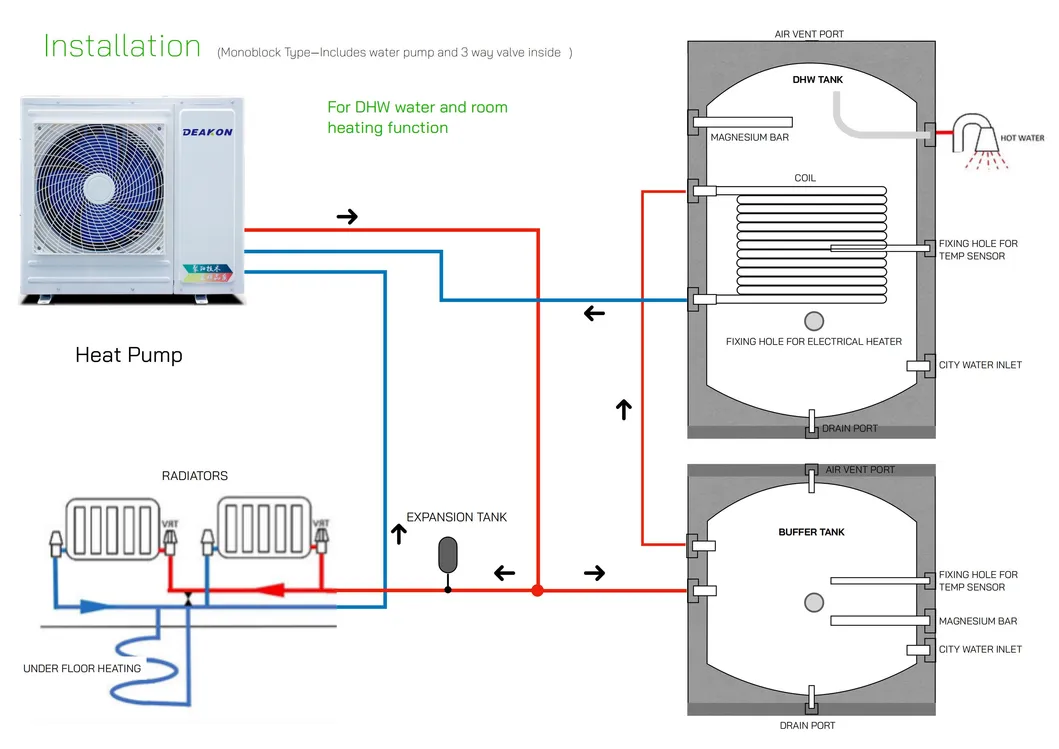

The system is highly flexible and can be connected to underfloor heating, low-temperature radiators, or fan coil units for both cooling and heating.

What is the expected maintenance for these units?

Air source heat pumps require very low maintenance compared to gas boilers. Regular checks of the air intake and water pressure are generally all that is needed.

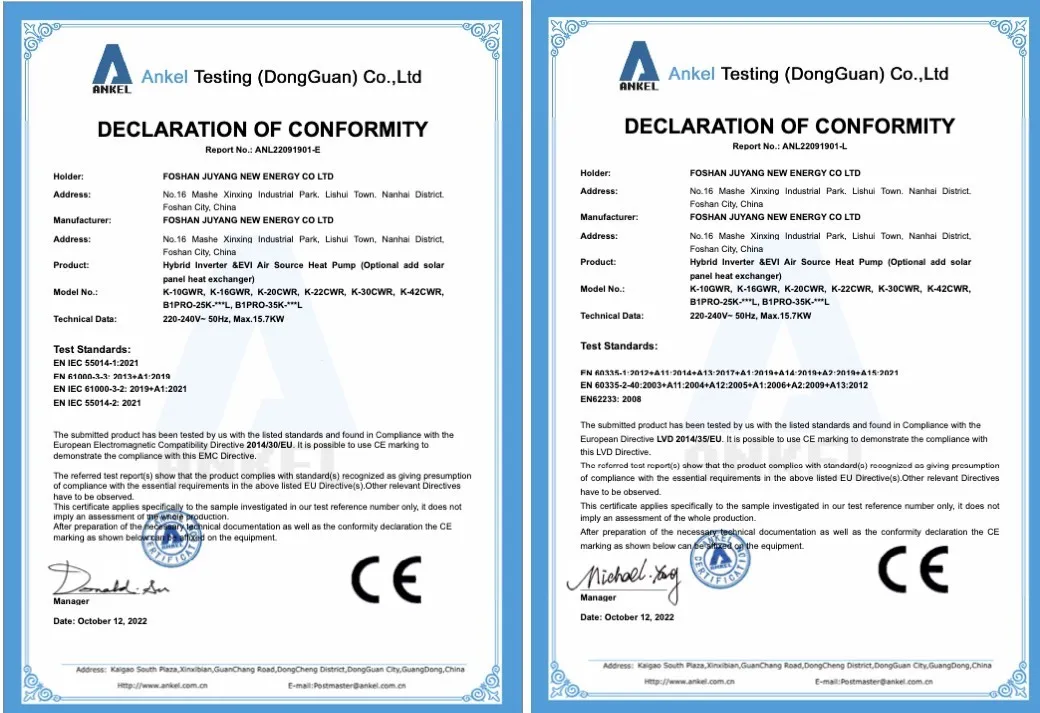

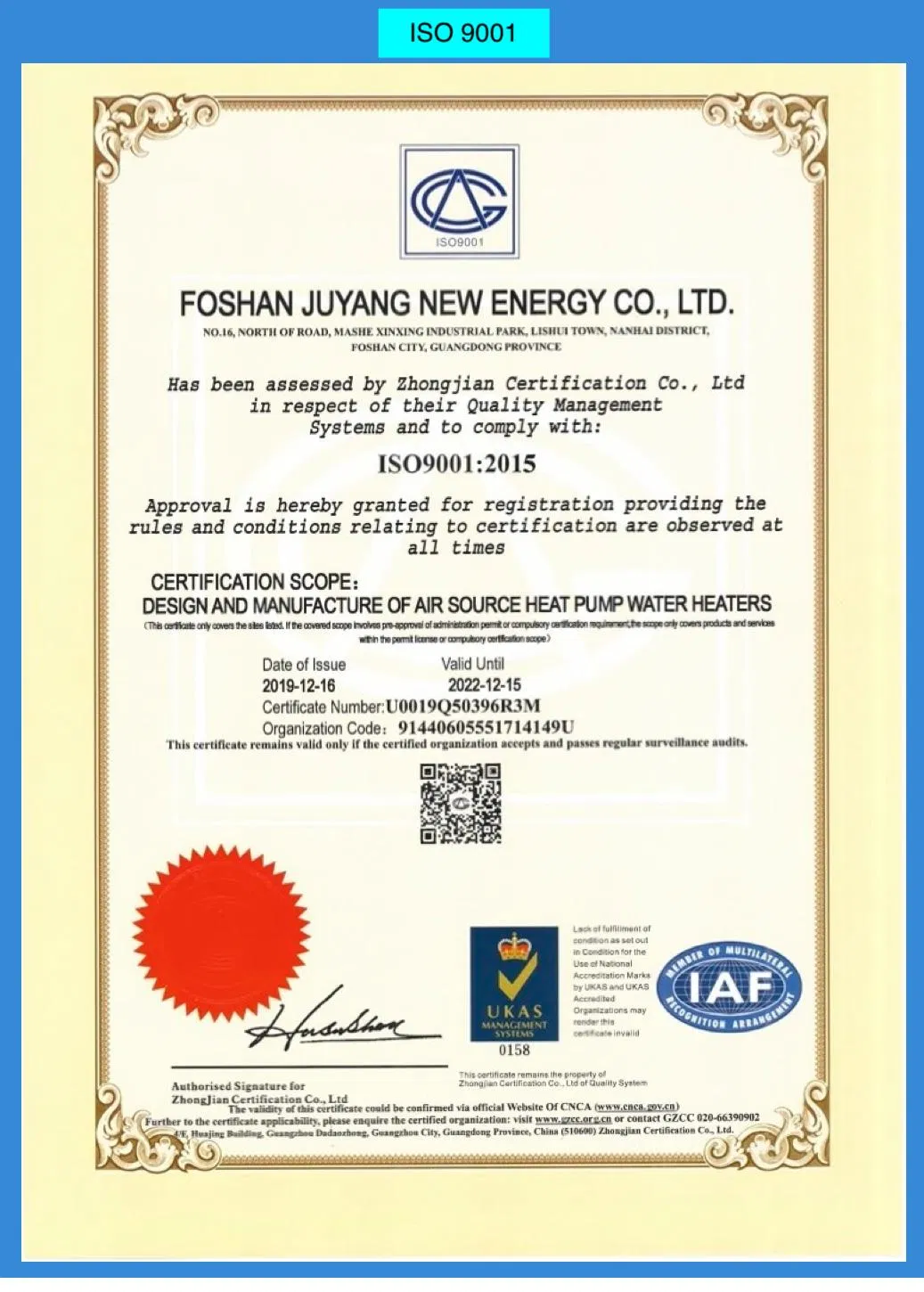

What certifications do your products hold?

Our products are certified with CE, CB, SGS, and ERP (Class A+ and A++), ensuring they meet strict international safety and efficiency standards.

Does the unit provide domestic hot water?

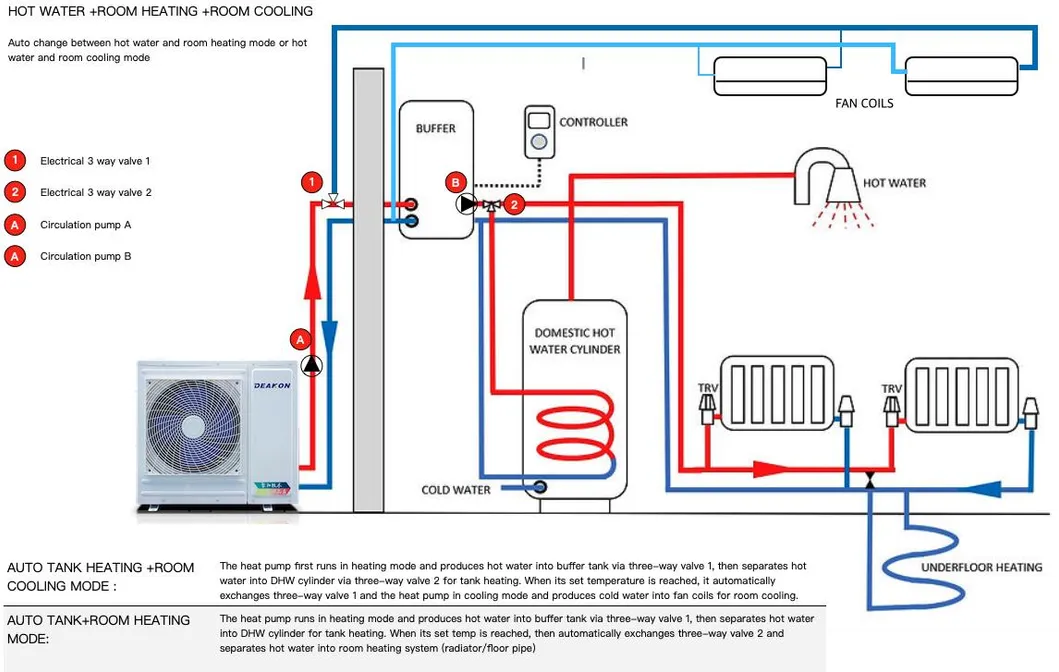

Yes, the system supports auto-changeover between room heating/cooling and hot water tank heating to meet all your household needs.
