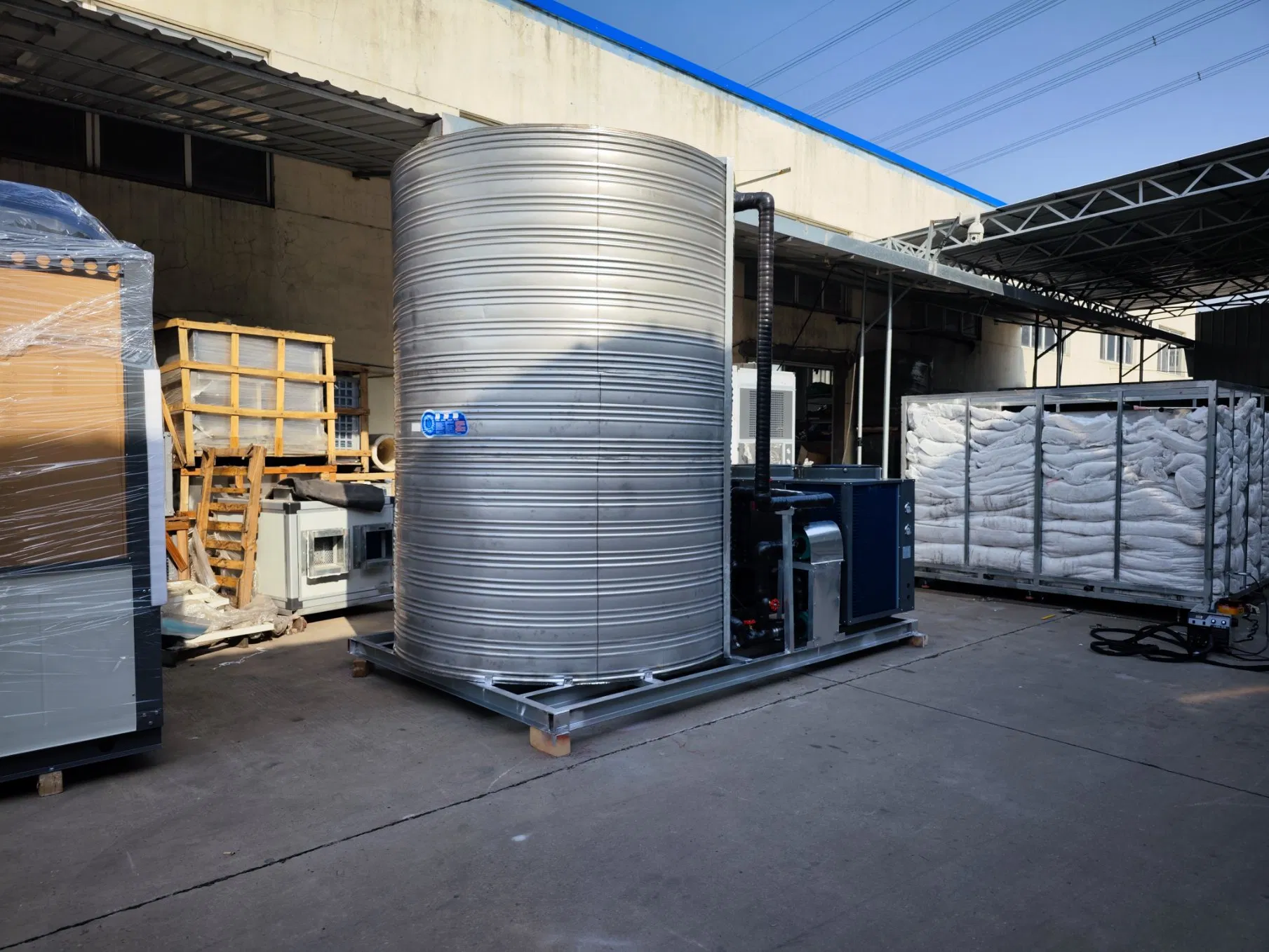

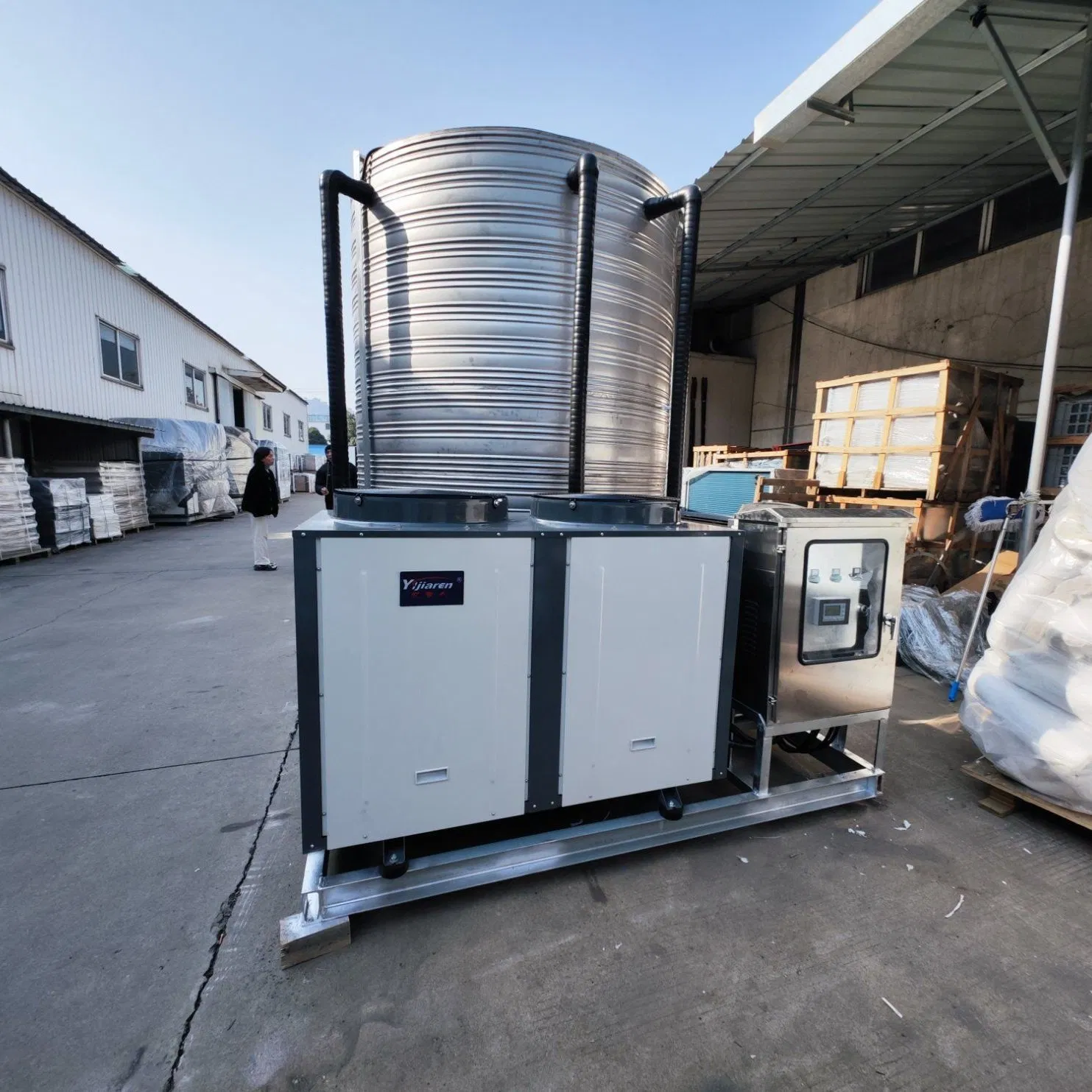

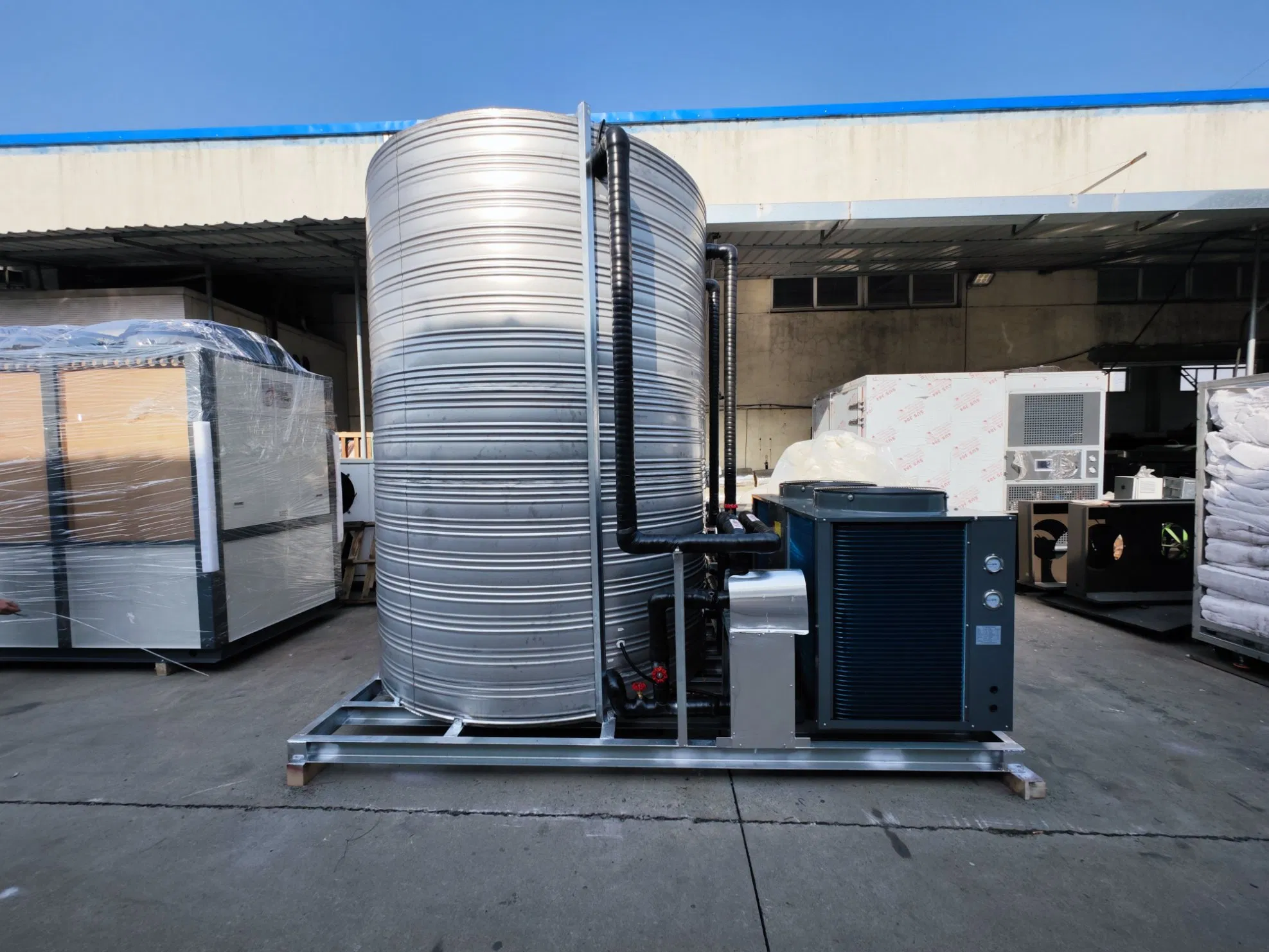

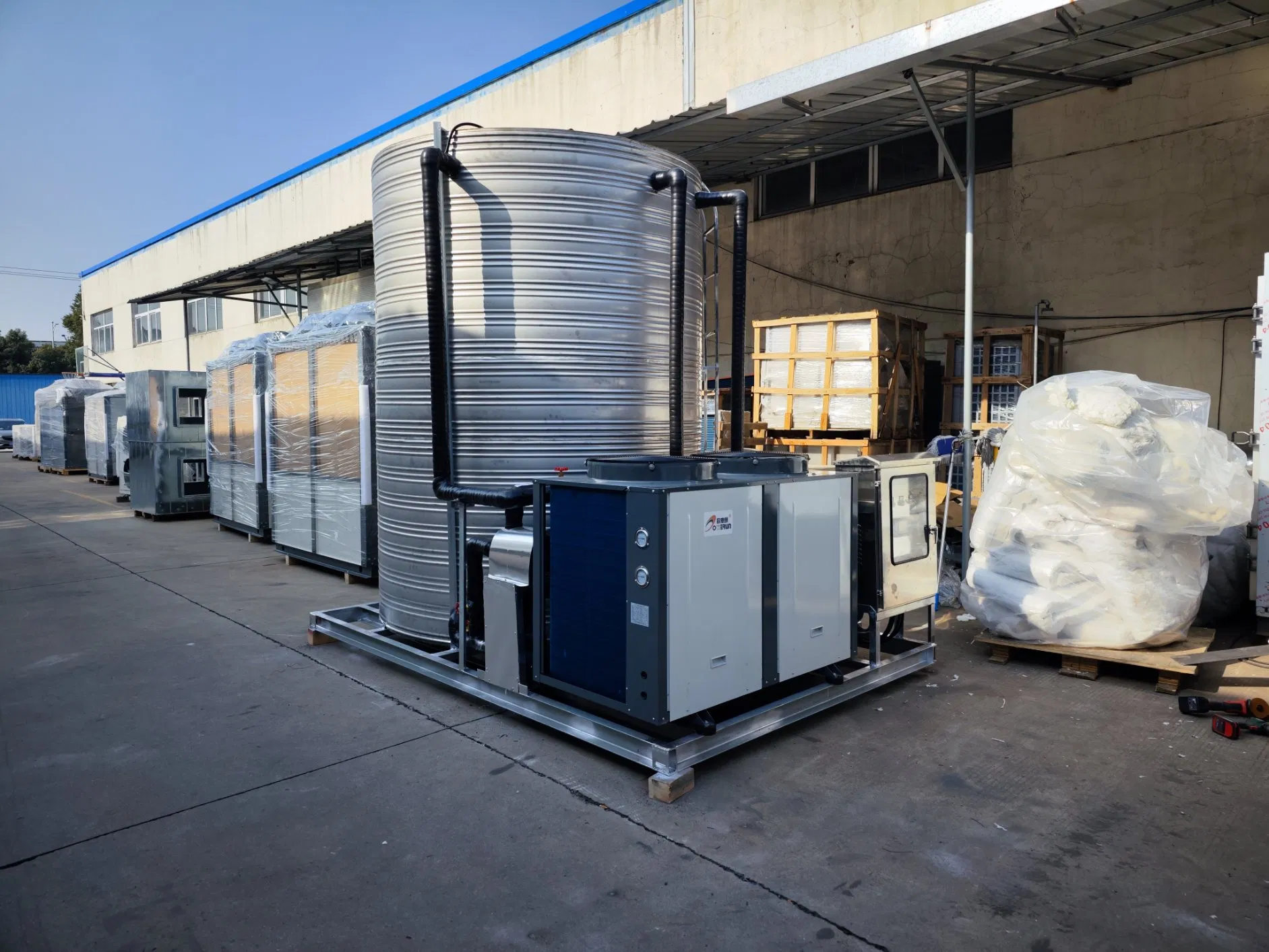

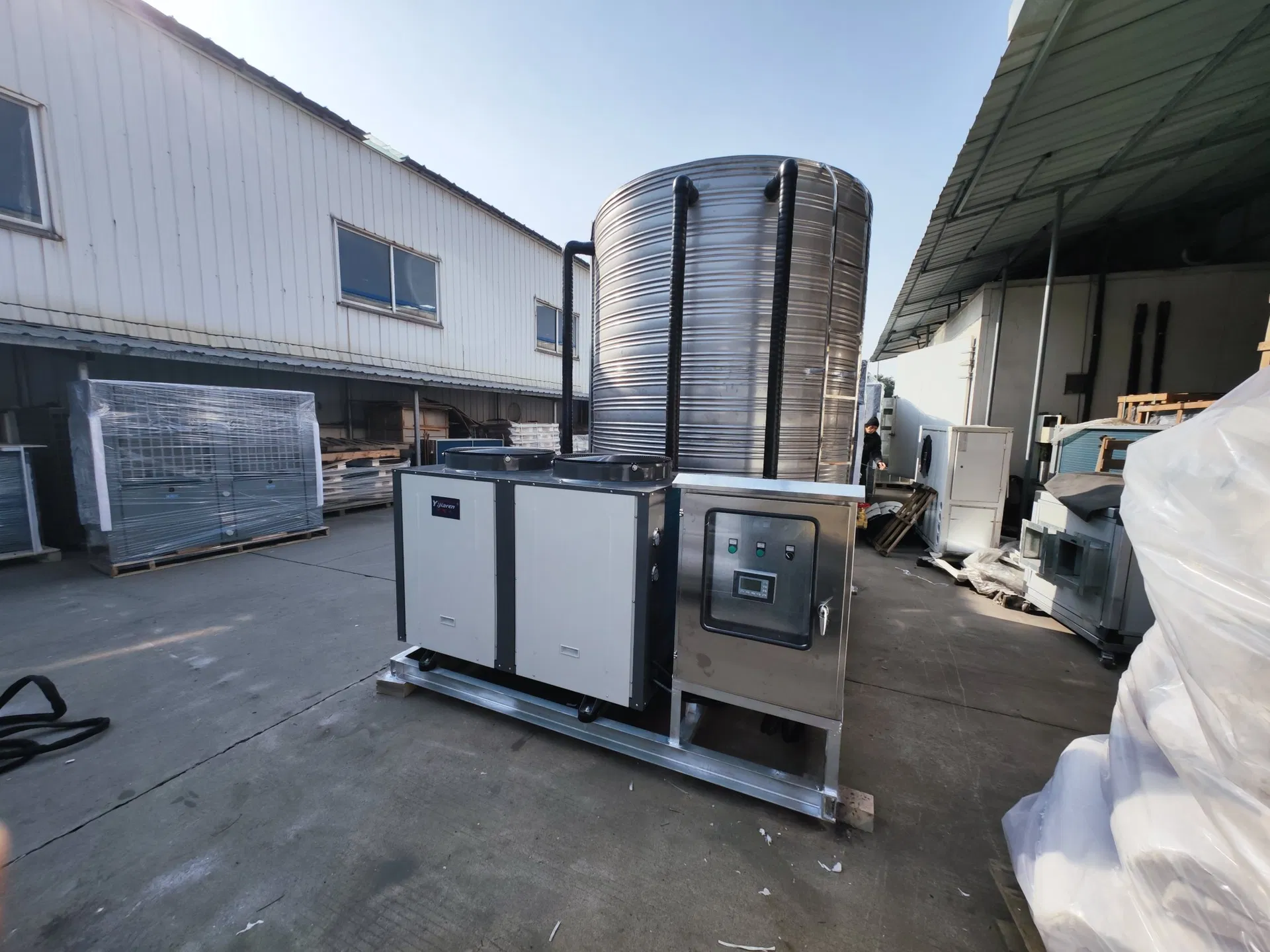

The Integrated Heat Pump Unit (Skid-Mounted Heat Pump) integrates core components (compressor, evaporator, condenser, expansion valve, control system, piping, and electrical equipment) onto a single steel skid. Pre-assembled and factory-tested, it delivers a plug-and-play solution that slashes on-site installation effort.
Reduces on-site installation time by >70%.
Factory-optimized piping cuts resistance, lifting COP by 8-12%.

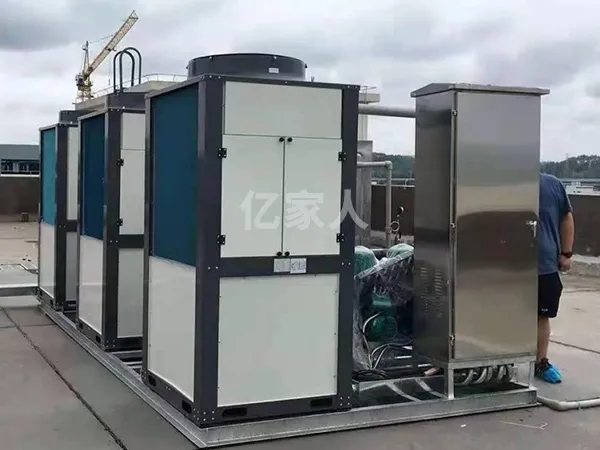

Compact design saves 40-60% space, ideal for rooftops/basements.
Modular design enables parallel capacity expansion and relocation.
| TYPE | Heating Capacity (KW) | Water Yield (L/H) | Power Supply | COP | Working System |
|---|---|---|---|---|---|
| YJR-HP-10p | 36 | 773 | 3N/400V/50Hz | 3.94 | Scroll compressor |
| YJR-HP-12p | 48 | 1030 | 3N/400V/50Hz | 4.5 | Scroll compressor |
| YJR-HP-15p | 60 | 1289 | 3N/400V/50Hz | 4.39 | Scroll compressor |
| YJR-HP-20p | 80 | 1715 | 3N/400V/50Hz | 4.39 | Scroll compressor |

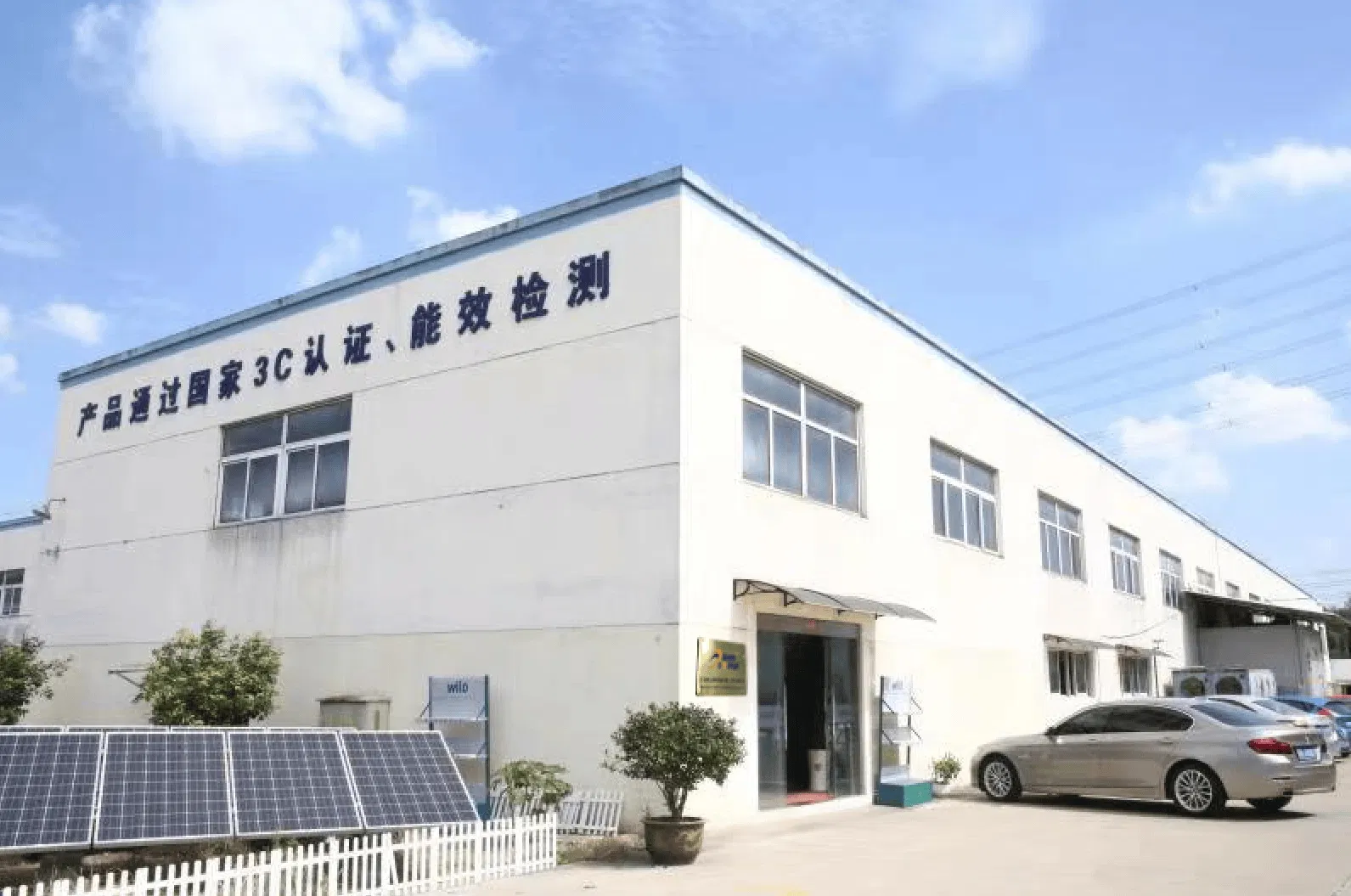

We are an integrated industrial and trading enterprise specializing in the design, production, sales, installation, and after-sales service of solar and heat pump products. With ISO and CCC certifications, we provide energy-saving intelligent manufacturing and integrated smart control solutions globally.
Our solutions have been successfully exported to more than 50 countries across Europe, the United States, Germany, Italy, Japan, Russia, Australia, and Southeast Asia. We offer over 3,000 energy-efficient solutions and have implemented 8,000+ customer cases across various industries.
