This air source heat pump is designed for breeding ponds, fish shrimp farming, and commercial hot water needs. It offers intelligent remote control and high-efficiency operation across various environments.
| Model | 05HP | 07HP | 10HP-A | 10HP-B | 12HP-B | 15HP-B | 20HP | 25HP | 30HP | |
|---|---|---|---|---|---|---|---|---|---|---|
| Heating Capacity | kw | 22 | 26 | 36 | 40 | 48 | 60 | 80 | 95 | 116 |
| Water Volume | m³/h | 3.77 | 4.46 | 6.2 | 6.86 | 8.23 | 10.32 | 13.71 | 16.34 | 19.95 |
| Rated Power | kw | 4.58 | 5.42 | 9.12 | 8.85 | 10.65 | 13.64 | 18.2 | 21.6 | 27.6 |
| COP | / | 4.8 | 4.8 | 3.94 | 4.52 | 4.51 | 4.39 | 4.4 | 4.39 | 4.21 |
1. High Efficiency Compressor: Famous brand scroll compressors with mature technology for long service life.
2. Multi-flow Evaporator: Blue hydrophilic aluminum foil combined with internally threaded copper pipes for rapid discharge of condensation.
3. Copper Tube Heat Exchanger: Turbulent heat exchange technology avoids water scale and ensures high energy efficiency.
4. Throttling Device: High-quality electronic expansion valve for stable operation even in cold winter.
5. Silent Fan: Three-dimensional turbine design reduces noise while improving air volume.

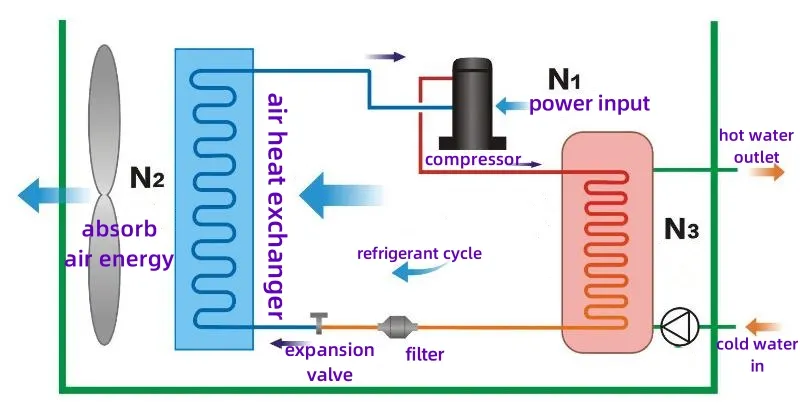

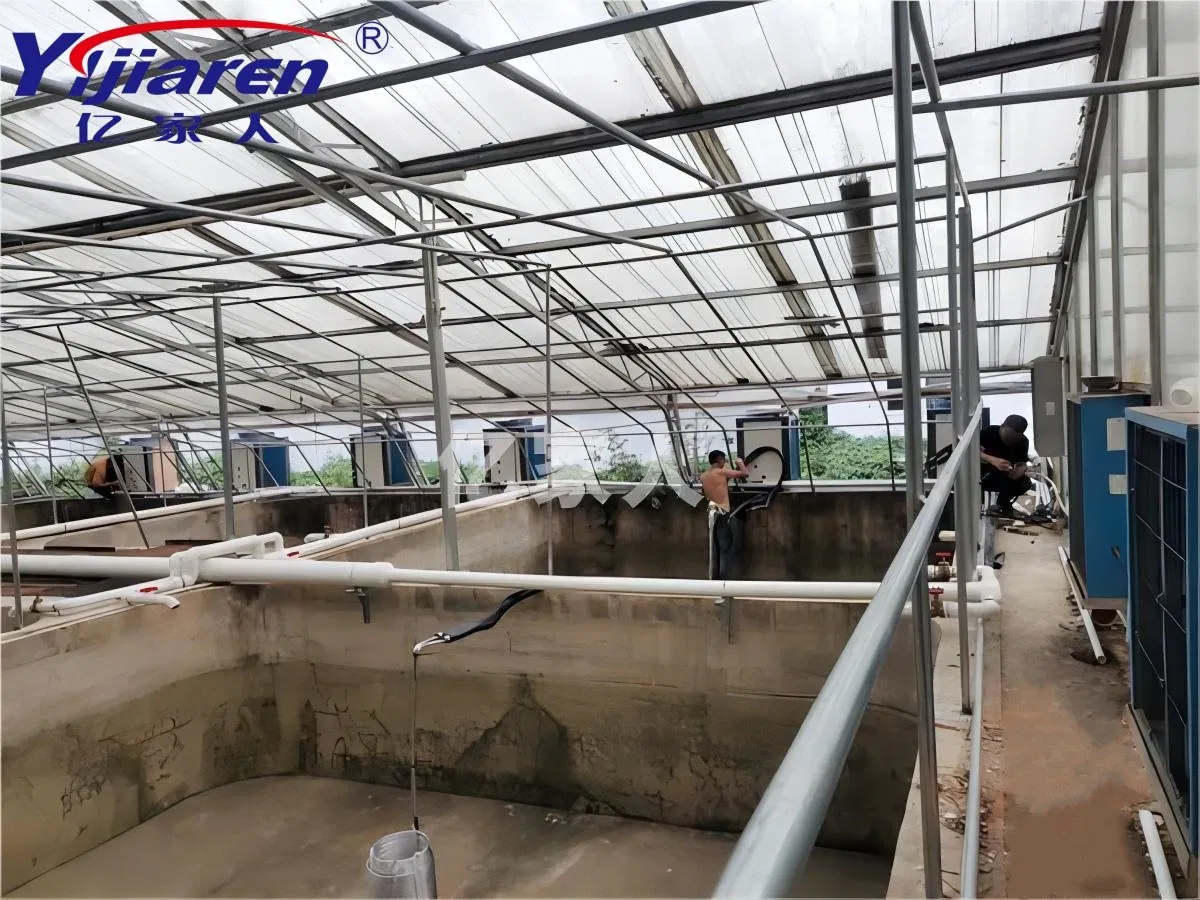

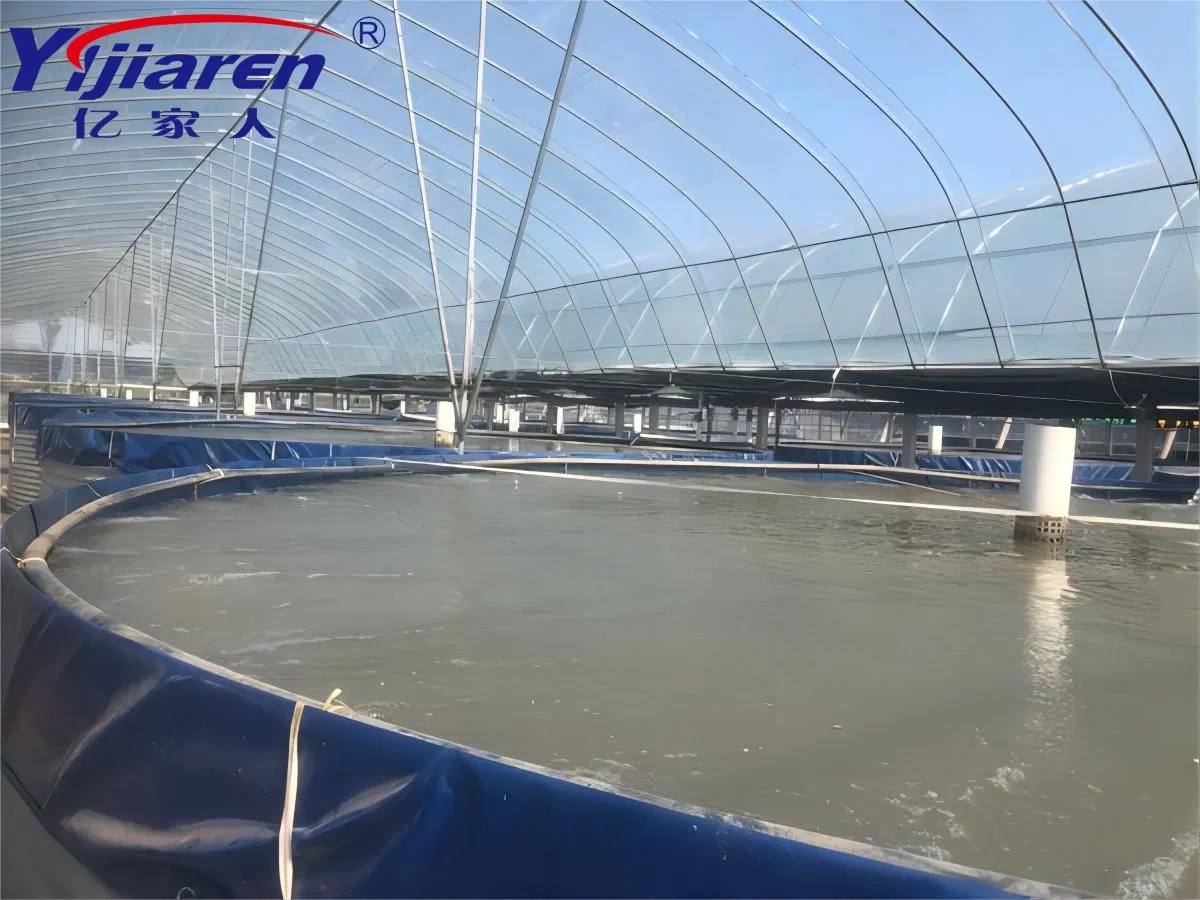

In aquaculture, the heat pump transfers warmth through a heat exchanger laid in the pond, gradually warming the water. This method is green, low-carbon, and highly cost-effective compared to traditional boilers or electric heating.
