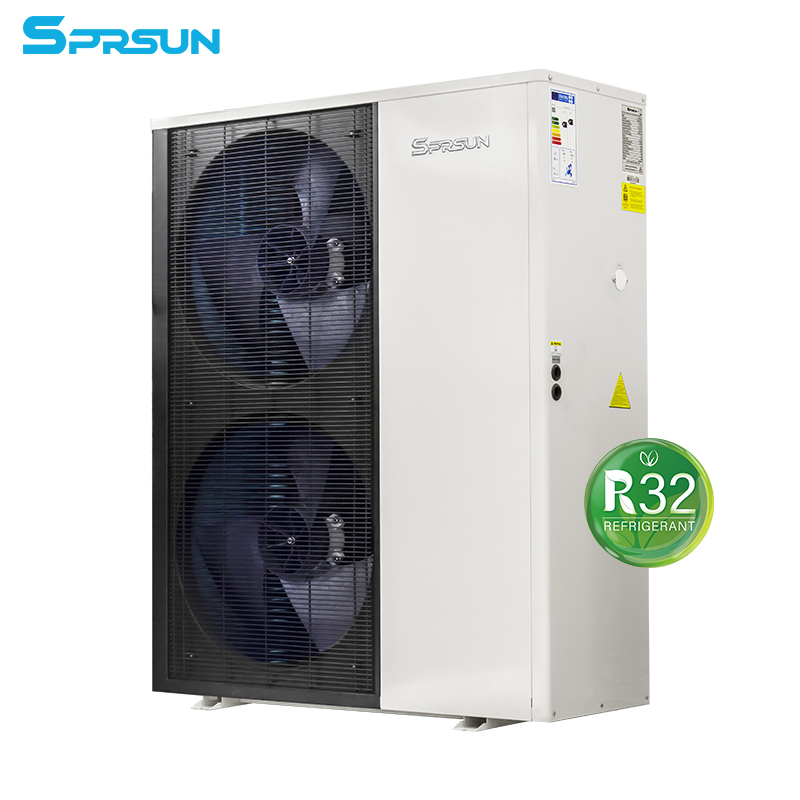

Cold Climate WiFi Module DC Inverter R32 Monoblock Heat Pump ERP a+++

1 / 5

Cold Climate WiFi Module DC Inverter R32 Monoblock Heat Pump ERP a+++

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CGK-025V3L-B / 030V3L-B / 040V3L-B / 050V3L-B

Work Environment

-25 to 45℃

Heat Source

Air-source

Heating Type

Water-Circulating Heat Pump

Certification

CE, ISO9001, CCC, CB, RoHS, Mcs, Keymark, Sg Ready

Warranty

3 Years

Control Method

APP Control

Specification

R32 Refrigerant

📦 Packaging & Delivery

Package Size

116.50cm * 50.50cm * 96.00cm

Gross Weight

110.000kg

🔍 Product Description

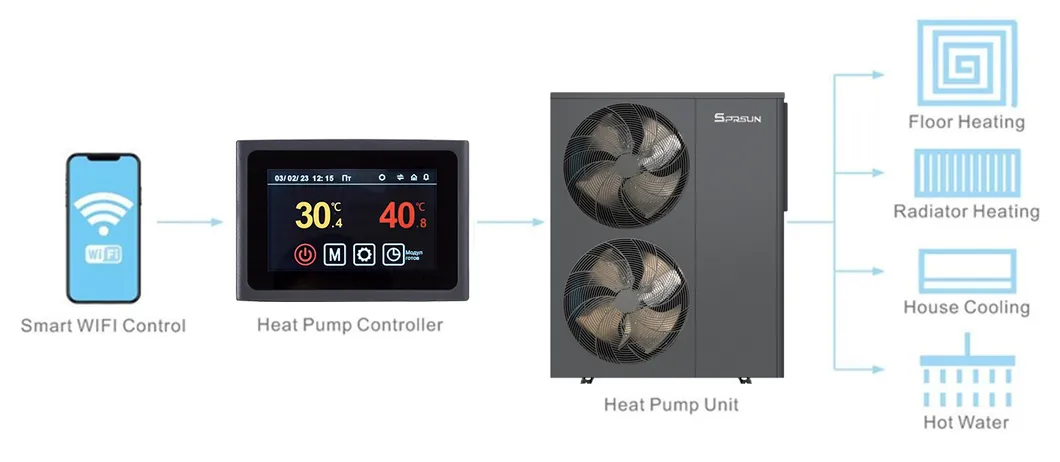

This R32 ERP A+++ DC Inverter Monoblock Heat Pump features a compact design for easy installation. Engineered to operate efficiently in temperatures ranging from -30ºC to 45ºC, it is an ideal solution for cold-climate heating. With a maximum heating capacity between 9.5KW and 22KW and a COP of up to 5.89, this monoblock unit connects directly to the building's heating system and supports remote software control.

Offering multiple functions including water heating and cooling, this EVI low-temperature heat pump operates with minimal noise. As a renewable energy source, it is safer and more cost-effective than traditional oil or gas boilers, significantly reducing carbon emissions and maintenance requirements.

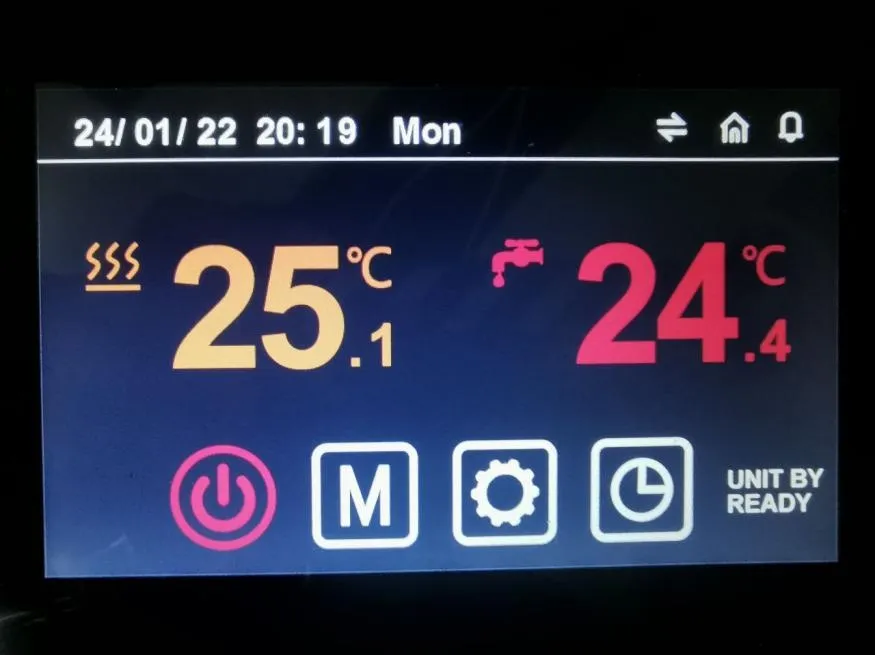

1. 5-inch Colorful Touch Screen

The intuitive 5-inch interface allows for effortless temperature control and system mode settings. It provides quick access to error codes and allows you to program your room temperature anytime, anywhere.

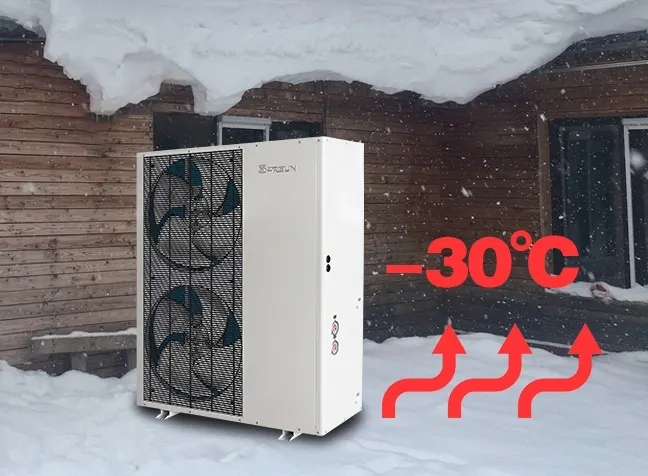

2. -30ºC EVI Low Temp Operation

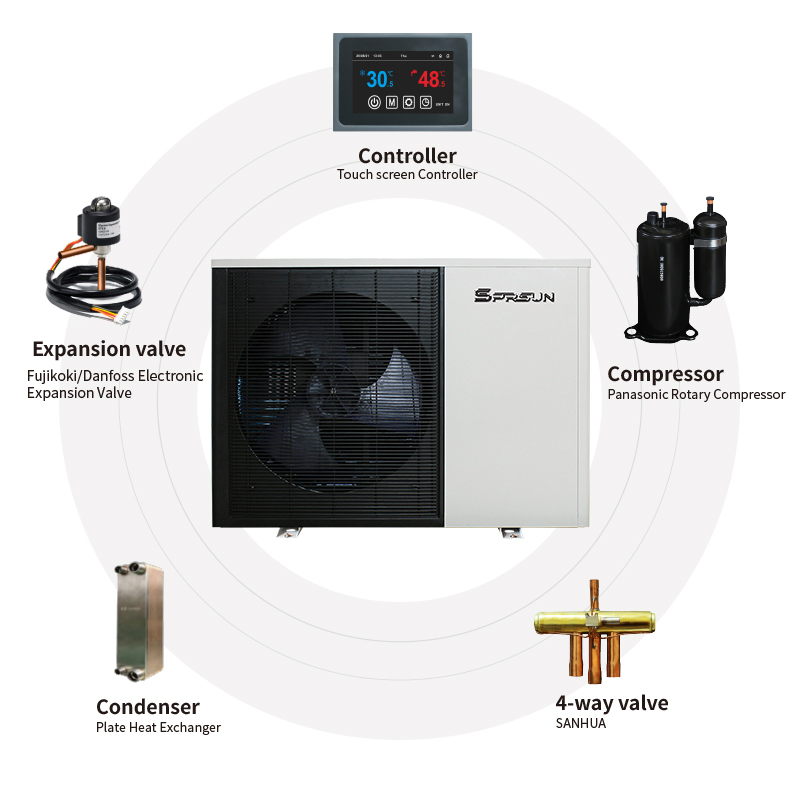

Designed specifically for chilly climates, combining eco-friendly R32 refrigerant with inverter EVI technology to produce 60ºC hot water even at -30ºC ambient temperature. It utilizes a reliable rotary compressor to ensure efficiency.

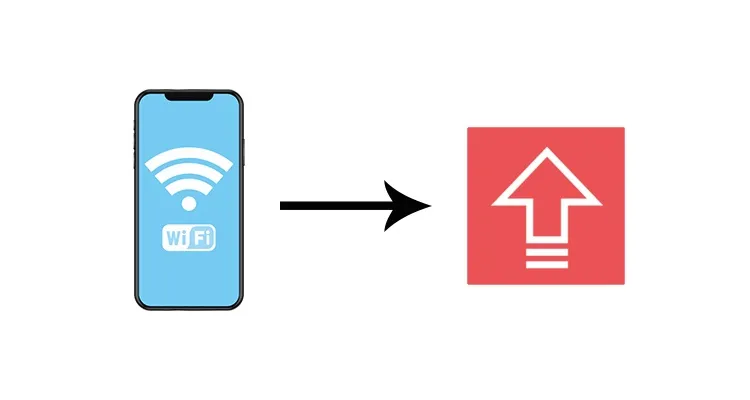

3. Remote Software Upgrade

Stay updated with one-click remote software upgrades via the internet. This ensures your system always has the latest features and optimizations without manual intervention.

⭐ Key Highlights

ERP A+++ Performance

Highly energy-efficient, reaching ERP A+++ levels with a maximum COP of 5.89.

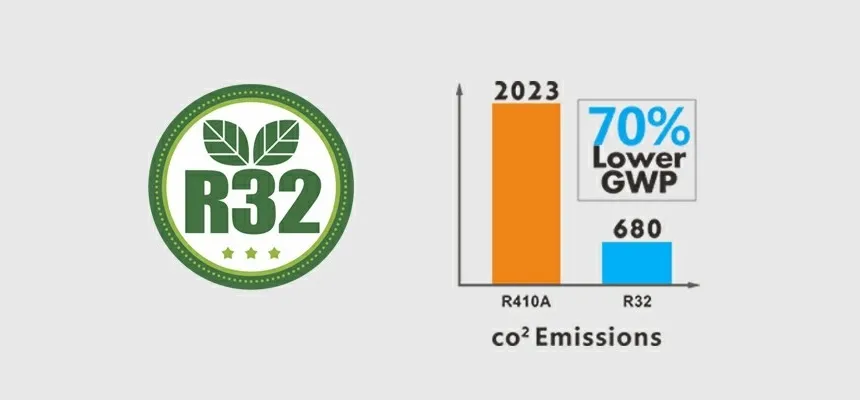

R32 Refrigerant

Environmentally friendly with higher efficiency and lower recharge requirements.

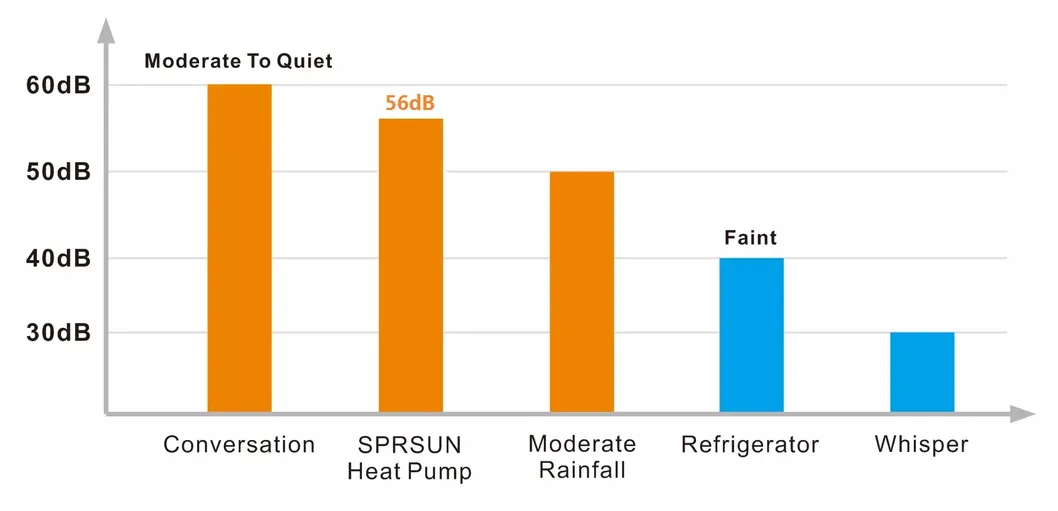

Low Noise Operation

Equipped with brushless DC inverter fans and rotary compressors, achieving a quiet 56dB(A) sound power level.

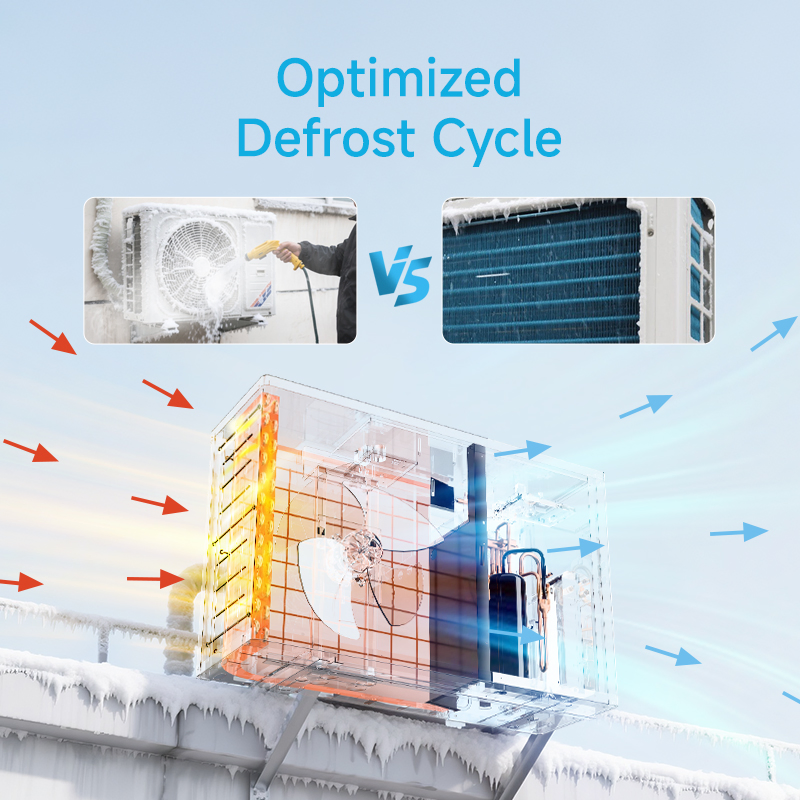

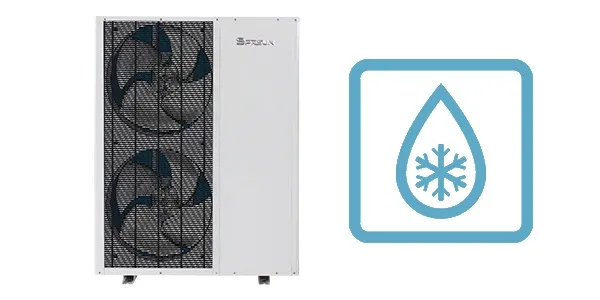

Intelligent Defrosting

PID control mode automatically enters defrosting to prevent energy waste and ensure reliability.

📊 Technical Parameters

Model	Unit	CGK-025V3L-B	CGK-030V3L-B	CGK-040V3L-B	CGK-050V3L-B
Power Supply	V/Hz/Ph	380-420/50/3 - R32
Max Heating Cap (A7/W35)	kW	9.4	11.6	15.8	19.8
C.O.P (A7/W35)	W/W	4.56	4.42	4.62	4.72
Max Cooling Cap (A35/W18)	kW	8.6	10.6	14.4	18.1
Net Dimension (L×D×H)	mm	1110475810	1110475810	1110475960	11104751355
Net Weight	kg	92	97	107	131

❓ Frequently Asked Questions

What is the lowest outdoor temperature this heat pump can handle?

This unit is specifically designed for cold climates and can operate efficiently in ambient temperatures as low as -30ºC thanks to its EVI inverter technology.

How energy efficient is the R32 DC Inverter Heat Pump?

The system achieves an ERP A+++ energy rating, which is the highest efficiency class, helping significantly reduce electricity consumption for home heating and cooling.

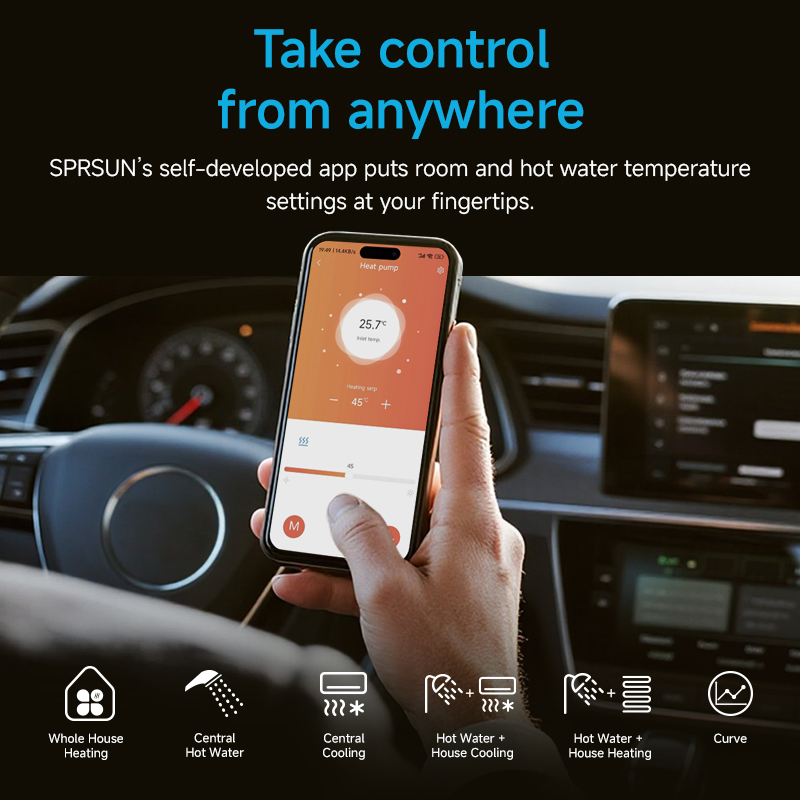

Can I control the heat pump from my smartphone?

Yes, the unit features a smart online intelligent remote-control system that allows you to manage temperature and settings via a dedicated mobile APP.

Does the unit produce much noise during operation?

No, the heat pump uses brushless DC inverter fans and specialized noise reduction measures to maintain a quiet operation level of approximately 56dB(A) sound power.

What functions does this monoblock heat pump support?

It is a multi-functional unit capable of house heating, cooling, and producing domestic hot water, with intelligent modes like automatic sterilization and PID defrosting.

What is the warranty period for this product?

The product comes with a standard 3-year warranty, ensuring long-term reliability and support for your heating system.
