The On Off T1 Swimming Pool Heater is specially designed and engineered for water temperature control of swimming pools and spas. It functions as a chiller in summer and a heat pump in other seasons, offering the most energy-efficient pool & spa chilling and heating.
Compared to gas, oil, or electric heaters, the operation cost of swimming pool water chiller & heat pumps is up to 60%~80% less. The T3 series units are able to withstand harsh summer conditions and can operate at ambient temperatures as high as 53°C without compressor failure.

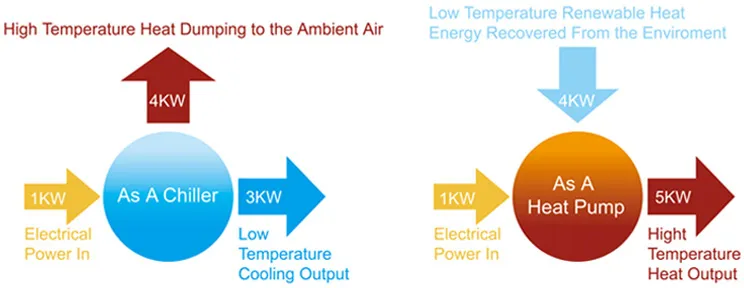

It consumes much less electric power than traditional electric heaters. The electricity consumed is only used to operate the compressor, fan, and water pump. For every 1kW of electricity consumed, the unit generates up to 5kW of heating capacity, meaning 4kW are free energy from the air.

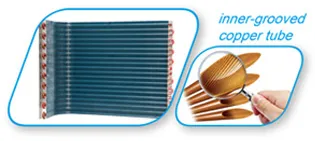

Fin and tube type using hydrophilic treated aluminum fins to resist corrosion. Inner-grooved copper tubes increase heat transfer efficiency.

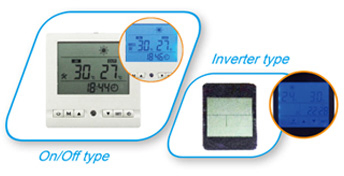

Micro-processor digital controller with LCD display. Programmed for maximum protection and accurate temperature control.
Marine-grade titanium, high efficiency, and super corrosion resistant. Reliability with a long-lasting life span and low maintenance.
Tropical resistance capacity. Quiet operation and high energy saving using famous brand rotary or scroll compressors.

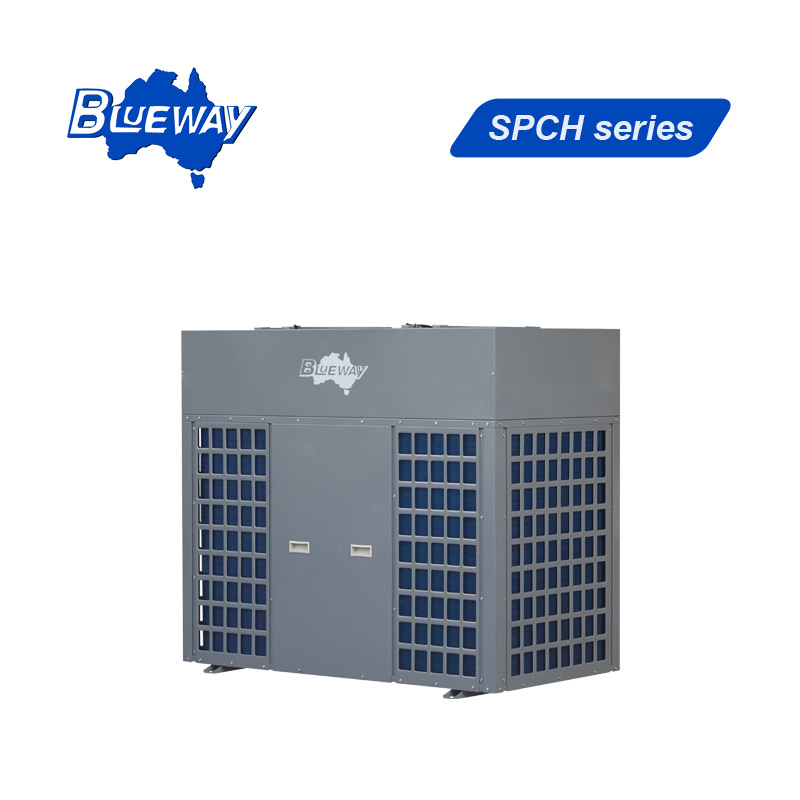

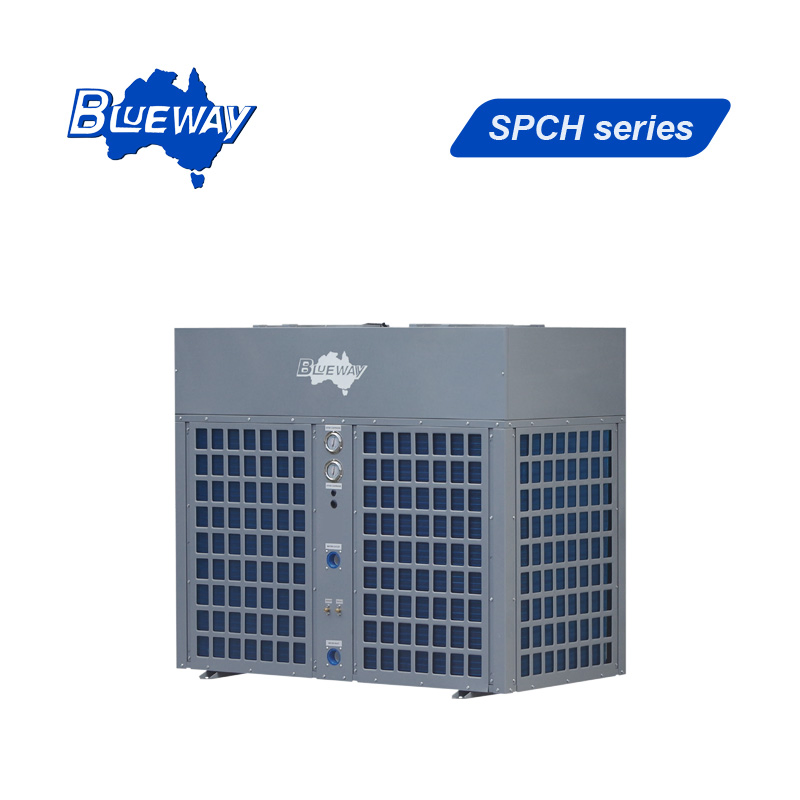

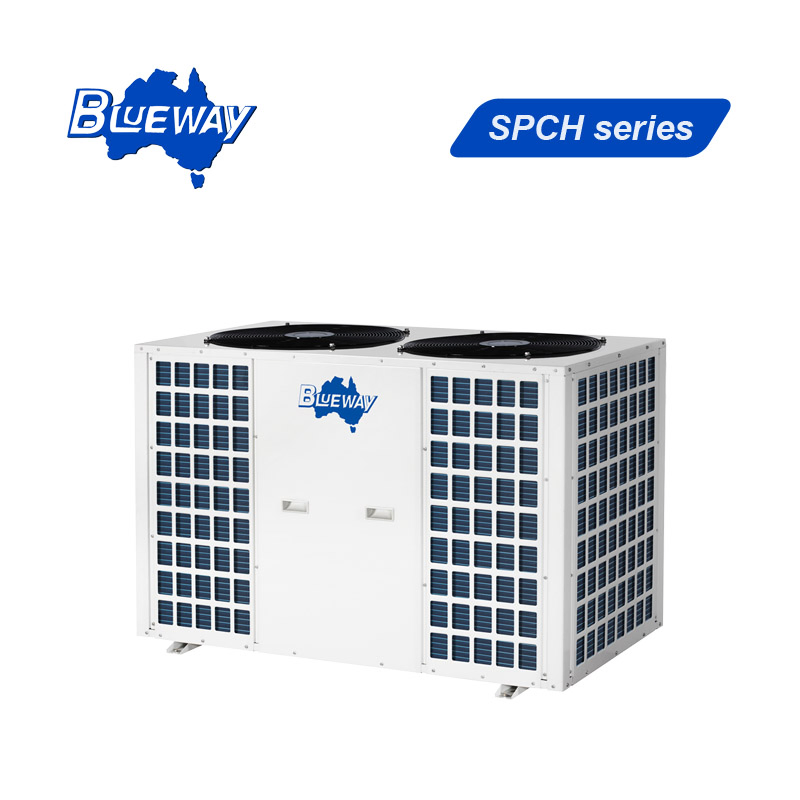

T3 Commercial Swimming Pool Chiller & Heat Pump (On/Off type, 50Hz)
| Model | T-SPCH10 | T-SPCH12 | T-SPCH15 | T-SPCH20 | |||
|---|---|---|---|---|---|---|---|
| HP | 10 | 12 | 15 | 20 | |||
| Power Supply | 380-415/50/3 | ||||||
| Heating (A26/W26) | Capacity (kW) | 46 | 55 | 69 | 91 | ||
| COP | 4.8 | 4.9 | 4.7 | 4.8 | |||
| Cooling (A35/W30) | Capacity (kW) | 35 | 42 | 53 | 70 | ||
| EER | 2.61 | 2.62 | 2.59 | 2.65 | |||
| Ambient Temp Range | -7~53°C | ||||||
| Refrigerant | R410a | ||||||

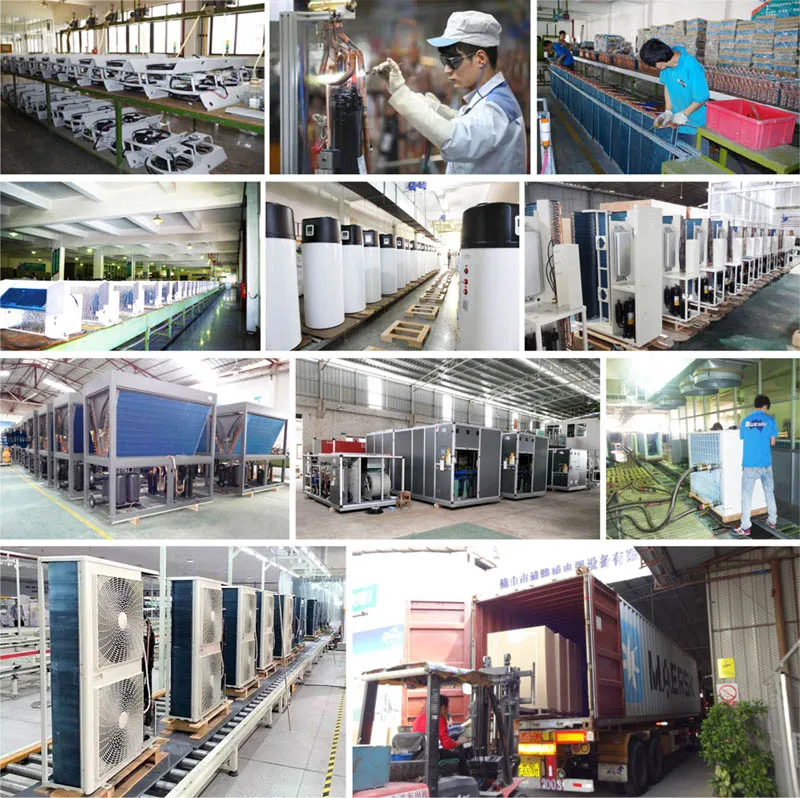

✔ Around 30 years of rich HVAC manufacturing experience.
✔ Over 1000 original R&D products available for OEM/OBM/ODM.
✔ Over 10000 successful engineering solutions provided worldwide.
✔ Advanced intelligent control system with timing and remote monitoring.

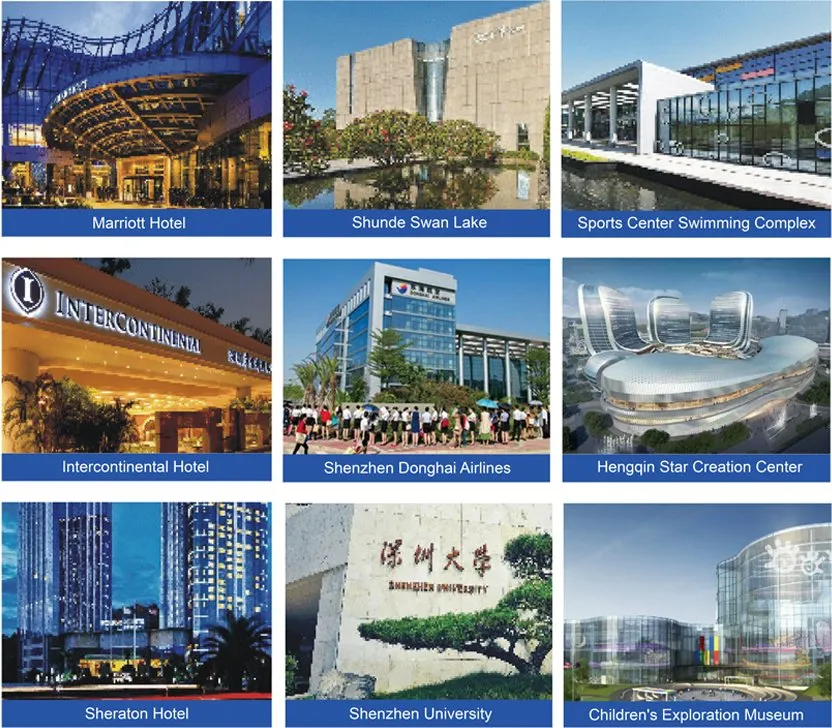

With more than 20 patents, these products are exported to Australia, Europe, North America, and the Middle East, obtaining worldwide recognition for high efficiency and innovation.
