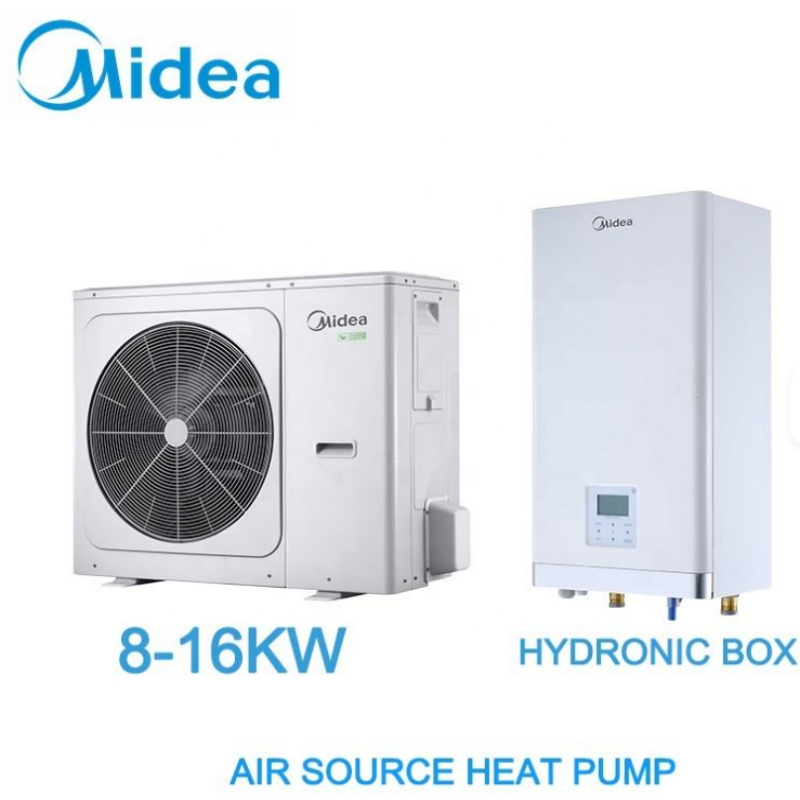

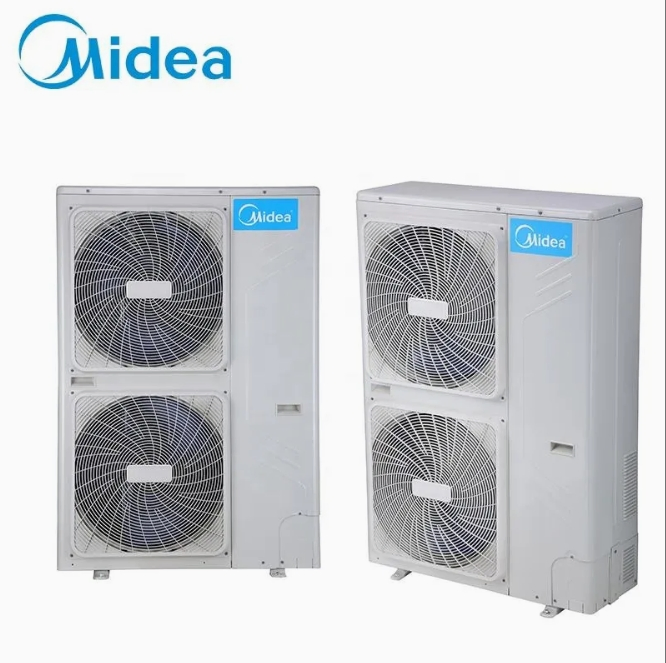

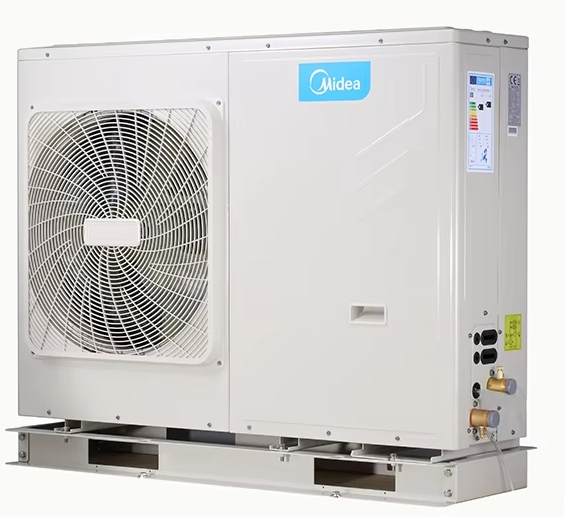

China High Quality a+++ WiFi DC Inverter Split Type Air to Water Heat Pump

Customization:	Available
After-sales Service:	Free
Warranty:	Five Years

🟦 Basic Information

Model NO.

MHC- V10W/D2N8-B

Type

Industrial Fan Heater

Air Tube Material

FRP

Operating Voltage

380/400 VAC

Noise Level

Low

Application Fields

Mechanical Engineering

Lifetime

>20 years

Certification

RoHS, UR, CE

Compressor

DC Inverter

Cooling Capacity

4/6/10/14/16/28/30kw

Refrigerant

R410A / R32

HS Code

8415909000

🟦 Product Description

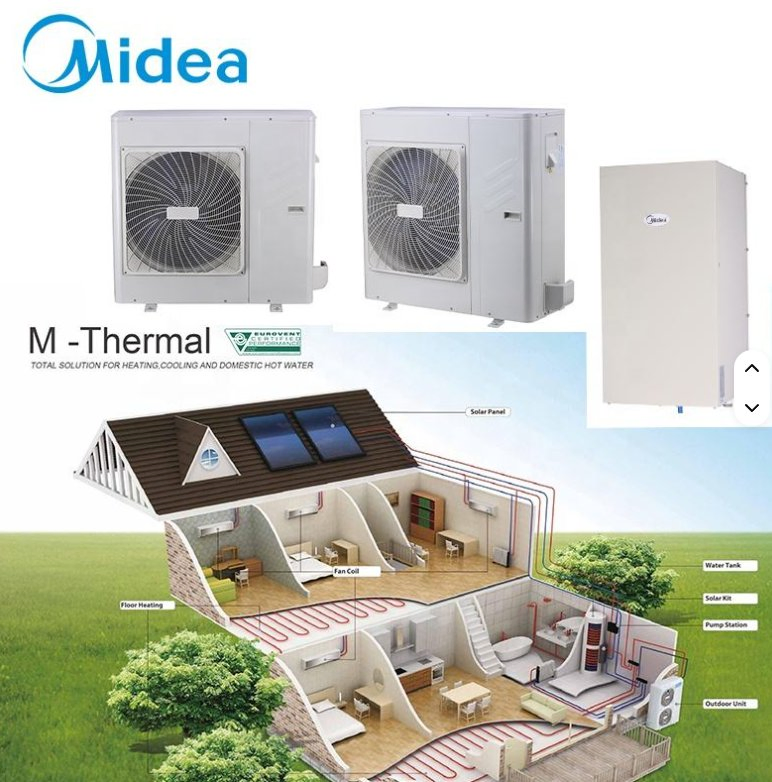

Air-to-water heat pump air conditioner features an integrated design with a built-in hydraulic kit. Only water pipe installation is required on-site. It supplies hot water for fan coils, floor heating systems, and sanitary water tanks, and is compatible with solar collectors, gas furnaces, boilers, and other heat sources.

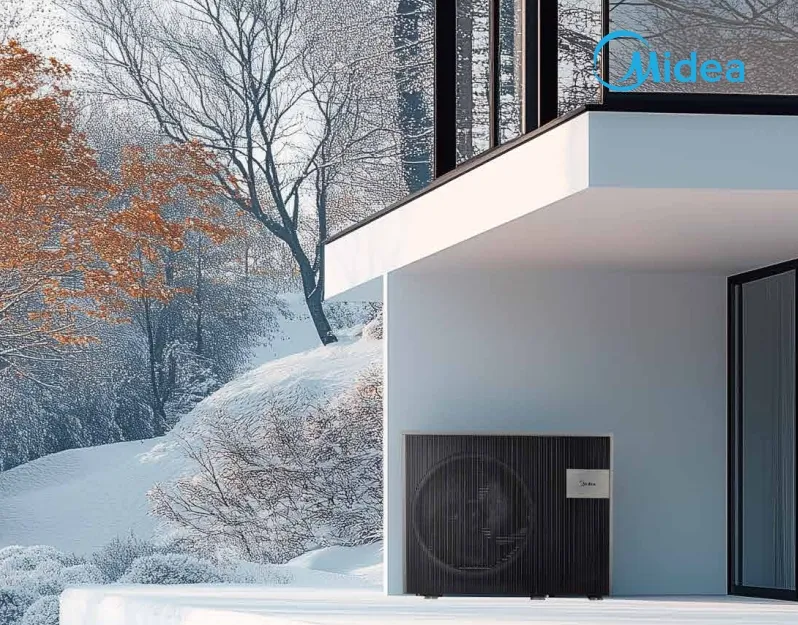

DC Inverter Split Type Air to Water Heat Pump

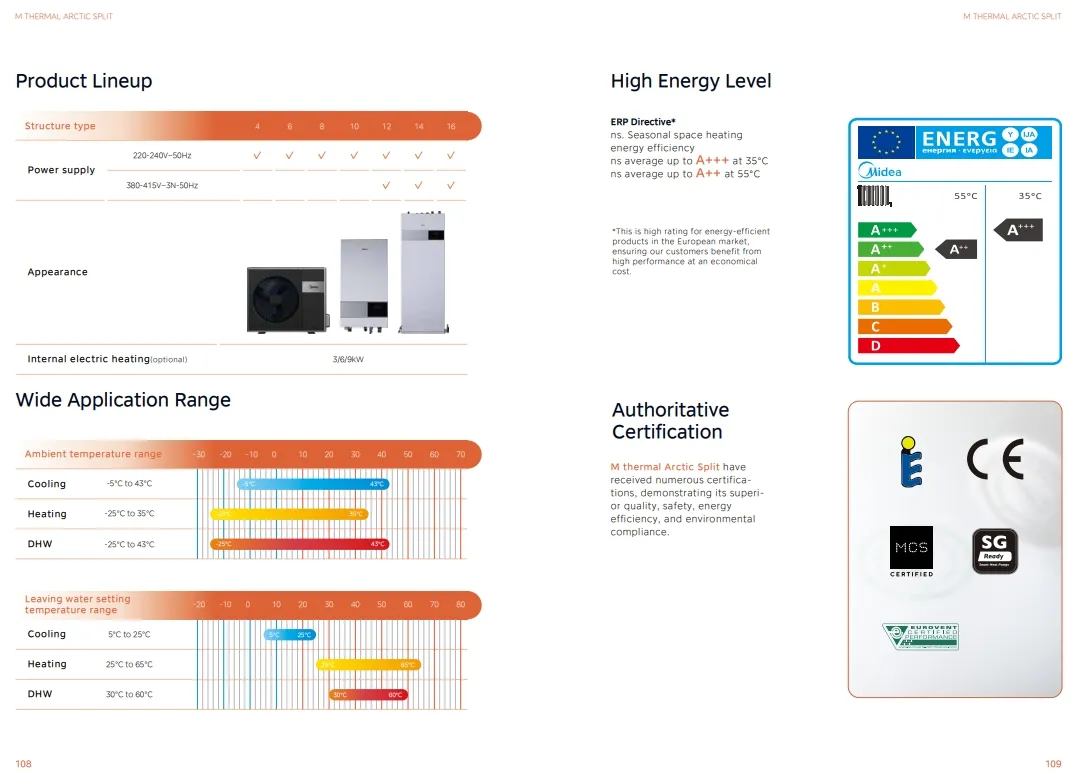

🟦 Technical Specifications

Outdoor Unit Model	MHC-V4W	MHC-V6W	MHC-V8W	MHC-V10W	MHC-V12W	MHC-V14W	MHC-V16W
Heating Capacity (kW)	4.20	6.35	8.40	10.0	12.1	14.5	15.9
COP	5.10	4.95	5.15	4.95	4.95	4.60	4.50
Cooling Capacity (kW)	4.50	6.50	8.30	9.90	12.00	13.50	14.90
EER	5.50	4.80	5.05	4.55	3.95	3.61	3.40
Energy Class (35℃)	A+++
Refrigerant Type	R32 (GWP 675)
Sound Power Level (dB)	55	58	59	60	65	65	68

🟦 Packing & Delivery

Professional Transportation Services

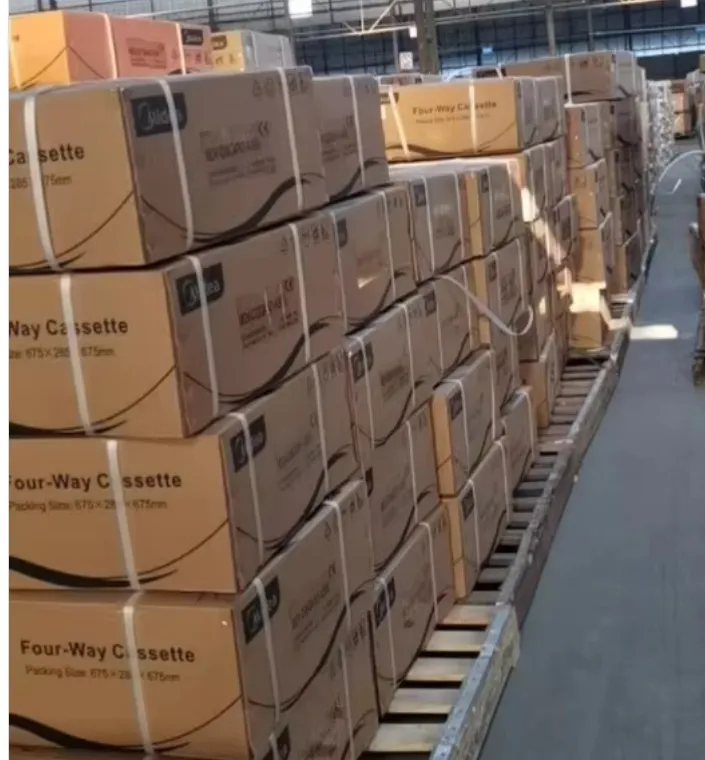

We utilize a dedicated shipping team specialized in international transportation. Professional customs brokers handle clearance to ensure all requirements are met. Packages include Pallet + PE Bag + Carton + Corner Protectors. Recommended shipping: LCL or Full Container (20GP, 40GP, 40HQ).

🟦 Company Overview

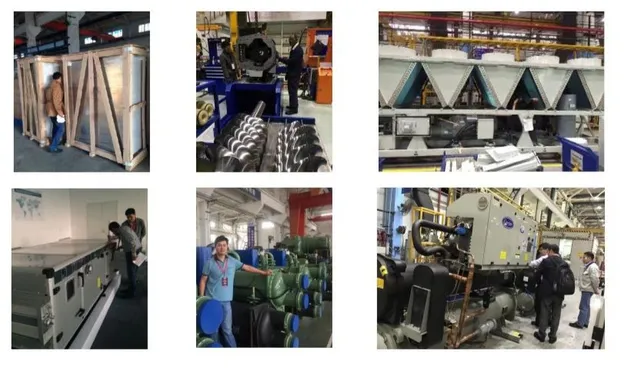

We are a professional central air conditioning solution provider specializing in the design, sales, and installation of a wide range of HVAC products. Our portfolio covers household air conditioners, split units, and commercial/industrial systems including VRF systems, air-cooled and water-cooled chillers, rooftop package units, and precision data center cooling. With over 10 years of experience, we provide complete air conditioning solutions for various applications using world-renowned brands.

🟦 Frequently Asked Questions

1. Can you provide drawing design services?

Yes, we have a professional HVAC engineering team to design your project and optimize solutions. We can provide professional HVAC drawings tailored to your specific needs.

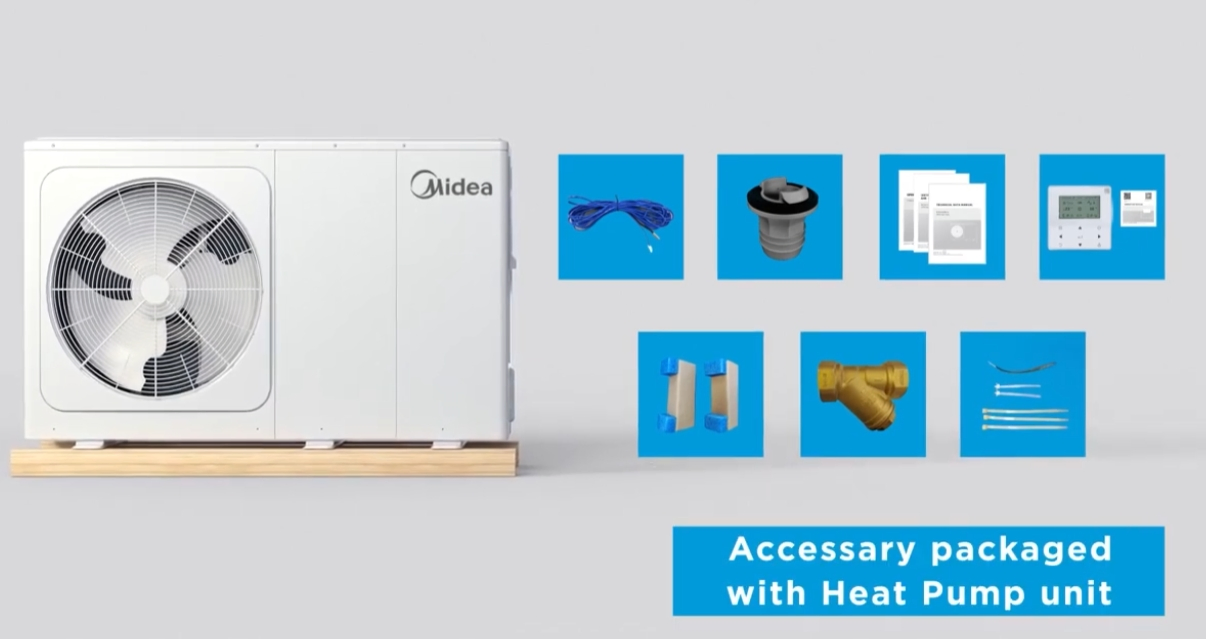

2. Do you provide installation accessories with the equipment?

Absolutely. We can calculate and quote a complete installation kit, including copper pipes, insulation, air diffusers, grills, and valves. Most customers prefer shipping units and materials together for efficiency.

3. What is the typical delivery time?

For standard units, the delivery time is approximately 35-40 days after order confirmation.

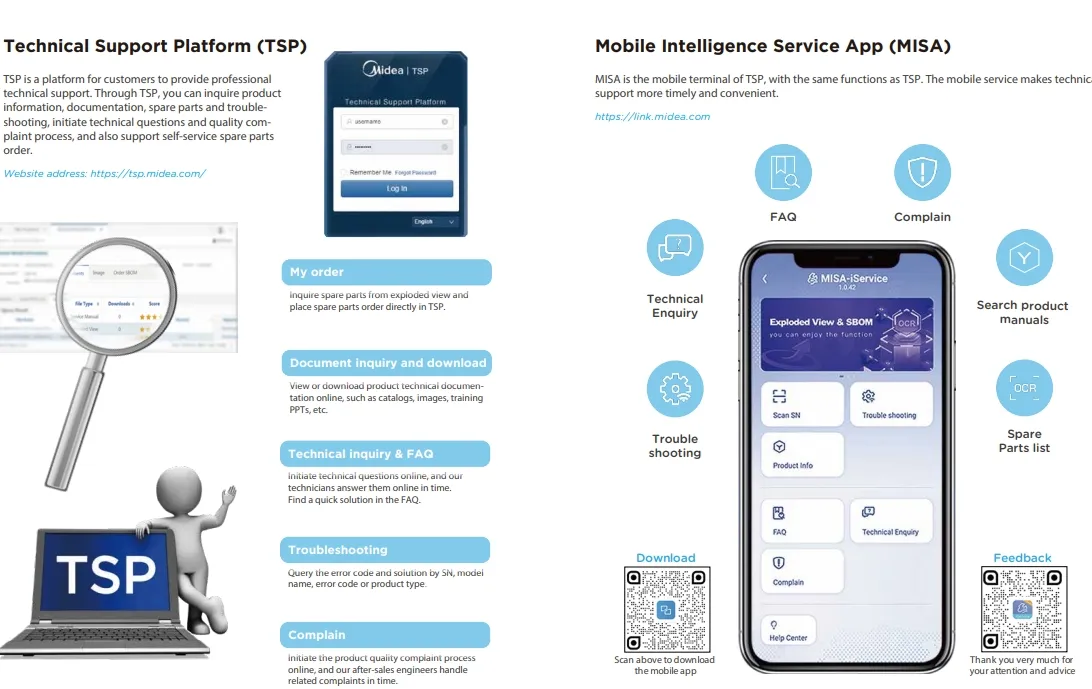

4. What kind of technical support do you offer?

We have a technical team available 24/7. We provide installation and commissioning guidance via online video or phone calls. If necessary, project engineers can be dispatched to your site.

5. How is transportation managed?

Our logistics team arranges cost-effective shipping services. We typically recommend full container shipments (20GP, 40GP, 40HQ) to ensure the safety and speed of your delivery.

6. What is the warranty for your HVAC products?

Our products undergo strict quality control with an expected lifespan of 5-10 years under proper use. We also provide 1% free spare parts for maintenance and after-sales service.
