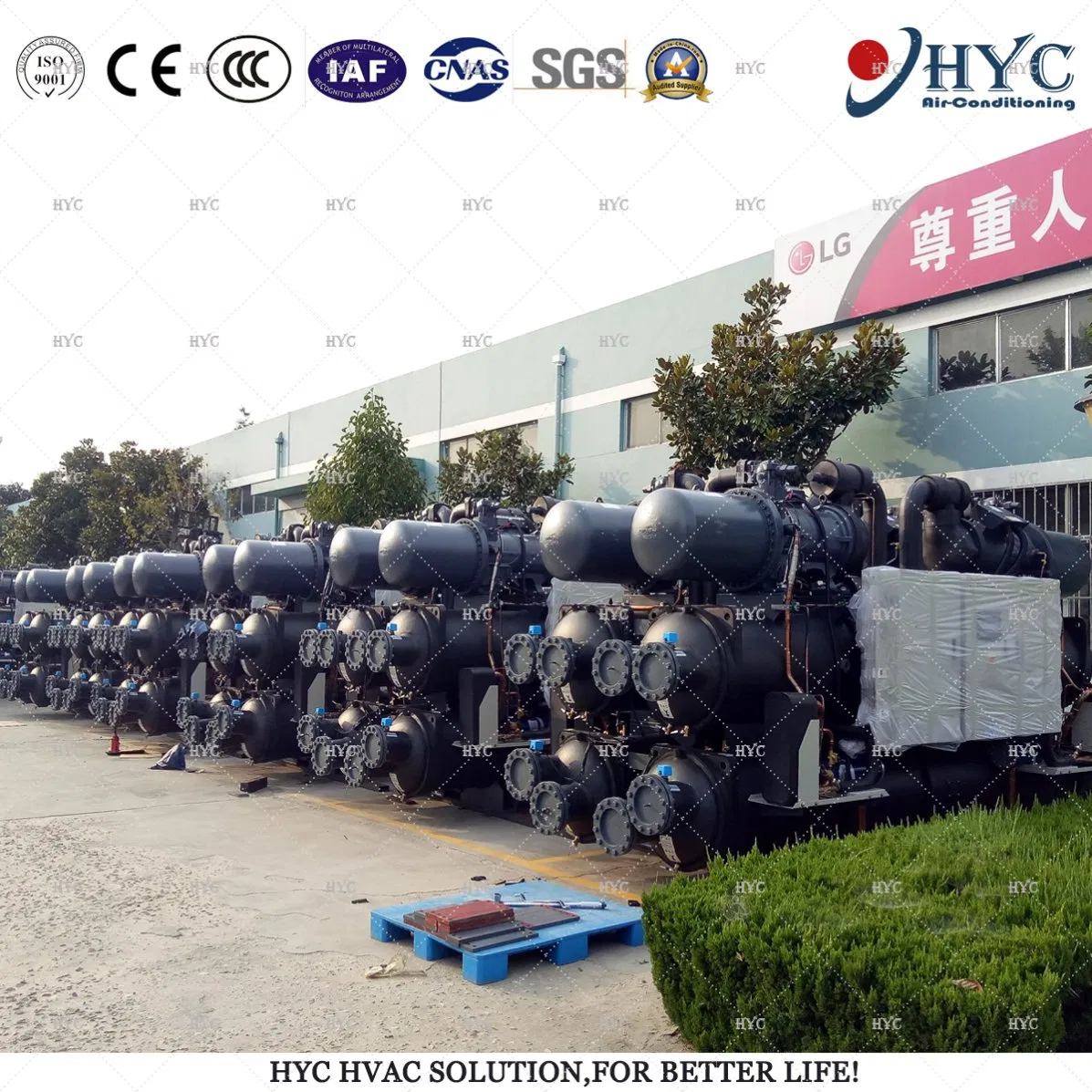

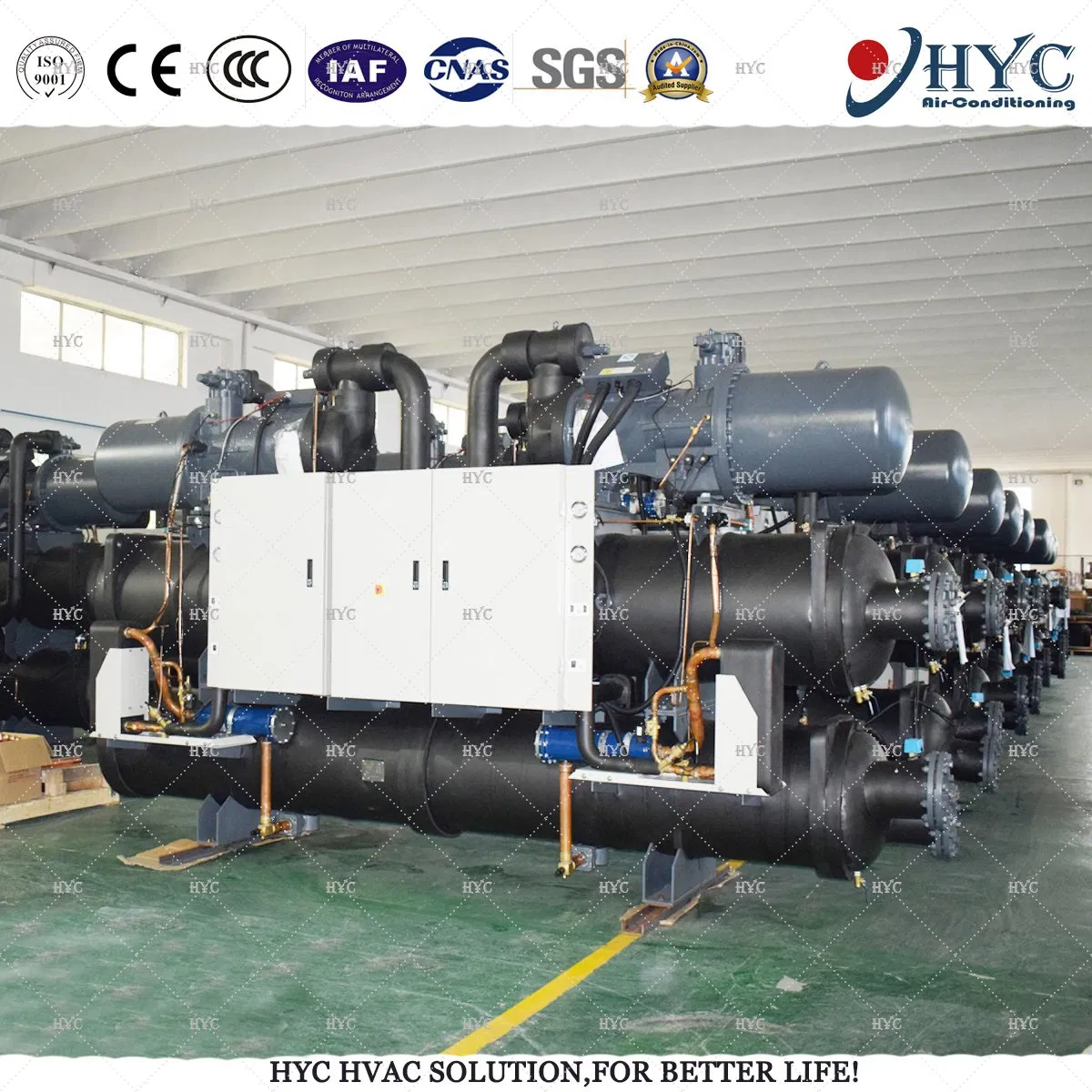

Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
1 / 5
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating
Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating

Central Air Conditioner Heat Pump (geothermal/ground source/water source) for Heating

Customization: Available
Certification: CCC, CE
Working Medium: R22
Send Inquiry

Product Description

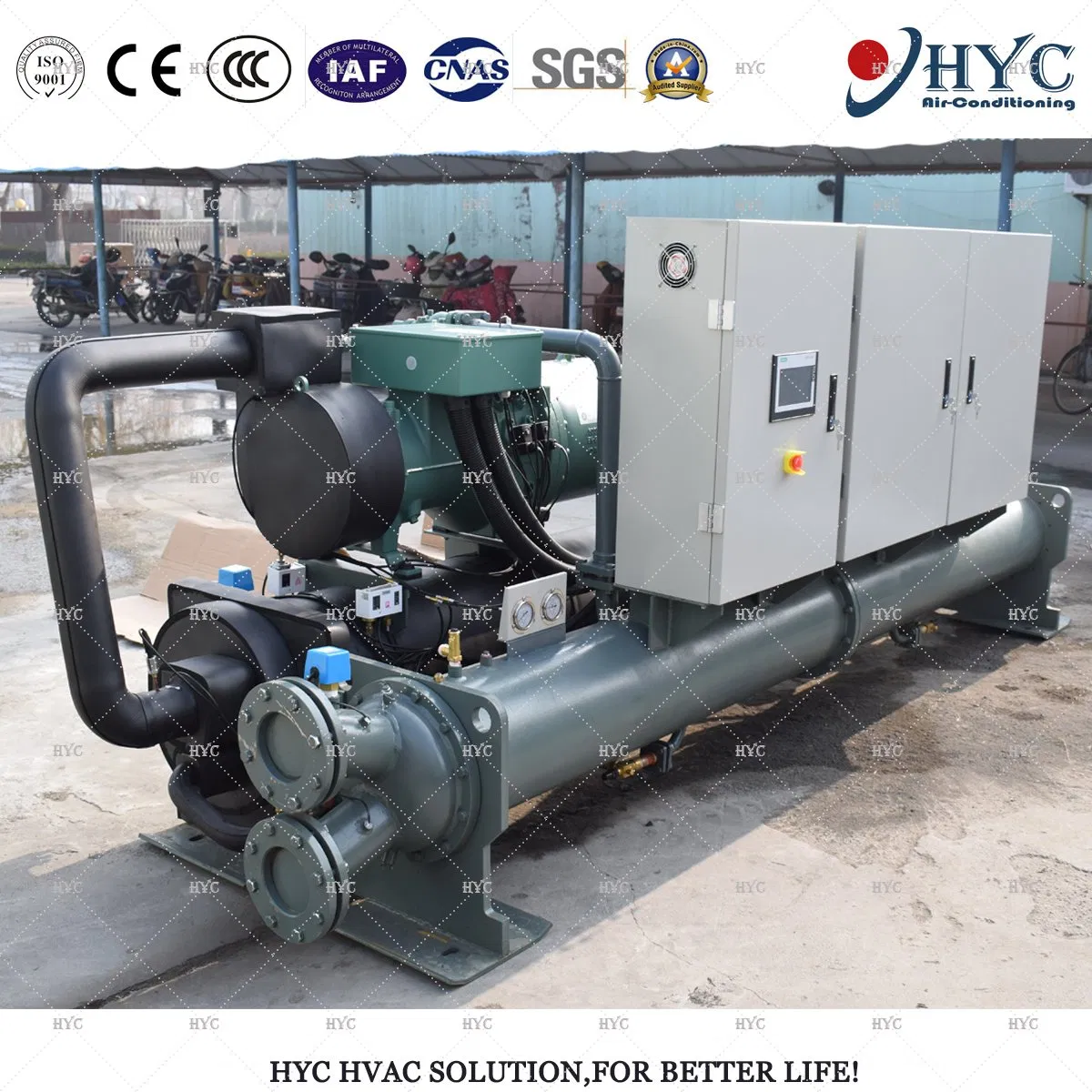

Central Air Conditioner Heat Pump
Basic Specifications
Model NO.
hsw
Heat Source
Ground Source Heat Pump (GSHP)
Capacity
288-2306kw
Compressor Type
Screw (Fusheng/Hanbell/Bitzer)
Refrigerant
R22/R407c/R134A
Color
White / Optional
OEM/ODM
Available
Delivery Time
30 Days
Origin
China
Product Features
SEMI-HERMETIC COMPRESSOR Semi-hermetic screw compressor for the whole range. Each compressor is equipped with a crankcase heater and built-in electronic protection. Features stepped or stepless energy control to adapt to part load changes.
HIGH EFFICIENCY EVAPORATOR Built with high-efficiency flooded type shell and tube heat exchanger. Increases heat exchange coefficient significantly, achieving a unit COP/EER of more than 5.0.
DURABLE CONDENSER Horizontal type shell and tube heat exchanger, offering stable operation, low resistance, and efficient heat exchange.
REFRIGERANT CIRCUIT Complete with sight glass, filter drier, high/low pressure gauges, solenoid valve, electronic expansion valve, and safety valve.
ADVANCED CONTROL SYSTEM Equipped with a renowned brand PLC control system for precise and stable long-term running, compatible with building management systems (BMS).
Technical Parameters
Model 85TF95TF106TF140TF170TF200TF225TF250TF280TF300TF330TF
Cooling Capacity kW 28832537149159269678088097010301149
ton 8595106140170200225250280300330
Cooling Input kW 55607090108126160.1179.3197205228
Power Supply 380-415V / 3Ph / 50Hz
Compressor Qty / 1 2
Evaporator Flow m³/h 50566484102120134151167177198
Condenser Flow m³/h 627080106127150164184203219247
Dimension (L) mm 31253325352535253560376544004400440044004470
Factory & Production Display

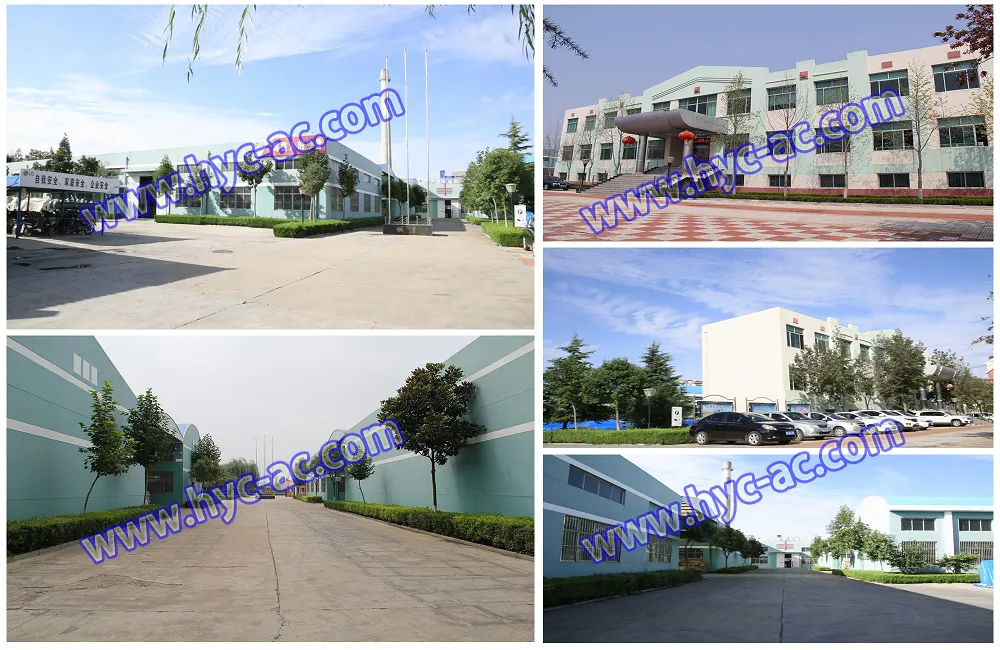

Factory View

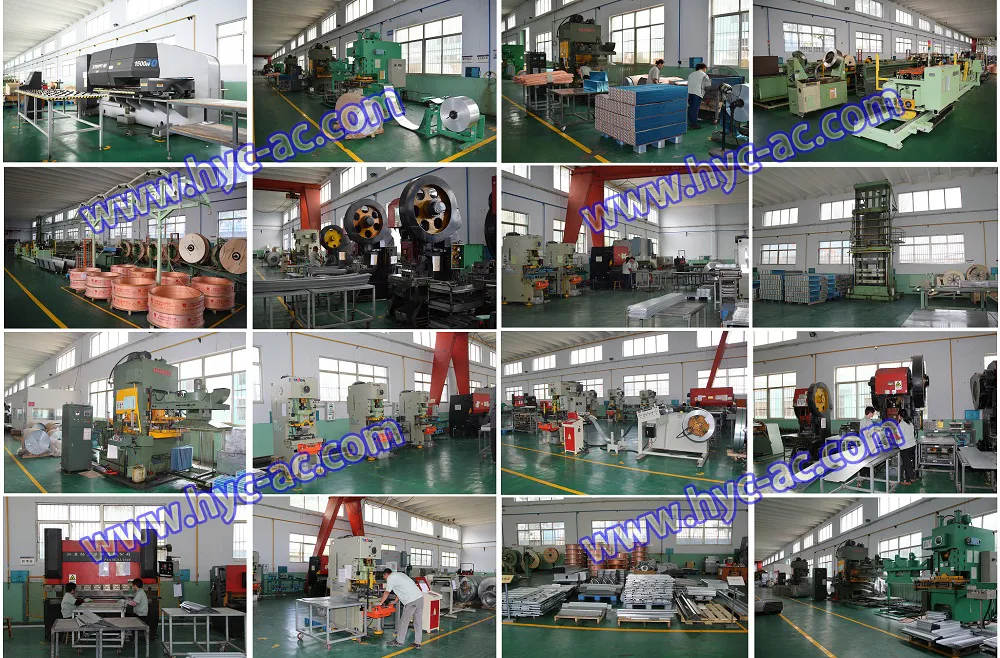

Production Machinery

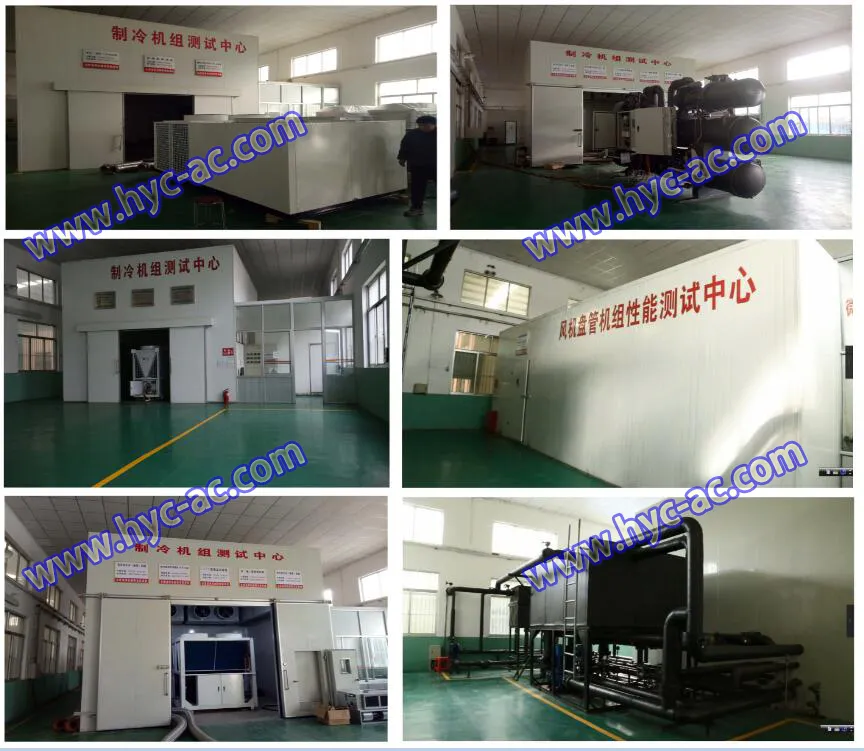

Test Lab

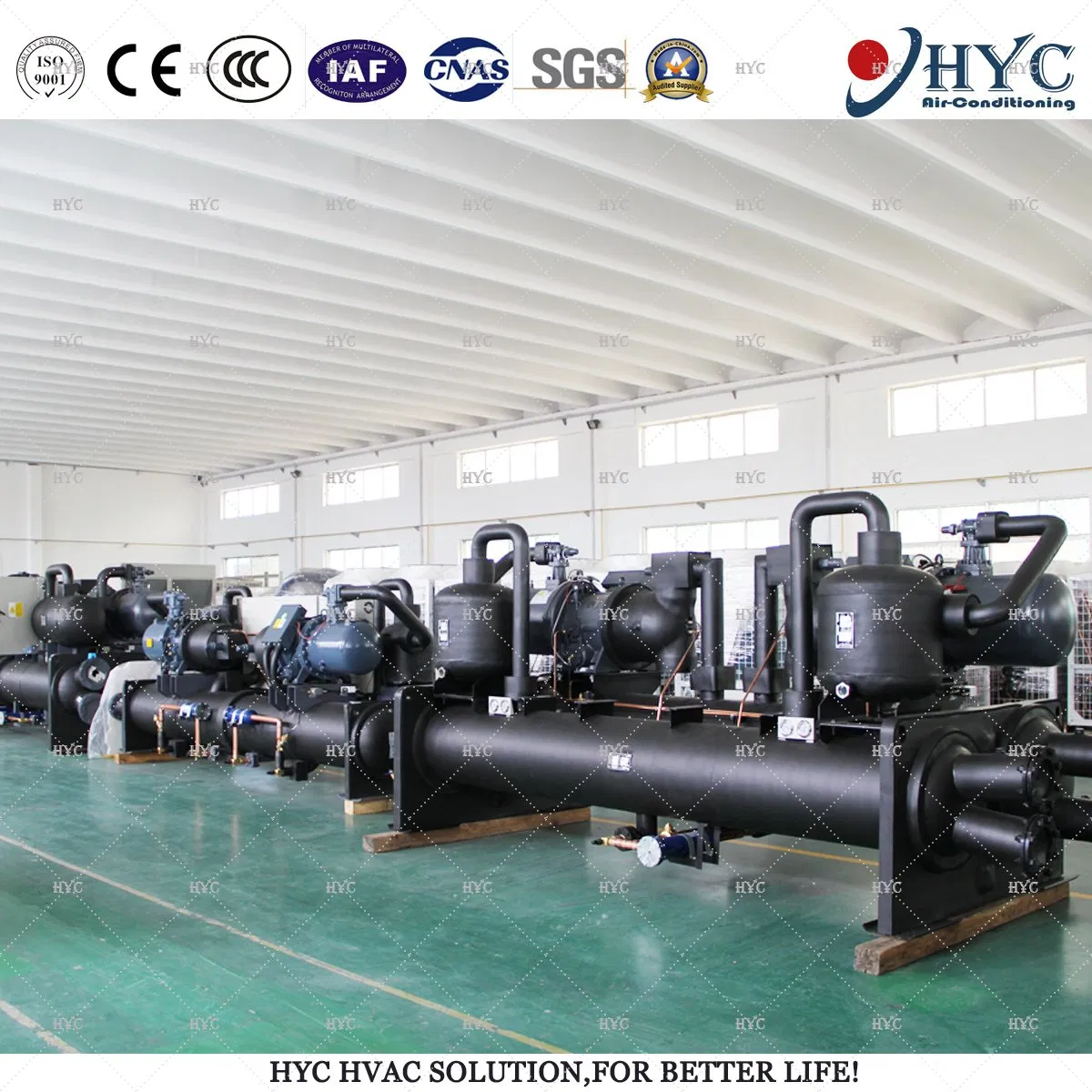

Heat Pump & Chiller Production Line

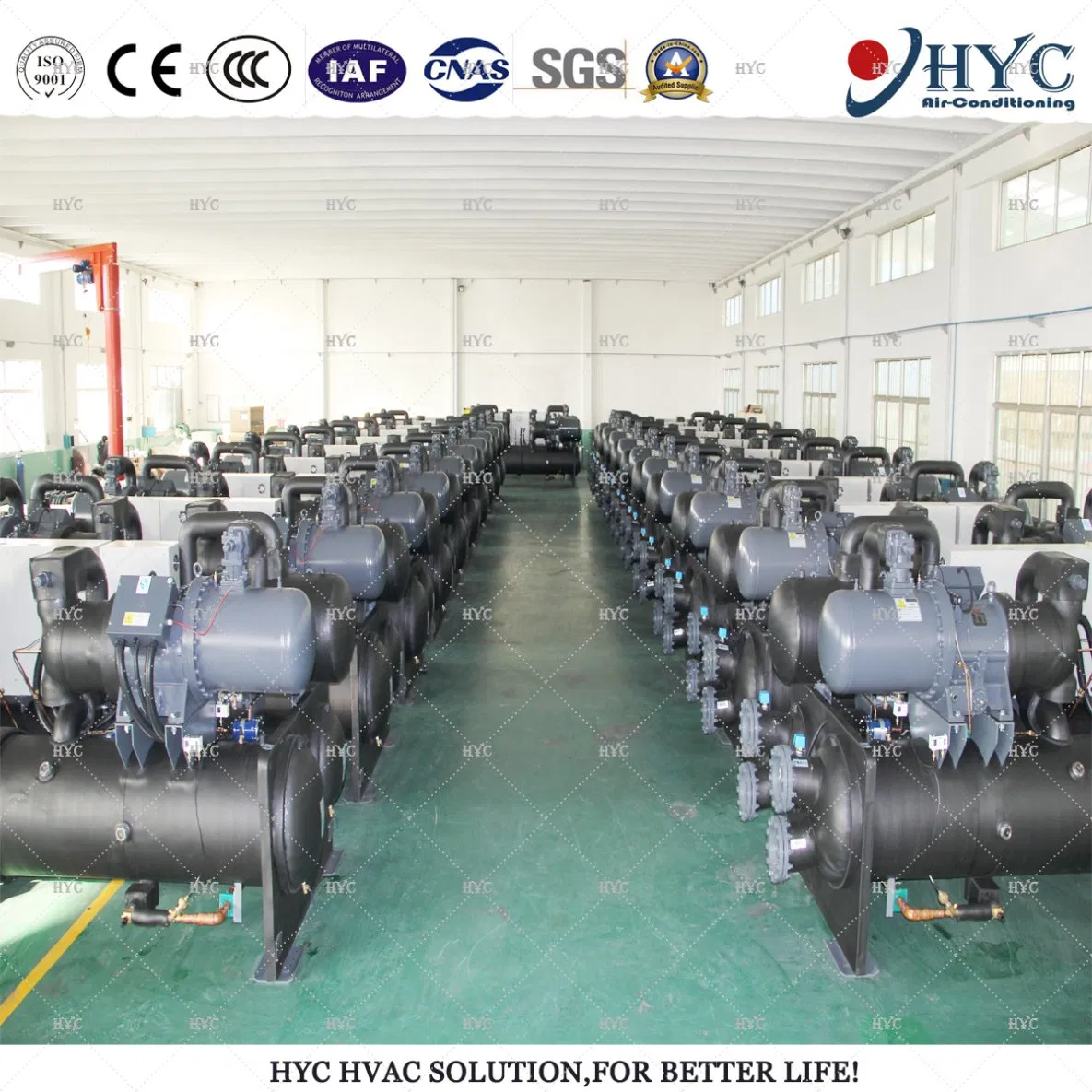

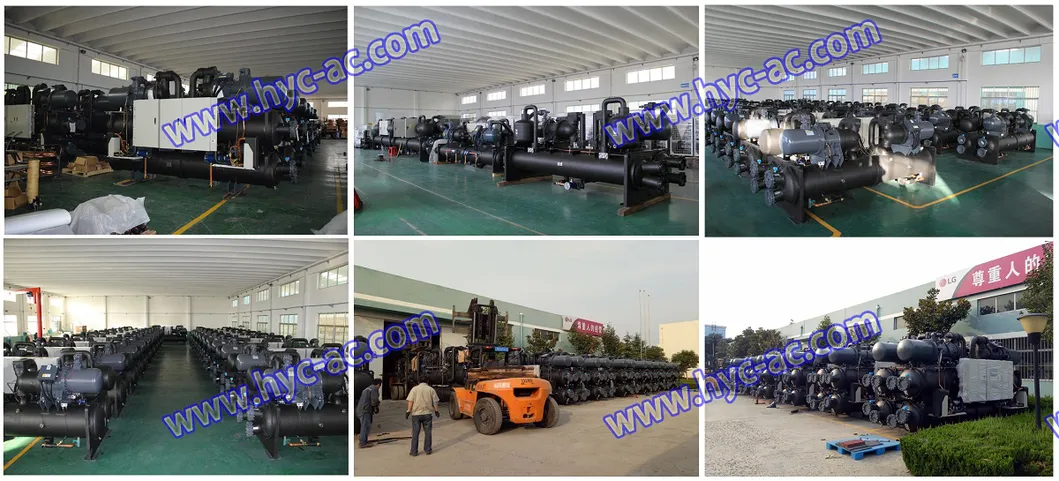

Production Line
Frequently Asked Questions
What type of compressor is used in these heat pumps?
The units utilize semi-hermetic screw compressors from reputable brands like Fusheng, Hanbell, or Bitzer, equipped with crankcase heaters and electronic protection.
What is the energy efficiency rating (COP) of this system?
Due to the high-efficiency flooded type shell and tube heat exchanger, the unit COP/EER can reach over 5.0.
Are OEM and ODM services available?
Yes, we provide both OEM and ODM services to meet specific customer requirements and branding needs.
Which refrigerants are compatible with these units?
The systems are designed to work with R22, R407C, or R134A refrigerants depending on the application requirements.
What control system is integrated into the unit?
Each unit is equipped with a professional PLC control system that ensures stable operation and supports communication with Building Management Systems (BMS).
What is the standard delivery time for an order?
The typical production and delivery timeframe is approximately 30 days.
