| Model NO. | KAWM-200CE-AW1(GN) |
|---|---|
| Heat Source Type | Air Source Heat Pump |

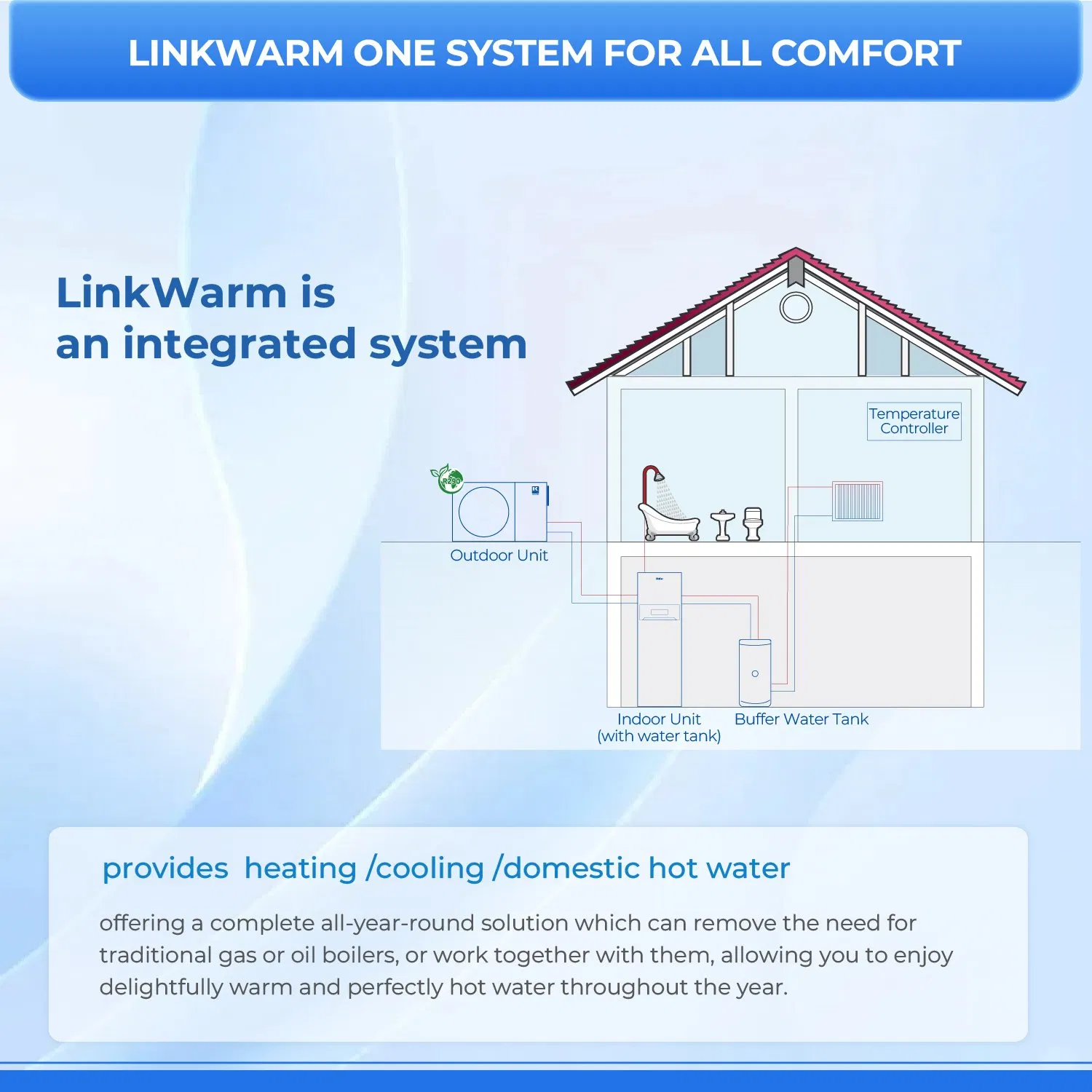

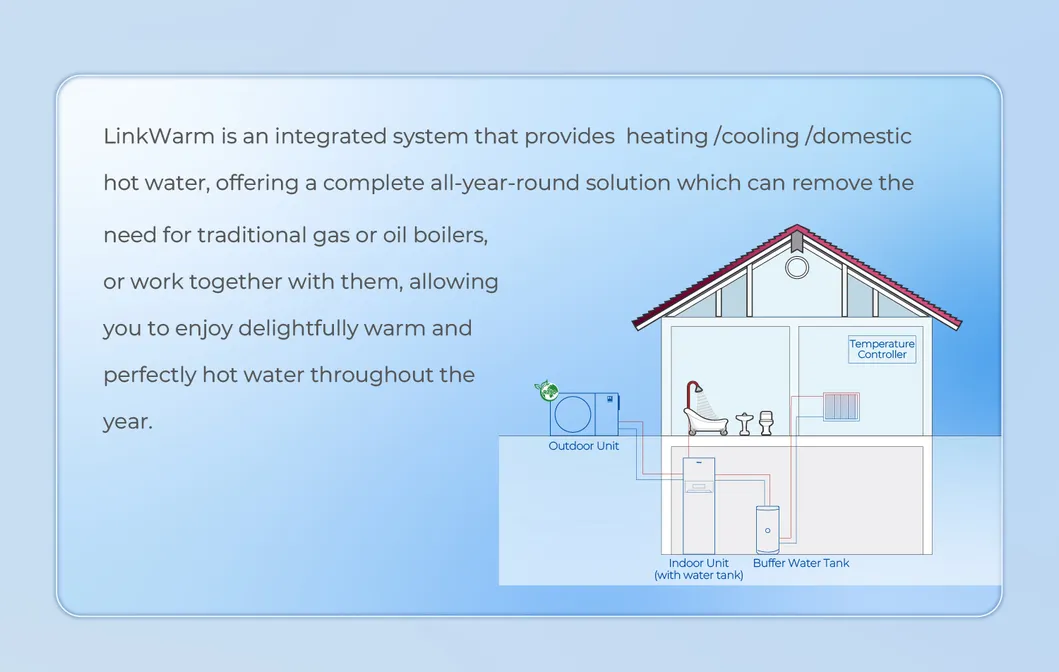

| Function | House Heating Cooling Hot Water |
| Refrigerant | R290 |
| Heating Capacity | 6~16kw |
| Compressor | Evi DC Inverter Compressor |
| Ambient Temperature | Minus 30~43 Degree |
| Max Water Temp | 24-85 Degree |
| Power Supply | 220-240V/50Hz/1pH |
| Noise | <66dB(a) |

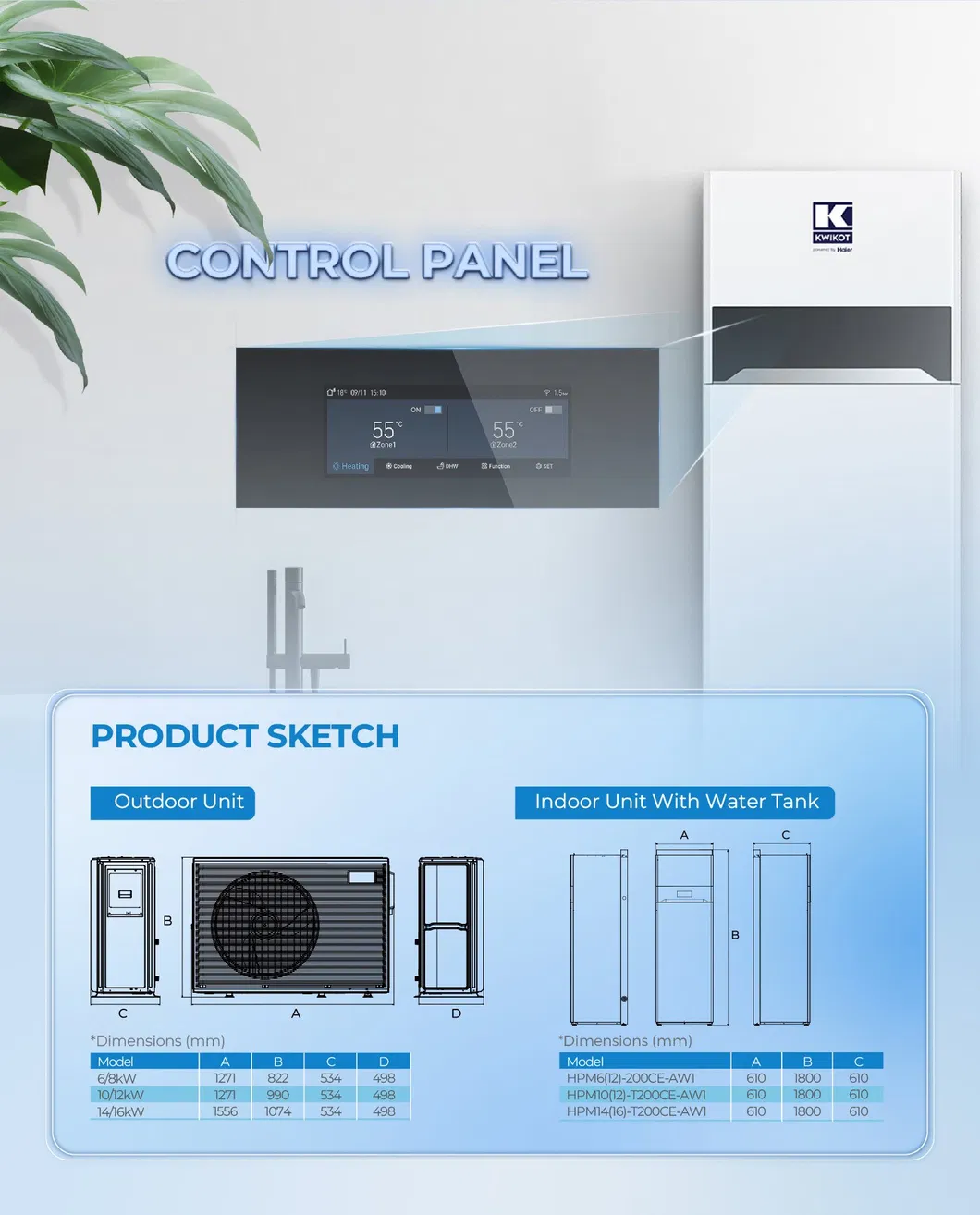

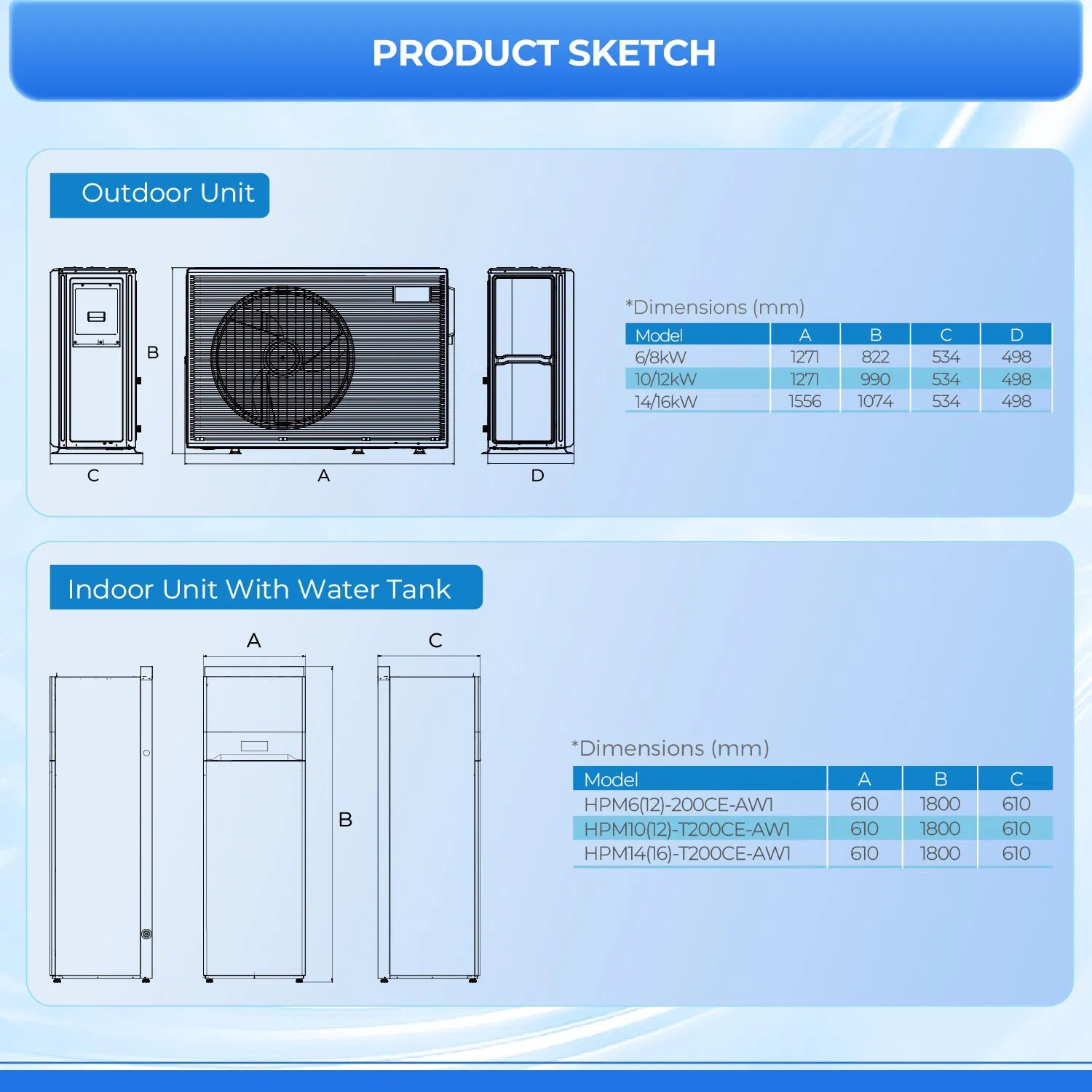

| Indoor Unit With Water Tank | |||

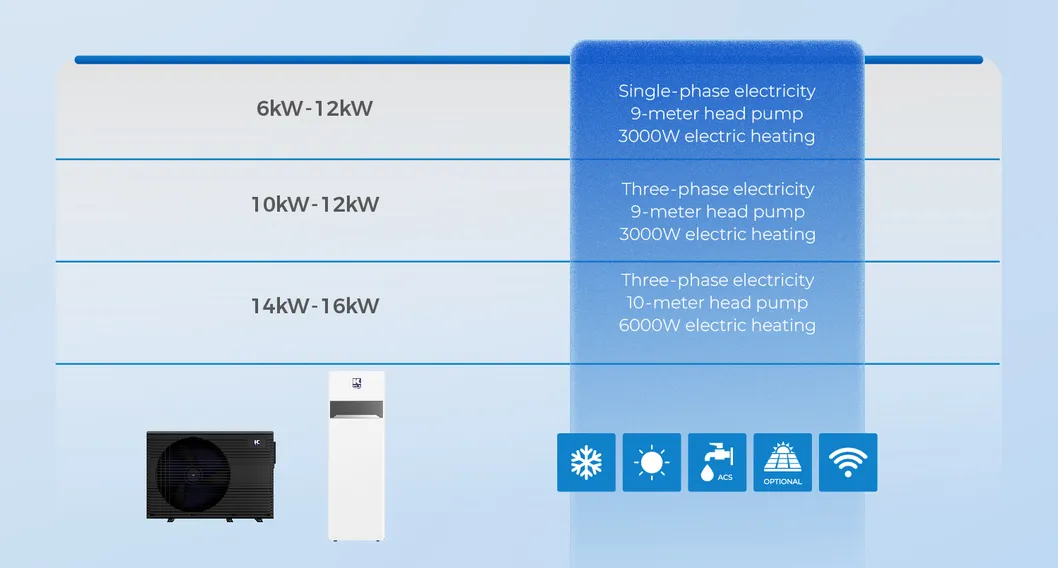

| Model | KAWM06(12)-200CE | KAWM10(12)-T200CE | KAWM14(16)-T200CE |
| Tank capacity (L) | 200 | 200 | 200 |
| Electric heating (kW) | 3 | 6 | 6 |
| Hot water temp range (°C) | 25-85 | 25-85 | 25-85 |
| Dimensions (mm) | 1800×610×610 | 1800×610×610 | 1800×610×610 |

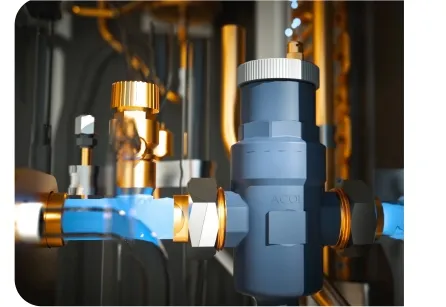

To deal with the R290 refrigerant which is combustible, we have adopted silver brazing welding technology to ensure stronger welding and avoid leakage.

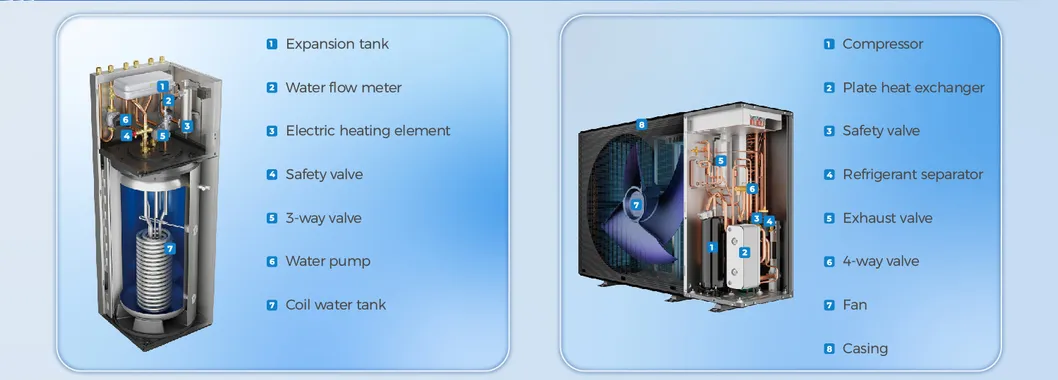

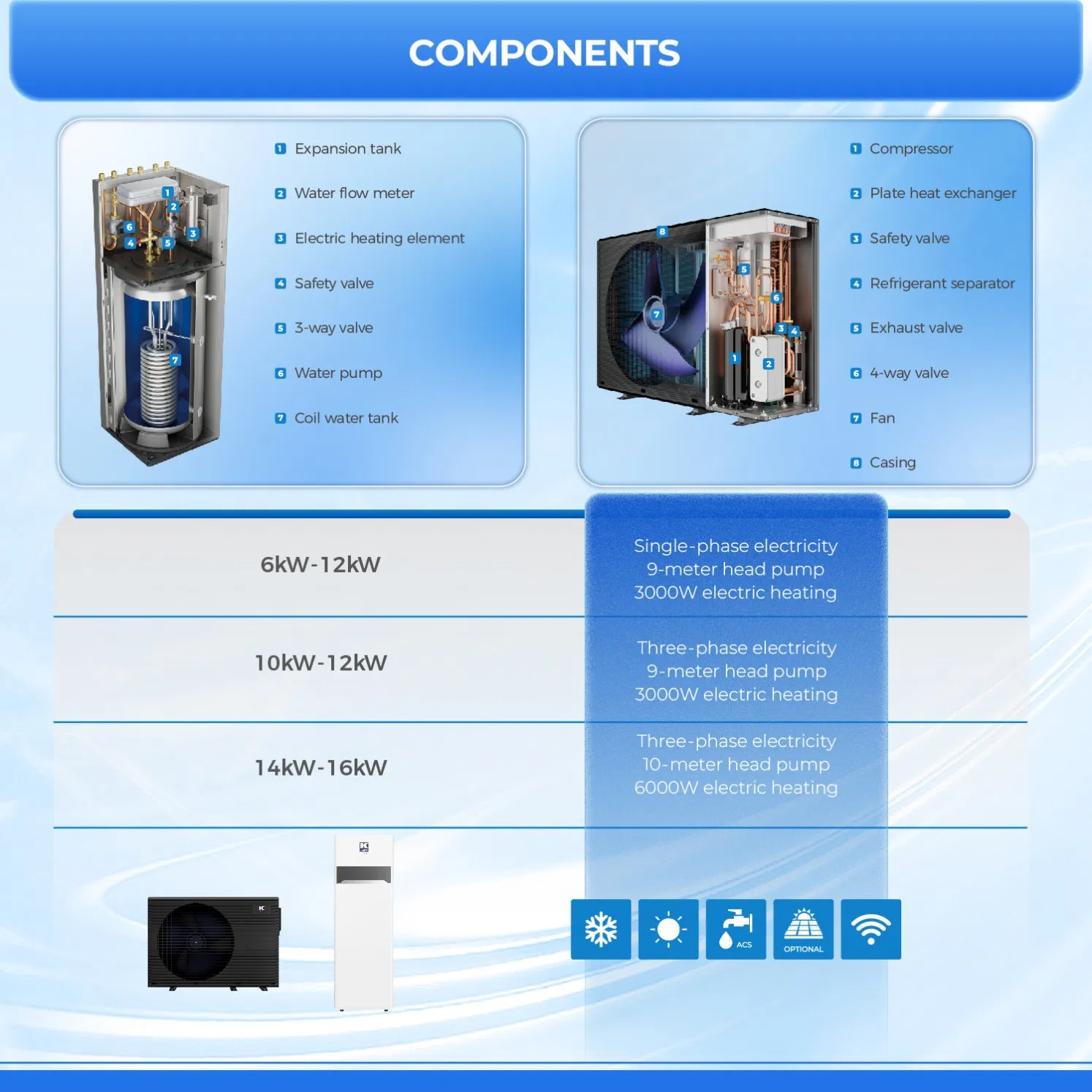

Refrigerant separator can quickly discharge the refrigerant from the water system in case of leakage. A fully sealed control cabinet is used to avoid potential fire hazards and provide strong protection.
