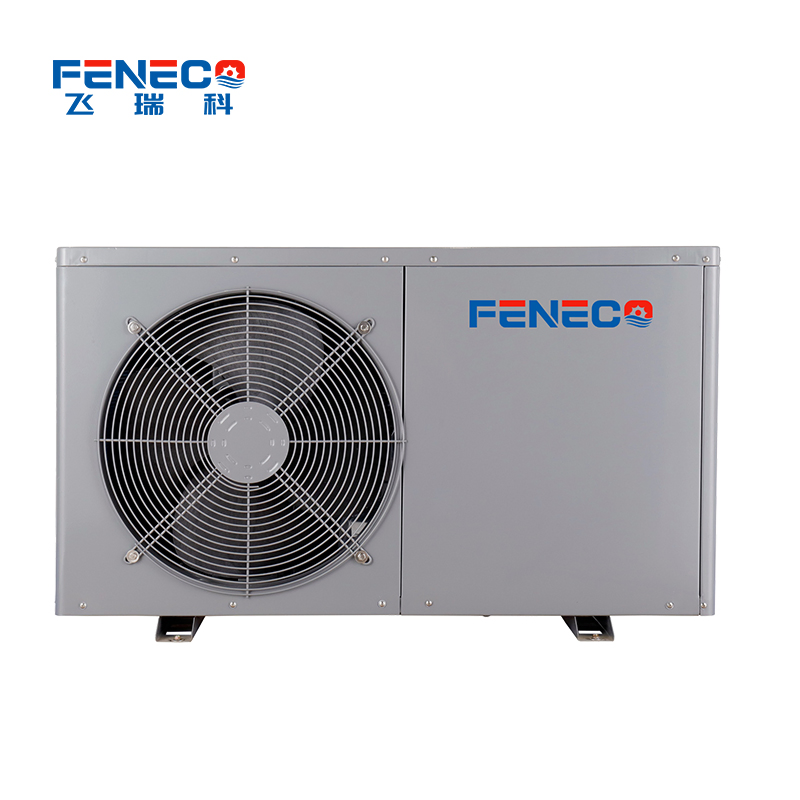

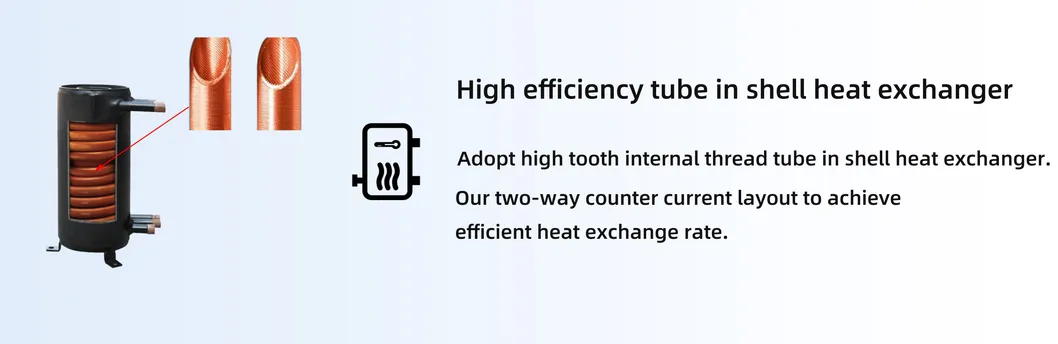

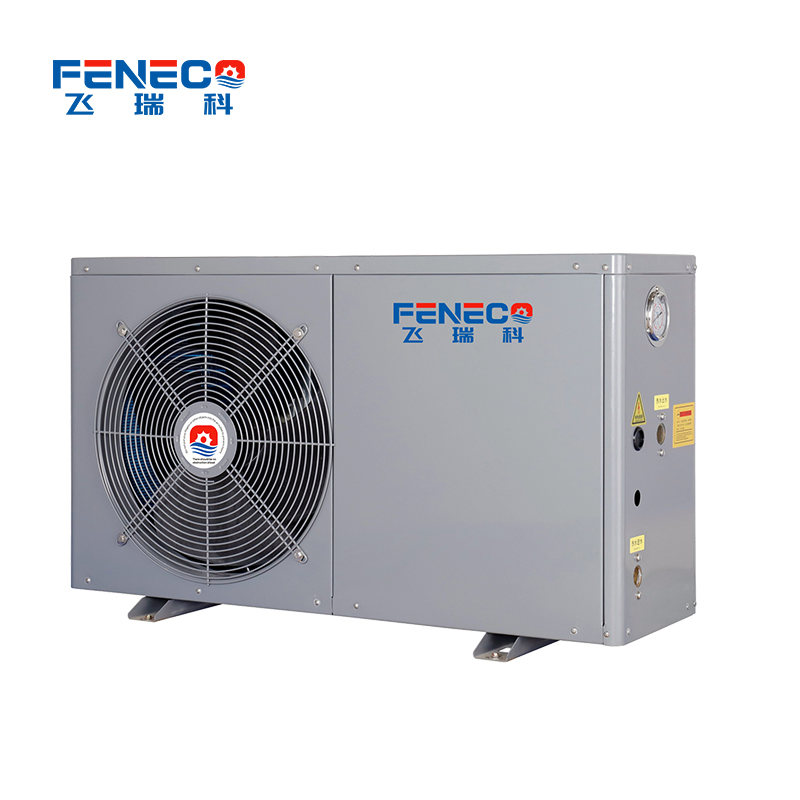

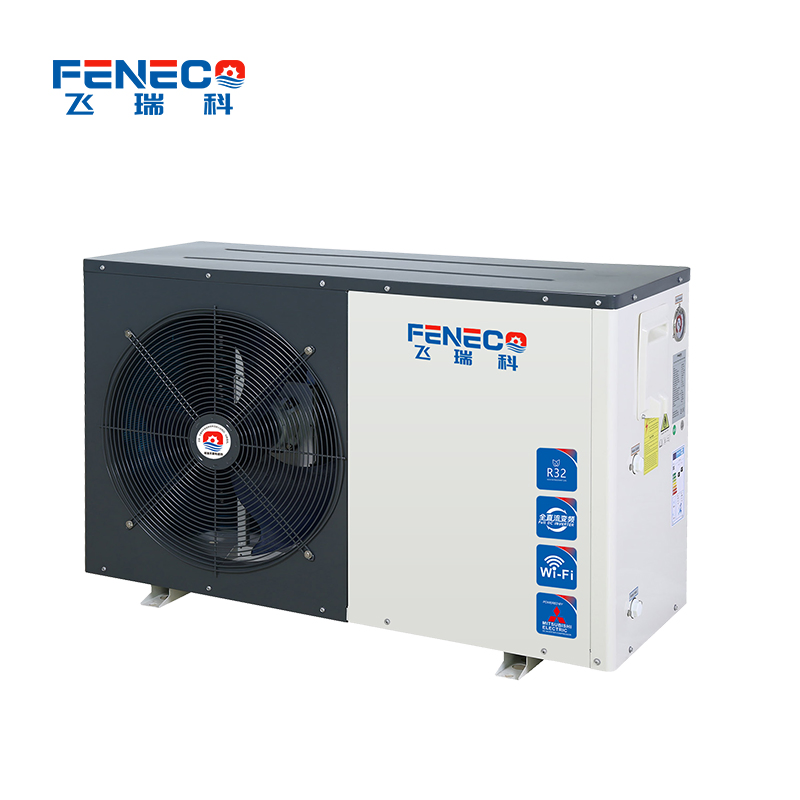

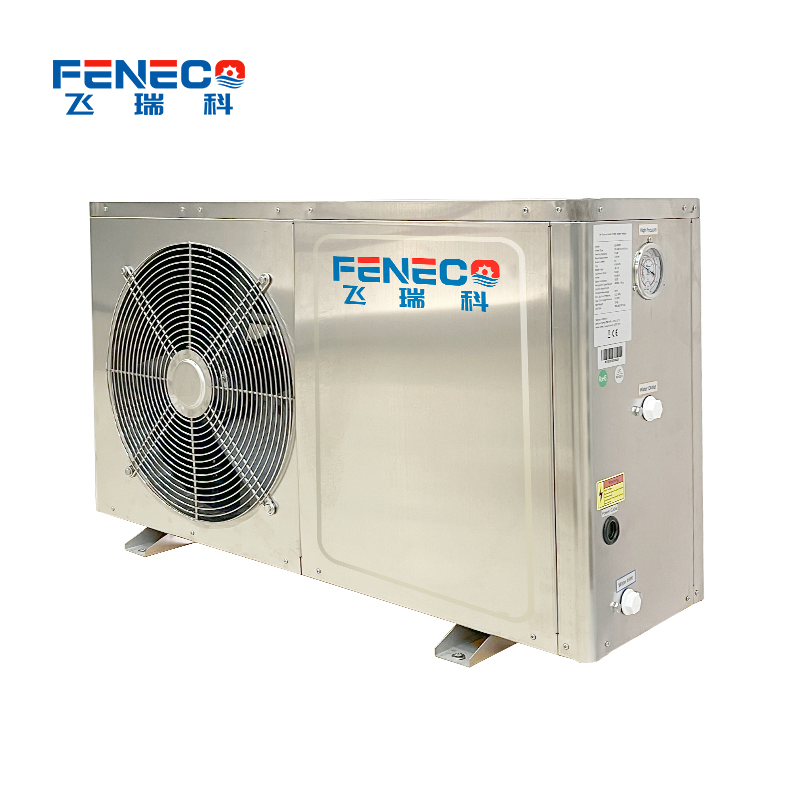

This water cycle water heater adopts a high-efficiency heat exchanger and a built-in water pump, ensuring not only high-performance operation but also easy installation. It supplies domestic hot water for showers and washing while saving up to 80% energy compared to traditional gas boilers or electric heaters.
Key Features
✓ Mitsubishi/Panasonic Rotary compressor, low noise and high reliability.

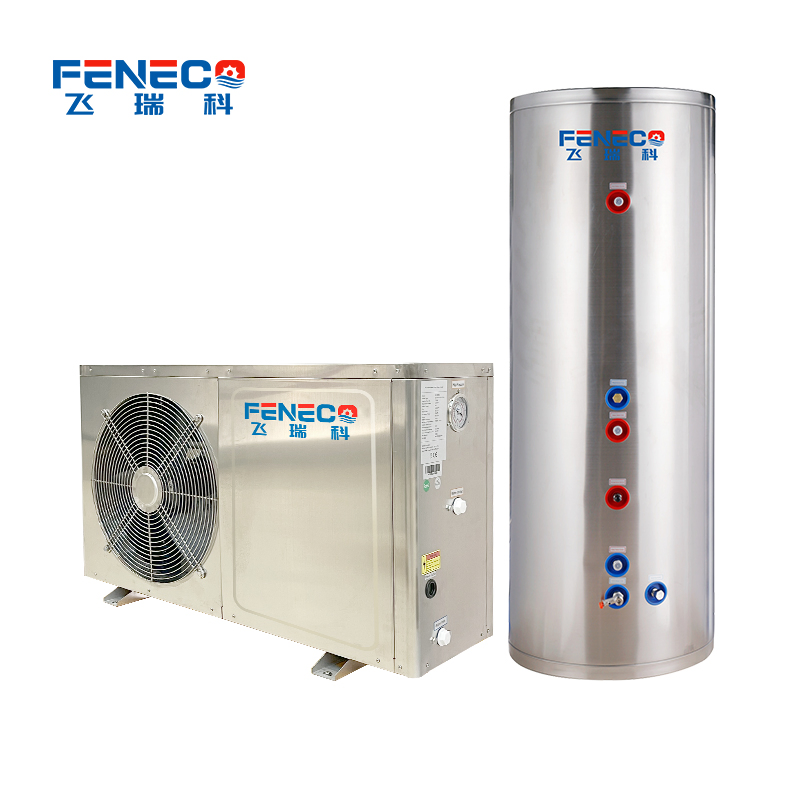

✓ Easy installation with different Polyurethane insulated water tanks.
✓ Intelligent EE valve for excellent efficiency at various temperatures.
✓ Built-in famous brand water pump for stable circulation.
✓ Energy saving up to 80% compared to electric heaters.
✓ Automatic defrosting and hydrophilic fin coil coating.
Technical Specifications
Model
Unit
XD-BKR01
XD-BKR015
XD-BKR02
XD-BKR025
Rated Heating Capacity
kW
3.5
5.5
7.5
8.5
Rated Input Power
kW
0.82
1.3
1.82
1.95
Power Type
V/Ph/Hz
220~240 / 1 / 50
Refrigerant
/
R22 / R407c / R410a / R417a
Compressor
/
Panasonic Rotary
Outlet Water Temp
ºC
55-60 ºC
Noise
dB(A)
43
47
52
55
Machine Size (L/W/H)
mm
780/260/540
930/280/550
930/280/550
1010/320/655

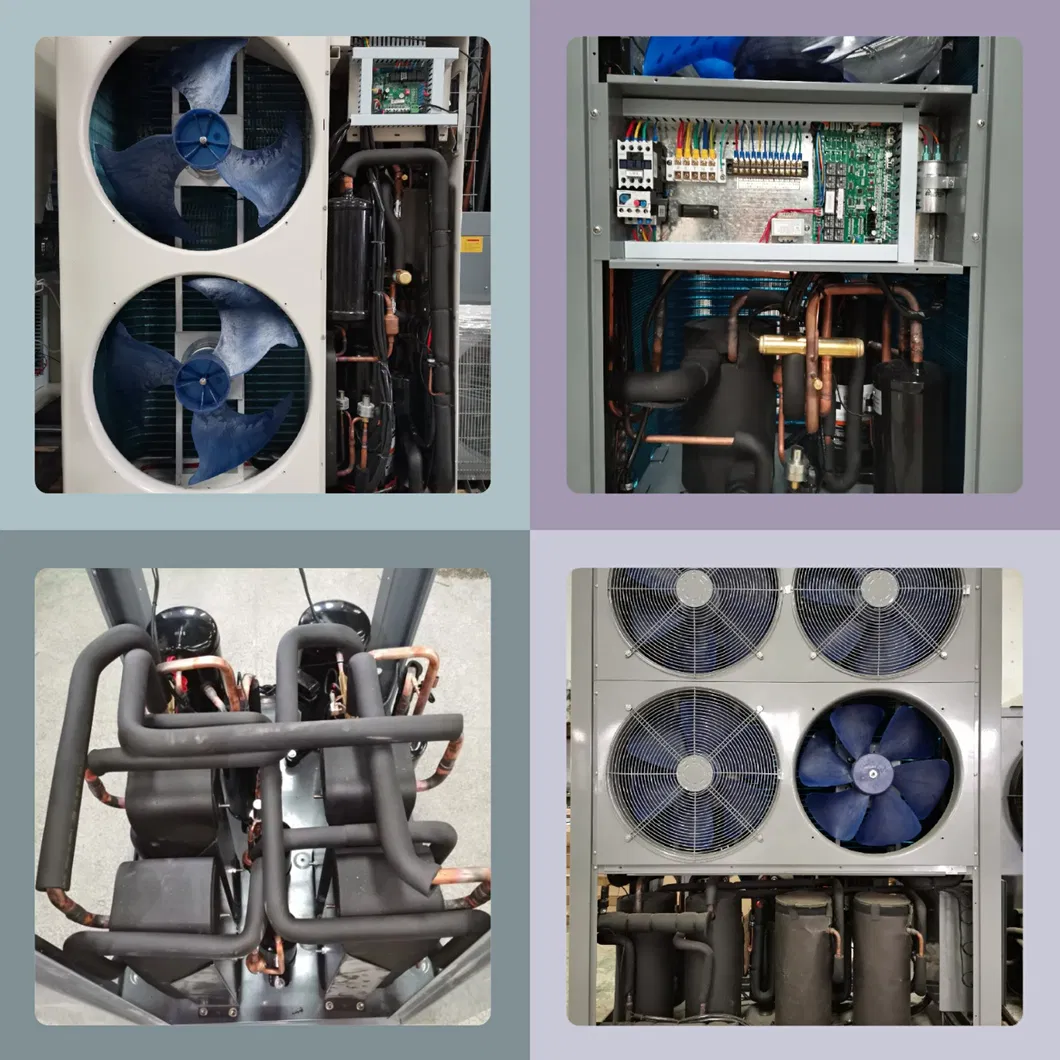

Pipeline & Circuit Design
The pipeline design effectively avoids stress vibration points and resonances, ensuring long system life and reduced noise. The circuit layout is neat, with strong and weak electric lines clearly distinguished for easy maintenance. Important components are covered with thick insulation cotton to minimize heat loss.
Manufacturing Excellence
With over 20 years of experience in the refrigeration and heating industry, products are strictly designed and tested to ensure international quality standards. We implement ISO9001 and ISO14001 systems to provide the best performance for global markets.

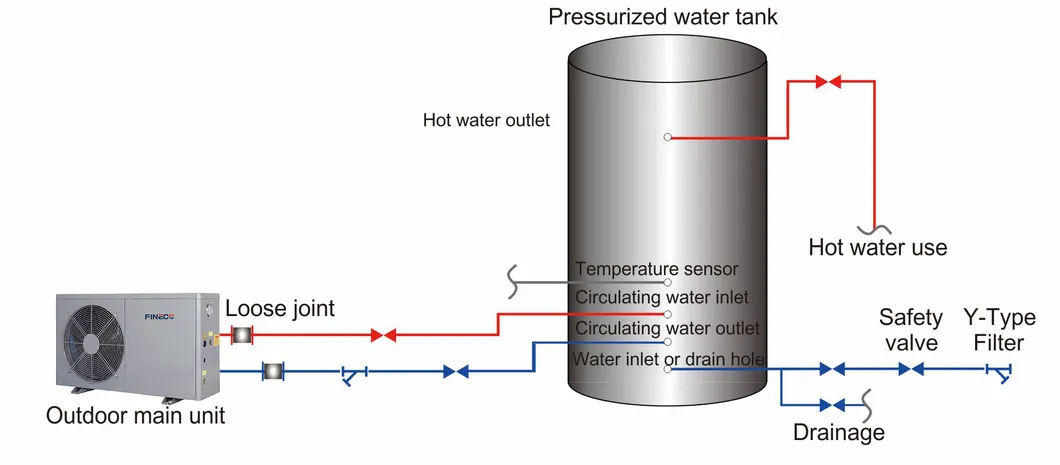

Installation & Logistics
FAQ
What is the typical delivery time for orders?
Samples usually take about 12 days. For mass production, the lead time is approximately 2-3 weeks for quantities exceeding one container.
Can I order a single unit for testing?
Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.
What is the Minimum Order Quantity (MOQ)?
We offer a low MOQ; even 1 piece for sample testing is available.
What certifications do your products hold?
Our products have obtained CE, RoHS, SGS, ISO9001, ISO14001, and CB certificates, along with various technology patents.
Do you support OEM branding?
Yes, legal OEM brands are accepted. Please provide your logo and brand authorization before production begins.
What is the warranty policy?
We provide 1% free spare parts with mass orders and offer a 3-year warranty for main components.
