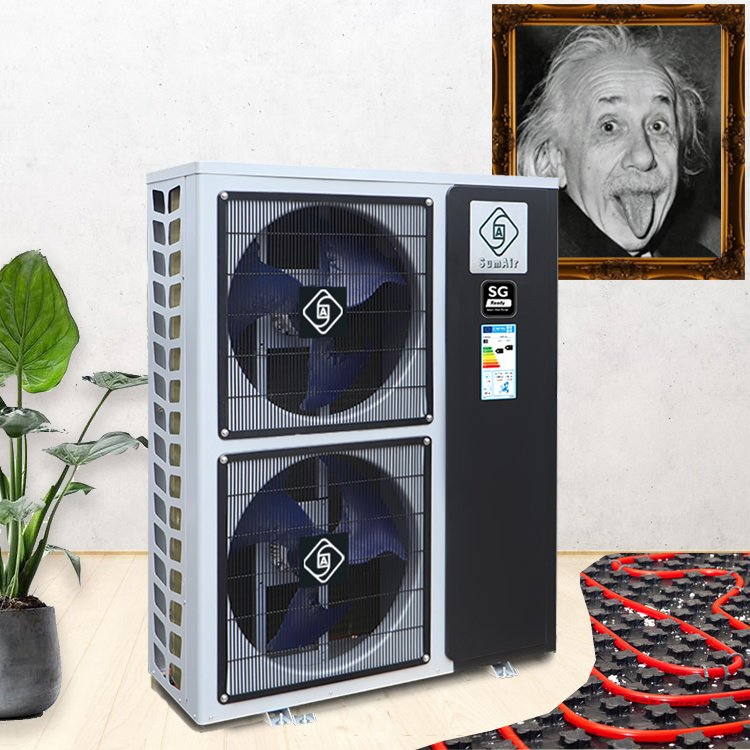

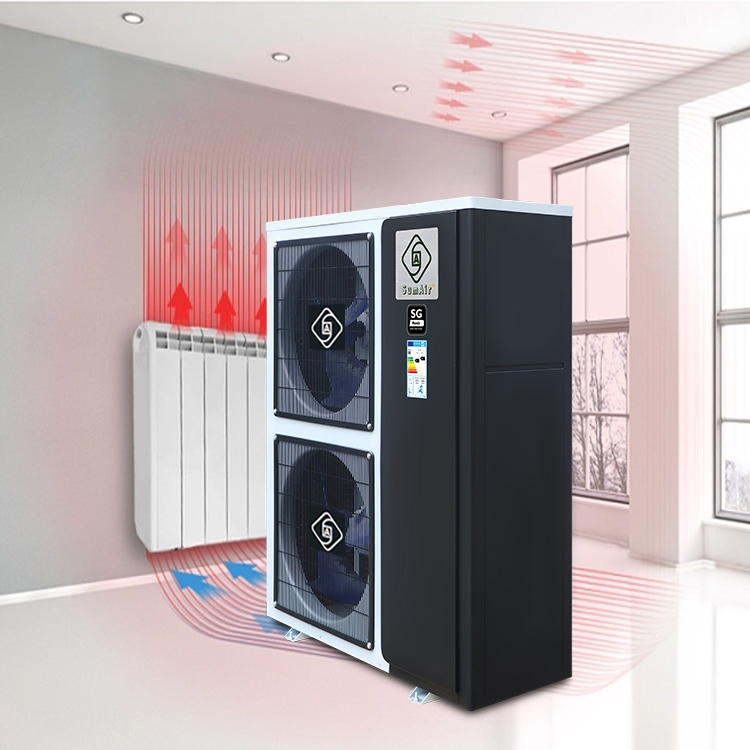

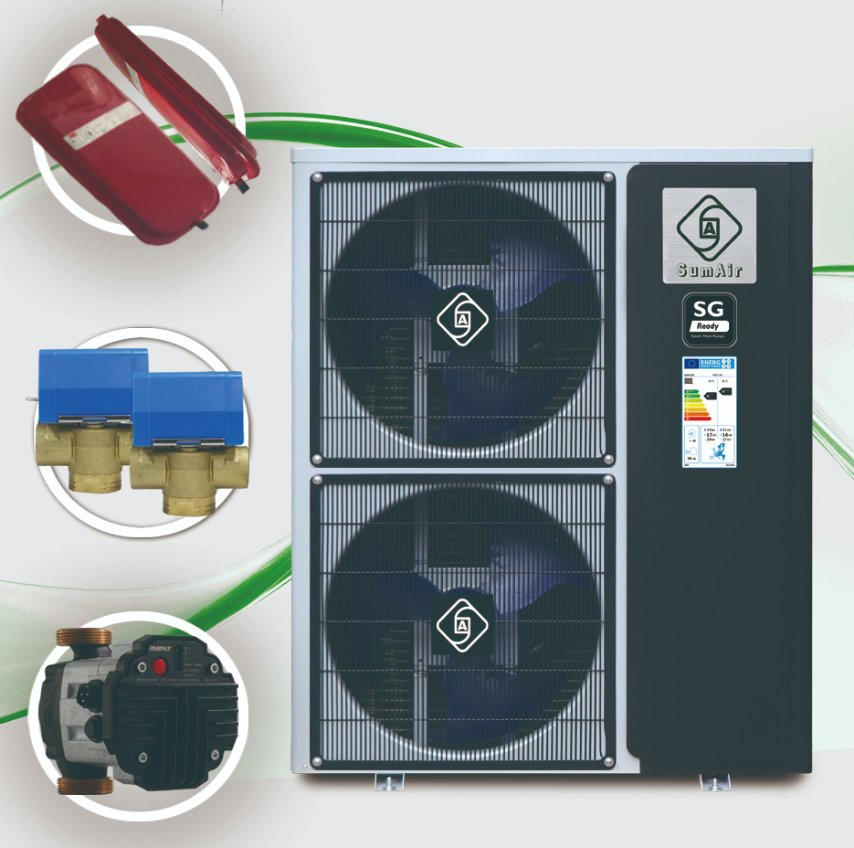

Factory Supply Home Appliance a+++ 16-50kw Air Source Monoblock R32 All in One DC Inverter WiFi Functional Thermal Pump Water Heating Heat Pump

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.#ADC-16(HC)
Work EnvironmentLow-temperature Heat Pump
Heat SourceAir-source
Heating TypeCirculating Heat
ApplicationVilla Family, Sauna and Swimming Pool, Hotels, Factory Hospital
CertificationCE, CB, ERP
CompressorPanasonic/Highly/Hitachi
Heating/Cooling Capacity14kw/12kw
Water PumpDC Type
Fan MotorBrushless Type
WiFiYes, APP Support
HS Code8418612090
Air Source Monoblock Heat Pump

Core Product Features

01
Top SCOP Performance: Utilizes Panasonic/Highly Inverter Rotary compressors and eco-friendly R32/R290 refrigerant gas for maximum heat capacity even in coldest seasons.
02
Frequency Conversion Technology: Advanced AC-DC-AC power conversion with PWM control to achieve precise variable frequency PID calculus and high efficiency.
03
Ultra-Intelligent Operating System: Superior heat dissipation circuit board design and DC inverter frequency conversion system for stable overlocking performance.
04
Quiet Operation: Multi-speed mute fan motor and ROHS fan blades provide constant air flow with ultra-low noise levels.
05
Premium Components: Danfoss EEV, HUALU 4-way valves, and LG AC contactors ensure reliable House Heating, Air Cooling, and domestic hot water.
06
Durable Construction: Shock-absorption all-copper piping with high-accurate automatic silver welding for easy maintenance and long service life.
07
High-Efficiency Insulation: Aviation-class insulation foam and high-density protective jackets minimize heat loss and improve sound absorption.
Performance Data Chart

Technical Parameters

Model No. ADC-10(HC) ADC-16(HC) ADC-20(HC) ADC-32(HC) ADC-50(HC)
Heating Capacity (kW) 2.28-8.74 3.73-12.75 4.81-16.05 7.96-26.98 14.85-42.54
ErP Level (35ºC) A+++ A+++ A+++ A+++ A+++
SCOP (35ºC) 4.83 4.86 4.84 4.86 4.87
Refrigerant R32 / R290
Noise Level dB(A) ≤ 52 ≤ 56 ≤ 58 ≤ 59 ≤ 61

Internal Structure & Certificates

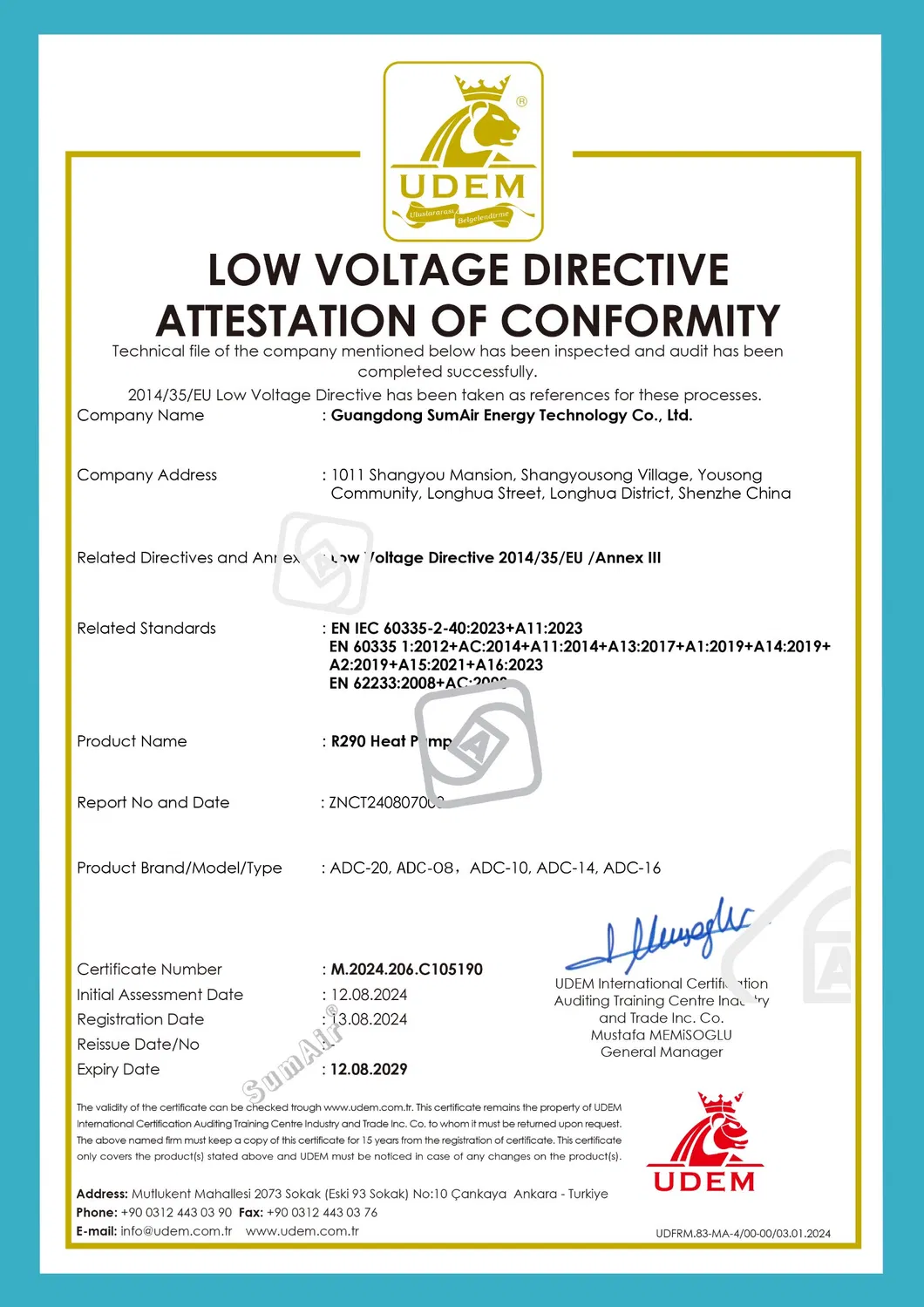

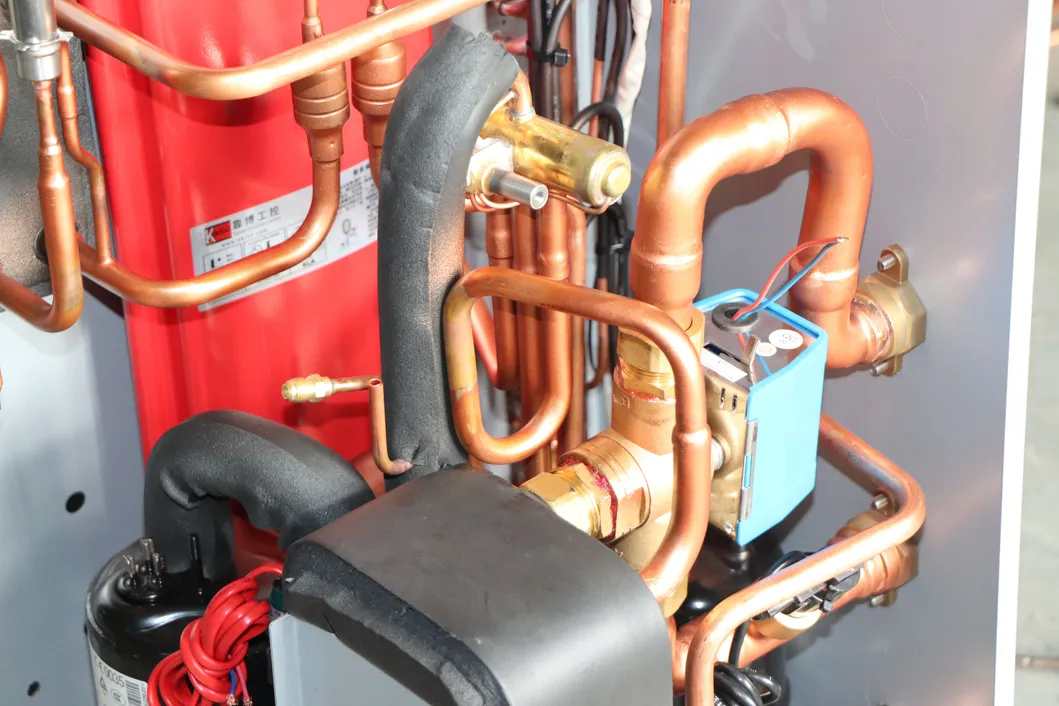

Inner Structure Certification SG-Ready Certificate

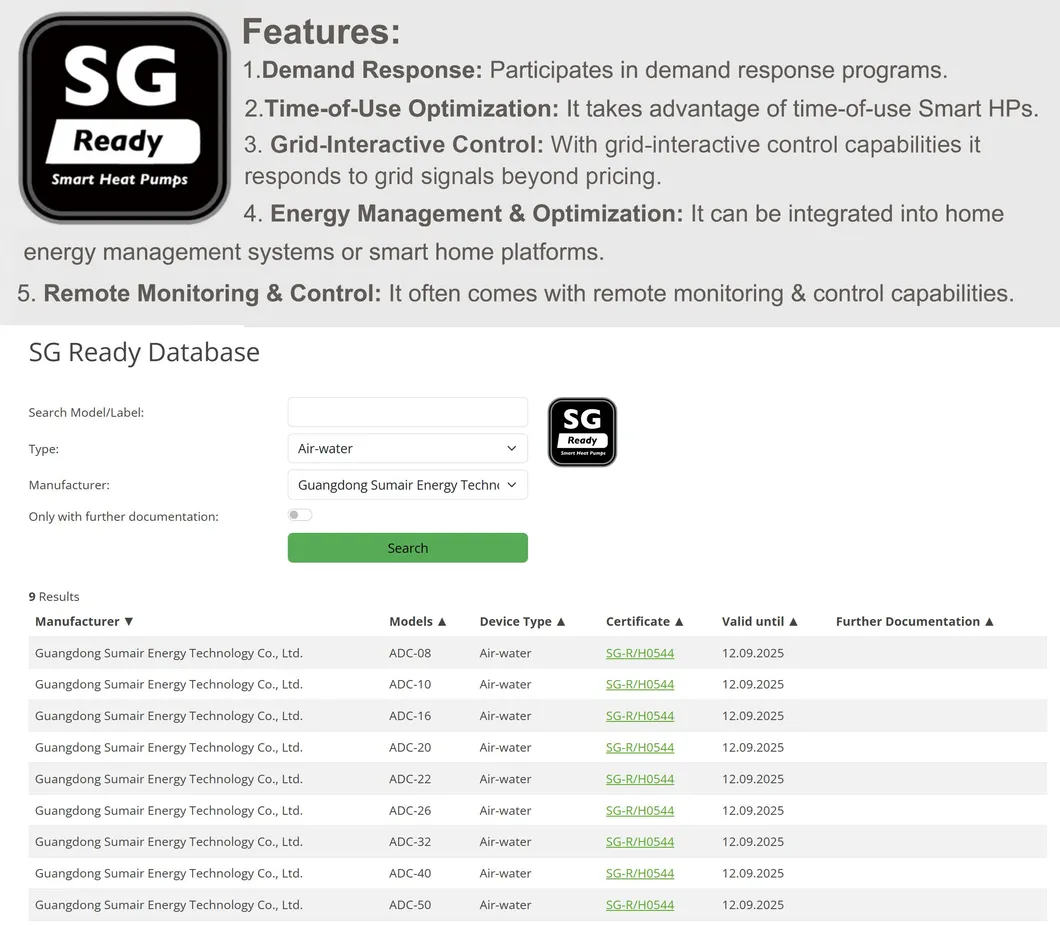

SG Ready (Smart-Grid):

The SG Ready label is awarded to heat pumps that integrate into intelligent power grids. During excess electricity periods, the monoblock initiates cooling or heating efficiently using your own electricity directly.

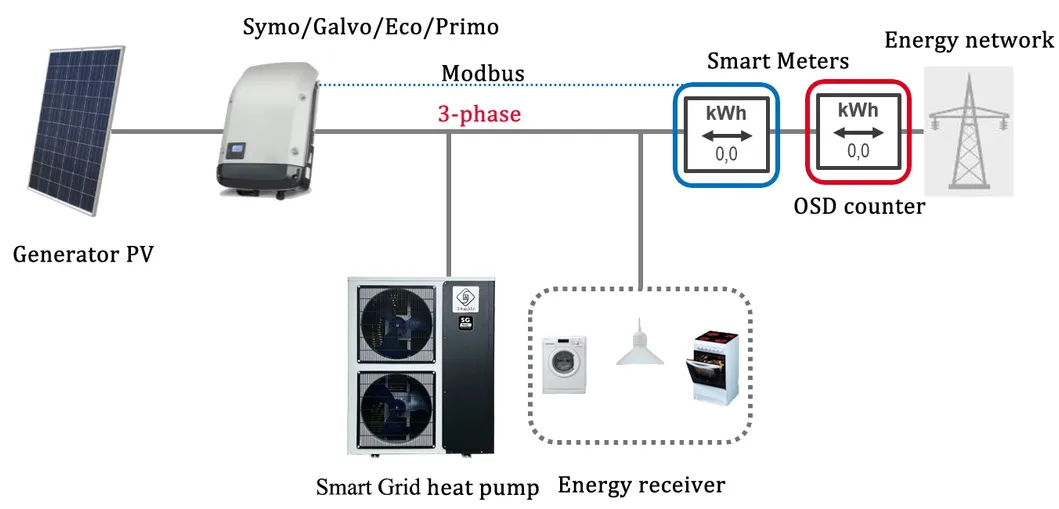

Smart Grid Connection Operating Principle

Energy Efficiency & Applications

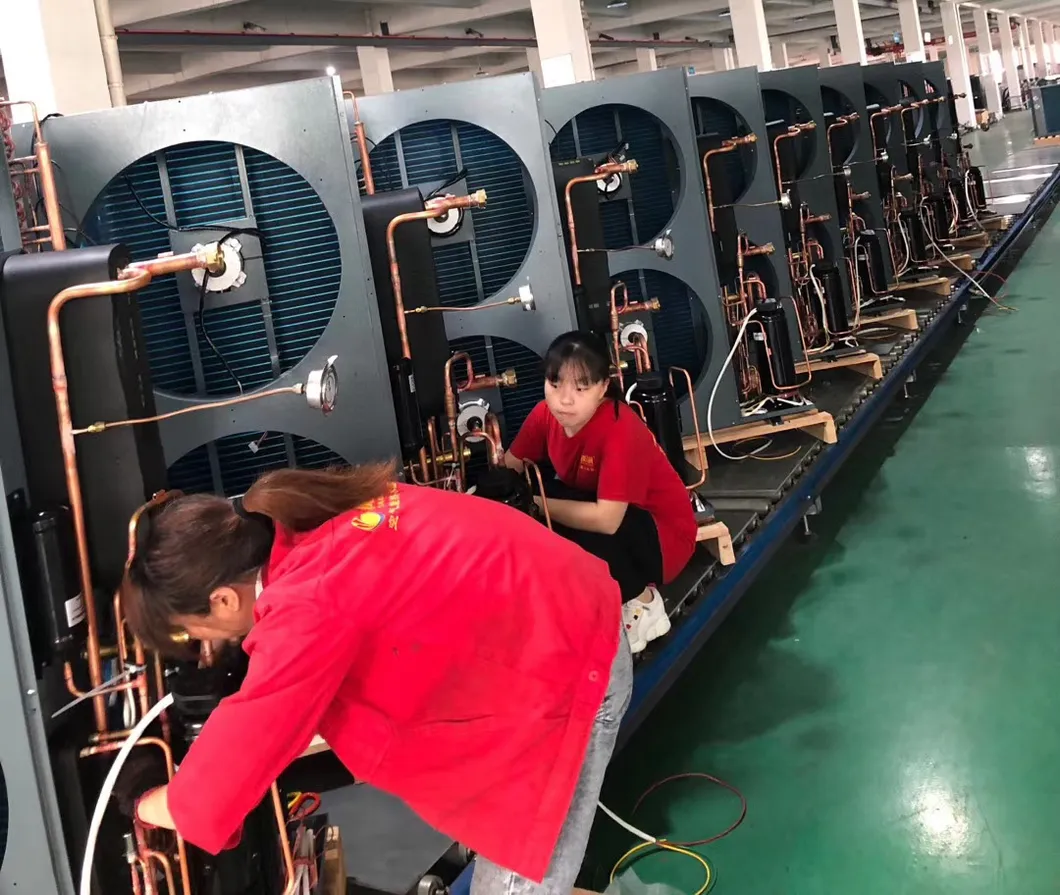

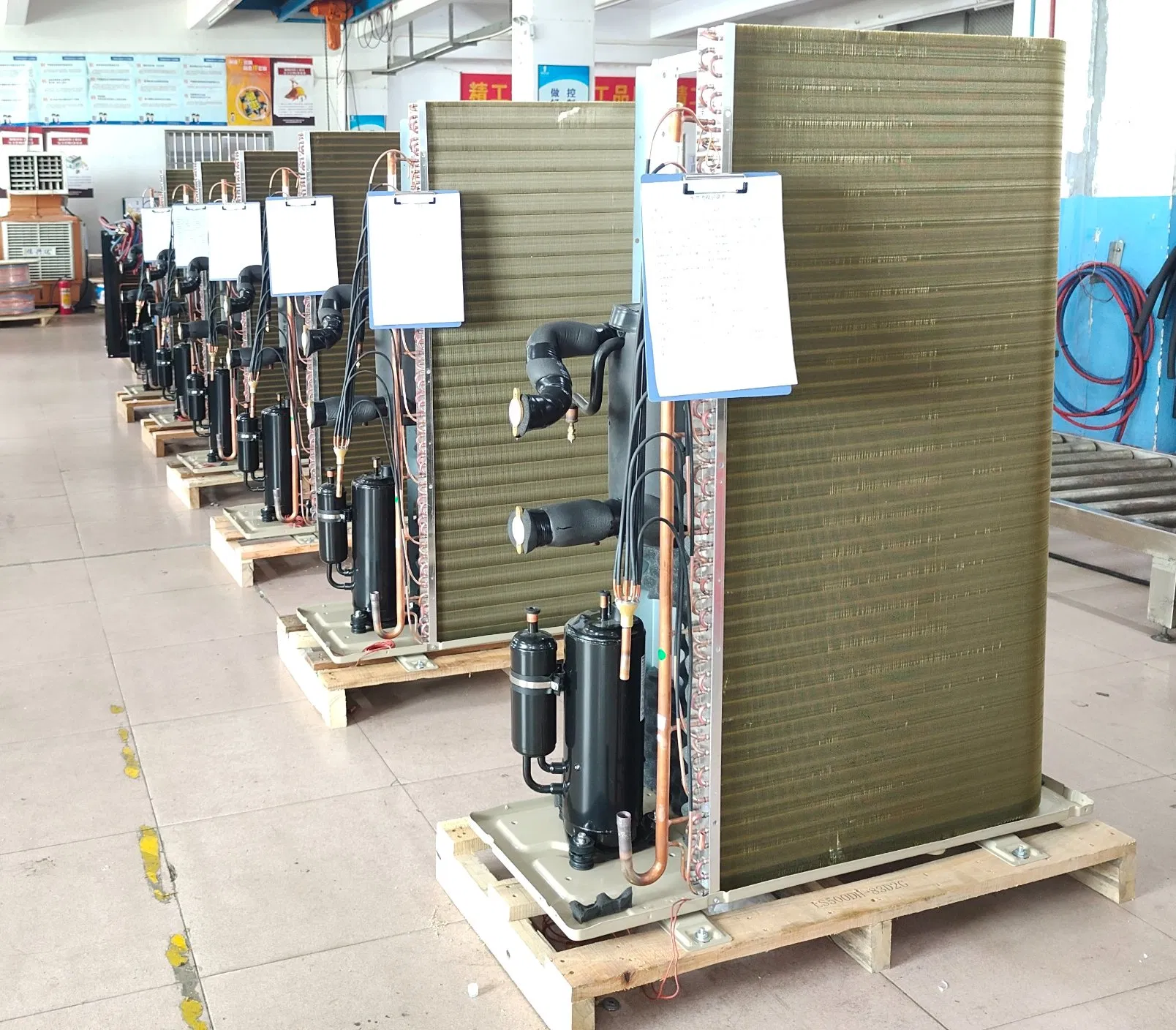

Energy Label Production Line Products in Line

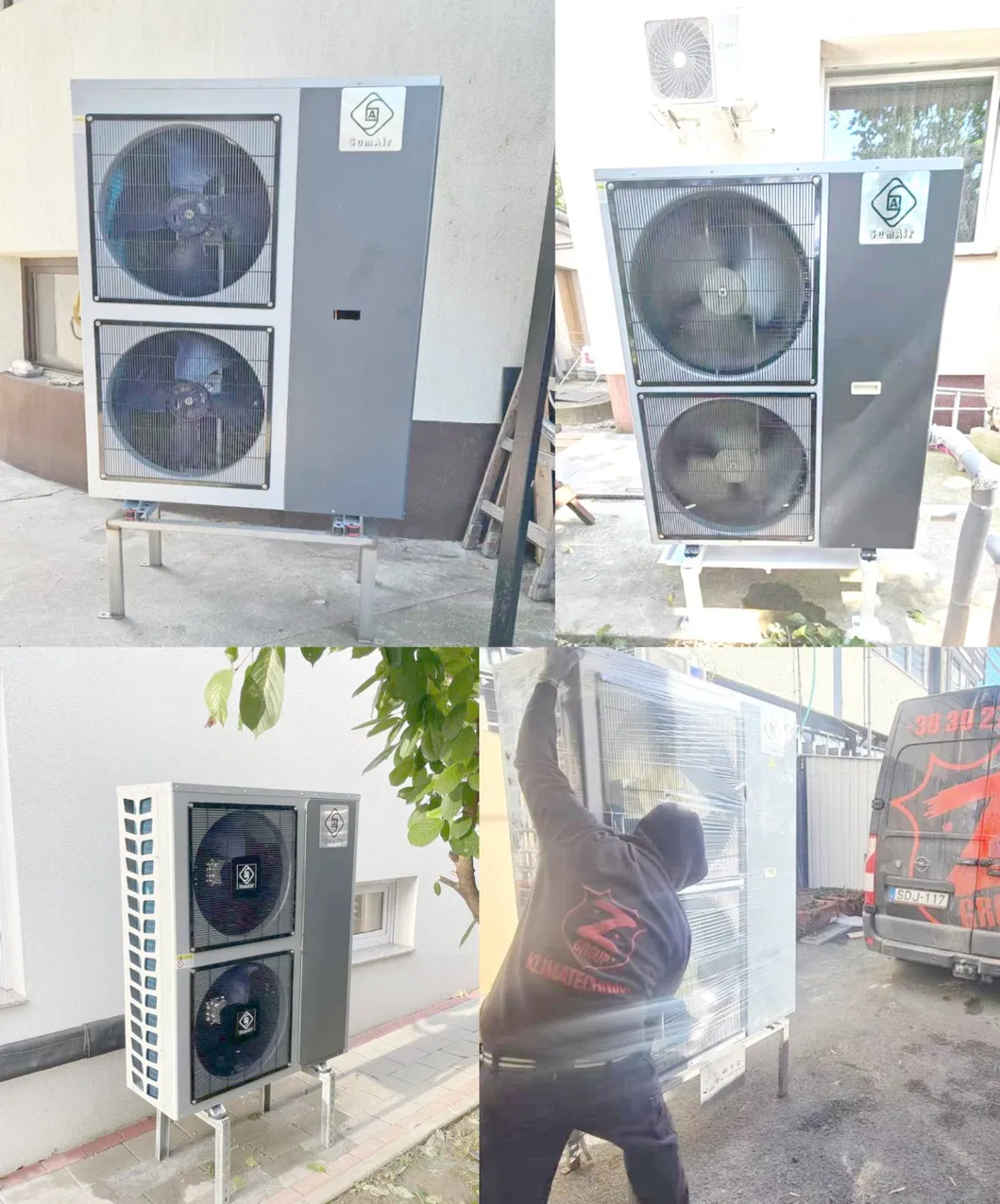

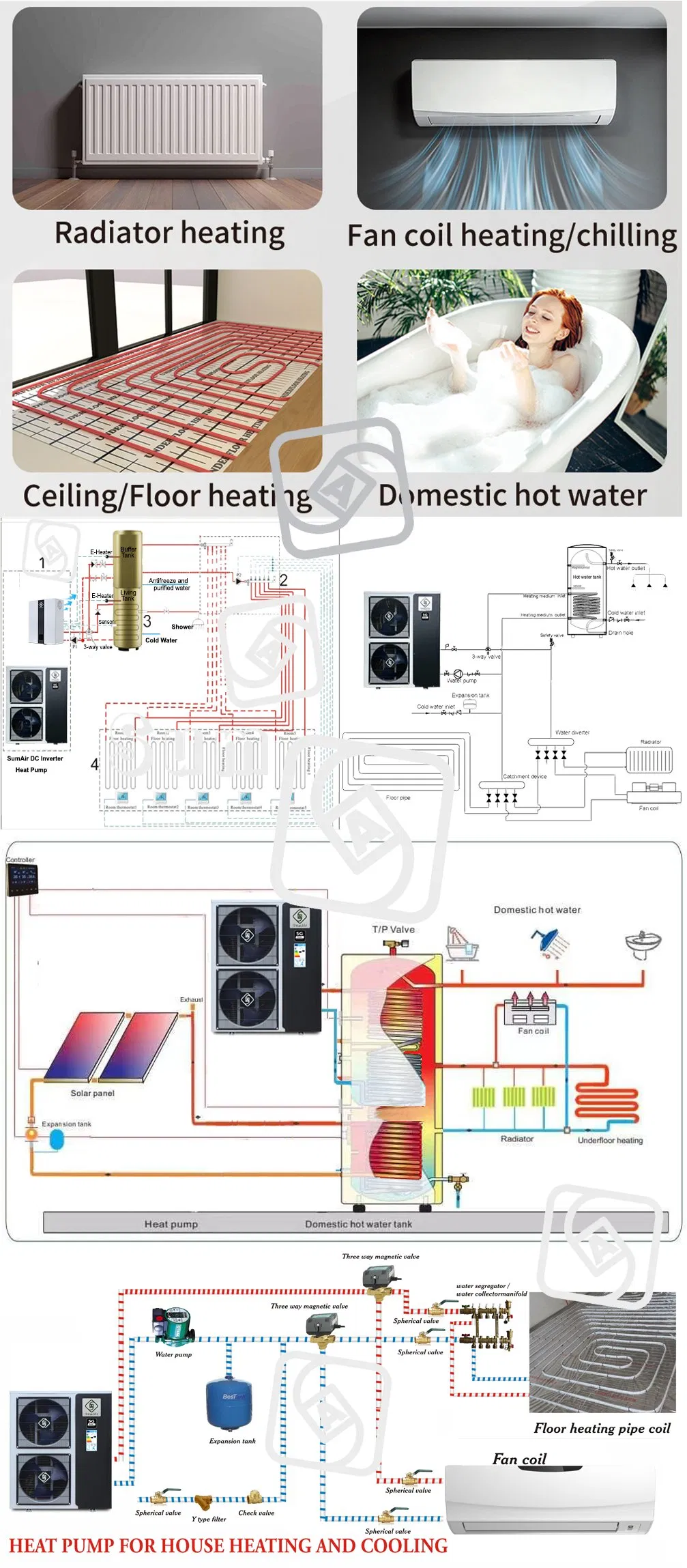

Installation Reference 1 Installation Reference 2

Frequently Asked Questions

What is the lowest operating temperature for this heat pump?
This low-temperature air source heat pump is designed to operate reliably in ambient temperatures as low as -30ºC.
Is the system compatible with Smart Grid technology?
Yes, it features SG-Ready certification, allowing it to integrate with intelligent power grids to optimize energy consumption during peak production.
What type of compressor is used in the ADC series?
We use high-quality Inverter Rotary compressors from world-renowned brands such as Panasonic, Highly, or Hitachi.
Can I control the heat pump remotely?
Yes, the unit comes with a built-in WiFi module and supports APP control, allowing you to manage your home climate from anywhere.
What is the energy efficiency rating of these units?
The units are highly efficient with an ErP rating of up to A+++ for 35ºC water outlet conditions, ensuring minimal electricity consumption.
What applications are suitable for this monoblock system?
It is ideal for villas, family homes, hotels, hospitals, student apartments, and even specialized facilities like saunas and swimming pools.
