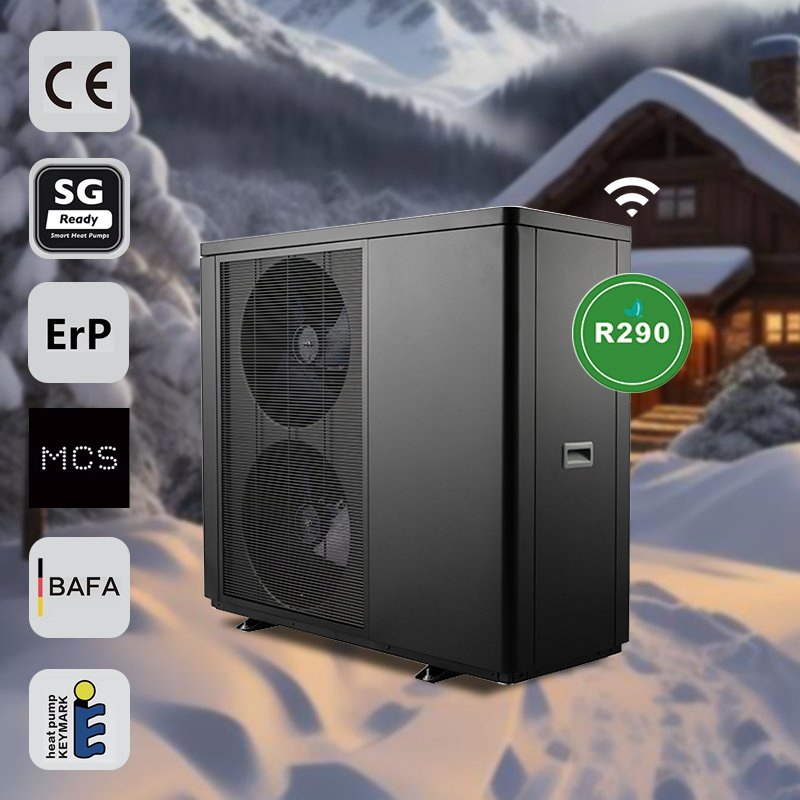

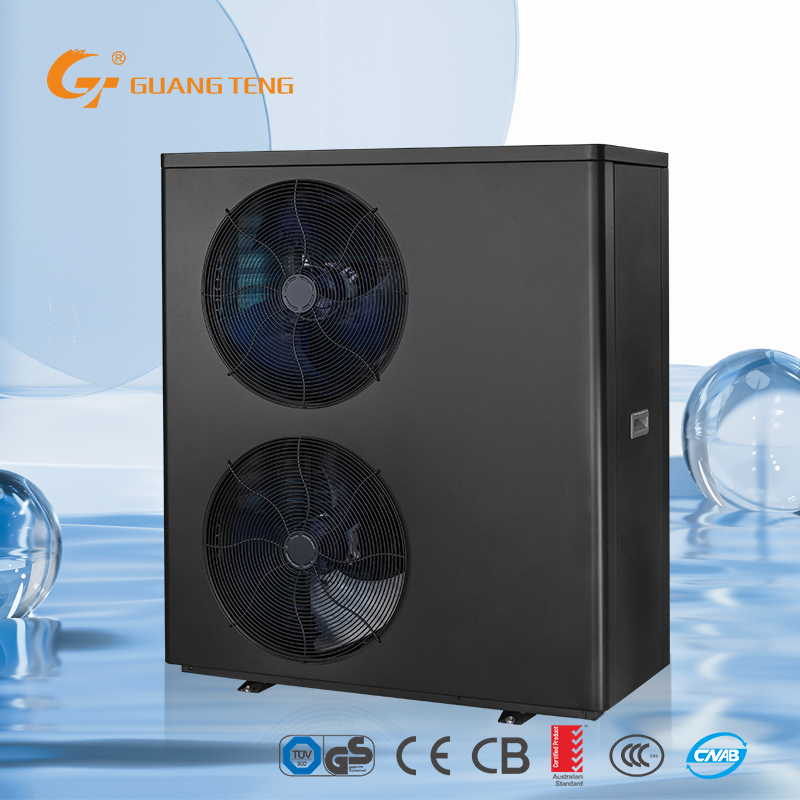

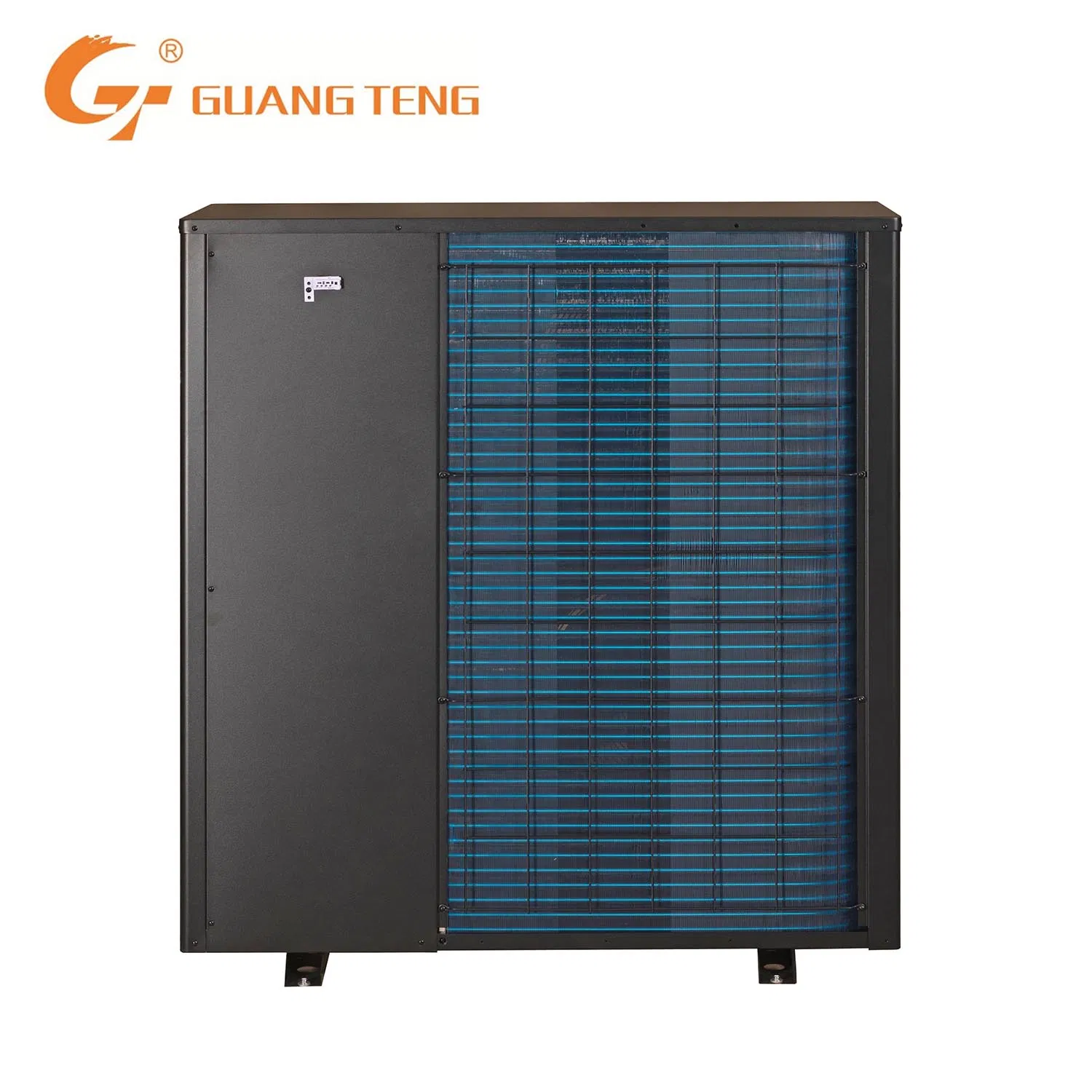

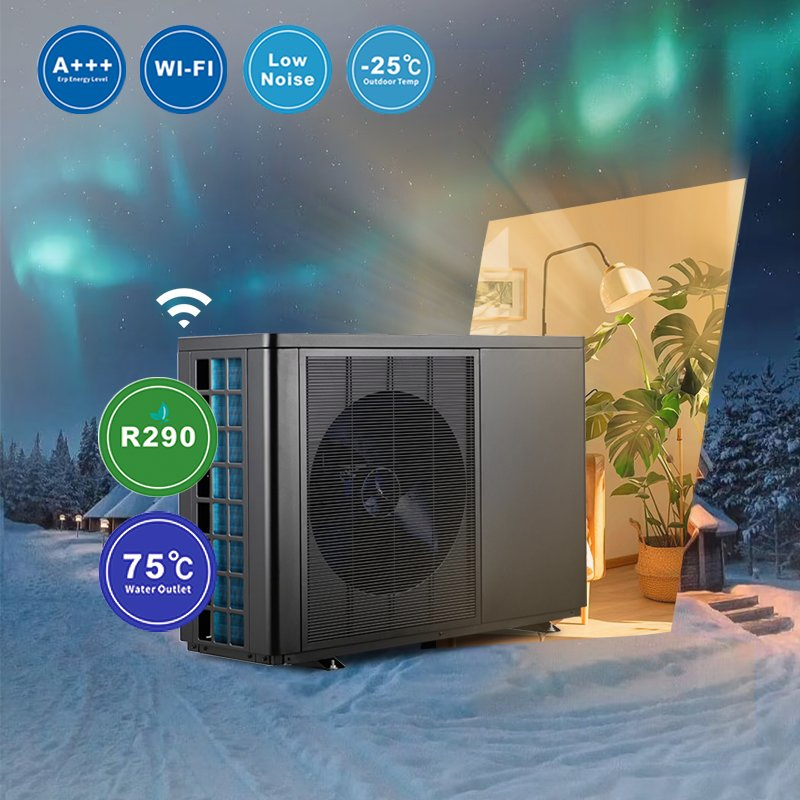

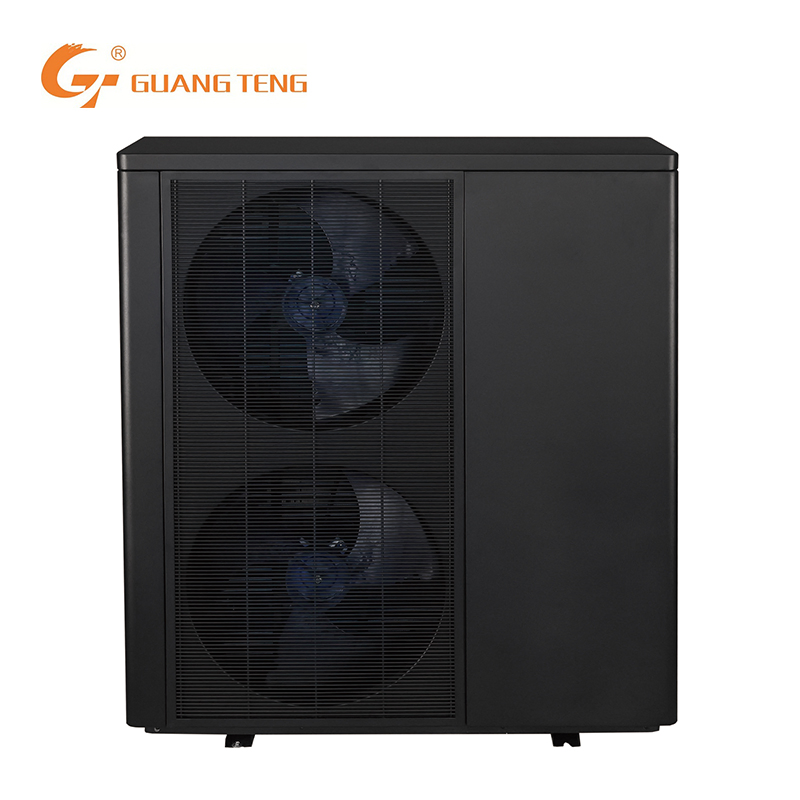

Air Source Heat Pump 22kw Air-Water R290 Monoblock DC Inverter for House Heating Cooling Dhw

Basic Information

Model NO.

GT-SKR080KBDC-M290T

Work Environment

Low-temperature Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Hotels, Factory Hospital, Student Apartments

Certification

CE, ISO9001, CCC, CB

Power Supply

380-415V/3n/50Hz

Heating Capacity

22kw

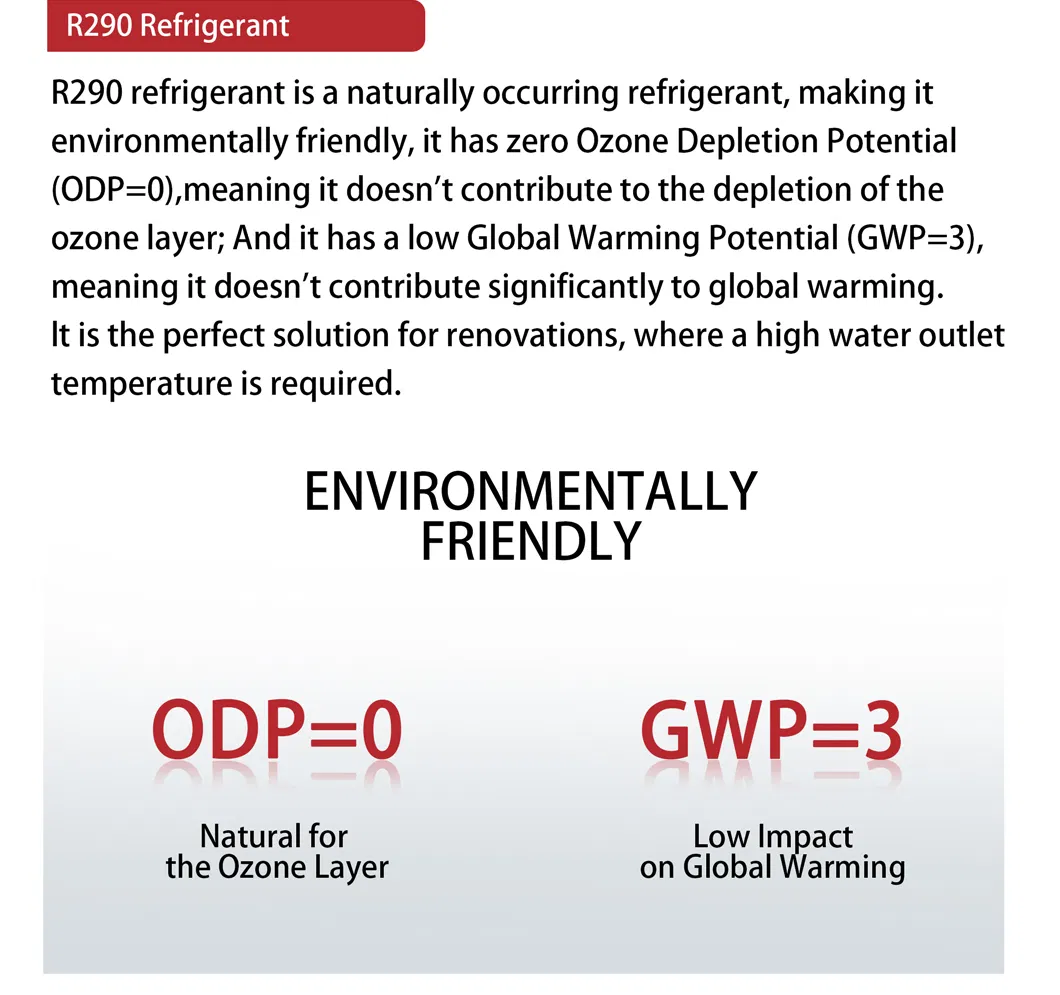

Refrigerant

R290

Compressor

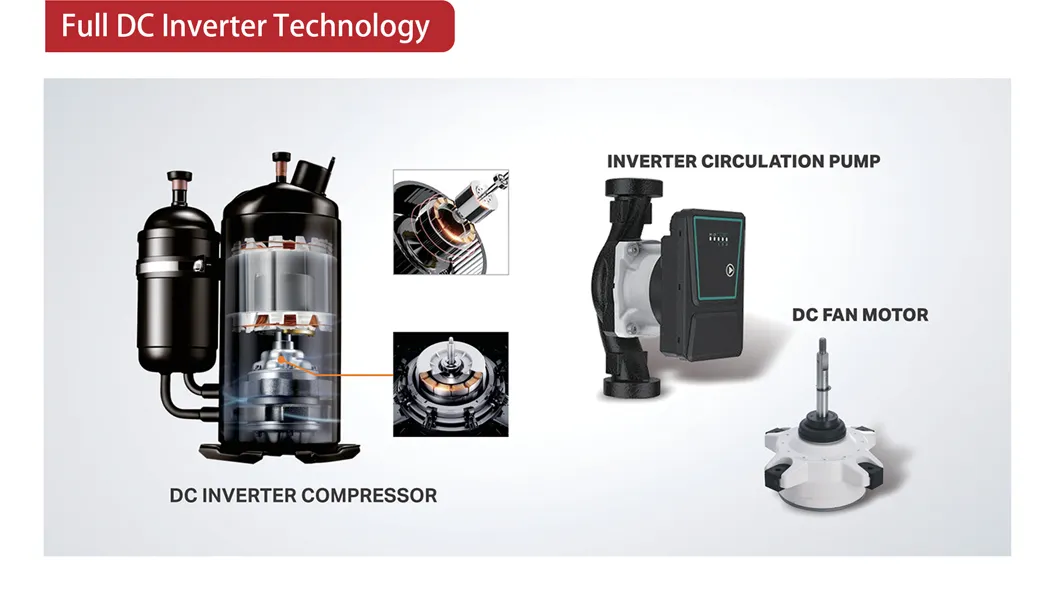

DC Inverter

Max Temp

75℃

WiFi Module

Yes

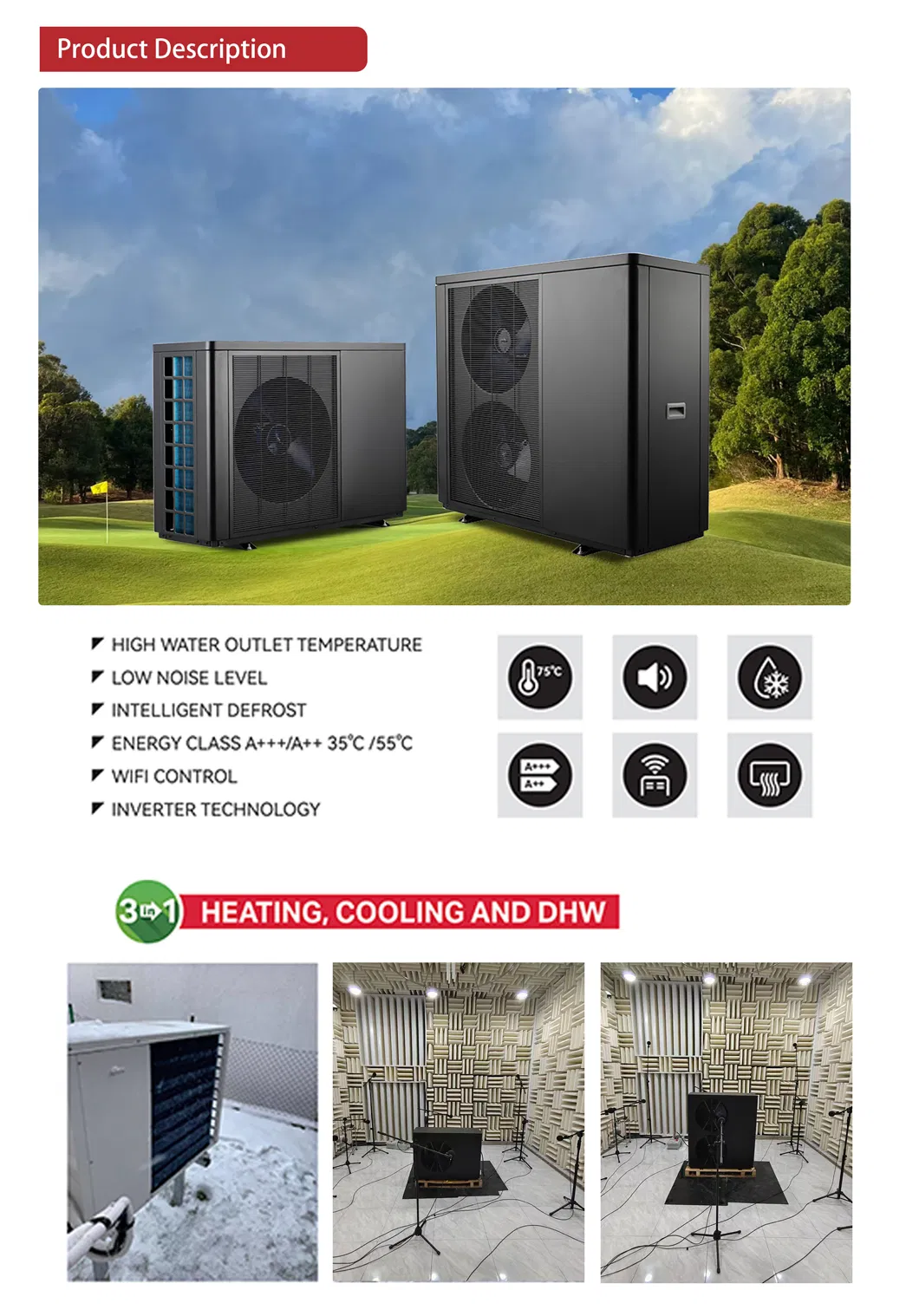

Product Description

⚙️

How does an air-to-water heat pump work?
A heat pump takes energy from the outside air, even at very low temperatures, and transfers it into heat that is then circulated around a heating and hot water circuit. It uses electricity to power a compressor that boosts the temperature of the water.

✅

Efficiency & Benefits:
- Extract up to 70% of energy freely from the air.
- Up to 500% efficiency compared to traditional boilers.
- Renewable energy source reducing carbon footprint.
- Simple and low-cost maintenance.

Product Specification

Model Number	Unit	GT-SKR020KBDC	GT-SKR030KBDC	GT-SKR040KBDC	GT-SKR050KBDC	GT-SKR080KBDC
Heating (A7/W35)	KW	6.40	8.30	11.60	16.30	22.00
COP (A7/W35)	W/W	4.34	4.30	4.22	4.42	4.31
Heating (A7/W55)	KW	5.75	7.70	11.08	14.71	19.30

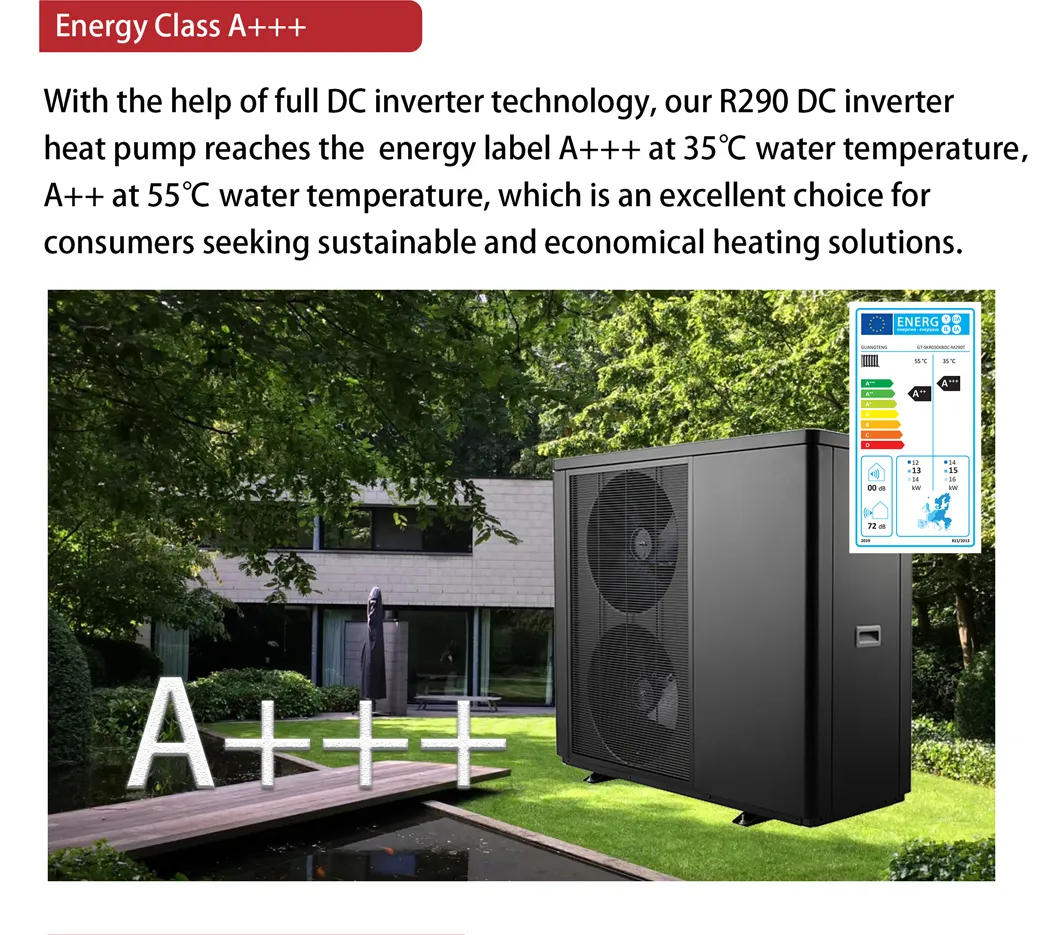

Energy Label (35ºC)	-	A+++	A+++	A+++	A+++	A+++
Power Supply	V/ph	220-240/1	220-240/1	220-240/1	380-415/3	380-415/3
Refrigerant	-	R290	R290	R290	R290	R290
Max Water Temp	ºC	75	75	75	75	75
Sound Level	dB(A)	52.2	52.2	64	71	71

Related Hot Sale Products

Frequently Asked Questions

Q1: What product ranges are available?

We offer house heating/cooling heat pumps, swimming pool heat pumps, domestic hot water heat pumps, and commercial heat pumps.

Q2: What is the typical delivery time?

Generally, it will take 35 to 40 days after receiving your advance payment. The specific time depends on items and quantity.

Q3: What are the accepted delivery and payment terms?

Delivery Terms: FOB, CFR, CIF, EXW. Payment Types: T/T, L/C, Global Pay.

Q4: How are the products packaged for transport?

Generally, we pack the heat pumps in brown cartons or plywood to ensure safety during transit.

Q5: Do you test the products before delivery?

Yes, we conduct a 100% test on all goods before they are packed for delivery.

Q6: What is the warranty period?

We provide a 3-year warranty on the whole unit. Spare parts are provided for maintenance during this period.
