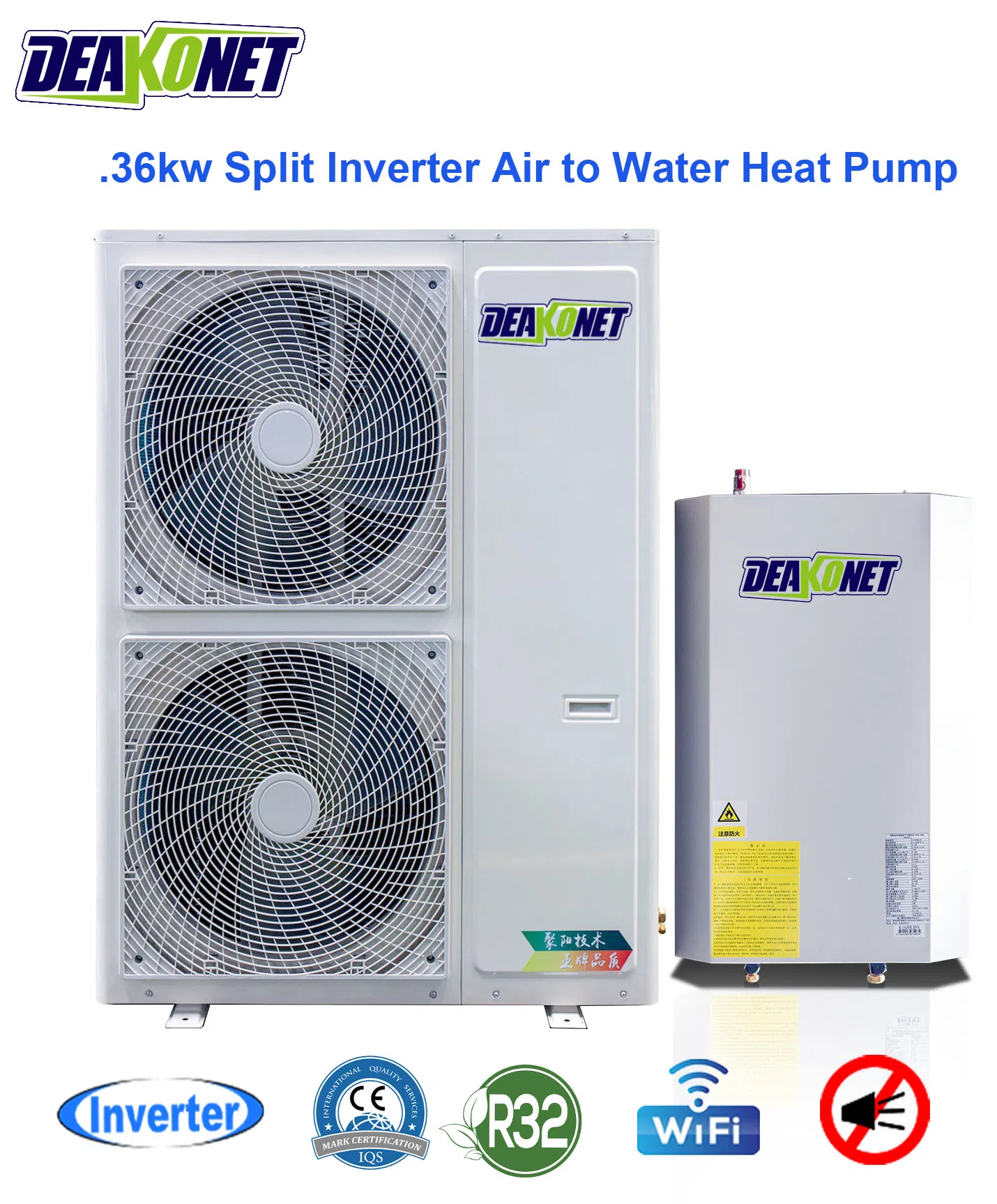

36kw Evi Inverter Air to Water Heat Pump Split Type R32

1 / 5

36kw Evi Inverter Air to Water Heat Pump Split Type R32

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Overview & Basic Info

Model NO.

A2 PRO-36kw

Heat Source

Air Source Heat Pump

COP

4.3 (A7/W35c)

Function

Heating, Cooling, Hot Water

Control

Smartphone APP WiFi Control

Structure

Monoblock / Optional Split

Compressor

Hybrid Inverter & EVI Type

Refrigerant

R410A / R32

Fan Motor

DC Motor

After Sales

5 Years

🚀

Product Description

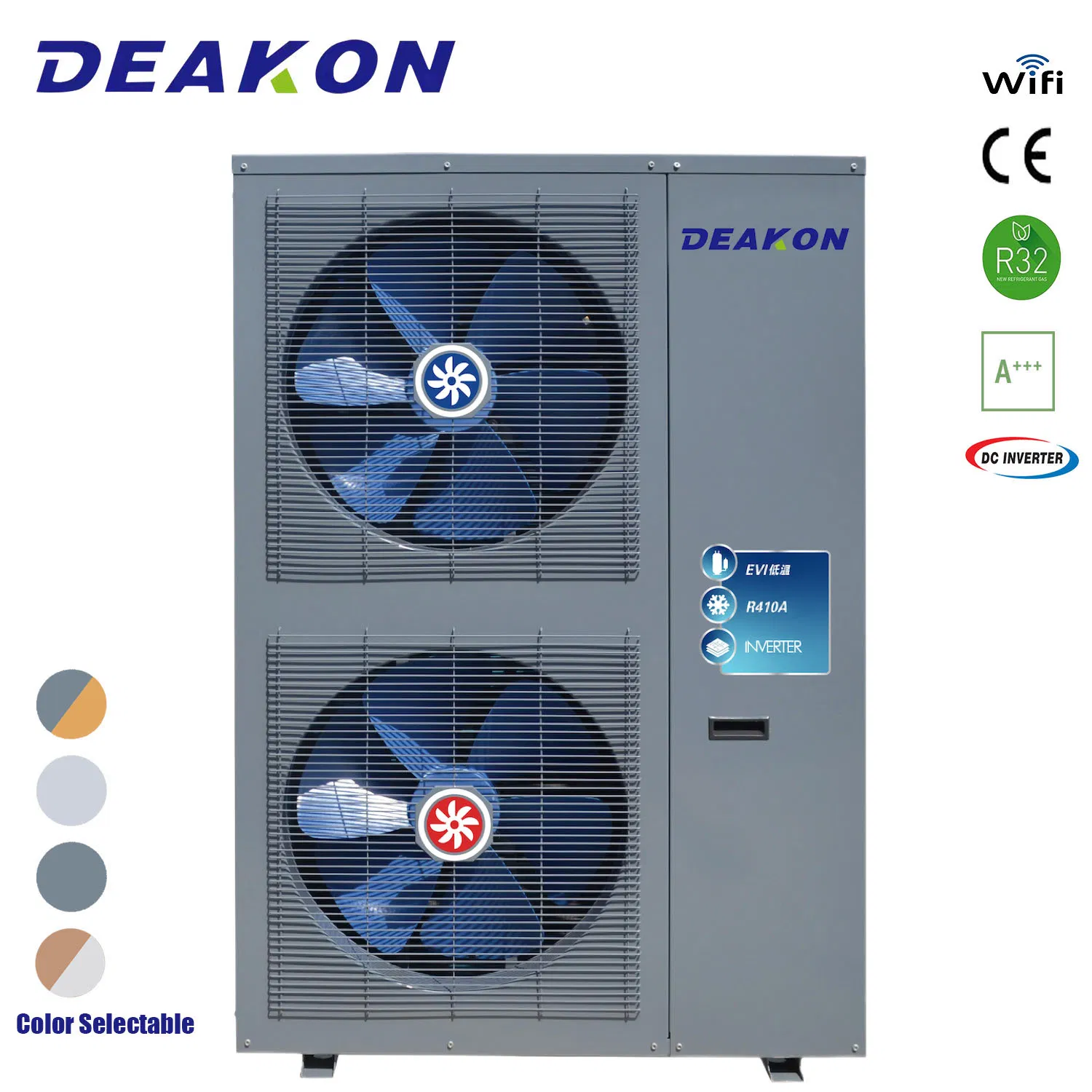

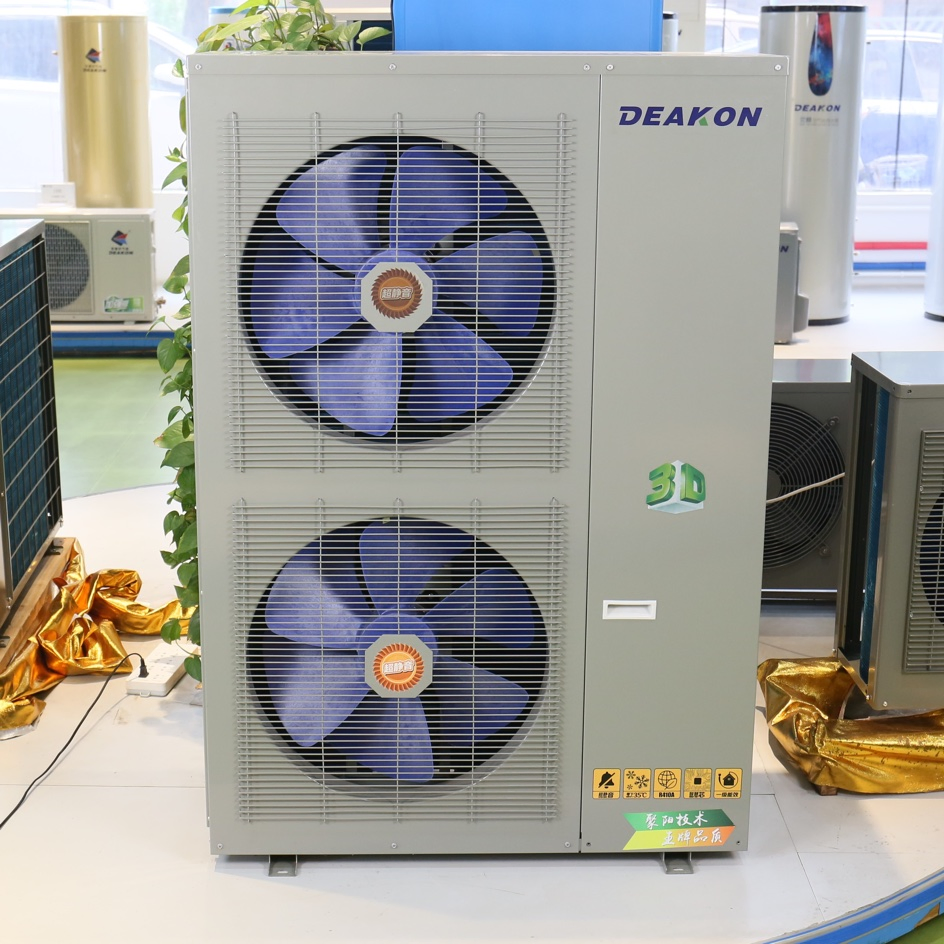

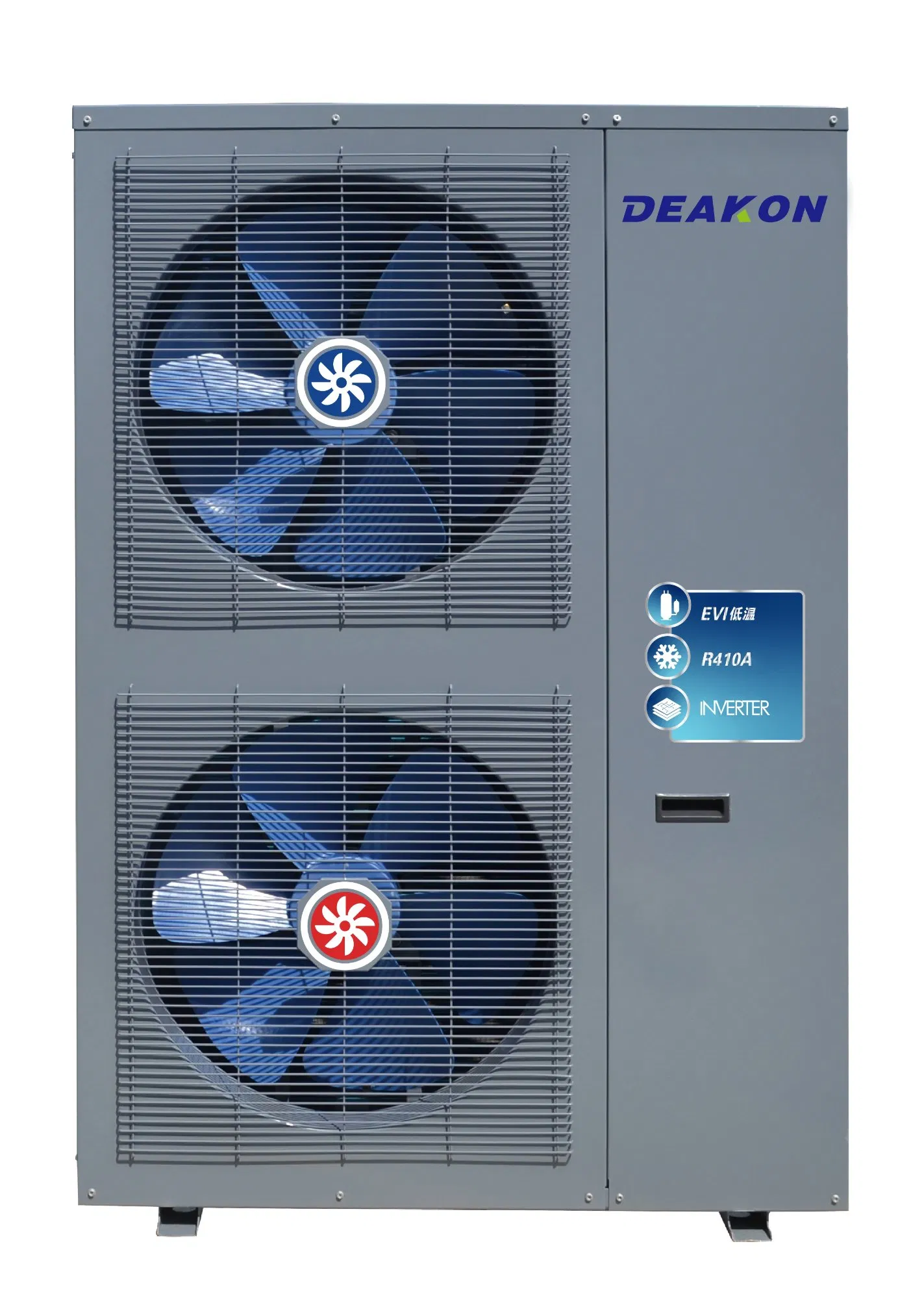

36kw Full DC Inverter Air to Water Heat Pump Split Type

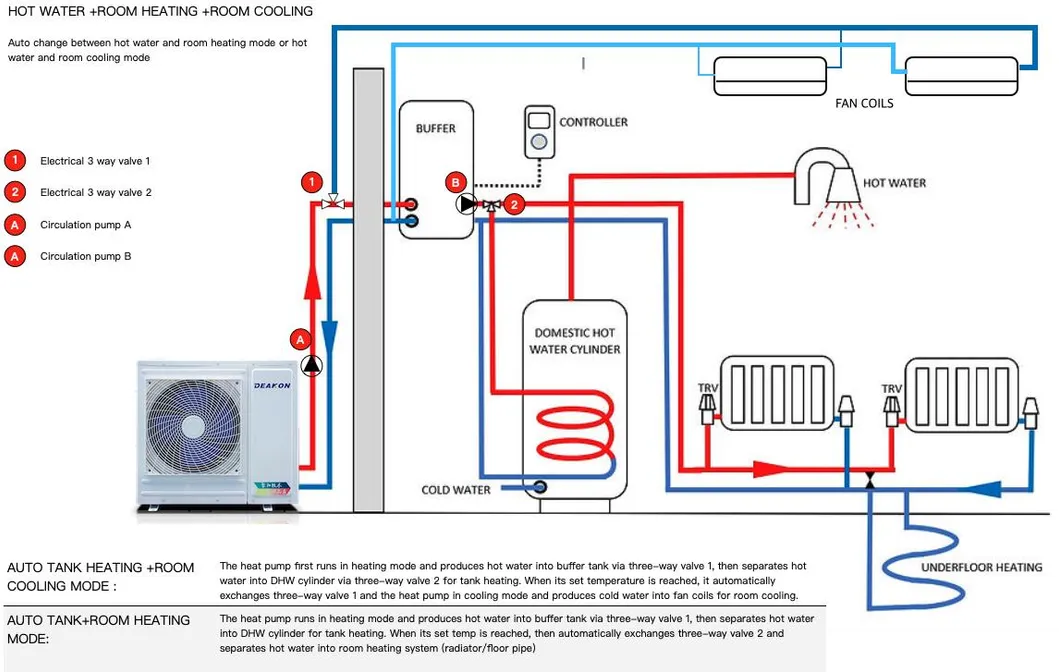

This air source heat pump absorbs heat from the outside air to provide efficient heating for radiators, underfloor systems, and domestic hot water. Utilizing combined inverter and EVI technology, it operates effectively even in temperatures as low as -25°C. With optional solar panel integration, the working range can extend down to -35°C.

Heat pumps significantly reduce environmental impact by extracting renewable energy from the air, requiring only minimal electricity to operate.

📊

Product Parameters

Model	A2 PRO-14	A2 PRO-19	A2 PRO-22	A2 PRO-27	A2 PRO-36
Heating Capacity (A7/W35ºC)	14.4 kW	19.1 kW	22.1 kW	27.2 kW	37.1 kW
COP	4.32	4.30	4.28	4.27	4.28
Cooling Capacity	12.8 kW	17.0 kW	19.7 kW	24.2 kW	33.0 kW
Dimensions (mm)	975x370x1370		1045x420x1420	1305x460x1482

✨

Key Features

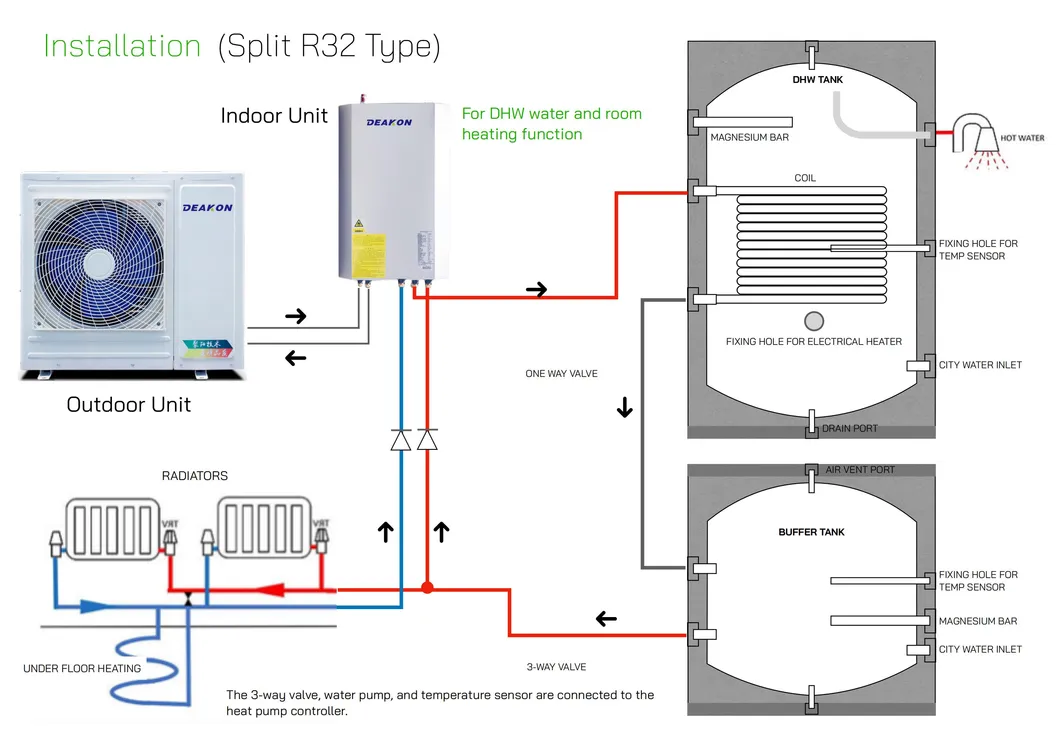

Simple installation - Water connections only
30 - 50% reduction in CO2 emissions
Low running costs & maintenance
Low noise - unobtrusive and quiet operation
No groundwork, trenches or boreholes required
Advanced Energy Saving with Inverter Technology
Antifreeze function eliminates need for glycol
3 to 5 times more efficient than traditional systems
Compatible with solar thermal systems
ECO-friendly R410a/R32 refrigerant

🏆

Certifications & Quality

📦

Packaging & Delivery

Package Size

1305cm * 460cm * 1482cm

Gross Weight

205.00kg

Package Type

Plywood Box

❓

Frequently Asked Questions

Q1: What is the core expertise of the manufacturer? A1: We are a professional manufacturer specializing in various types of heat pumps and HVAC products.

Q2: What is the daily production capacity? A2: The factory produces approximately 500 to 700 units per day.

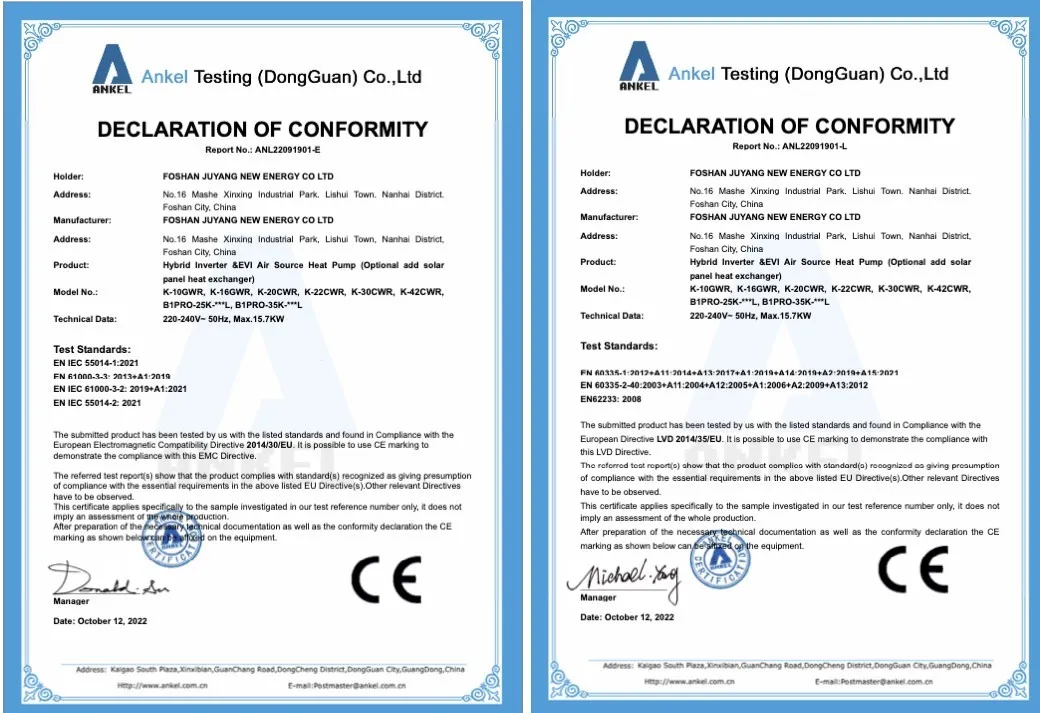

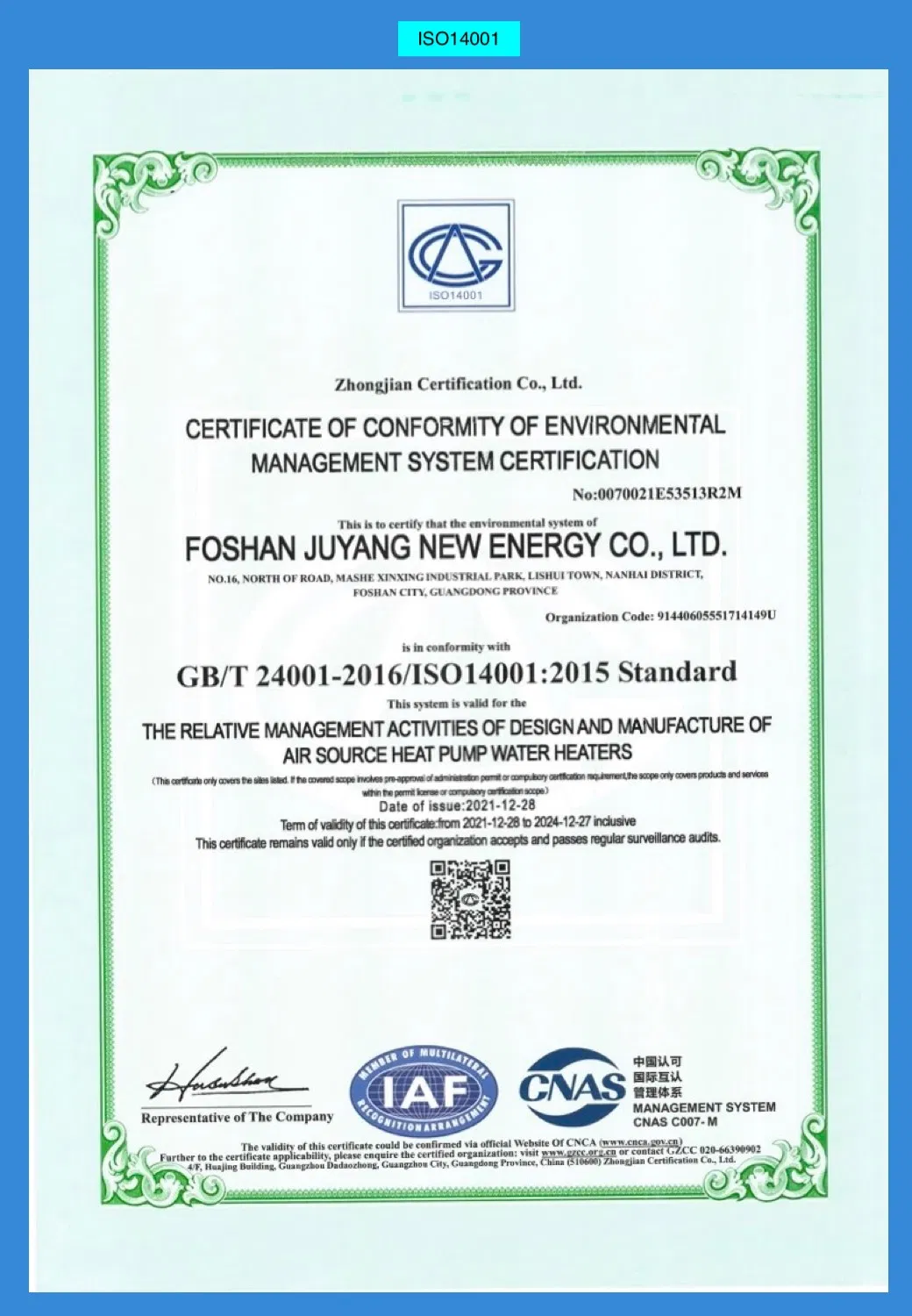

Q3: Which certifications do the products hold? A3: Our products hold SGS, CE, CB, IEC60335-2-40, and EN14511 certificates from TUV Lab, as well as ISO9001, ISO18001, and ISO14001.

Q4: Where are these products currently exported? A4: Products are exported to Western Europe, Northern Europe, South Africa, the Middle East, and North America.

Q5: What support is provided to business partners? A5: We offer 1%~2% free spare parts, exclusive sales rights in specified regions, sales rebates, and 24-hour online technical service.

Q6: Where can the air source heat pumps be applied? A6: They are widely used for home heating, hotels, restaurants, hospitals, schools, and residential central heating plants, saving up to 70% energy.
