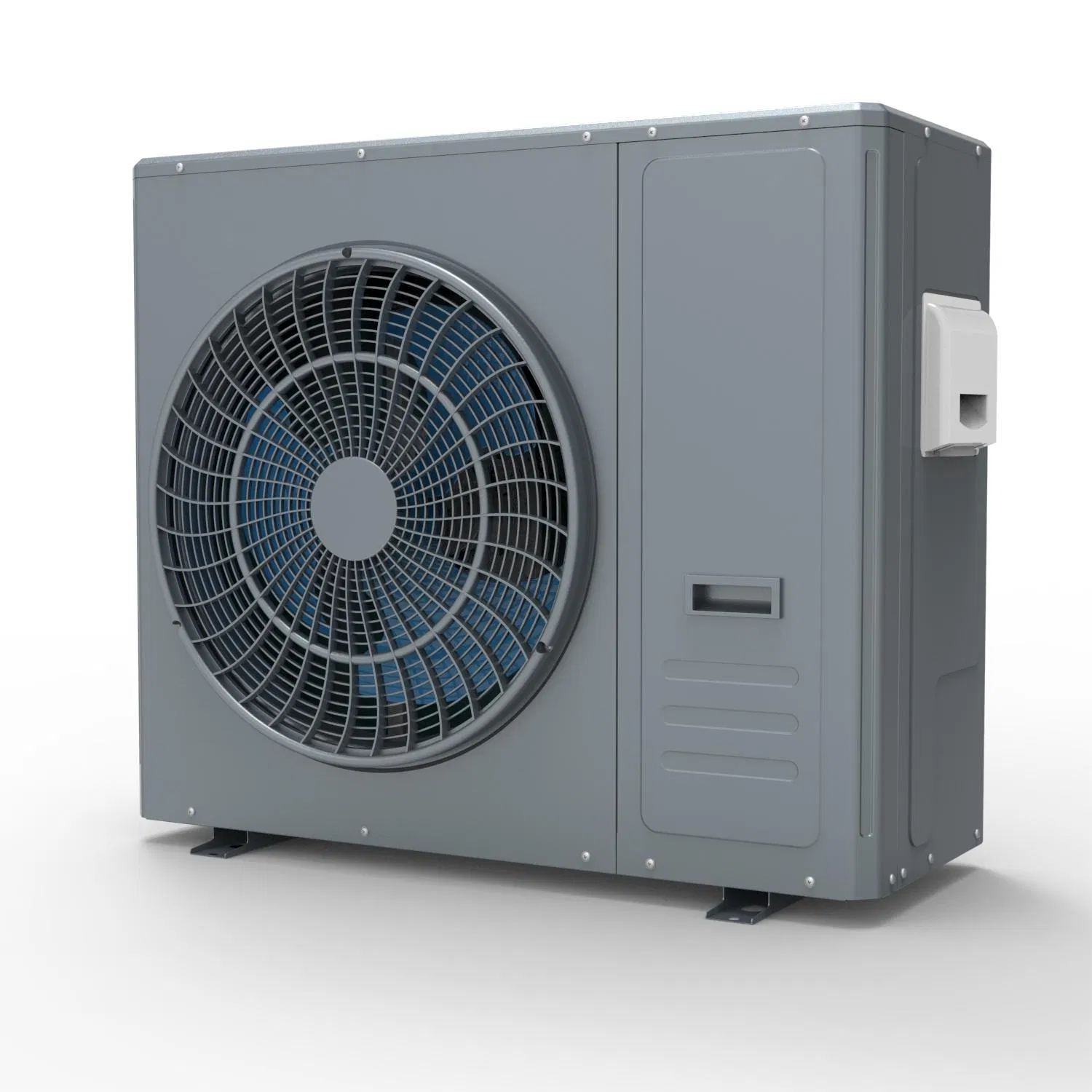

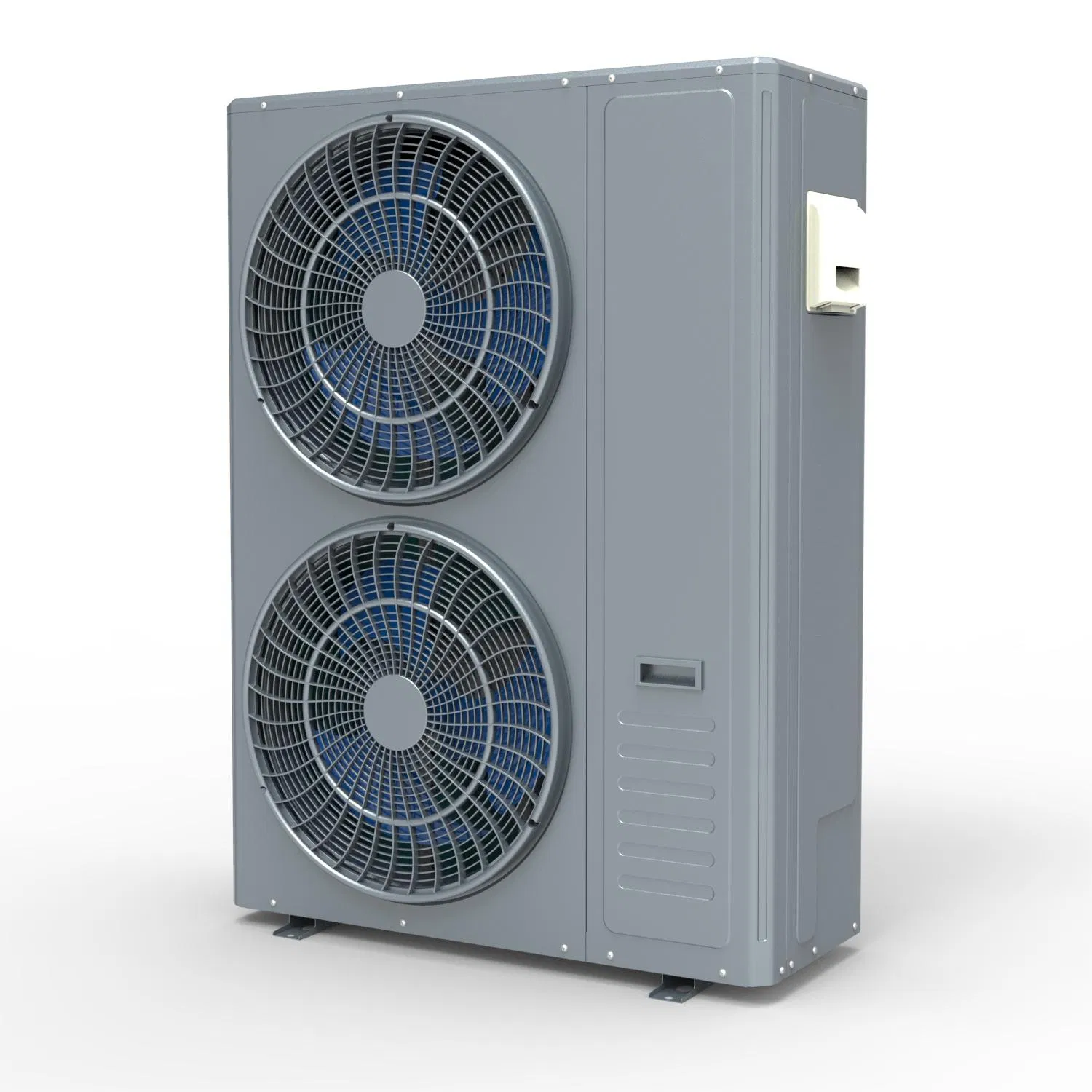

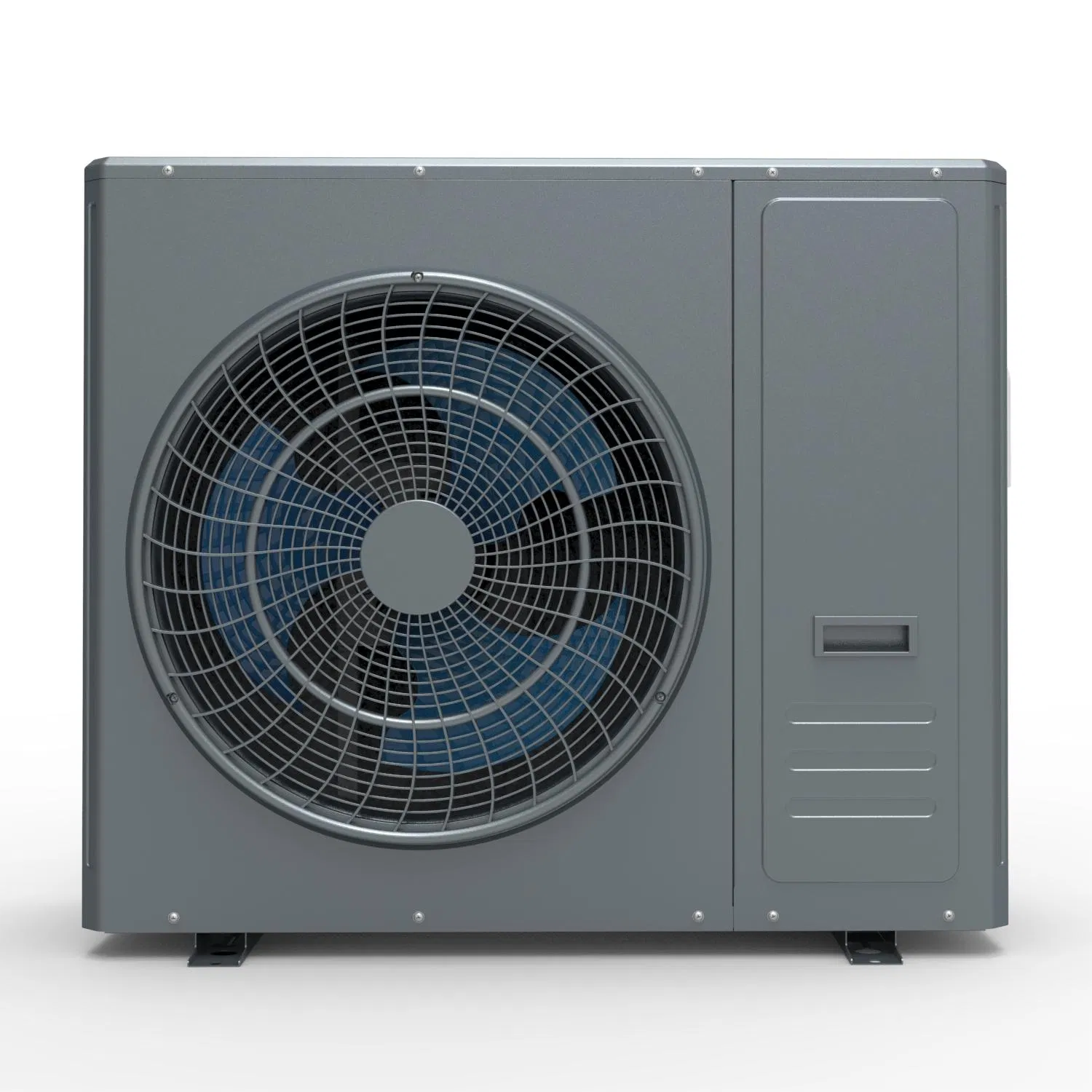

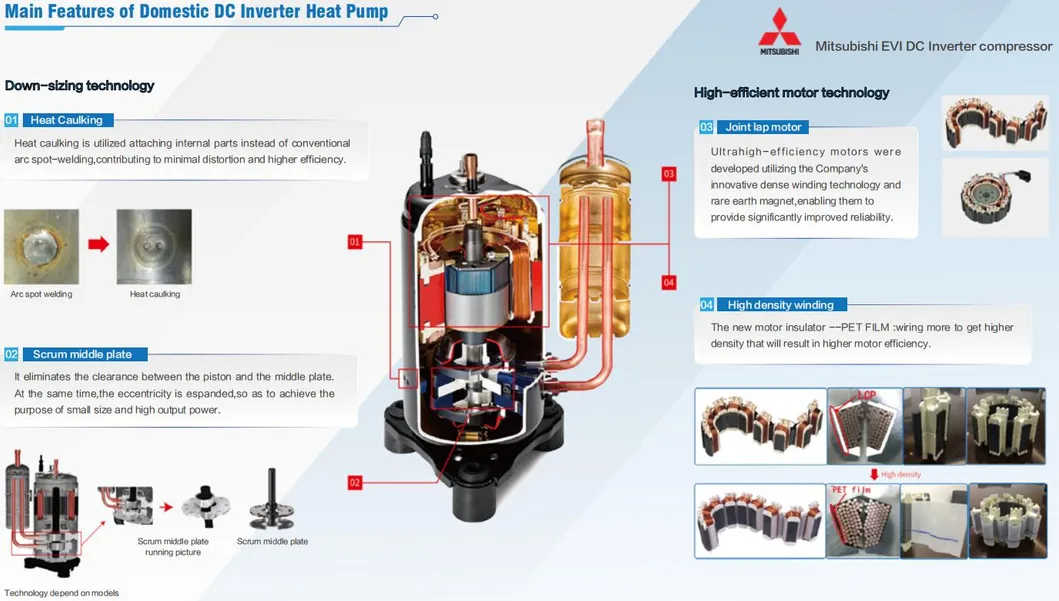

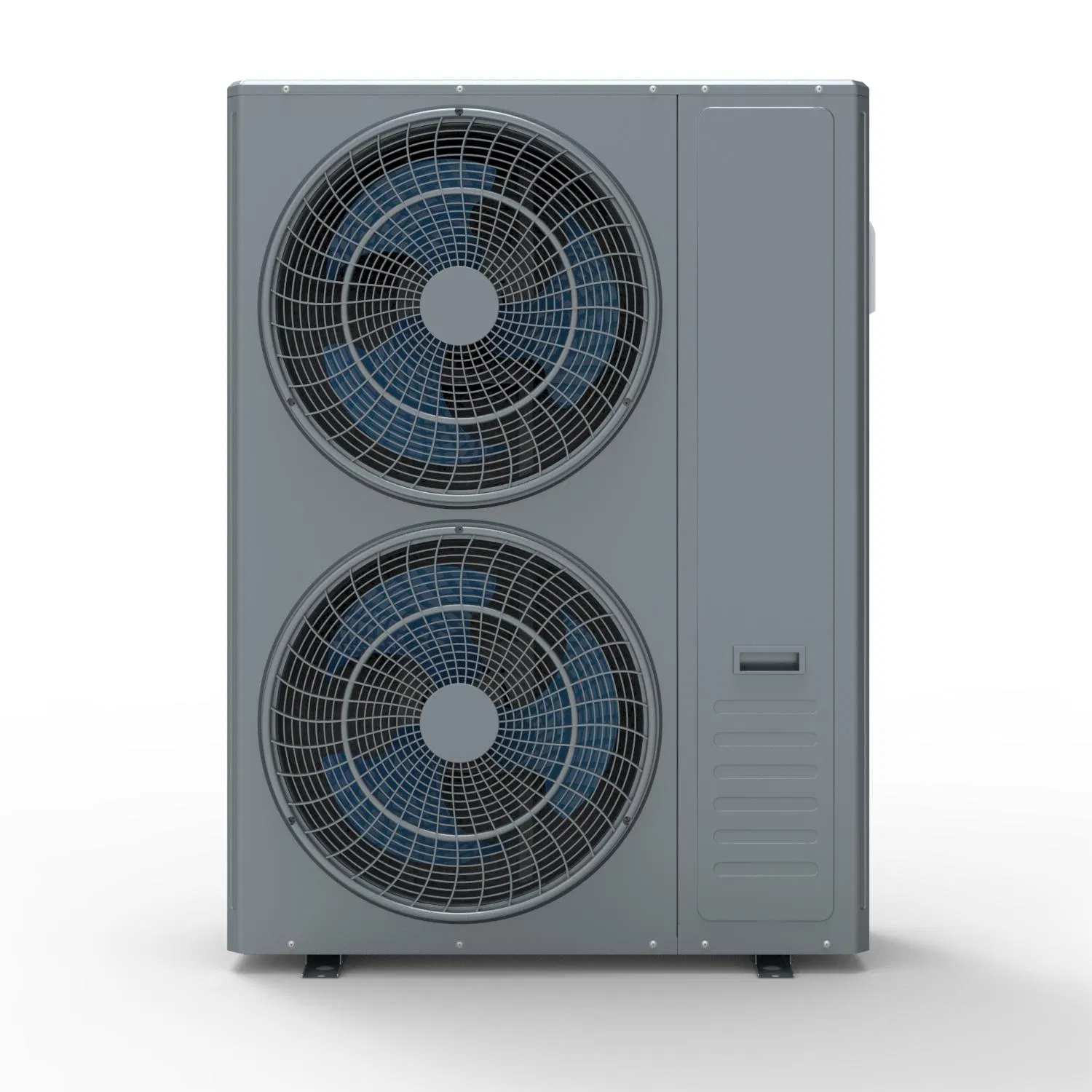

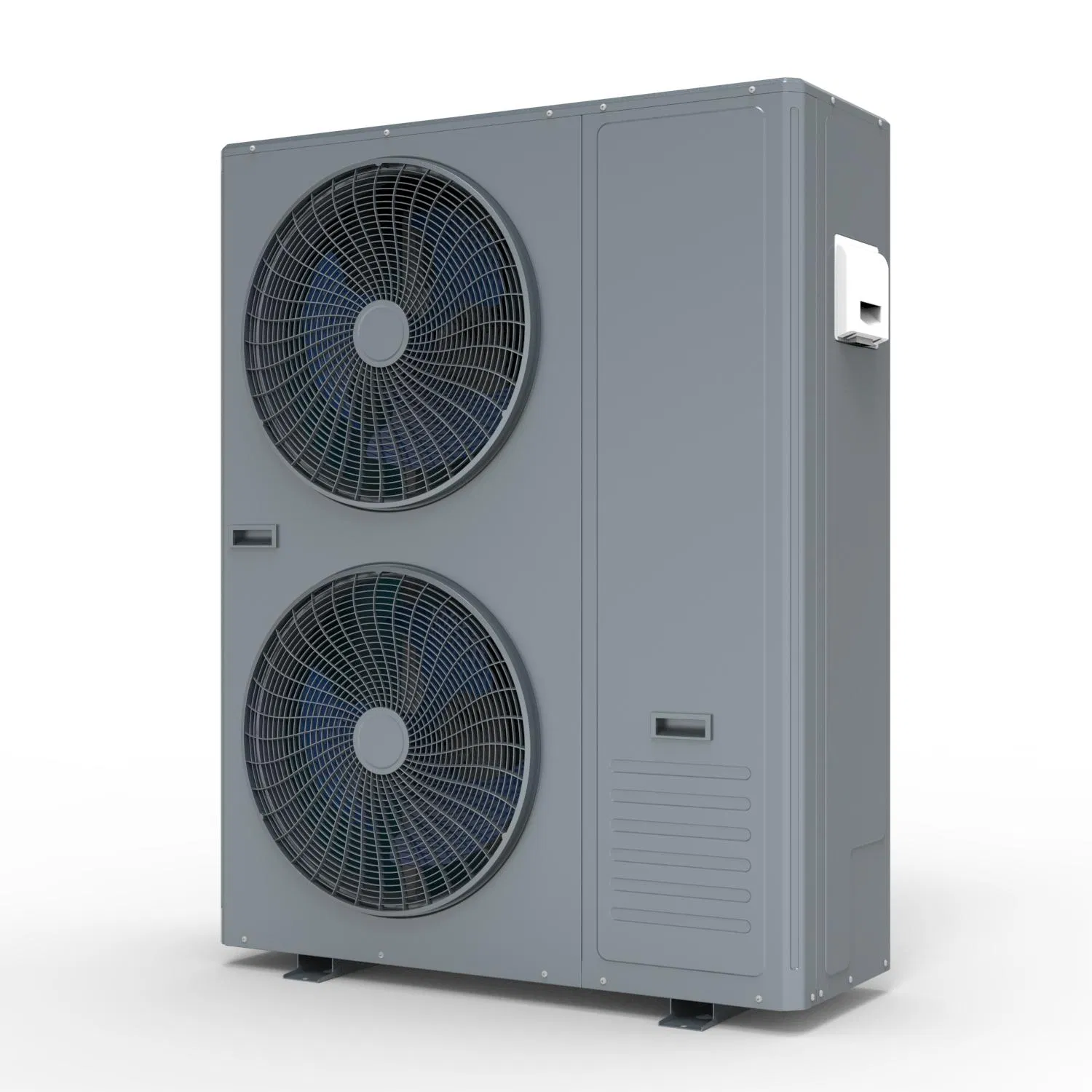

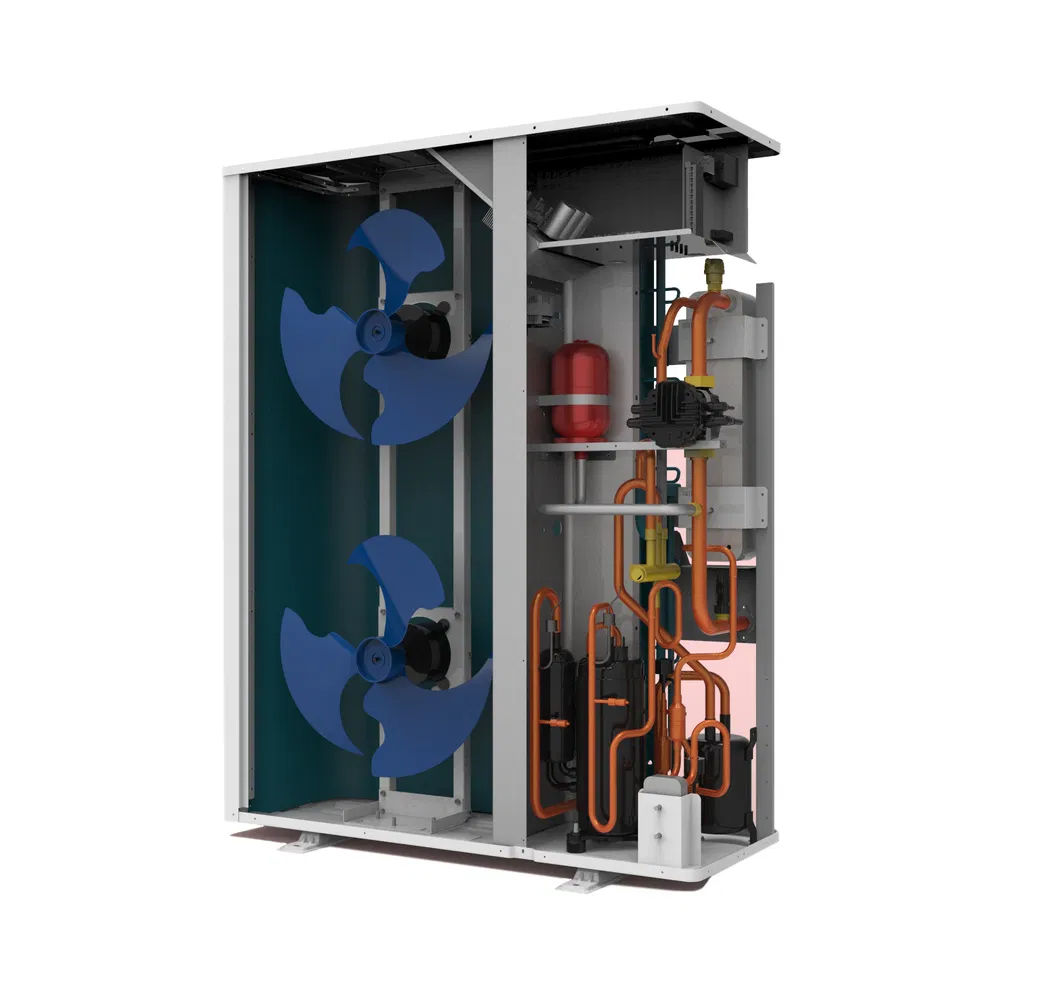

Equipped with DC Inverter compressor, DC Brushless fan motor, and DC Inverter circulation pump for maximum efficiency.

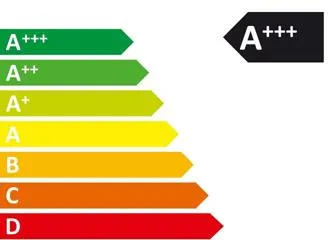

Heating energy efficiency level A+++ at water temperature 35 deg C.
Heating energy efficiency level A++ at water temperature 55 deg C.

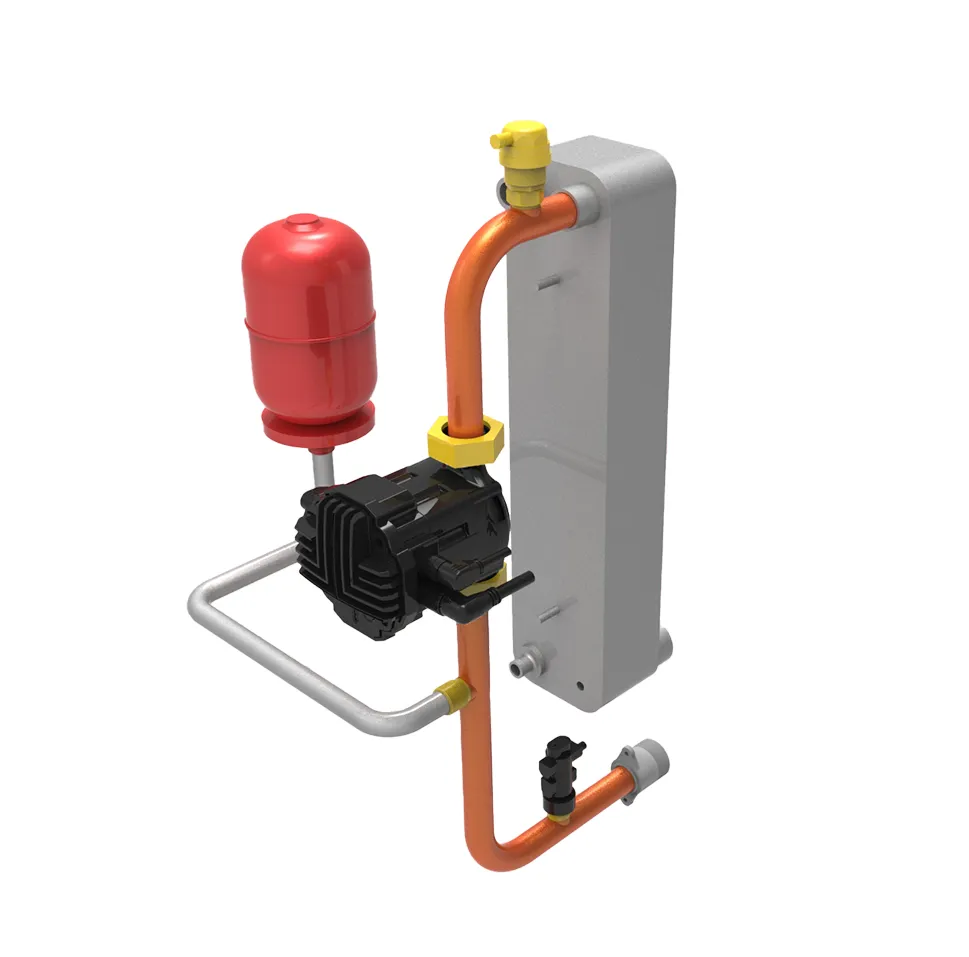

Stable operation at ambient temperature -35ºC with a wide running range from -35ºC to 43ºC. The integrated design includes built-in DC Inverter water pump, water flow switch, expansion tank, and Y-shaped filter.

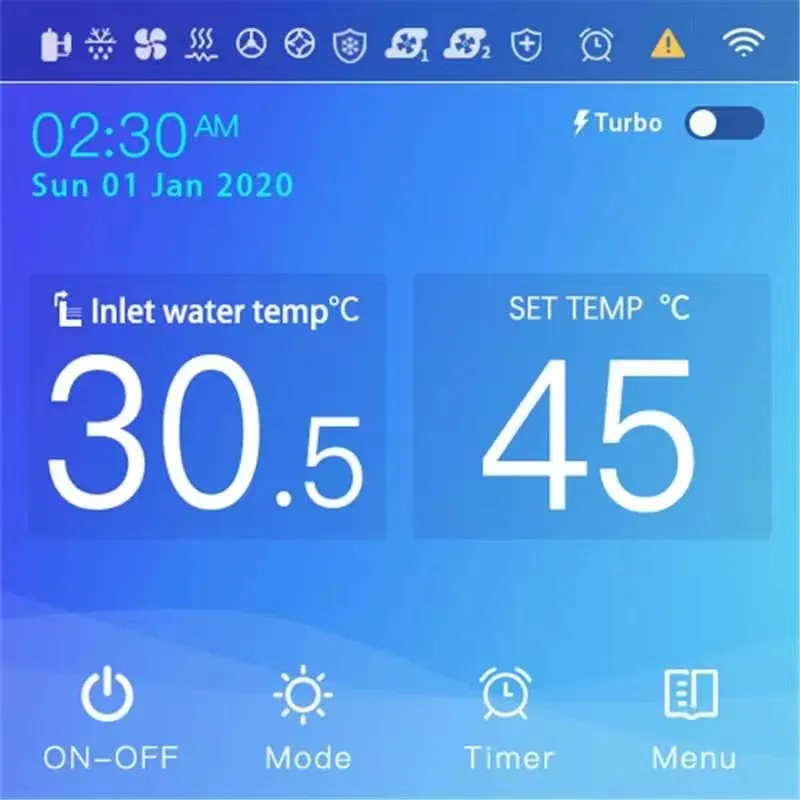

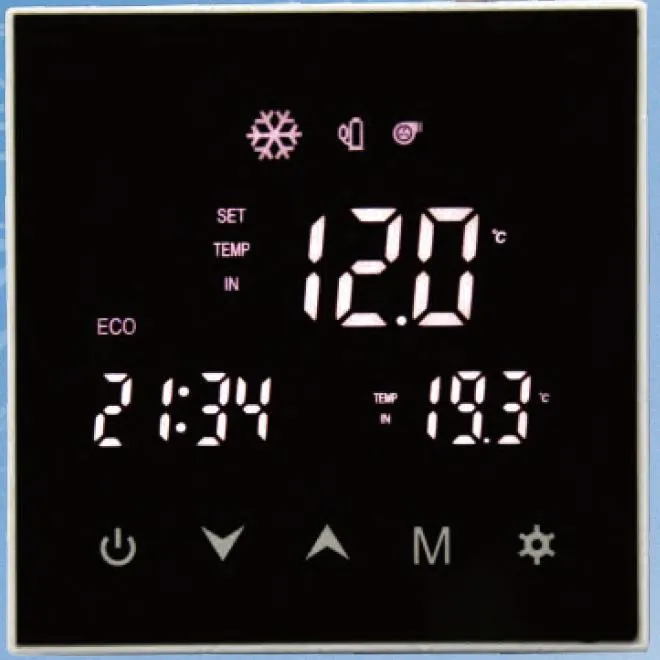

User-friendly controllers with optional WiFi function. Control your heat pump via smartphone anywhere, anytime.

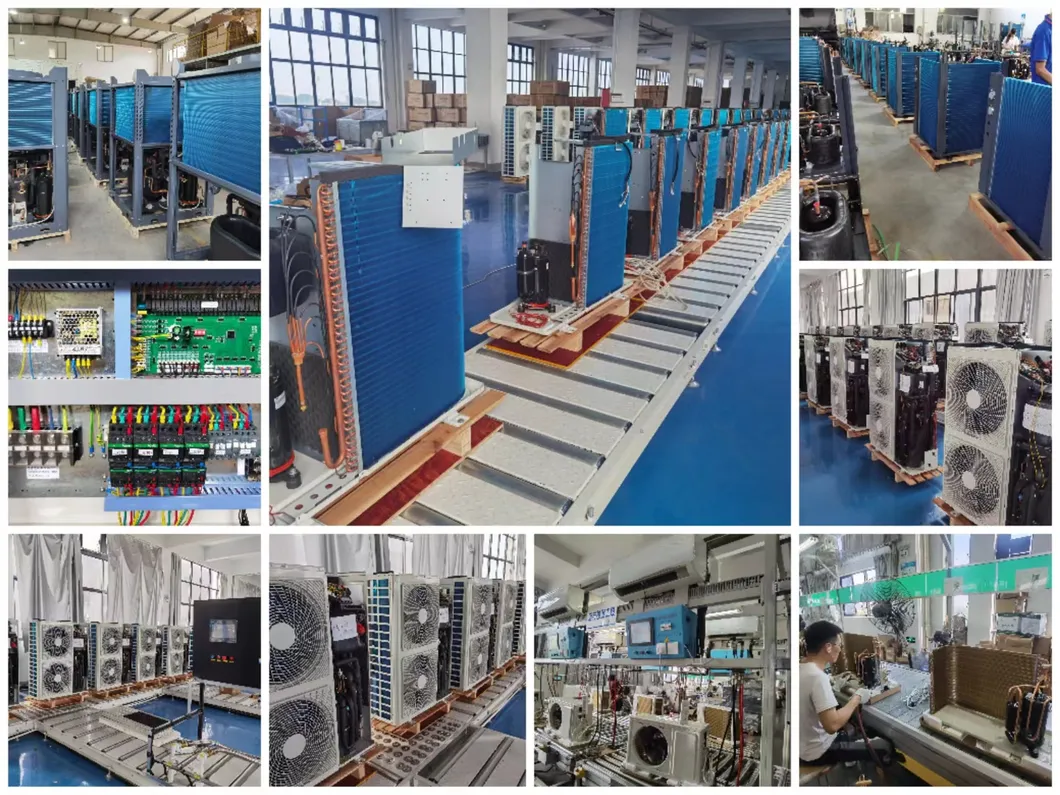

We focus on OEM and ODM services with a team of R&D engineers having over 10 years of industry experience. Our strategic cooperation with global component leaders ensures ultra-high performance and stability.

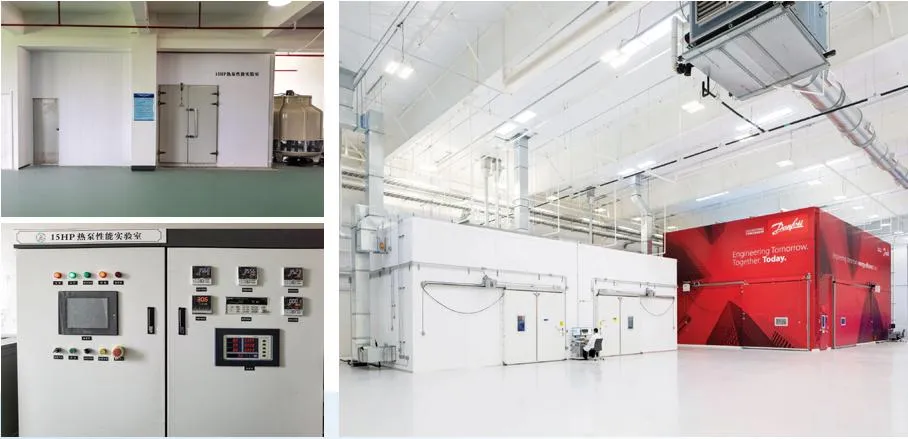

Equipped with a -35ºC 15HP performance laboratory and long-term operation labs. Testing temperatures range from -40ºC to 55ºC, capable of testing units up to 300kW.
| Model | DFC10I/BPS | DFC15I/BPS | DFC16I/BPS | DFC20I/BPS | DFC27II/BPS | DFC32II/BPS | ||
|---|---|---|---|---|---|---|---|---|
| Rated Heating (A7 W45) | Capacity | kW | 10.00 | 15.00 | 16.00 | 20.00 | 27.00 | 32.00 |
| Input Power | kW | 2.81 | 4.36 | 4.55 | 5.70 | 7.65 | 9.12 | |
| COP | W/W | 3.56 | 3.55 | 3.52 | 3.51 | 3.53 | 3.51 | |
| Power Supply | V/Ph/Hz | 220V/1/50Hz | 380V/3/50Hz | |||||
| Refrigerant | Type | R32 | ||||||
| Operation Temp. Range | ºC | -35ºC ~ 43ºC | ||||||
| Net Weight | kg | 95 | 100 | 120 | 155 | 180 | 195 | |
