2019 Split Type Air to Water Evi Heat Pump 10kw15kw20kw Withelectric Heater (Domestic Hot Water, Heating&Cooling)

1 / 5

2019 Split Type Air to Water Evi Heat Pump 10kw15kw20kw Withelectric Heater (Domestic Hot Water, Heating&Cooling)

Customization:	Available
Type:	Central Air Conditioners
Capacity:	8 Kw - 50kw

Send Inquiry

Product Description

Basic Specifications

Model NO.

ASHP-10L-20L

Usage

Room

Noise Level

36-49dB

Certification

Energy Efficiency

Level 3

Function

Cooling/Heating

Power Source

Electrical (AC)

Refrigerant

R410A/R407c/R134A/R22/R404A

Compressor Type

Scroll Type

Condenser

Blue Aluminum Fin

Running Condition

-25 Degree C

Origin

China

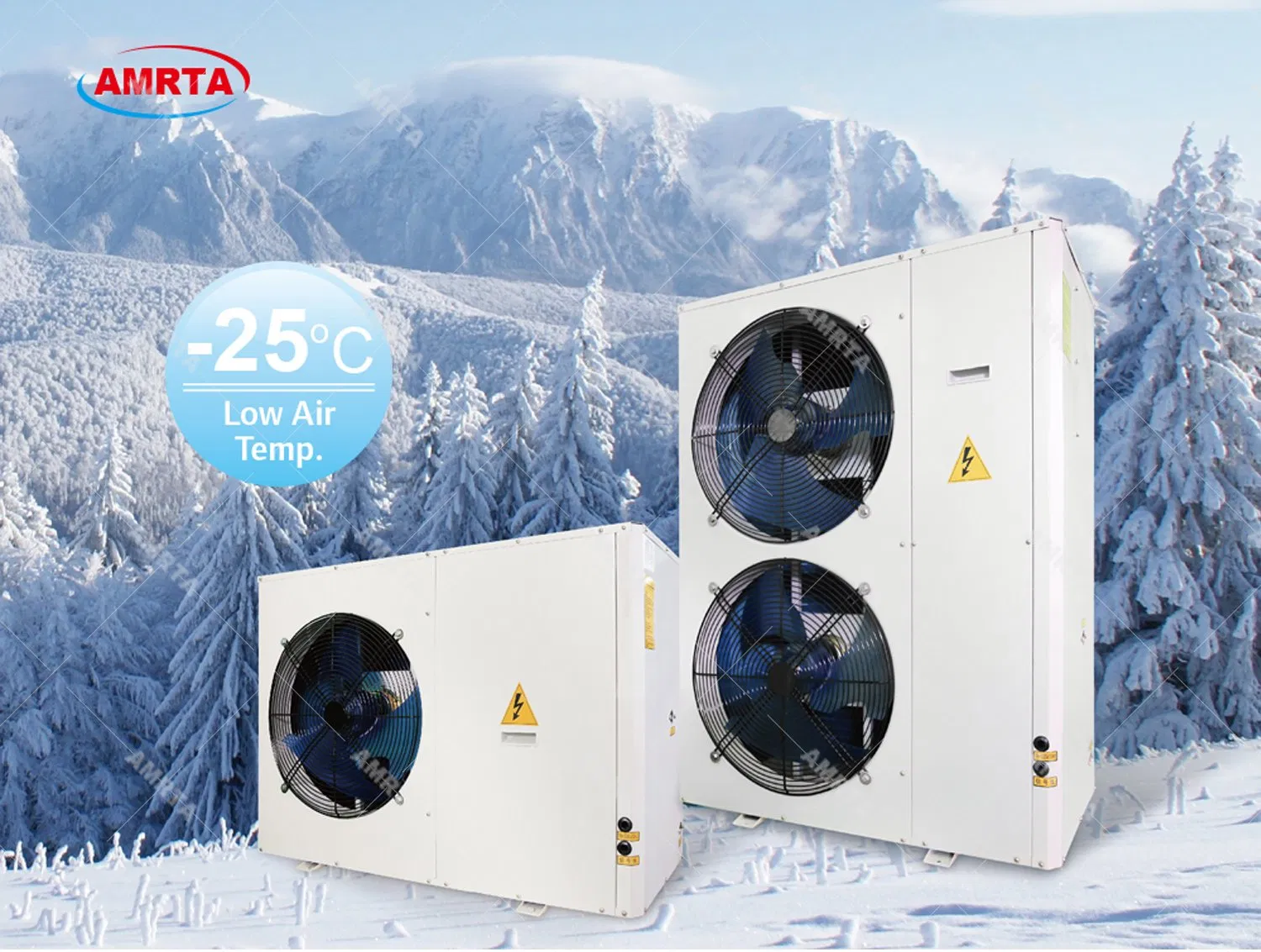

EVI Low Ambient Temp Air Source Heat Pump

Cooling Capacity: 7 kW ~ 50 kW

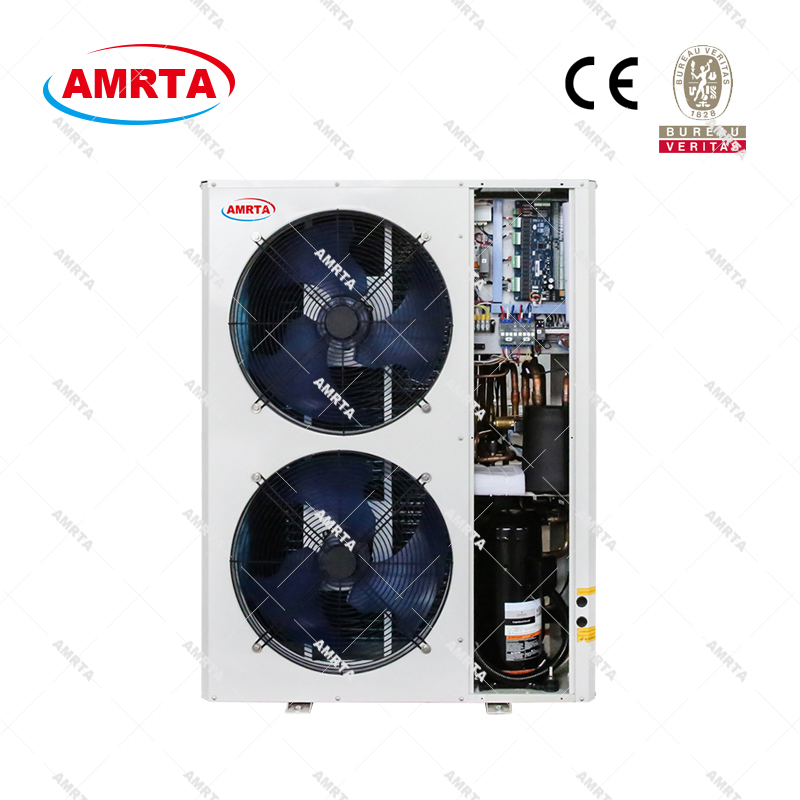

Key Characteristics

❄️

Low Ambient & High Efficiency: Operates in temperatures as low as -25ºC. COP is higher than 1.62 when hot water inlet/outlet is 50ºC/55ºC, with max outlet temp of 60ºC.

🏗️

Robust Structure: Galvanized steel panels and base frame protected with polyester powder painting for weather resistance.

⚙️

Premium Compressor: Hermetic scroll type equipped with crankcase heater and thermal overload protection.

🌀

Axial Fan: External rotor type with IP54 protection and low noise 6-pole plastic blades.

💧

Advanced Water Circuit: Includes paddle flow switch and high-efficiency tank type heat exchanger.

💻

Electric Control: Programmable microprocessor controller with comprehensive breaker protection.

Technical Data

Model				AW10	AW15	AW20
DB/WB	IN/OUT Water	Capacity	Unit	Performance Data
7ºC/6ºC	36ºC/41ºC	Heating	kW	9.6	14.5	19.1
7ºC/6ºC	36ºC/41ºC	Power Input	kW	2.5	3.8	5.1
-12ºC/-14ºC	36ºC/41ºC	Heating	kW	6.1	9.2	11.8
-12ºC/-14ºC	36ºC/41ºC	Power Input	kW	2.32	3.70	4.70
-25ºC/-ºC	50ºC/55ºC	Heating	kW	4.7	6.8	9.5
-25ºC/-ºC	50ºC/55ºC	Power Input	kW	2.9	4.5	5.9
Compressor	Type / Brand		-	Scroll / Copeland
Refrigerant	Type		-	R410A
Dimensions	L x W x H		mm	1200x560x858	1000x560x1316	1100x620x1316

Note: Without water pump and expansion tank, but with paddle flow switch.

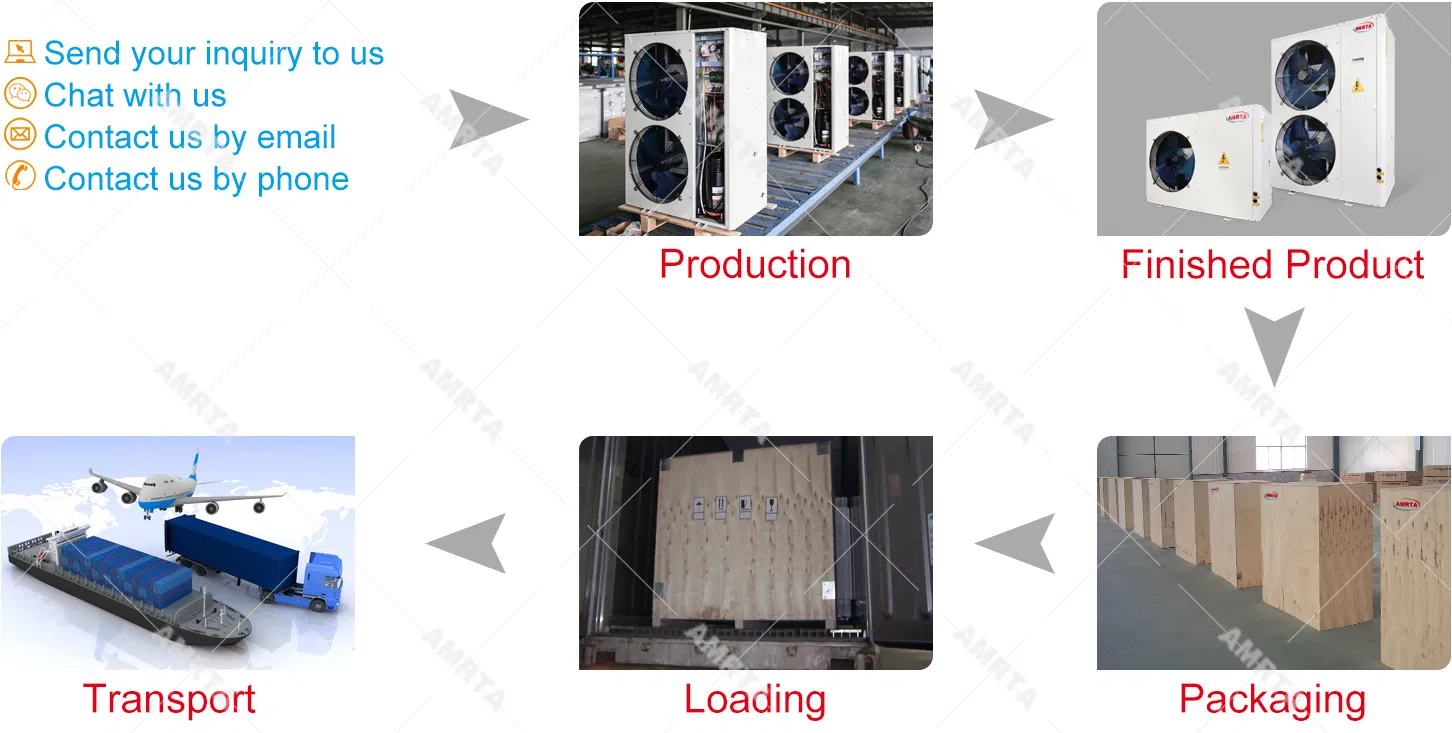

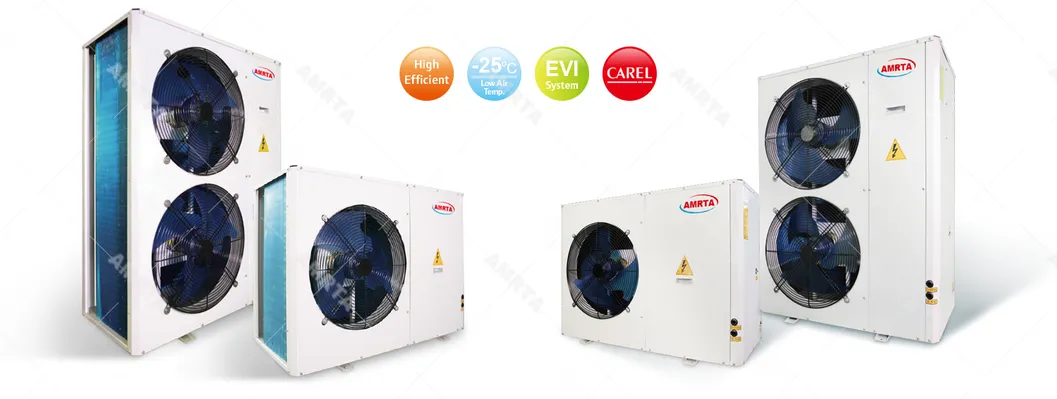

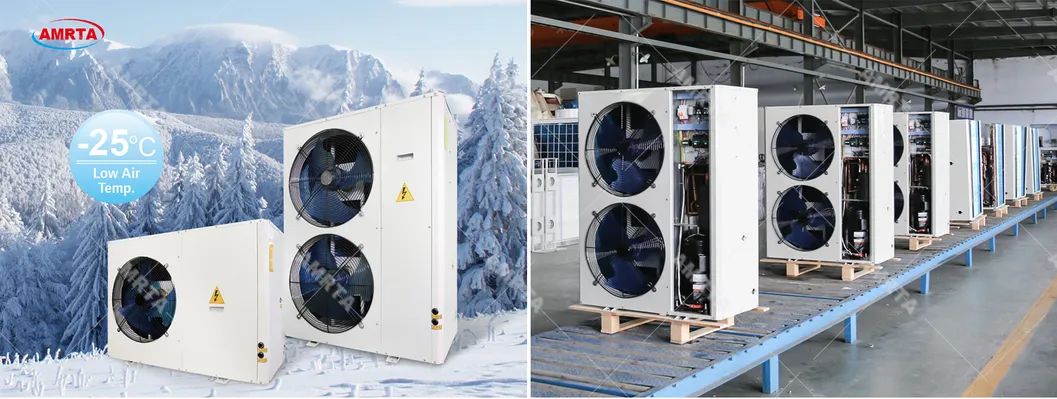

Production Process & Unit Gallery

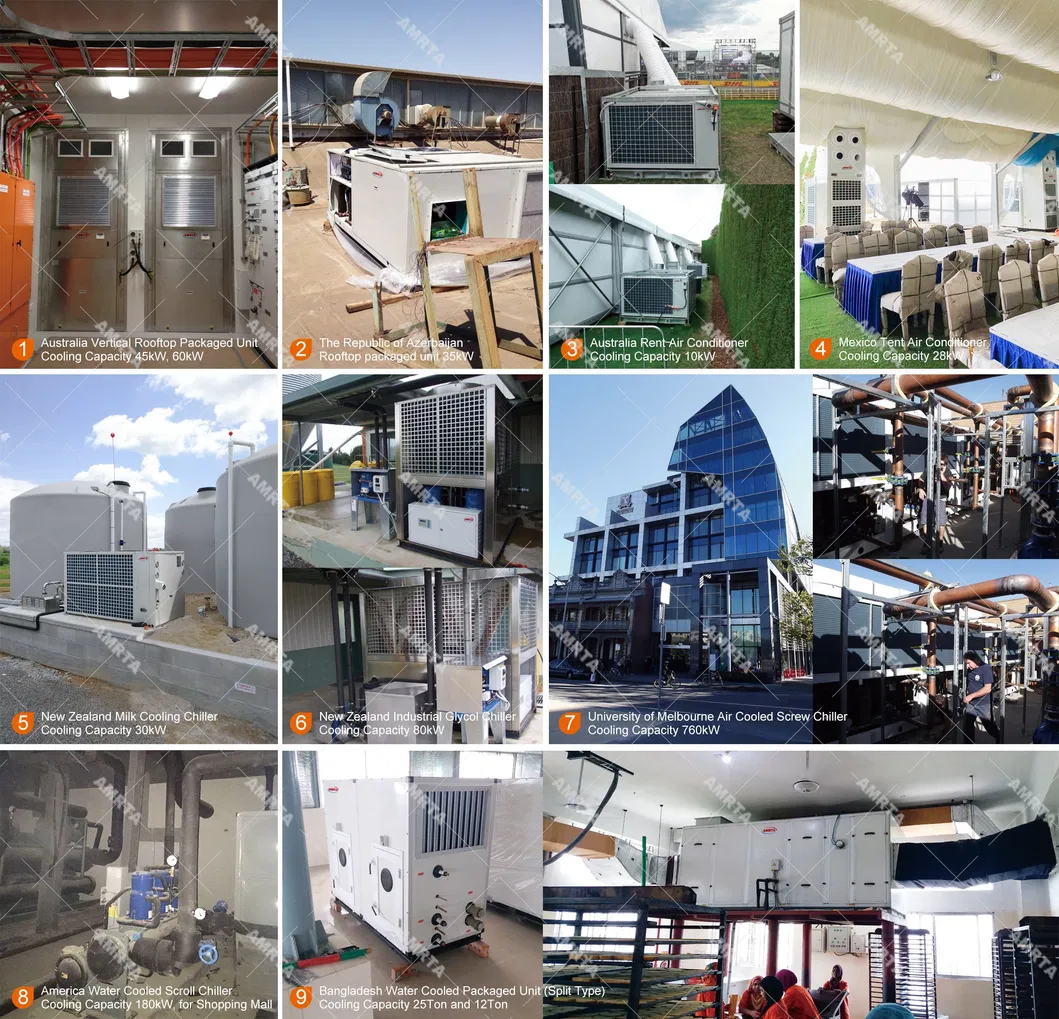

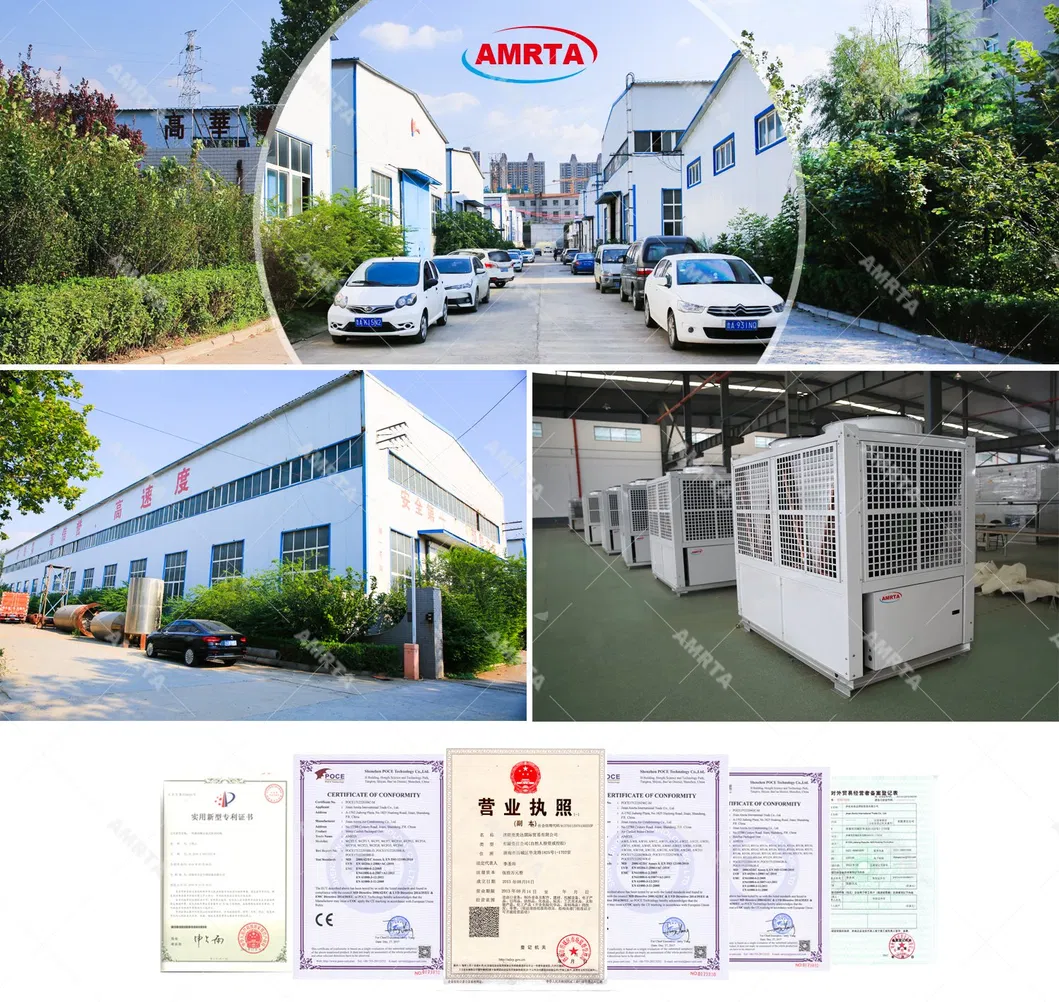

Factory Overview & Global Projects

Frequently Asked Questions

What is the minimum operating temperature for this heat pump?

This EVI air source heat pump is designed for low ambient conditions and can operate effectively in temperatures as low as -25ºC.

What type of compressor is used in these units?

We use high-quality hermetic scroll type compressors (Copeland brand) equipped with crankcase heaters and thermal protection.

Can this unit be used for both heating and cooling?

Yes, the system is designed for both cooling and heating, making it suitable for year-round climate control in residential rooms.

What is the maximum water outlet temperature?

The system can achieve a maximum water outlet temperature of up to 60ºC, even in challenging ambient conditions.

What certifications do these heat pumps have?

All units in this series come with CE certification and meet China Energy Efficiency Standard Level 3.

Is the fan designed for low noise operation?

Yes, the unit uses external rotor type axial fans with 6-pole motors and plastic blades specifically engineered for low noise performance (36-49dB for indoor/ambient consideration).
