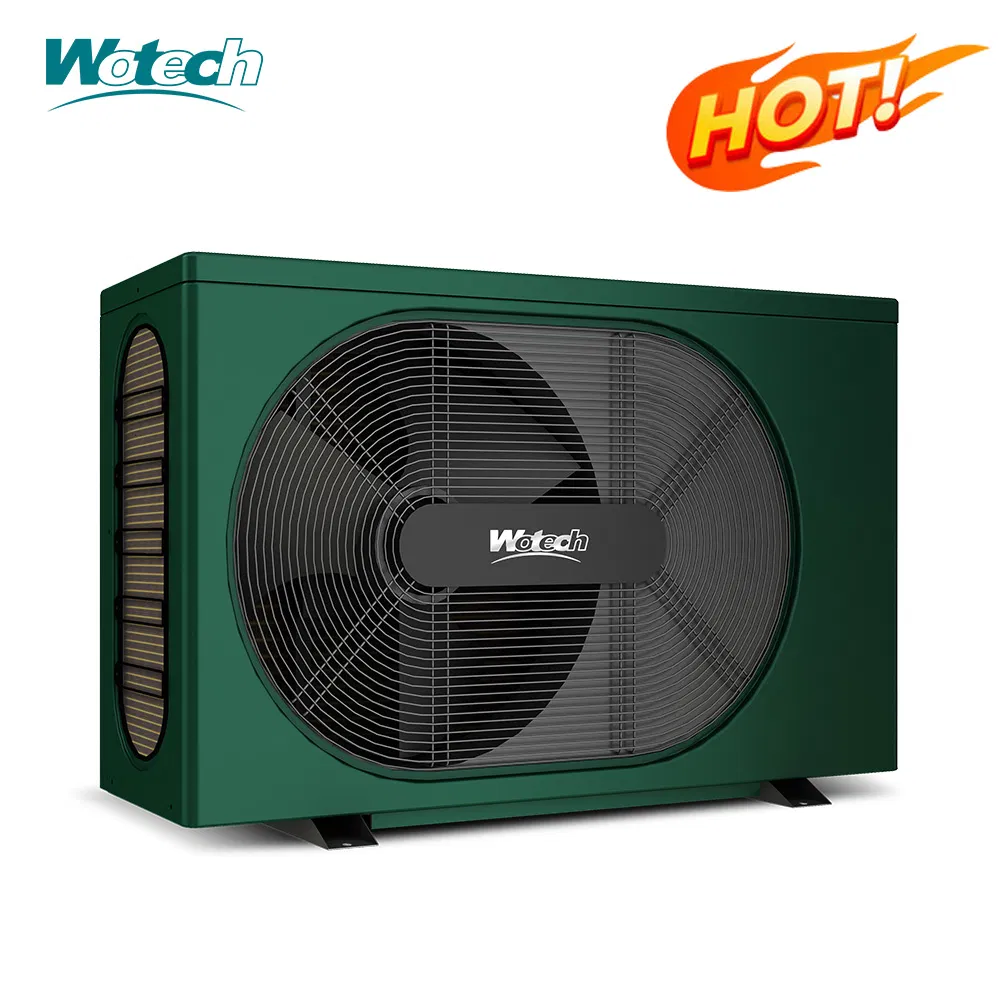

Retro Pumps
1 / 5
| CODE | WP05 | WP06 | WP08 | WP10 | WP12 | WP14 | WP17M |
|---|---|---|---|---|---|---|---|
| Advised pool size (m3) | 7~14 | 8~16 | 10~20 | 14~28 | 17~34 | 20~40 | 25~50 |
| Air 24ºC, Water 26ºC | |||||||
| Heating Capacity (KW) | 4.5 | 5.1 | 7 | 9.8 | 11.2 | 13.2 | 16.8 |
| COP | 5 | 5.15 | 5.07 | 5.08 | 5.3 | 5.35 | 5.4 |
| Air 15ºC, Water 26ºC | |||||||
| Heating Capacity (KW) | 3.65 | 3.9 | 5.2 | 7.6 | 8.7 | 10.2 | 13.5 |
| COP | 4.2 | 4.32 | 4 | 4.11 | 4.55 | 4.6 | 4.5 |
| Operating Air Temp ºC | -5~43 | ||||||
| Sound level (dB(A)) | 49 | 53 | 59 | 58 | 52 | 53 | 57 |
| CODE | WP17 | WP21 | WP26 | WP31 |
|---|---|---|---|---|
| Advised pool size (m3) | 25~55 | 30~60 | 35~70 | 45~90 |
| Air 24ºC, Water 26ºC | ||||
| Heating Capacity (KW) | 17.4 | 20.2 | 24.3 | 30 |
| COP | 5.84 | 5.98 | 5.69 | 5.71 |
| Power Supply | 380V/3PH/50HZ | |||
| Sound level (dB(A)) | 57 | 57 | 60 | 60 |

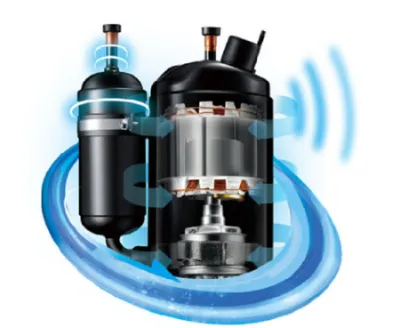

Adopt international famous brand enhanced vapor injection technology, reaching the highest level of efficiency within the air source industry. The strong kernel and high stability ensure long life and save operating costs.

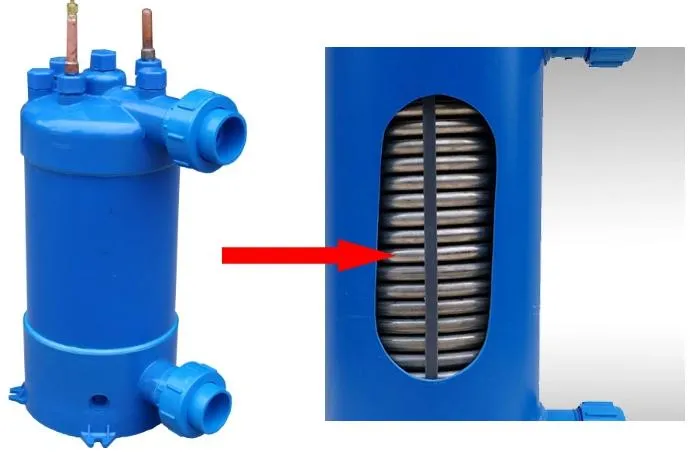

Constructed with a titanium shell and tubes, making it the perfect choice for a reliable and effective pool heater. It enables indirect heat transfer between any boiler and pool or spa circuit.

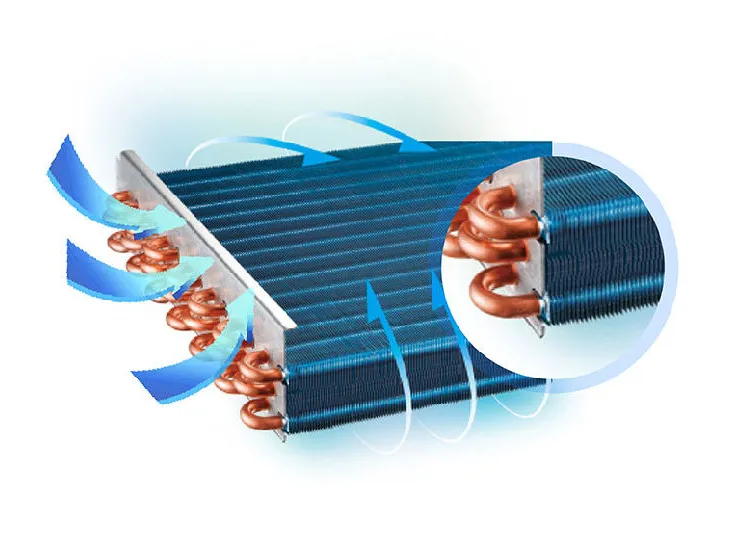

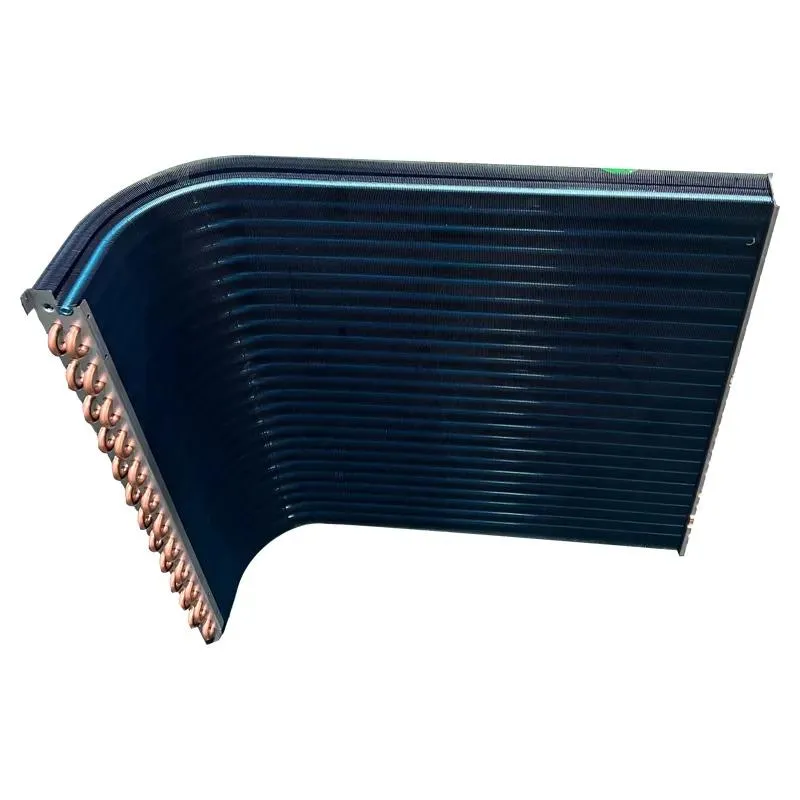

Hydrophilic concave-convex fins possess higher thermal efficiency. The corrugated structure accelerates water discharge and makes defrosting highly effective, preventing the evaporator from freezing.
Equipped with SAGINOMIYA 4-way valve for fast defrosting. The clear inner wiring connection ensures steady performance and easy maintenance.
Energy Efficiency: Air to water pool heat pumps are significantly more energy-efficient and eco-friendly than traditional heaters, offering long-term savings.
Durability: Features low maintenance requirements and a longer lifespan compared to standard electric or gas heaters.

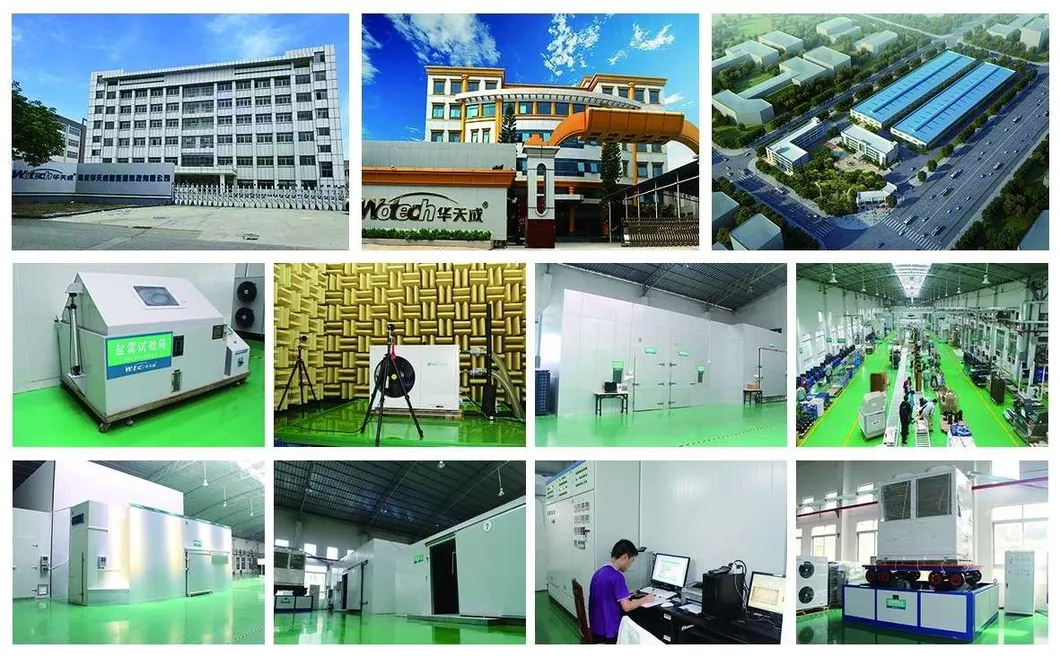

Laboratories and Manufacturing Facility:
