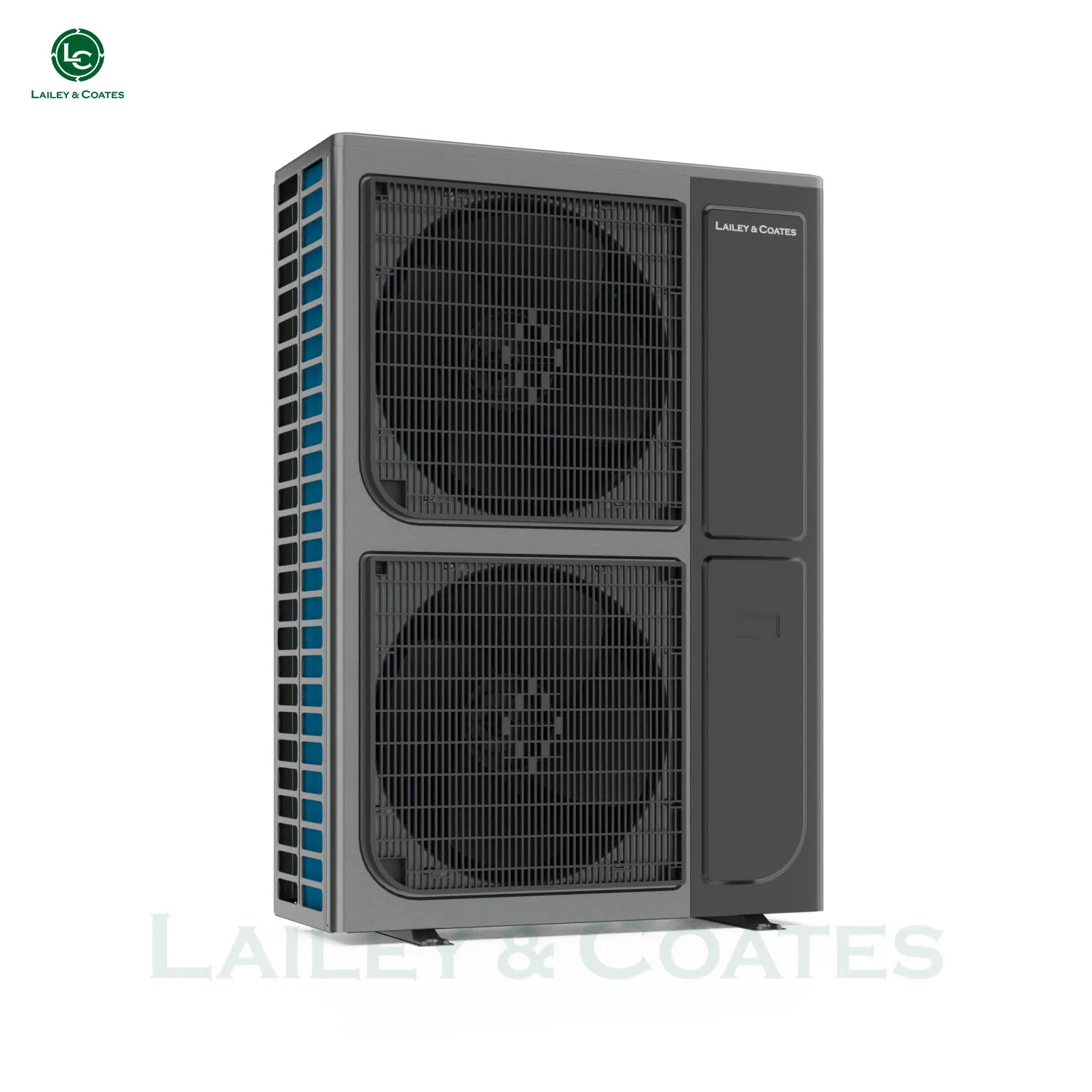

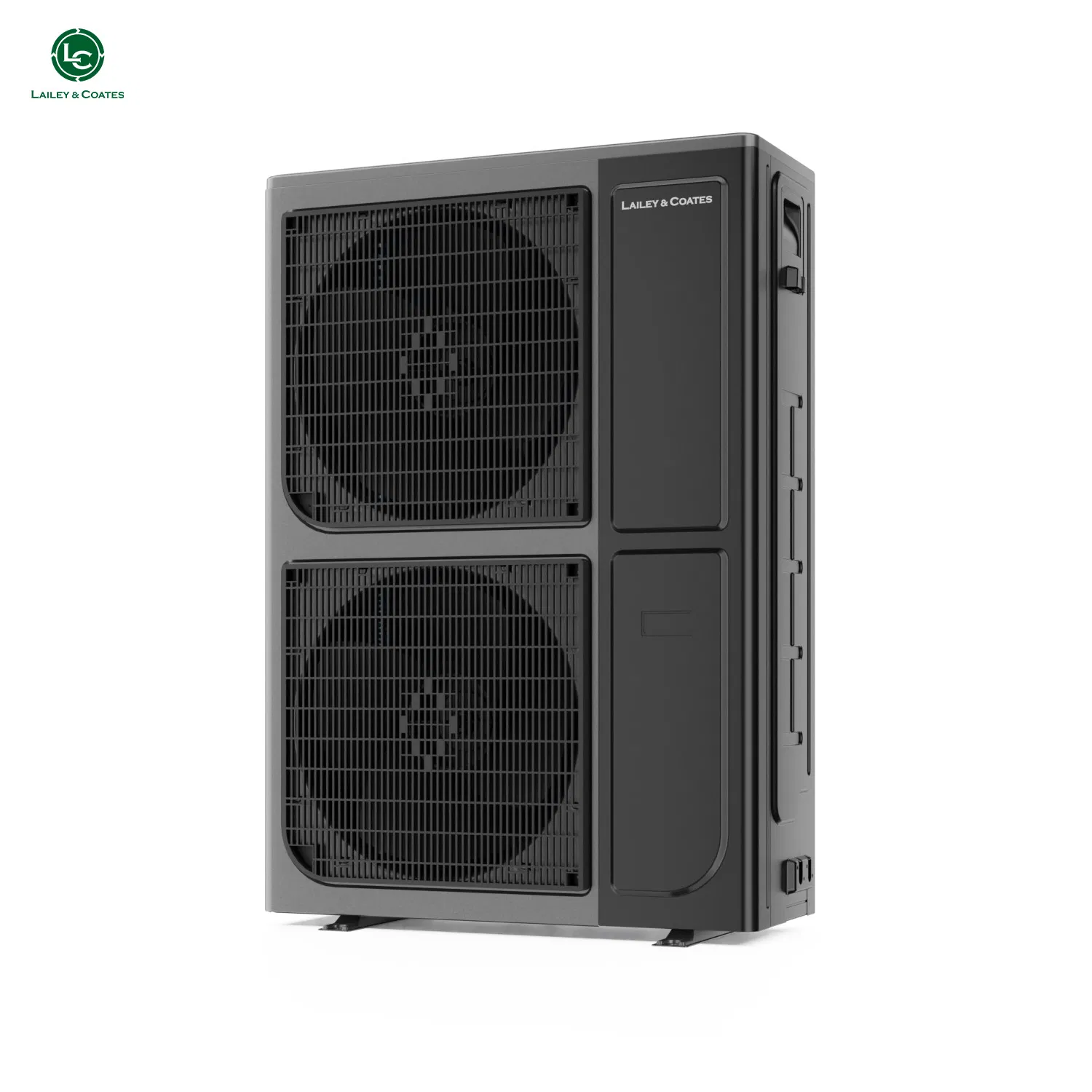

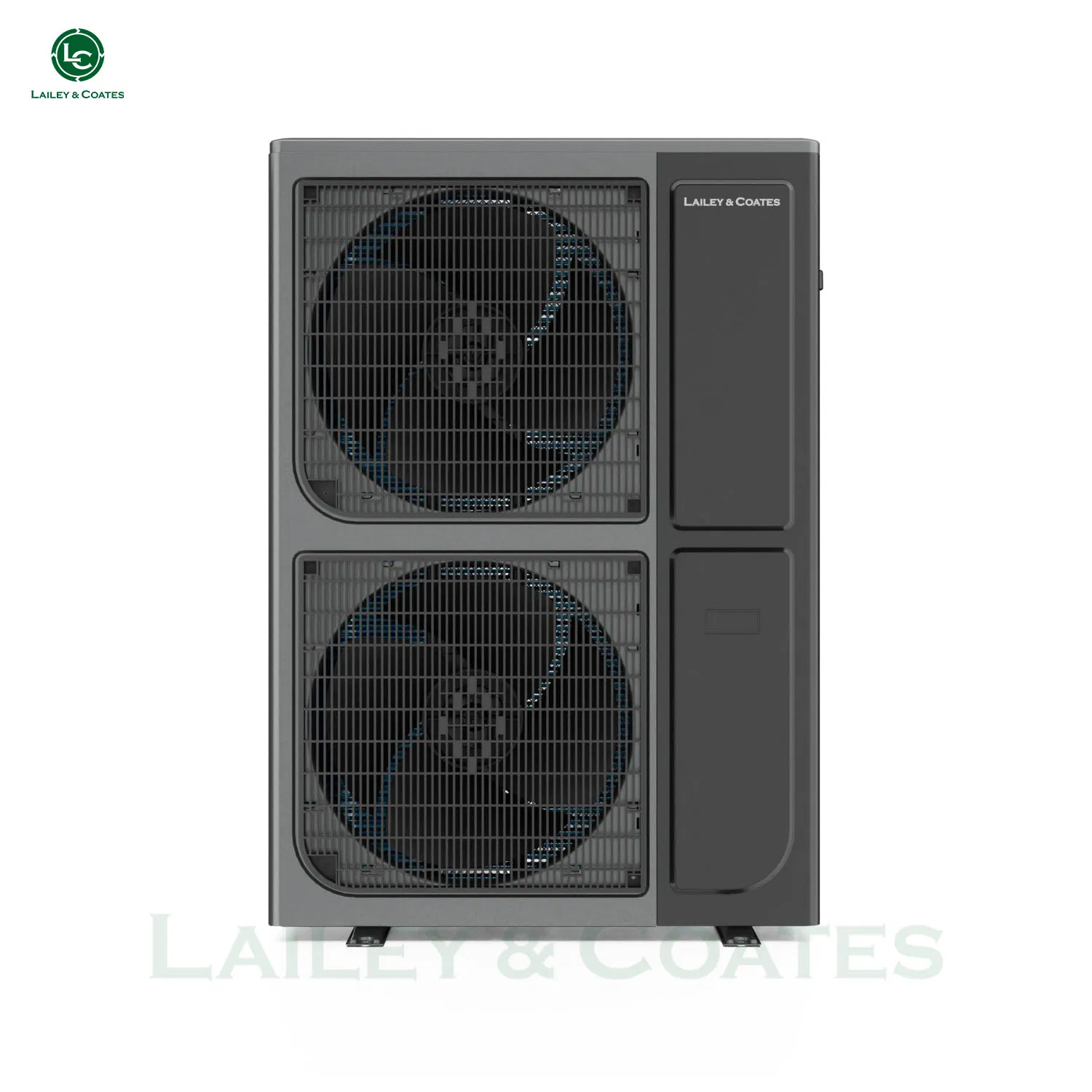

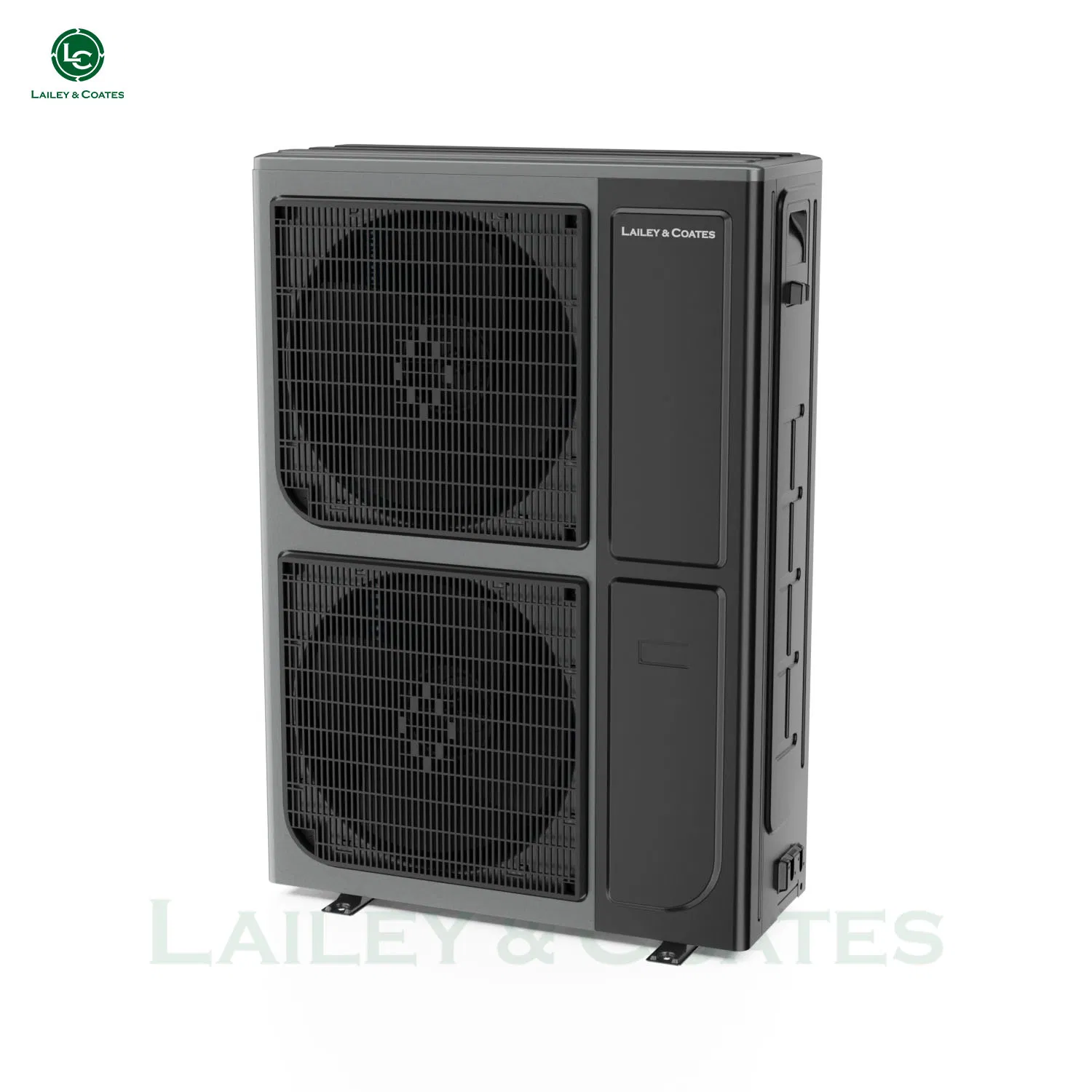

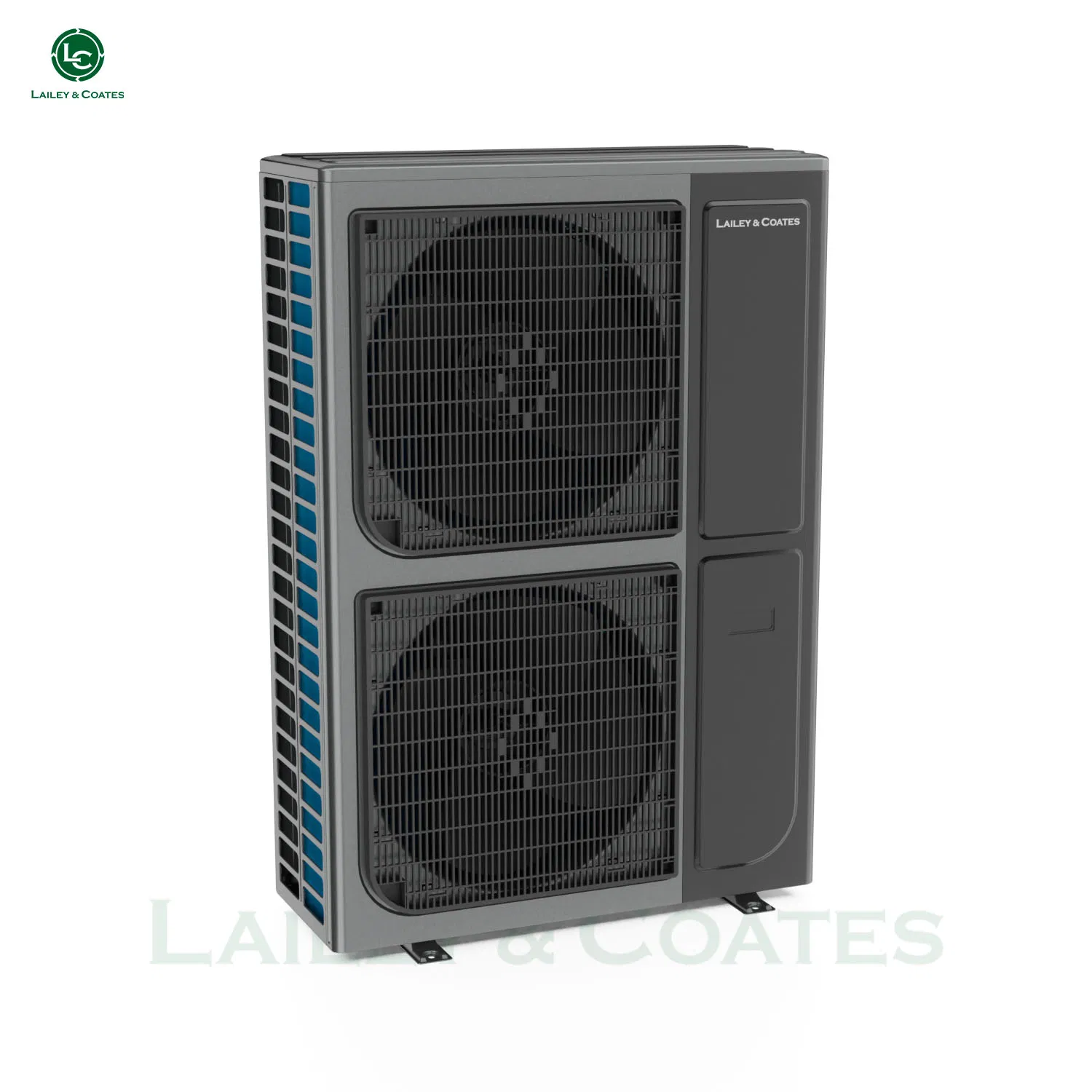

R32 Eco Friendly Split Full DC Inverter - Air to Water Monobloc / Monoblock Heat Pump System - Heating / Cooling and Hot Water

Customization: Available
Certification: SASO, RoHS, CB, CCC, ISO9001, CE
Heat Source Type: Air Source Heat Pump

Product Description

Overview
Model NO.
LCM
Refrigerant
R32
Compressor Type
DC Inverter
Wi-Fi Control
Yes
Application
House Heating/ Cooling, Domestic Hot Water
Ambient Temp(℃)
-10~43
Heat Exchanger
Titanium
Heating Capacity
2.7-5 Kw
Production Capacity
50000/Year
Product Description
KEY FEATURES
  • High efficiency A+++ ErP energy label
  • Fully MCS approved
  • User-friendly British engineering
  • Wi-Fi remote control with APP
  • Automatic software update via internet
  • Touch screen controller
  • Energy monitoring system
  • Eco-friendly R32 Gas
  • 7, 10, 15, 20kW range
  • Low noise DC fans
  • Vacation & Anti-legionella mode
  • Weather compensation technology
R32 Inverter Heat Pump
Technical Parameters
Description Air Temp (ºC) Water Temp (ºC) LCM-60R LCM-100R LCM-150R LCM-180R
Heating Capacity (kW) 7/6 35 7.15 10.94 15.40 20.18
COP (W/W) 7/6 35 4.93 5.01 4.73 4.79
Cooling Capacity (kW) 35/24 18 7.29 10.52 14.37 18.40
EER (W/W) 35/24 18 4.60 4.20 4.04 3.75
Sound Pressure Level [dB (A)] 47 48 50 51
Net Weight (kg) 75 86 106 128
Detailed Photos & Technology
PRODUCT IMAGES & COMPONENTS

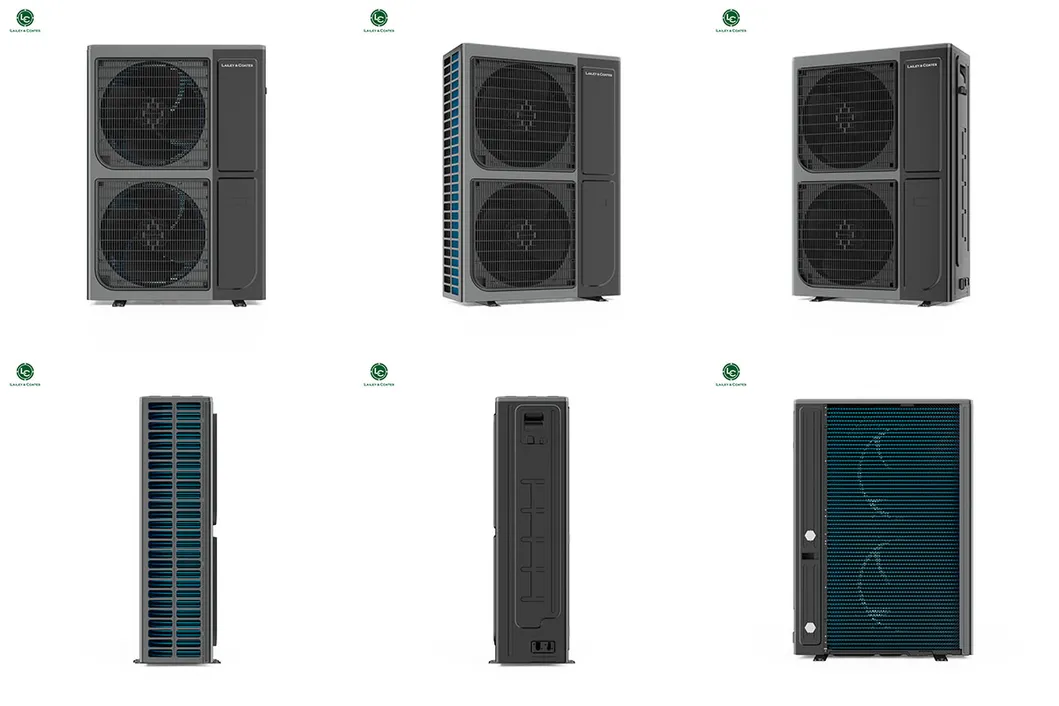

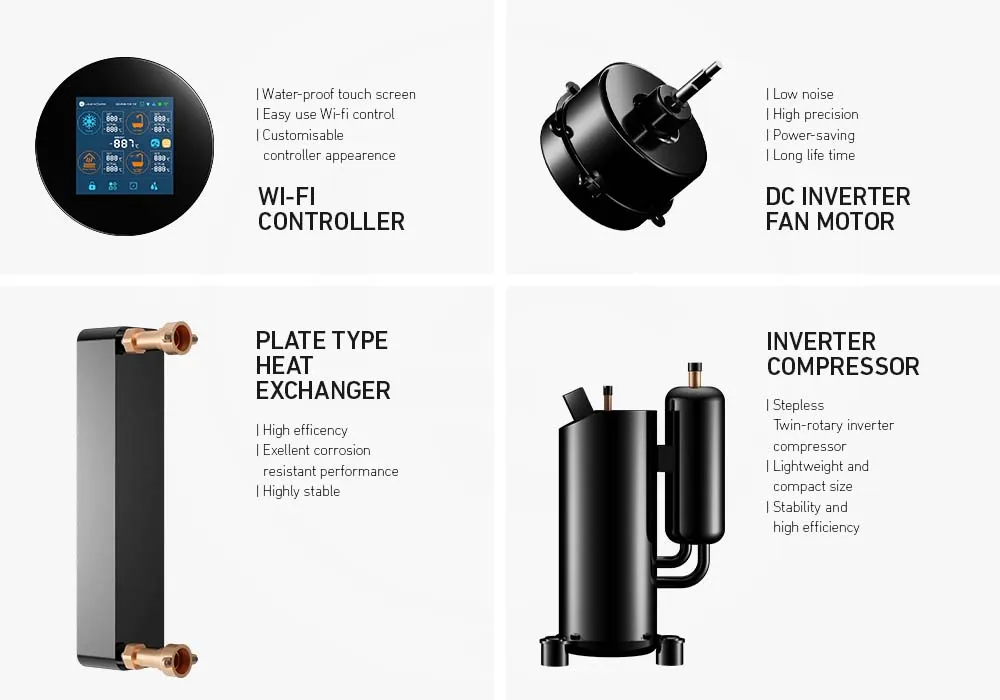

Heat Pump Exterior Internal Components

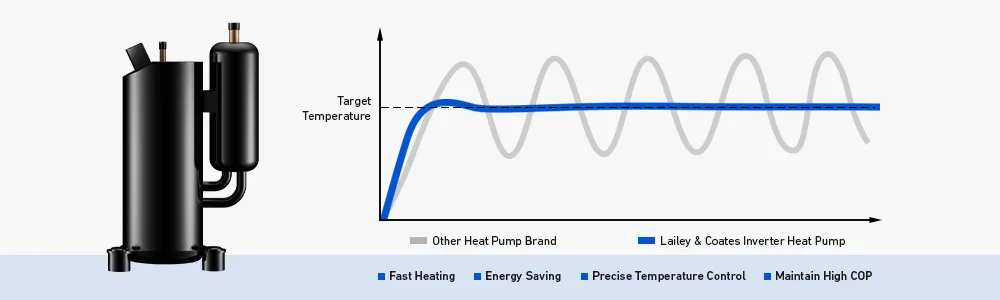

ADVANCED INVERTER TECHNOLOGY

Utilizing synergy between improved compressors and inverter technology to maximize energy efficiency and cost-savings.

Inverter Tech
A+++ ENERGY RATING & R32 GAS

Specially developed for stability and quietness. The R32 green gas ensures the unit runs at higher efficiencies with minimal environmental impact.

Energy Label R32 Gas Info
SMART CONTROL & QUIET OPERATION

DC brushless fans enable quiet running at 47dB(A). Full In-App control via Wi-Fi/4G/5G allows management from anywhere.

Quiet Running App Control
Company Profile

We are a British background OEM heat pump manufacturer with over 10 years of R&D experience. Our technical team consists of highly experienced engineers dedicated to energy-efficient solutions. We hold ISO9001 and ISO45001 certifications and have been recognized as a high-tech enterprise for our industrial growth.

Our product range includes DC inverter heat pumps, air source hot water heaters, and swimming pool heat pumps, all produced to EN14511 standards with CE, CB, SAA, RoHS, TUV, and ERP certification.

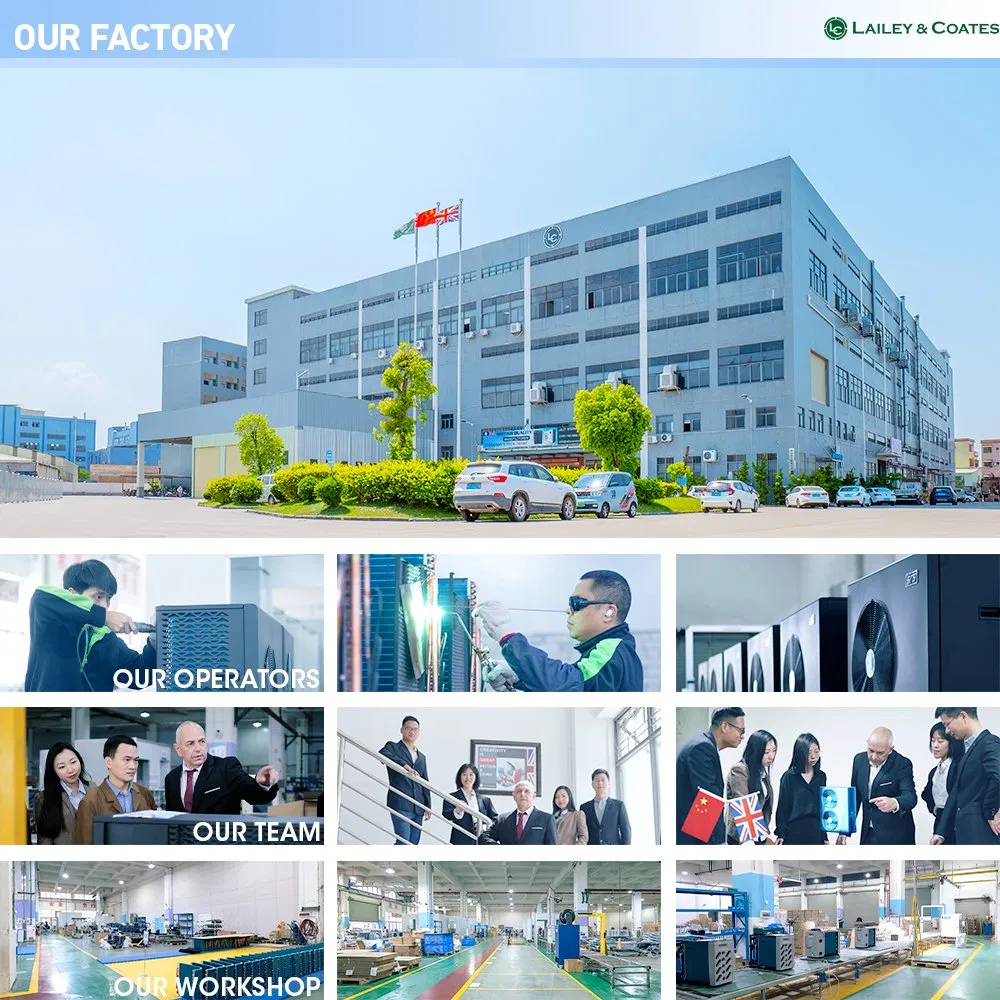

Factory Overview
Certifications
Logistics & Service
Delivery Time
Within 35 days after deposit
Payment Terms
L/C, T/T, D/P available
Warranty
3-year guarantee with free spare parts
Frequently Asked Questions
What are the strengths of your company?
We are a British-owned manufacturing entity offering products that combine excellent British quality standards with competitive manufacturing pricing.
How do you guarantee product quality?
Every single heat pump undergoes a full rigorous testing protocol before being packaged and dispatched.
Do you accept OEM & ODM orders?
Yes. We can produce standard products under your brand, modify existing designs, or collaborate to develop entirely new products based on your requirements.
What are the main functions of these heat pumps?
They provide heating in winter, cooling in summer, and domestic hot water, all manageable via Wi-Fi smart control.
What kind of support do you offer to your clients?
We provide certification assistance, technical manuals, customized marketing materials, and industry-leading news release resources for local promotion.
How long has your company been in this industry?
We have more than 10 years of specialized experience in heat pump R&D and manufacturing.
