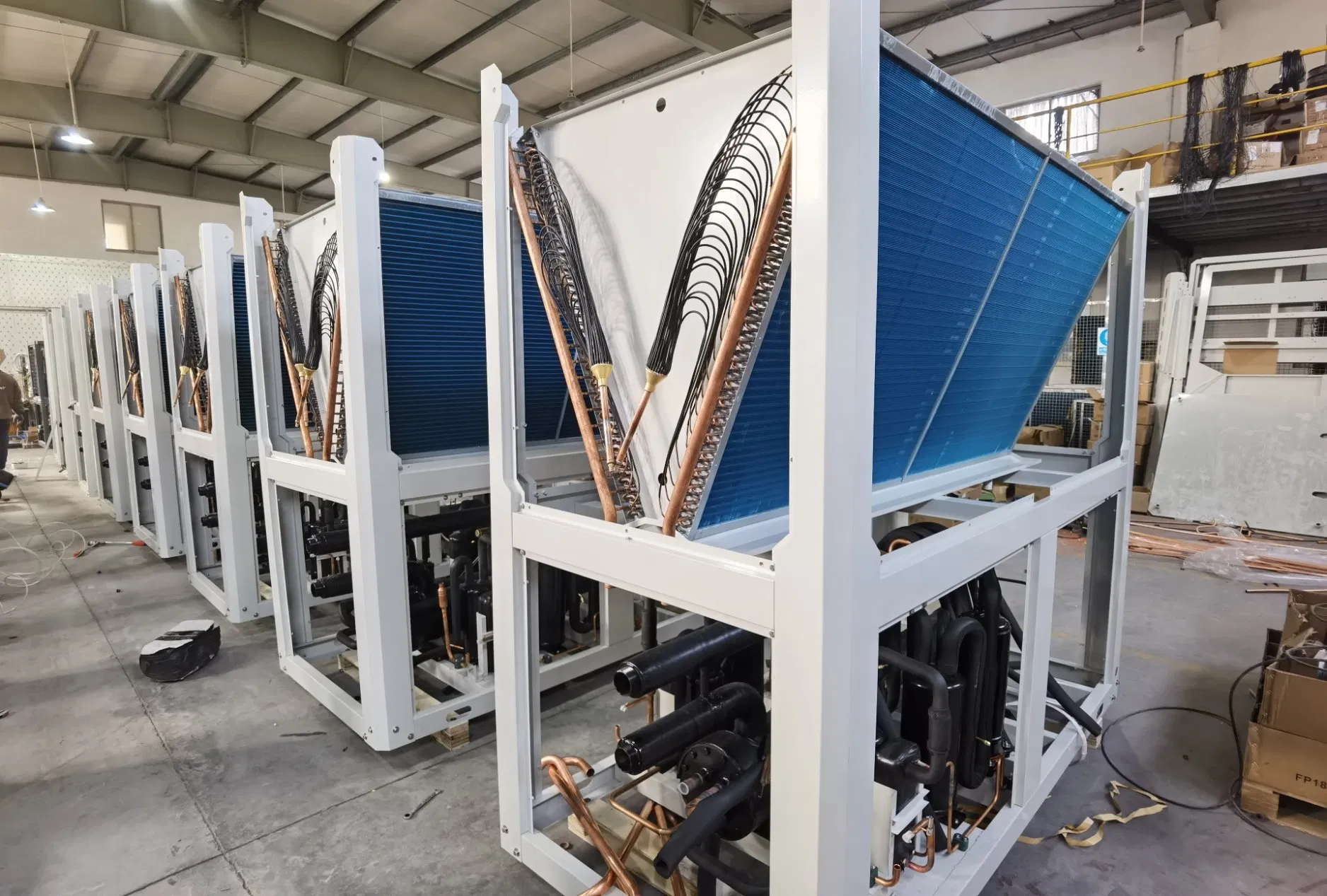

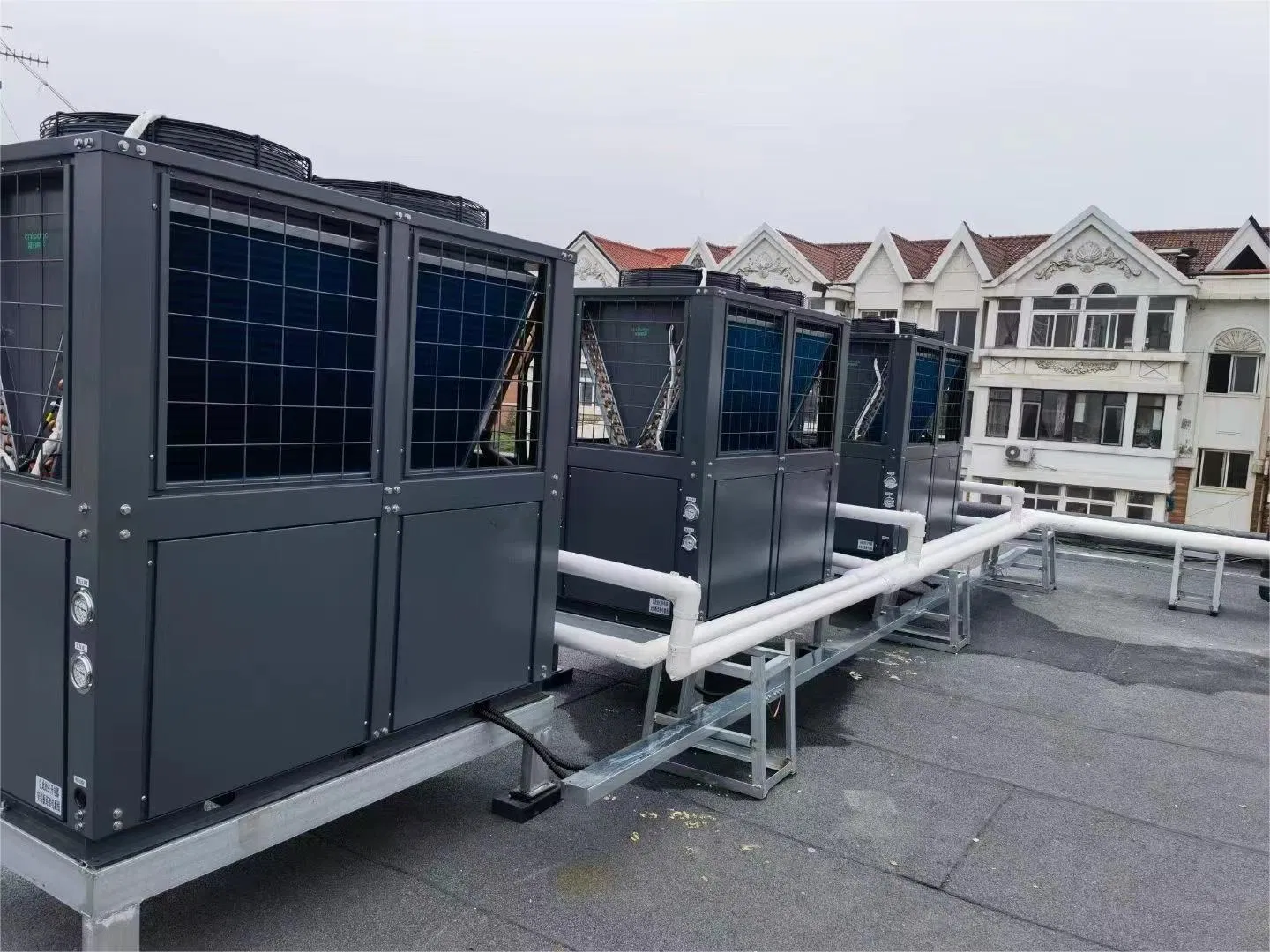

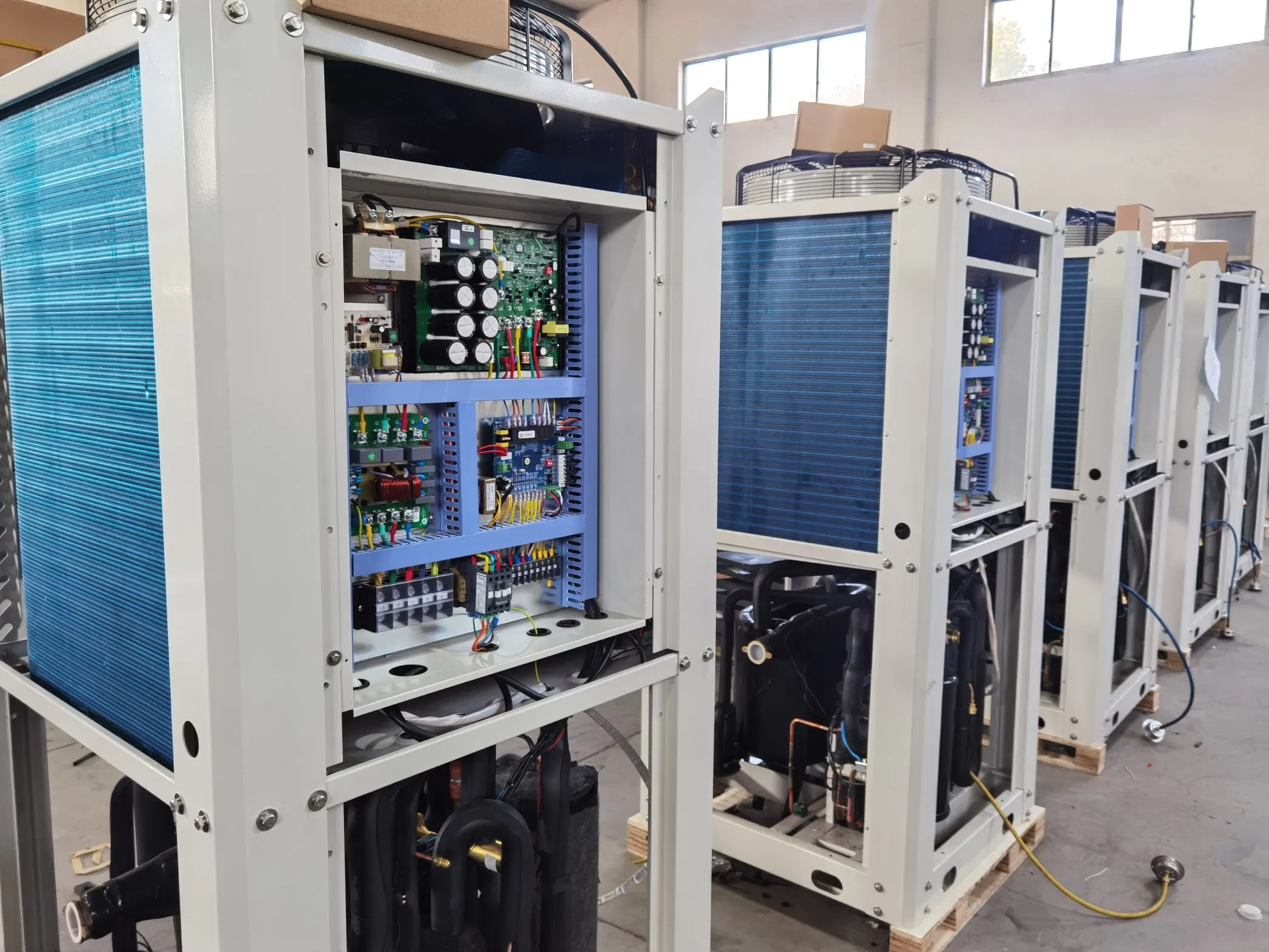

R32 Eco-Friendly Evi Commercial DC Inverter Air to Water Heat Pump

📊 Basic Information

Model:DFC160II/BPN

Heat Source:Air Source Heat Pump

Compressor:Mitsubishi DC Inverter

Refrigerant:R32

Modbus:Yes

Master-Slave:Yes

WiFi:Option

Capacity:164KW

⚙️ Product Highlights

Commercial EVI DC Inverter Air source heat pump for HEATING + COOLING
• Mitsubishi DC Inverter compressor & R32 refrigerant
• Maximum water output temperature: 60°C
• Lowest working ambient temperature: -35°C

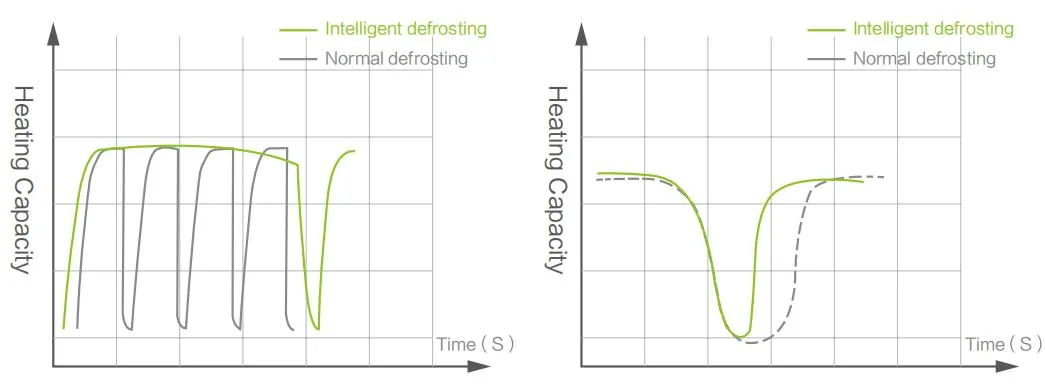

✔Intelligent Defrosting Technology: Accurately judges defrosting timing based on operating parameters and load changes to minimize heating attenuation and ensure stable indoor comfort.

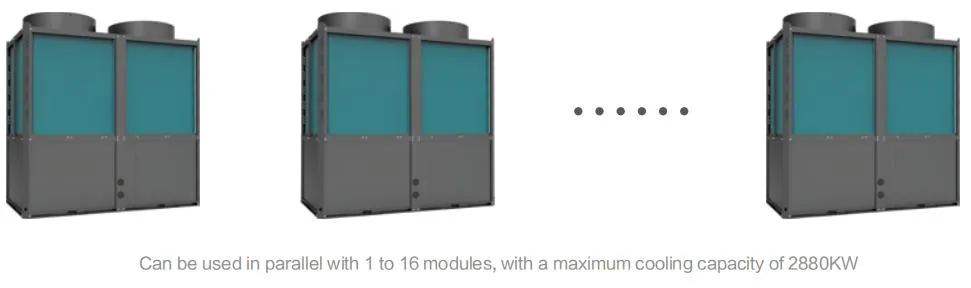

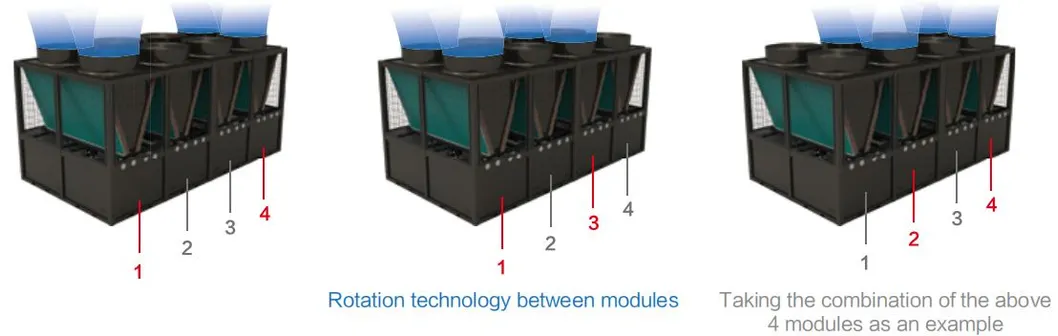

✔Modular Design: Supports parallel connection of up to 16 units. Maximum cooling capacity up to 2080kW, offering high scalability for large commercial projects.

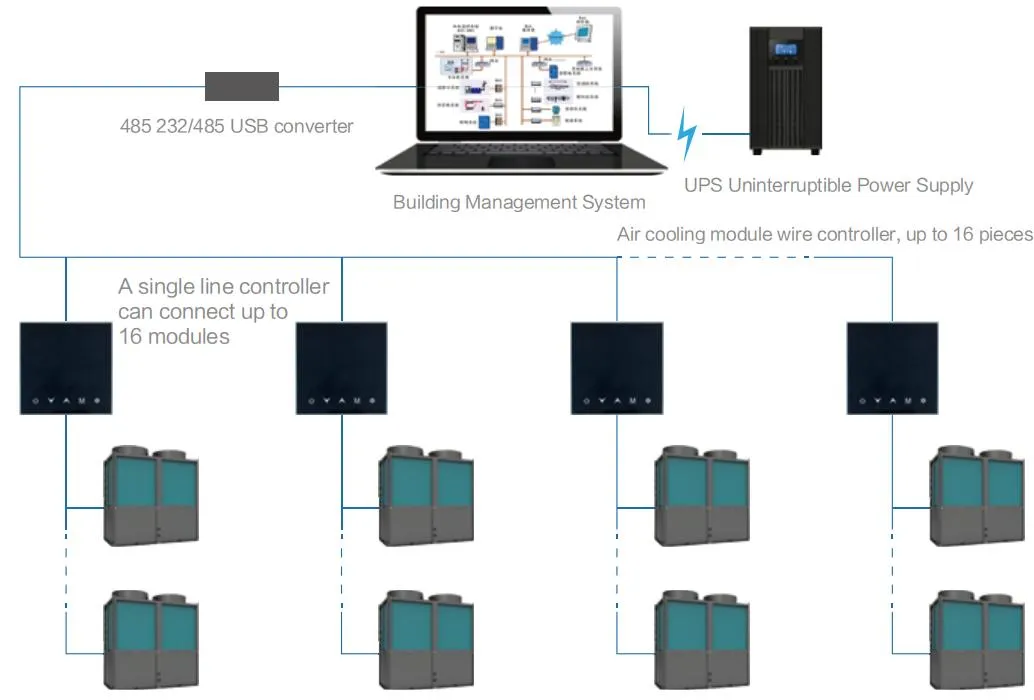

✔Smart Control & BMS: Integrated Modbus protocol for seamless connection to Building Management Systems (BMS), enabling efficient remote monitoring.

🛠️ Advanced Components

Multiple Protection: High/low pressure switches, antifreeze devices, water flow switches, and overload protection.

Sensata Pressure Sensor: Excellent precision and mechanical resistance for stringent application requirements.

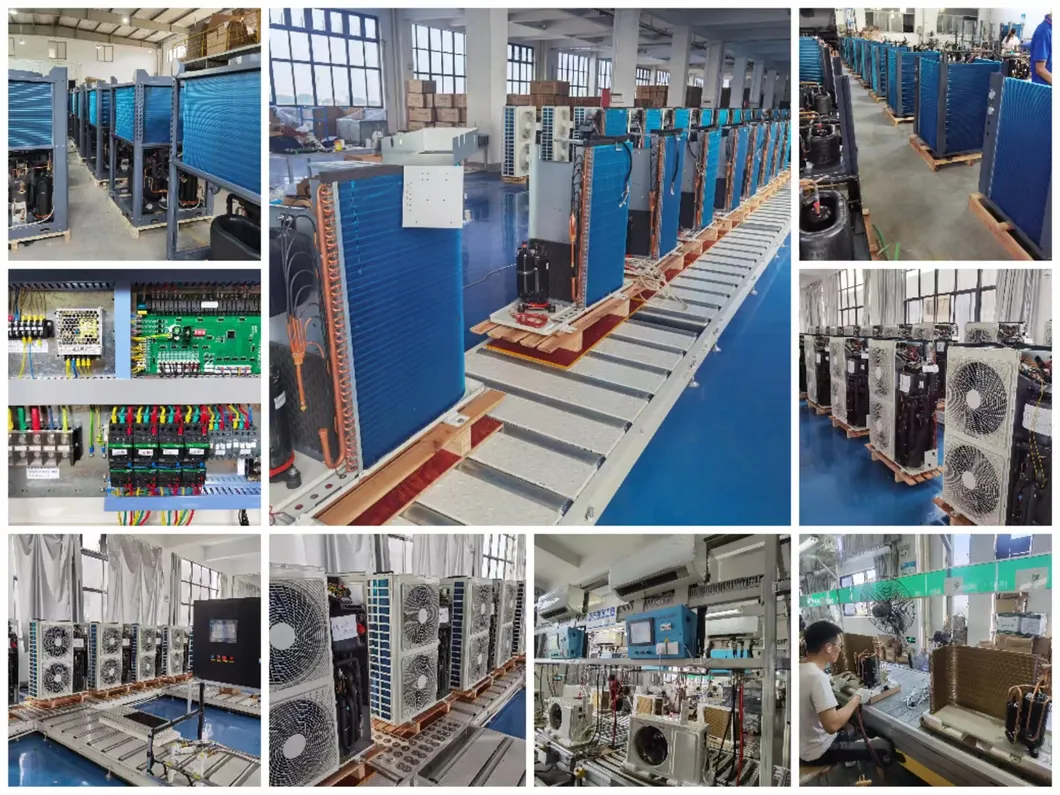

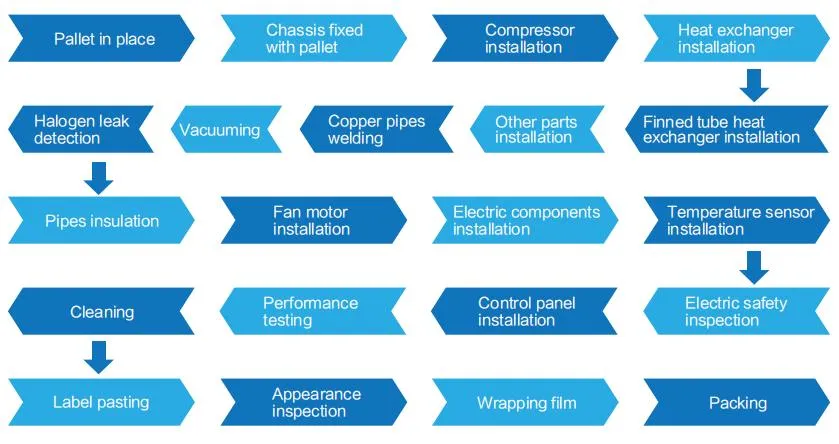

🏭 Production & Quality

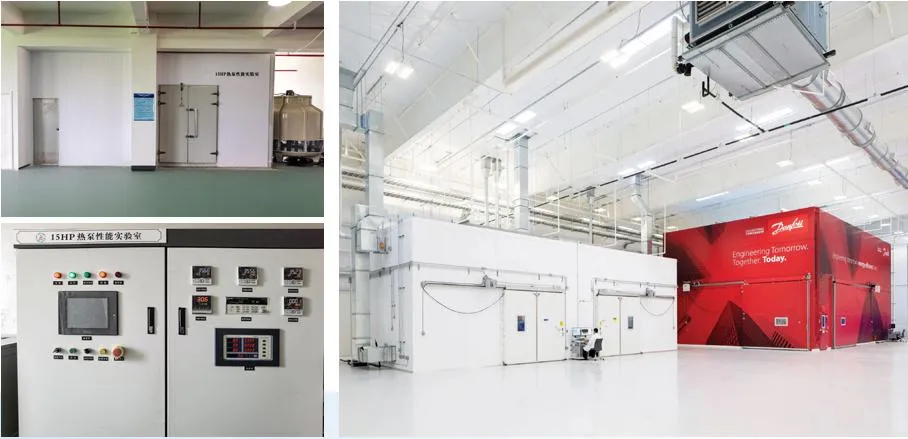

Our R&D engineers possess over 10 years of experience in the heat pump industry. We operate professional laboratories capable of testing units from -40°C to 55°C, ensuring high performance and stability.

📋 Technical Parameters

Model		DFC45II/BPN	DFC60II/BPN	DFC80II/BPN	DFC90II/BPN	DFC160II/BPN
Compressor Brand		MITSUBISHI
HorsePower		15HP	20HP	25HP	30HP	50HP
Heating (A7 W45)	Capacity (kW)	46.00	62.00	82.00	92.00	164.00
Heating (A7 W45)	COP (W/W)	3.66	3.66	3.67	3.61	3.65
Cooling (A35 W7)	Capacity (kW)	34.00	44.00	67.00	72.00	133.50
Cooling (A35 W7)	EER (W/W)	2.83	2.83	2.82	2.79	2.83
Refrigerant		R32
Ambient Temp Range		-35°C ~ 48°C
Dimensions (mm)		1035/900/2100	1190/1150/2395	2347/1100/2223	2347/1100/2223	2546/1306/2475

❓ Frequently Asked Questions

Q: What are the main advantages of Air Source Heat Pumps?

A: They offer high energy efficiency (consuming 1 unit of electricity to produce 3+ units of heat), environmental protection (no emissions), low operating costs compared to gas or electric heating, and high comfort levels with water-based systems.

Q: How does the unit perform in extremely cold climates?

A: The commercial DC Inverter units use EVI (Enhanced Vapor Injection) technology, allowing them to operate efficiently even at ambient temperatures as low as -35°C.

Q: What is the typical delivery time for orders?

A: Sample orders typically take 35-45 days after deposit; bulk orders generally take 25-40 days depending on the specifications and quantity.

Q: What kind of warranty is provided?

A: We provide a two-year warranty period from the date of shipping. During this time, we supply free spare parts for any issues caused by manufacturing defects.

Q: Can these units be integrated into existing building systems?

A: Yes, the units support the Modbus protocol, making them highly compatible with Building Management Systems (BMS) for centralized control and monitoring.

Q: What support is available for local agents?

A: Agents receive optimized pricing, priority production, technical training, marketing materials (brochure design), and timely first-hand consultation on new product developments.
