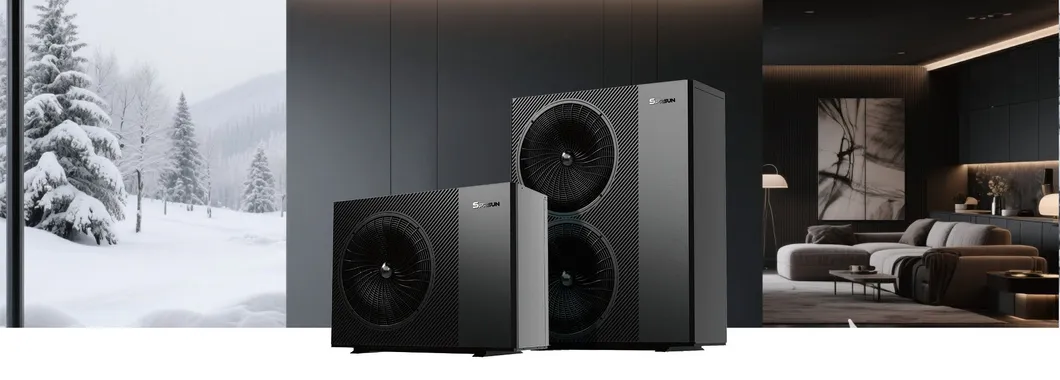

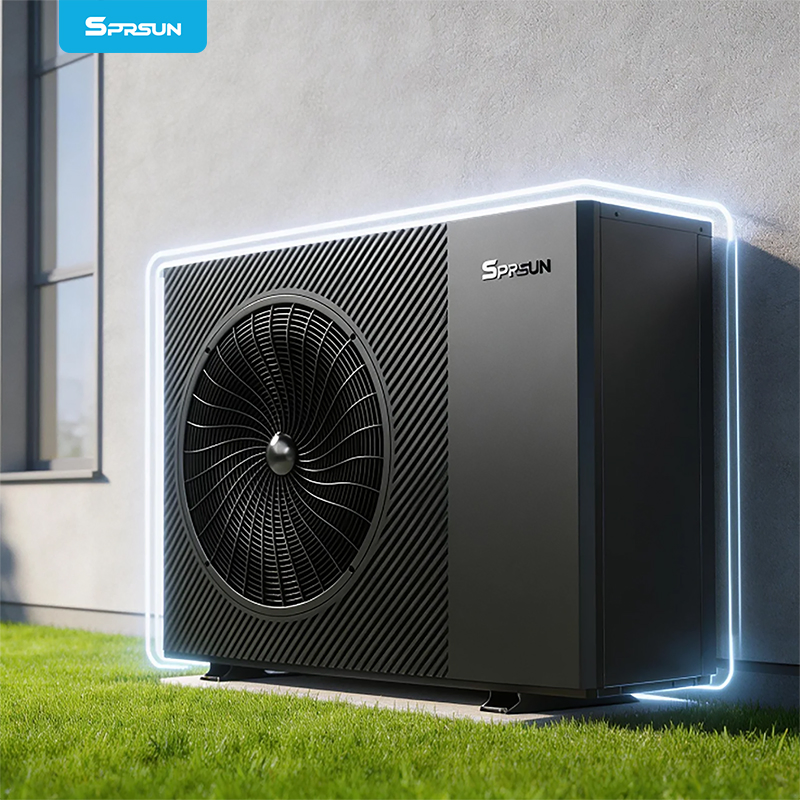

The R290 Heat Pump is engineered with a DC Inverter Compressor and DC Inverter Fan Motor to achieve maximum eco-friendliness, efficiency, and quiet operation. This versatile unit provides space heating, cooling, and domestic hot water (DHW) in a single system. It operates reliably at temperatures as low as -25ºC, delivering hot water up to 75ºC with a top energy rating of ERP A+++.

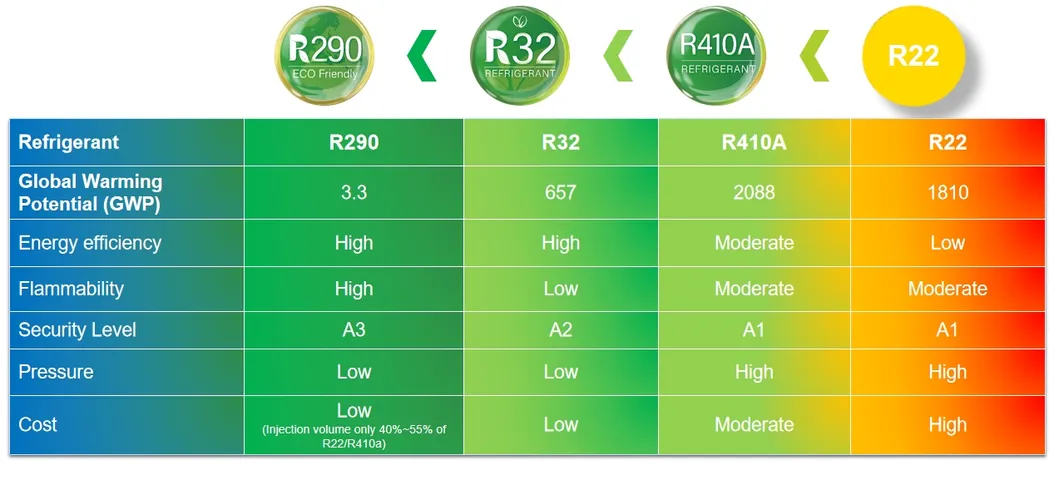

1. R290 Refrigerant - Eco-friendly
Uses R290, one of the most environmentally friendly refrigerants available. GWP ≤ 3, ODP = 0. Fully compliant with EU environmental regulations to reduce carbon footprint.
2. All-in-One Functionality
Provides heating, cooling, and 24/7 domestic hot water. It is a perfect replacement for traditional boilers, simplifying installation and reducing energy costs.
3. High Outlet Temperature (Up to 75ºC)
Advanced technology allows water temperatures up to 75ºC, suitable for radiators, fan coil units, DHW tanks, and underfloor heating.
4. ErP A+++ Energy Efficiency
Outstanding seasonal performance: ErP A+++ at 35ºC and A++ at 55ºC. Includes Smart Grid (SG) function to further reduce electricity bills.
5. Ultra-Low Noise & Wide Range
Optimized airflow and double-layer noise reduction for the compressor ensure a quiet home. Operates stably from -25ºC to 45ºC ambient temperatures.

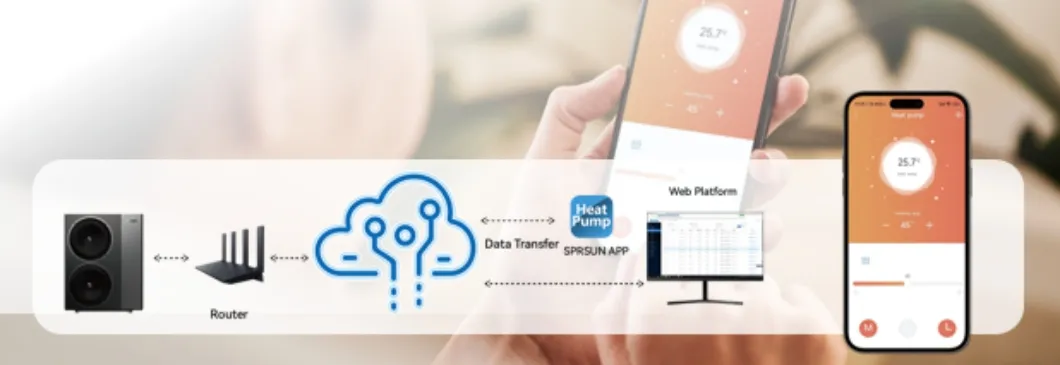

6. Smart IoT Control
Standard App control and IoT cloud connectivity allow users to monitor performance, adjust temperatures remotely, and receive intelligent alerts.
Technical Parameters (220-240V)
Model
Unit
CGK030V4P
CGK040V4P
CGK050V4P
CGK060V4P
Max. Heating Capacity (A7/W35)
kW
9.5
11.5
15.5
18.5
C.O.P (A7/W35)
W/W
4.42
4.44
4.42
4.14
Power Supply
V/Hz
220-240/50/1 - R290
Sound Power Level
dB(A)
60.7
59.8
62.1
63.2
Net Weight
kg
107
116
156
156
ErP Rating (35ºC)
-
A+++
A+++
A+++
A+++
Manufacturer Profile

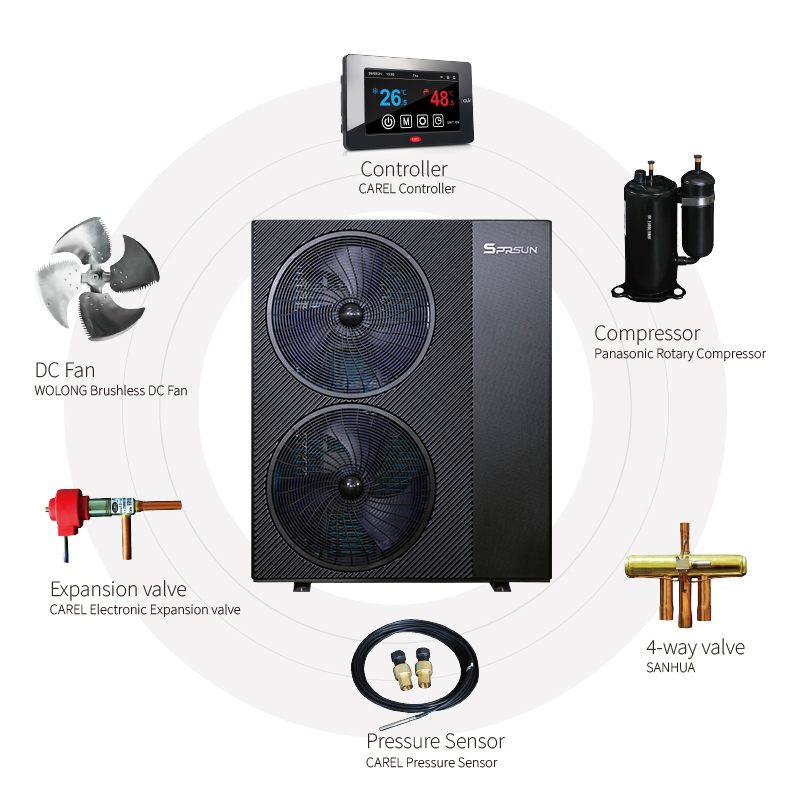

As a professional manufacturer established in 1999, the production line covers various air-to-water heat pumps, DC inverter systems, and pool heaters. All products are manufactured in accordance with the EN14511 standard and carry prestigious certifications including MCS, TUV, ERP, CE, and Keymark. By cooperating with global leaders like Panasonic, CAREL, and Grundfos, the highest level of component reliability is guaranteed.
Frequently Asked Questions
What is the advantage of using R290 refrigerant?R290 is a natural refrigerant with extremely low Global Warming Potential (GWP ≤ 3) and zero Ozone Depletion Potential (ODP), making it highly eco-friendly and compliant with future EU regulations.
Can this heat pump operate in extreme cold?Yes, the system is engineered to work stably in ambient temperatures as low as -25ºC, ensuring reliable heating even in freezing winters.
What is the maximum water temperature the unit can provide?With advanced system technology, it can deliver hot water up to 75ºC, making it ideal for both domestic hot water and radiator-based heating systems.
Does the unit support remote monitoring?Yes, all models come with standard App control and IoT cloud connectivity for real-time monitoring and adjustments from anywhere.
How energy-efficient is this system?The product achieves the highest ErP rating of A+++ at 35ºC outlet water temperature, ensuring very low operating costs for homeowners.
Is the unit quiet enough for residential areas?Absolutely. It features optimized airflow design and double-layer compressor insulation, resulting in ultra-low noise performance that is perfect for home environments.
